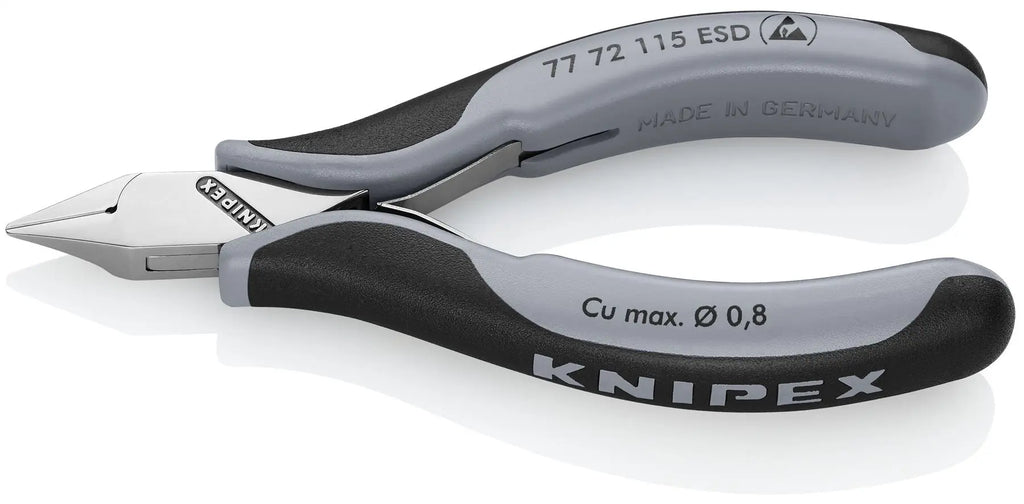

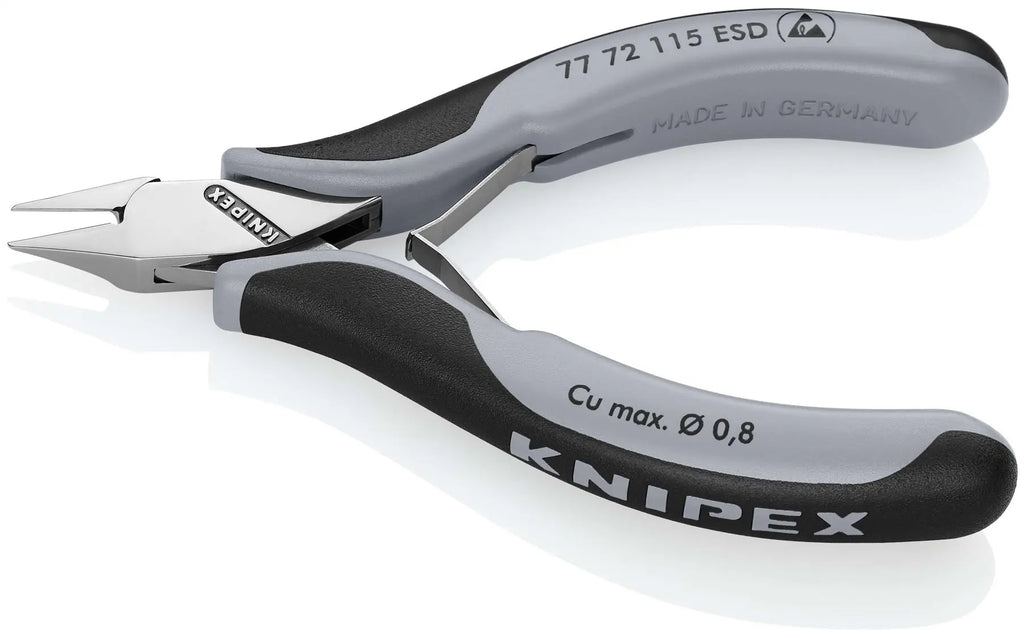

KNIPEX Electronics Diagonal Side Cutting Pliers with Box Joint 77 72 115 ESD
77 72 115 ESD Electronics Diagonal Cutters ESD
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for smooth and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. pointed mini-head, with small bevel.
Cutting capacities soft wire (diameter): Ø 0.3 – 0.8 mm
Jaw length (B): 10.5 mm
Jaw thickness (joint) (D): 6 mm
Head width (A): 11 mm
ESD: yes
Technical Information:
- Load-optimised for a more direct feel when working
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC
