Description

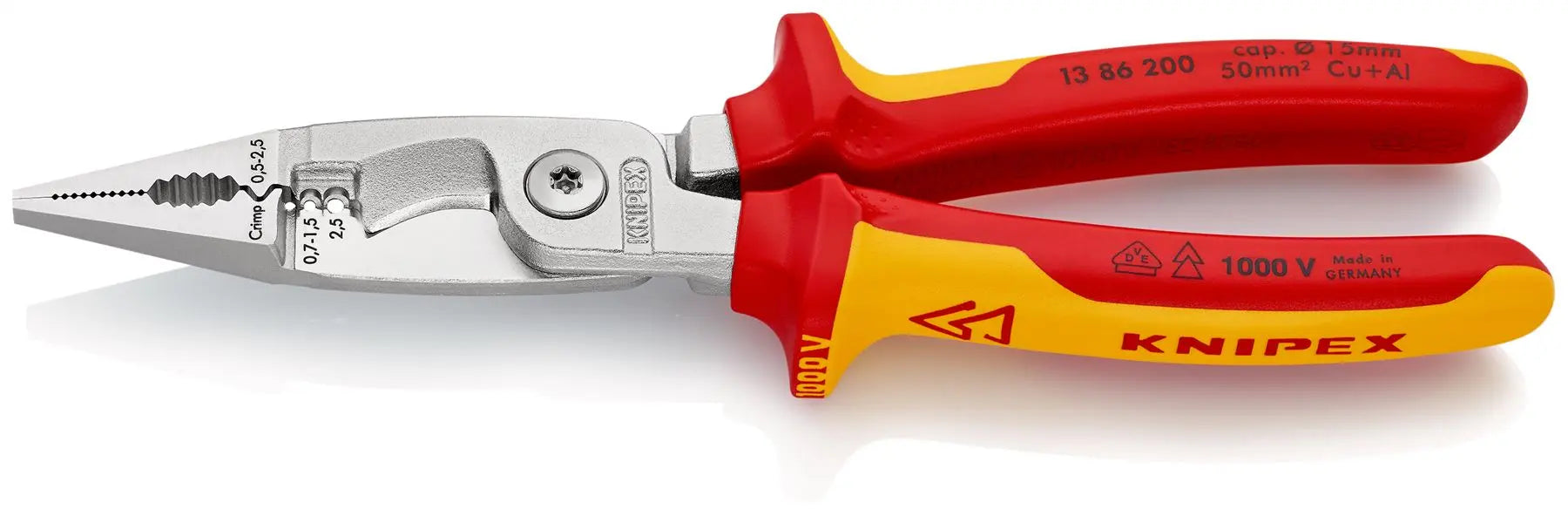

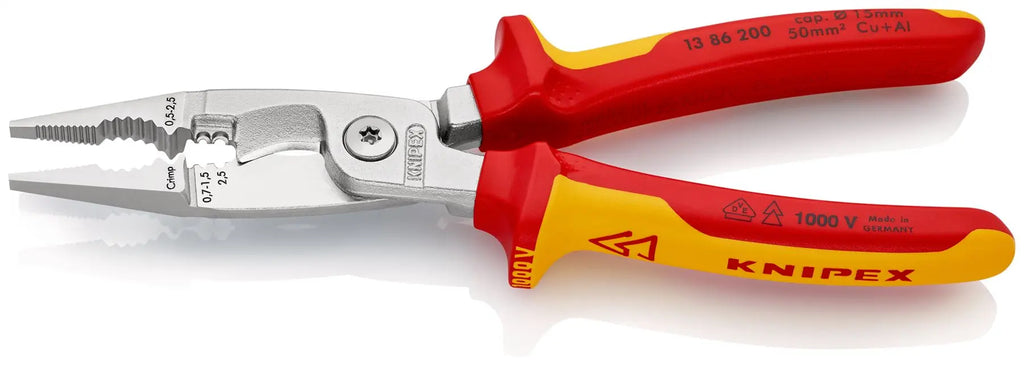

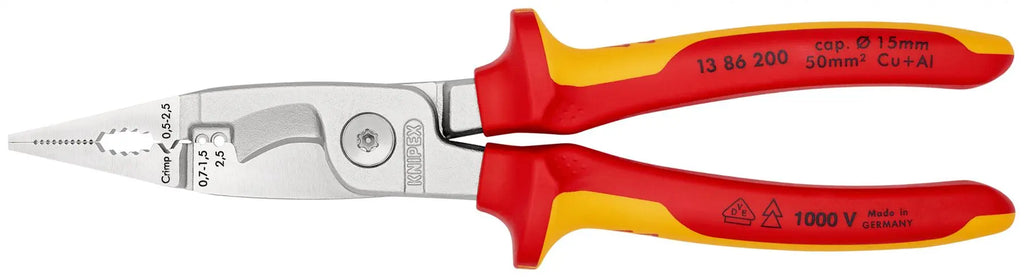

KNIPEX Pliers for Electrical Installation 200mm VDE Insulated 13 86 200
13 86 200 Pliers for Electrical Installation

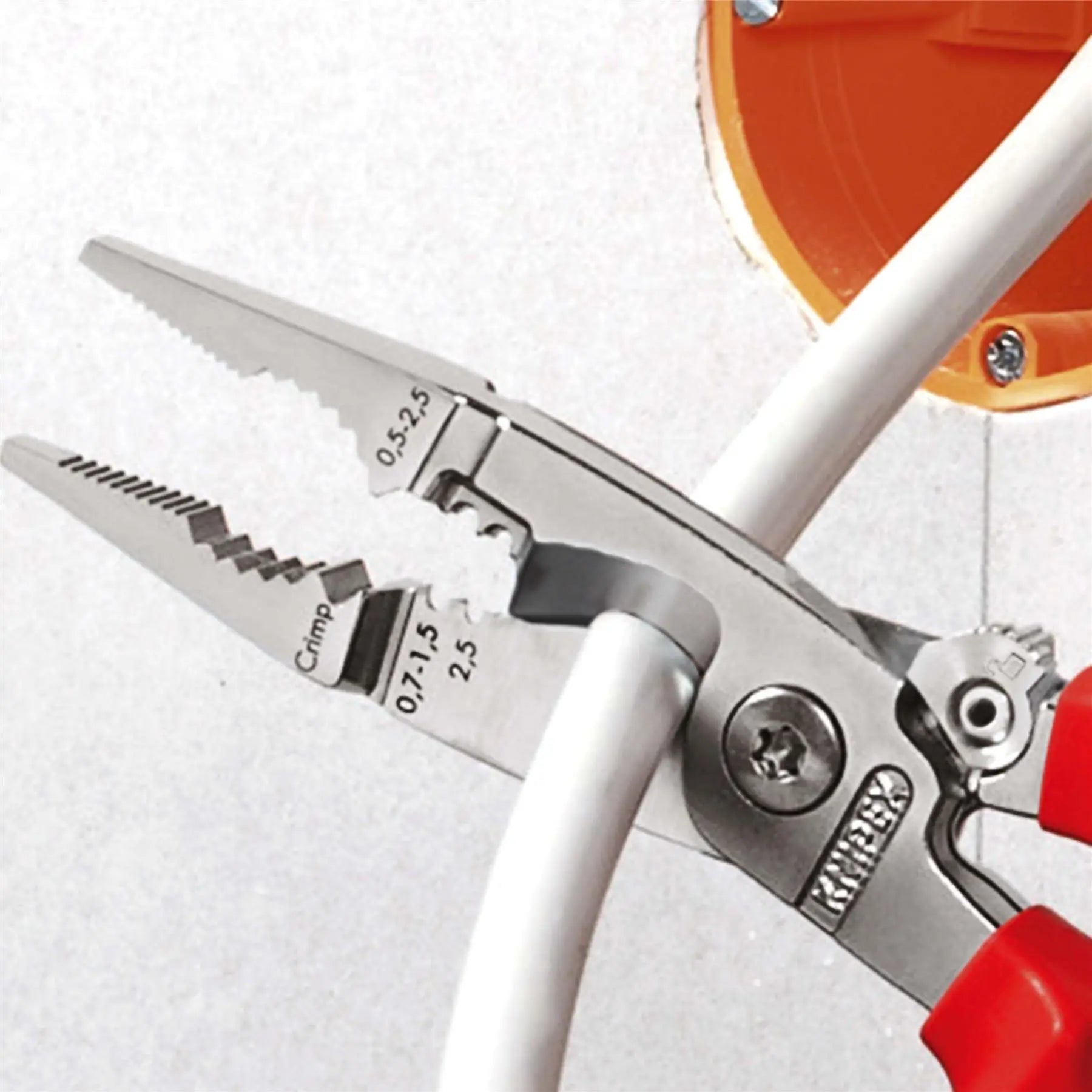

6 functions in one pair of pliers. to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm². Crimping die for wire ferrules 0.5 - 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm. Slim dimensions for easy access. Bolted joint: precise, zero backlash operation of pliers. VDE-tested safety up to 1000 volts.
Technical Information:
- serrated gripping surfaces and pipe grip for gripping flat and round material
- bolted joint: precise, zero backlash operation of pliers
- cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
- Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes

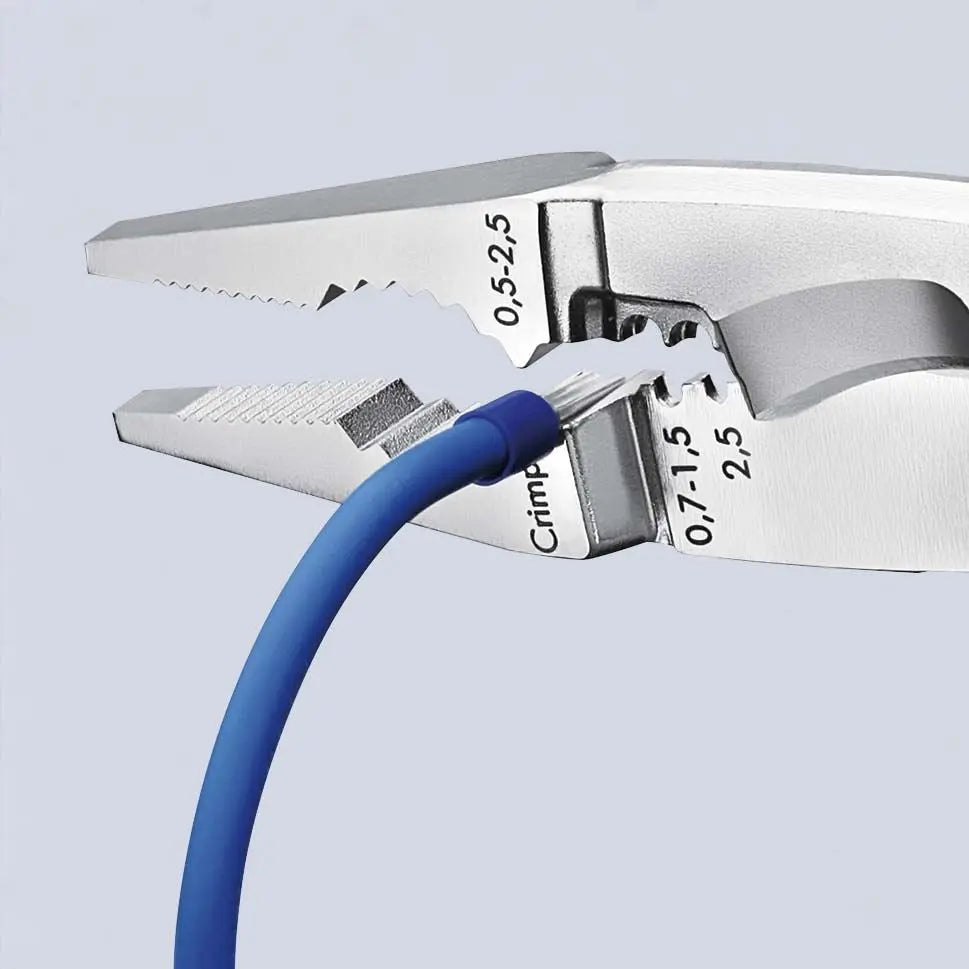

- Crimping die for wire ferrules 0.5 - 2.5 mm²
- slim dimensions for easy access
- smooth surfaces near the tips grip single cores without damaging them
- stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
- VDE-tested safety up to 1000 volts
Downloadable Files:
- Data Sheet: View Here
