Description

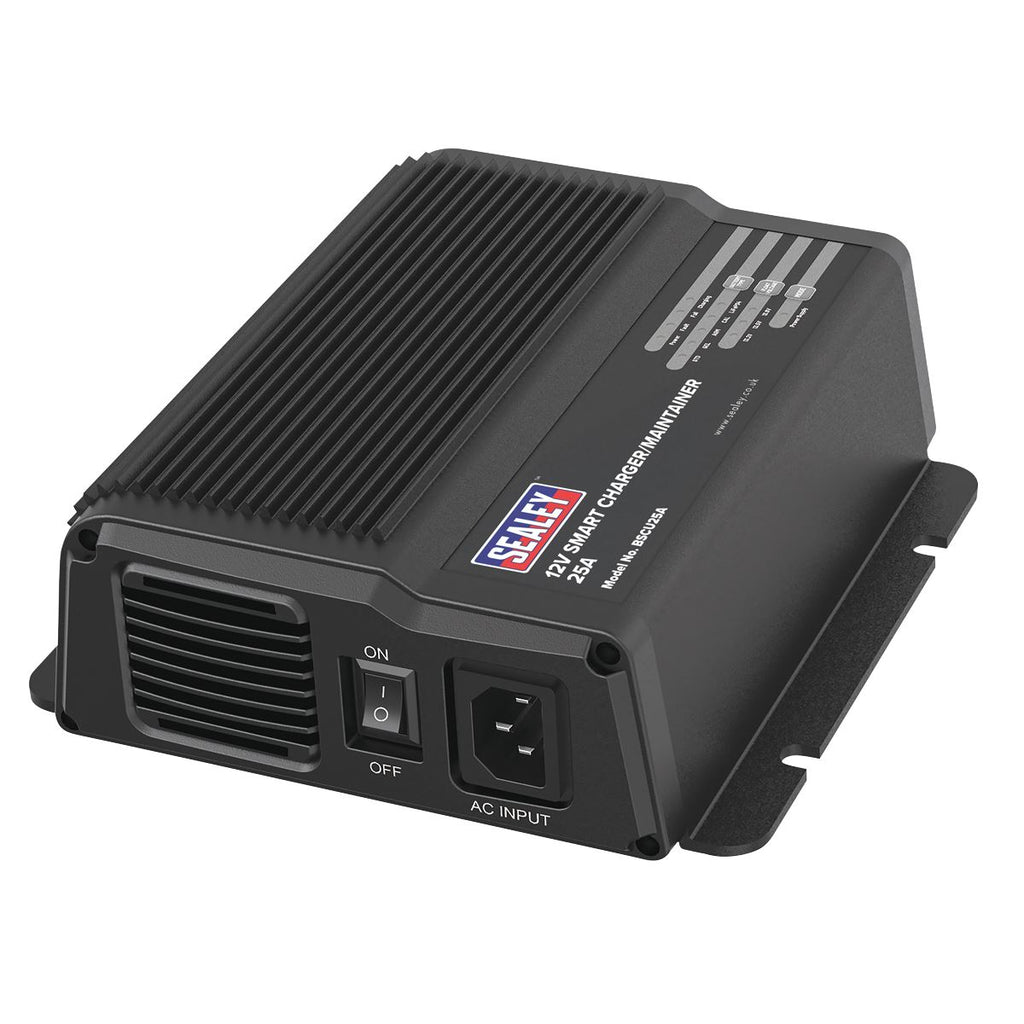

Sealey 12V Battery Support Unit & Smart Charger/Maintainer 25A
BATTERY SUPPORT UNIT - 12V 25A Smart Battery Support Unit and charger designed to both charge 12V batteries and provide support for the battery during prolonged electronic diagnostic checks and reprogramming.
COMPATIBLE BATTERY TYPES - Suitable for charging and maintaining a variety of VRLA, Gel, AGM/EFB, leisure and lithium batteries.
SAFETY FEATURES - Safety features include over-charge, over-heat, short circuit and reverse polarity protection.
TEMPERATURE SENSOR - Temperature sensor allows accurate charging of battery even when cold.

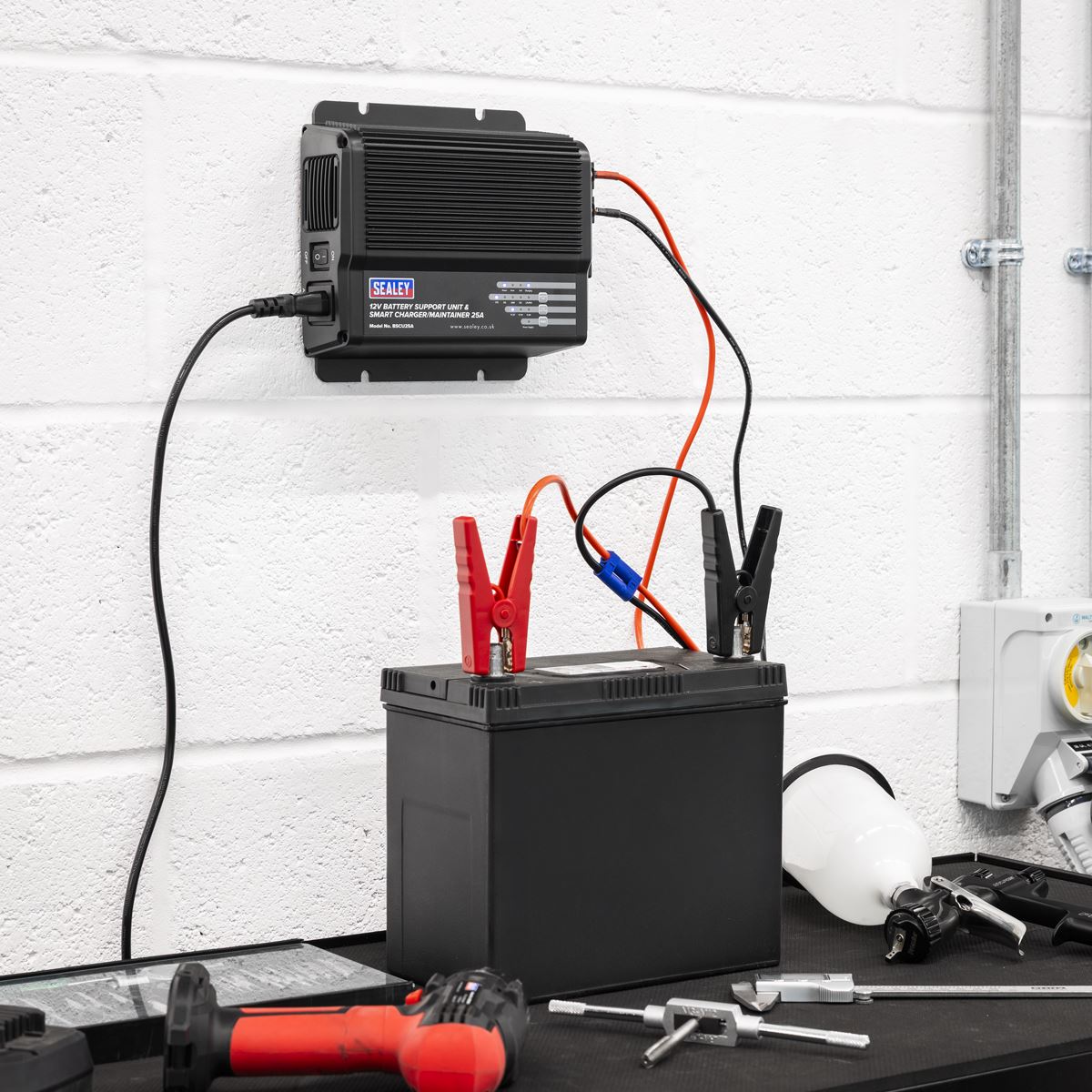

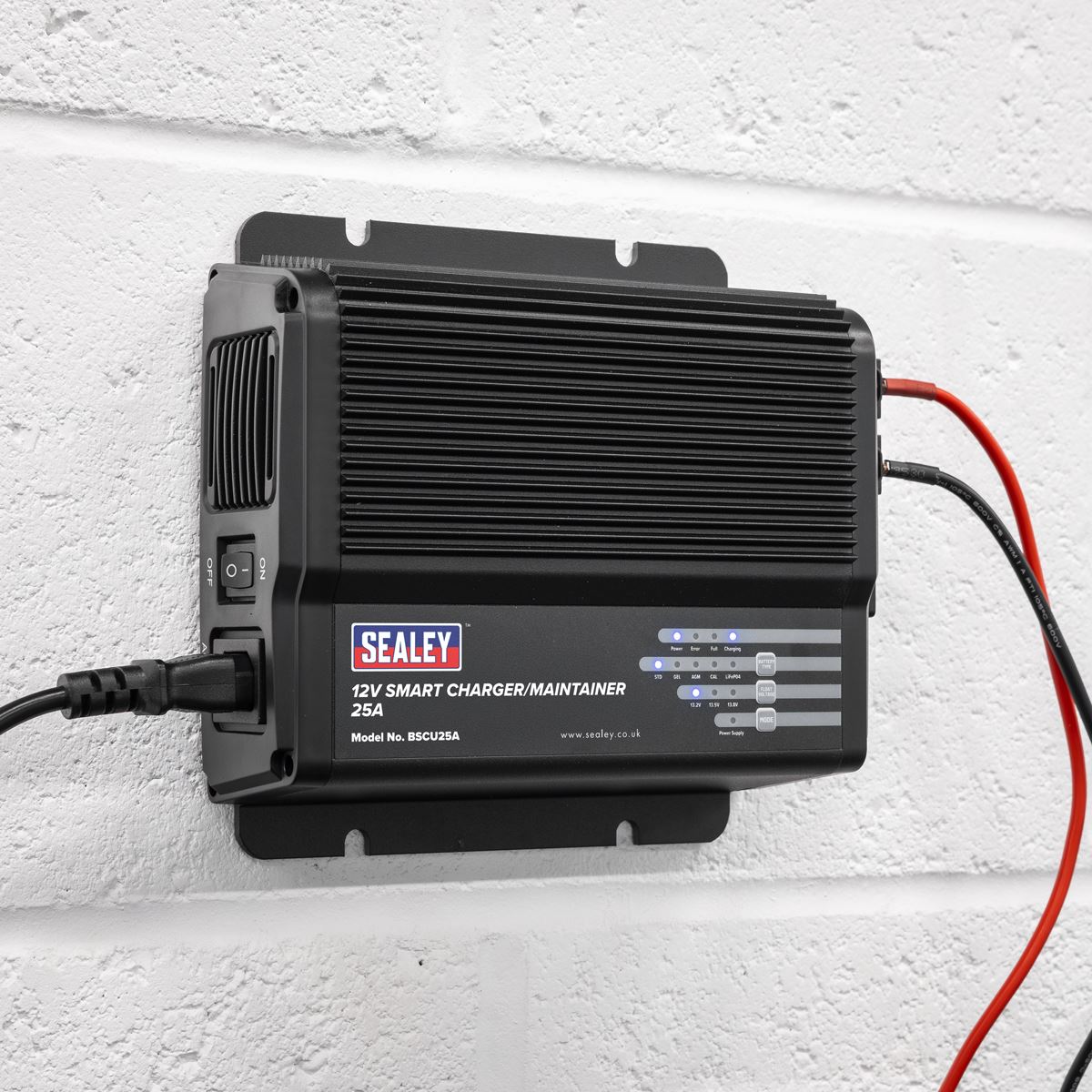

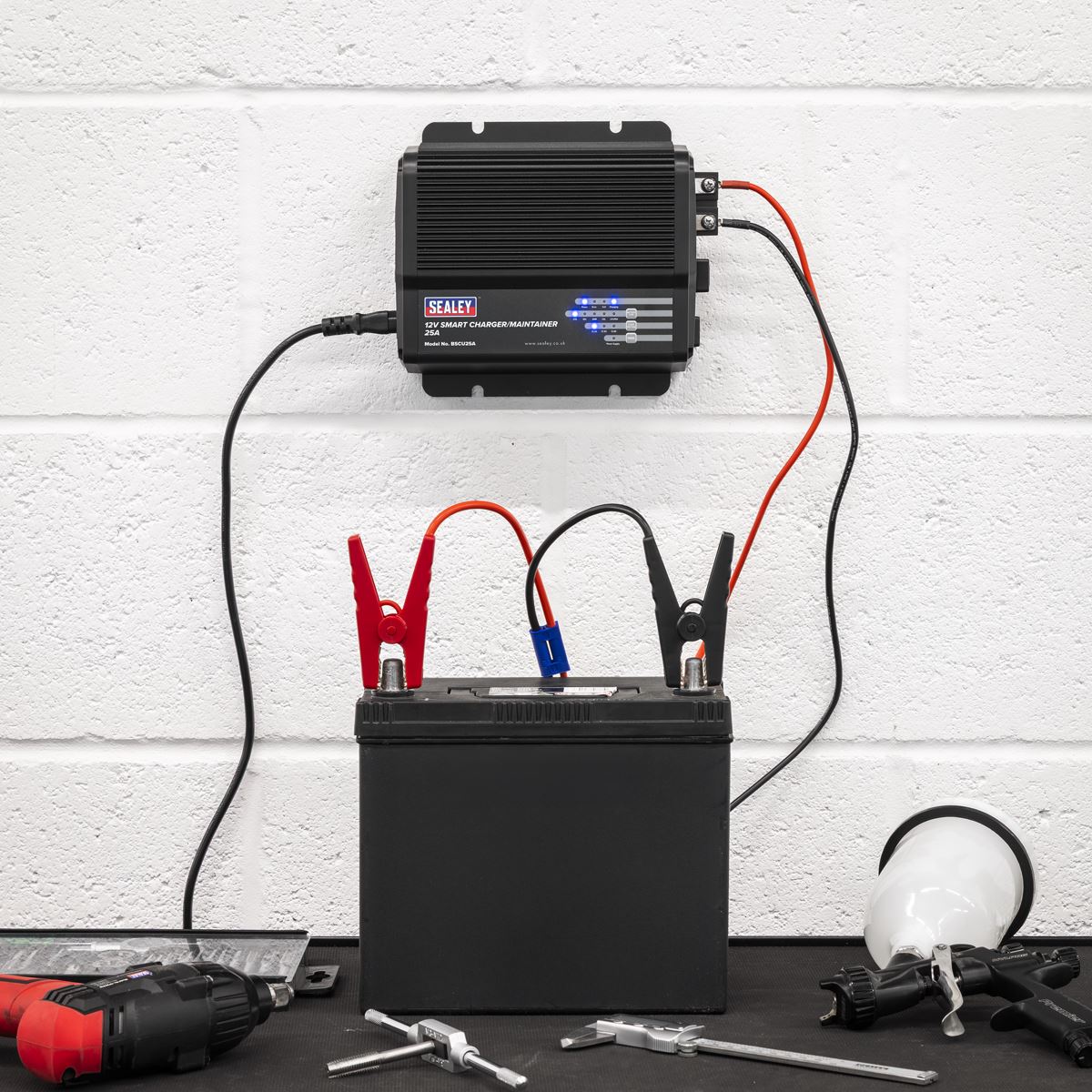

WALL MOUNTABLE - Compact design with mounting holes for permanent fitting.
AUTOMATIC MAINTAINING FUNCTION - Once fully charged, battery may be left connected to be automatically conditioned and maintained.
ADJUSTABLE FLOAT MODES - Optional Float mode from 13.2V, 13.5V and 13.8V so it can be matched to the manufacturer’s guidelines.
2 YEAR GUARANTEE*.
Specification:
- Model No BSCU25A
- Brand: Sealey
- Cable & Clamp Length: 1.1m
- Output: 12V
- Zero Volt Charging: Yes
- Battery Support/DC Supply Mode: Yes
- Supply (Current): 2.4A
- Supply (Volage): 230V
- Plug Type: 3-pin
- Power Supply Cable Length: 1.65m
- Cable & Clamp Length: 1.10m
- Charger Type:Traditional (T) or Intelligent (HF): HF
- Battery Range: 50-310Ah
- Max Size Battery (AH) Full charge in 12hrs from Discharged: 300Ah
- Output Charge Peak: 25A
- Output Start Peak: N/A
- Weight: 1.6kg
- Type of Battery:
- VRLA (Lead Acid): Yes
- GEL: Yes
- AGM/EFB: Yes
- Lithium: Yes
- Leisure (Deep Discharged): Yes
- Output: 12V
- Zero Volt Charging: Yes
- Battery Support/DC Supply Mode: Yes
- Supply (Current): 2.4A
- Supply (Volage): 230V
- Plug Type: 3-pin
- Power Supply Cable Length: 1.65m
- Cable & Clamp Length: 1.10m
- Charger Type:Traditional (T) or Intelligent (HF): HF
- Battery Range: 50-310Ah
- Max Size Battery (AH) Full charge in 12hrs from Discharged: 300Ah
- Output Charge Peak: 25A
- Output Start Peak: N/A
- Weight: 1.6kg
- Type of Battery:
- VRLA (Lead Acid): Yes
- GEL: Yes
- AGM/EFB: Yes
- Lithium: Yes
- Leisure (Deep Discharged): Yes
Catalogue Page: Page 622
