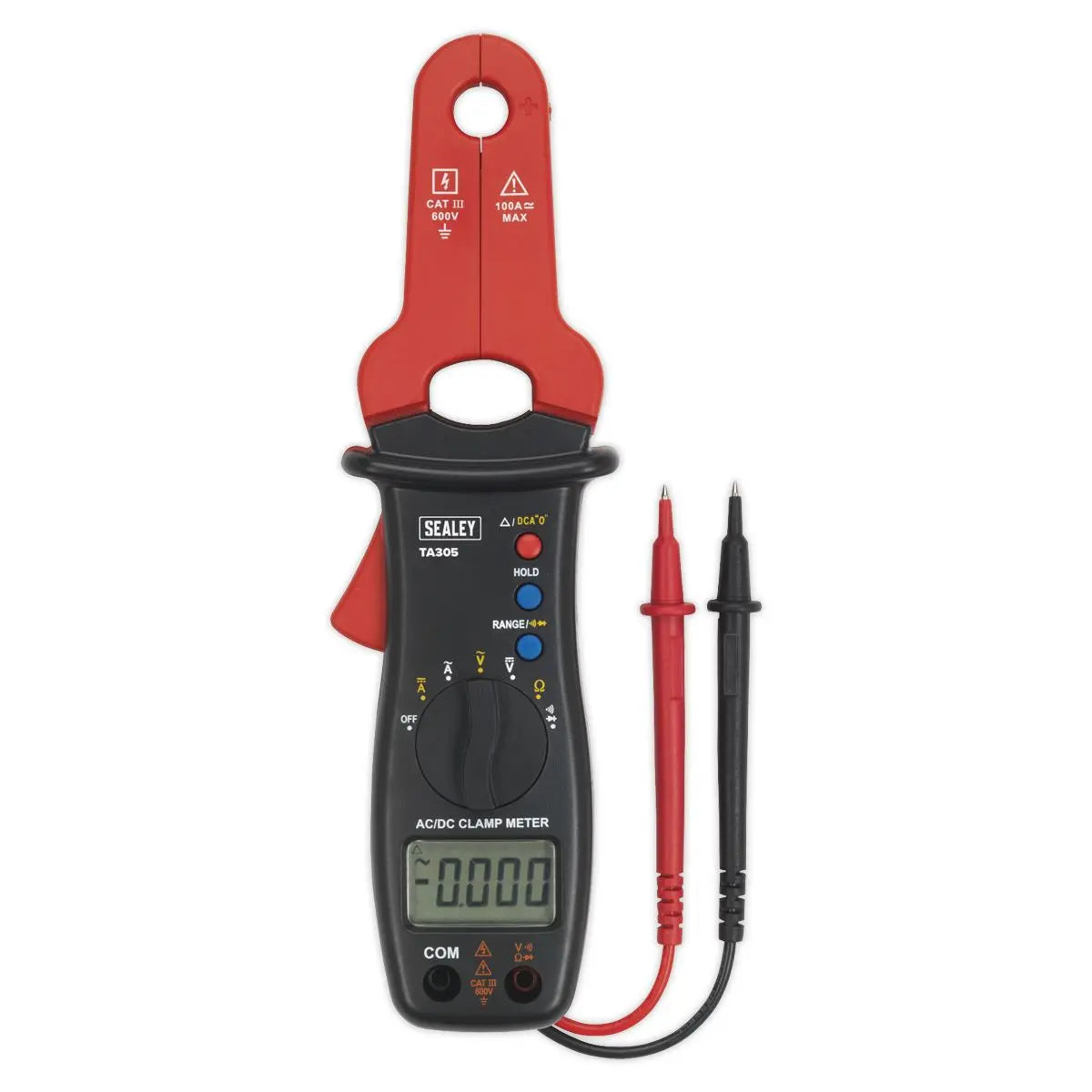

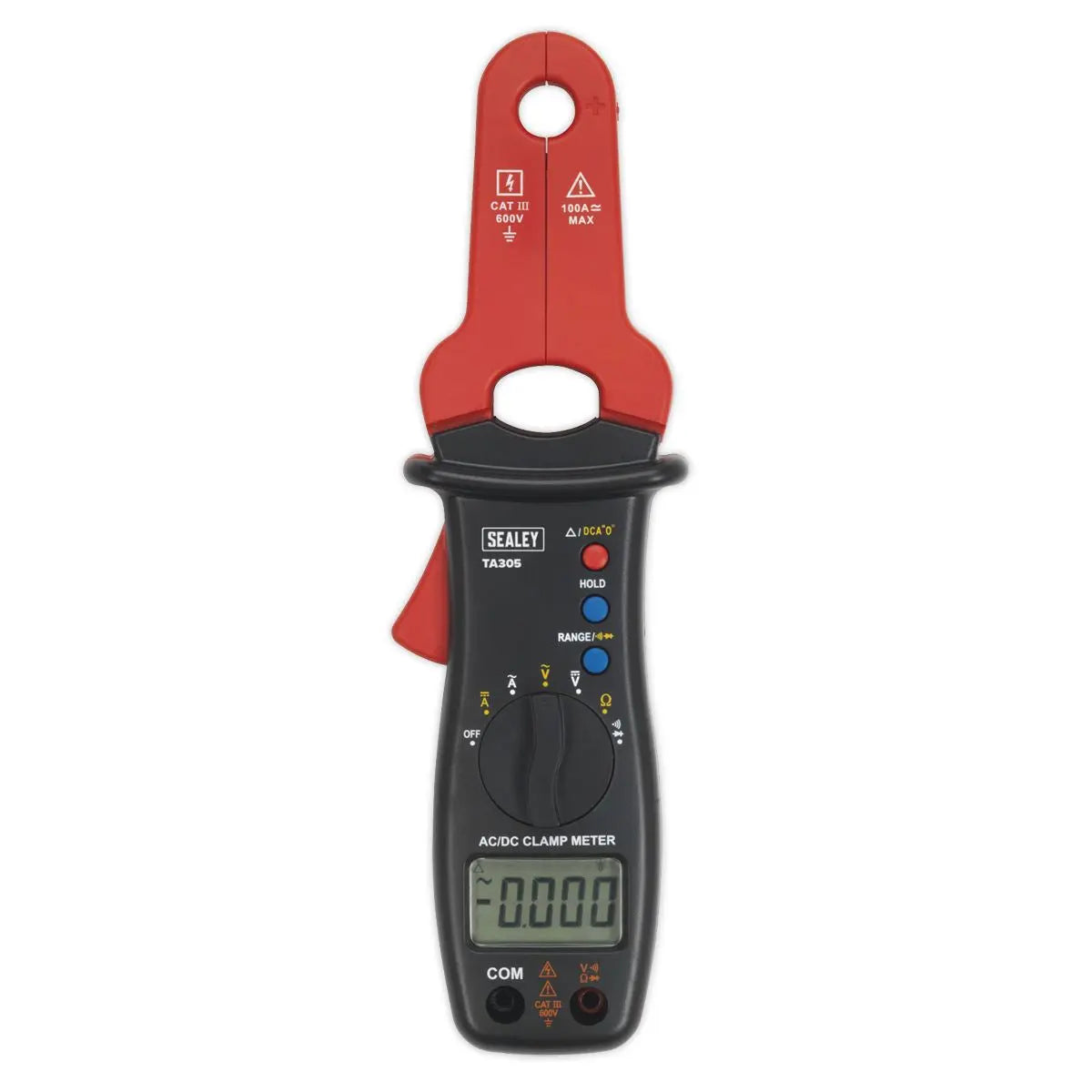

Sealey AC/DC Clamp Meter & Multimeter

Sealey Clamp Meter & Multimeter AC/DC

Designed for the automotive electrician and conforms to EN 61010 CAT III 600V.

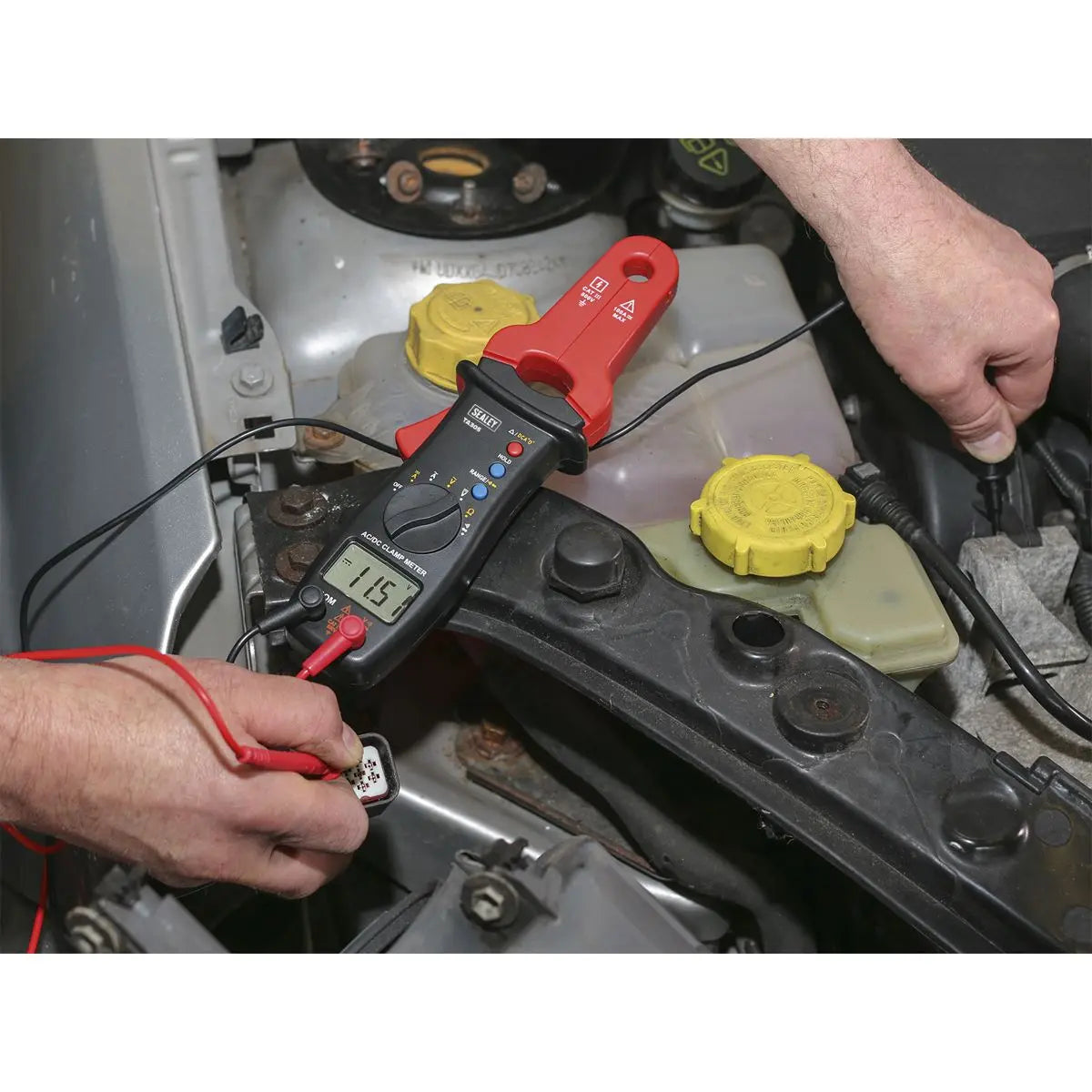

Ideal for measuring current draw from vehicle components in situ.

Features 10mm clamp.

Supplied in pouch.

Specification:

• Model No TA305
• Brand: Sealey
• Nett Weight: 185g
• Jaw Opening Capacity: 10mm
• Maximum Measurable Conductor: Ø10mm
• Tach (rpm): No
• Dwell: No
• AC Voltage (Accuracy): 400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%)
• DC Voltage (Accuracy): 400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%)
• AC Current (Accuracy): 40A, 100A (±2.5%)
• DC Current (Accuracy): 40A, 100A (±2.5%)
• Capacitance: No
• Input Impedance: 10MΩ
• Frequency Range: 40Hz-400Hz
• Duty Cycle: No
• Pulse Width: No
• Resistance: 400Ω (±1.2%), 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%)
• Continuity: <50Ω
• Temperature: No
• IR Temperature: No
• Insulation Test: No
• Diode Test: Yes
• Transistor Test: No
• Back Light: No
• Bar Graph Display: No
• Data Hold: Yes
• Auto-Ranging: Yes
• Inductive Coupler: No
• PC Interface: No
• Digits Height: 11mm
• Auto Power Off: Yes
• Low Battery Indicator: Yes
• Batteries (Supplied): 2 x 1.5V
• Hi-Impact Case: No
• Size (L x W x D): 226 x 71 x 38mm
• Weight: 185g

Product Guarantee: 1 Year
Catalogue Page: Page 418

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
