Description
Sealey 150L Belt Drive Air Compressor 3hp
Air Displacement: 10.8cfm(305L/min).
Maximum Free Air Delivery: 5.3cfm(150L/min).
Maximum Pressure: 116psi(8bar).

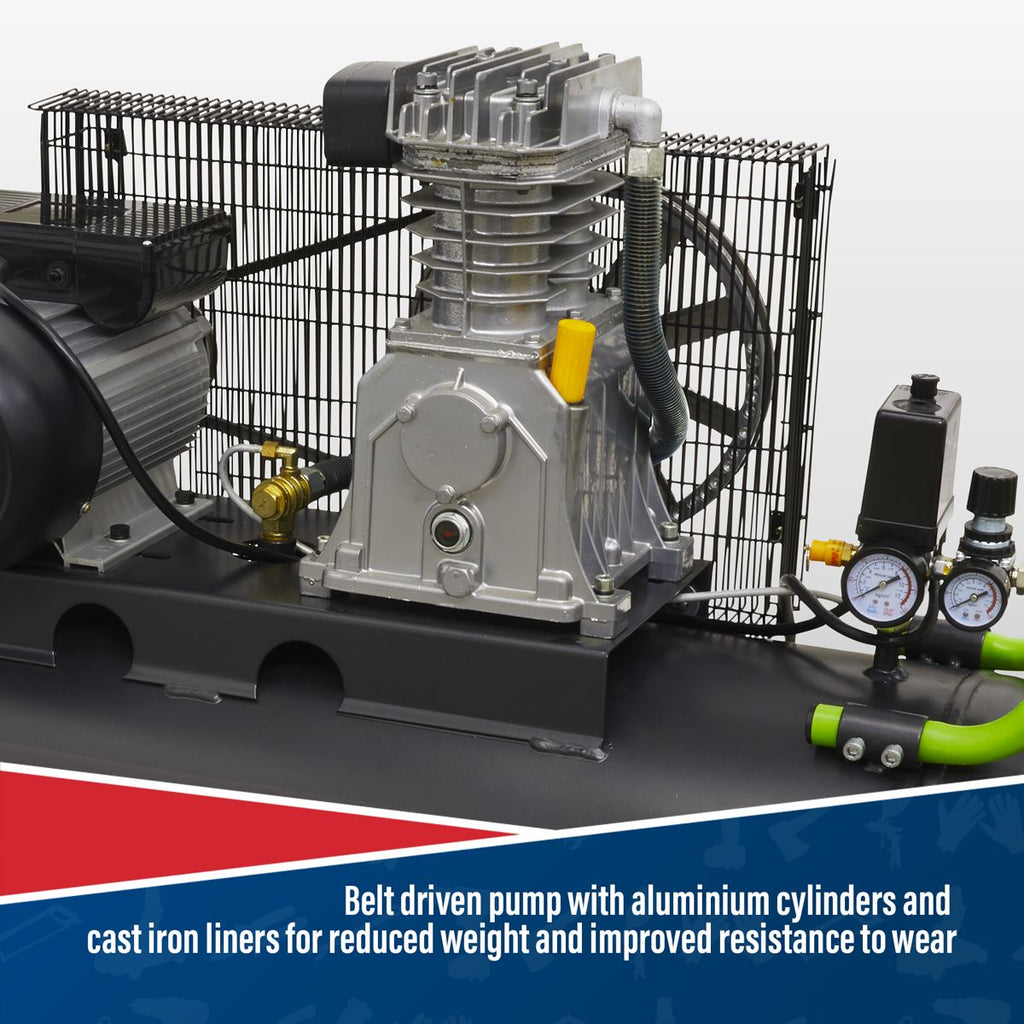

Belt driven pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.
Fitted with a 3hp motor.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Suitable for general-purpose workshop applications.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SAC15030B
- Air Displacement cfm(L/min): 10.8(305)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 5.3(150)
- Maximum Pressure: 116psi(8bar)
- Minimum Rated Supply: 13A
- Motor Output: 3hp
- Nett Weight: 88kg
- Noise Level: 97dB(A)
- Oil Capacity: 3 x 0.3L
- Outlet: Quick release coupling
- Phase: 1ph
- Receiver Capacity: 150L
- Size (W x D x H): 1300 x 510 x 815mm
- Speed: 1000rpm
- Supply: 230V/13A
Catalogue Page: Page 1177
