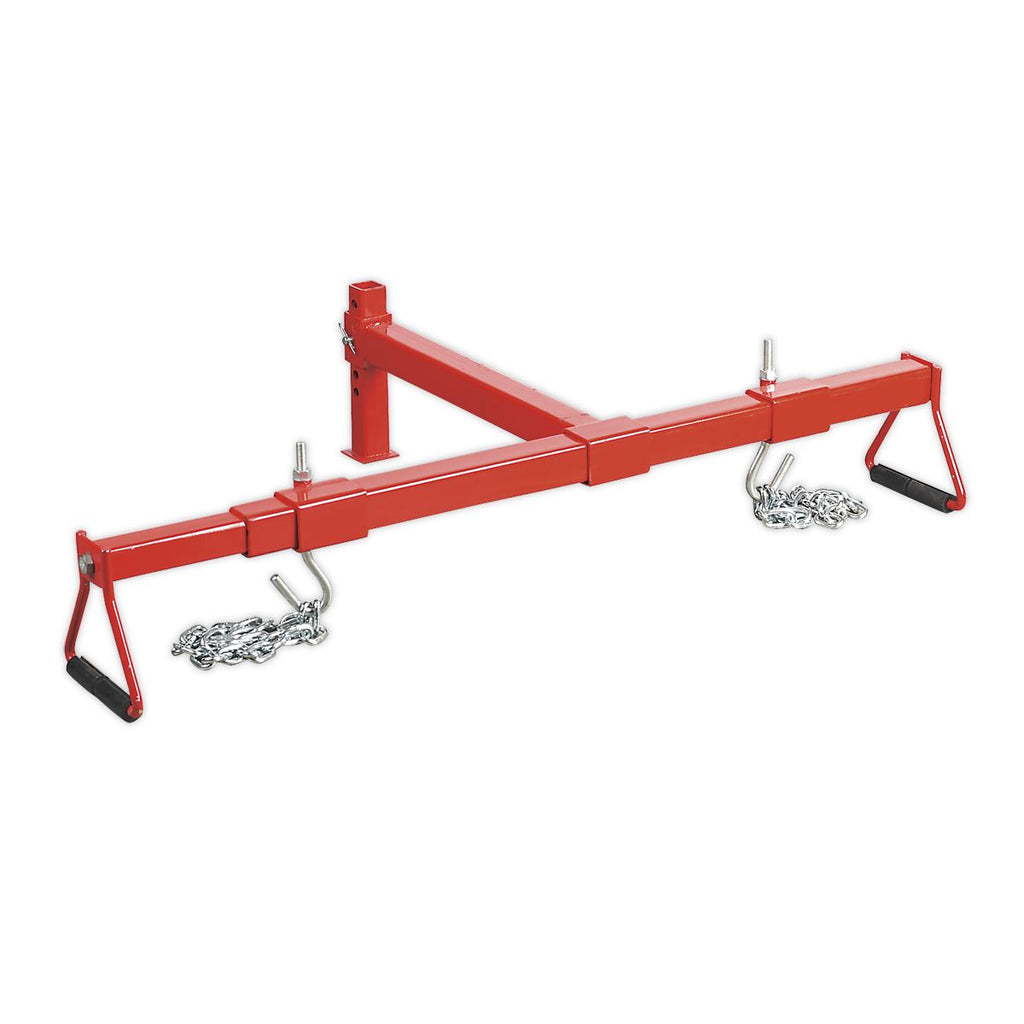

Sealey Heavy-Duty Engine Support Beam 600kg

Sealey Heavy-Duty Engine Support Beam 600kg

Suitable for heavy engines including 6-cylinder variants.

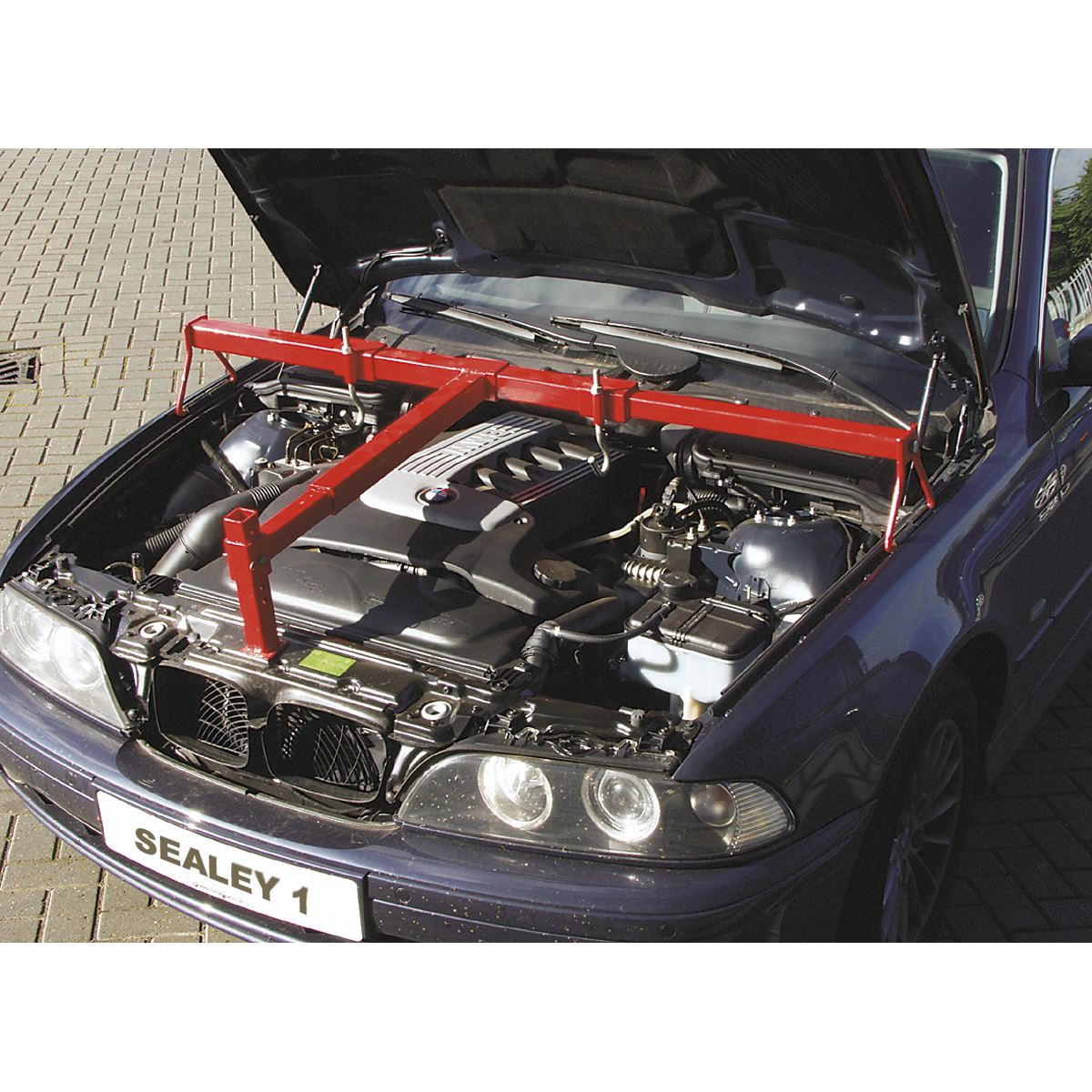

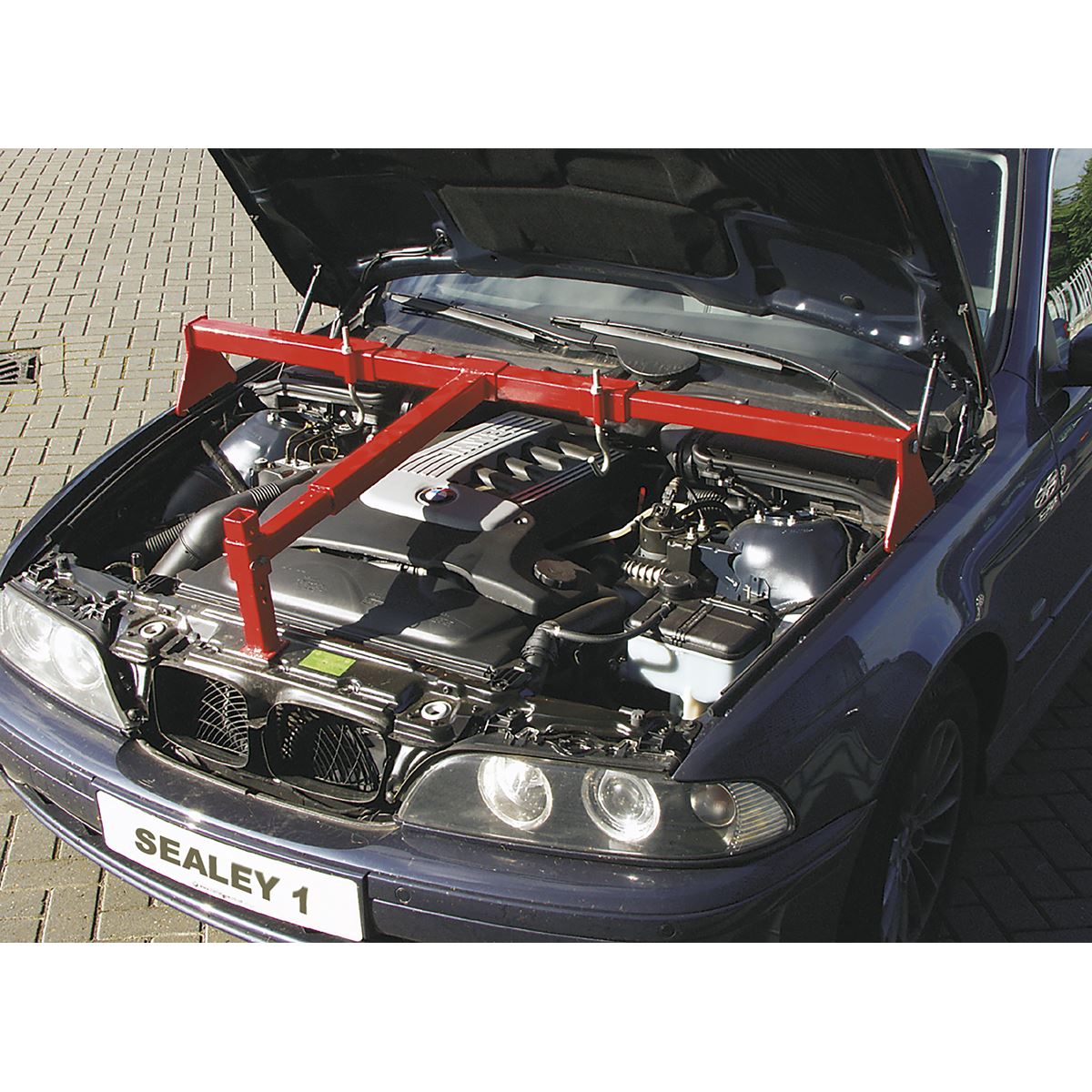

Supports engine during maintenance operations including engine mounting replacement.

Beam is supported on two rubber covered feet with third, height-adjustable foot, resting on the front of the vehicle.

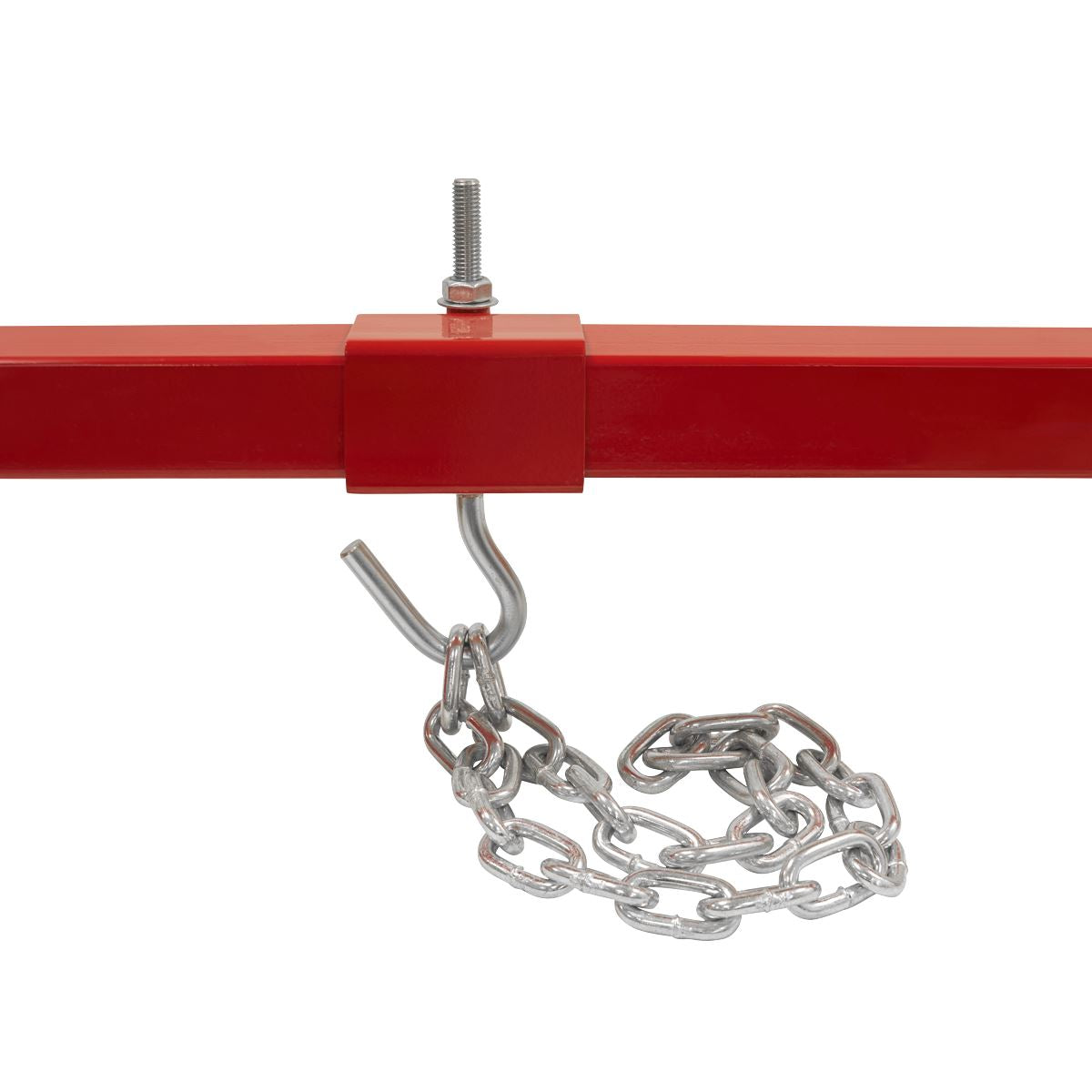

Supplied with two short lengths of chain.

Specification:

• Model No ES600
• Brand: Sealey
• Capacity: 600kg
• Maximum Length: 875mm*
• Maximum Width*: 1210mm
• Minimum Length: 600mm
• Minimum Width: 1010mm
• Nett Weight: 15.7kg
• Note: *Allows for 200mm safety margin
• Screw Travel: 65mm

Product Guarantee: 1 Year
Catalogue Page: Page 321

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
