Sealey Magnetic Drilling Machine Heavy-Duty 60mm 230V

SKU: MAG60230VHD

Price:
Sale price€831,95

VAT included

Stock:
In stock
09 Oct. Estimated arrival
06 Oct. Order placed
07-08 Oct. Order dispatches
09 Oct. Delivered!

Pickup currently unavailable at White Rose Tools (Barnsley)

Description

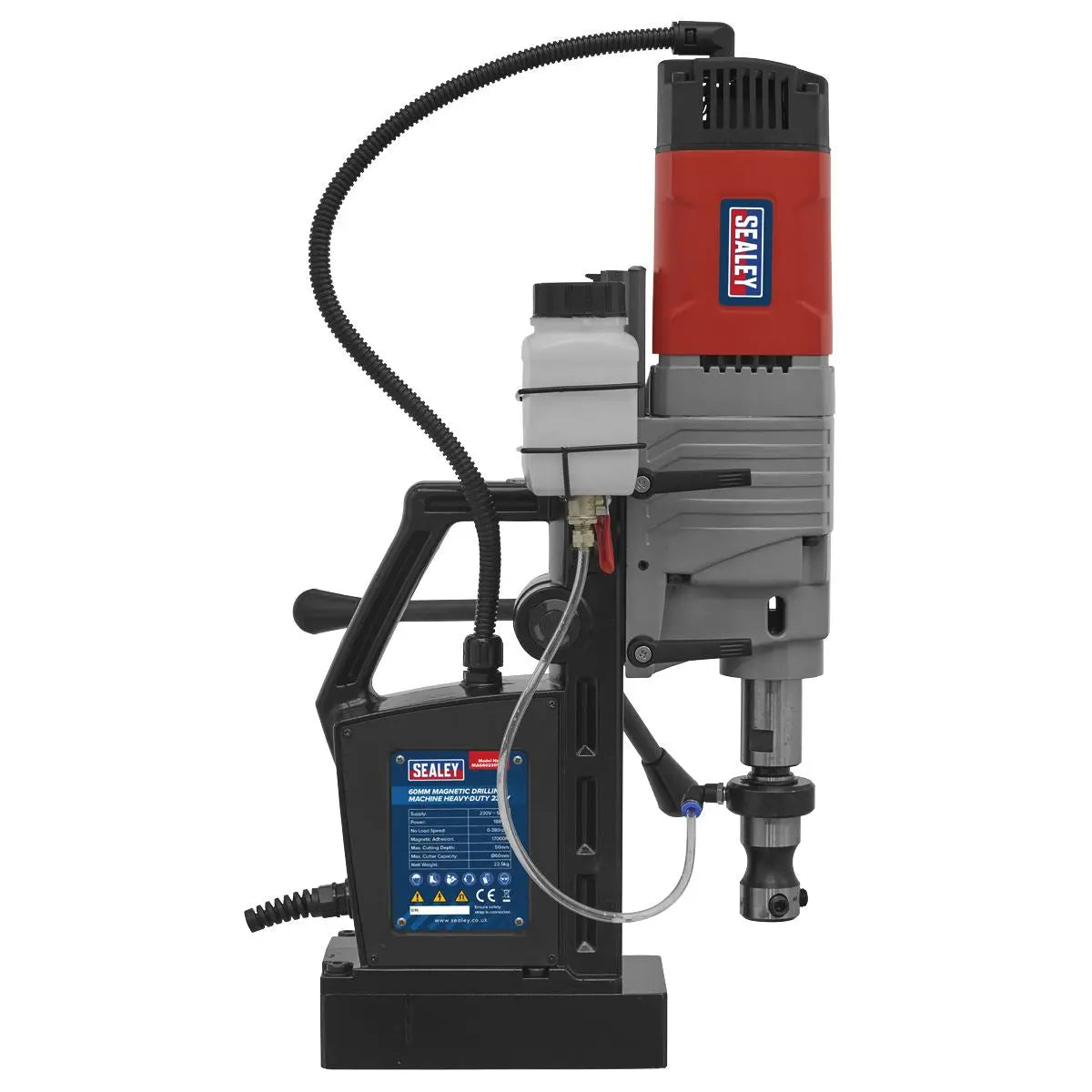

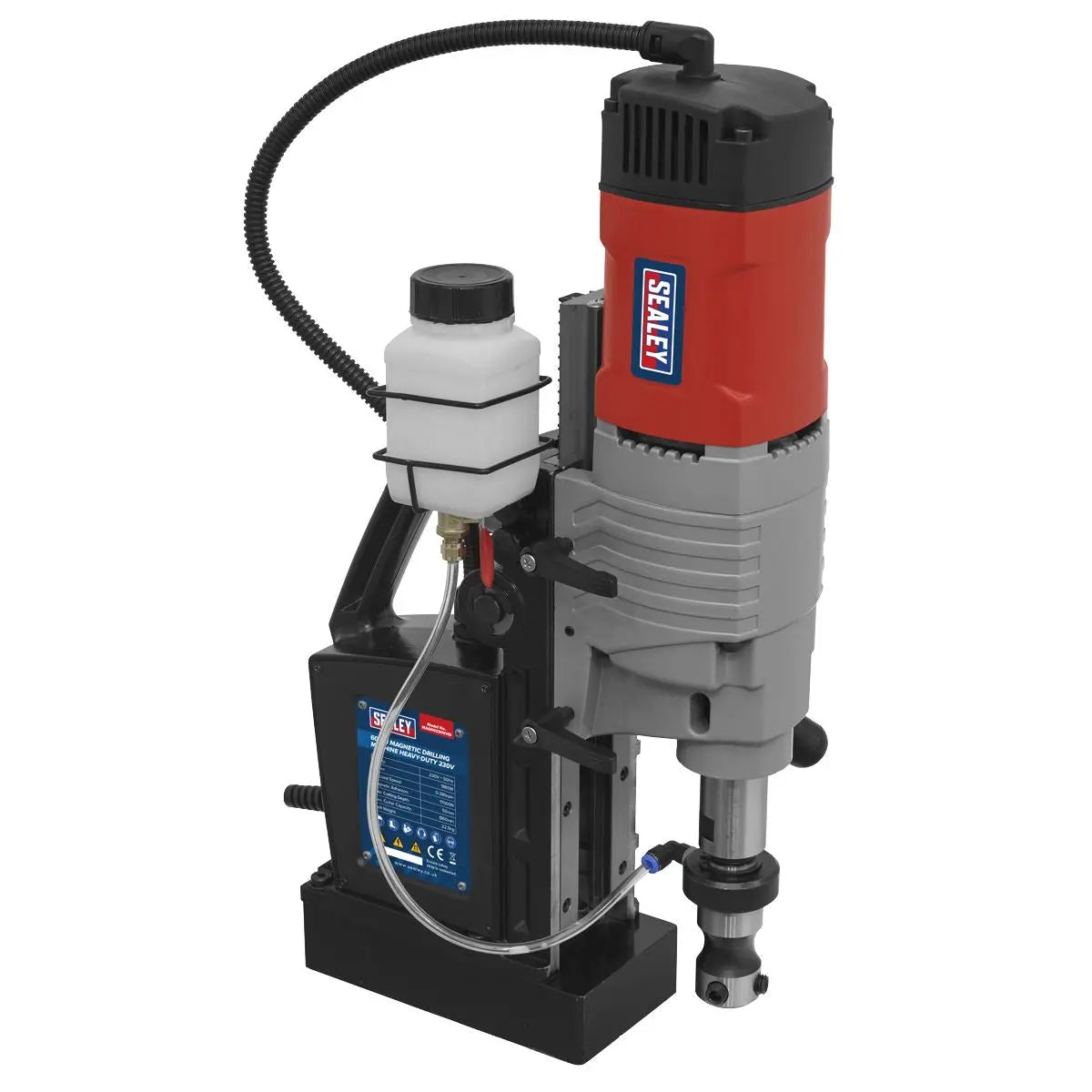

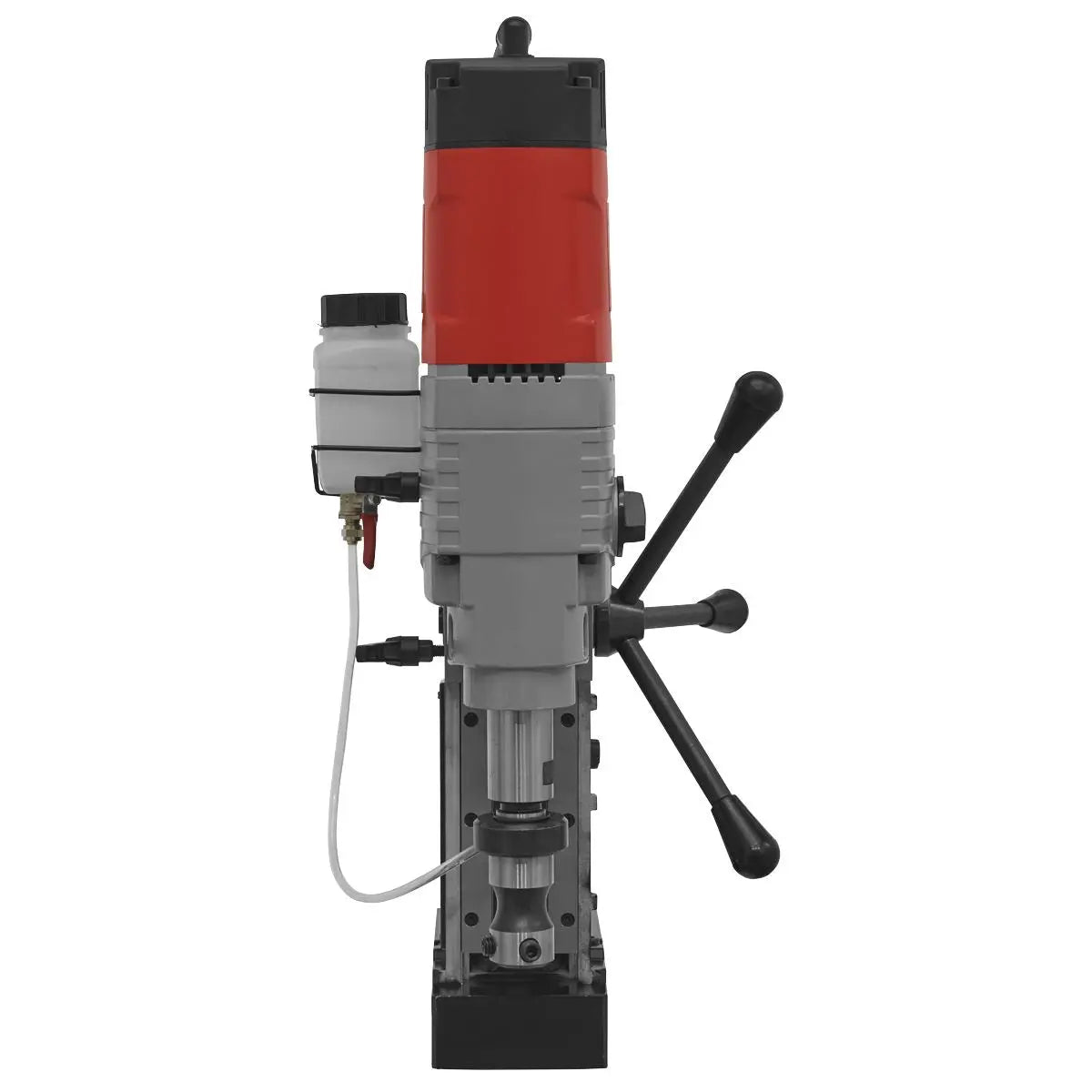

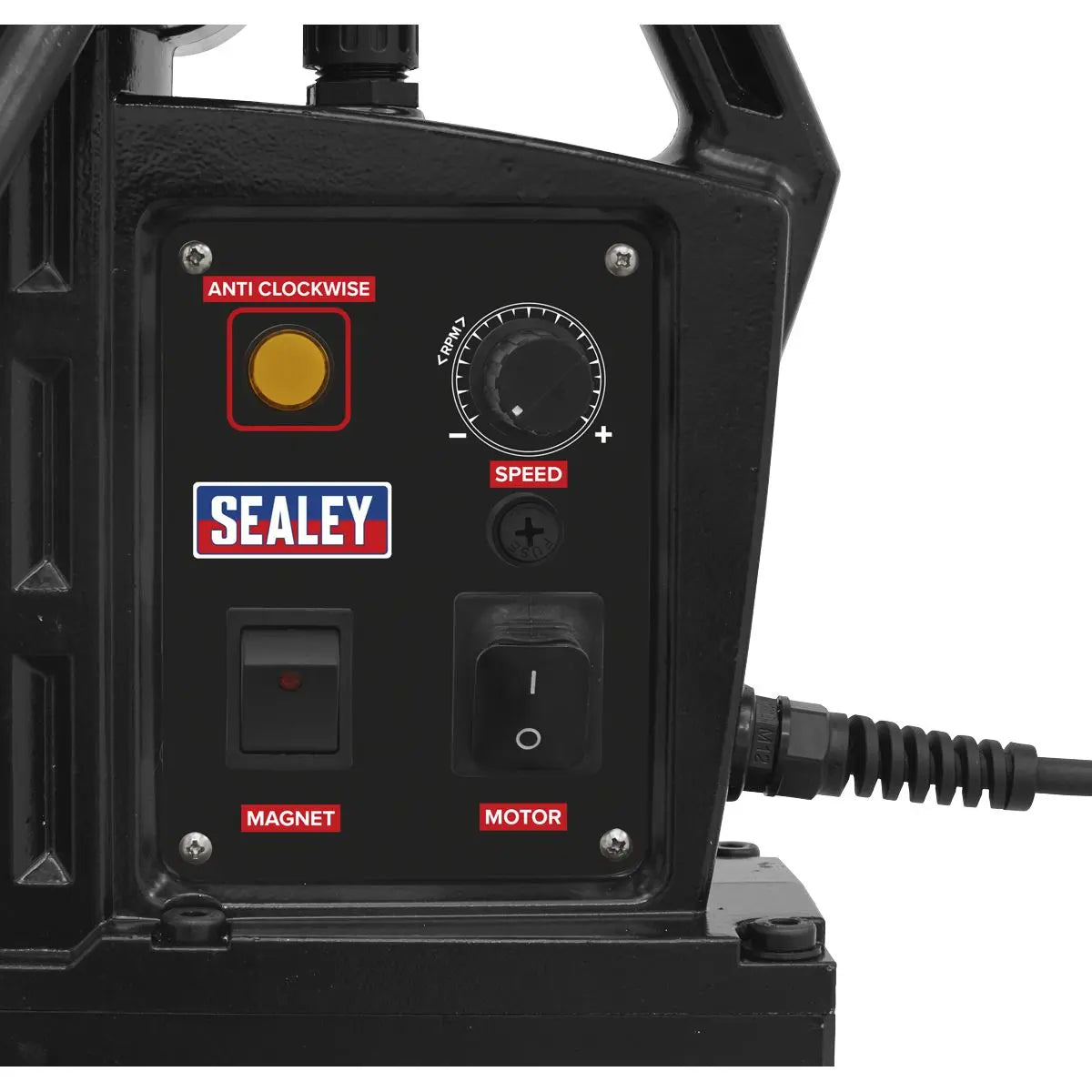

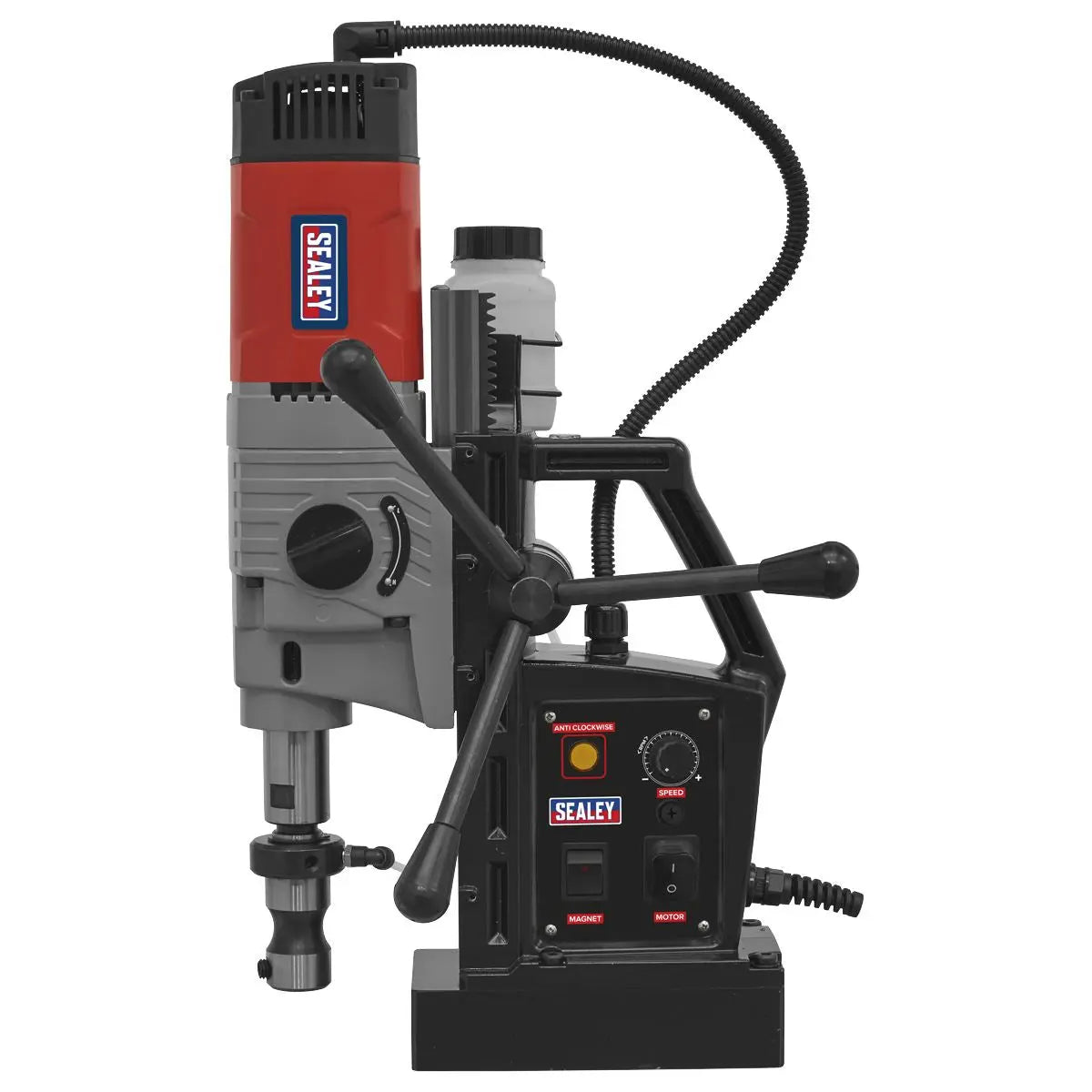

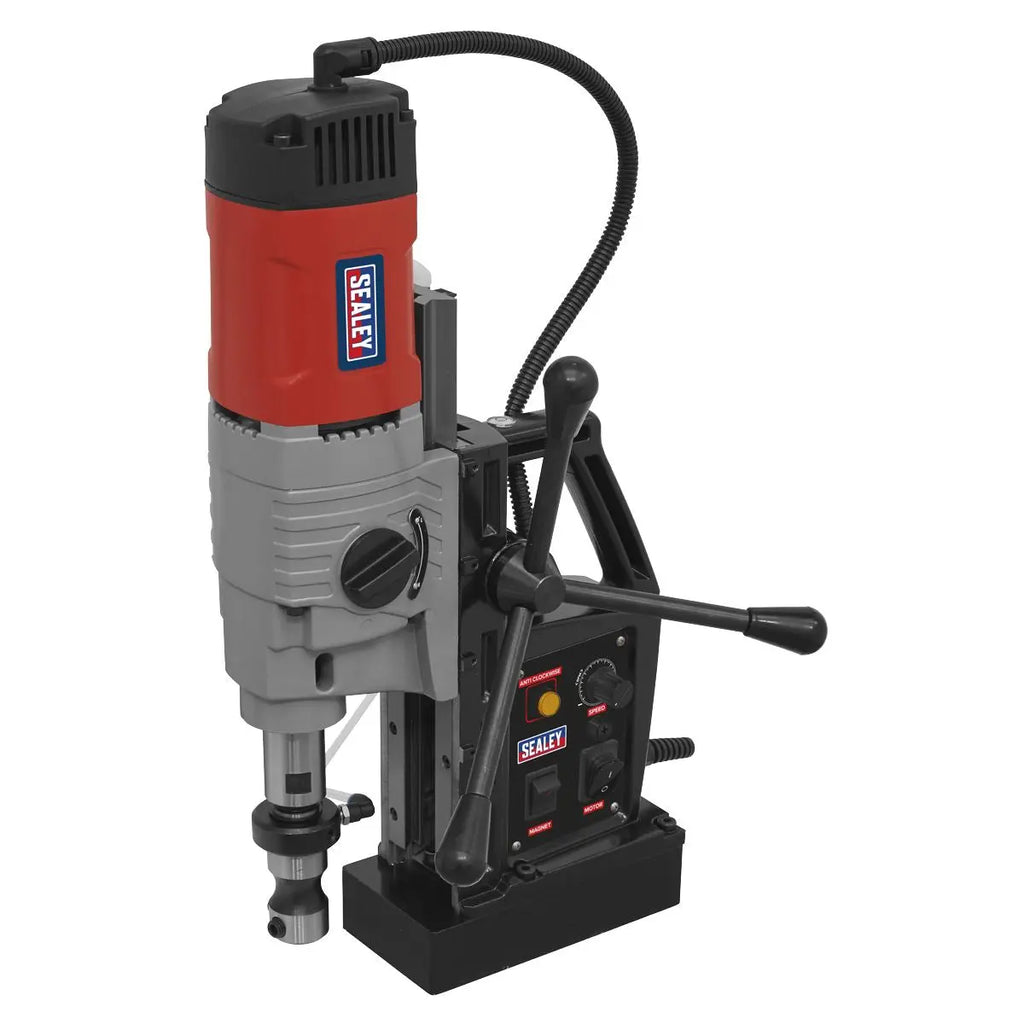

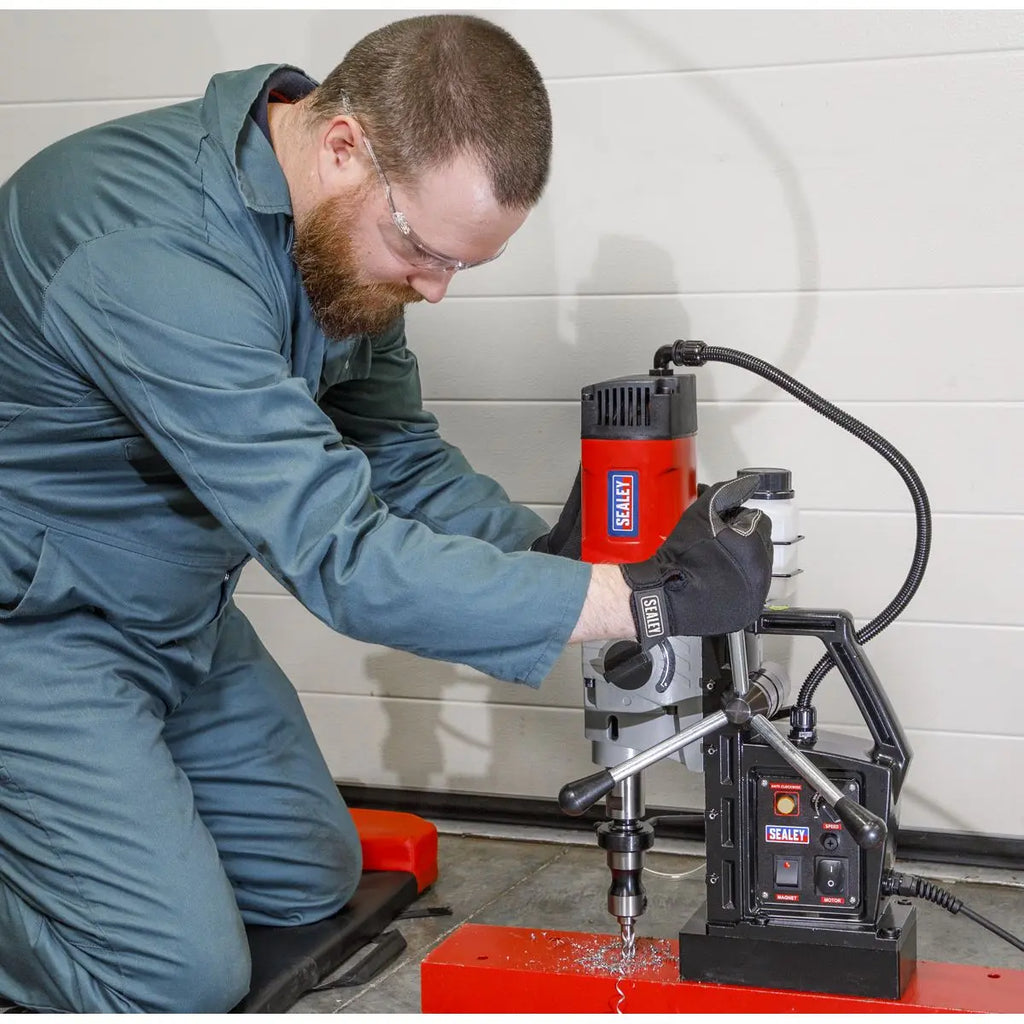

Sealey Magnetic Drilling Machine Heavy-Duty 60mm 230V

Manufactured using high quality components for performance and reliability.

Made from heavy-duty die-cast magnesium alloy with a variable speed gearbox for greater accuracy.

Fitted with a powerful magnet to ensure unit stays adhered at any angle.

Uses a double dovetail groove to increase the stroke length.

Includes safety fixing strap and integrated coolant system.

Can be used with a 16mm twist drill chuck and M8 to M20 Tapping chucks.

Designed for use in fabrication, construction and other applications when drilling/tapping ferrous metal.

Specification:

  • Model No MAG60230VHD
  • Brand: Sealey
  • Magnet Adhesion: 17000N
  • Maximum Annular Cutter Capacity: Ø60mm
  • Maximum Cutter Depth: 50mm
  • Motor Power: 1880W
  • Nett Weight: 22.50kg
  • No-Load Speed: 220/380rpm
  • Core Drill Diameter: Ø60mm
  • Twist Drill Diameter: 23mm
  • Tapping Drill Diameter: M8 - M20
  • Power Supply: 220V - 50Hz
  • Motor Power: 1880W
  • Magnetic Adhesion: 17000N
  • No-Load Speed: 0-380rpm
  • Cutting Depth: 50mm
  • Morse taper: MT3
  • Stroke Length: 220mm
Product Guarantee: 1 Year
Catalogue Page: Page 1195

Downloadable Files:
