Description


Sealey MMA/ARC Inverter Welder 160A & Battery Charger/Starter 200A 230V

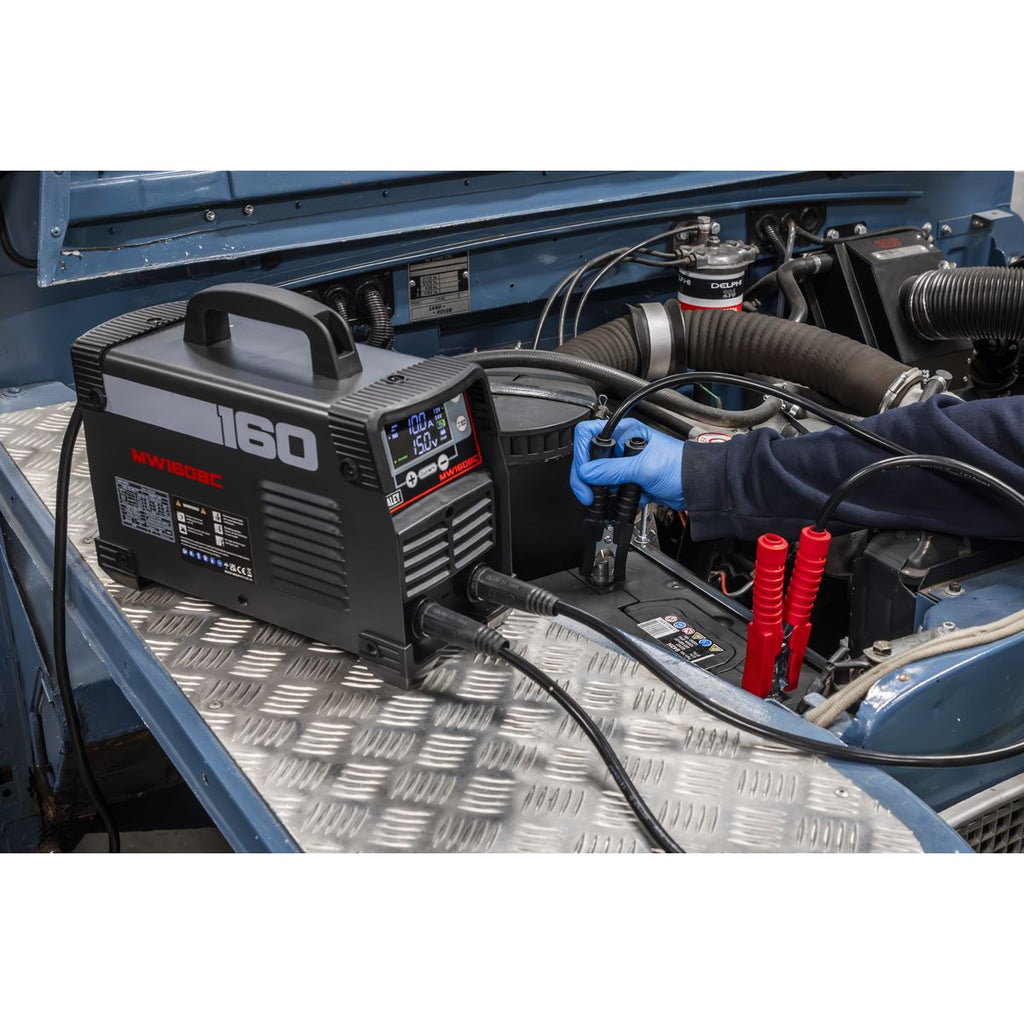

IGBT INVERTER TECHNOLOGY - 3-in-1 IGBT Inverter that allows the user to MMA, charge batteries and jump start vehicles with flat batteries.
THREE FUNCTIONS - Functions include a 160A MMA welder, 30A battery charger and a 200A start function.

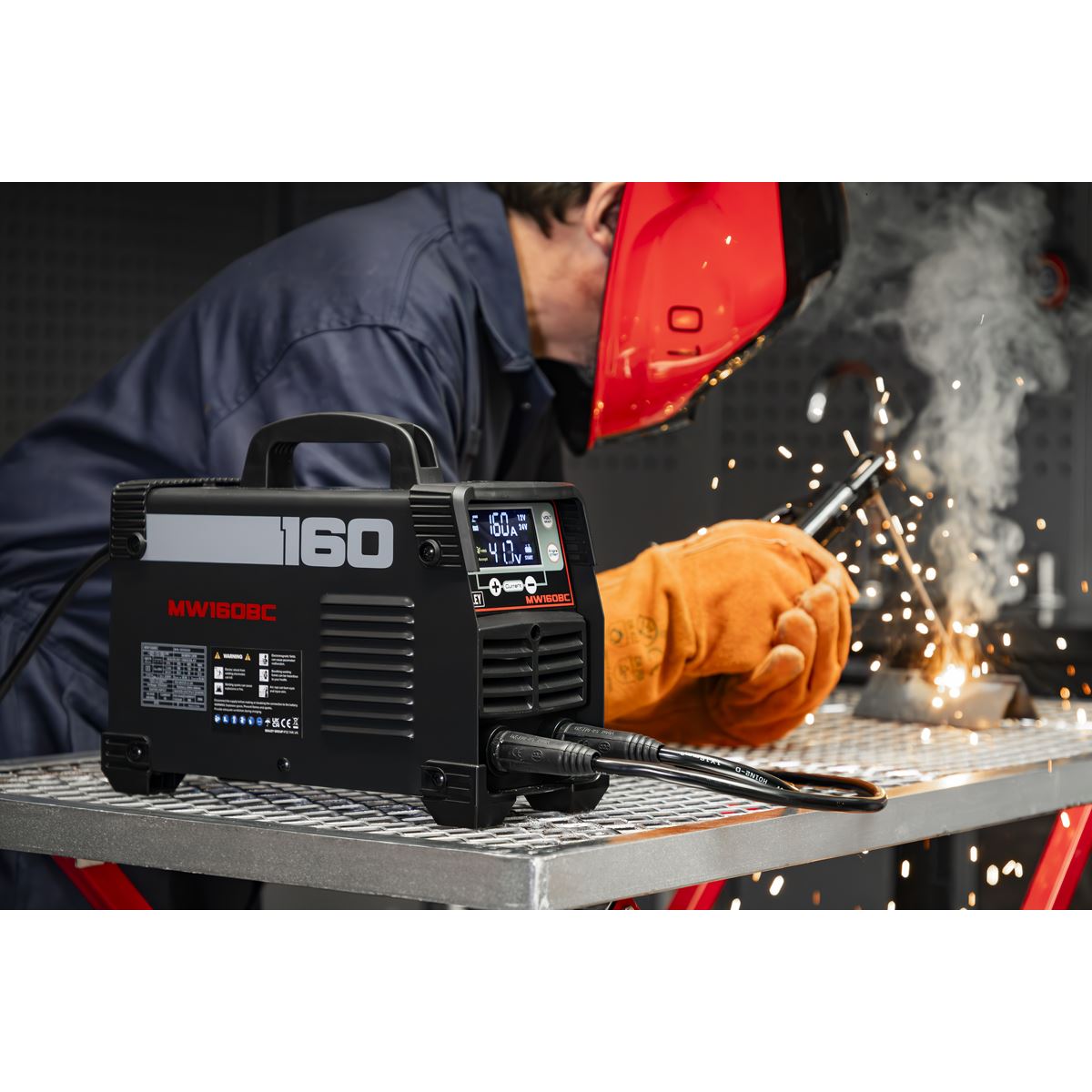

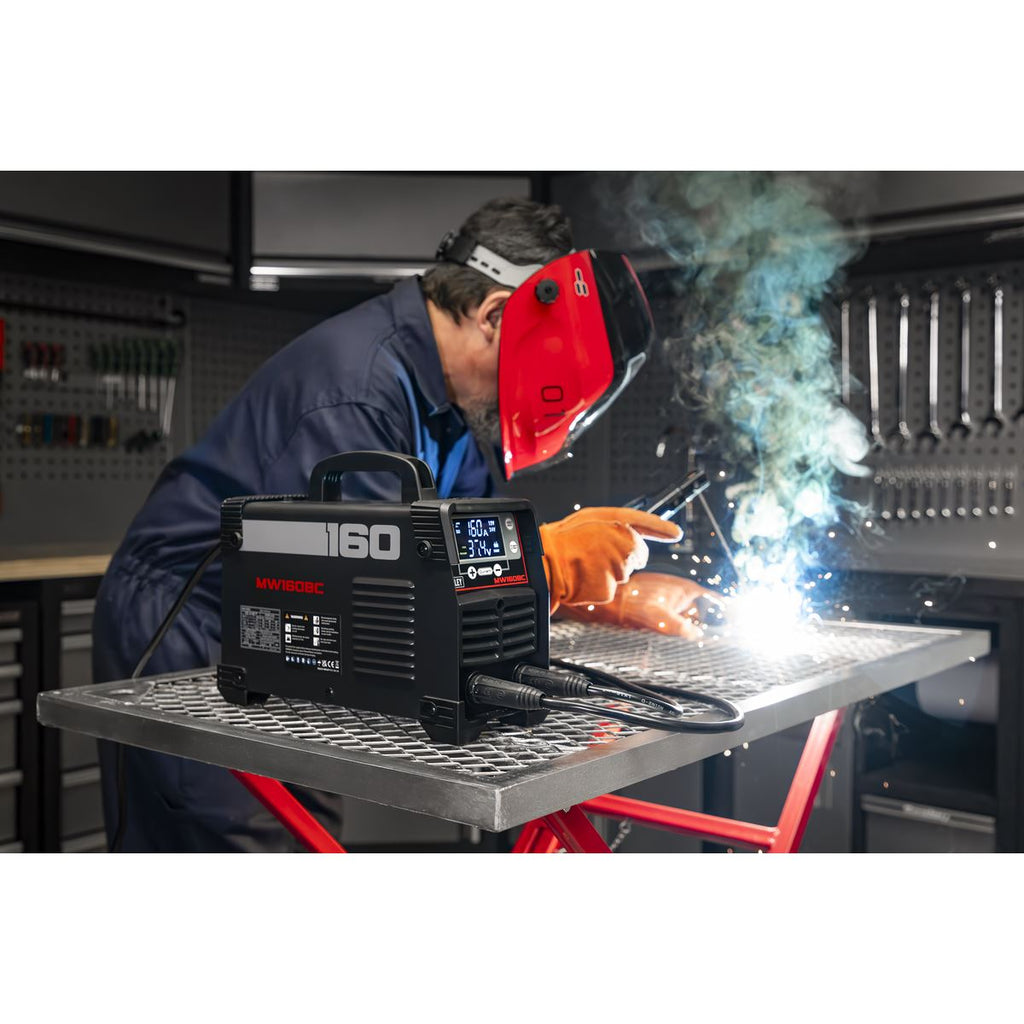

SUITABLE FOR - Unit can MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø4mm.
FEATURES INCLUDE – Featuring a LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.

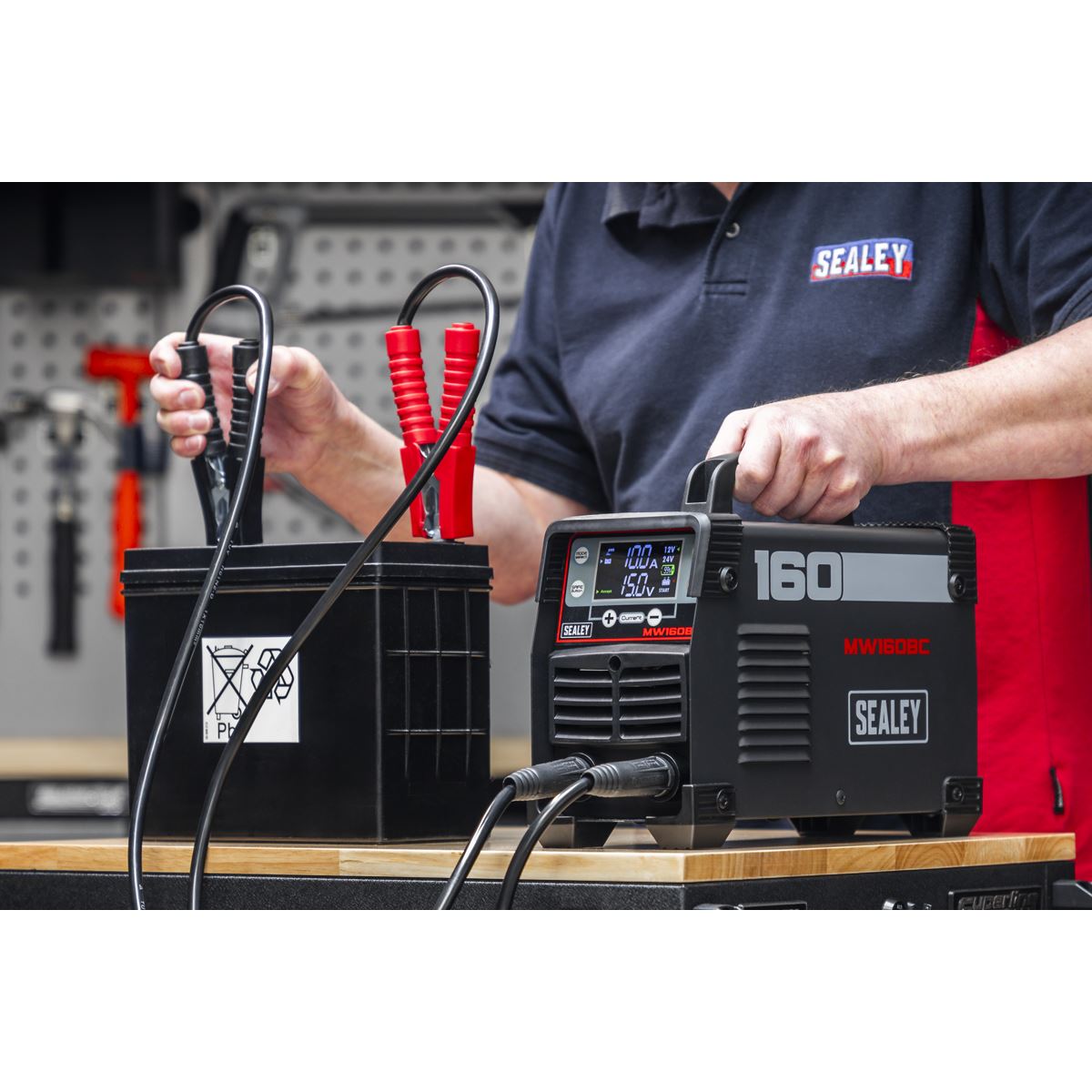

BATTERY TYPE – Suitable for charging VRLA (Lead Acid), GEL, AGM/EFB and Leisure Batteries on 12 and 24V systems.

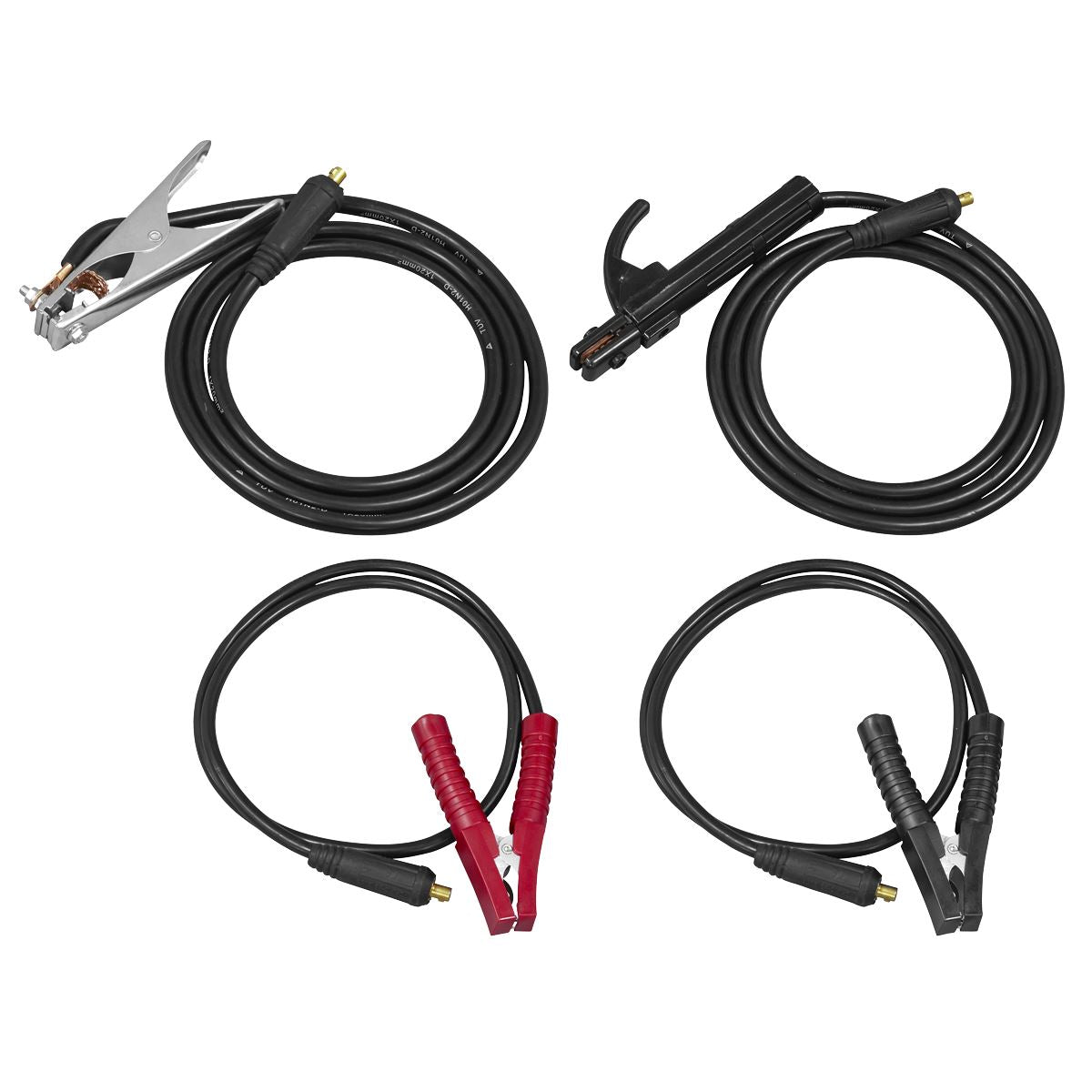

SUPPLIED WITH - Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, 1m 200A charging clamps and 1.8m Power cable.
Specification:
- Model No MW160BC
- Brand: Sealey
- Nett Weight: 4kg
- Start Peak: 200A
- Charge Peak: 30A
- Cable & Clamp Length: 1m
- Max. Size Battery (Ah) Full Charge in 12hrs: 400Ah
- Supply: 230V
- Plug Type: Bare Wire
- Battery Type: VRLA (Sealed Lead Acid), GEL, AGM/EFB, Leisure (Deep Discharge)
- IP Rating: IP21
- System: 12/24V
- Nett Weight: 4kg
- Welding Specification:
- MMA Output: 20-160A
- Duty Cycle: 25% @ 160A, 60% @ 124A, 100% @ 80A
Catalogue Page: Page 996
