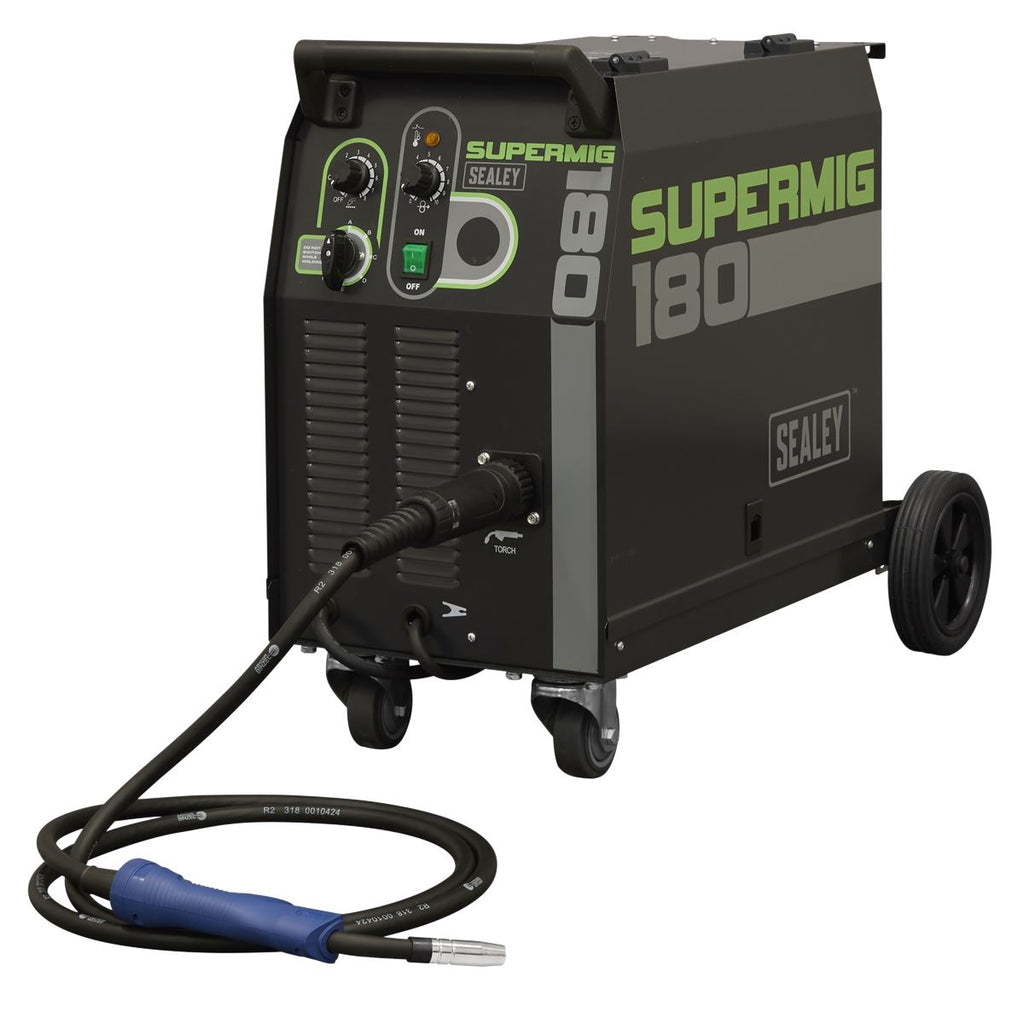

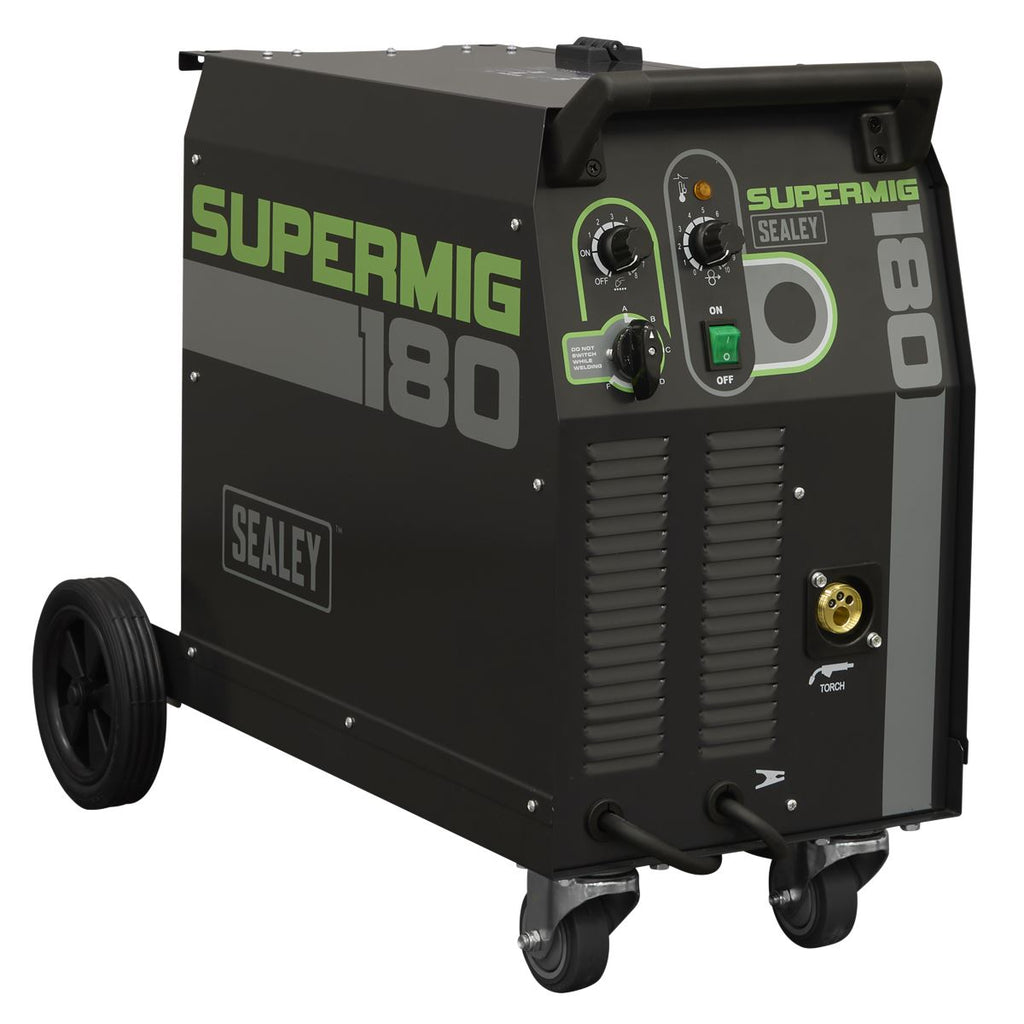

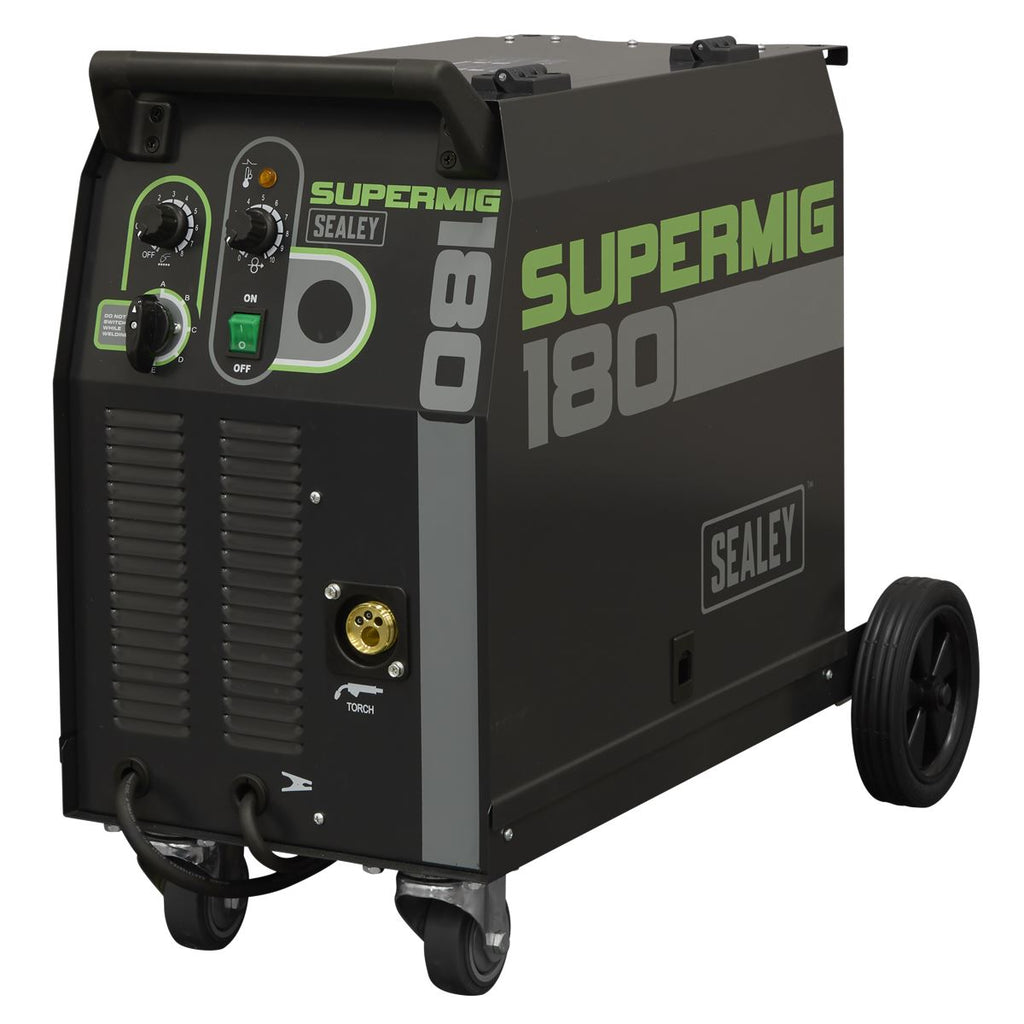

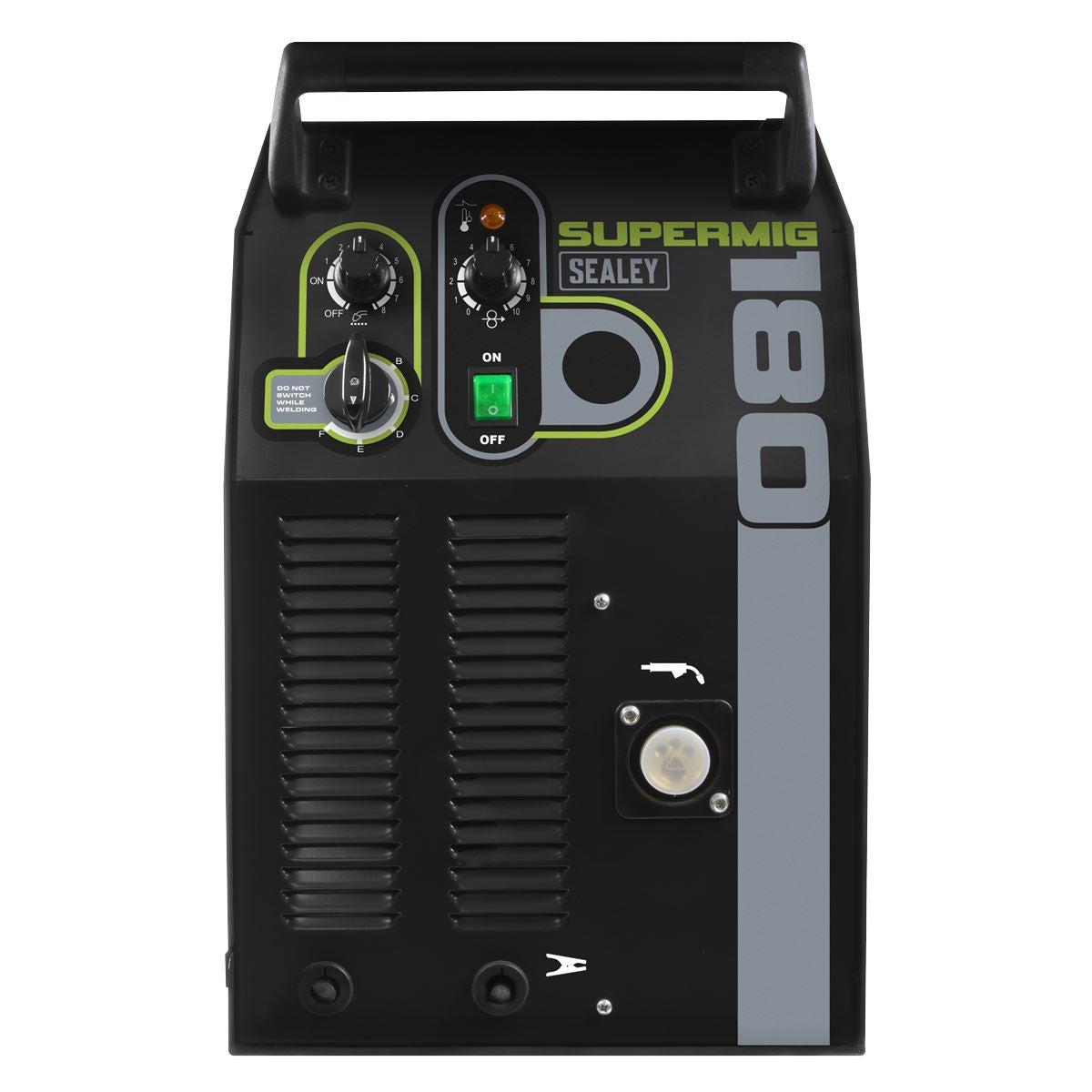

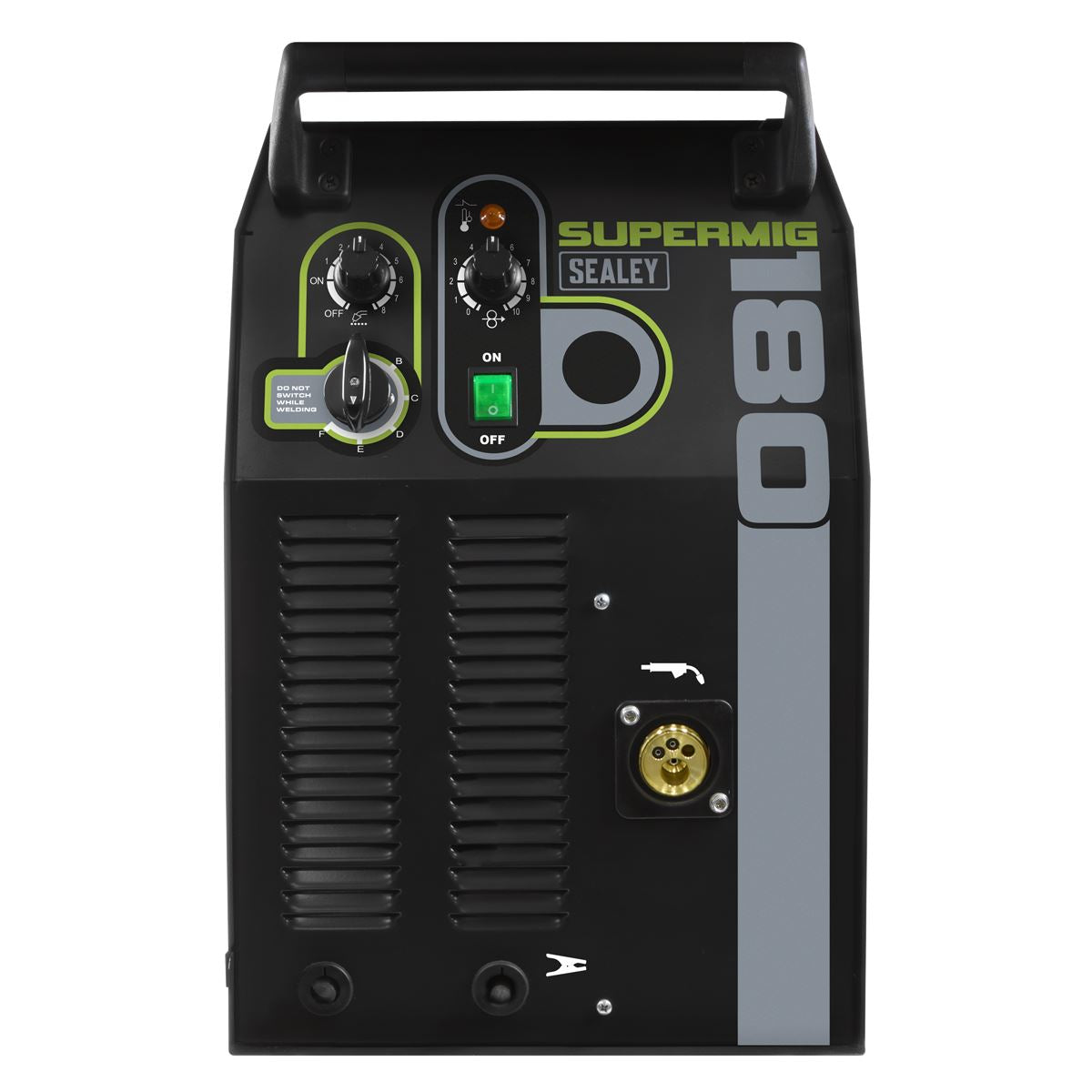

Sealey Professional MIG Welder 180A 230V with Binzel® Euro Torch

Sealey Professional Gas/Gasless MIG Welder with Binzel® Euro Torch 180A 230V

SEALEY SUPERMIG® - Compact, gas/gasless welder with 180A maximum performance.

HIGH OUTPUT TRANSFORMER – Heavy-duty high output transformer, with 30-180A welding current.

FORCED AIR COOLING – To maximise duty cycle performance.

BOTH GAS/GASLESS OPERATION – Unit is supplied set up in gas mode but can easily be switched to gasless mode by a simple change of polarity. Use in gasless mode will require spool of flux cored wire.

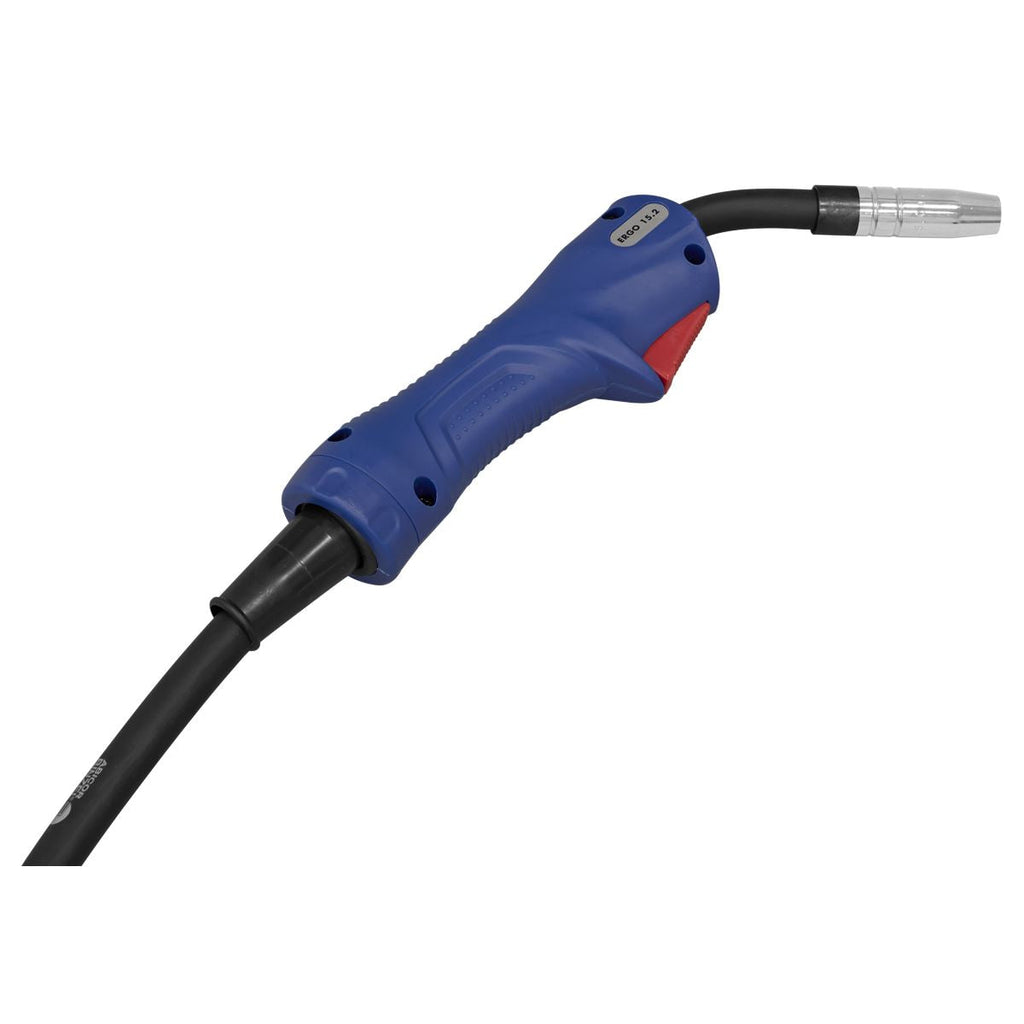

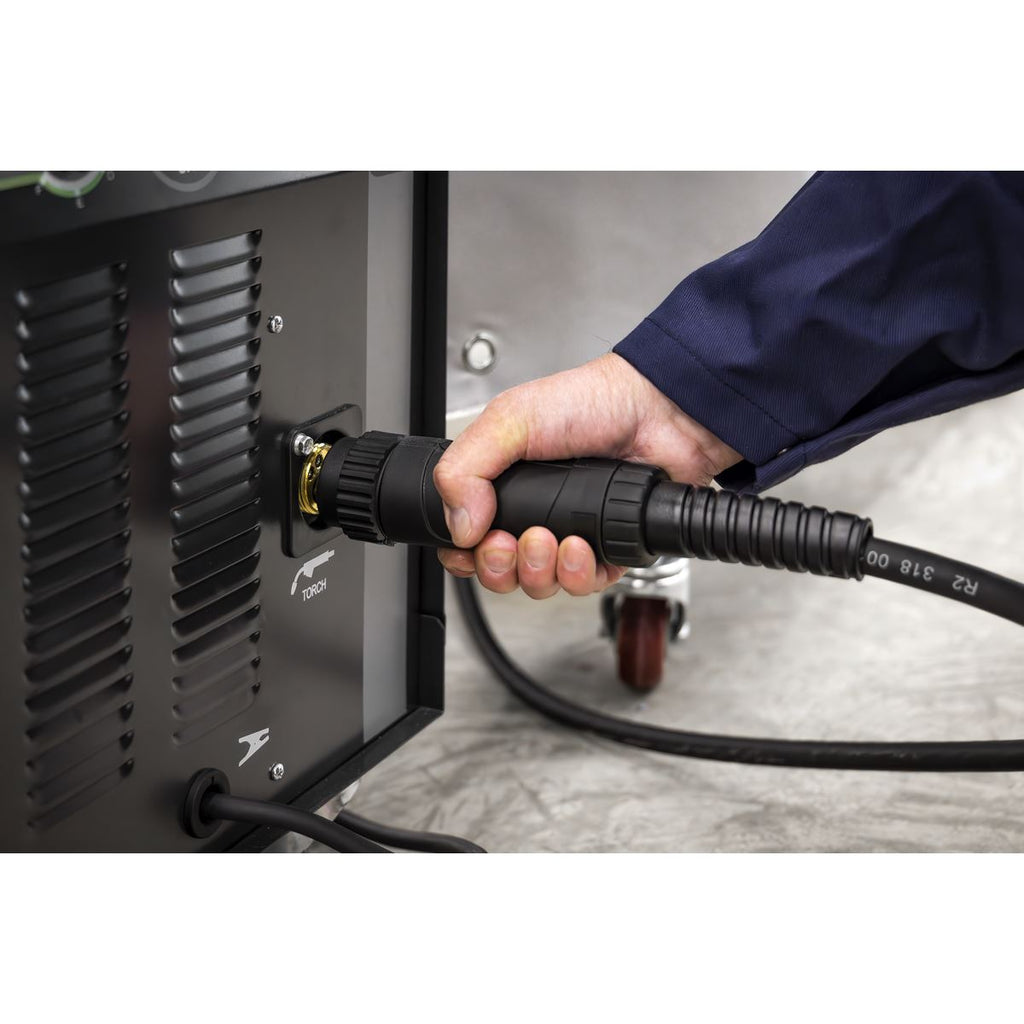

EURO NON-LIVE TORCH – Supplied with 3m Binzel® non-live Euro torch reducing accidental arcing and is comfortable in the hand, ensuring a steadier weld bead.

ACCESSORIES INCLUDED – Includes industrial gas regulator 2.4m earth cable with clamp, 0.6mm contact tip, 1.4m gas hose, hose clamp (x2).

3 YEAR GUARANTEE*.

Specification:

• Model No SUPERMIG180
• Brand: Sealey
• Nett Weight: 36.3kg
• Welding Current: 30-180A
• Wire Capacity: 5-15kg
• Duty Cycle: 100% @ 56A, 75% @ 65A, 60% @ 73A, 15% @ 145A
• Cooling System: Forced Air

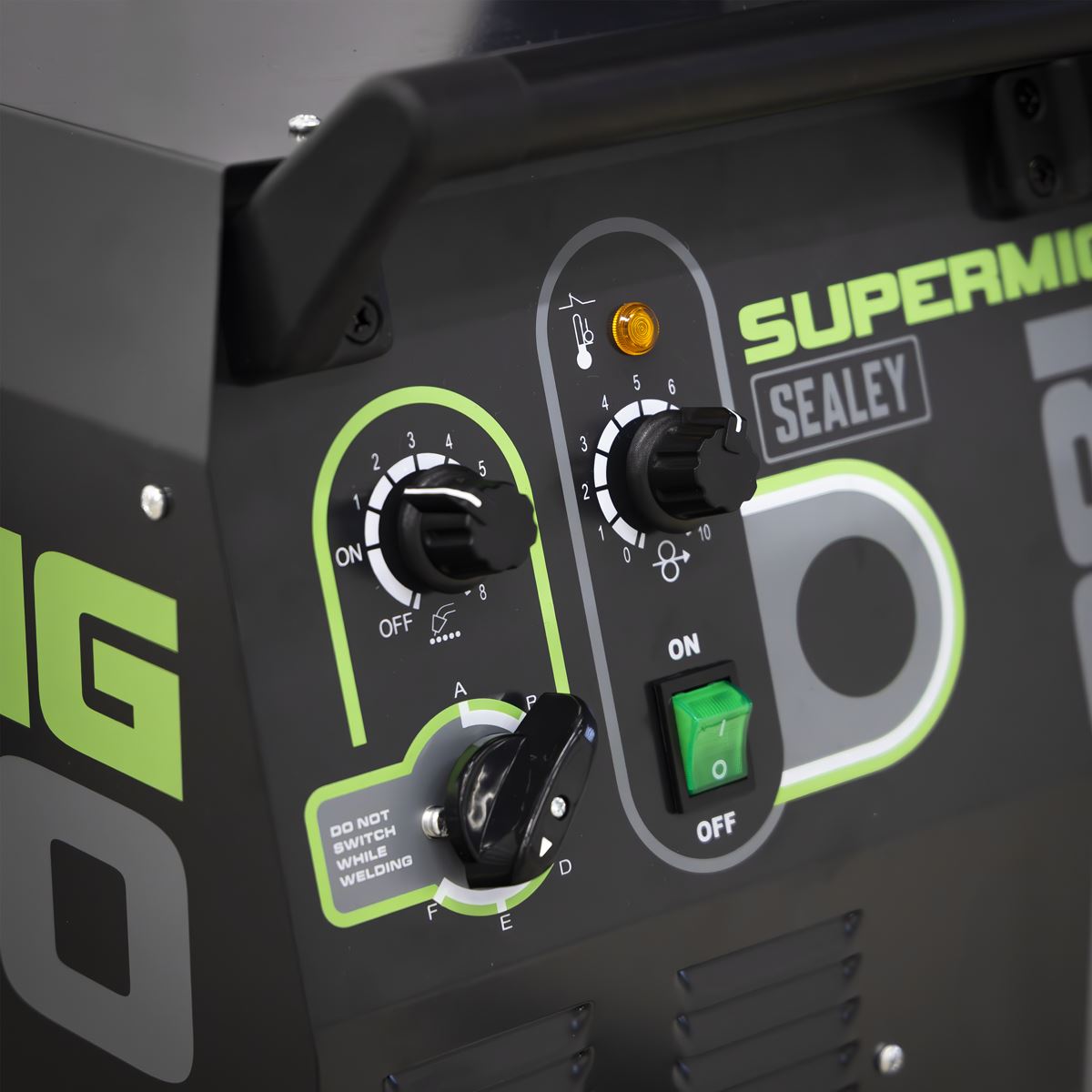

• Spot Welding Timer: Yes

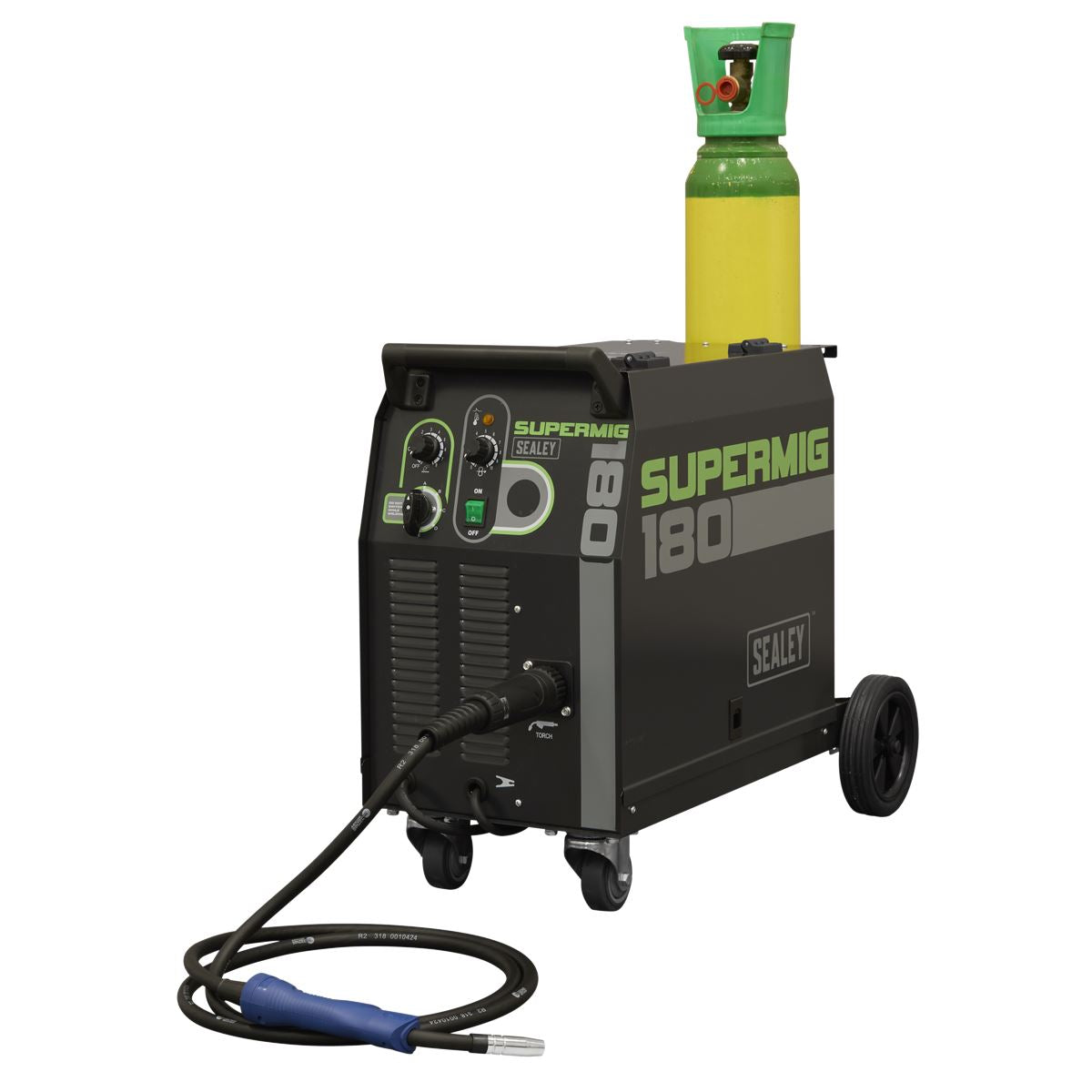

• Gas Type: CO2, Argon, CO2/Argon Mix
• Torch: 3m Euro Non-Live - BINZEL® Ergo 15.2
({IF["Supply: 230V-16A* *To achieve maximum power a 32A supply may be required."!=""]})
• Supply: 230V-16A* *To achieve maximum power a 32A supply may be required.
({ENDIF})
• Absorbed Power: 5.7kW
• Case Size: Large
• Wire Capacity: 5-15kg
• Duty Cycle: 100% @ 56A, 75% @ 65A, 60% @ 73A, 15% @ 145A
• Cooling System: Forced Air
• Spot Welding Timer: Yes
• Gas Type: CO2, Argon, CO2/Argon Mix
• Torch: 3m Euro Non-Live - BINZEL® Ergo 15.2
({IF["Supply: 230V-16A* *To achieve maximum power a 32A supply may be required."!=""]})
• Supply: 230V-16A* *To achieve maximum power a 32A supply may be required.
({ENDIF})
• Absorbed Power: 5.7kW
• Case Size: Large

Product Guarantee: 3 Years
Catalogue Page: Page 992
