Description

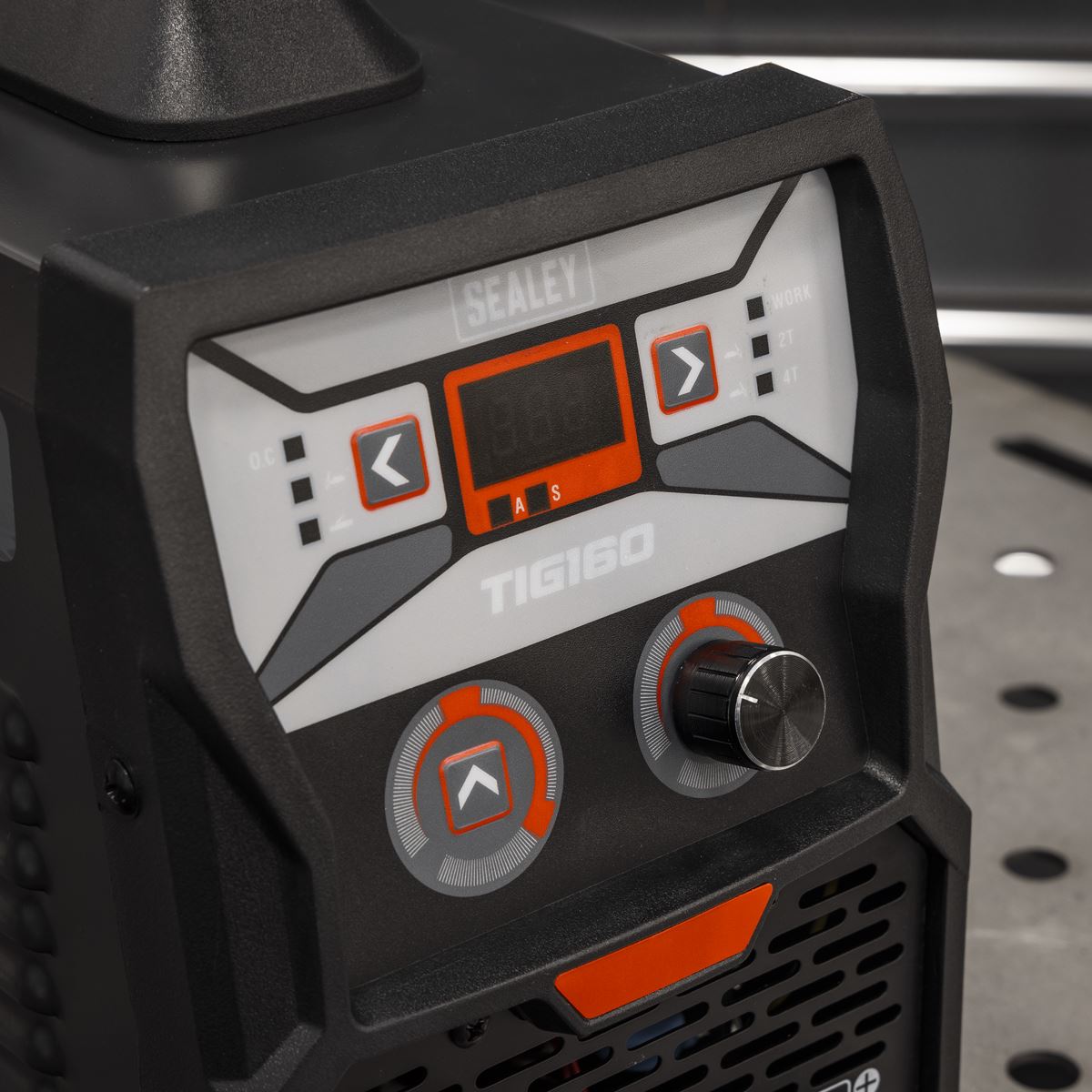

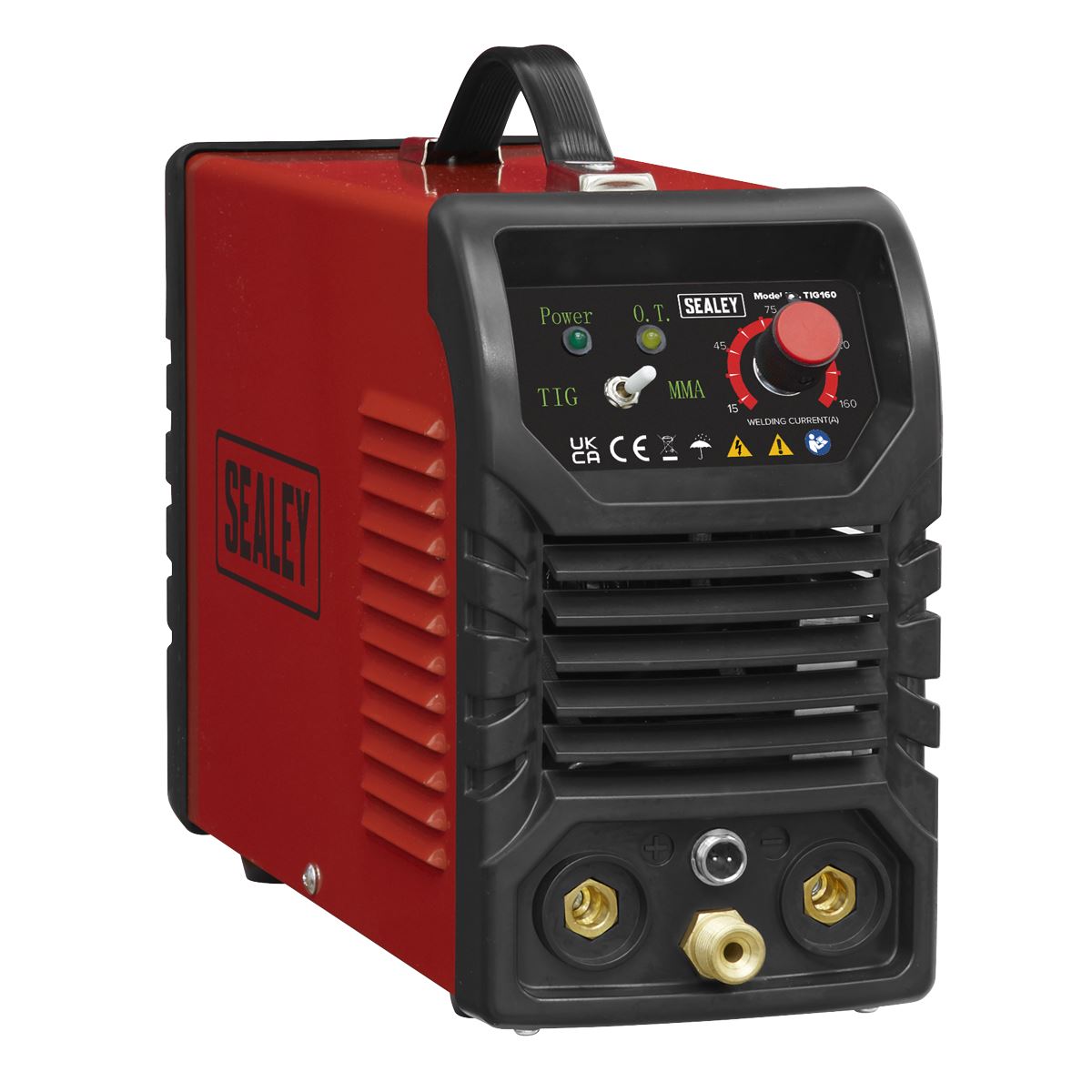

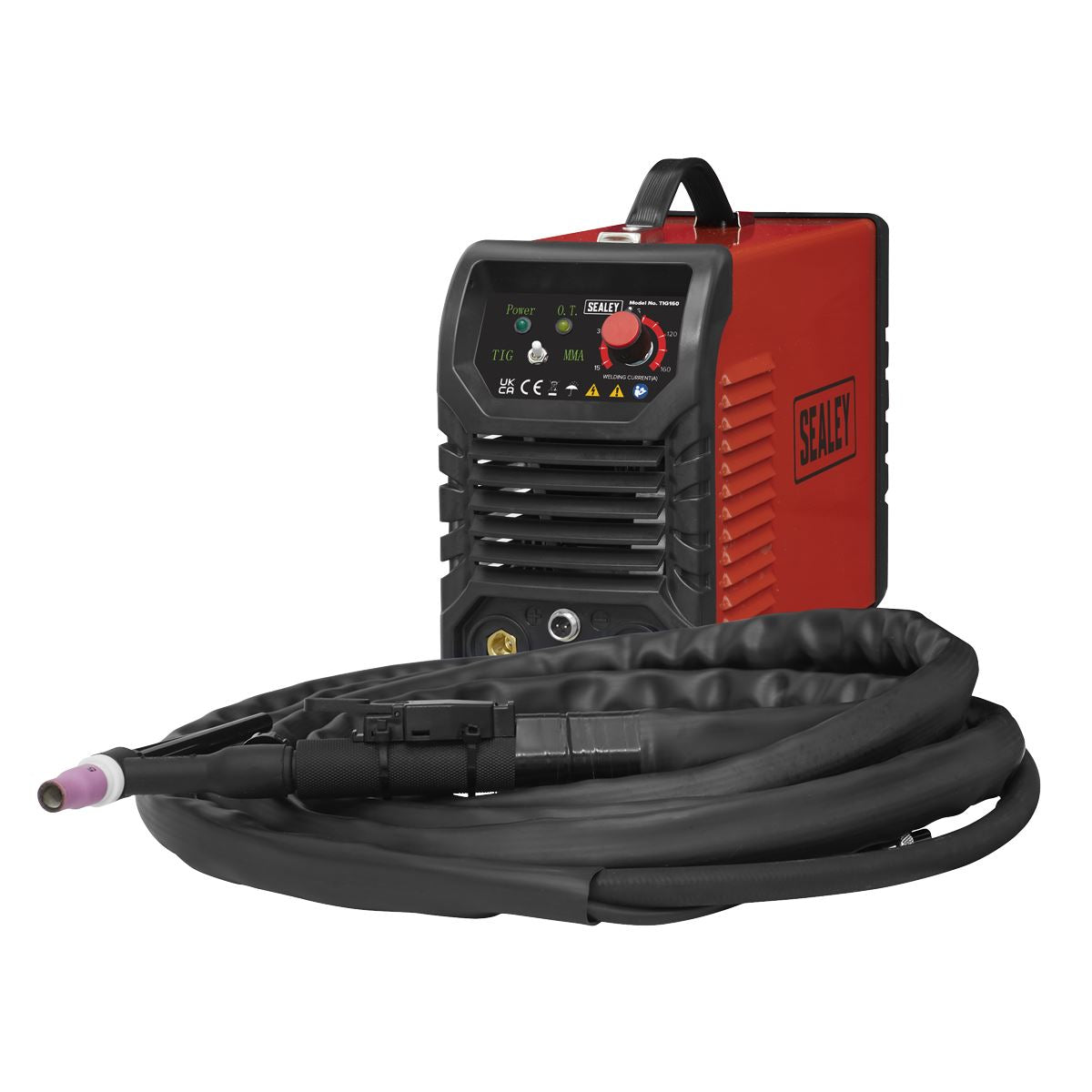

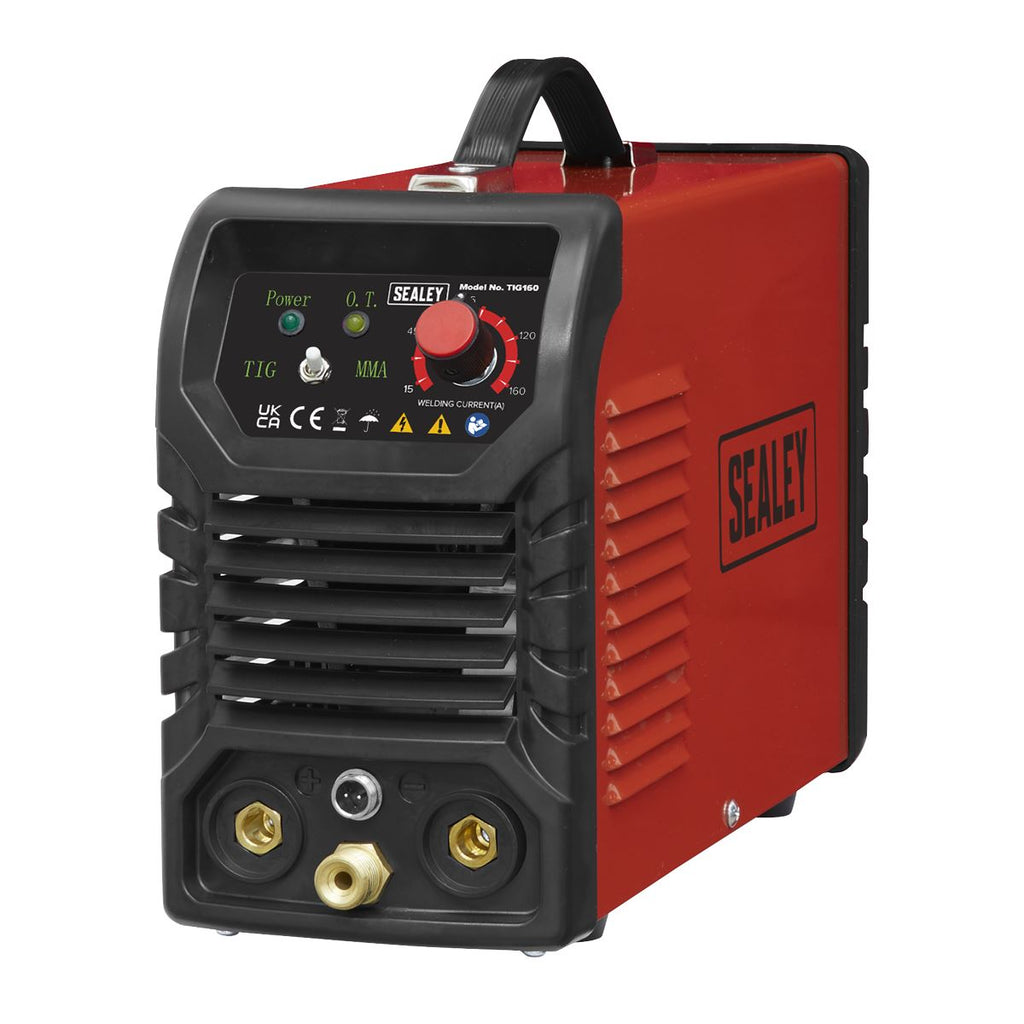

Sealey TIG & MMA/ARC Inverter Welder 160A/230V
IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for TIG and MMA/ARC welding applications up to 160A.
POWDER COATED - Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance.

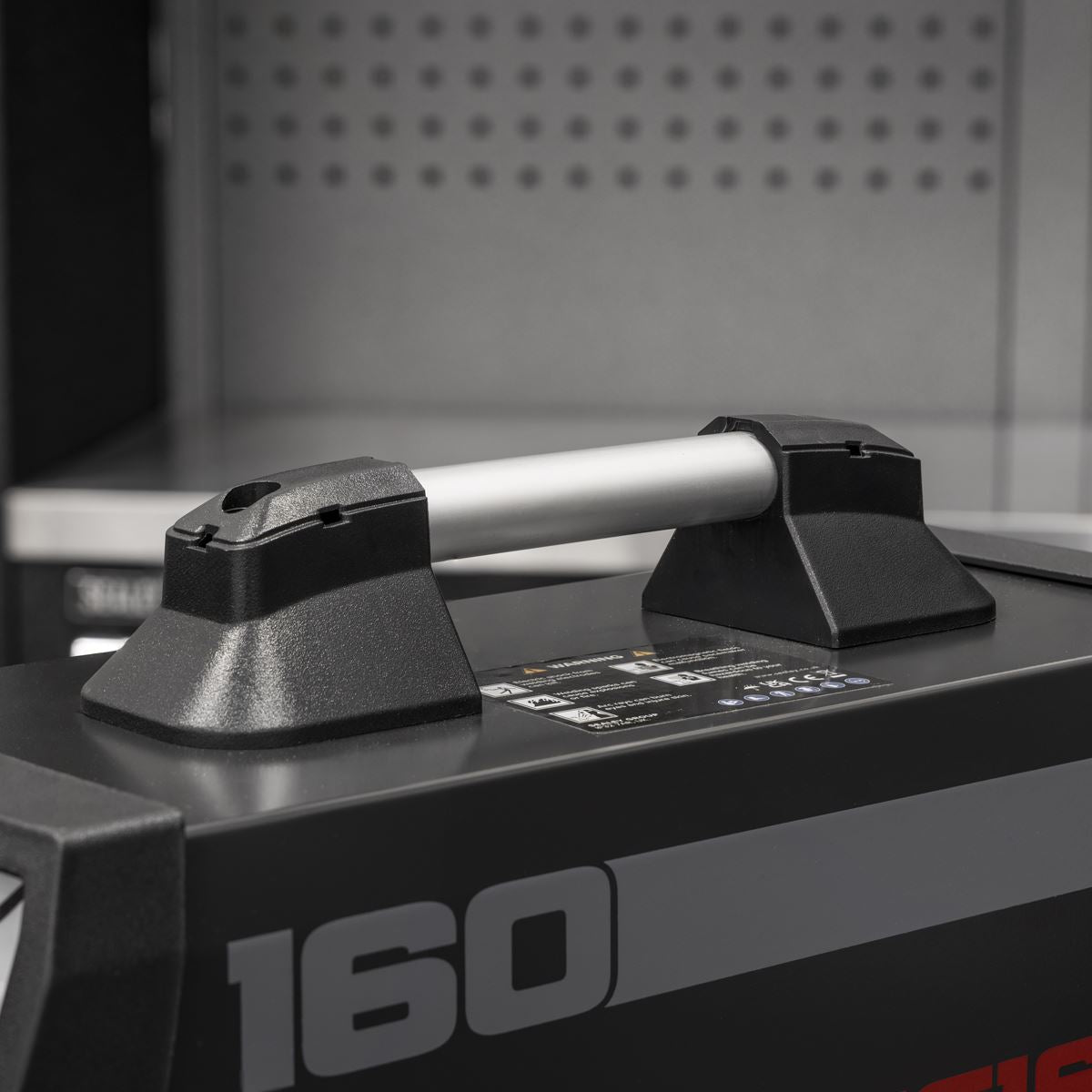

HIGHLY PORTABLE – Portable with a weight of only 6.1kg, allowing the welder to be taken to the job at hand making it ideal for the mobile technician.
FEATURING – Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.
LIFT START - Suitable for MMA/ARC welding using the lift start method for better weld quality.

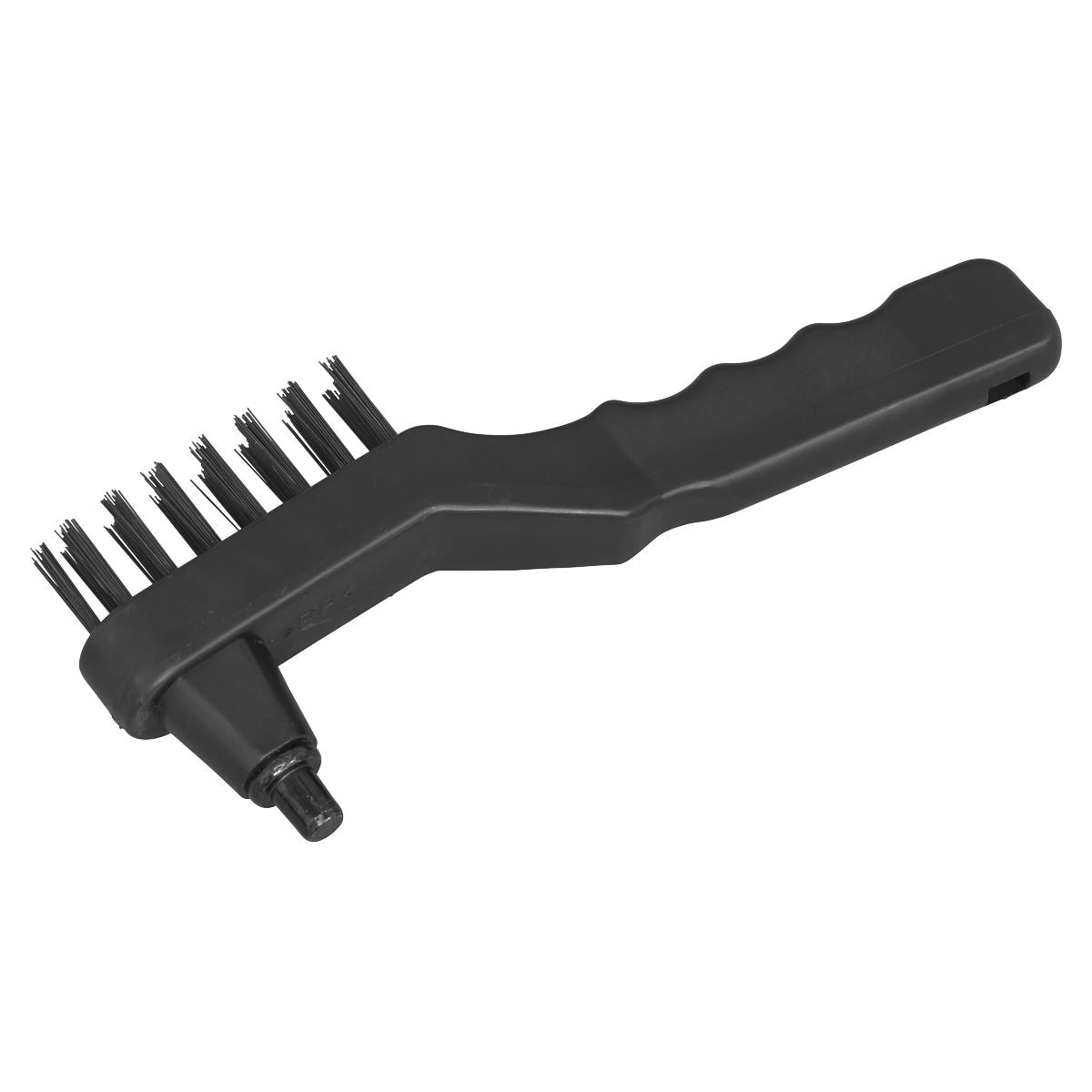

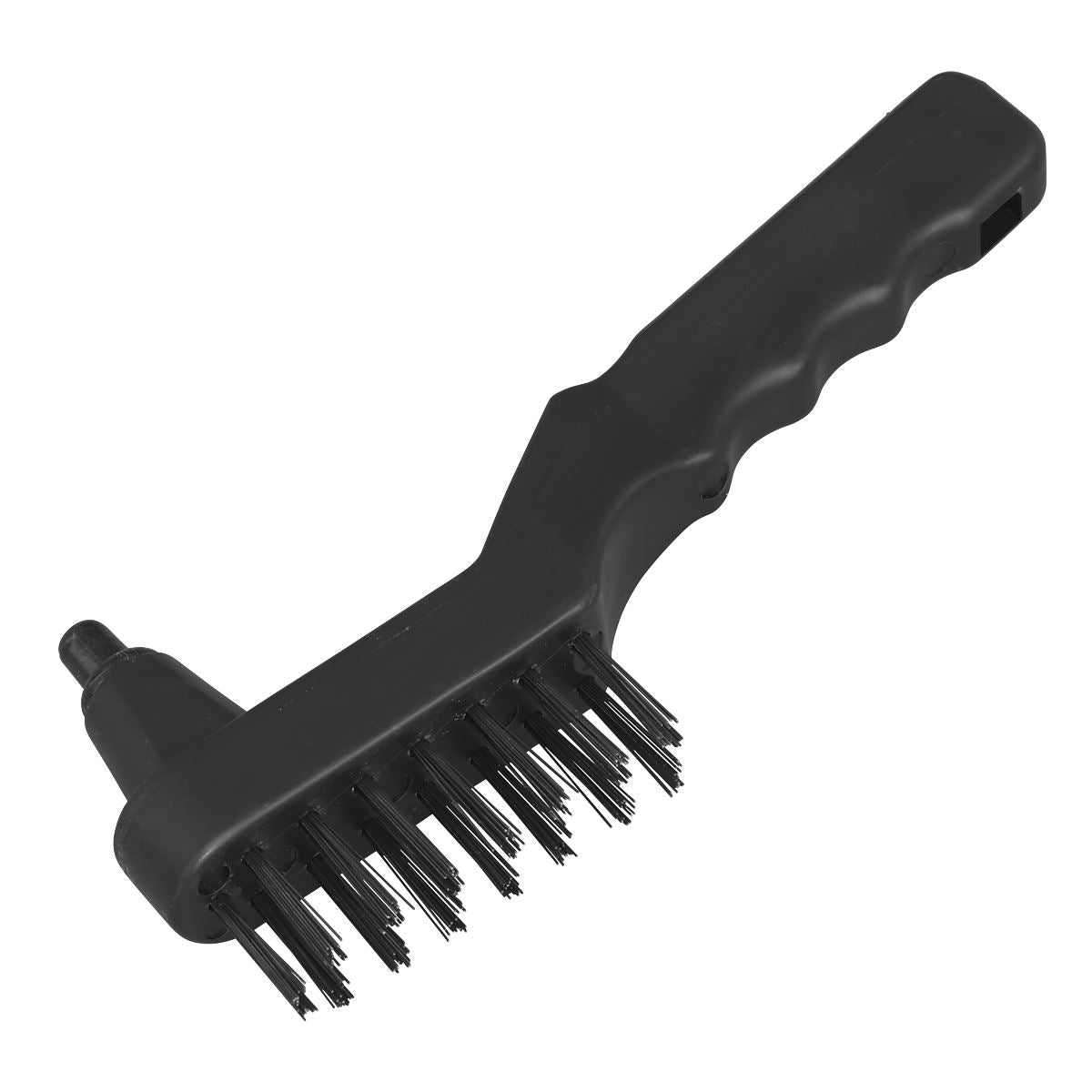

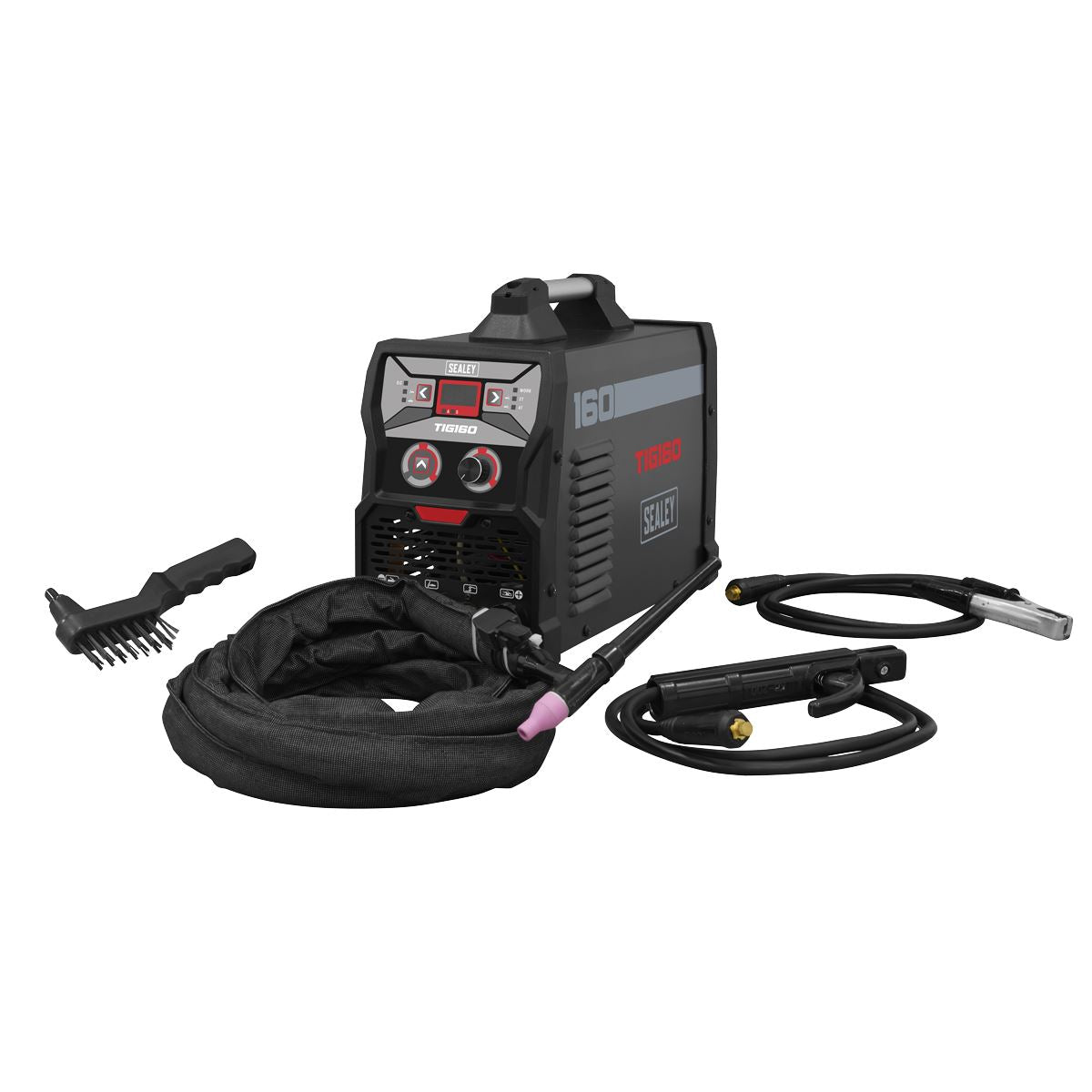

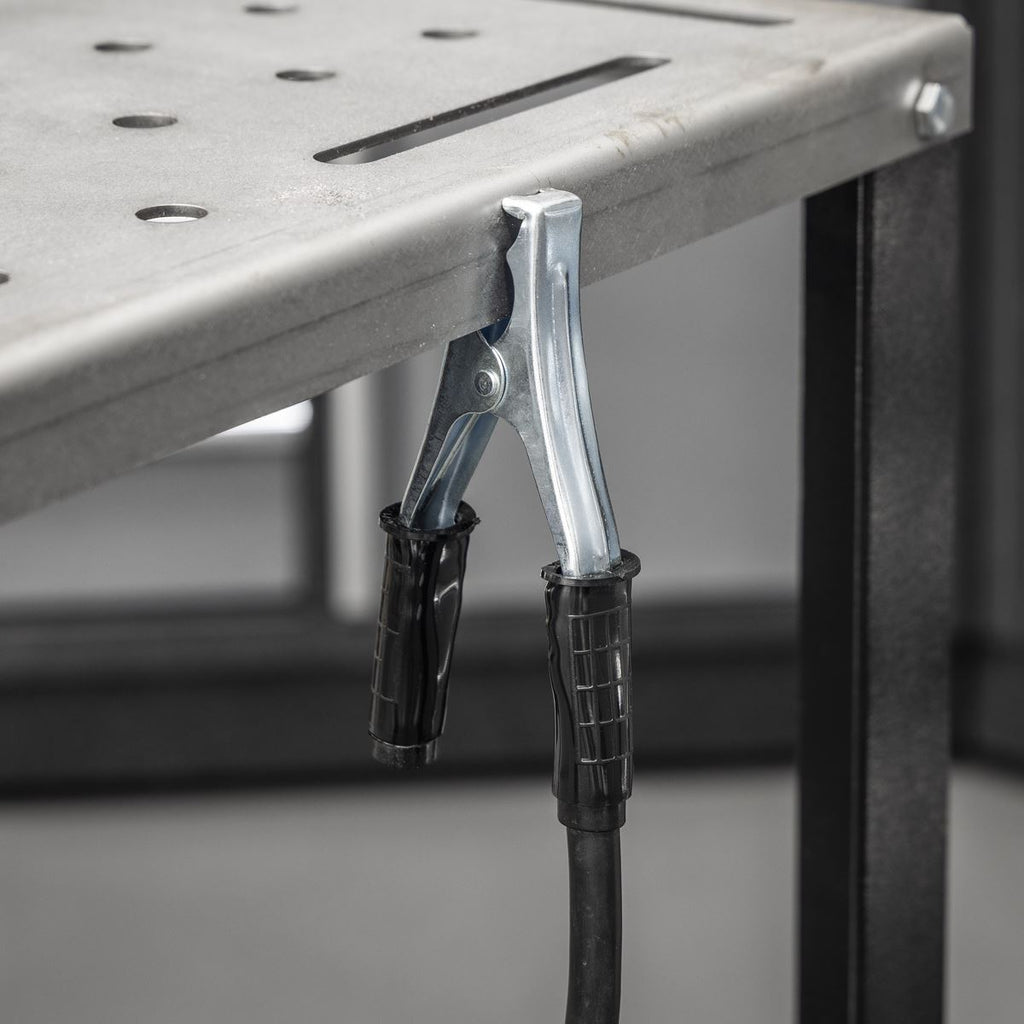

SUPPLIED WITH - Supplied with TIG and MMA/ARC Accessories.
DUTY CYCLE - TIG 60% @ 160A, MMA/ARC 60% @ 160A.
Specification:

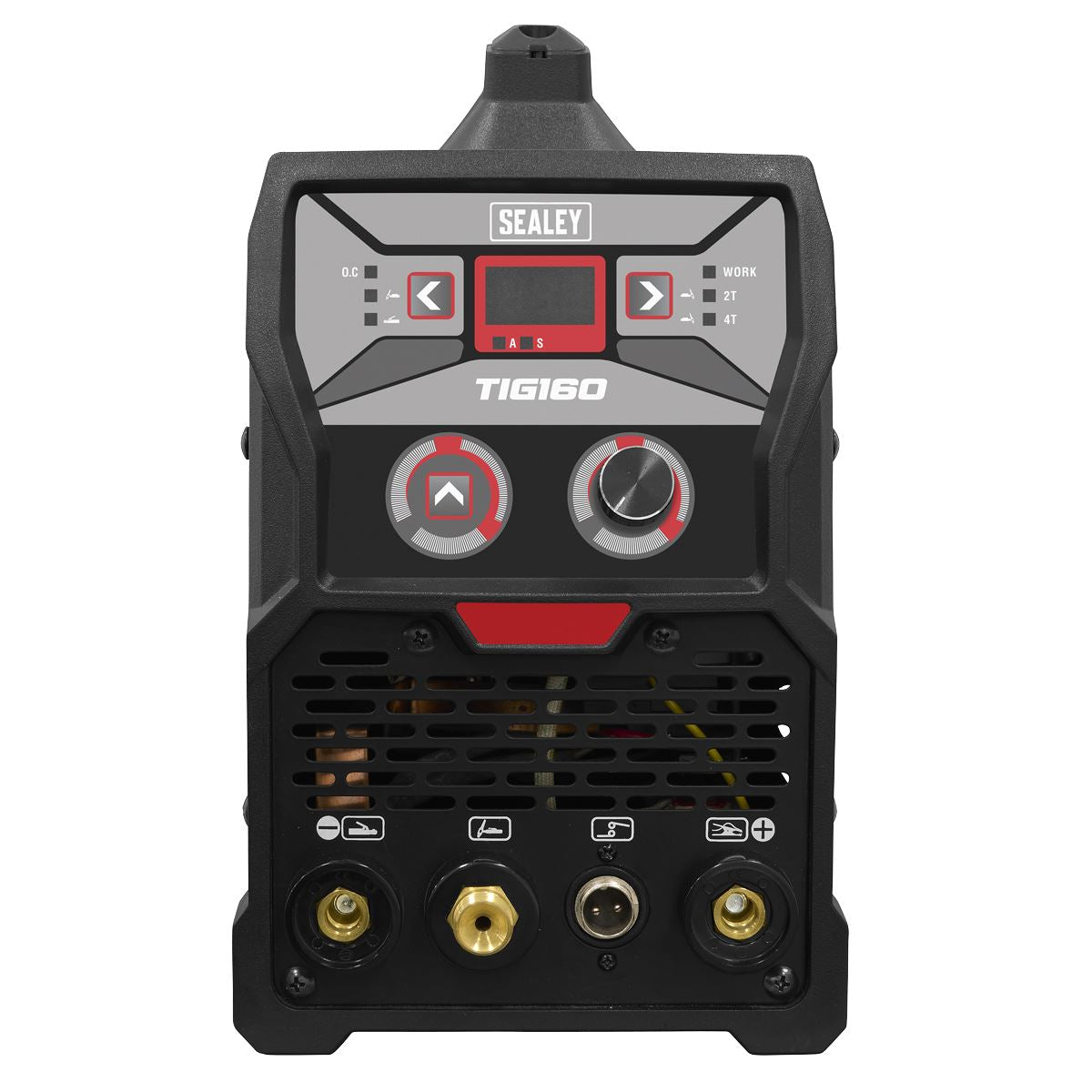

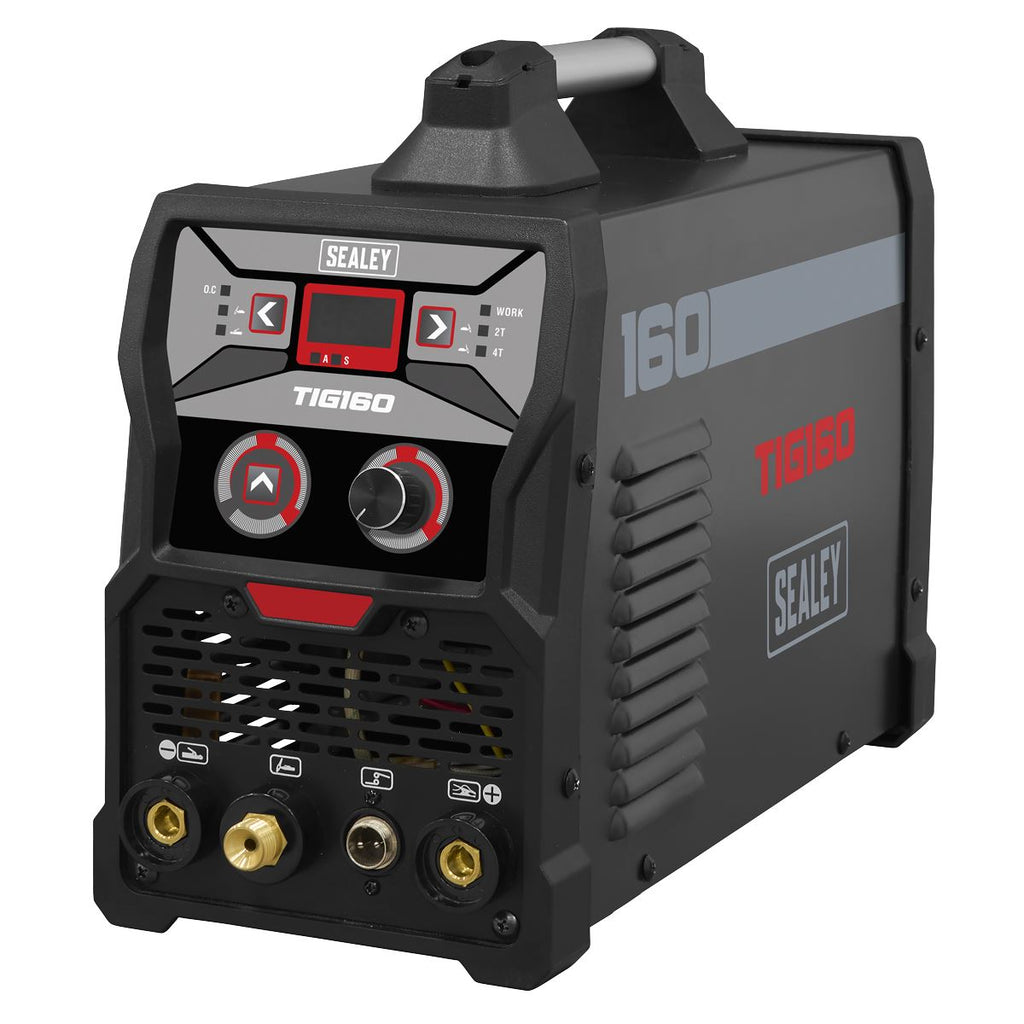

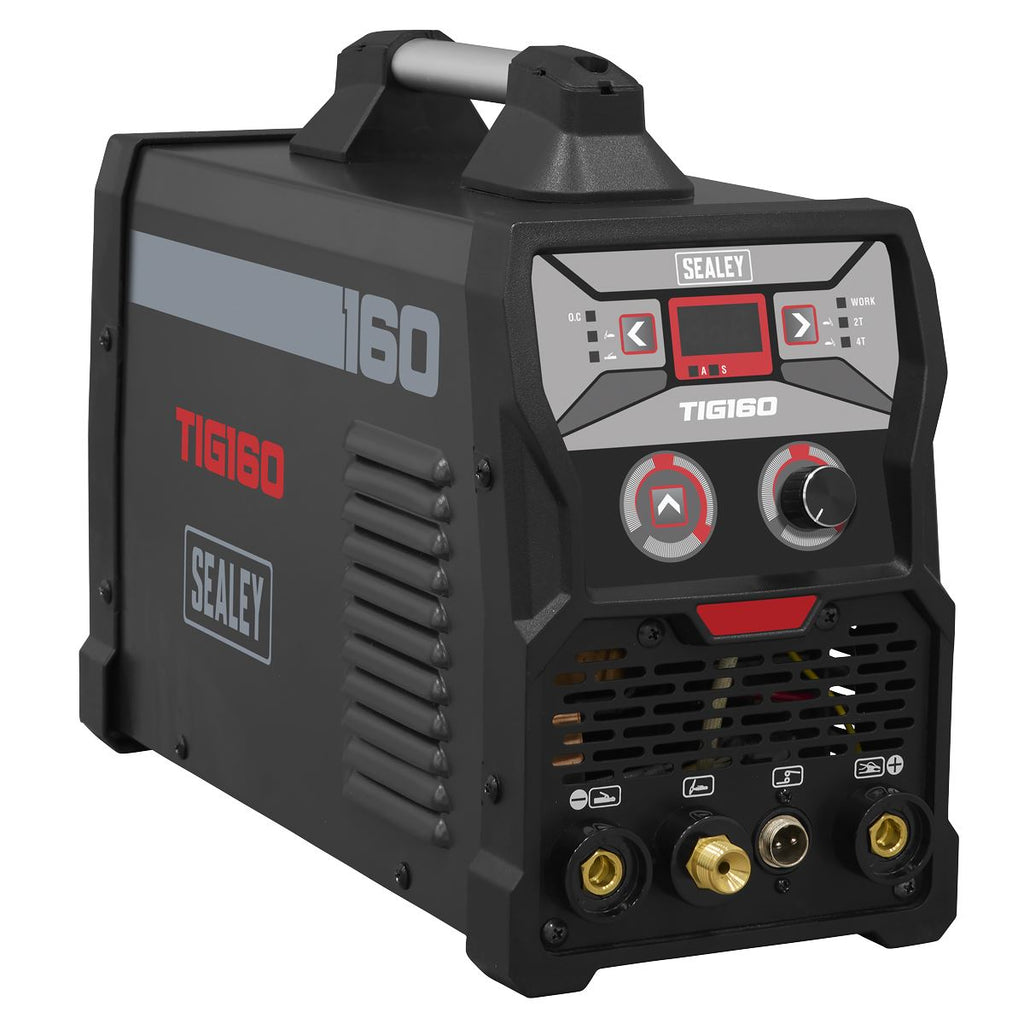

- Model No TIG160
- Brand: Sealey
- Nett Weight: 6.1kg
- Power Output: 10-160A ({IF["Duty Cycle: TIG: 60% @ 160A 100% @ 124A MMA: 60% @ 160A 100% @120A"!=""]})
- Duty Cycle: TIG: 60% @ 160A 100% @ 124A MMA: 60% @ 160A 100% @120A ({ENDIF})
- Electrode Capacity: 1.6-3.2mm
- Absorbed Power: 3.8kW
- Supply:* 230V
- Protection: IP21S
- Weight: 6.1kg
- Note: * To achieve maximum power 16A supply may be required.

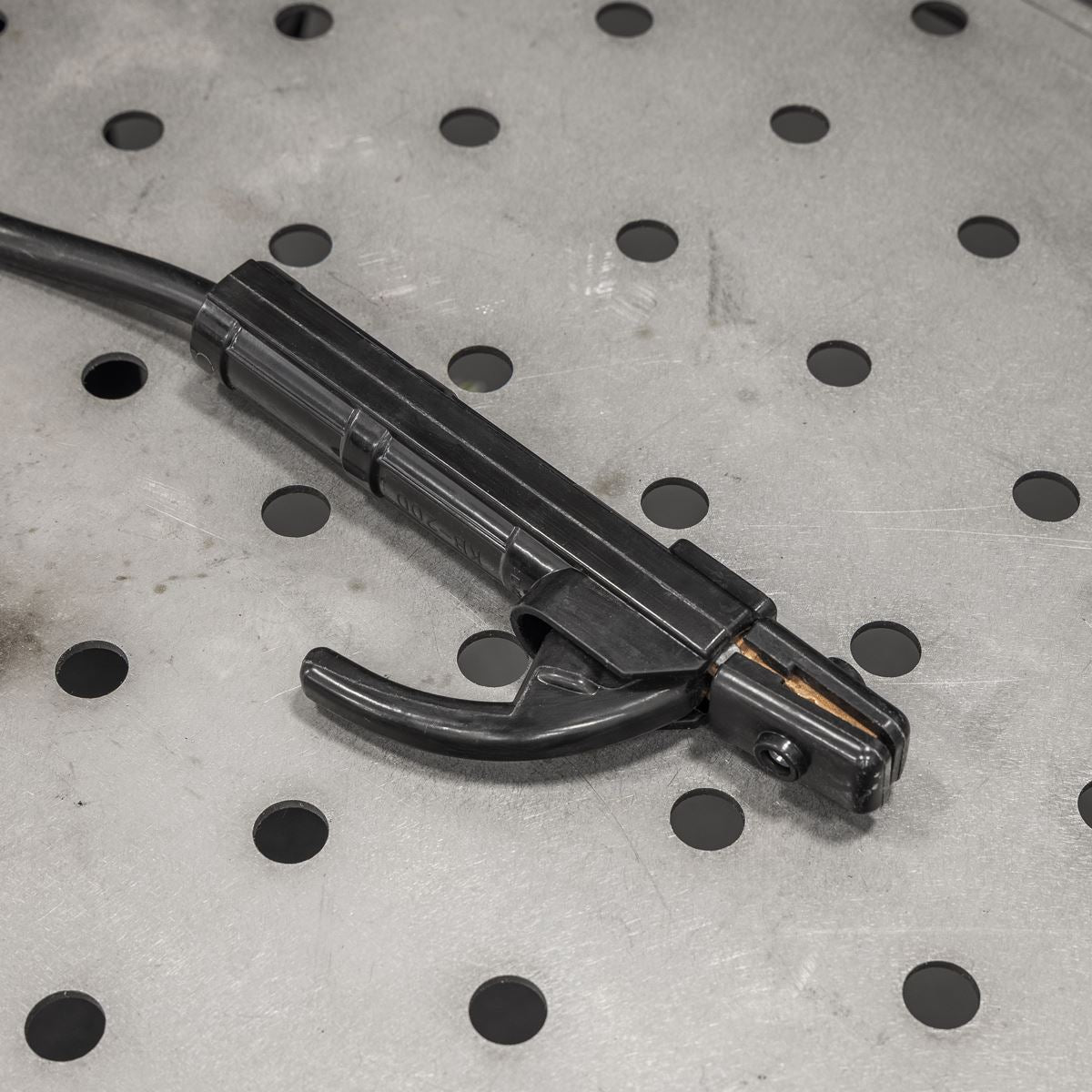

- Electrode Holder (Included): Yes

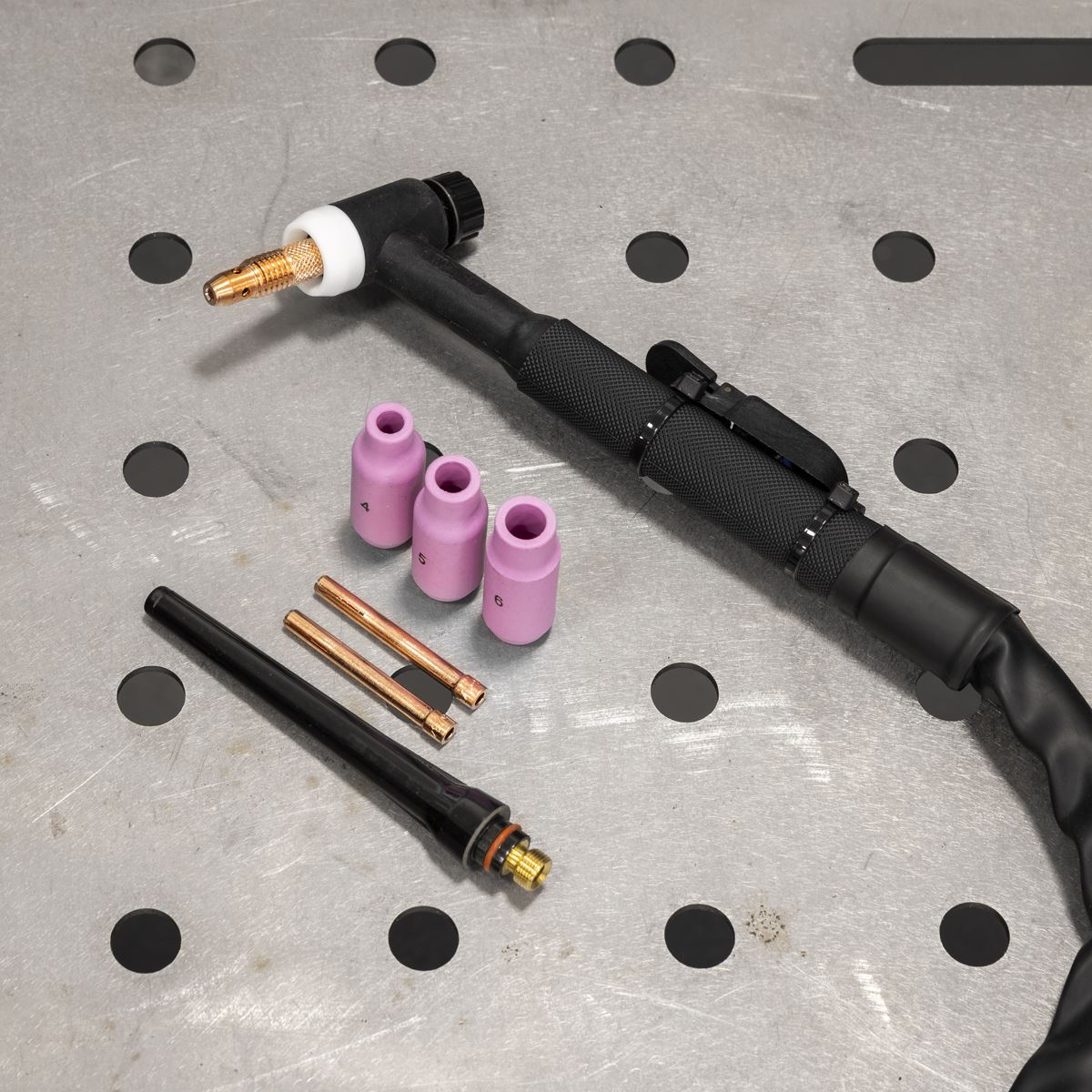

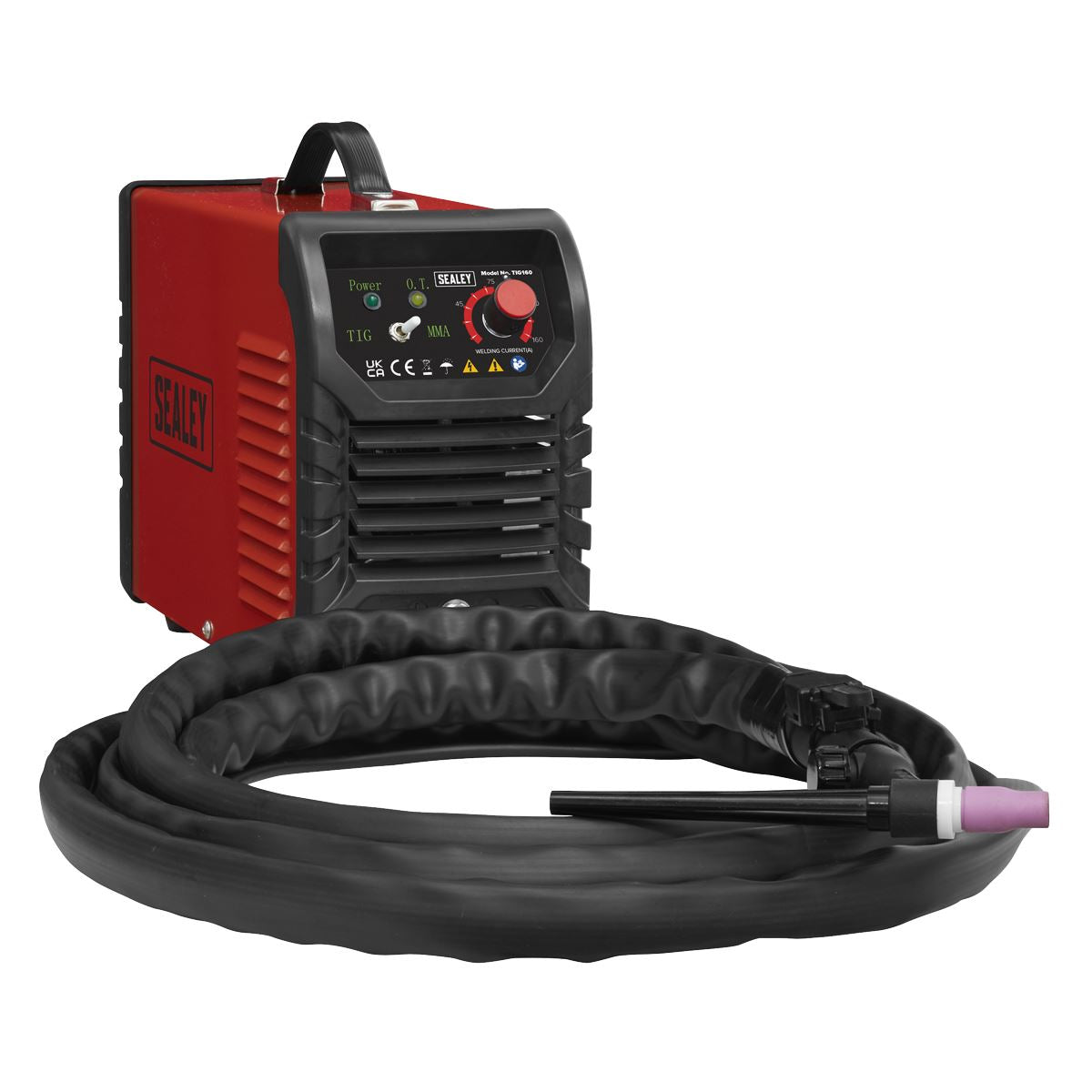

- TIG Welding Torch (Included): Yes
- Note: *To achieve maximum power a 16A supply may be required.
Catalogue Page: Page 996
