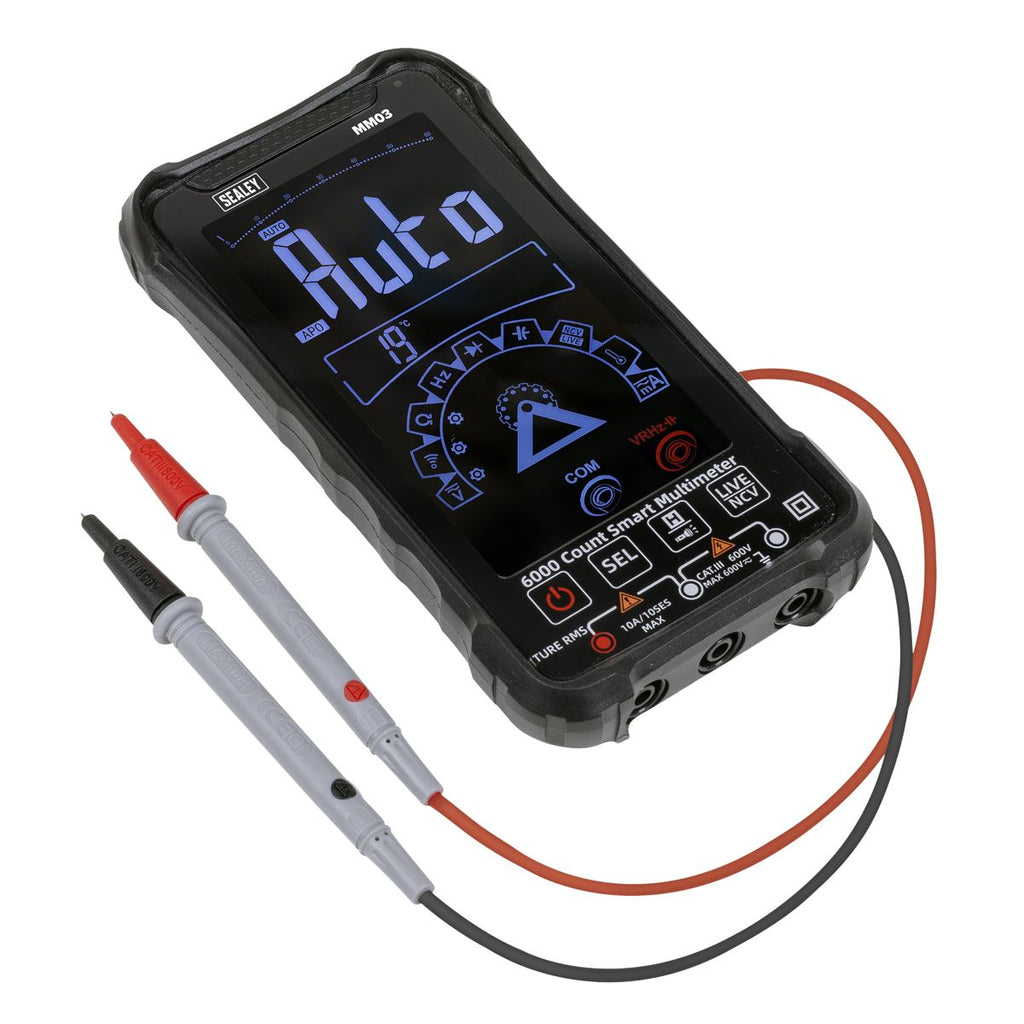

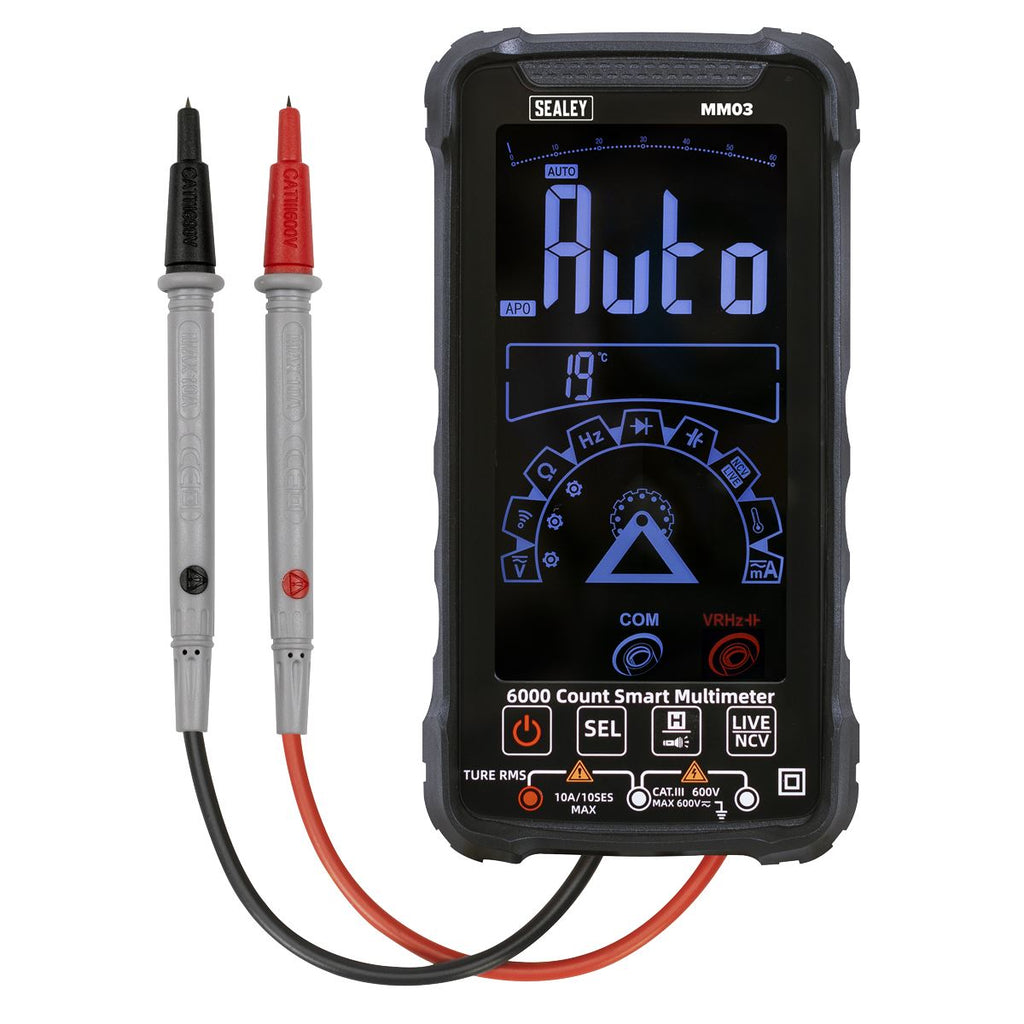

Sealey Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function

Sealey Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function

LARGE LCD TOUCHSCREEN – That is easy to navigate.

INTELLIGENT - The multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.

VERSATILE FEATURES - Includes temperature measurement capability, data-hold and auto-power-off function.

NON-CONTACT VOLTAGE DETECTION (NCVD) – Enables one-handed use.

6000 COUNT – High precision measurements.

LIVE TEST FEATURE - A single probe can test for live feeds.

LED WORK LIGHT – Enhances visibility in low light conditions.

RECHARGABLE – Supplied with Type-C USB charging cable.

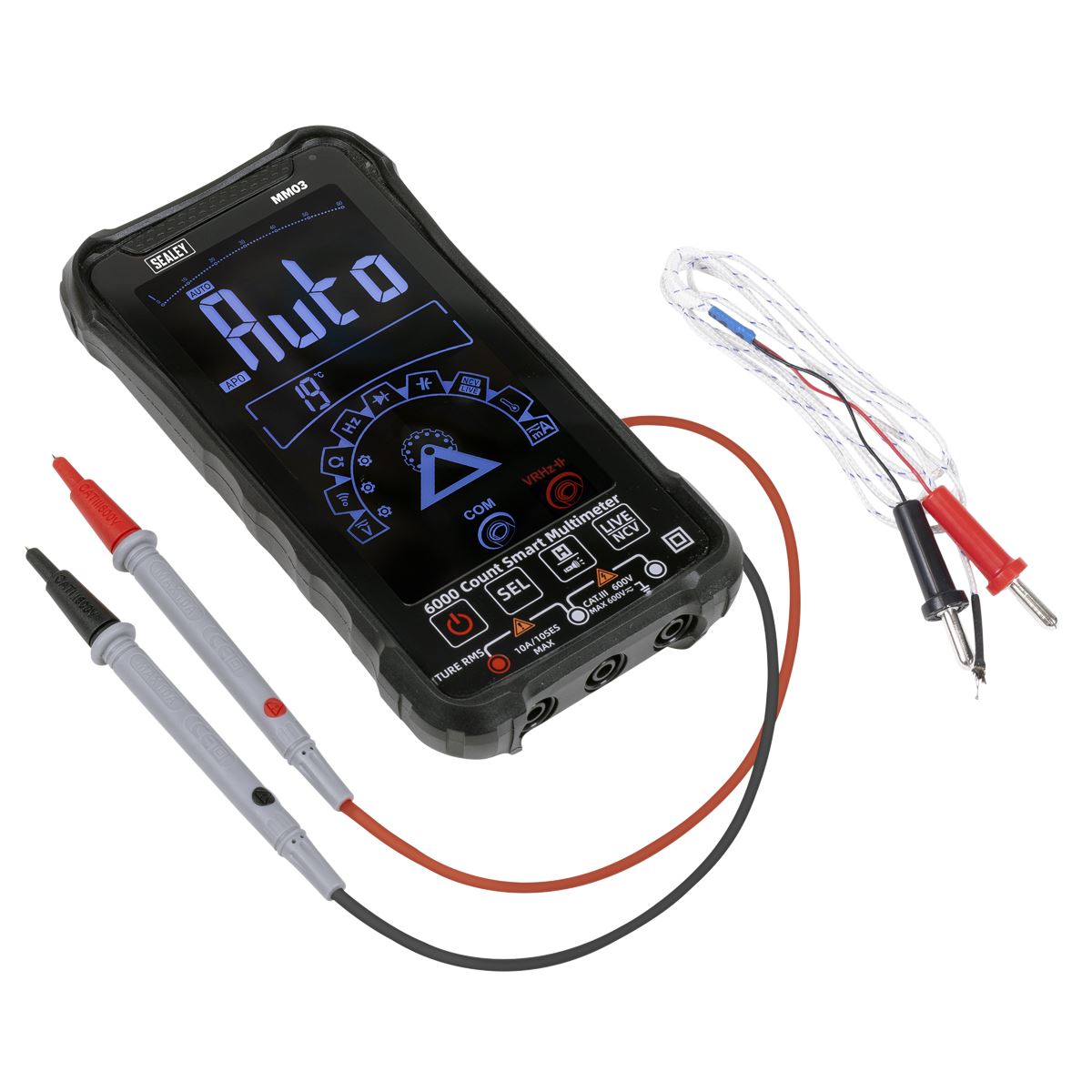

INCLUDES – Probes and thermocouple probe.

HEAVEY DUTY – High impact case.

SUPPLIED IN A STORAGE CASE – For secure storage and portability solutions.

CONFIRMS TO EN 61010-2 CATIII 600V SAFETY REQUIRMENTS - For electrical equipment for measurement, control and laboratory use.

Specification:

• Model No MM03
• Brand: Sealey
• Nett Weight: 0.317kg
• DC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
• AC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
({IF["DC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)"!=""]})
• DC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)
({ENDIF}) ({IF["AC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(3% +10 digits)"!=""]})
• AC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(3% +10 digits)
({ENDIF})
• Resistance (Accuracy): Range: 600/6k/60/600k (Ohm), Resolution: 0.1/1/0.01k/0.1k (Ohm), Accuracy: =-(1.2% +3 digits)
({IF["Resistance: Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy: =-(2% +5 digits)"!=""]})
• Resistance: Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy: =-(2% +5 digits)
({ENDIF})
• Capacitance (Accuracy): Range: 6/60/600nF, 6/60/600uF, 60mF, Resolution: 0.001/0.01/0.1nF, 0.001/0.01/0.1uF, 0.001mF, Accuracy: =(4.5% +5 digits)
({IF["Frequency (Accuracy): Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution: 0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)"!=""]})
• Frequency (Accuracy): Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution: 0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)
({ENDIF}) ({IF["Temperature (Accuracy): Range: -200°C to 1200°C -328°F to 2192°F, Resolution: 1°C, Accuracy: =-(5/1/2% + 4/3/5 digits)"!=""]})
• Temperature (Accuracy): Range: -200°C to 1200°C -328°F to 2192°F, Resolution: 1°C, Accuracy: =-(5/1/2% + 4/3/5 digits)
({ENDIF})
• Auto Range: YES
• Auto Scan: V/R/CONT
• Duty Cycle: NO
• Continuity Audible: YES
• Diode Test: YES
• Backlit/Torch: YES
• Transistor Test: NO
• Hi-Impact Rubber Case: YES
• Digits x Height: 4 x 23mm
• Low Battery Indicator: YES
• Battery: Rechargeable 3.7V Li-ion
• Information: Data-Hold, Auto-Power-Off, Integral Stand & Live Test
• Size: 158 x 82 x 23mm
• Nett Weight: 0.317kg
• Conformity: EN 61010-2

Product Guarantee: 1 Year
Catalogue Page: Page 410

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
