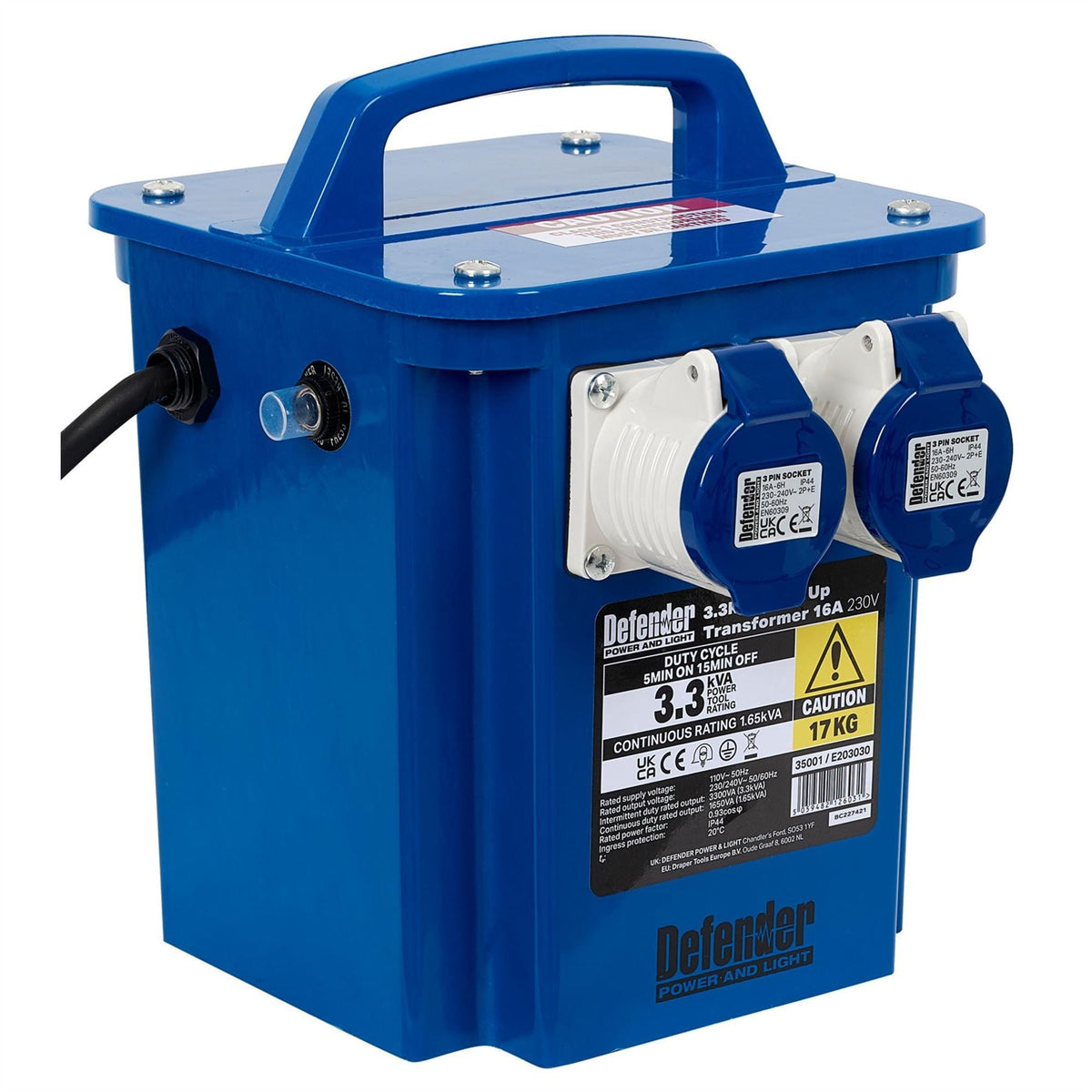

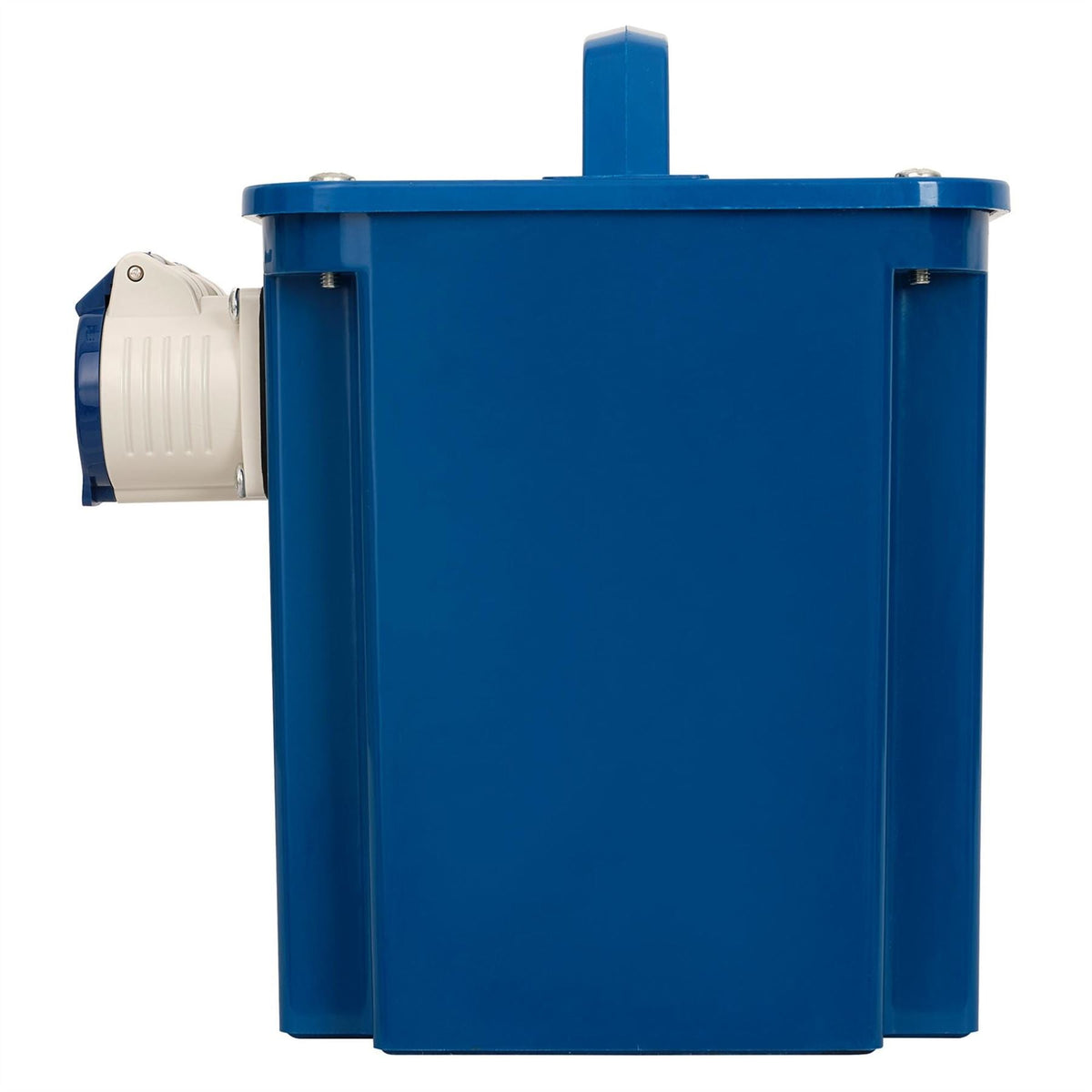

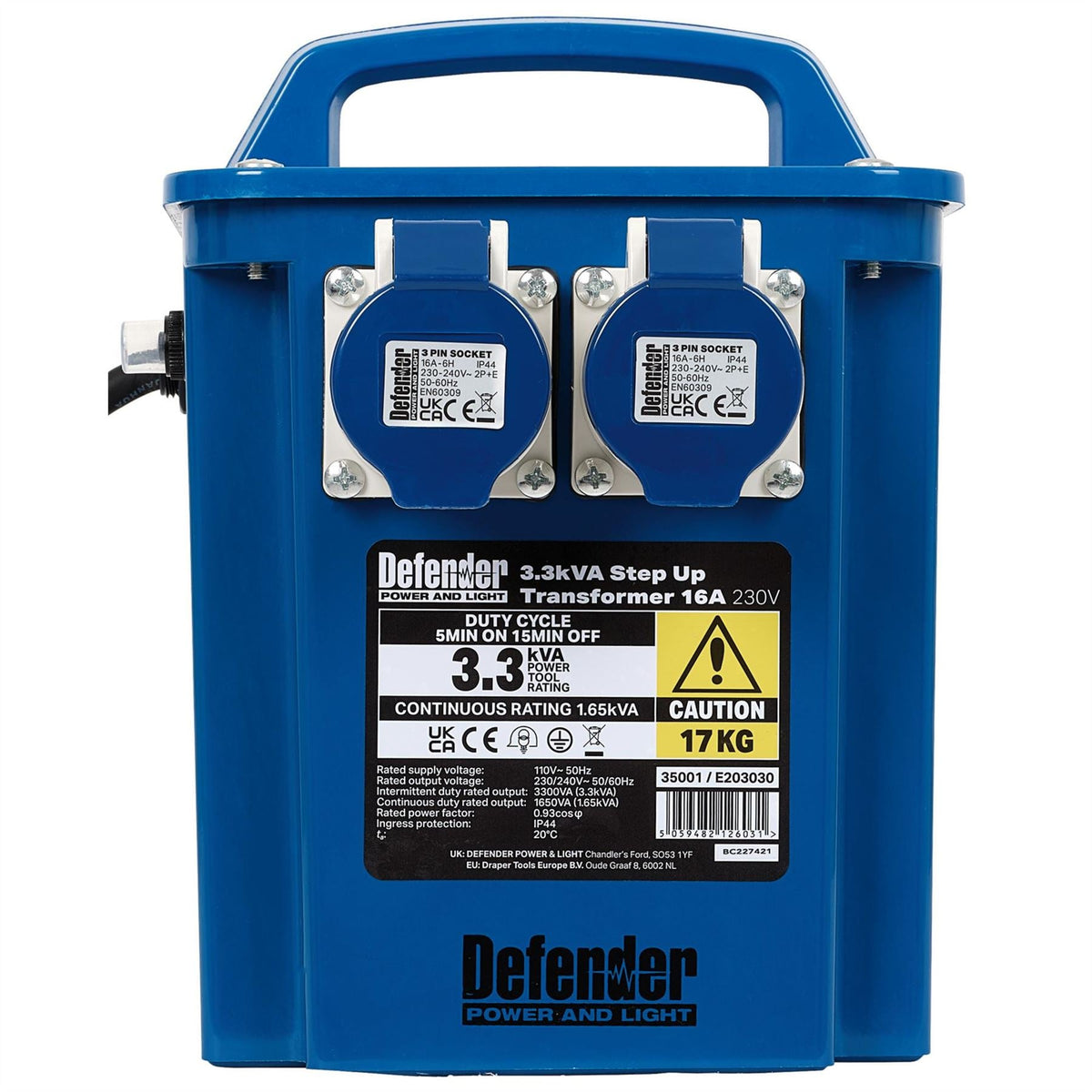

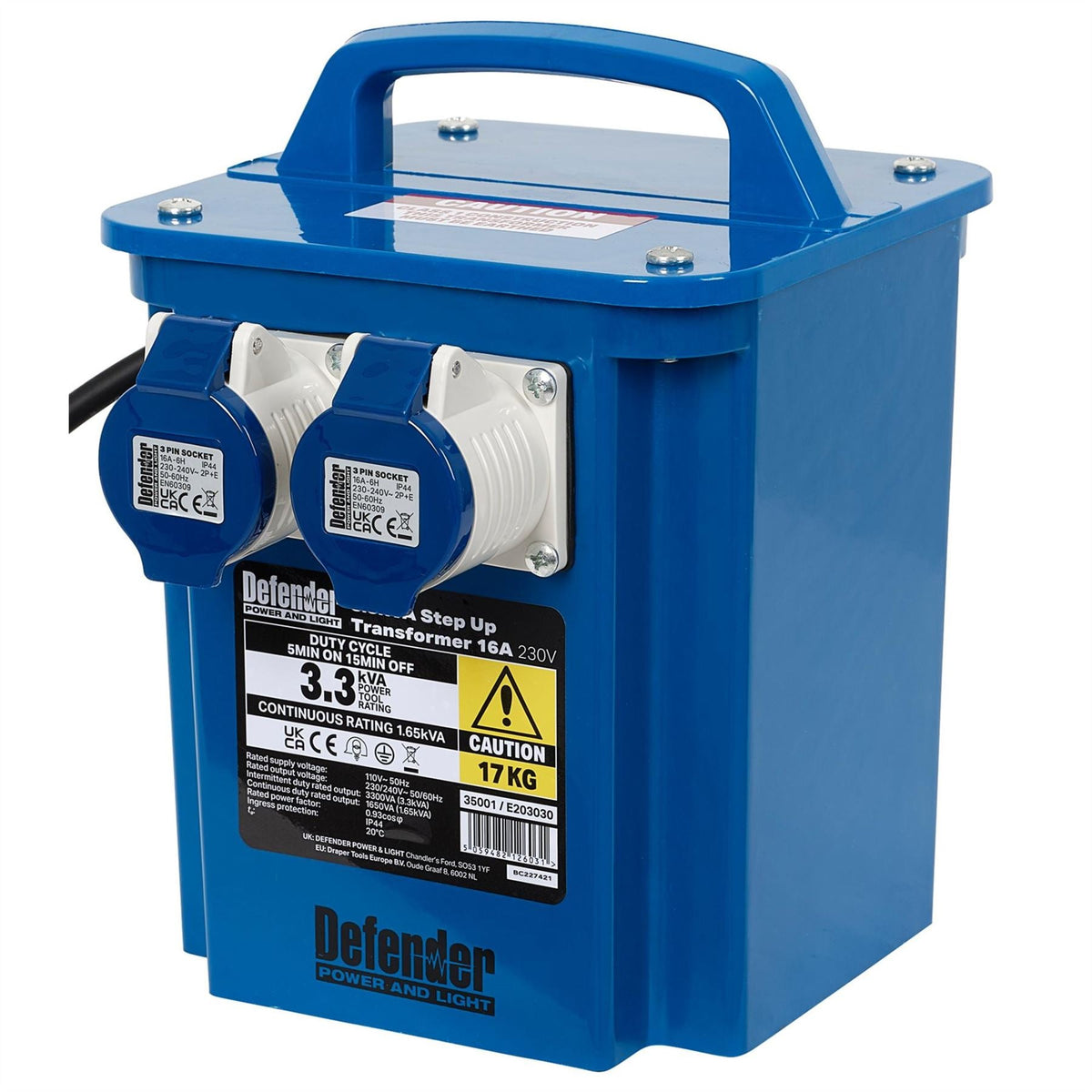

Defender E203030 3.3kVA 230V Step Up Transformer 16A 35001

Defender E203030 3.3kVA 230V Step Up Transformer 16A 35001

Step-up transformer with tough GRP case to withstand harsh conditions for site use. Features 2 x 16A outlets. Enables users to operate 240V 16A tools by attaching to a 110V electrical circuit. Provides isolation from mains and eliminates the need for a second set of tools. Centre tapped to earth for extra safety. Intermittent rating 3300VA. Continuous rating 1650VA. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP44. Supplied with 110V 16A plug and 1.7m cable. BSEN 61558-1 compliant. Dimensions: 190 x 240 x 260mm. Weight 17kg.
Features:

• Tough GRP impact-resistant case
• Converts 110V to 230V
• Provides isolation from Mains
• Suitable for industrial power tools, site lighting
• BS EN 61558-1 compliant
• Supplied with 16A Plug

Product Contents:

• 1 x Defender E203030 3.3kVA 230V Step Up Transformer, 16A
• 2 x 16A Socket
• 1 x 1.8 m H05VV-F 3x1.5mm Yellow PVC cable
• 1 x 16A Plug

Brand: Defender
Stock No: 35001
Part No: E203030

Specification:

• Continuous Rating: 1650VA(1.65KVA)
• Ingress Protection: IP44
• Intermittent Rating: 3300VA(3.3KVA)
• Weight: 17kg
• Dimensions: 260 x 240 x 192mm
• Apparent Power (kVA): 3.3KVA
• Output voltage: 230–240V AC, 50/60Hz
• Input Voltage:: 110V AC, 50Hz
• Sockets: 2 × 16A 230V

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
