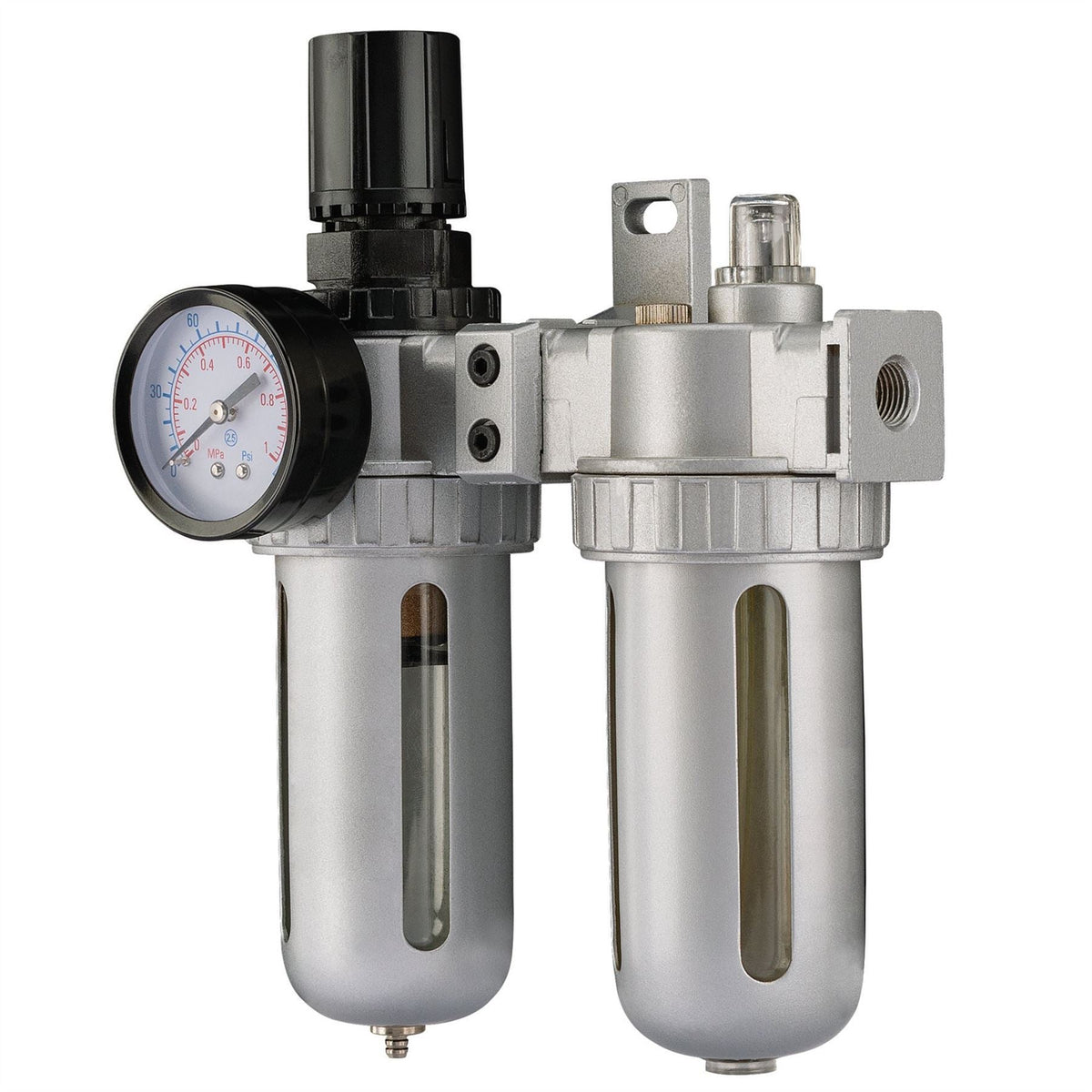

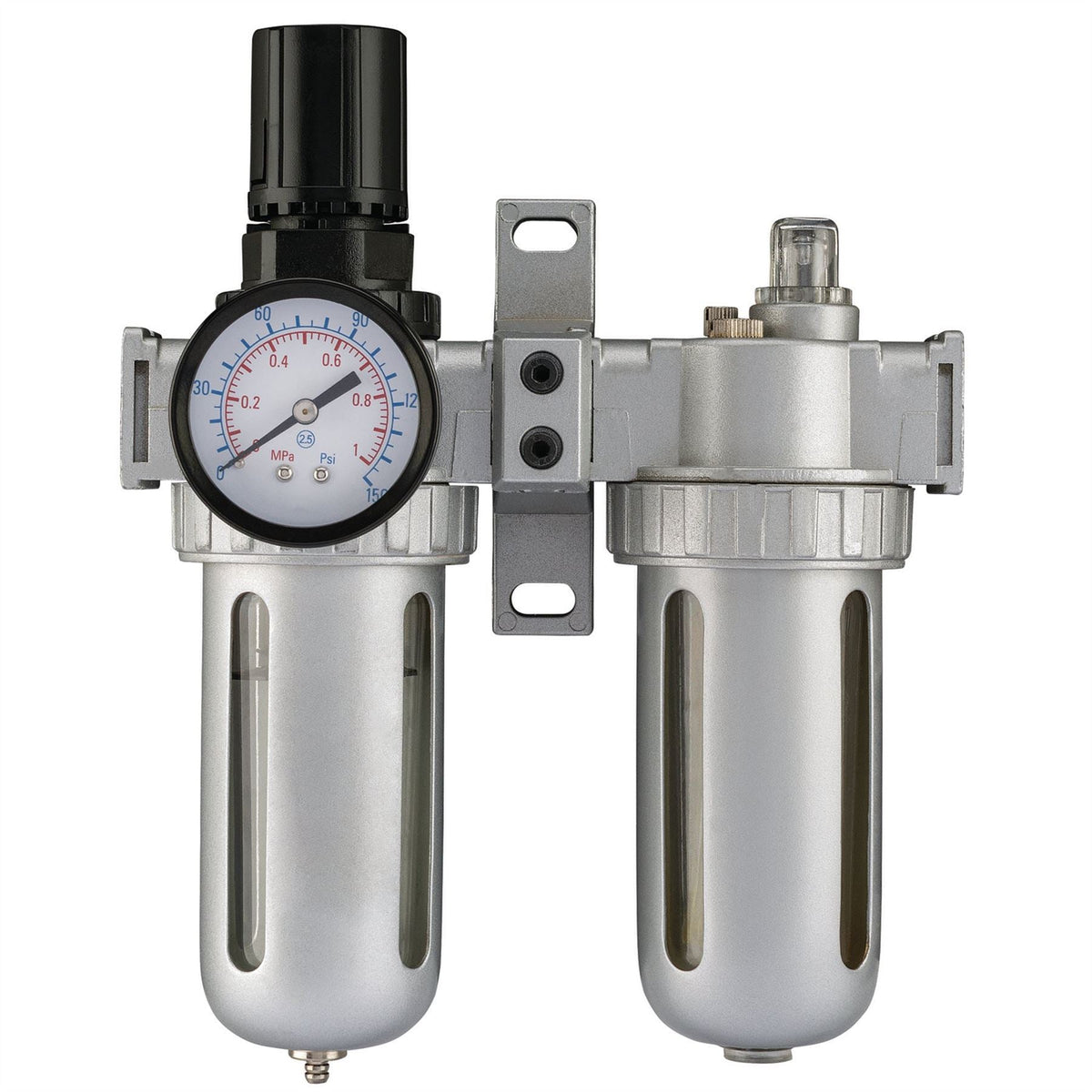

Draper 1/4" BSP Combined Filter/Regulator/Lubricator Unit 70824

Draper 1/4" BSP Combined Filter/Regulator/Lubricator Unit 70824

Designed to control output air pressure, eliminate moisture and contaminants from airflow and to lubricate tools during use. The main body of this unit is aluminium with polished silver finish. The gauge has steel casing and is duel-marked with psi and Mpa. Steel screw-on transparent bowl. Manual/semi-automatic drain, fitted with 40-micron filter. Complete with wall bracket.
Features:

• Steel screw-on bowl
• 1/4" BSP threaded
• 40-micron filter
• 145psi

Product Contents:

• 1 x 1/4" BSP Combined Filter/Regulator/Lubricator Unit

Brand: Draper
Stock No: 70824
Part No: DFRL
Warranty: 12 months

Specification:

• Inlet/outlet thread: 1/4" BSP
• Weight: 0.98kg
• Dimensions: 214 x 170 x 97mm
• Filtration element: 40um
• Working temperature range: 5-60℃
• Max inlet pressure: 145psi

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
