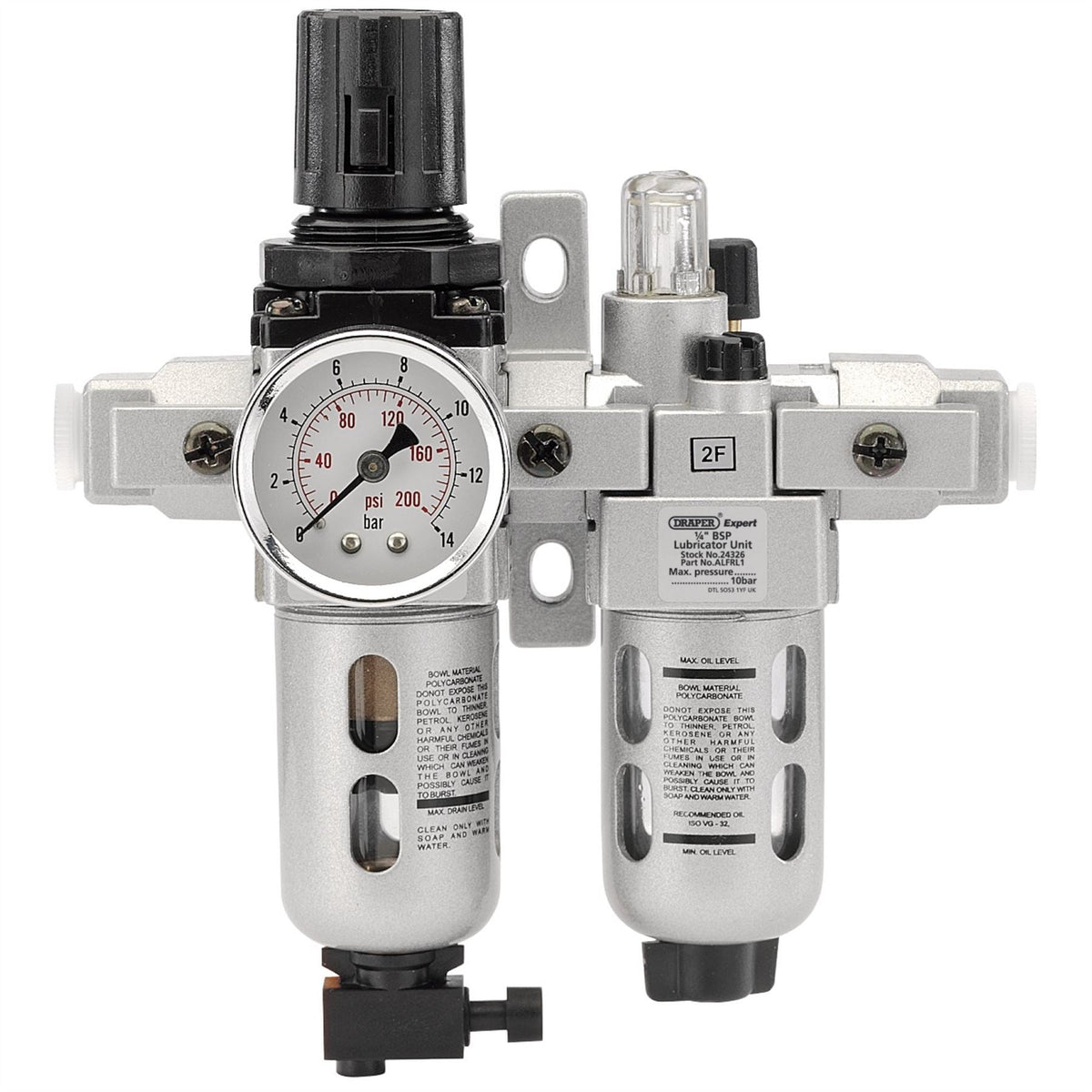

Draper 1/4" BSP Combined Filter/Regulator/Lubricator Unit (FRL) 24326

Draper 1/4" BSP Combined Filter/Regulator/Lubricator Unit (FRL) 24326

Combined pneumatic air treatment unit for filtering, regulating and lubricating compressed air systems. Ideal for maintenance engineers, workshop technicians, garage operators and pneumatic system users, it features a 40 micron filter, integrated regulator, and a built-in lubricator to extend tool and equipment life.

Features:

• 40 micron filter removes moisture and airborne contaminants from compressed air
• Integrated regulator maintains stable air pressure up to 10 bar / 145 PSI
• Built-in lubricator helps extend pneumatic tool and equipment life
• Manual/semi-automatic drain allows easy removal of collected condensate
• Dual-scale pressure gauge marked in PSI and BAR for quick monitoring
• Supplied with wall mounting bracket for secure installation
• Suitable for operating temperatures up to 50°C at maximum pressure

Product Contents:

• 1 x 1/4" BSP Combined Filter/Regulator/Lubricator Unit (FRL)

Brand: Draper
Stock No: 24326
Part No: ALFRL1
Warranty: 6 months

Specification:

• Min. flow: 0.42cfm / 12 litres per minute
• Max. flow: 18cfm / 500 litres per minute

Downloads:

• Product Data Sheet: View Here
