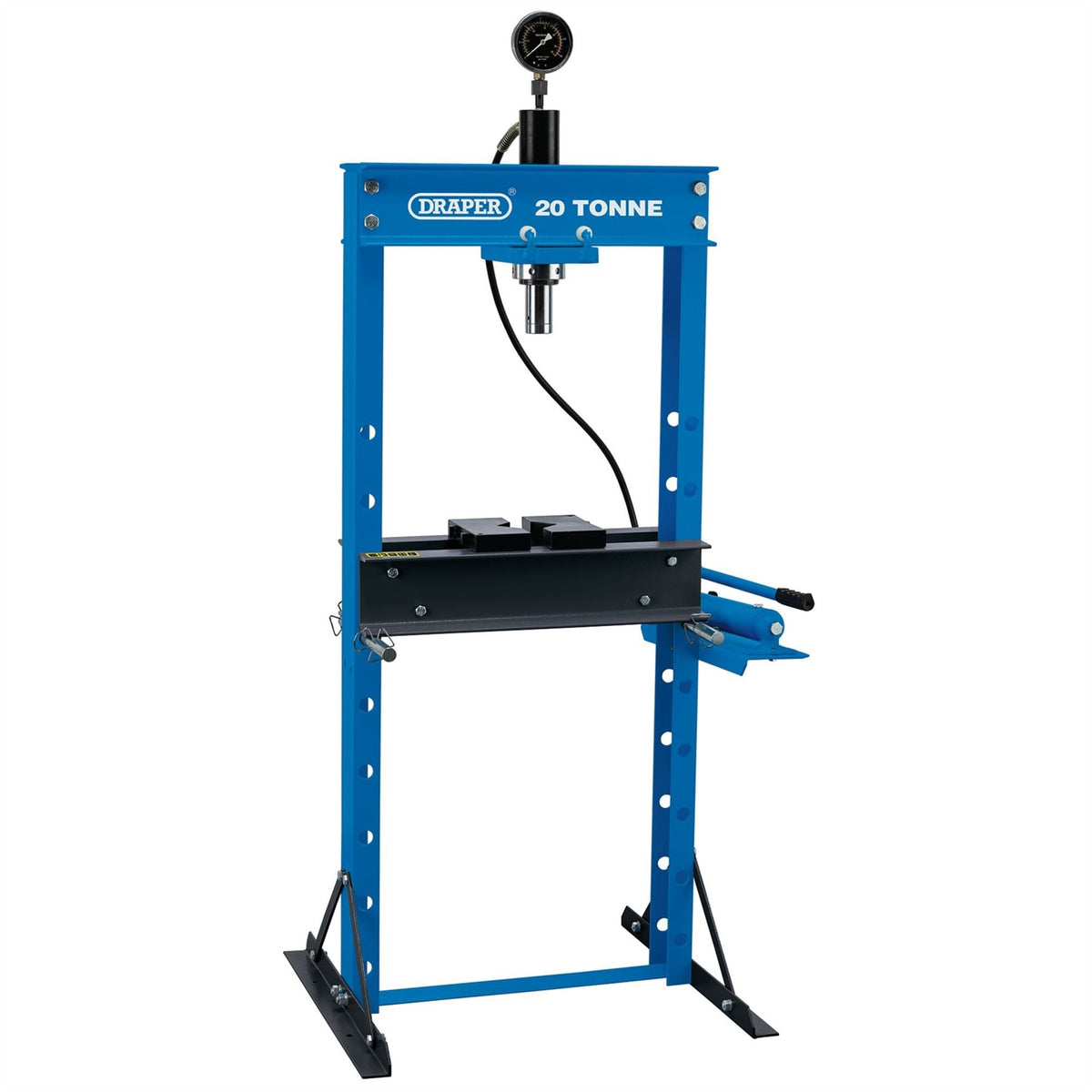

Draper Floor Press 20 Tonne 70540

Draper Floor Press 20 Tonne 70540

Robust hydraulic 20 tonne floor press with sliding ram. There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. An anti-kink coil is fitted to each end of the flexible hose for increased protection .Fitted with a safety valve to protect the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.
Features:

• Sliding ram
• Ram height to table between 28-998mm
• Glycerine filled gauge for increased accuracy and long service life
• Anti-kink coil fitted to each end of the flexible hose for increased protection

Product Contents:

• 1 x Floor Press, 20 Tonne

Brand: Draper
Stock No: 70540
Part No: HFP/20D
Warranty: 12 months

Specification:

• Capacity: 20 Tonne
• Gauge range: 0-28 Tonne
• Gauge diameter: 105mm
• Ram stroke: 185mm
• Ram diameter: 40mm
• Ram height to table: 28-998mm
• Working table width: 550mm
• Overall height: 1,785mm
• Weight: 113.5kg

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Parts Listing: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
