Draper Triple Leg Reversible Puller 120mm Reach x 150mm Spread 08442

Draper Triple Leg Reversible Puller 120mm Reach x 150mm Spread 08442

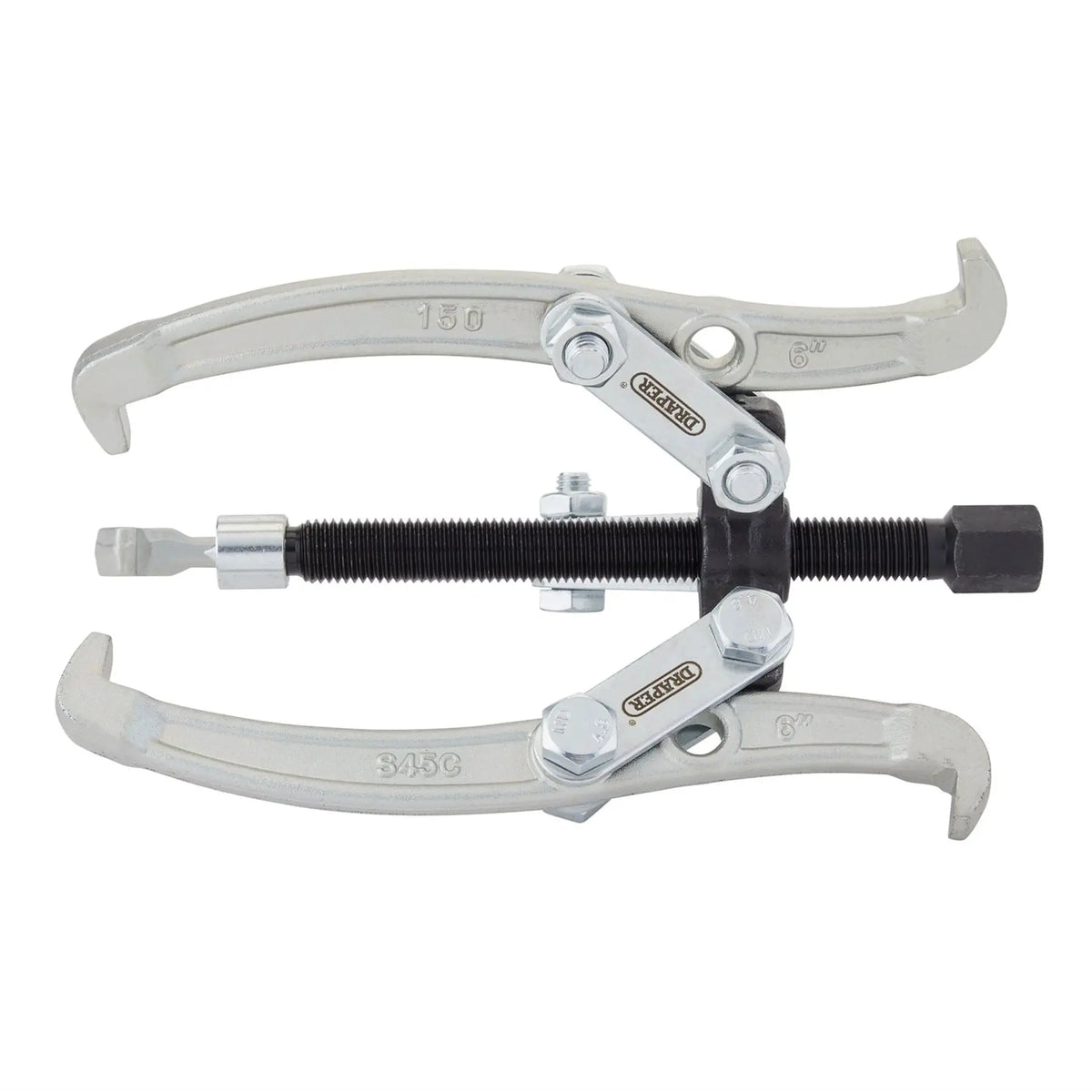

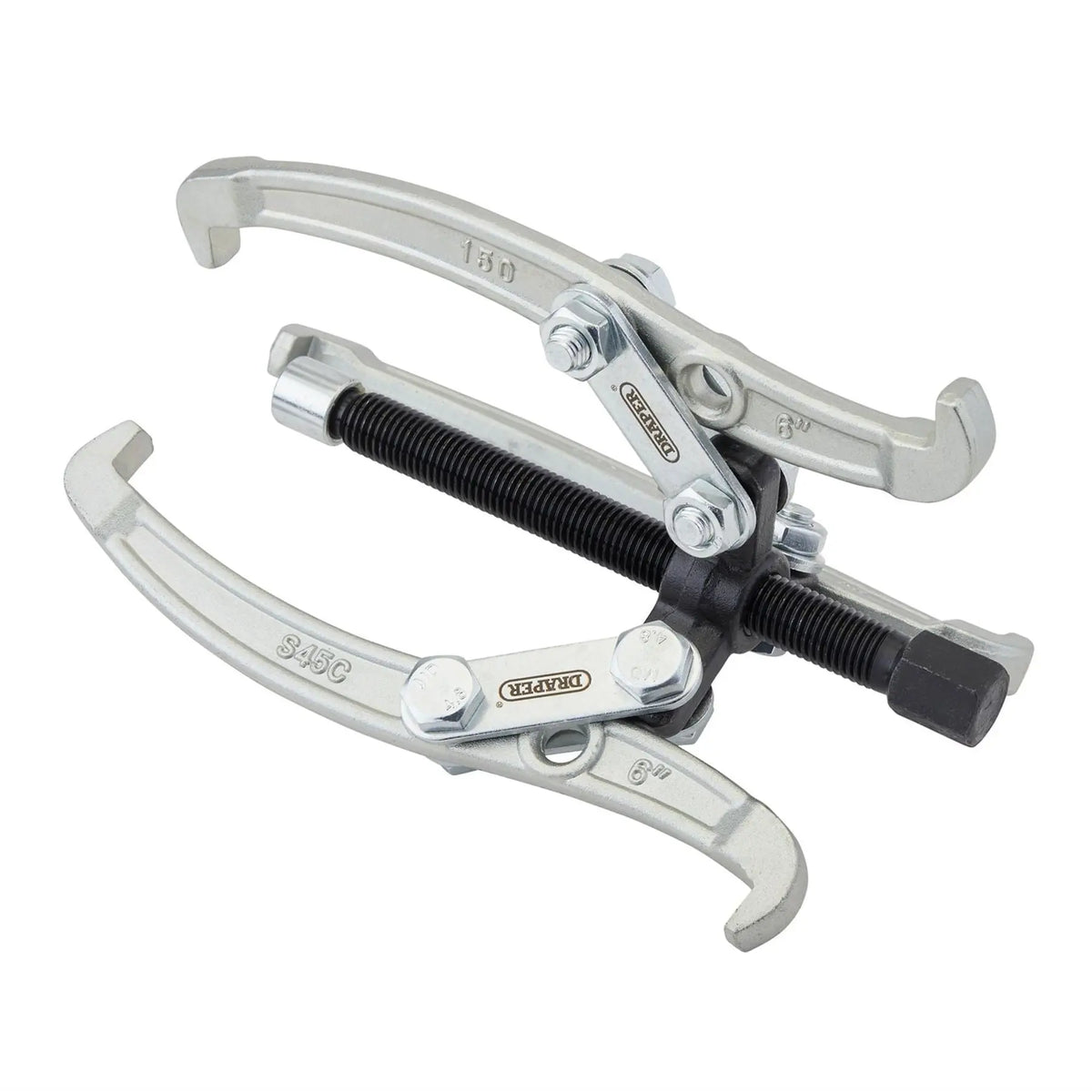

This puller has triple reversible legs for the external and internal pulling of gears, bearings etc. The legs are forged from carbon steel and have a long and short reach facility, while the arms are zinc plated for corrosion resistance and easy cleaning.
Features:

• Triple reversible legs for internal and external use
• Adjustable pulling frame
• Zinc plated for corrosion protection
• Screw has a rolled thread with a chemically blackened finish

Product Contents:

• 1 x Triple Leg Reversible Puller, 120mm Reach and 150mm Spread

Brand: Draper
Stock No: 08442
Part No: N133A
Warranty: 12 months

Specification:

• Central screw size: 15.7 x 190mm
• Spread: 150mm
• Reach: 120mm
• Weight: 1.56kg
• Hexagonal head: 19mm

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
