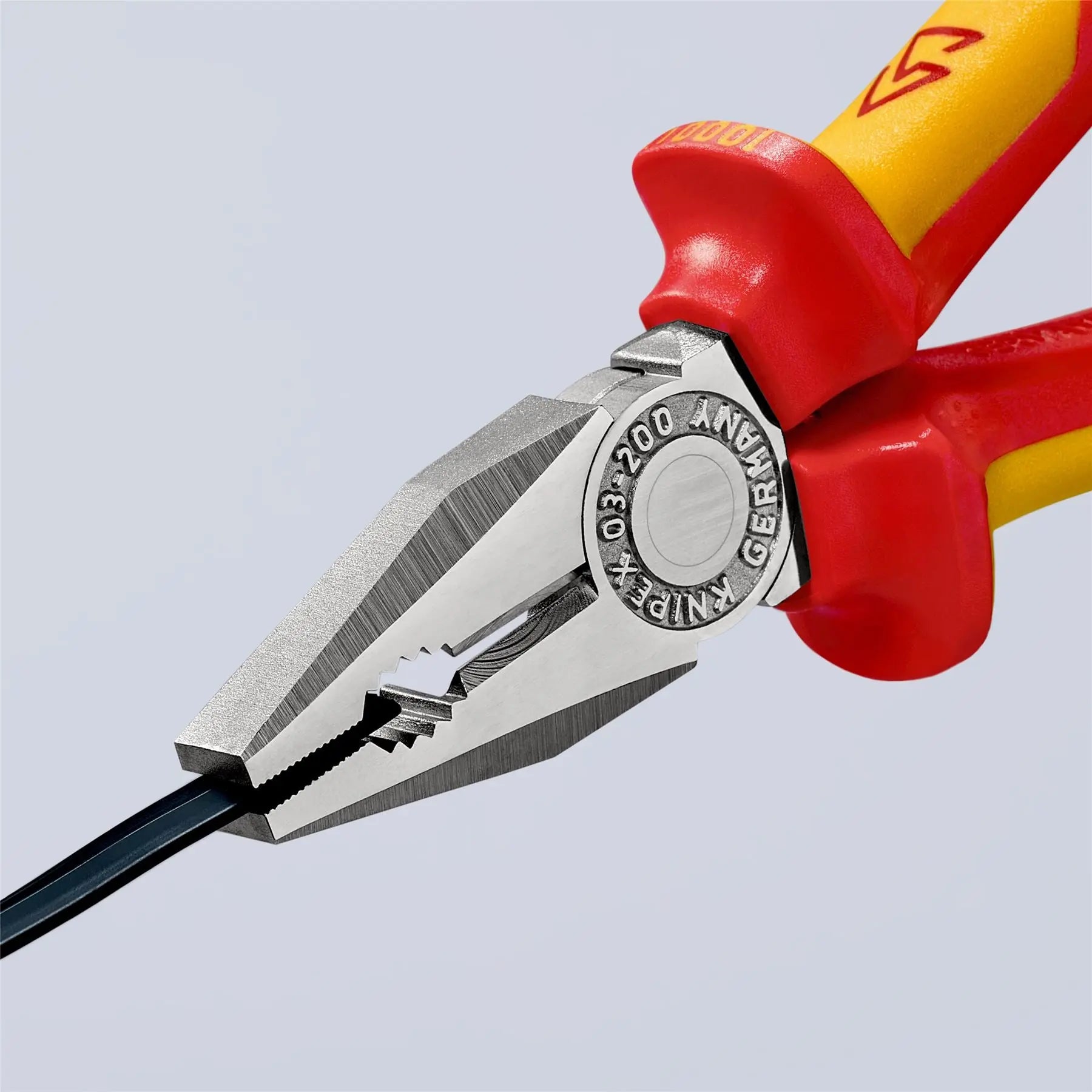

KNIPEX Combination Pliers Cutters 140-250mm all Handle Types Choose Size

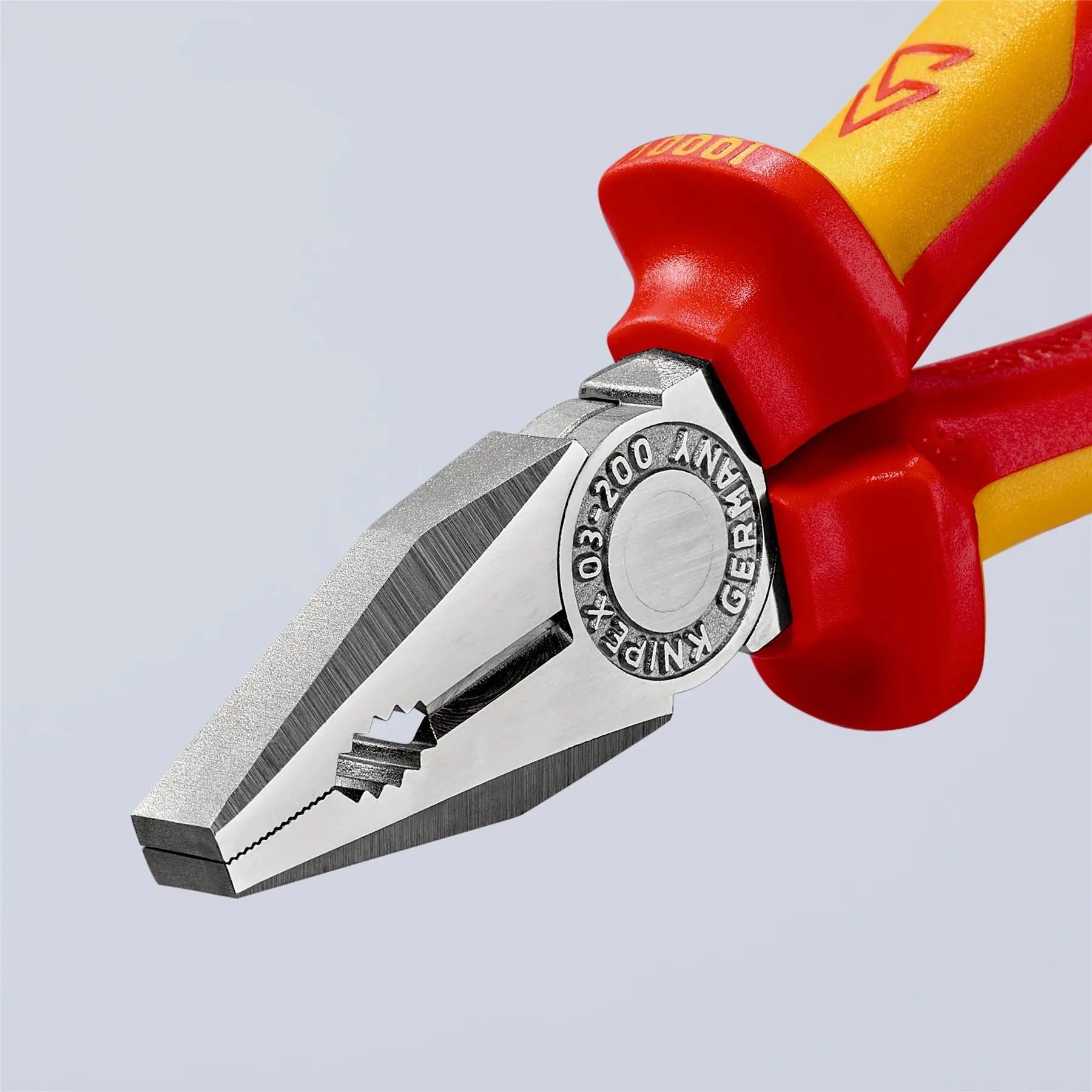

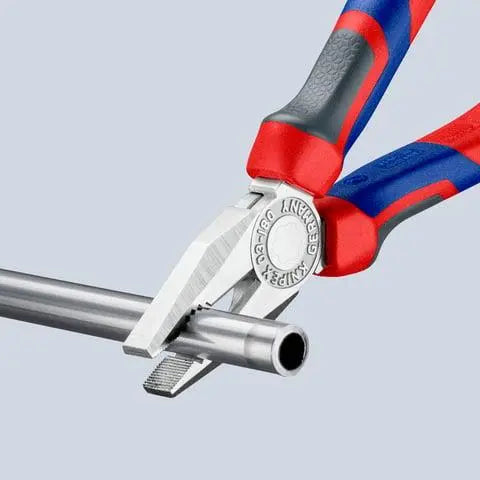

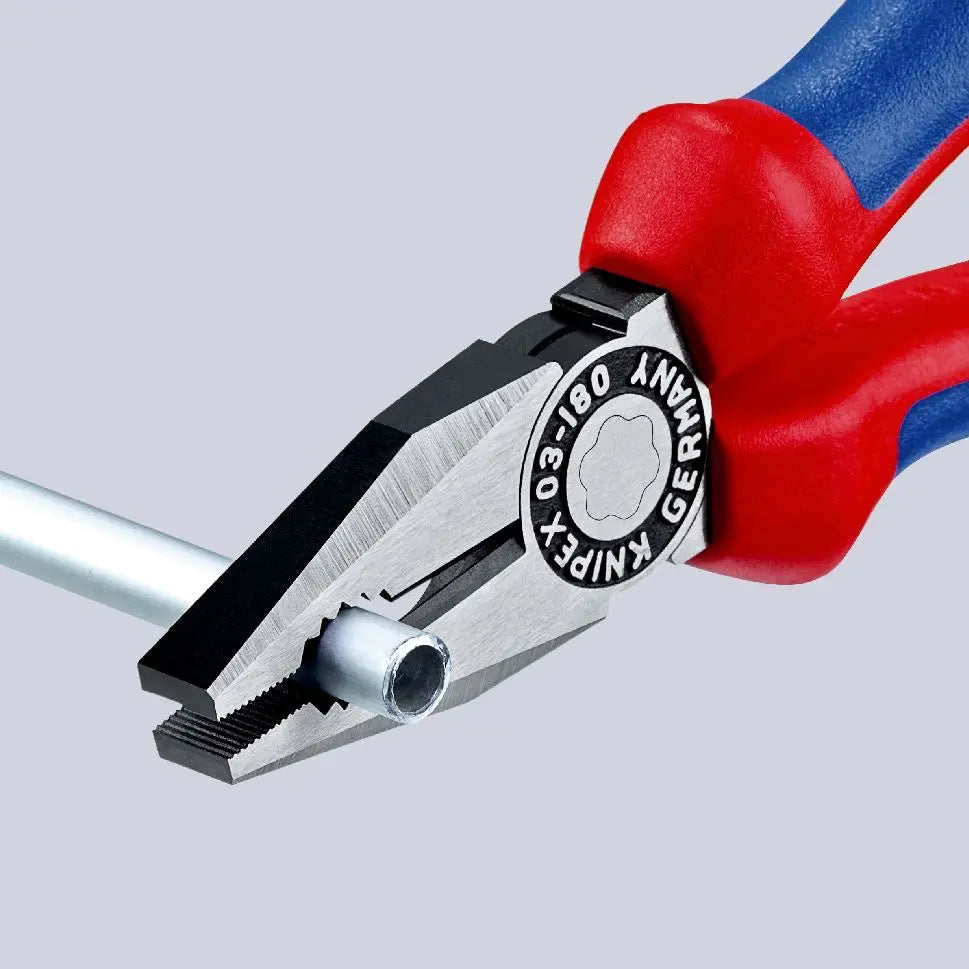

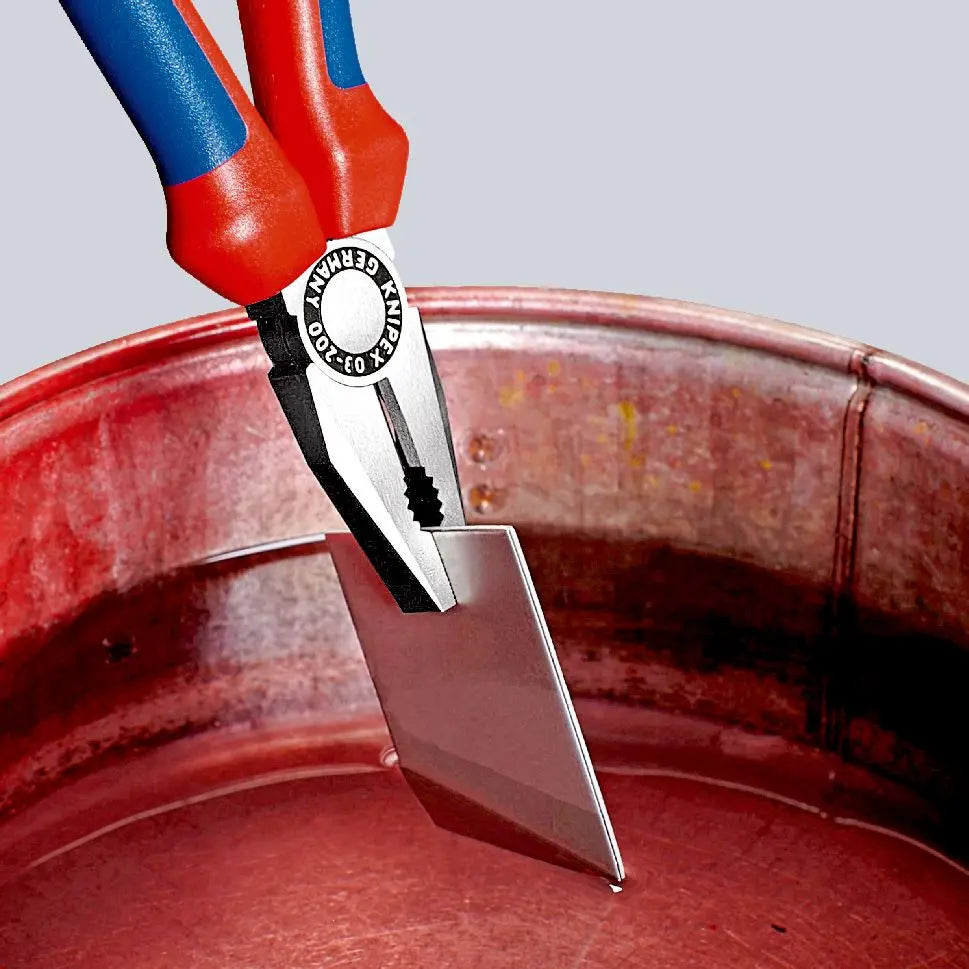

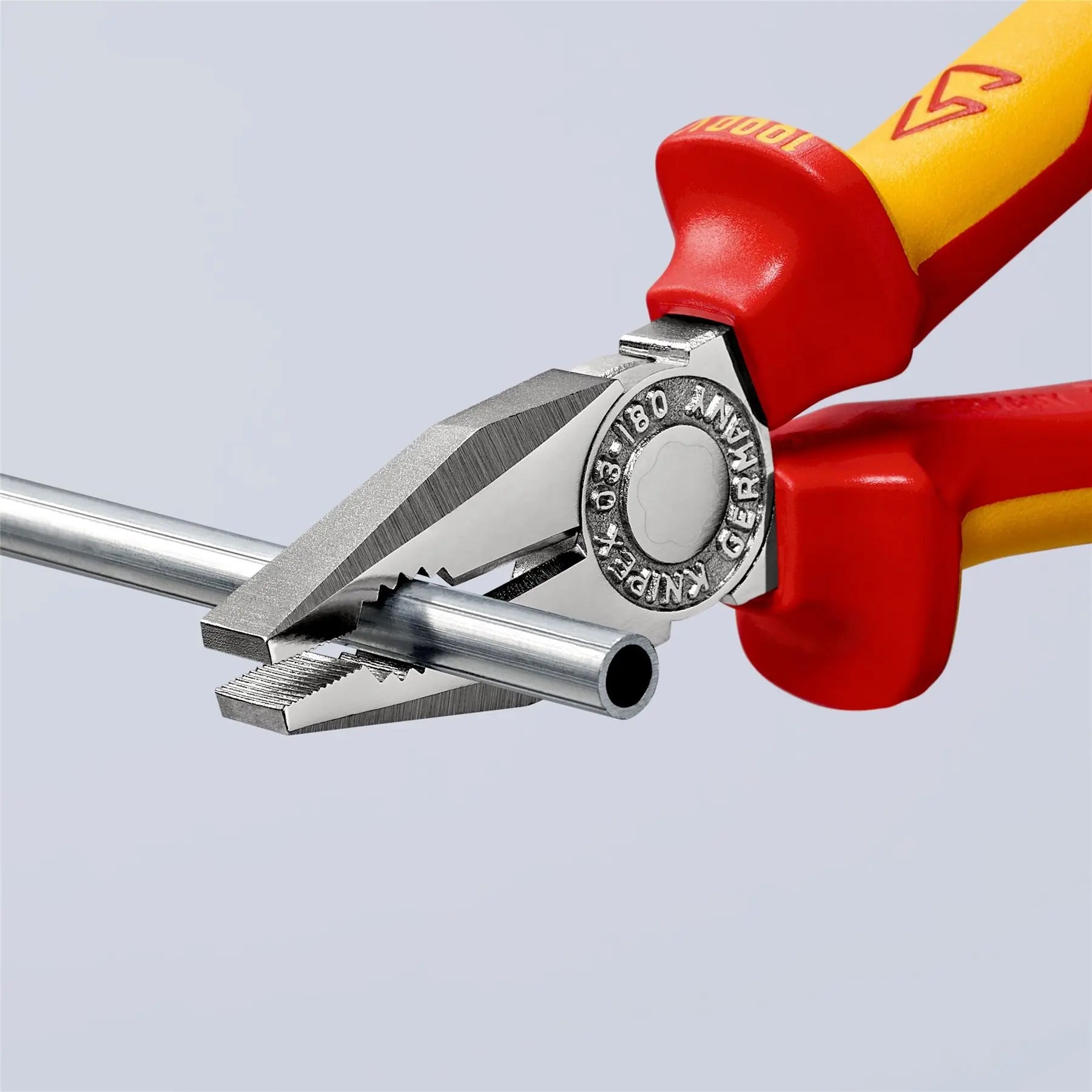

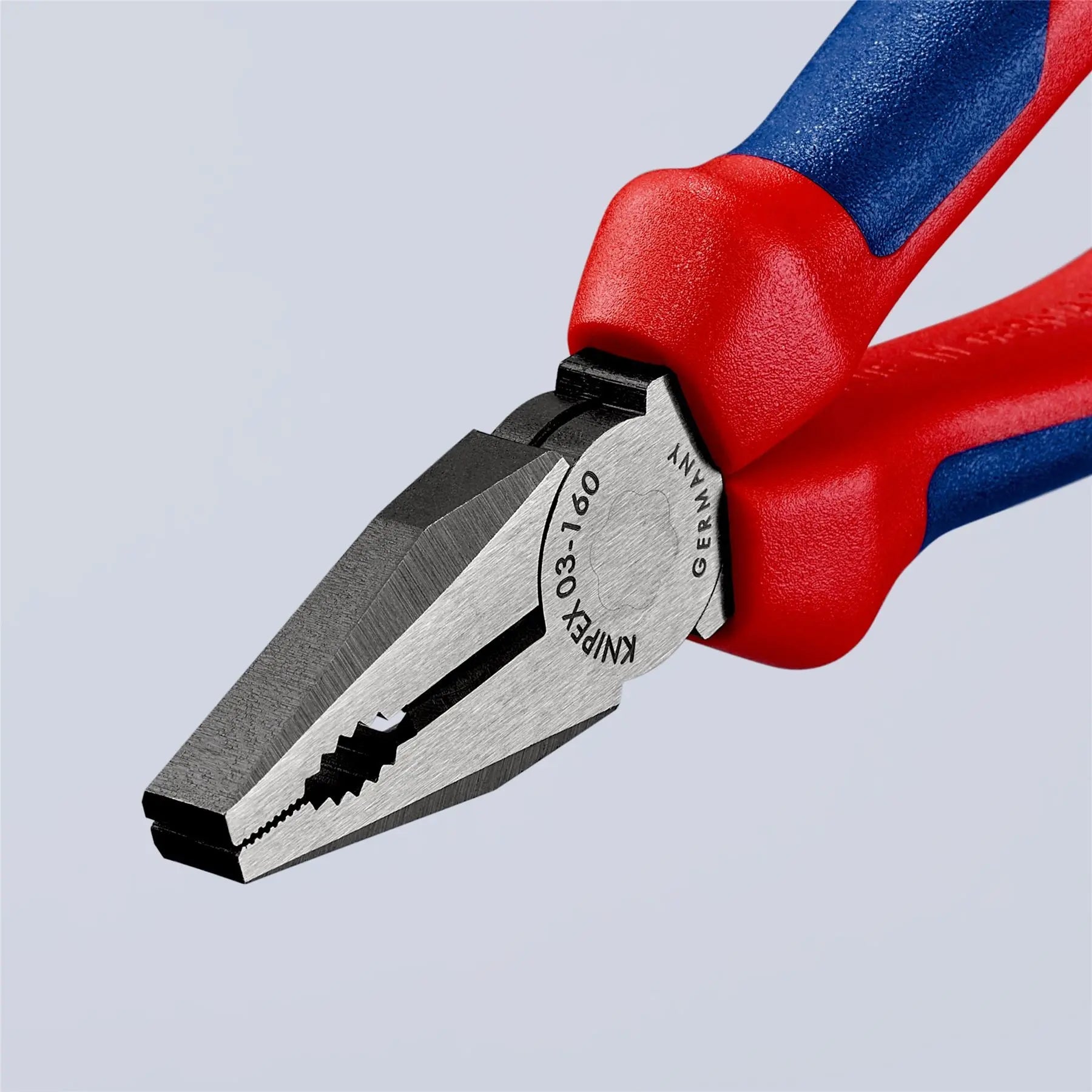

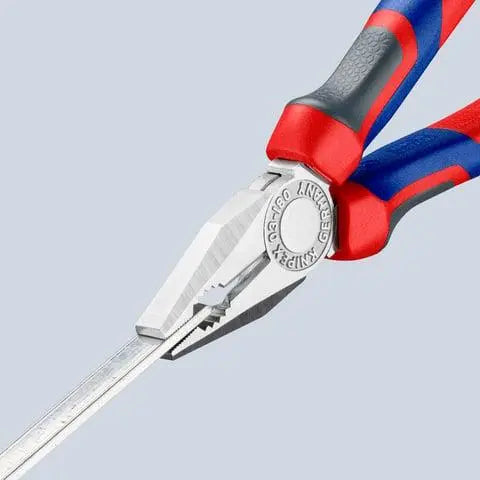

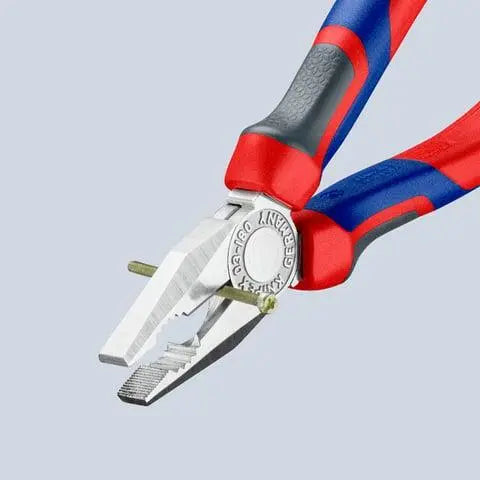

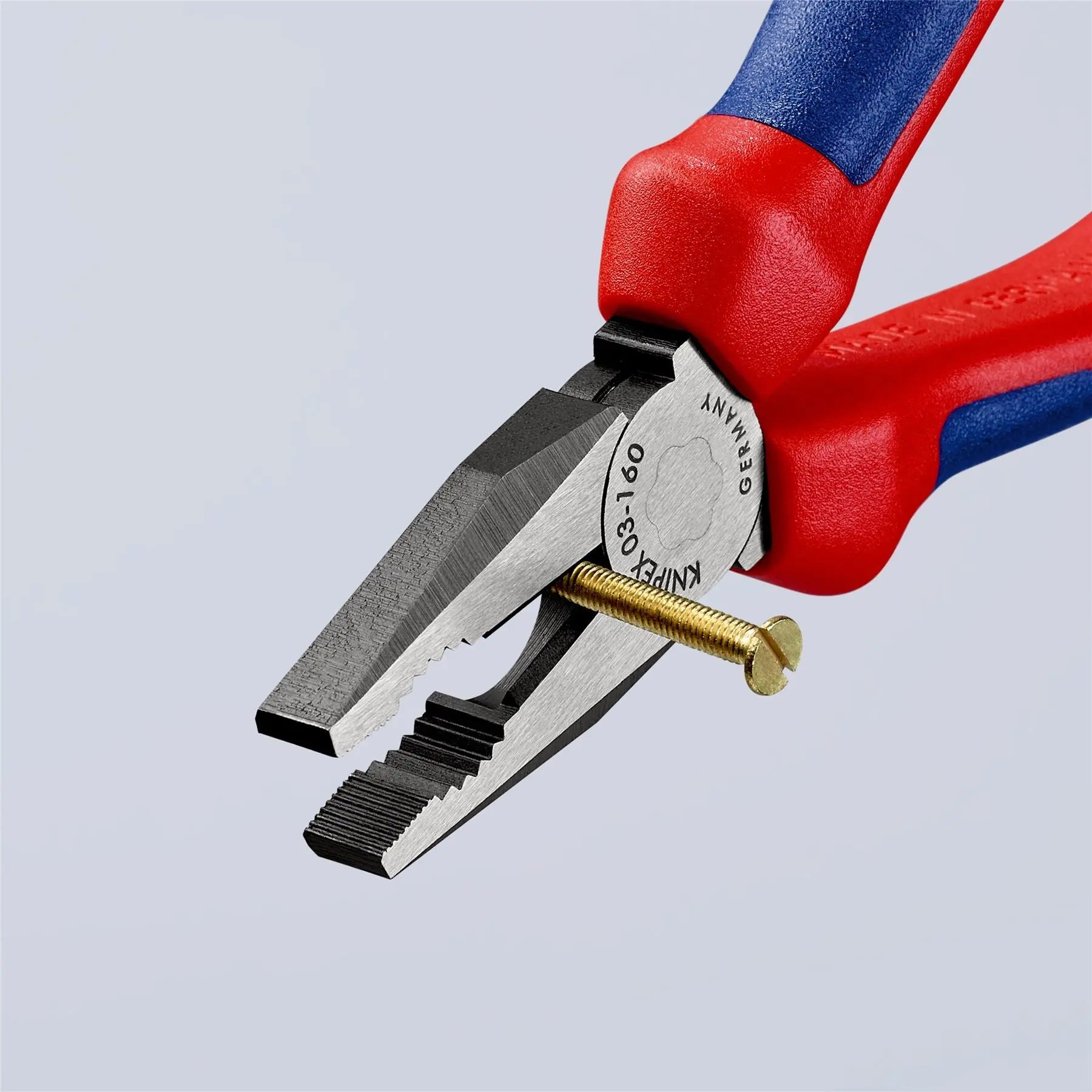

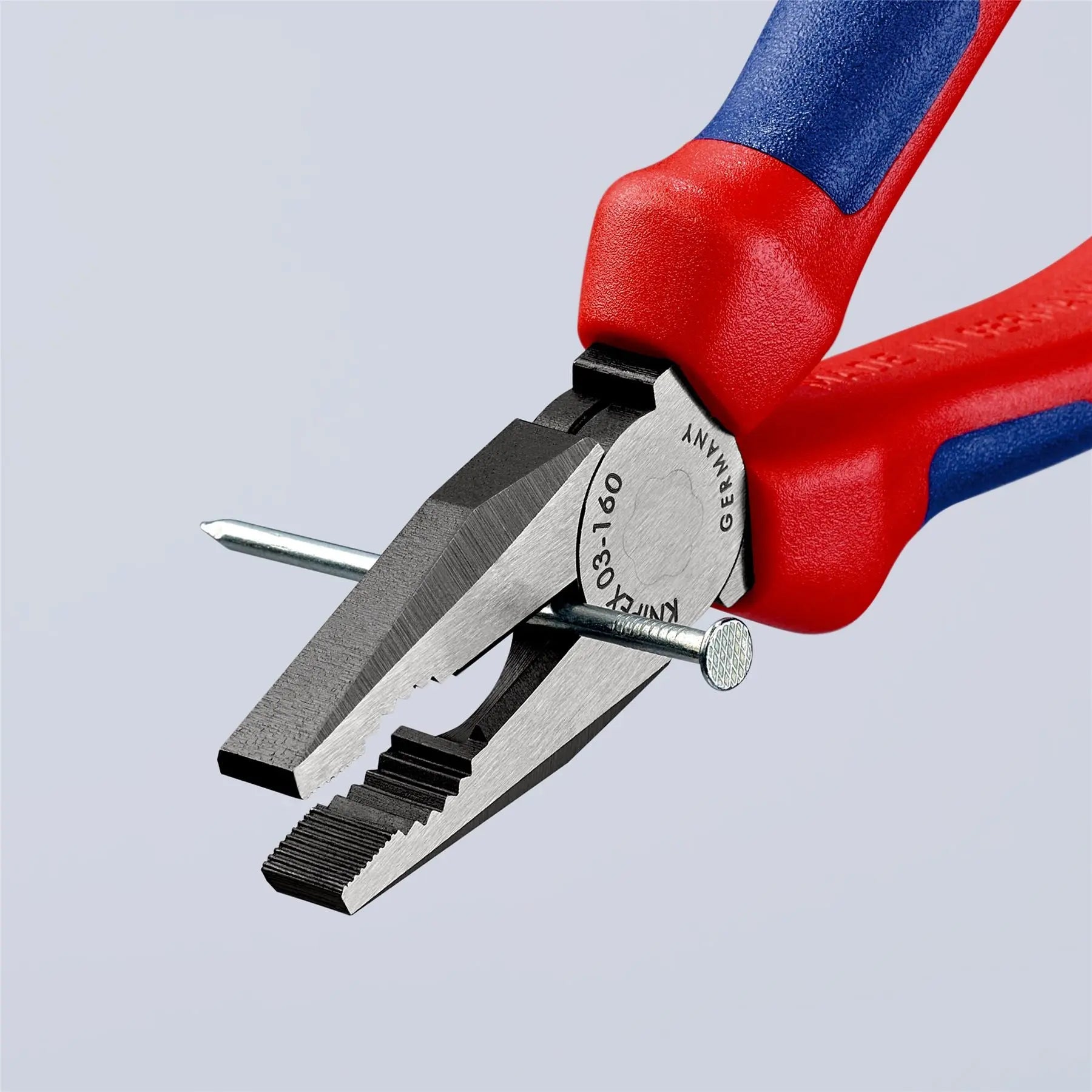

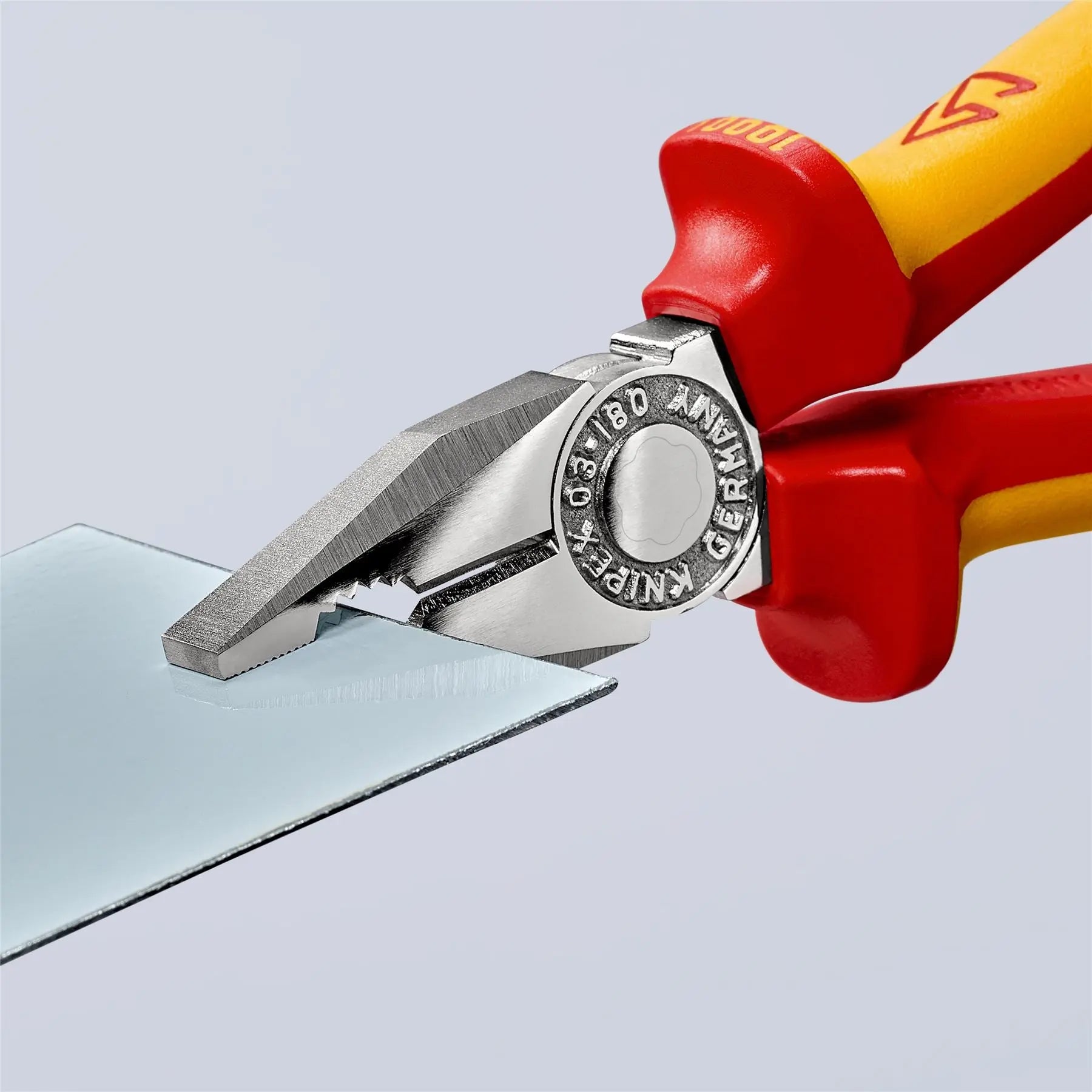

With gripping zones for flat and round material, suitable for versatile use

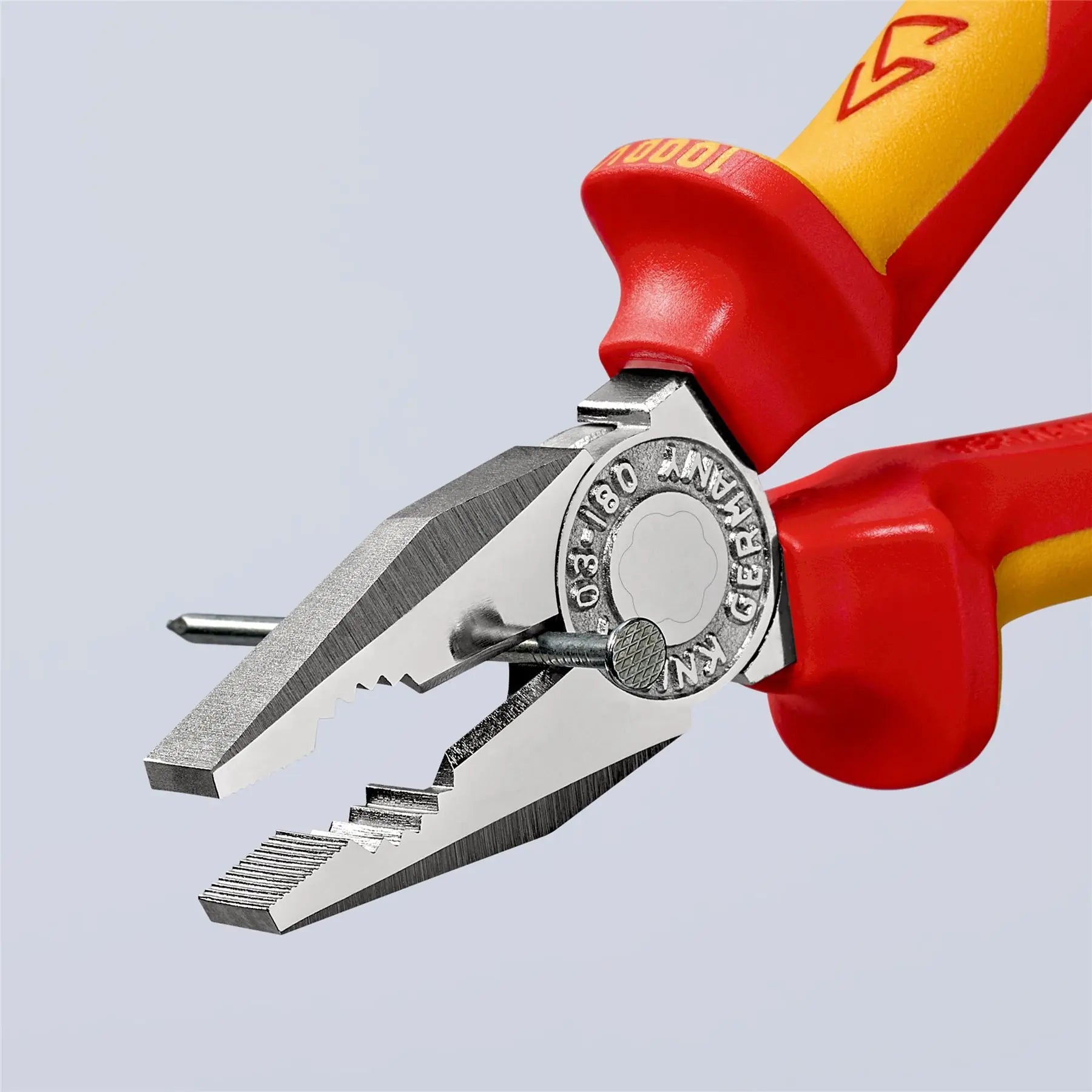

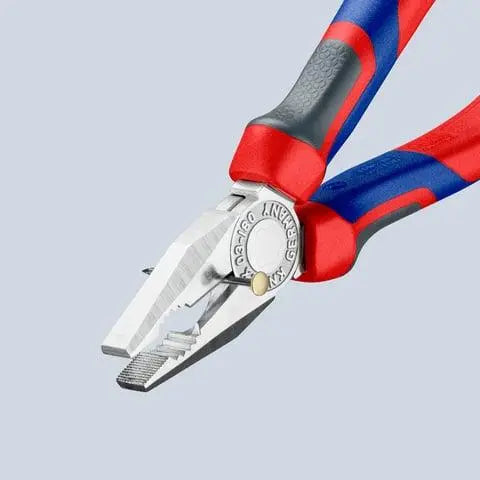

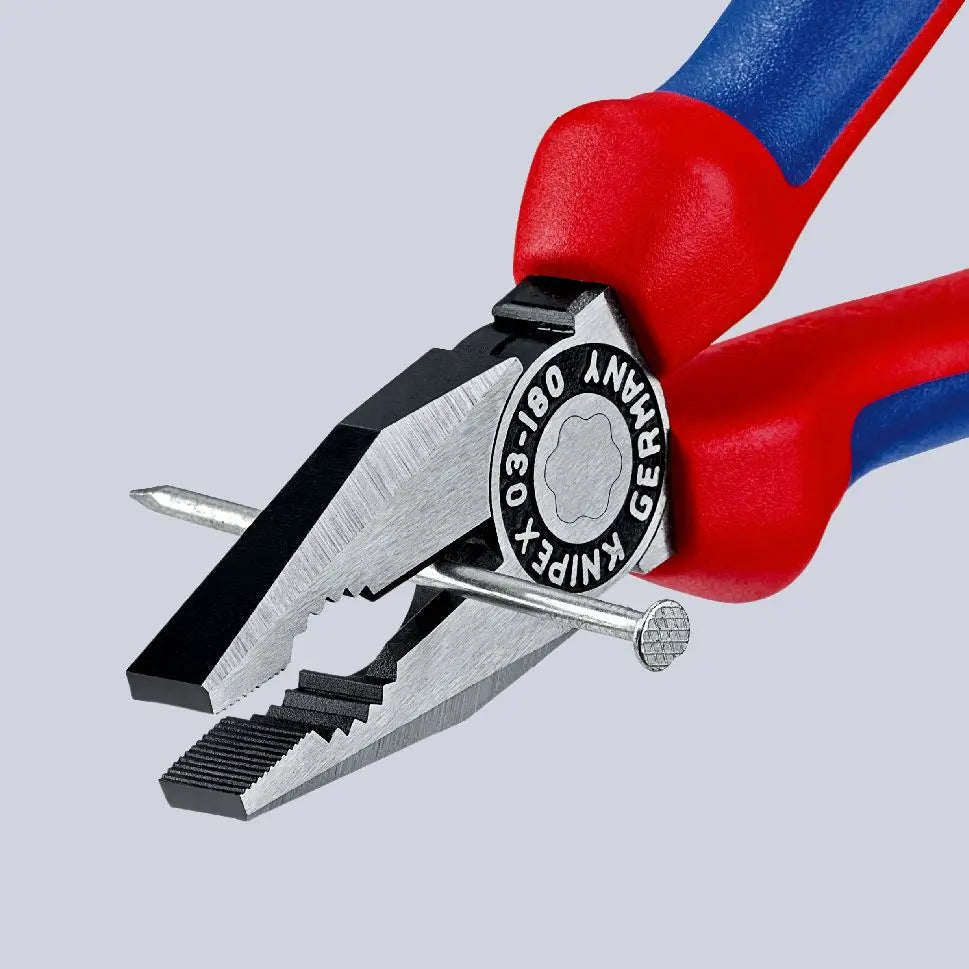

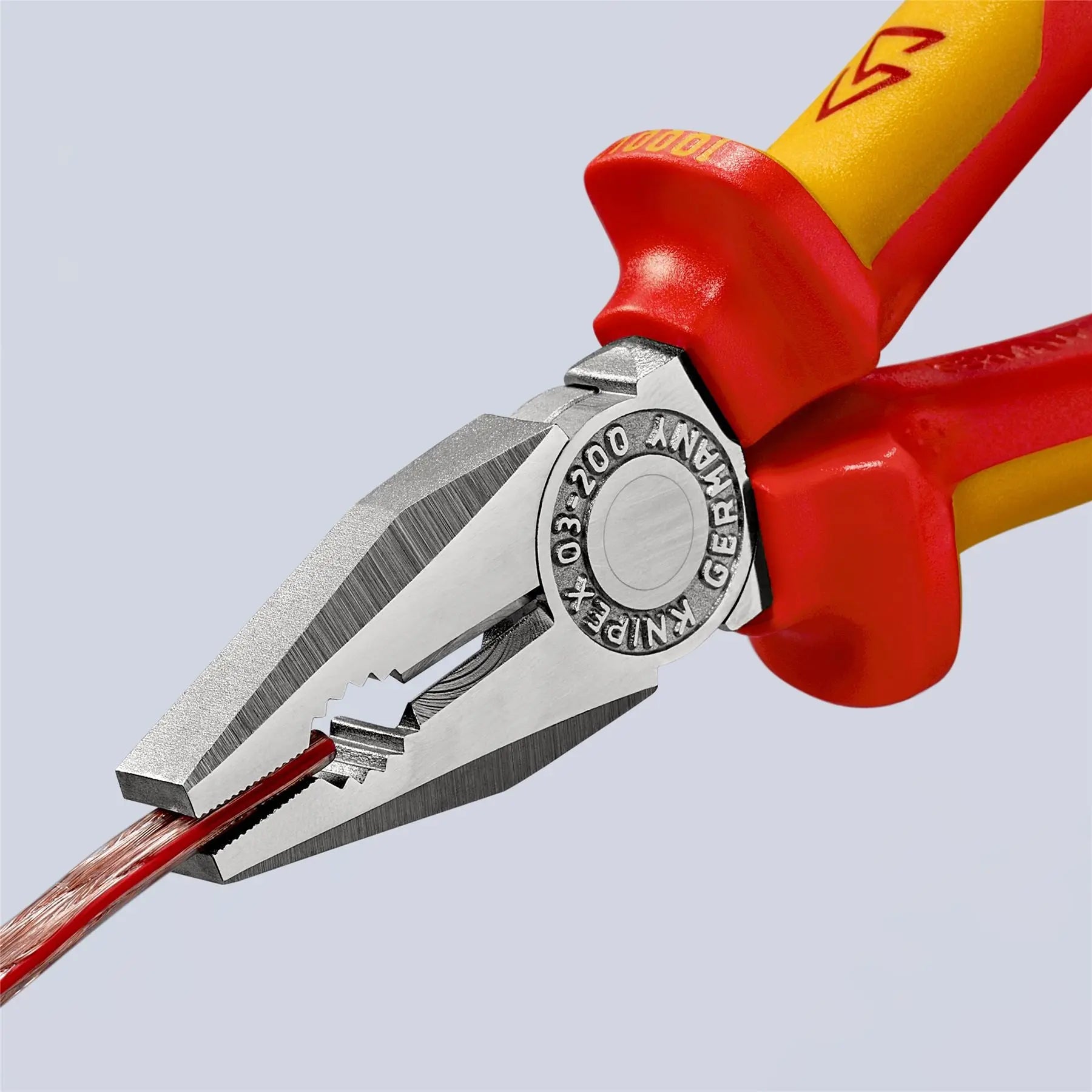

With cutting edges for soft and hard wire

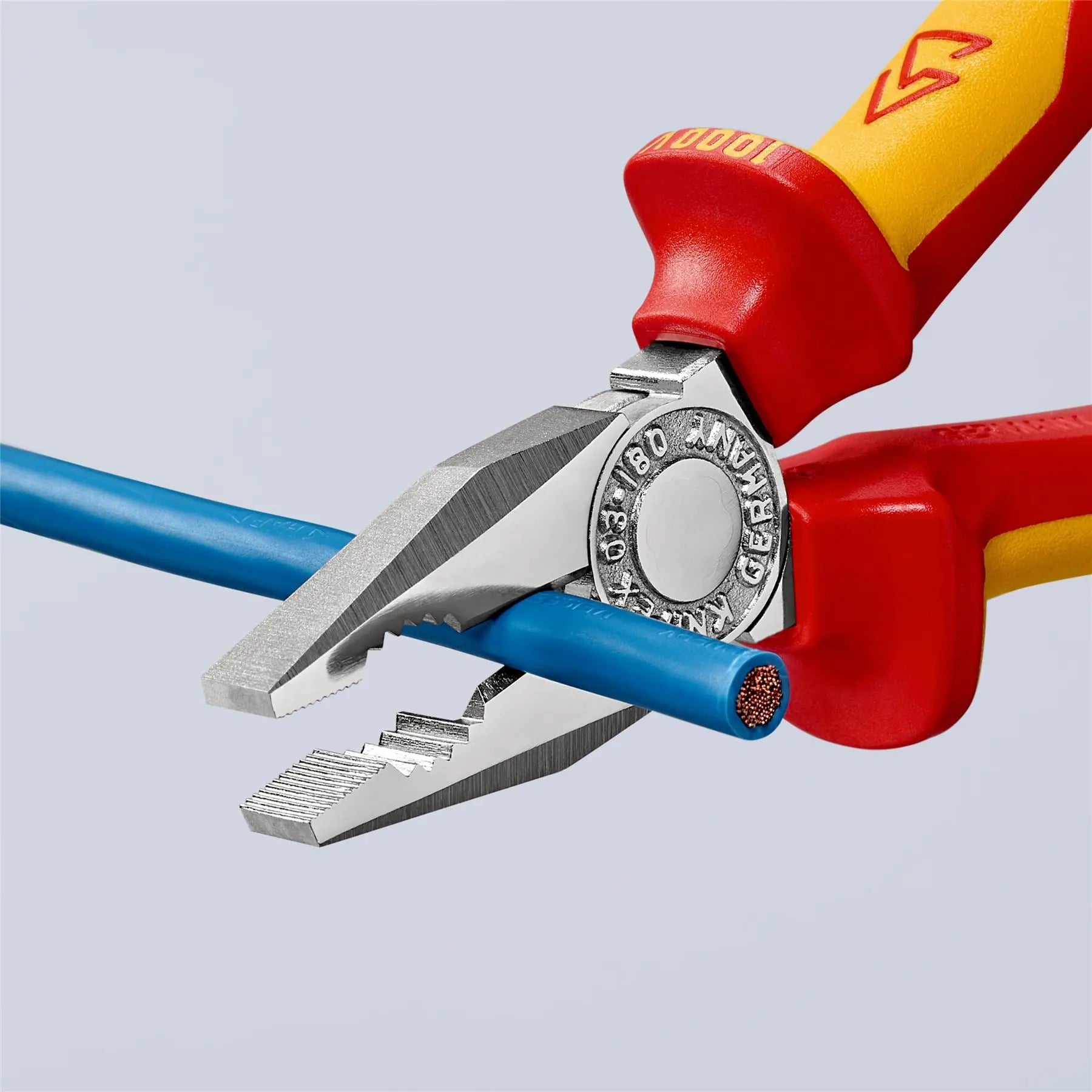

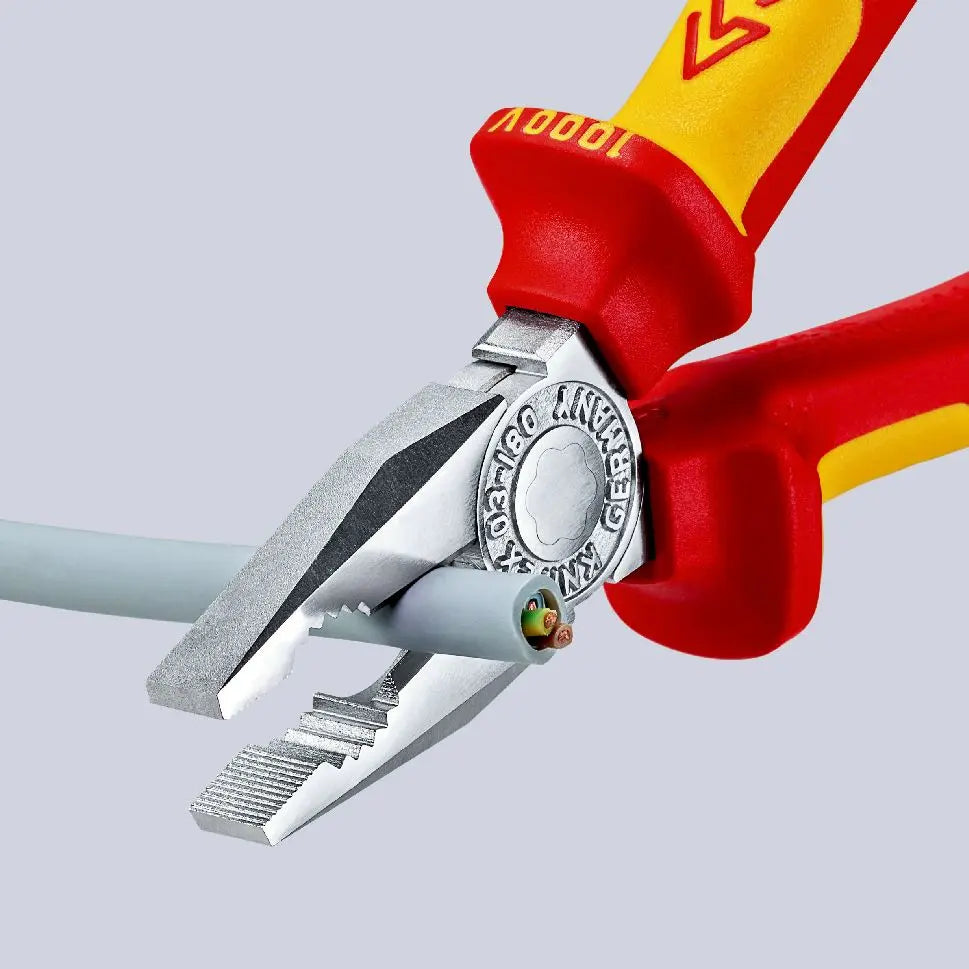

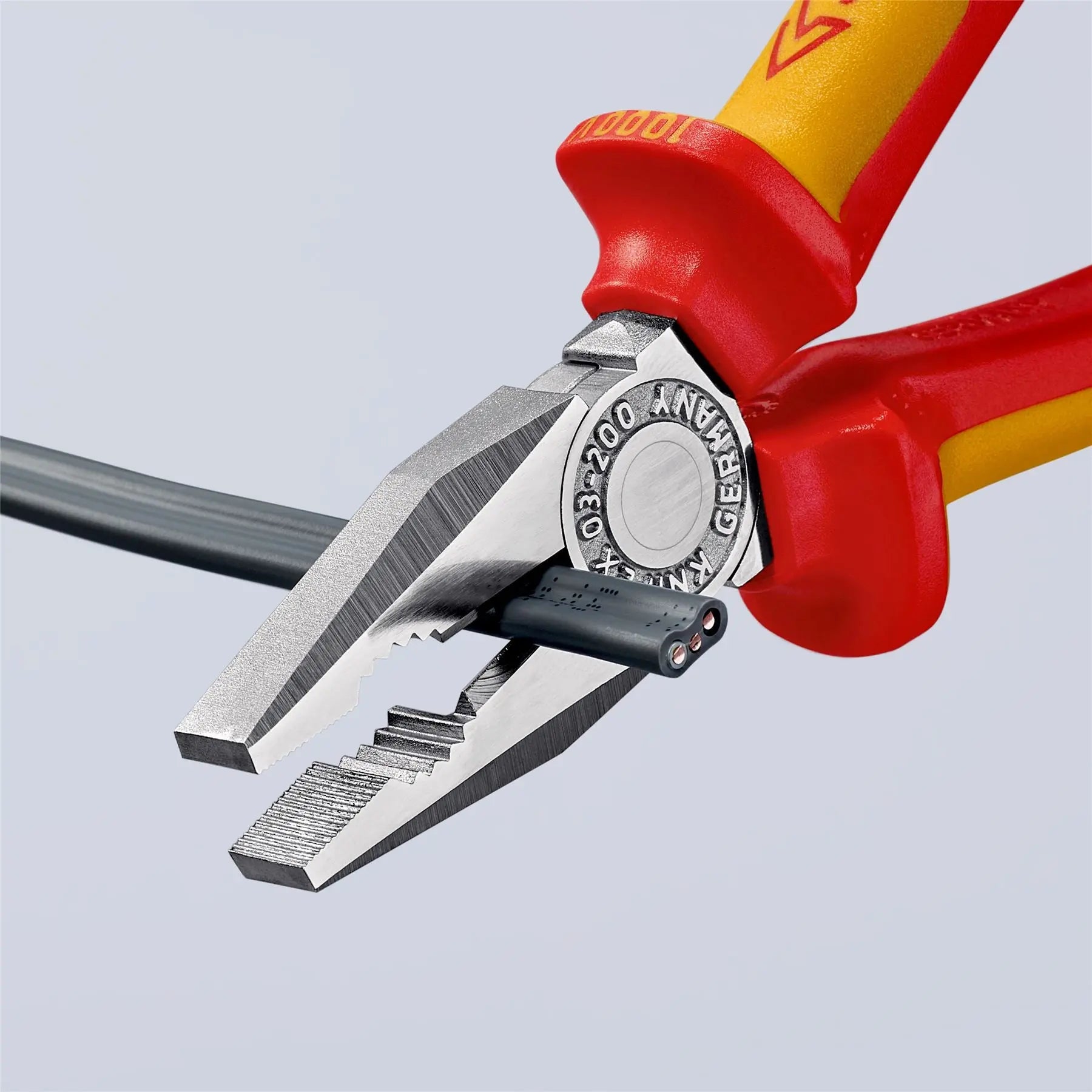

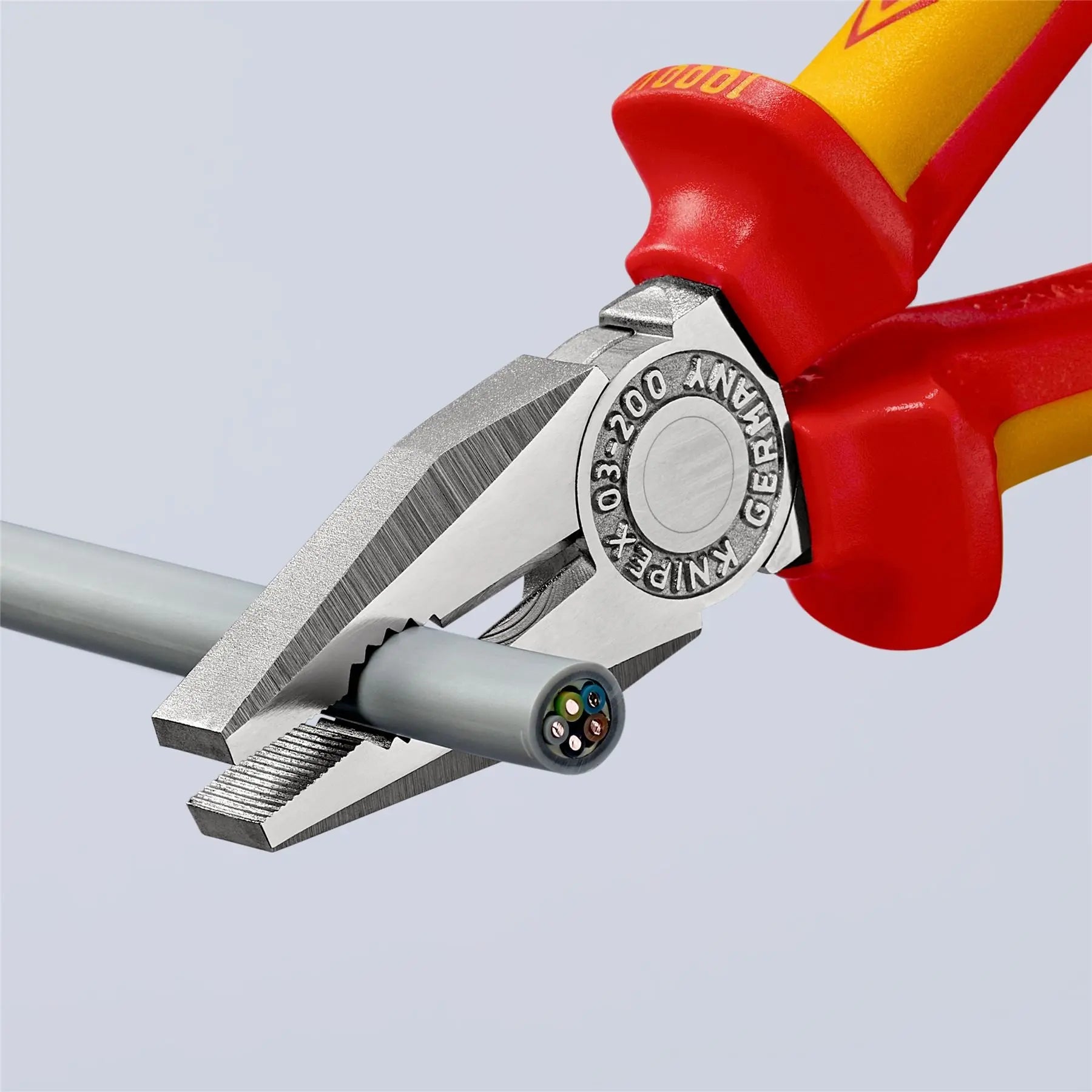

Long cutting edges for thicker cables
Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC
Available in the following:

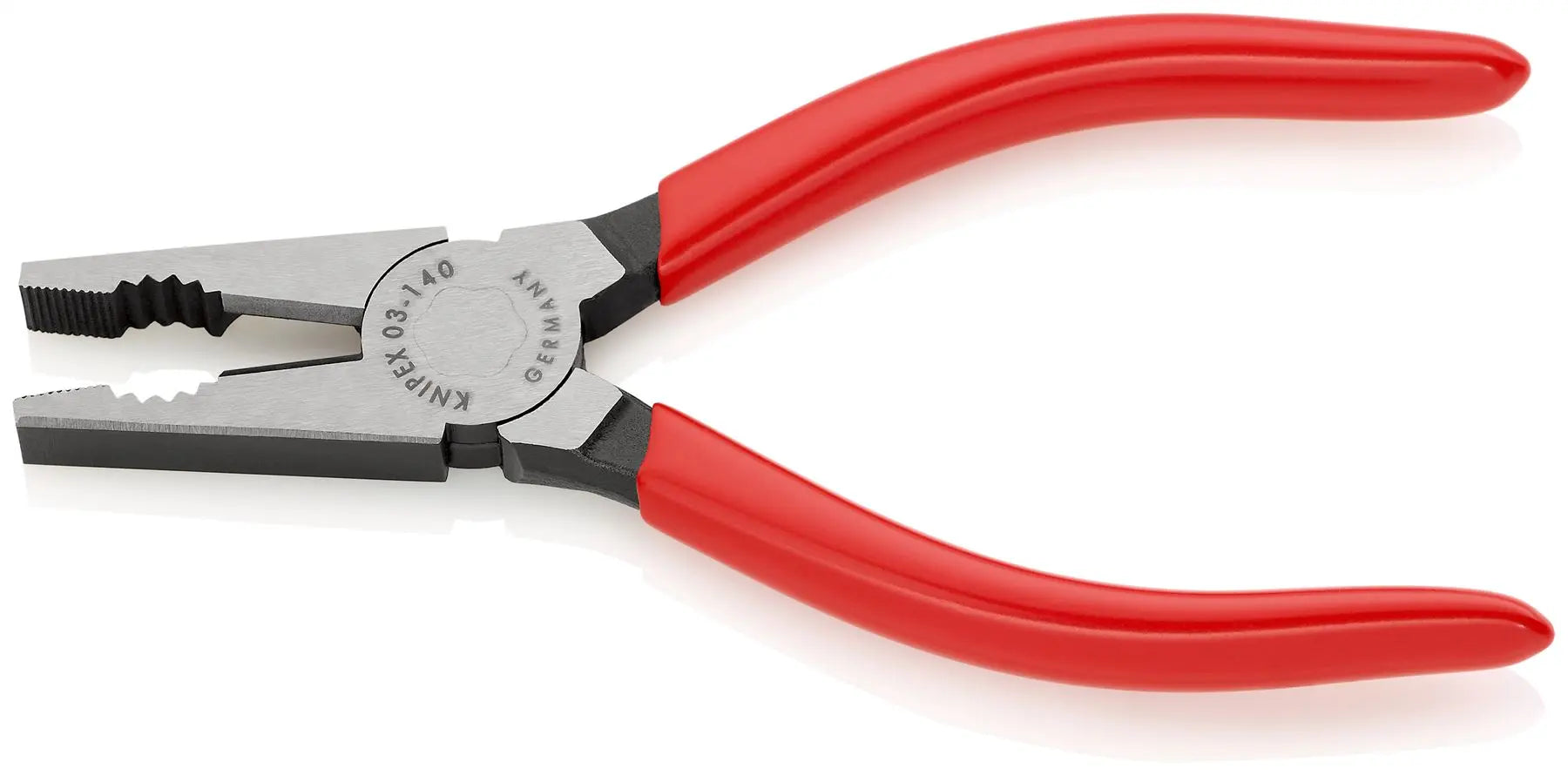

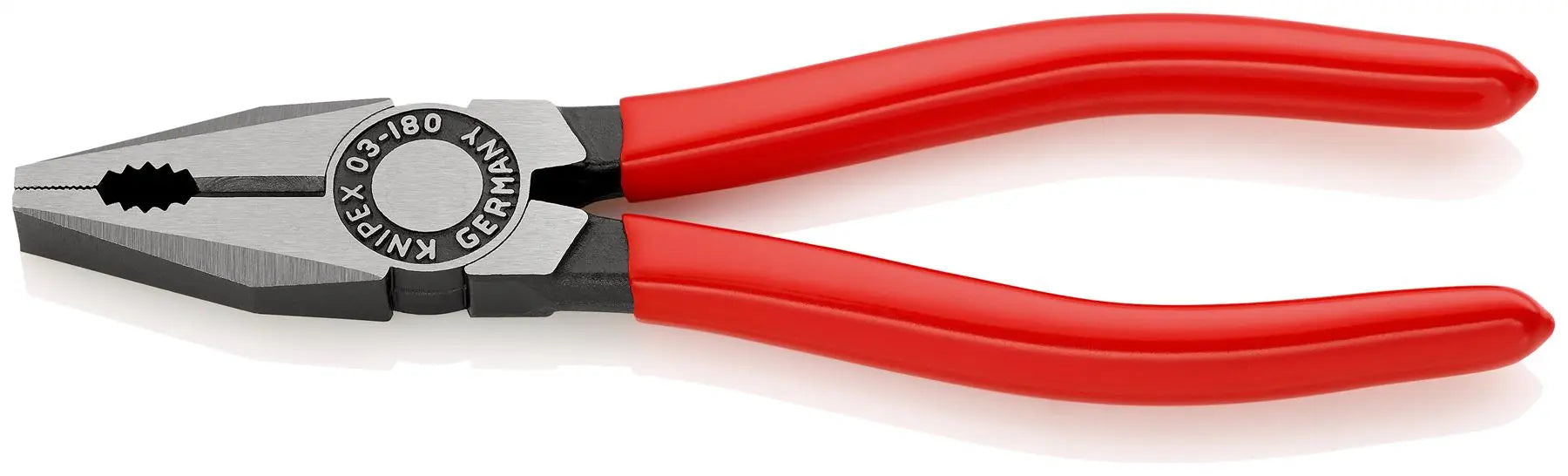

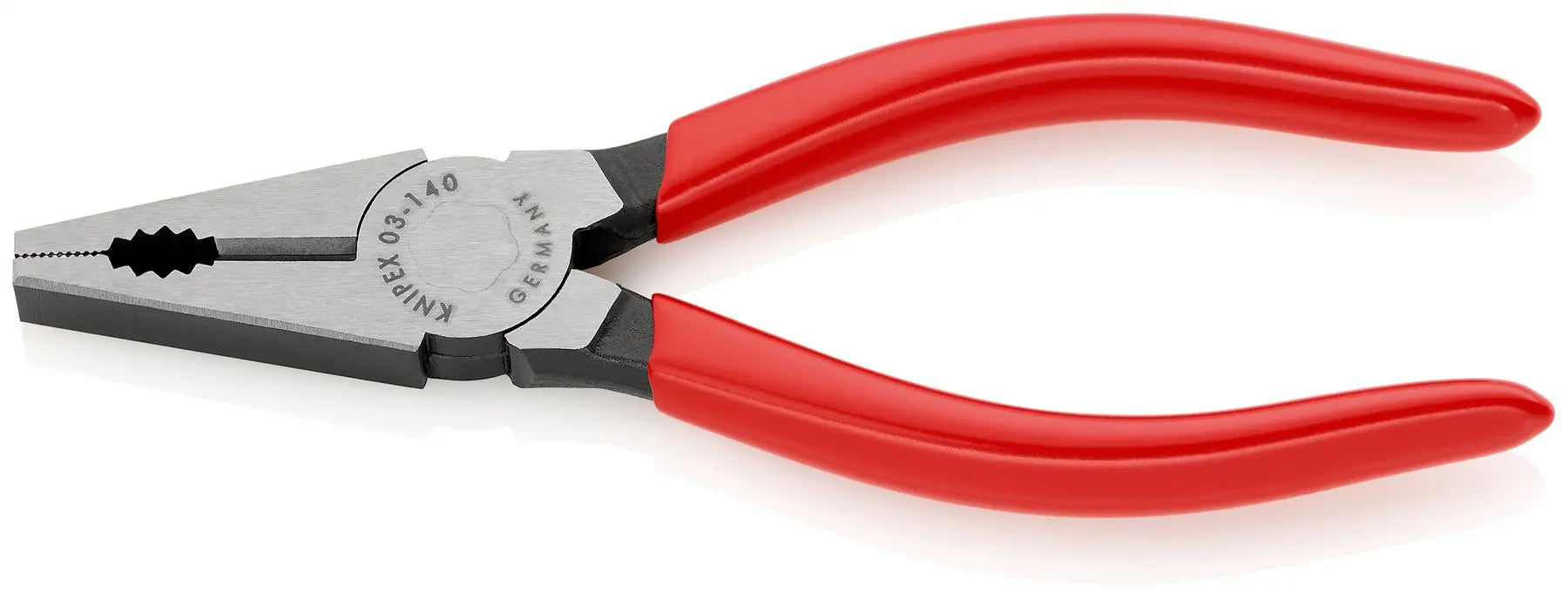

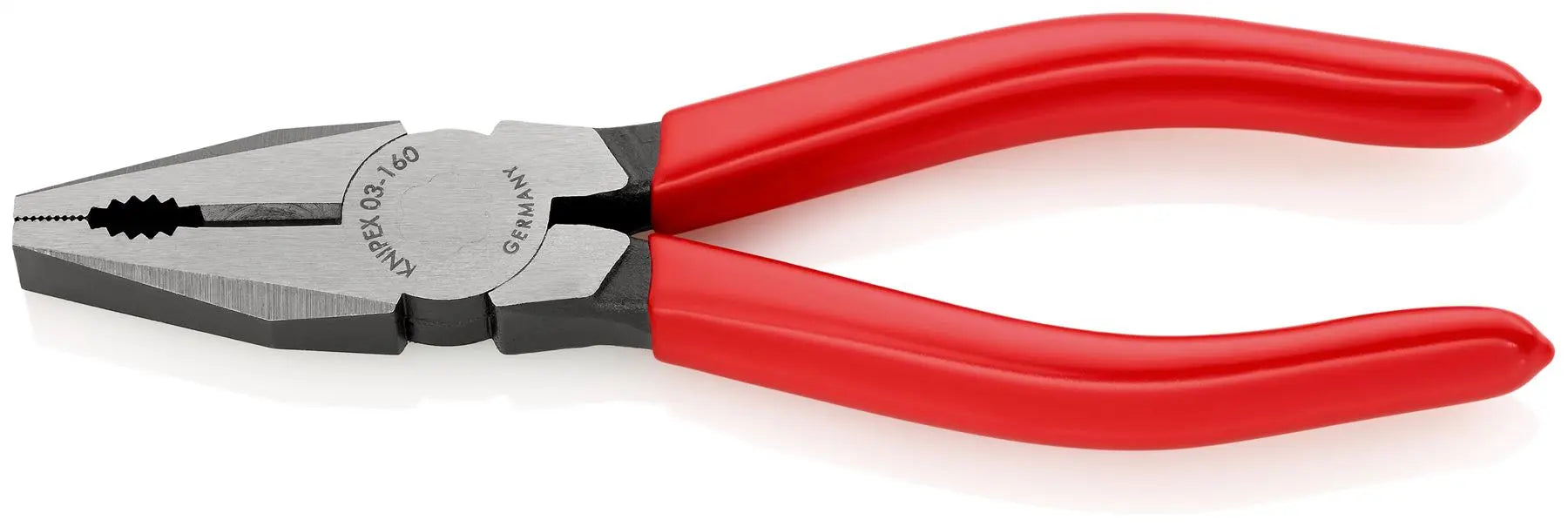

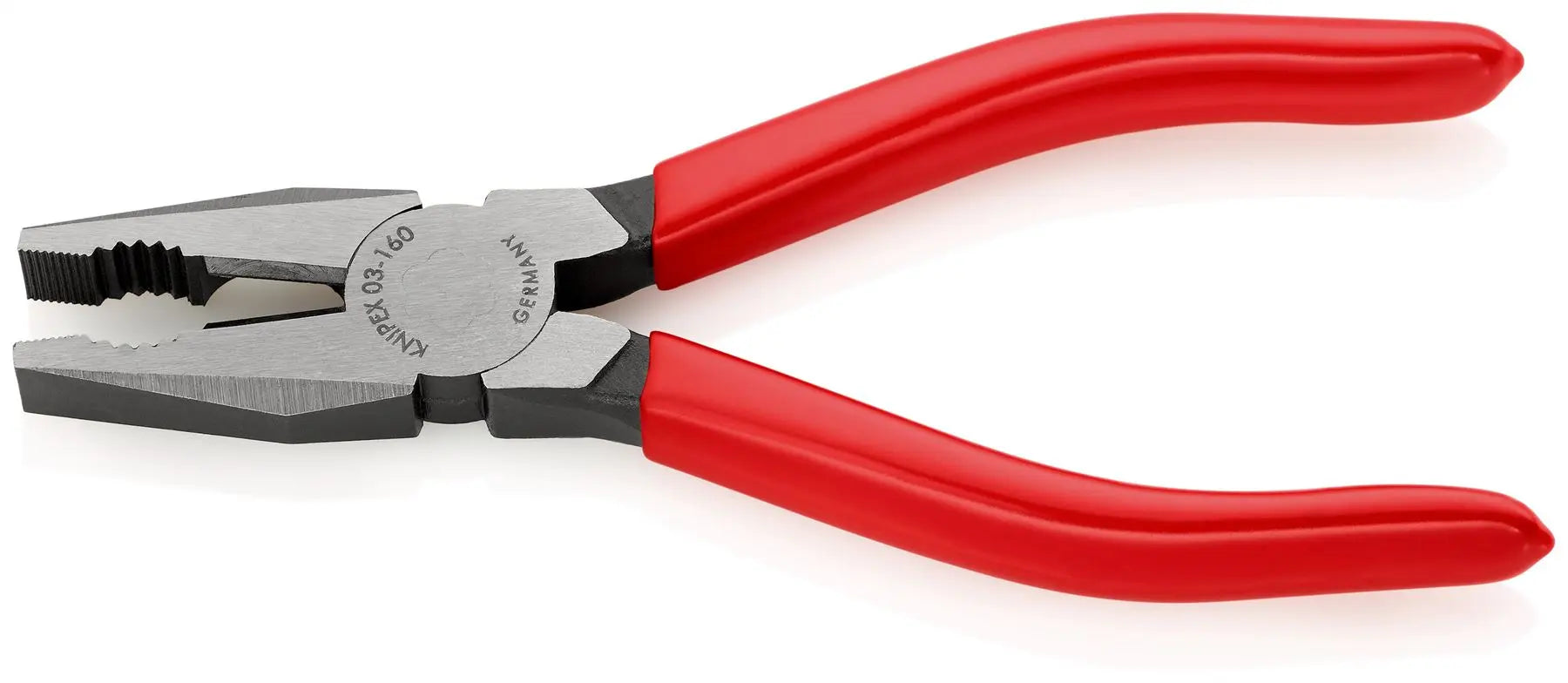

- 140 mm Combination Pliers Plastic Coated - 03 01 140
- 160 mm Combination Pliers Plastic Coated - 03 01 160

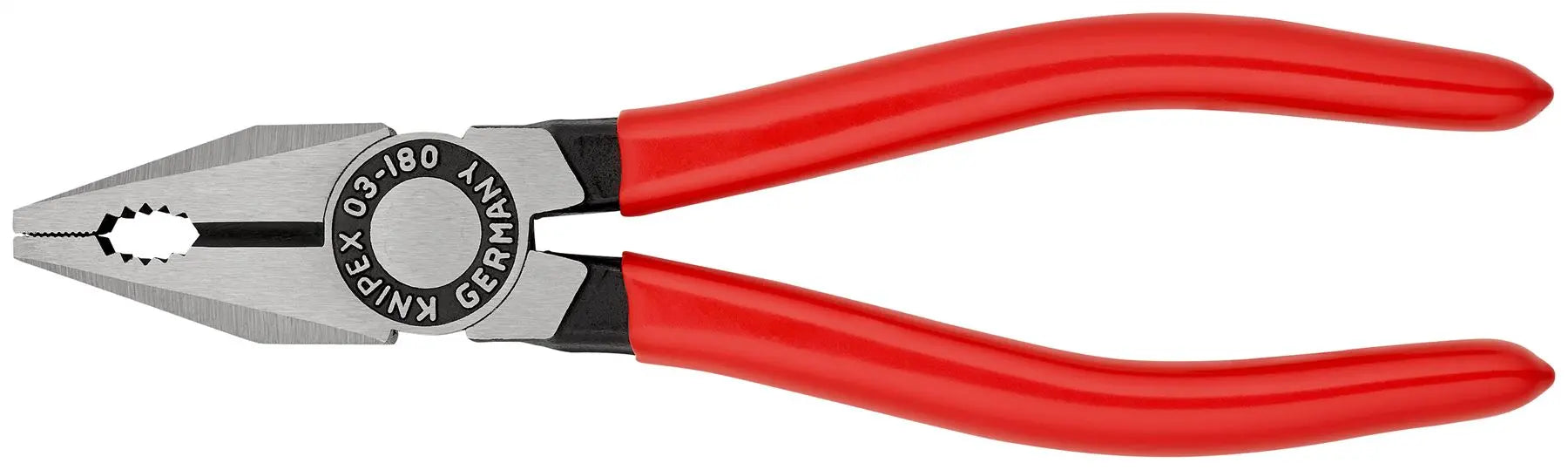

- 180 mm Combination Pliers Plastic Coated - 03 01 180

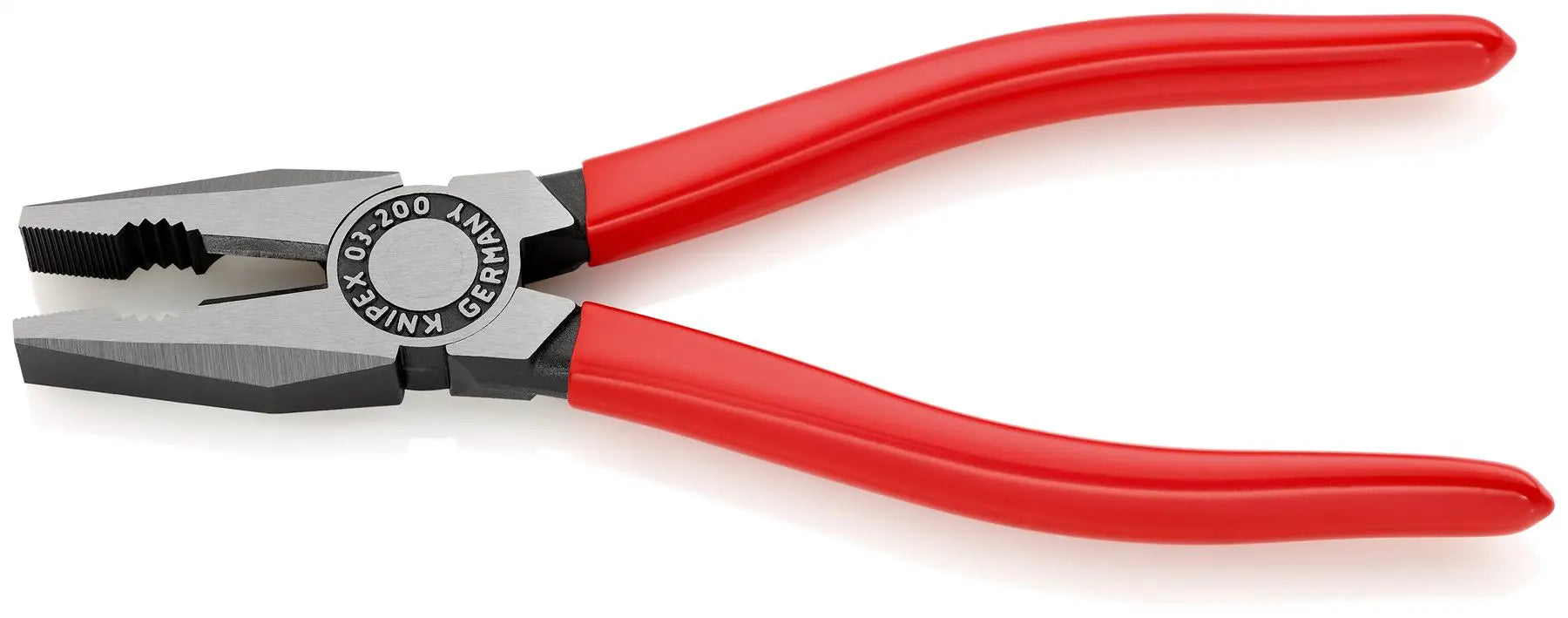

- 200 mm Combination Pliers Plastic Coated - 03 01 200

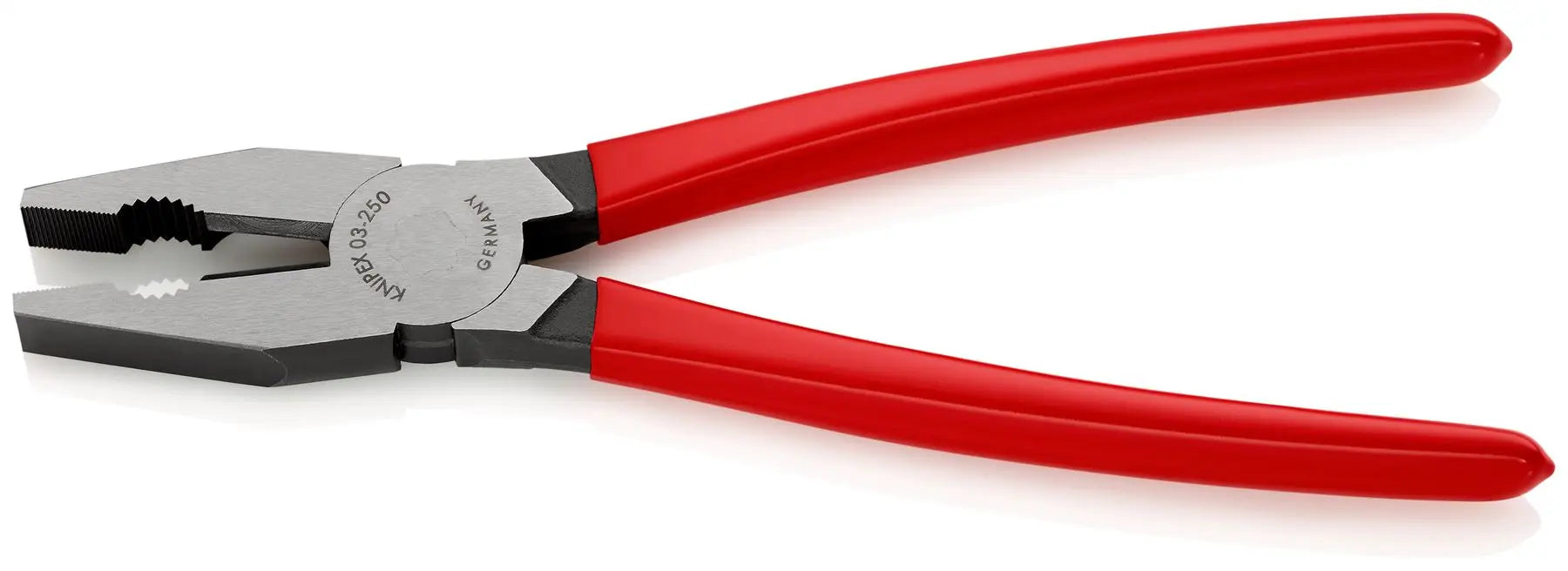

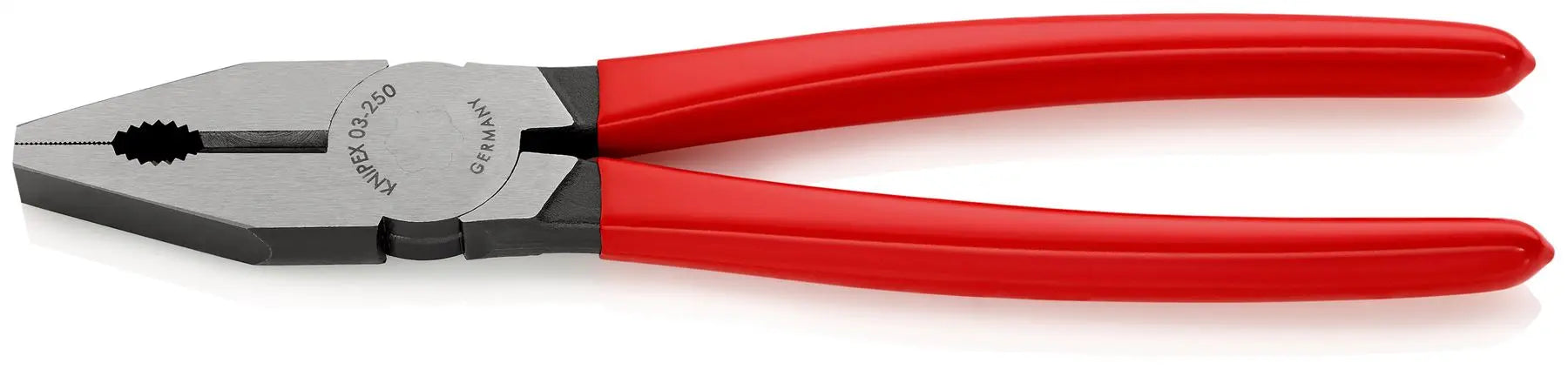

- 250 mm Combination Pliers Plastic Coated - 03 01 250

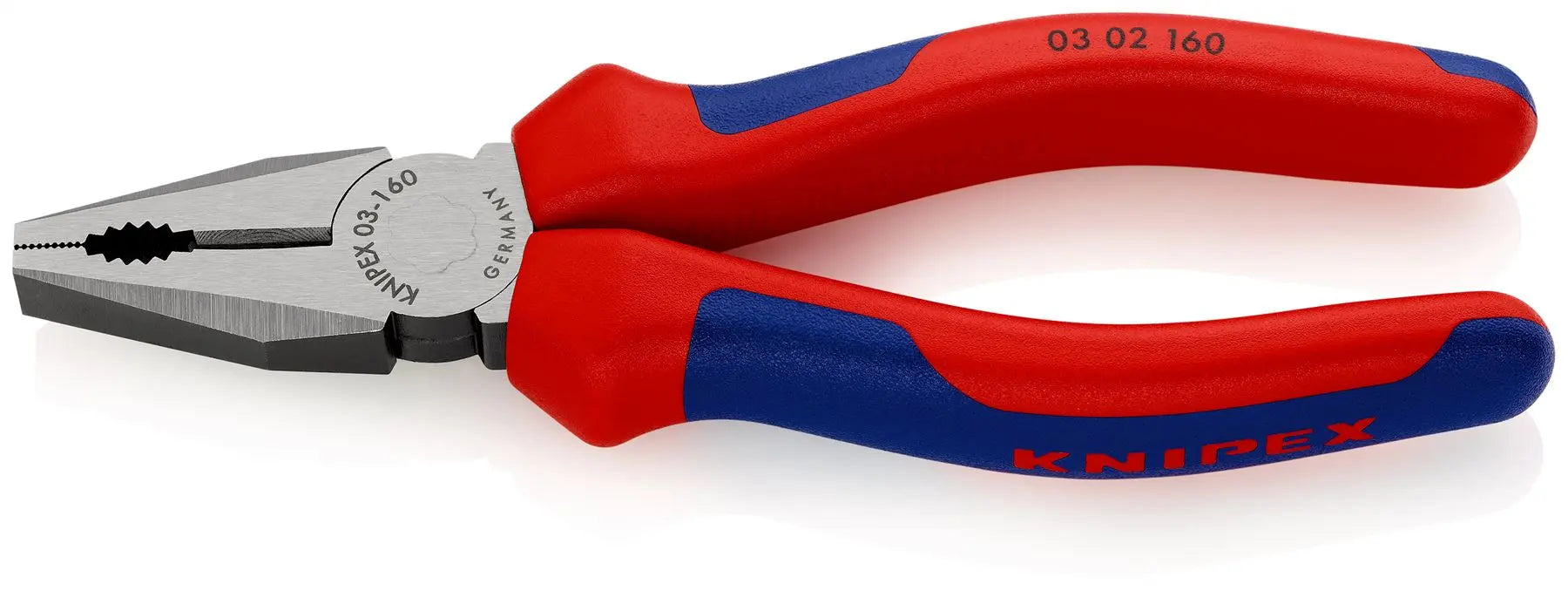

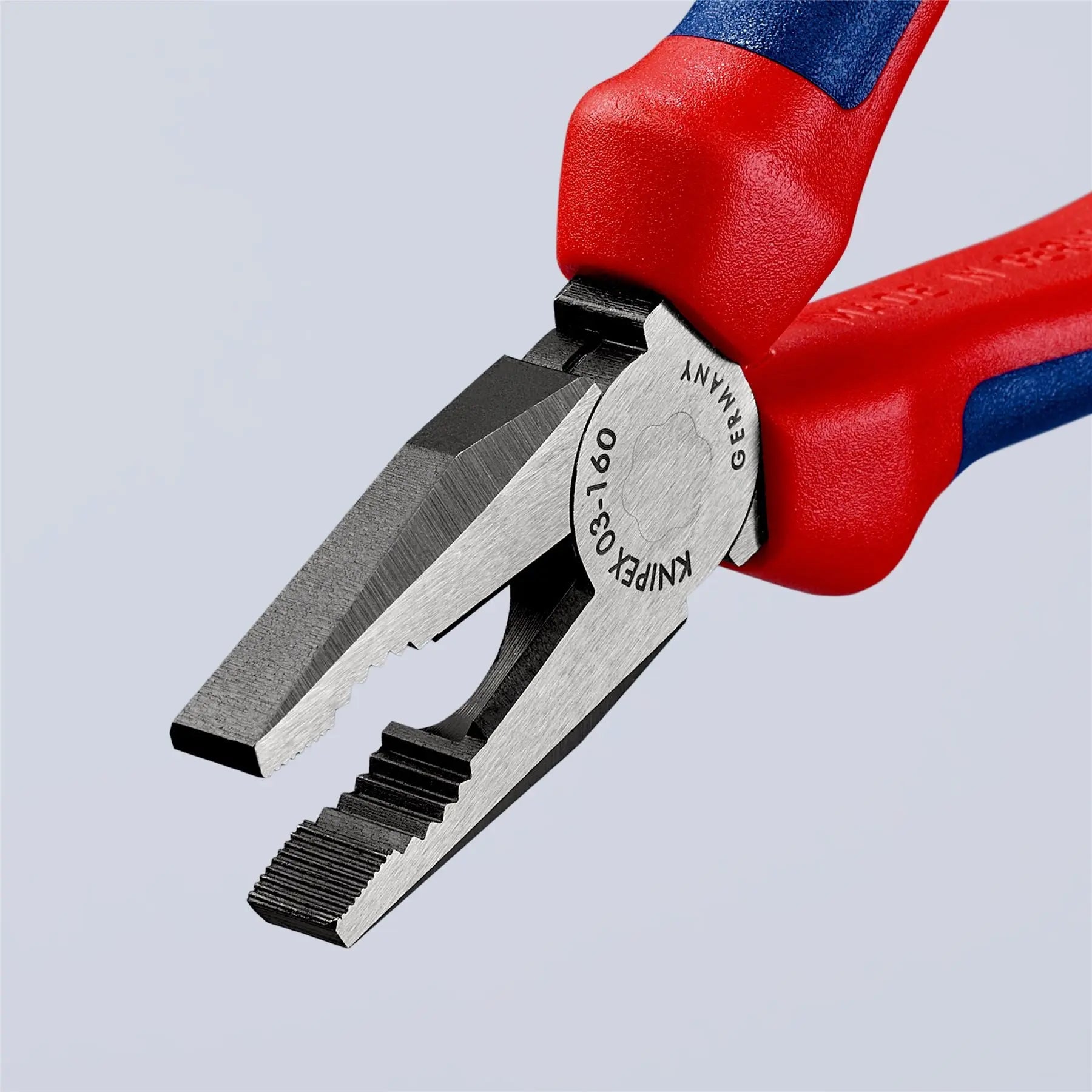

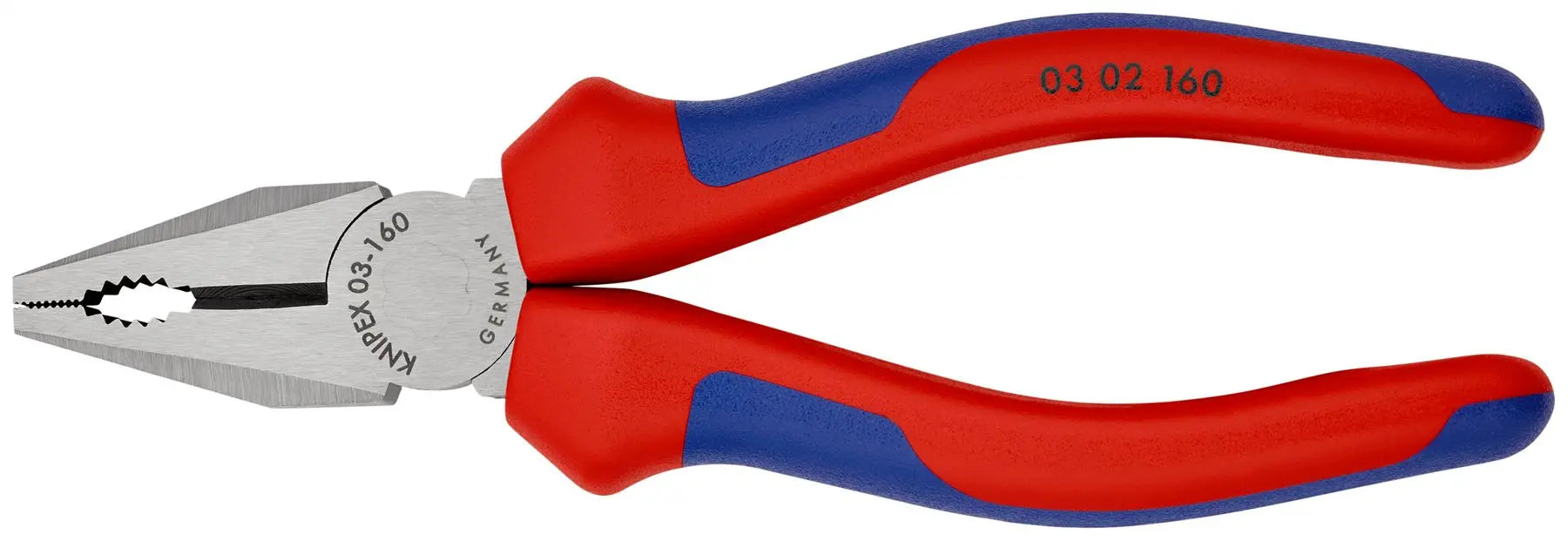

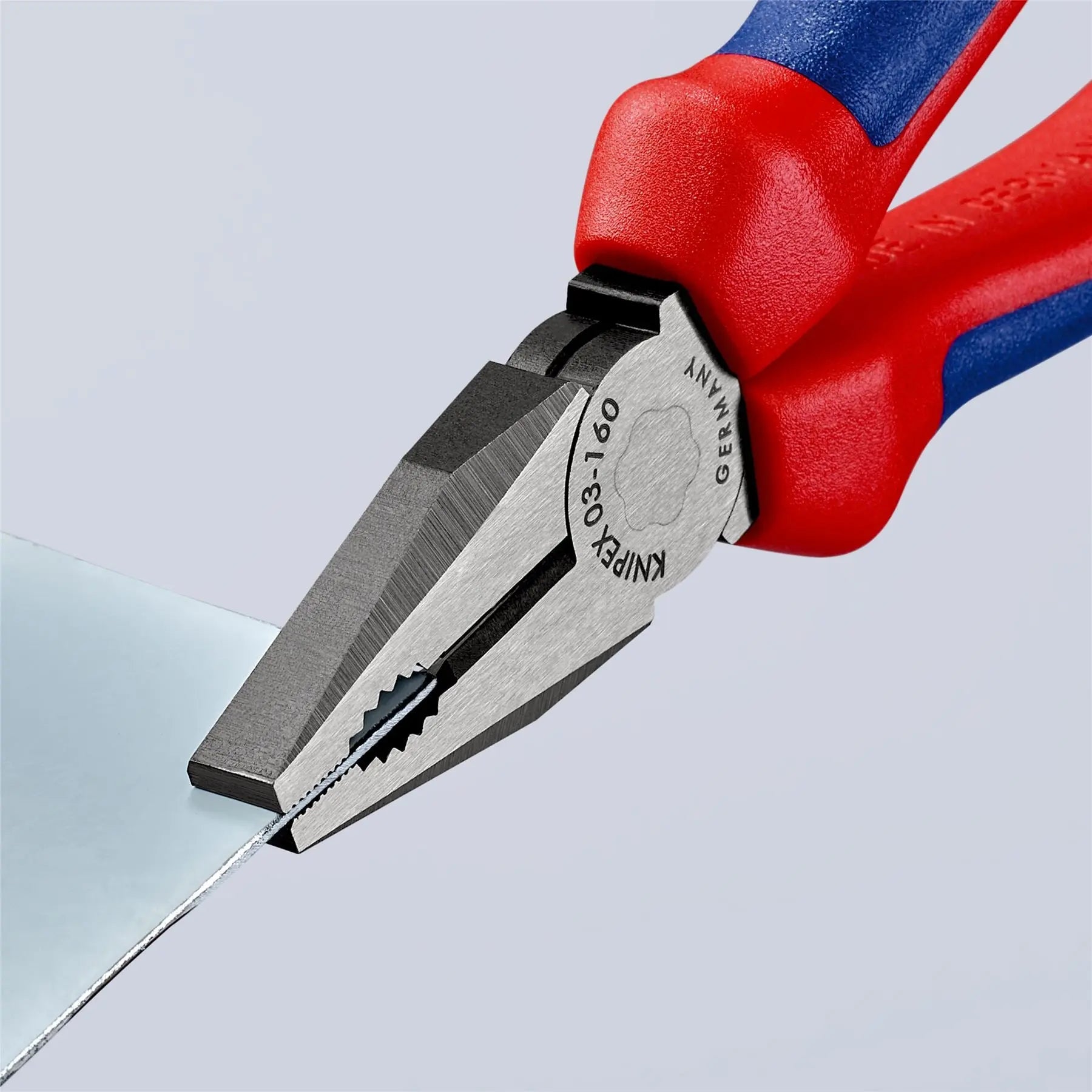

- 160 mm Combination Pliers Multi Component Grips - 03 02 160
- 180 mm Combination Pliers Multi Component Grips - 03 02 180

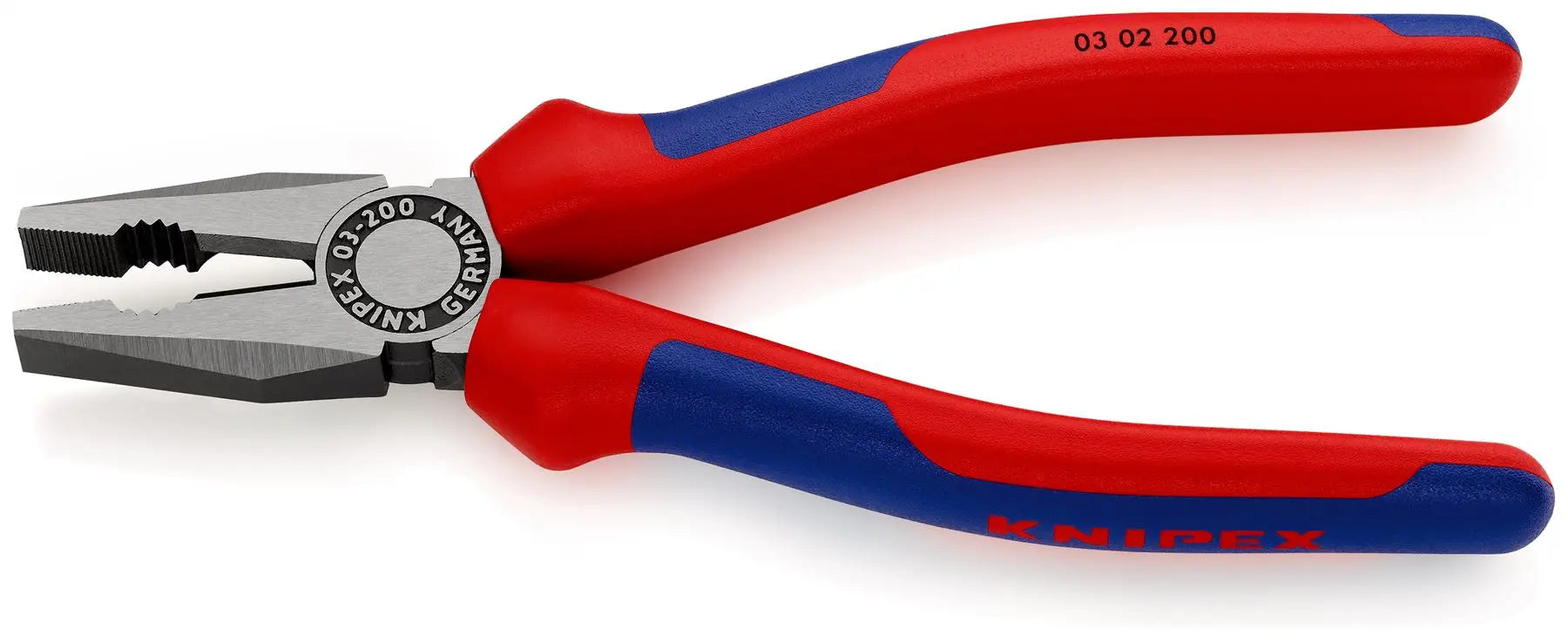

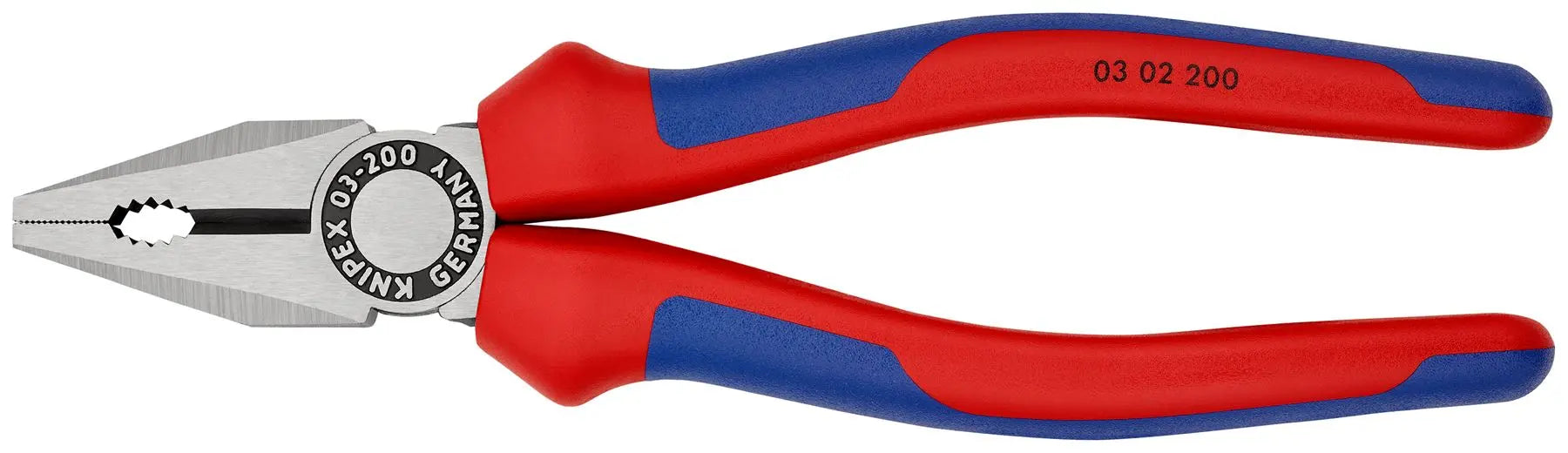

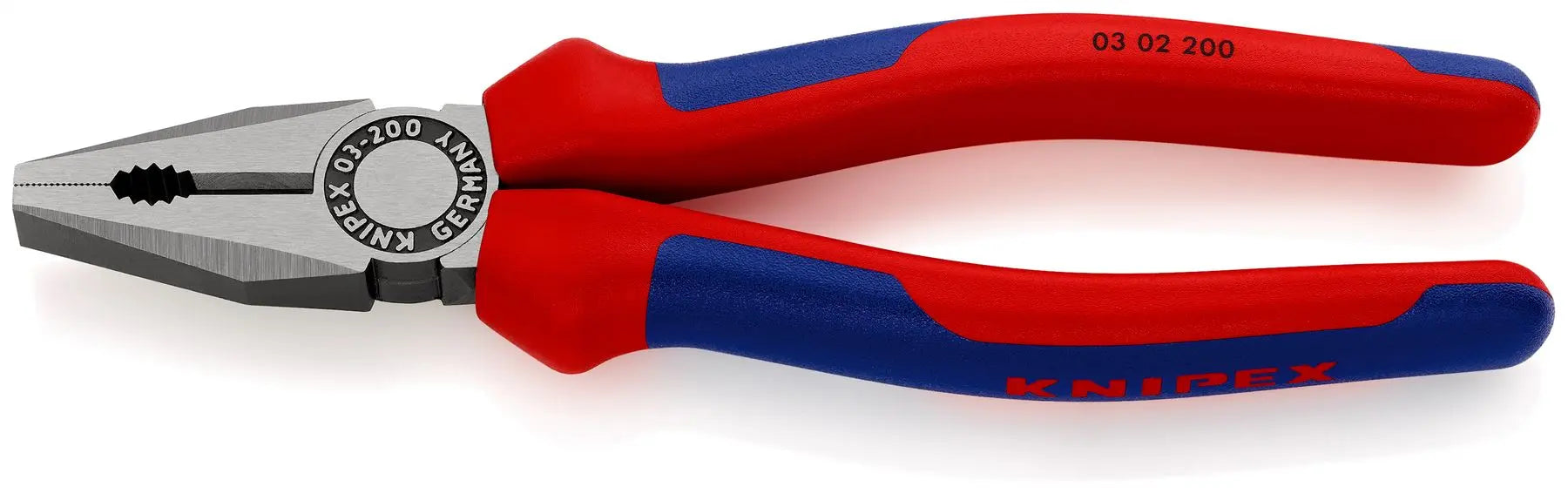

- 200 mm Combination Pliers Multi Component Grips - 03 02 200

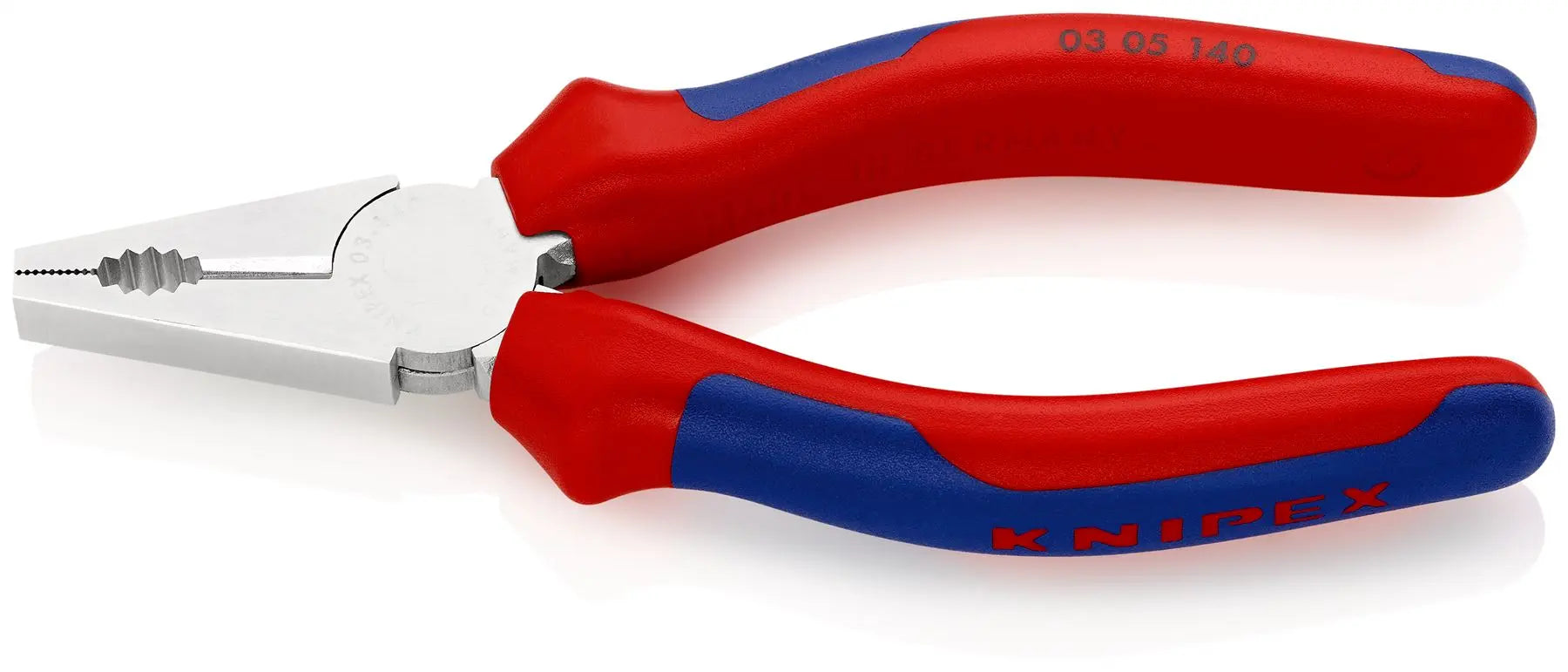

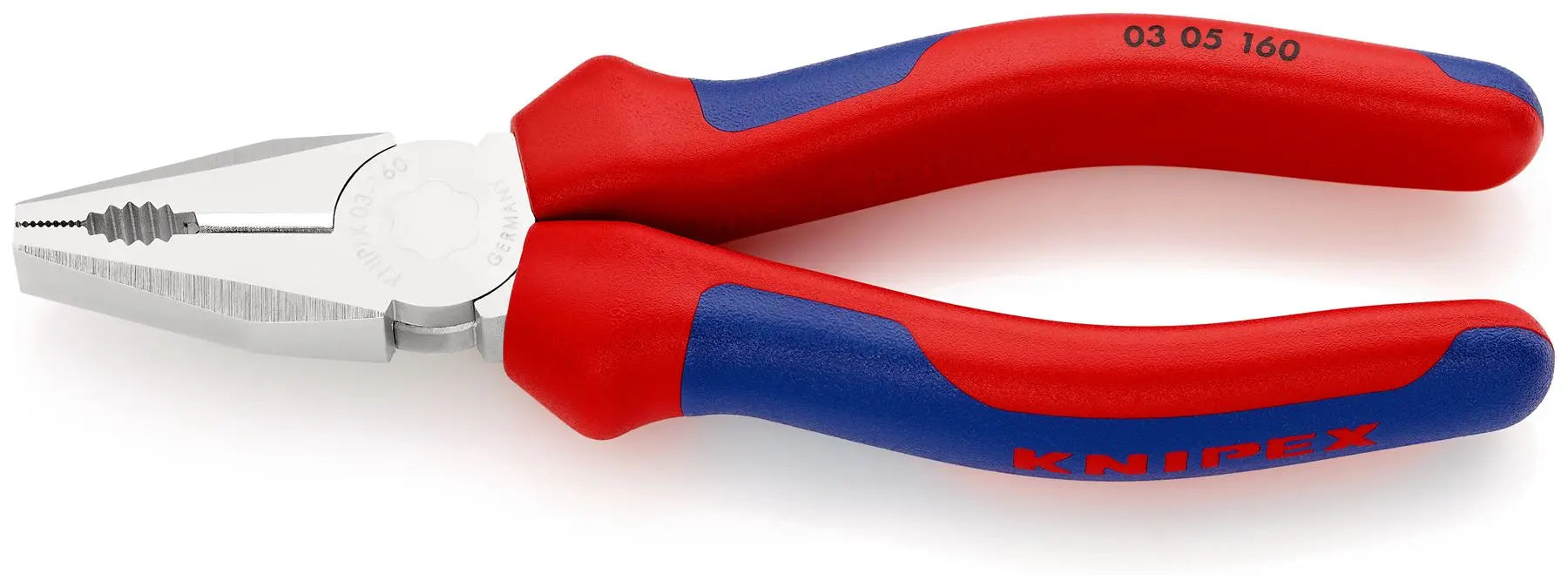

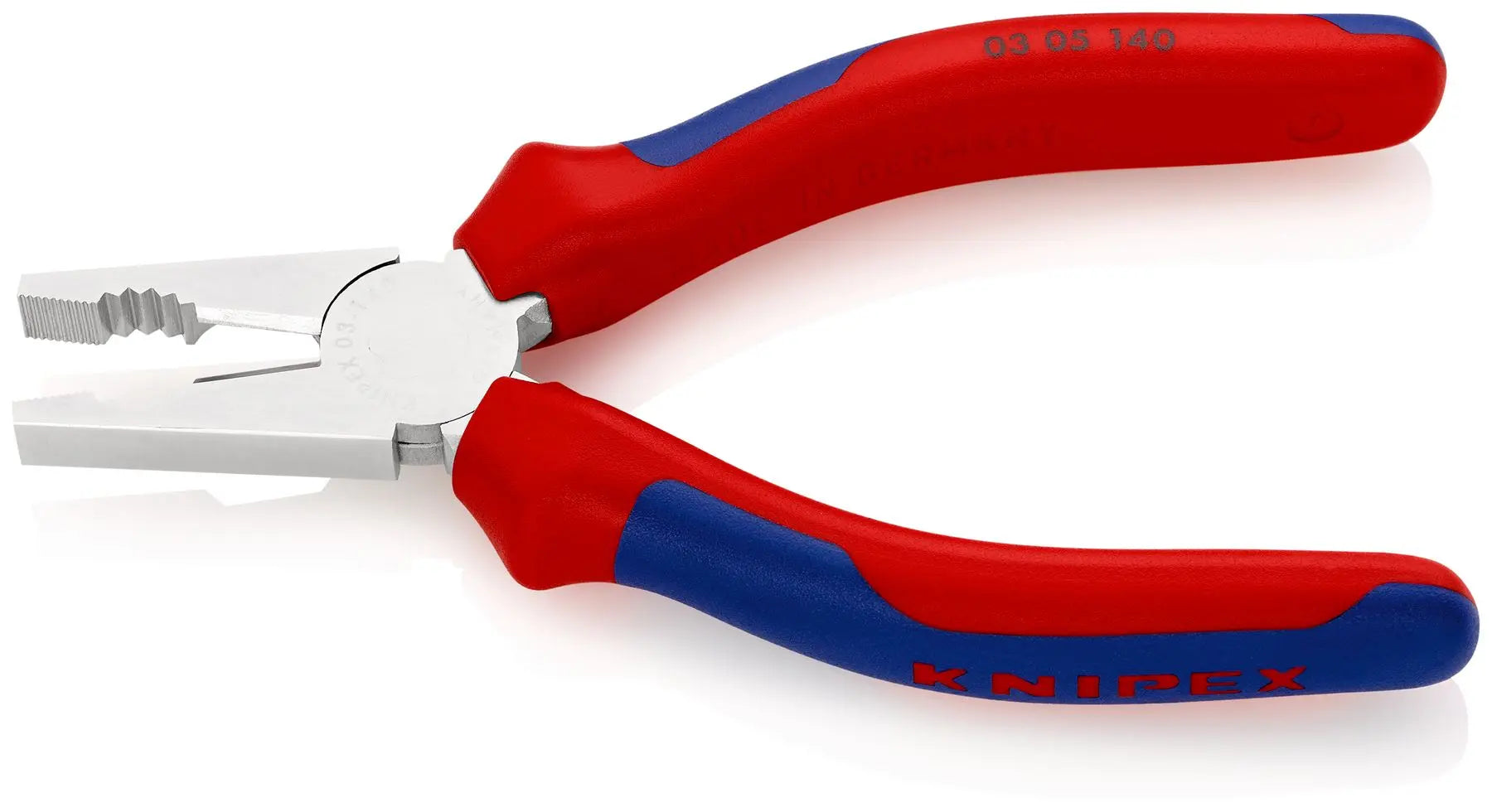

- 140 mm Combination Pliers Chrome Plated Multi Component Grips - 03 05 140

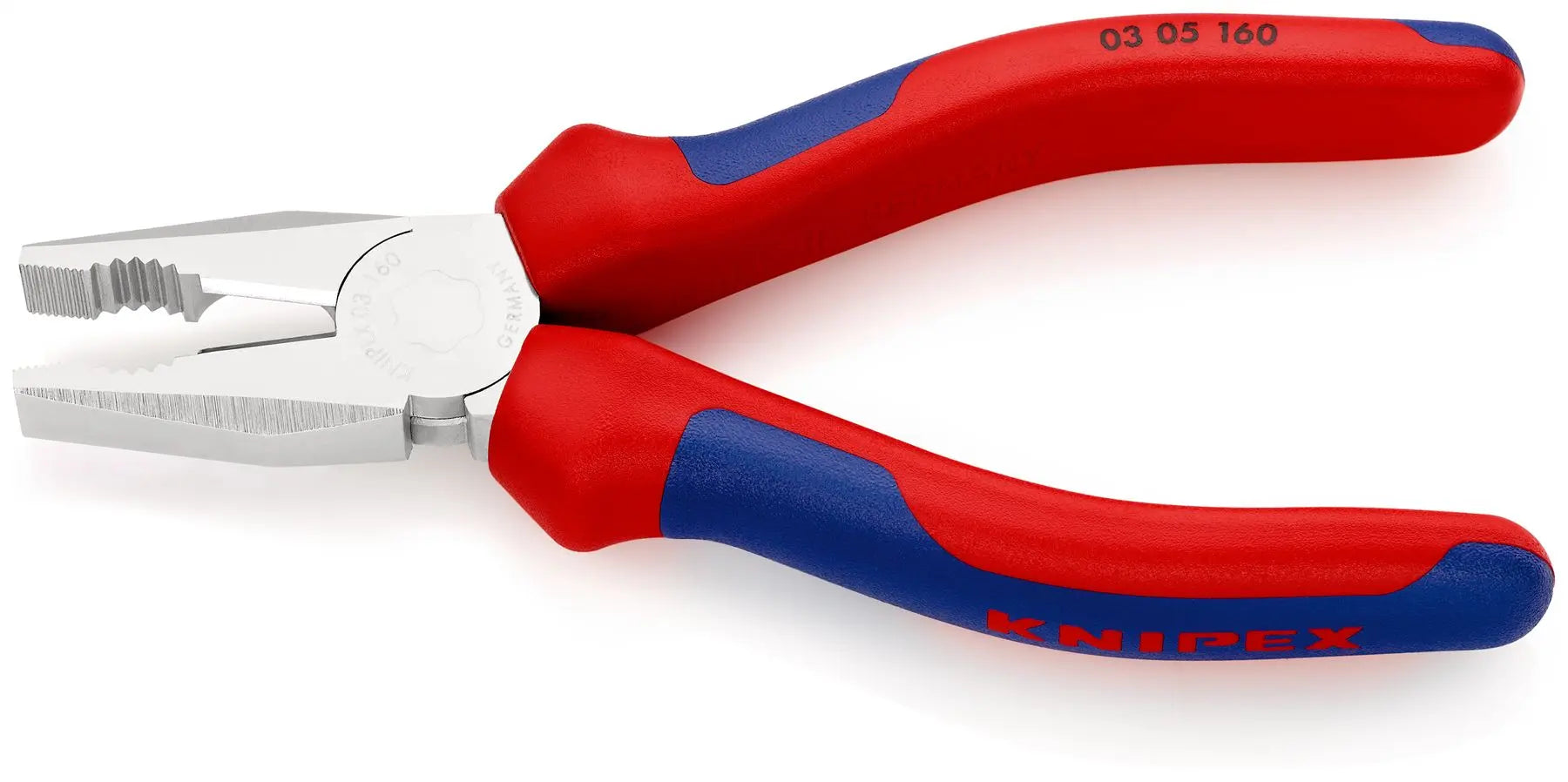

- 160 mm Combination Pliers Chrome Plated Multi Component Grips - 03 05 160
- 180 mm Combination Pliers Chrome Plated Multi Component Grips - 03 05 180

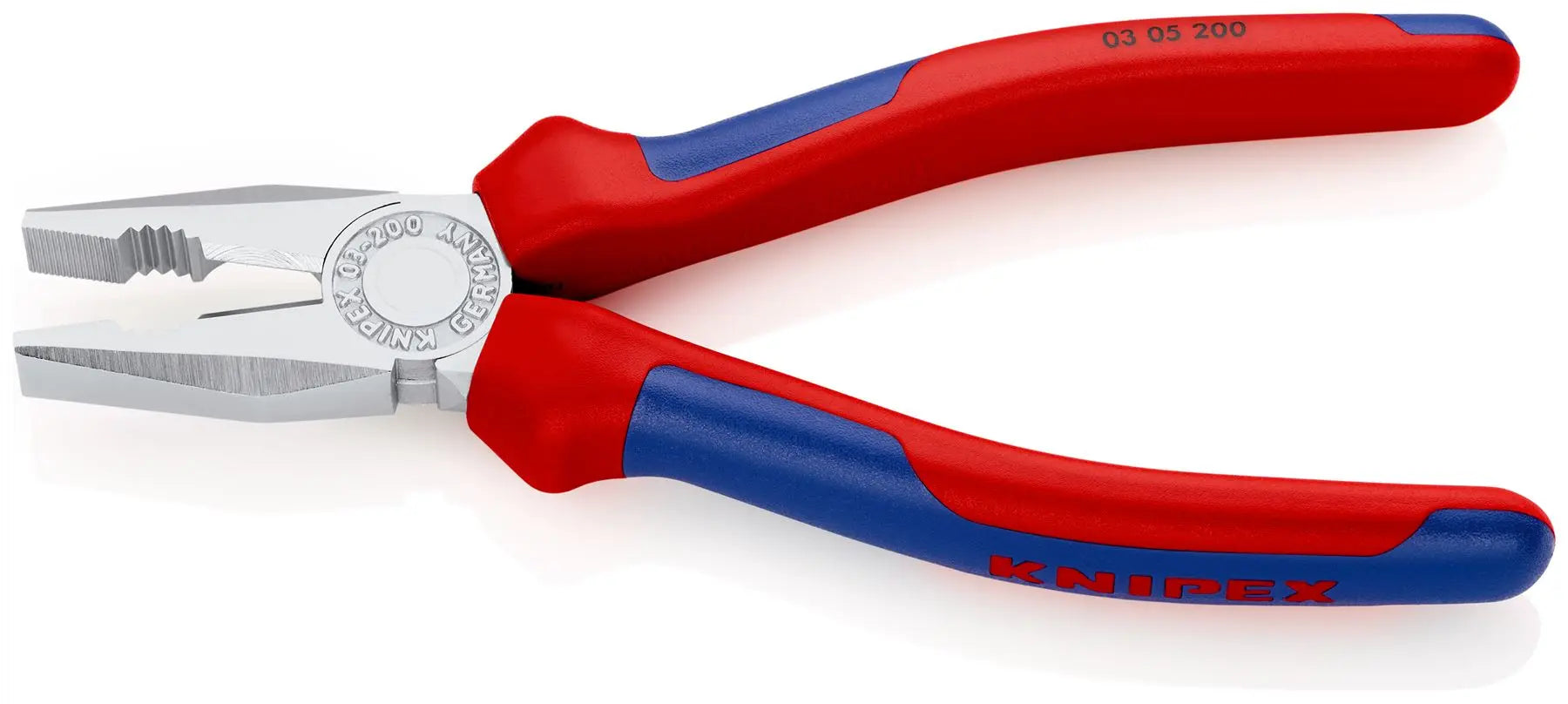

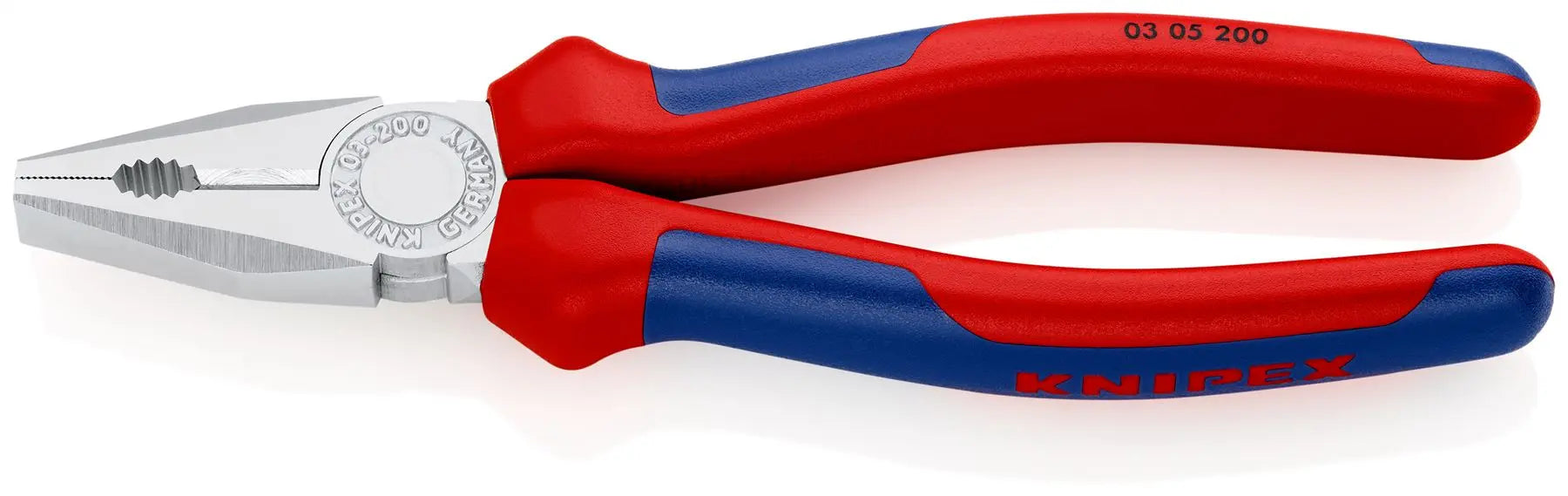

- 200 mm Combination Pliers Chrome Plated Multi Component Grips - 03 05 200

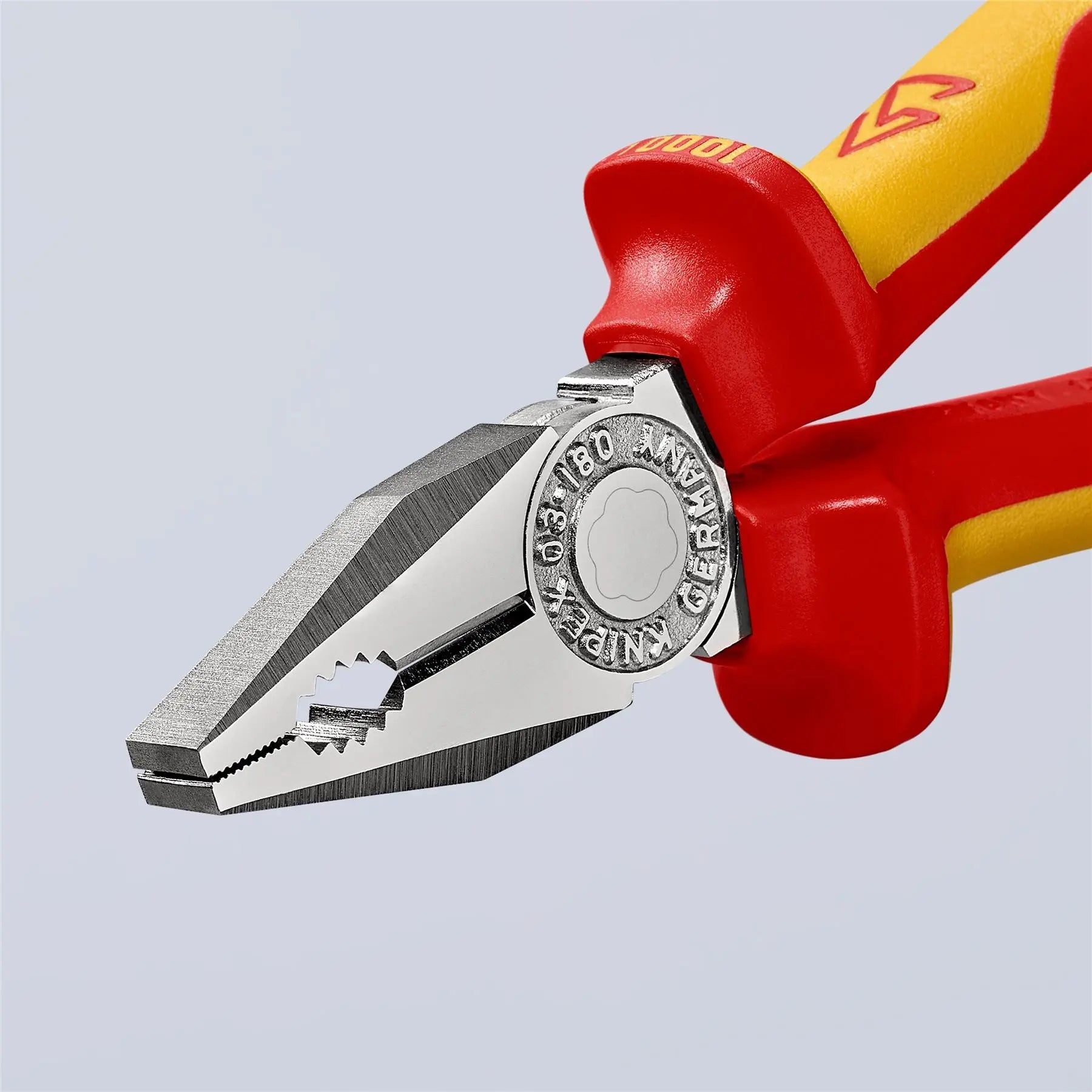

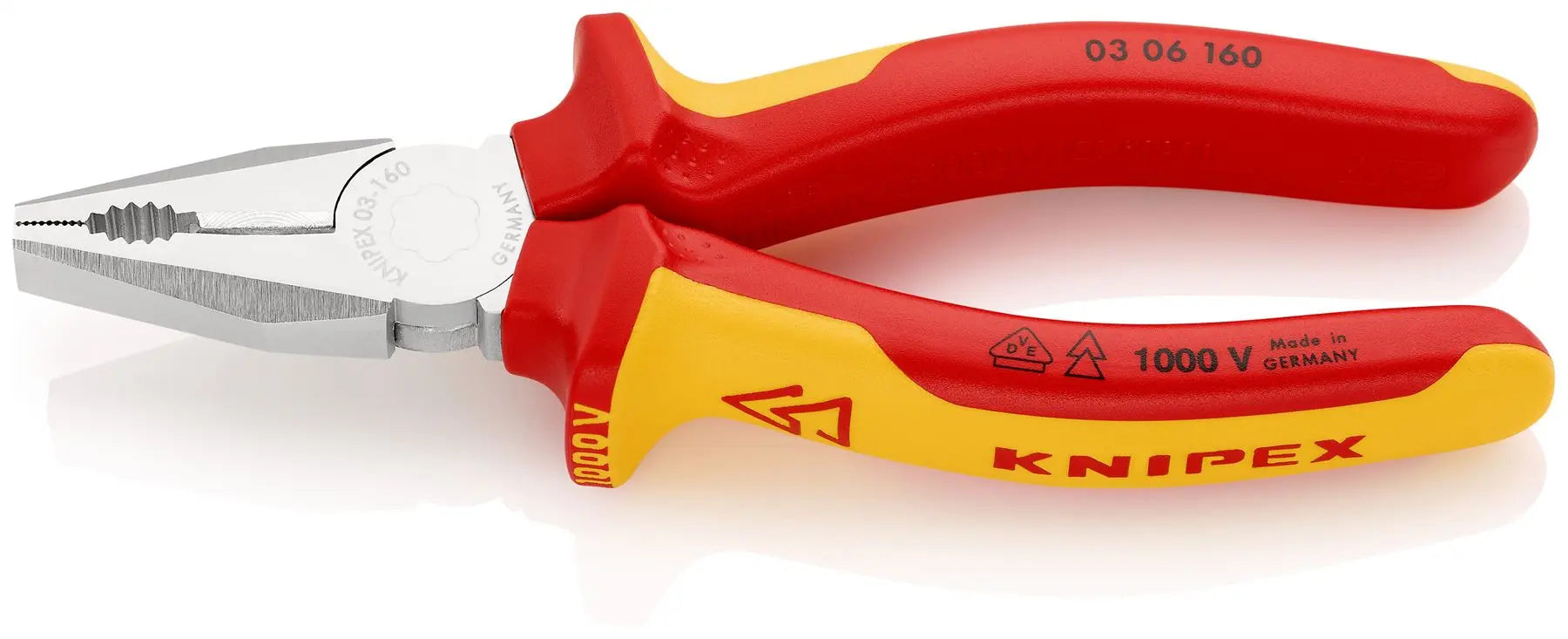

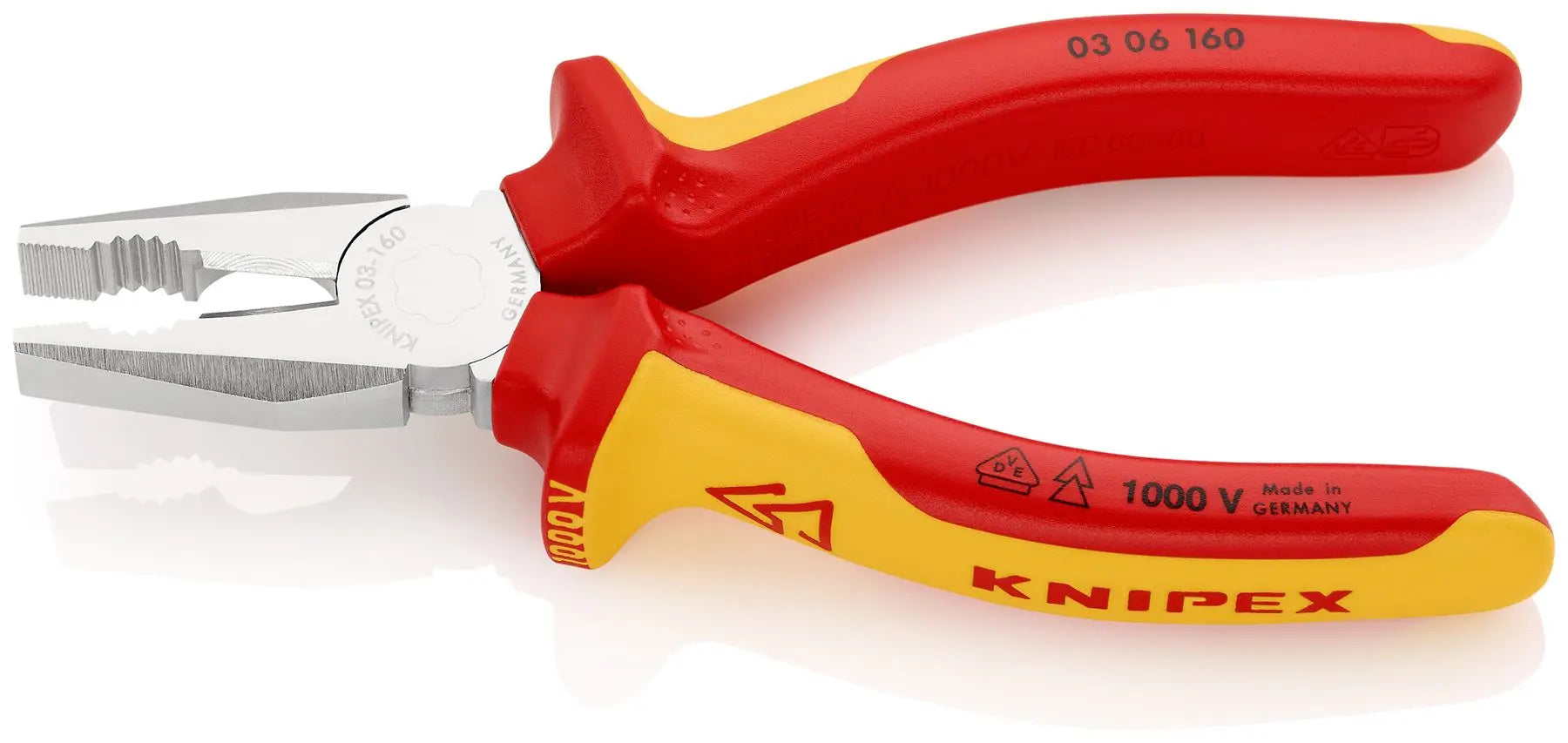

- 160 mm Combination Pliers Chrome Plated VDE Insulated - 03 06 160

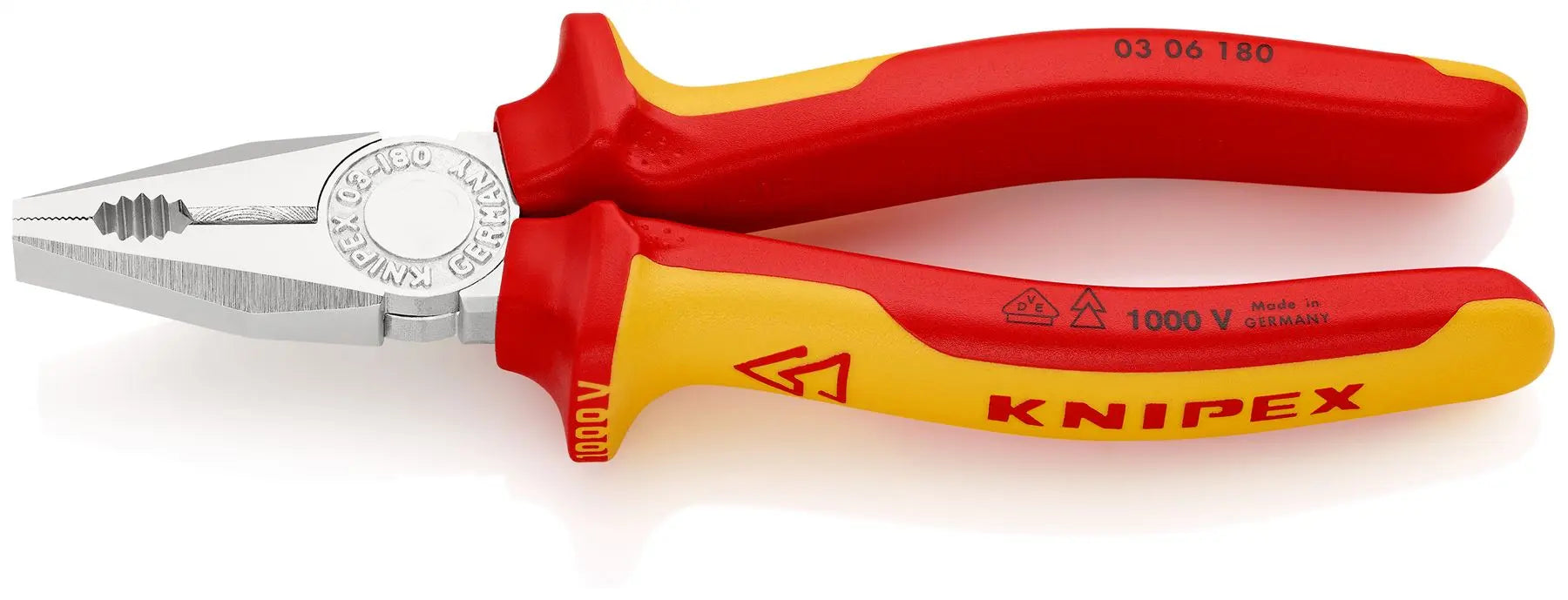

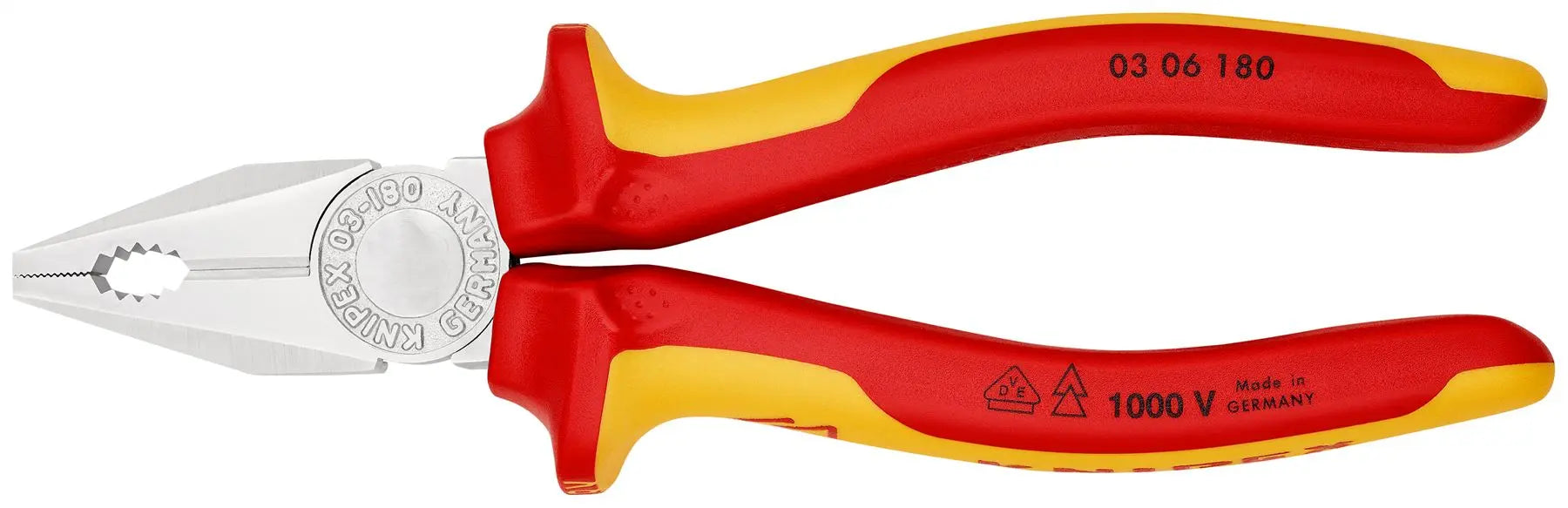

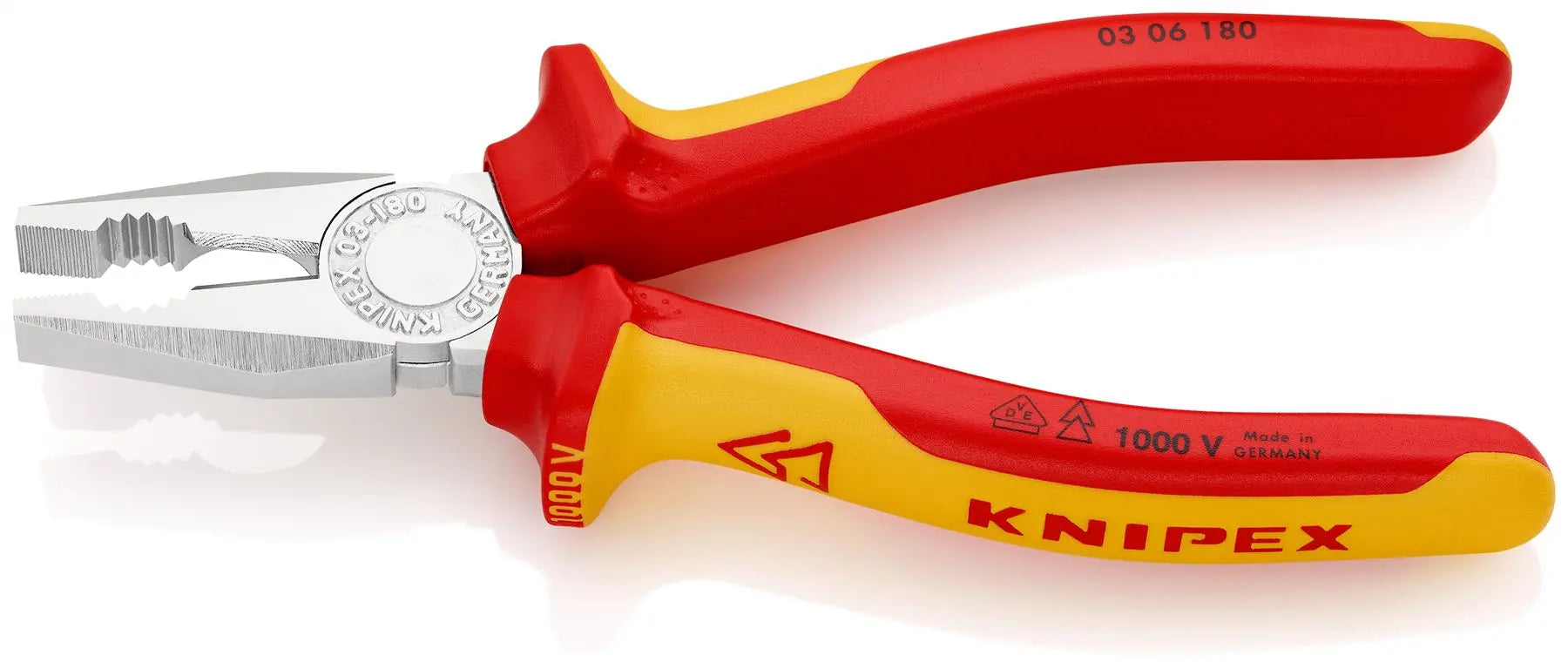

- 180 mm Combination Pliers Chrome Plated VDE Insulated - 03 06 180

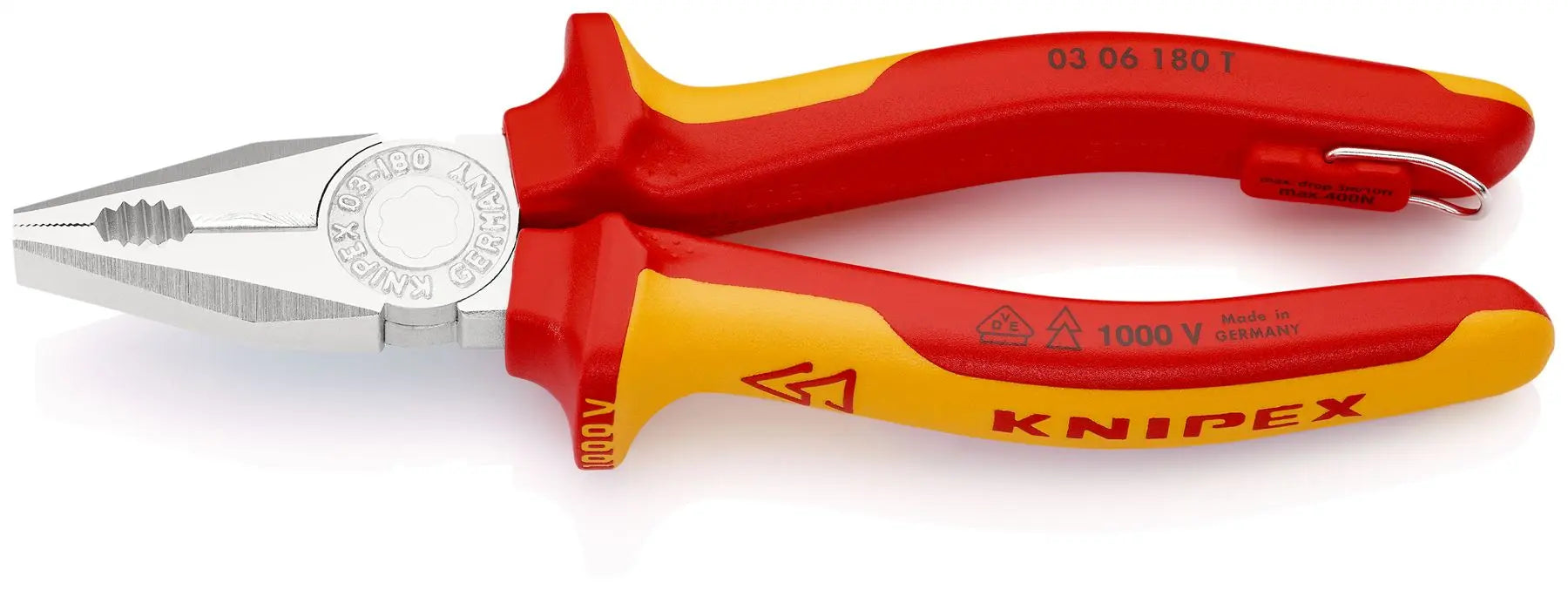

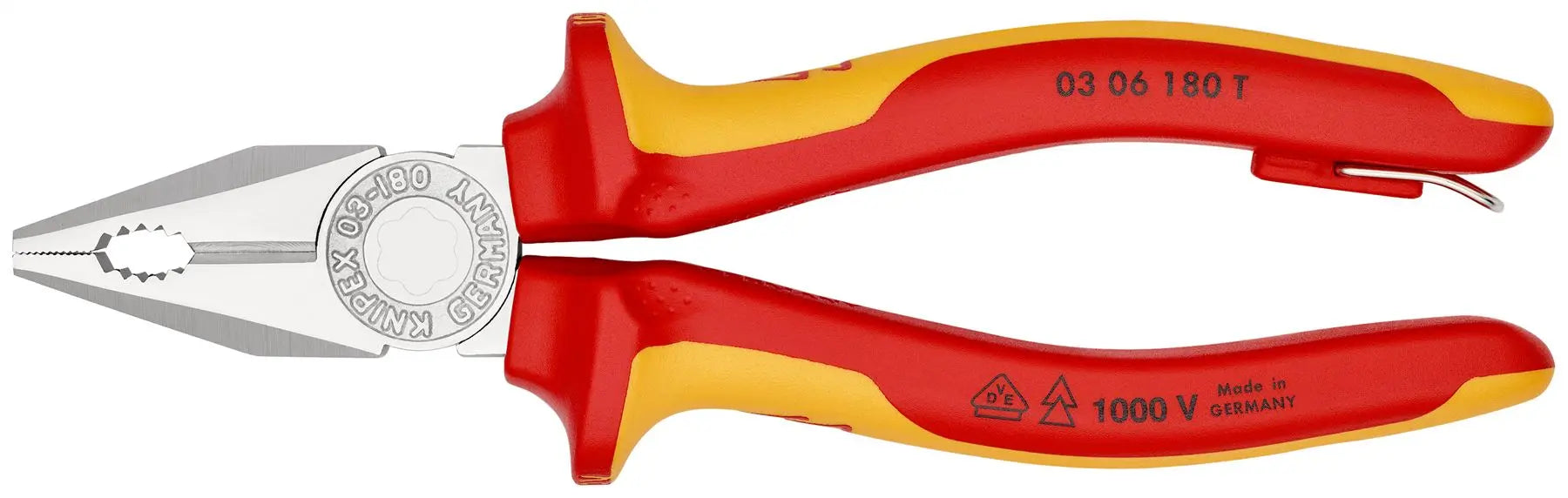

- 180 mm Combination Pliers Chrome Plated VDE Insulated with Tether Point - 03 06 180 T

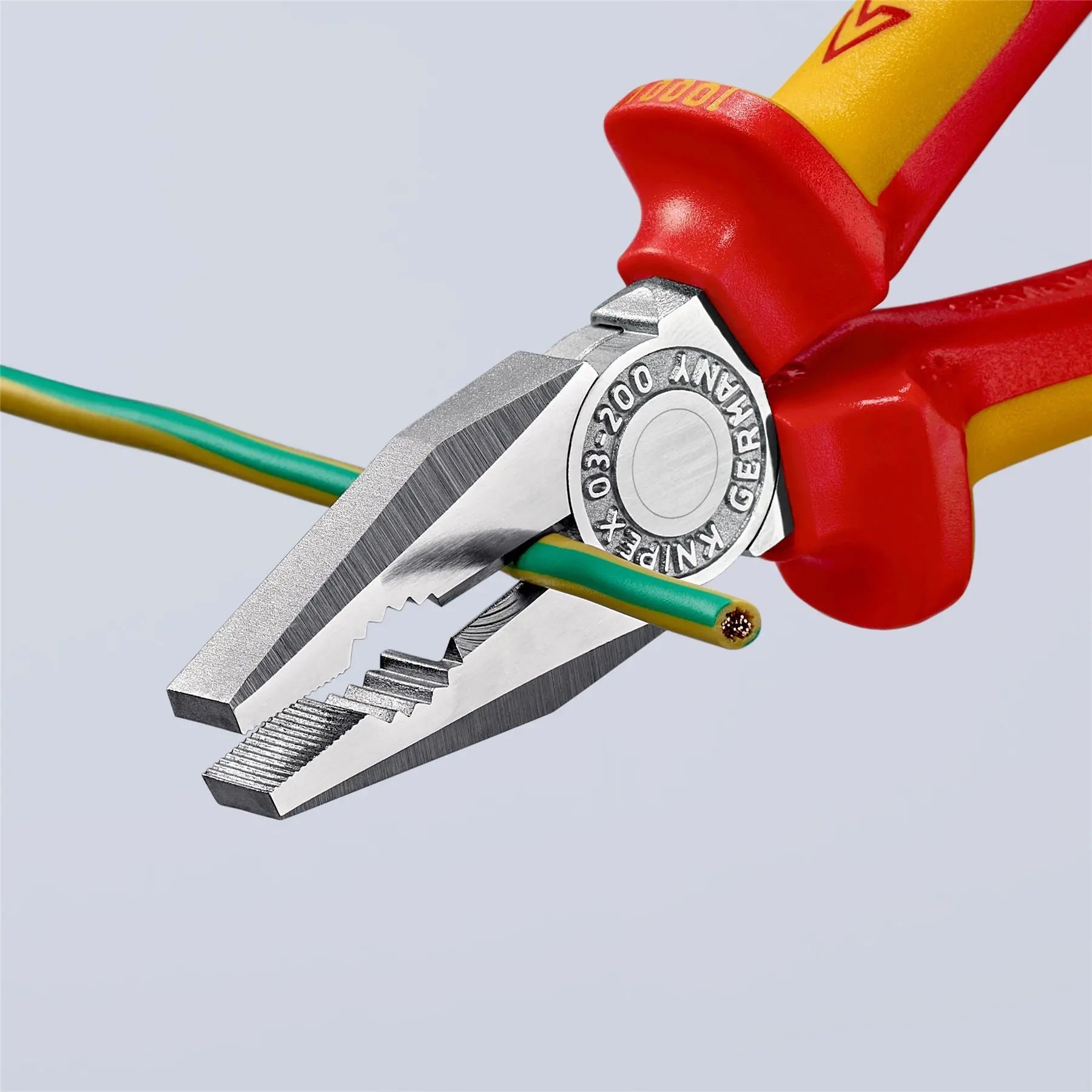

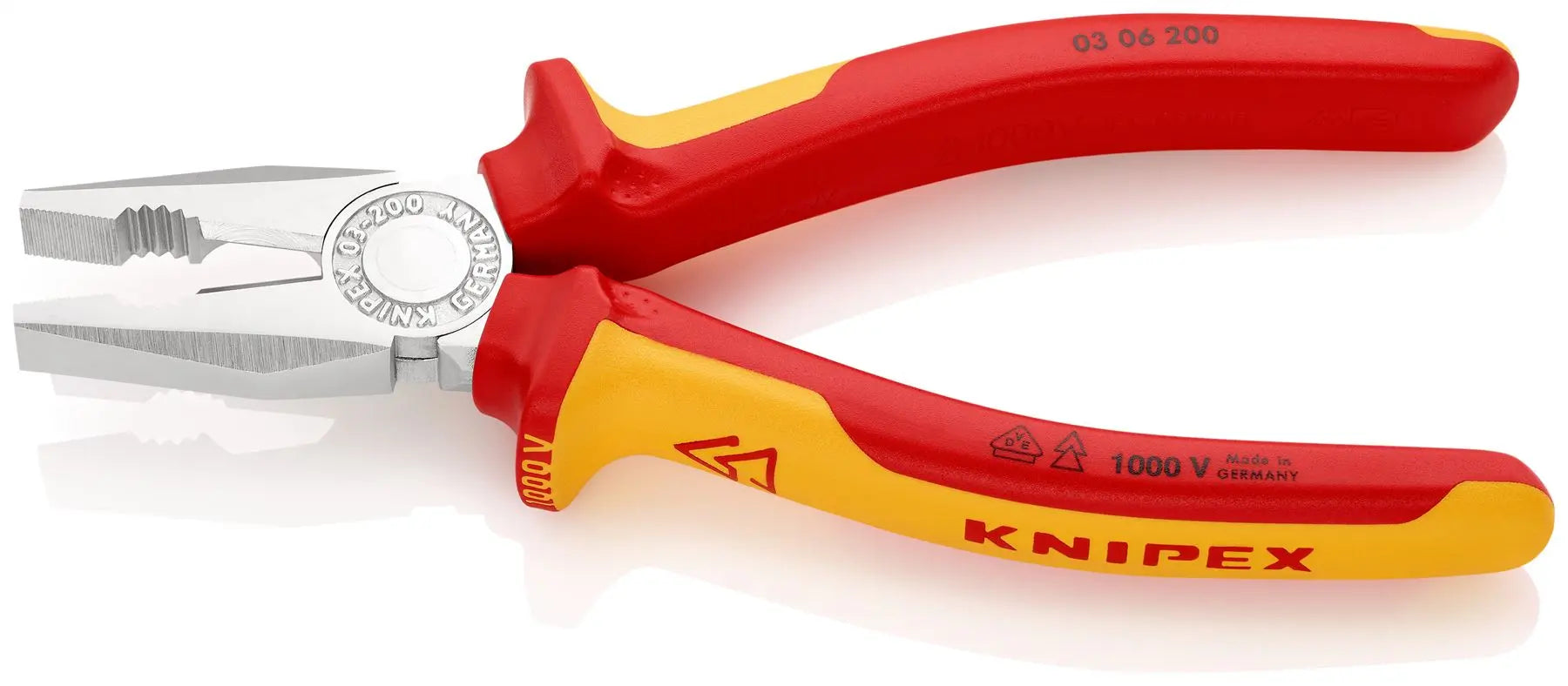

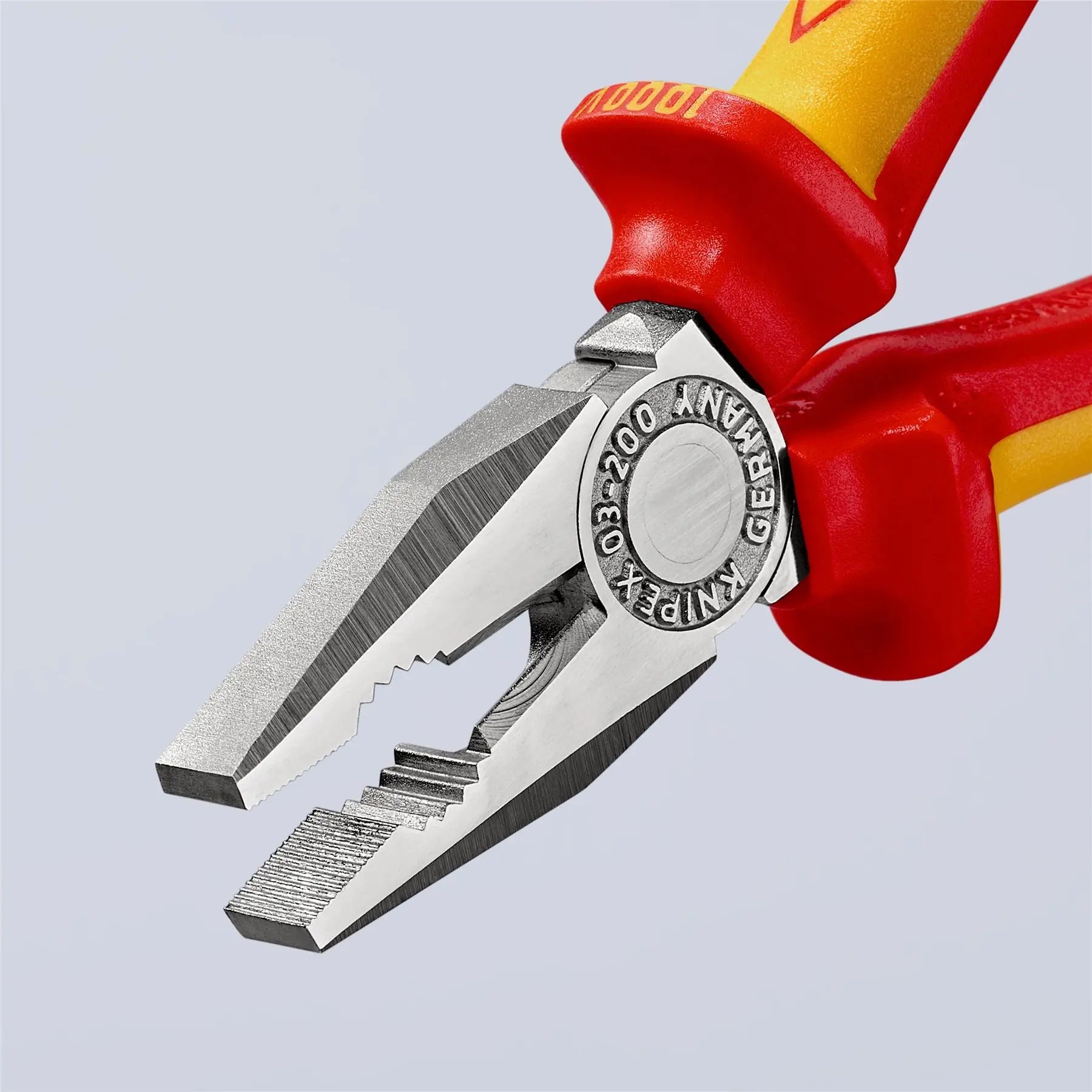

- 200 mm Combination Pliers Chrome Plated VDE Insulated - 03 06 200

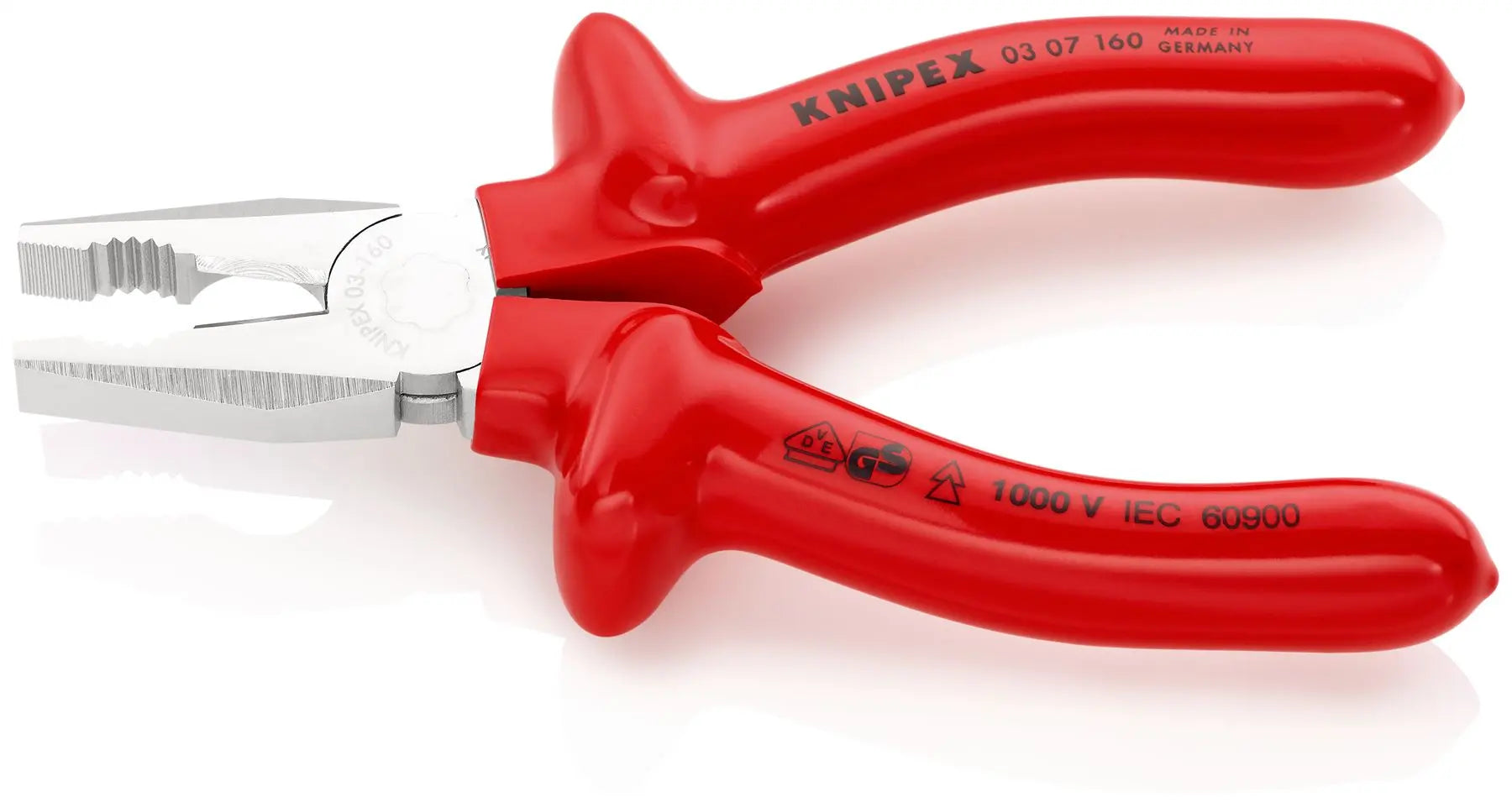

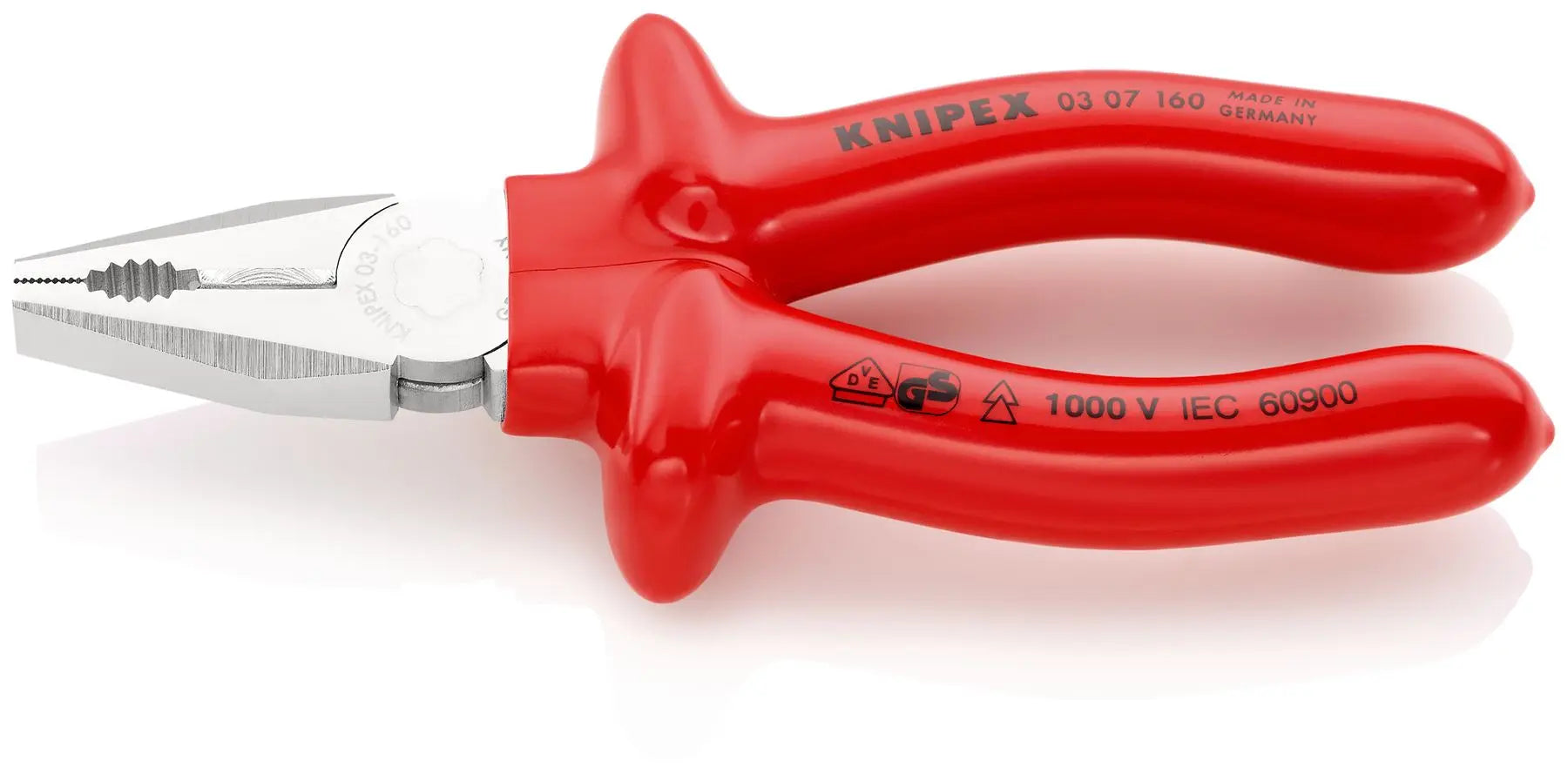

- 160 mm Combination Pliers Chrome Plated VDE Dipped Insulation - 03 07 160

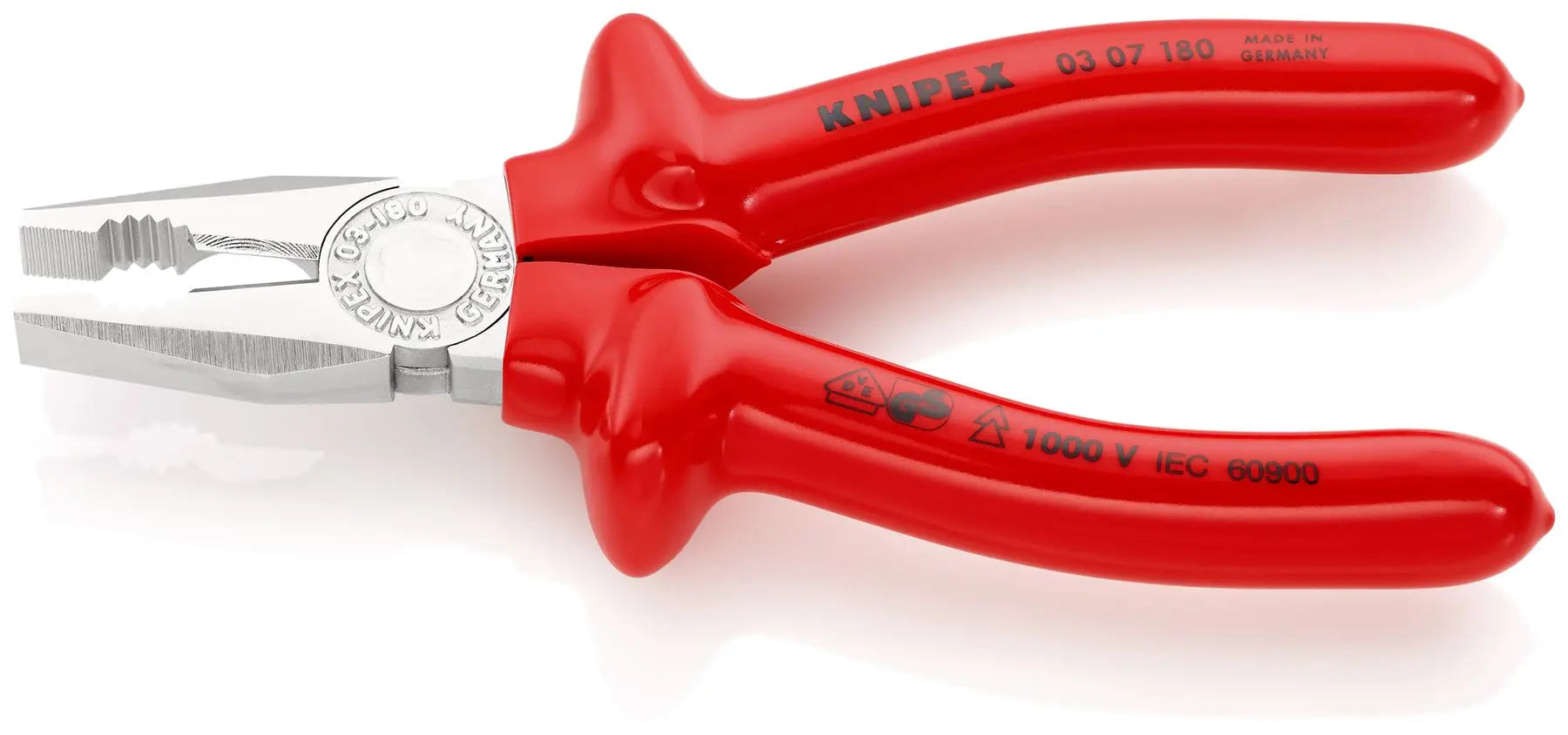

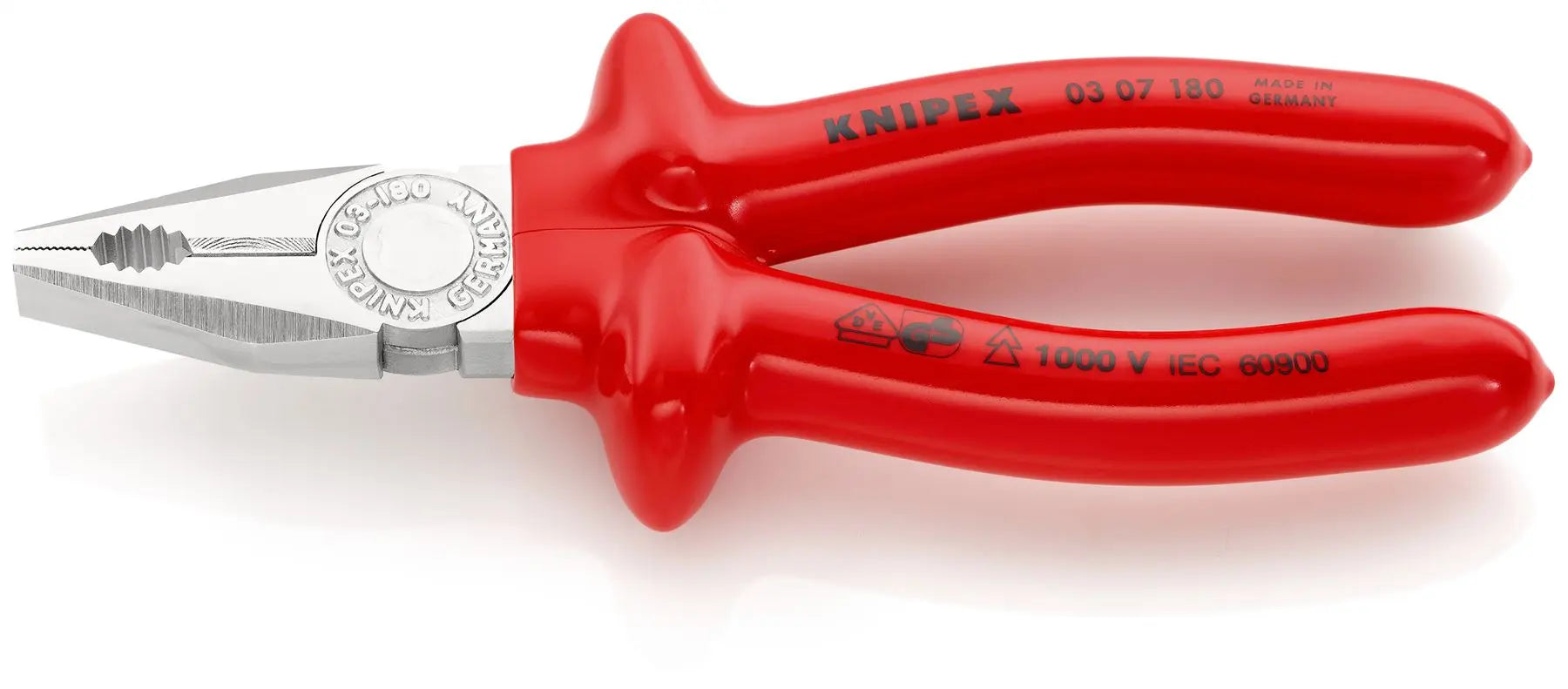

- 180 mm Combination Pliers Chrome Plated VDE Dipped Insulation - 03 07 180

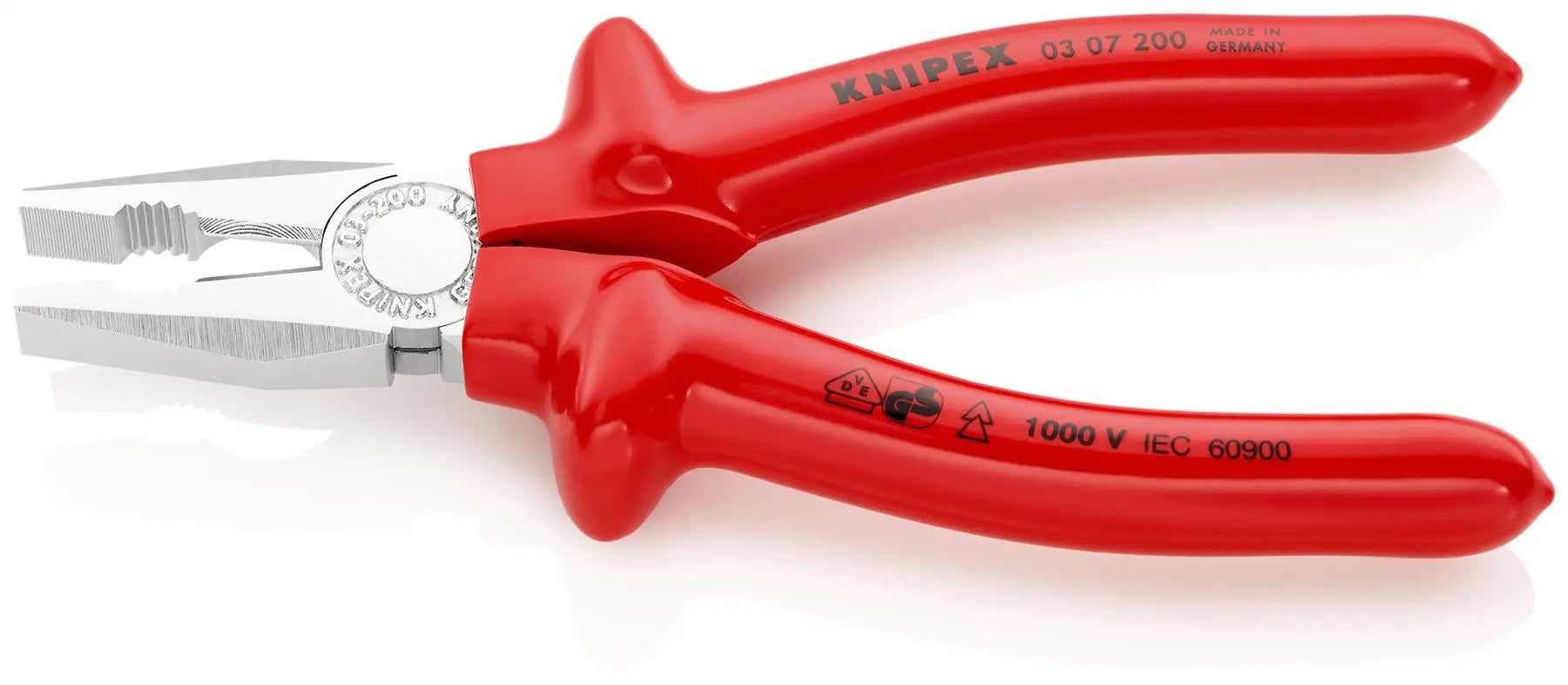

- 200 mm Combination Pliers Chrome Plated VDE Dipped Insulation - 03 07 200

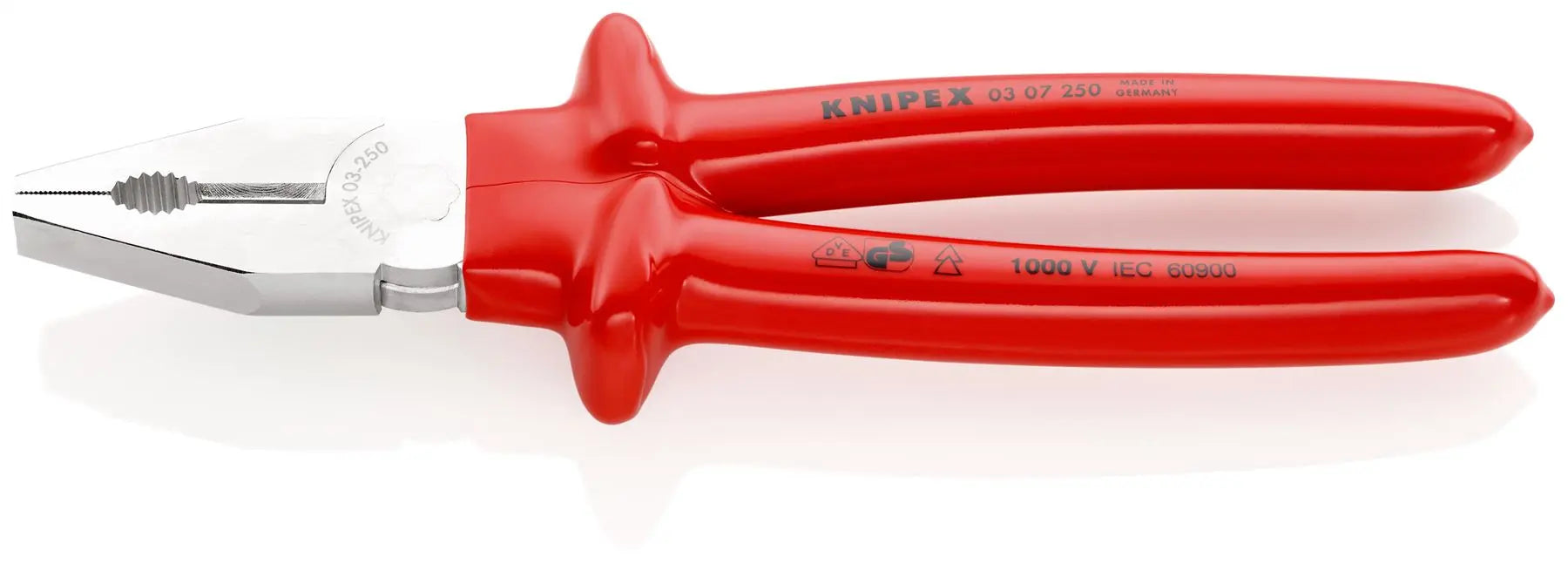

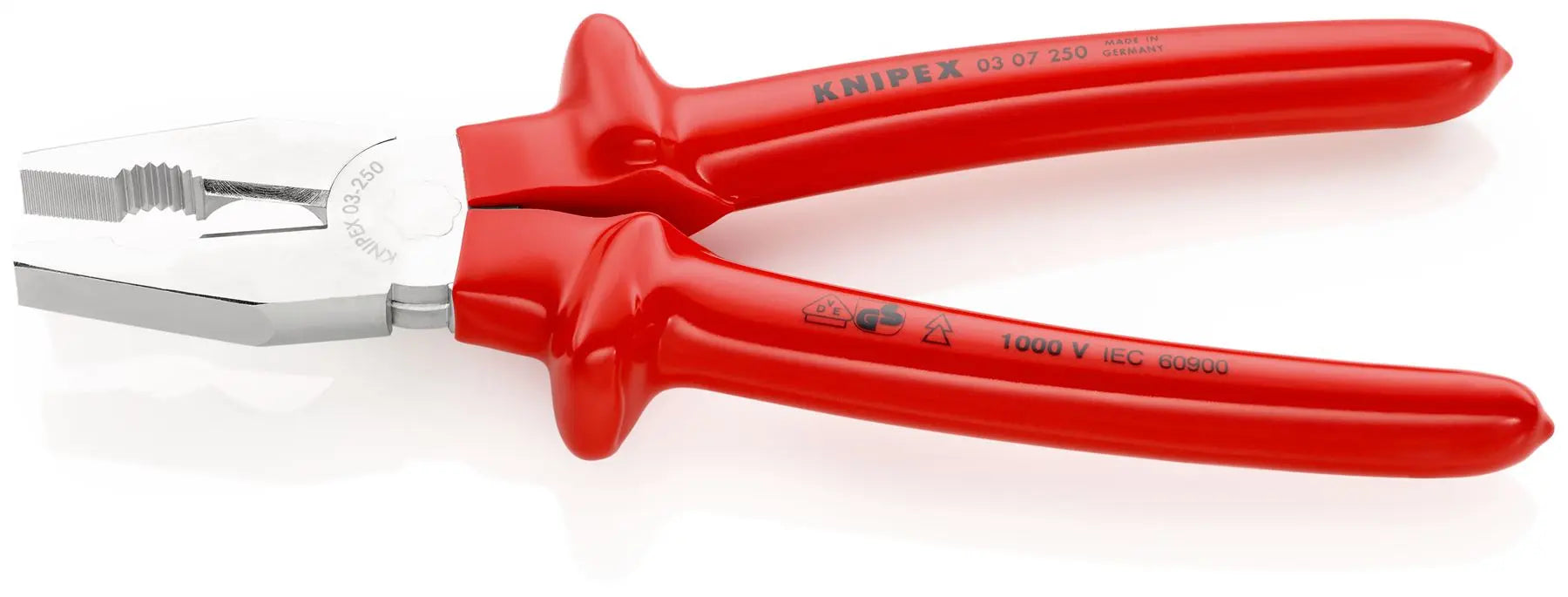

- 250 mm Combination Pliers Chrome Plated VDE Dipped Insulation - 03 07 250
Technical Attributes:
-
Cutting Capacity Medium Hard Wire (Diameter):
- 140 mm = Ø 2.8 mm
- 160 mm = Ø 3.1 mm
- 180 mm = Ø 3.4 mm
- 200 mm = Ø 3.8 mm
- 250 mm = Ø 3.8 mm
-
Cutting Capacity Hard Wire (Diameter):
- 140 mm = Ø 1.8 mm
- 160 mm = Ø 2.0 mm
- 180 mm = Ø 2.2 mm
- 200 mm = Ø 2.5 mm
- 250 mm = Ø 2.5 mm
-

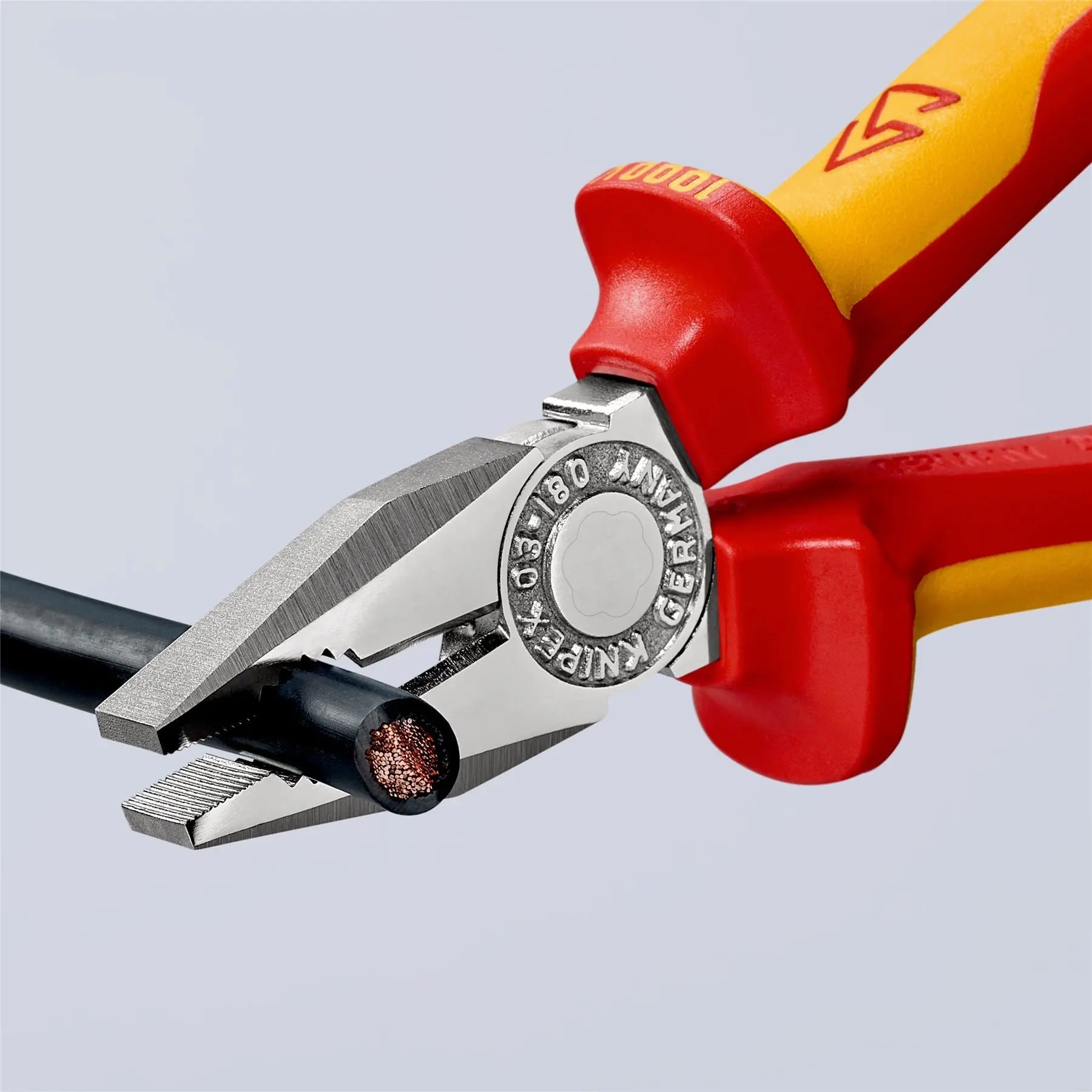

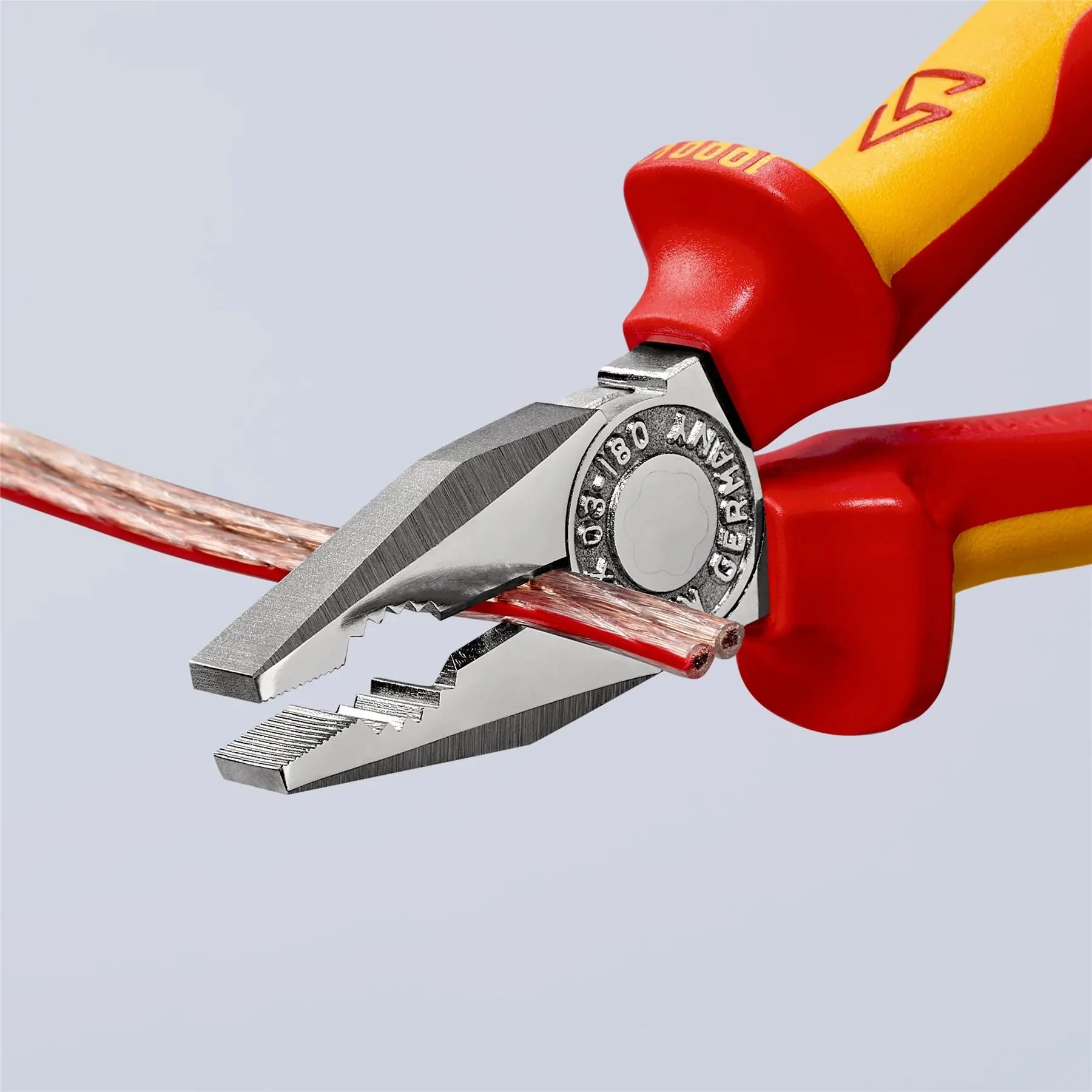

Cutting Capacity Copper Cable Multiple Stranded:
- 140 mm = Ø 9.0 mm
- 160 mm = Ø 10.0 mm
- 180 mm = Ø 12.0 mm
- 200 mm = Ø 13.0 mm
- 250 mm = Ø 15.0 mm
