Description

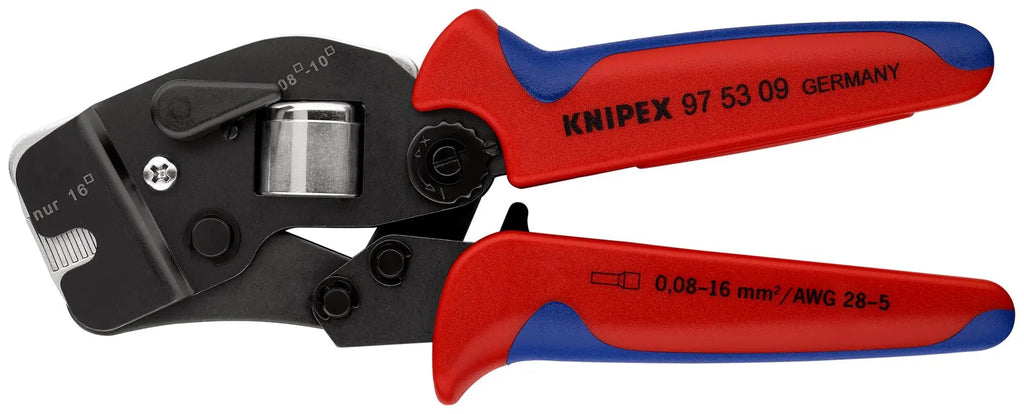

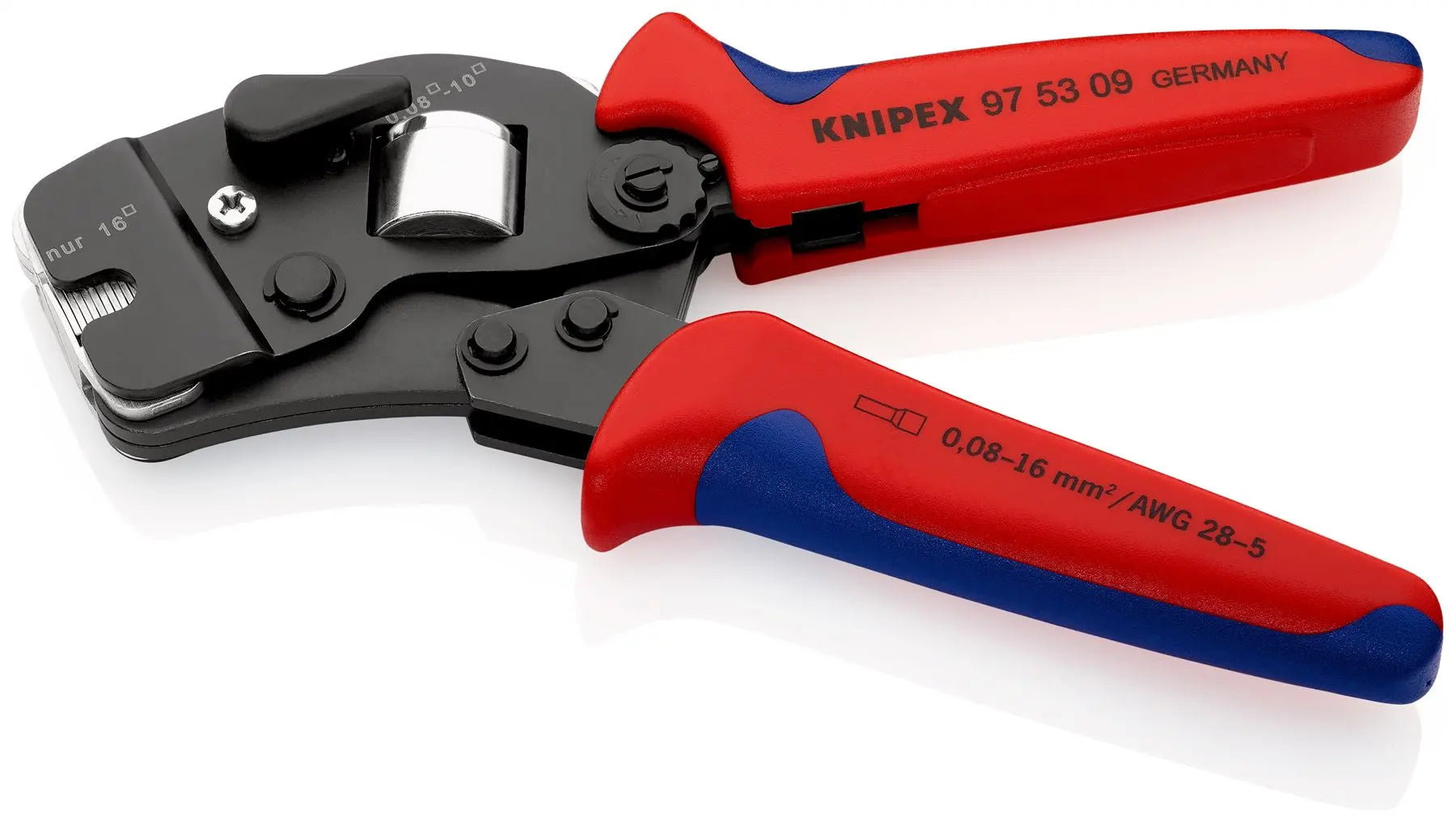

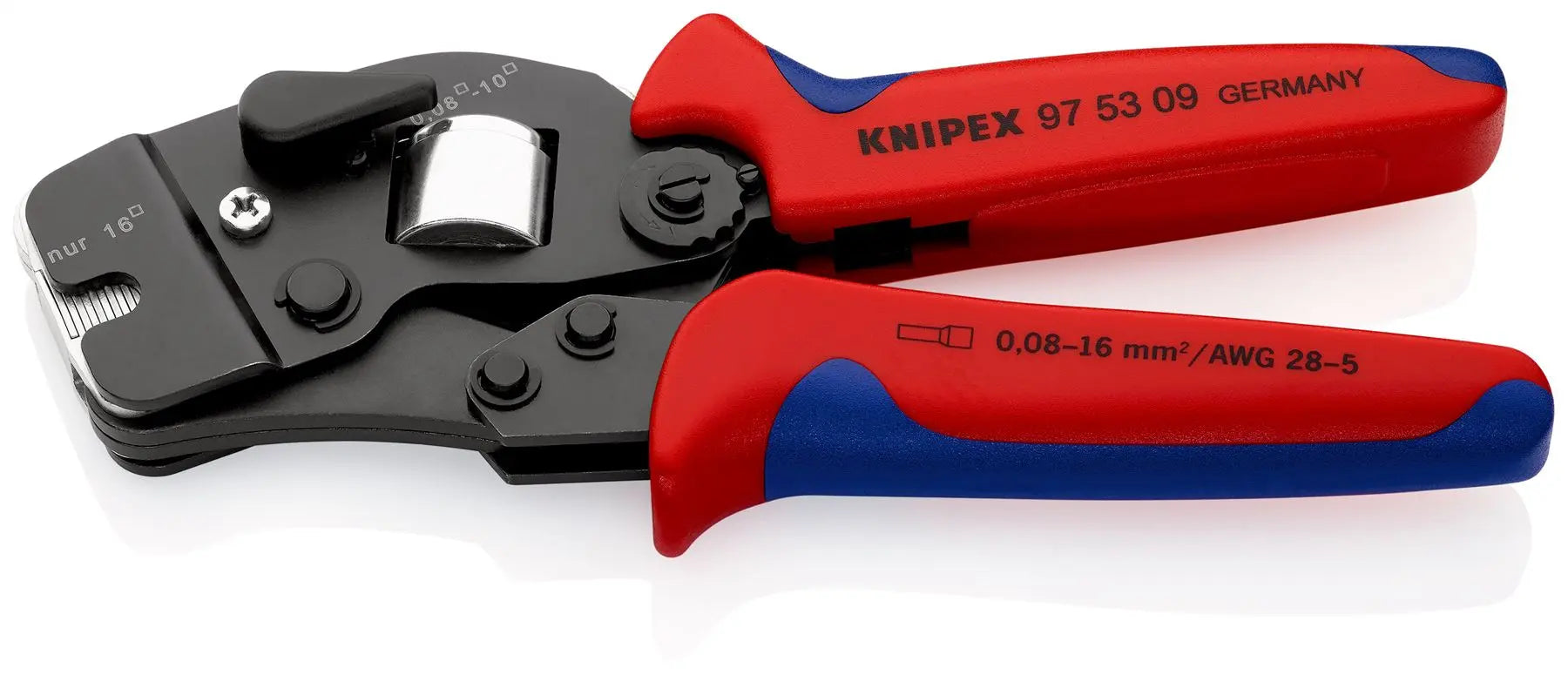

Knipex Crimping Pliers Self Adjusting for Wire Ferrules with Front Loading Multi Component Grips 97 53 09
97 53 09 Self-Adjusting Crimping Pliers for wire ferrules

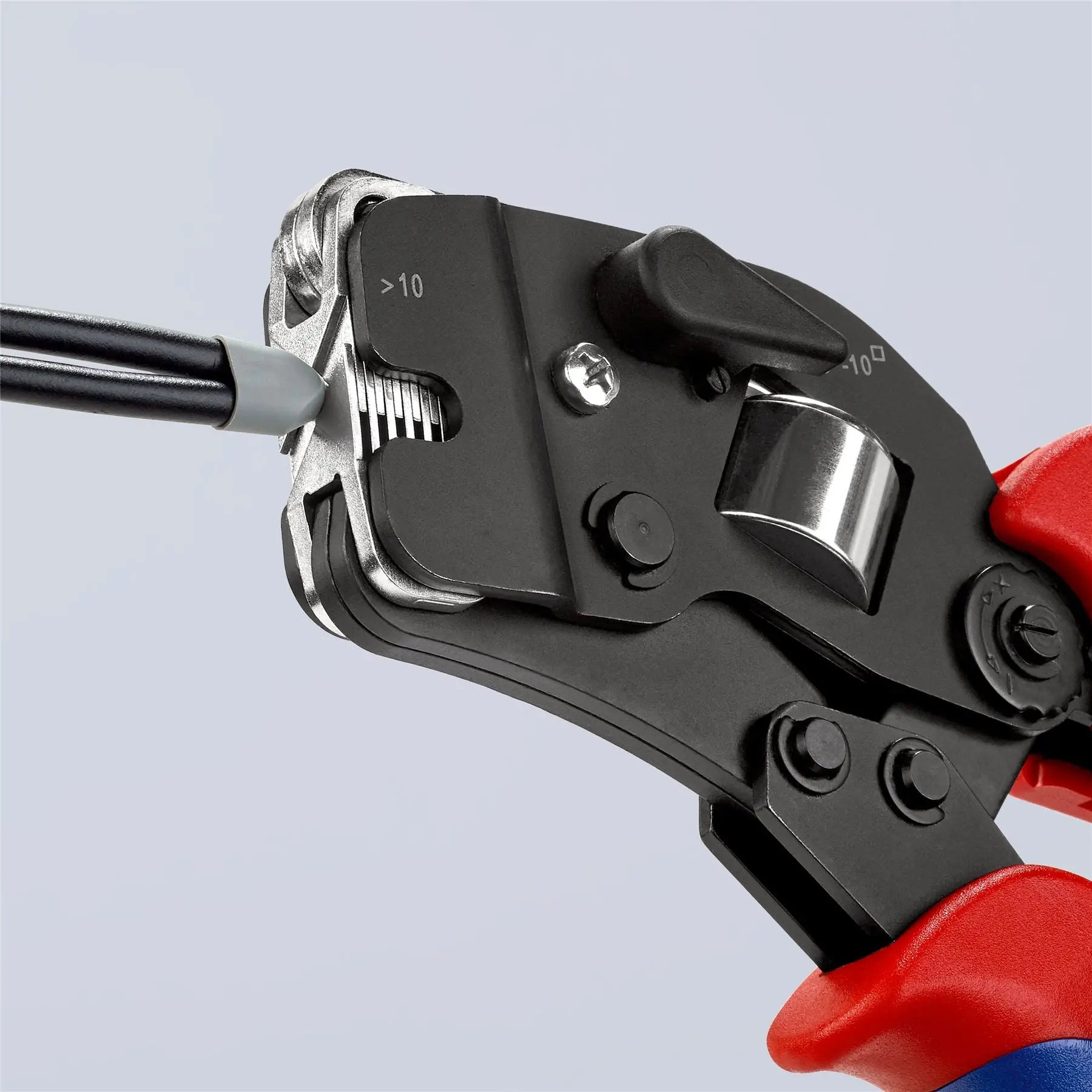

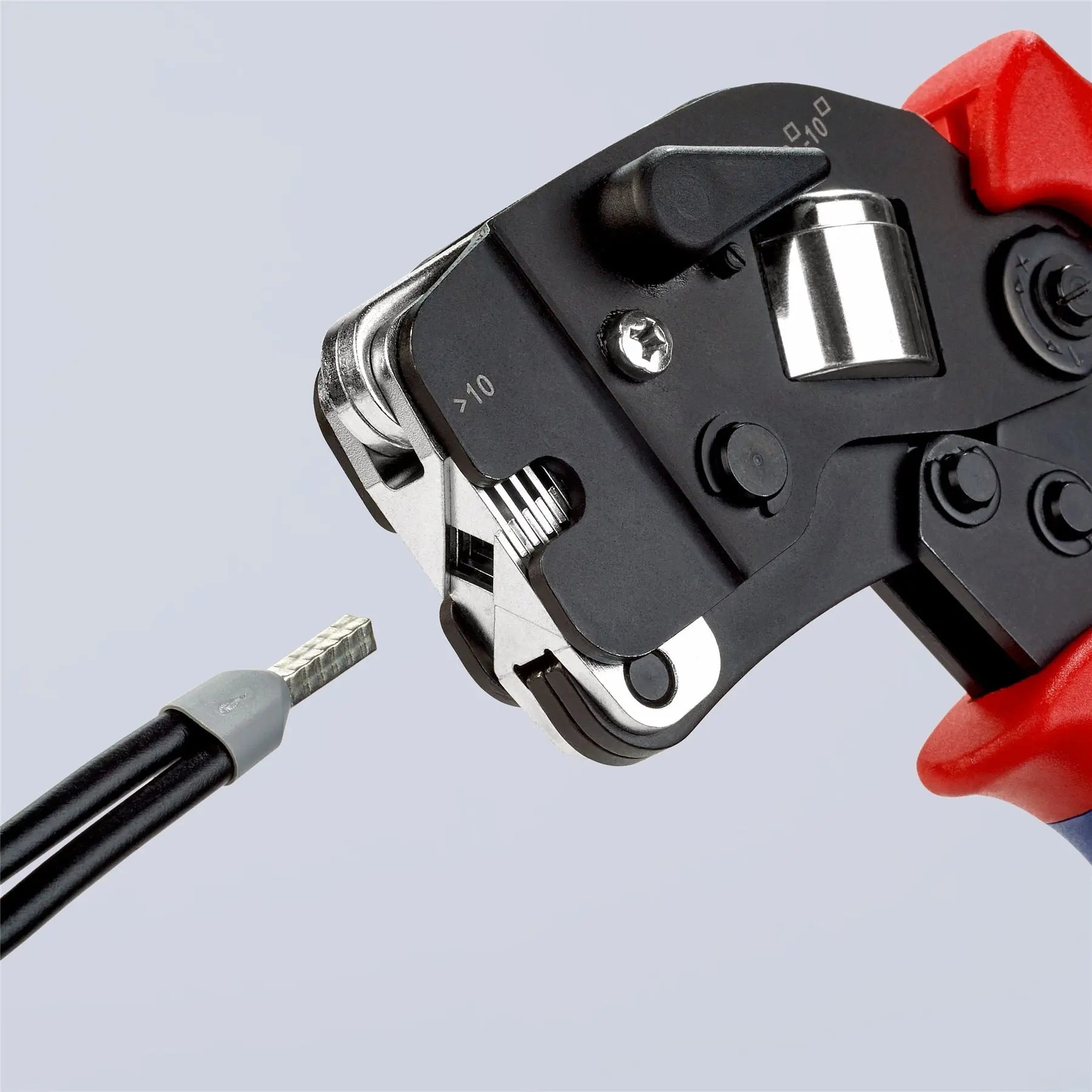

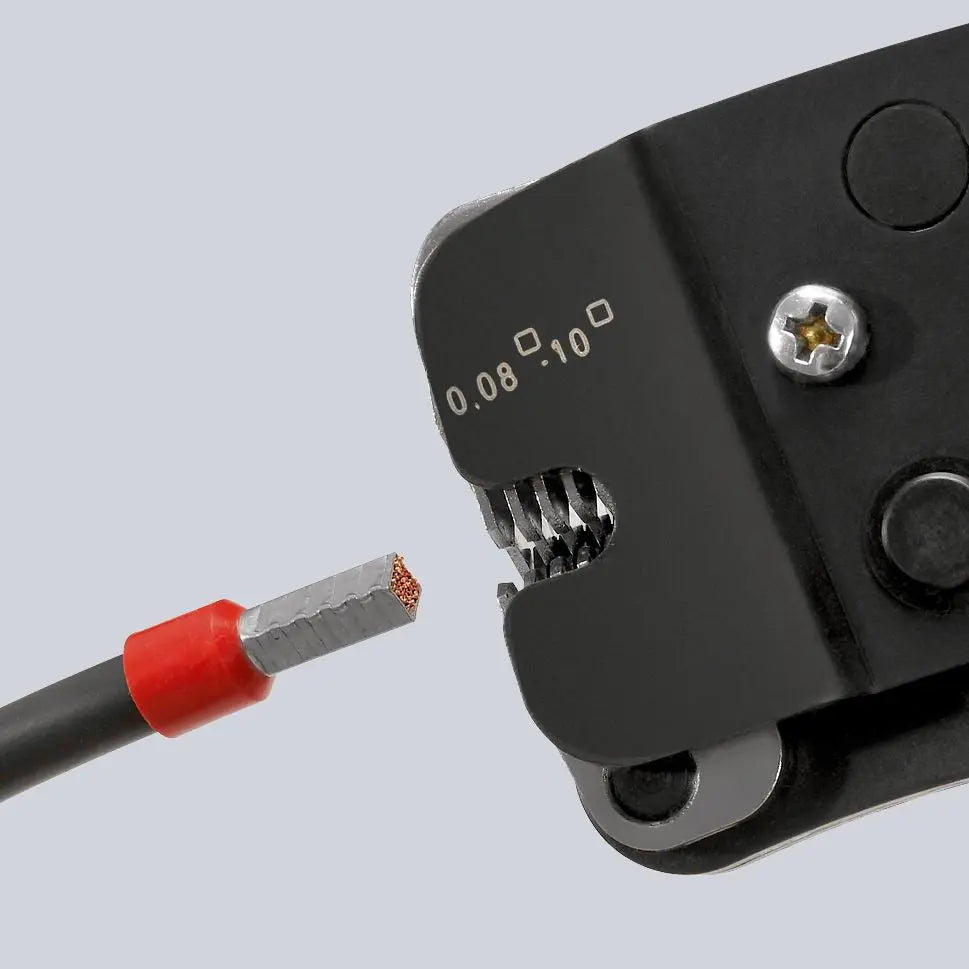

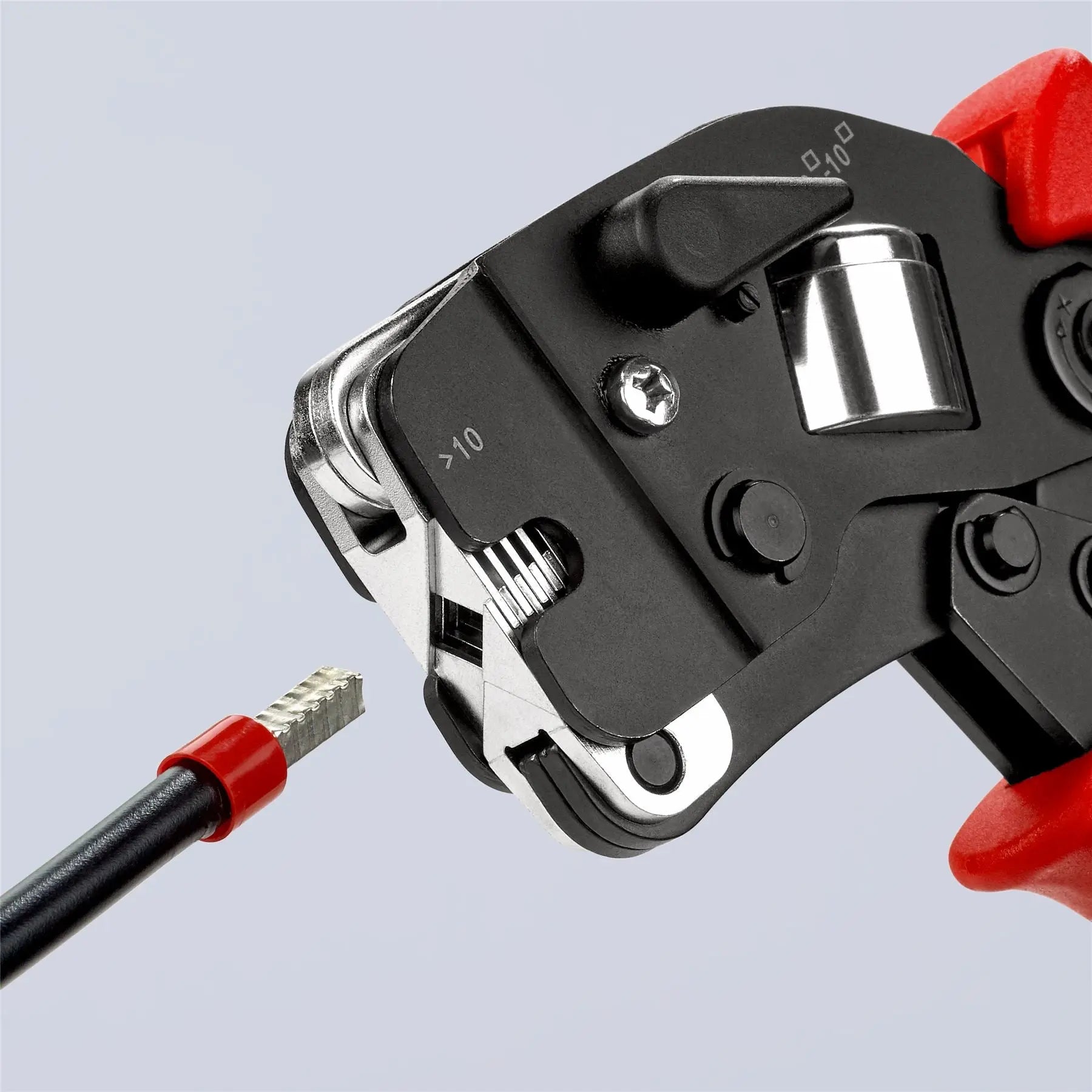

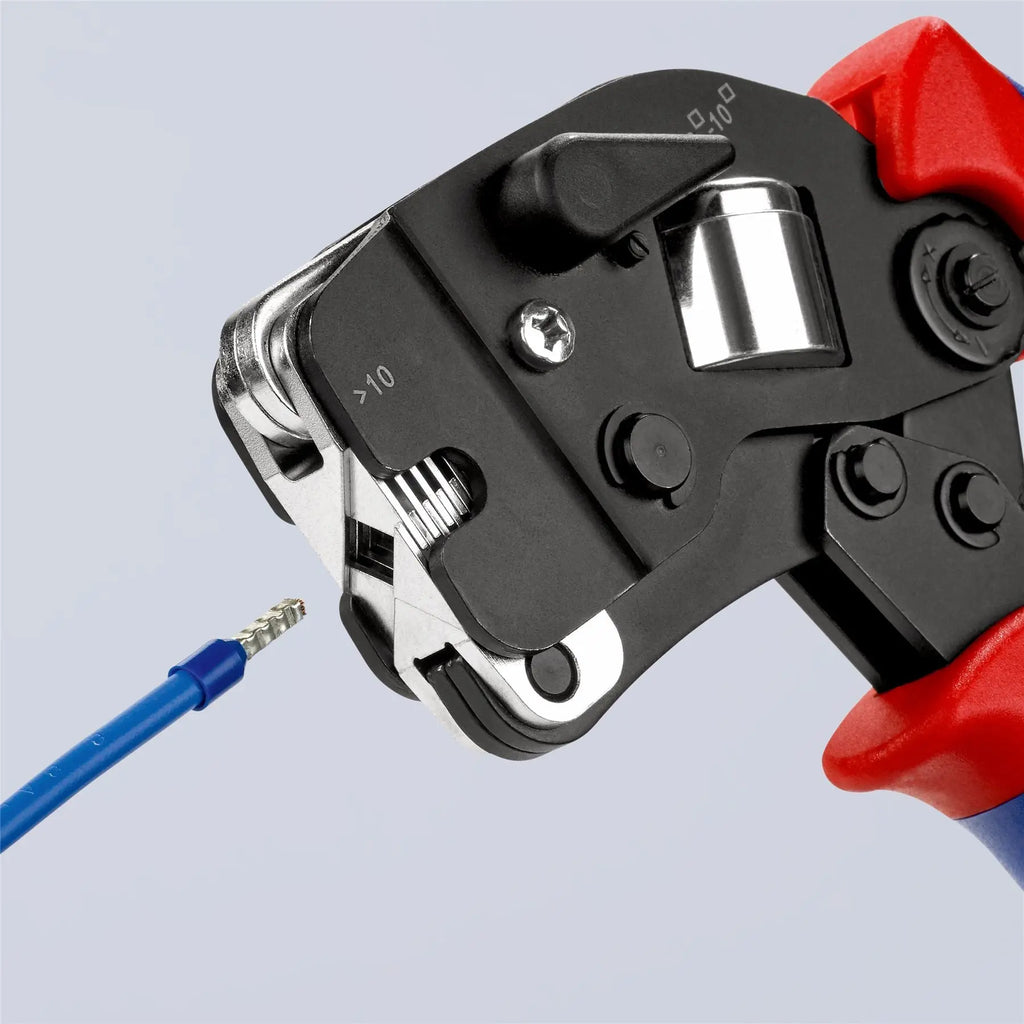

For crimping wire ferrules according to DIN 46228 parts 1 + 4. Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die. Frontal insertion of the wire ferrules into the pliers. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Tools have been set precisely (calibrated) in the factory. Optimum transmission of force thanks to toggle lever for fatigue-reduced operation. Handy shape and low weight provide high operation comfort. compression from 0.08 - 10.0 and 16.0 mm² in one profile. with selector lever for setting the crimping area either to 0.08 - 10 mm² or 16 mm². also suitable for twin wire ferrules up to 2 x 10 mm², but smaller than Ø 6.6 mm (e.g. KNIPEX art. no. 97 99 377).
Technical Information:
- For crimping wire ferrules according to DIN 46228 parts 1 + 4
- Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die

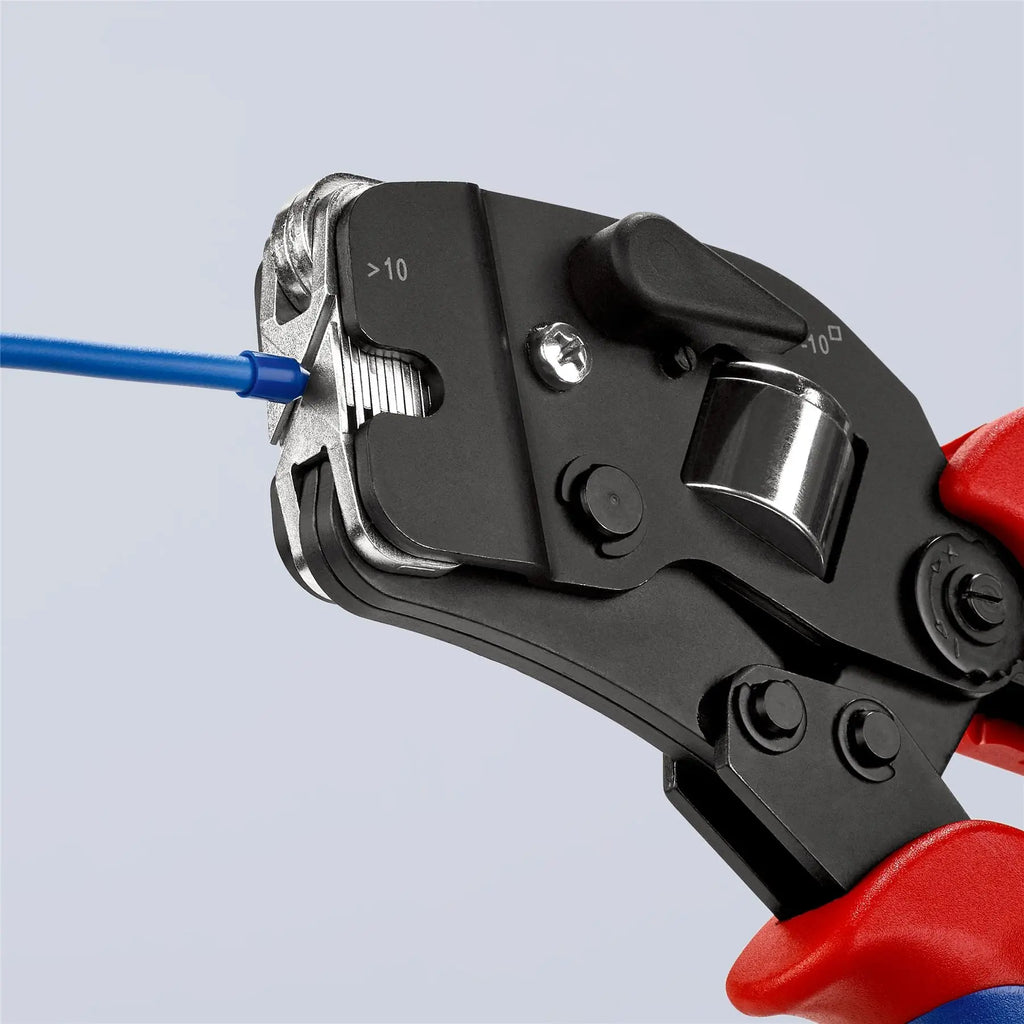

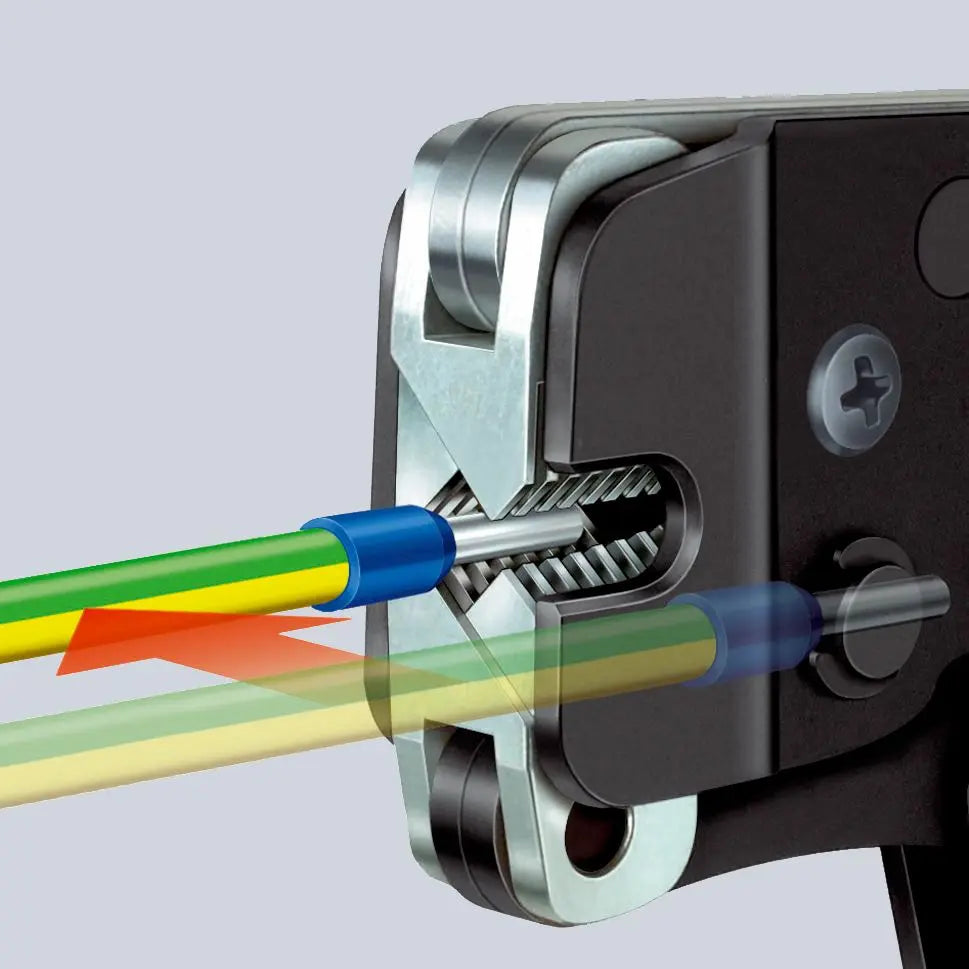

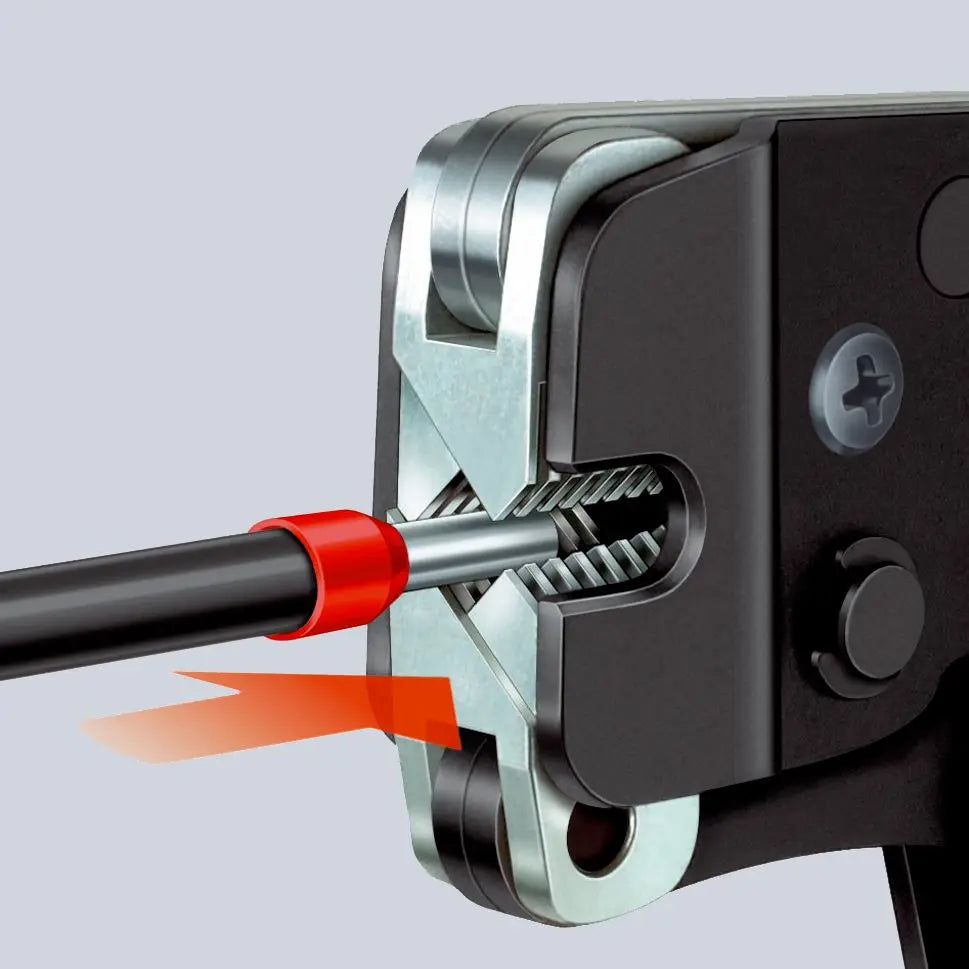

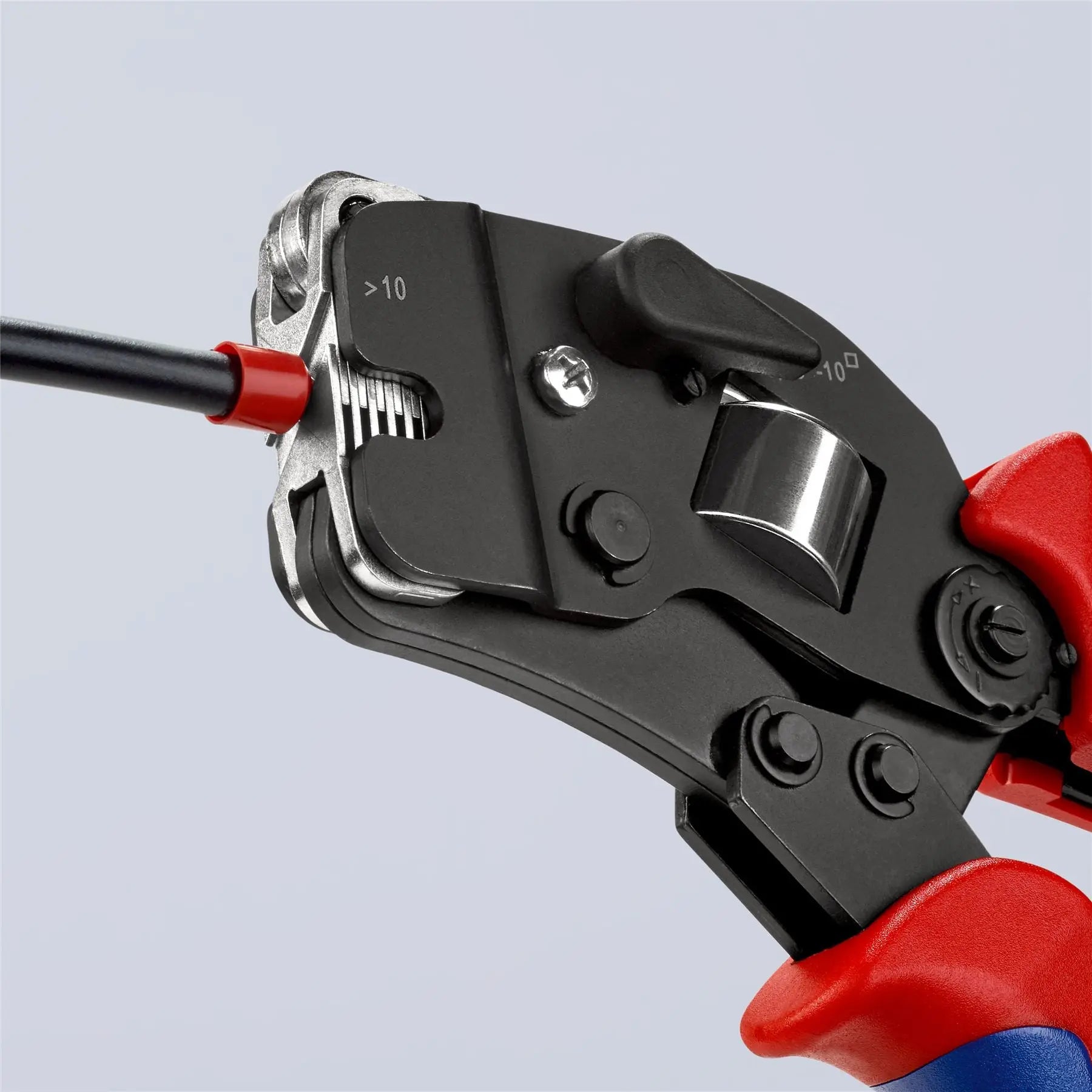

- Frontal insertion of the wire ferrules into the pliers
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Tools have been set precisely (calibrated) in the factory
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- Handy shape and low weight provide high operation comfort
Downloadable Files:
- Data Sheet: View Here
