Knipex StriX Insulation Wire Stippiers with Cable Shears 180mm VDE Tested 13 66 180

SKU: 13 66 180

Price:
Sale price£58.50

VAT included

Stock:
In stock
14 Oct. Estimated arrival
11 Oct. Order placed
12-13 Oct. Order dispatches
14 Oct. Delivered!

Pickup available at White Rose Tools (Barnsley)

Usually ready in 1 hour

Description

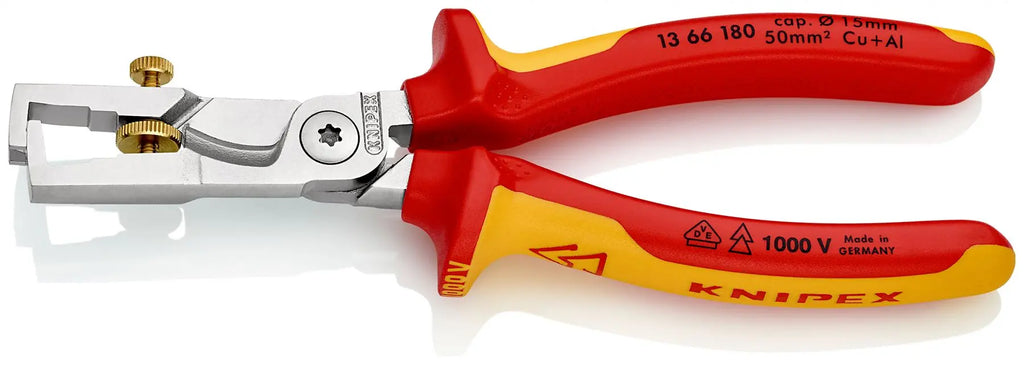

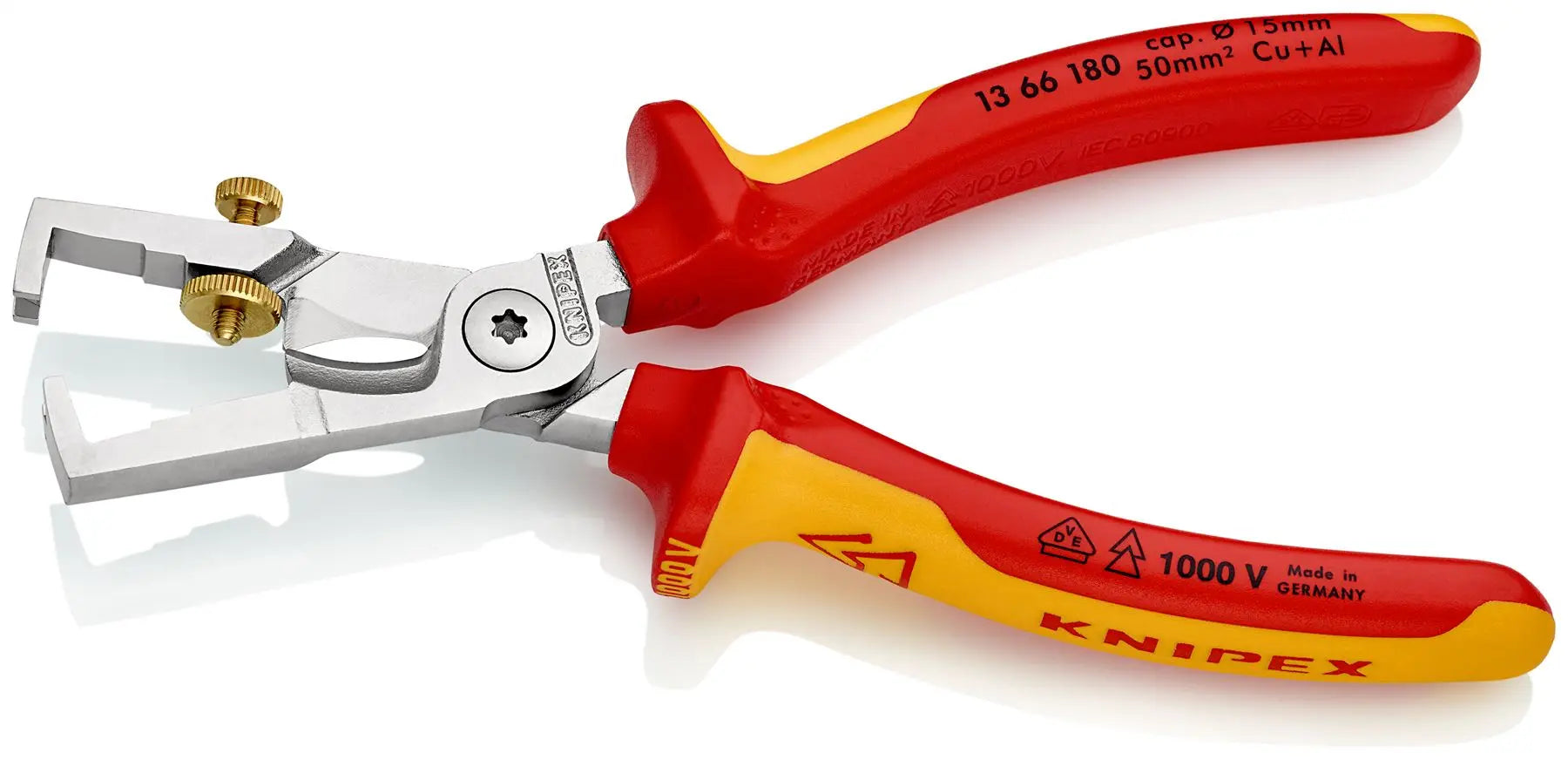

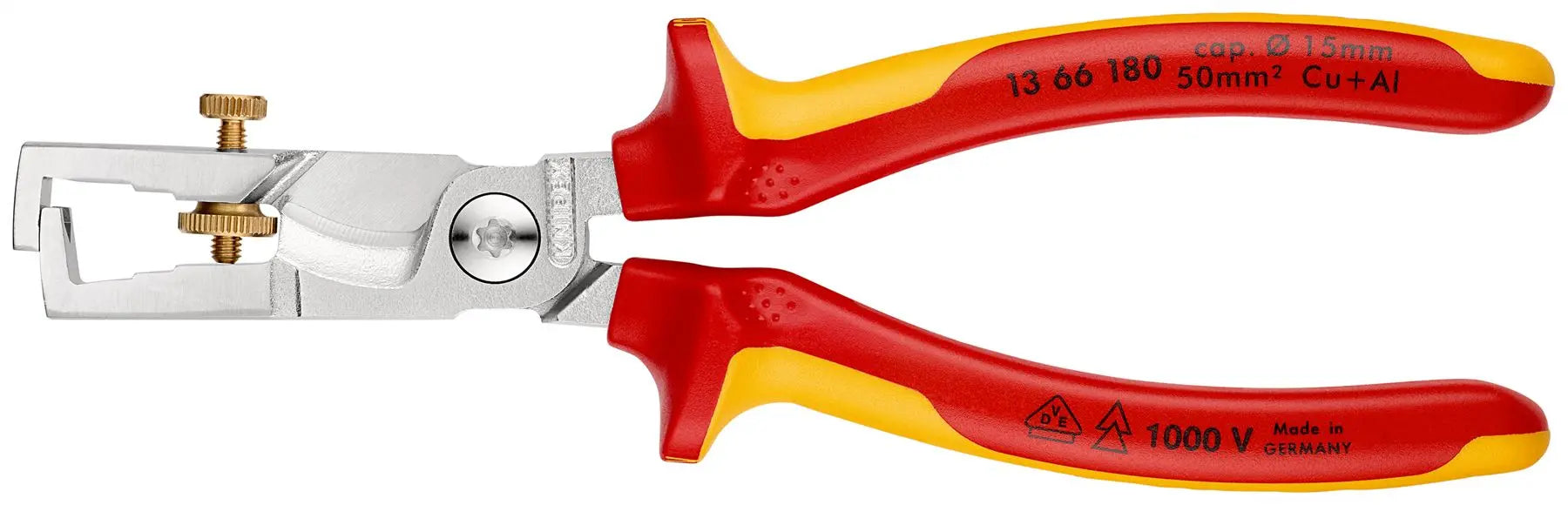

KNIPEX StriX Insulation Wire Strippers with Cable Shears 180mm VDE Tested 13 66 180

13 66 180 KNIPEX StriX®

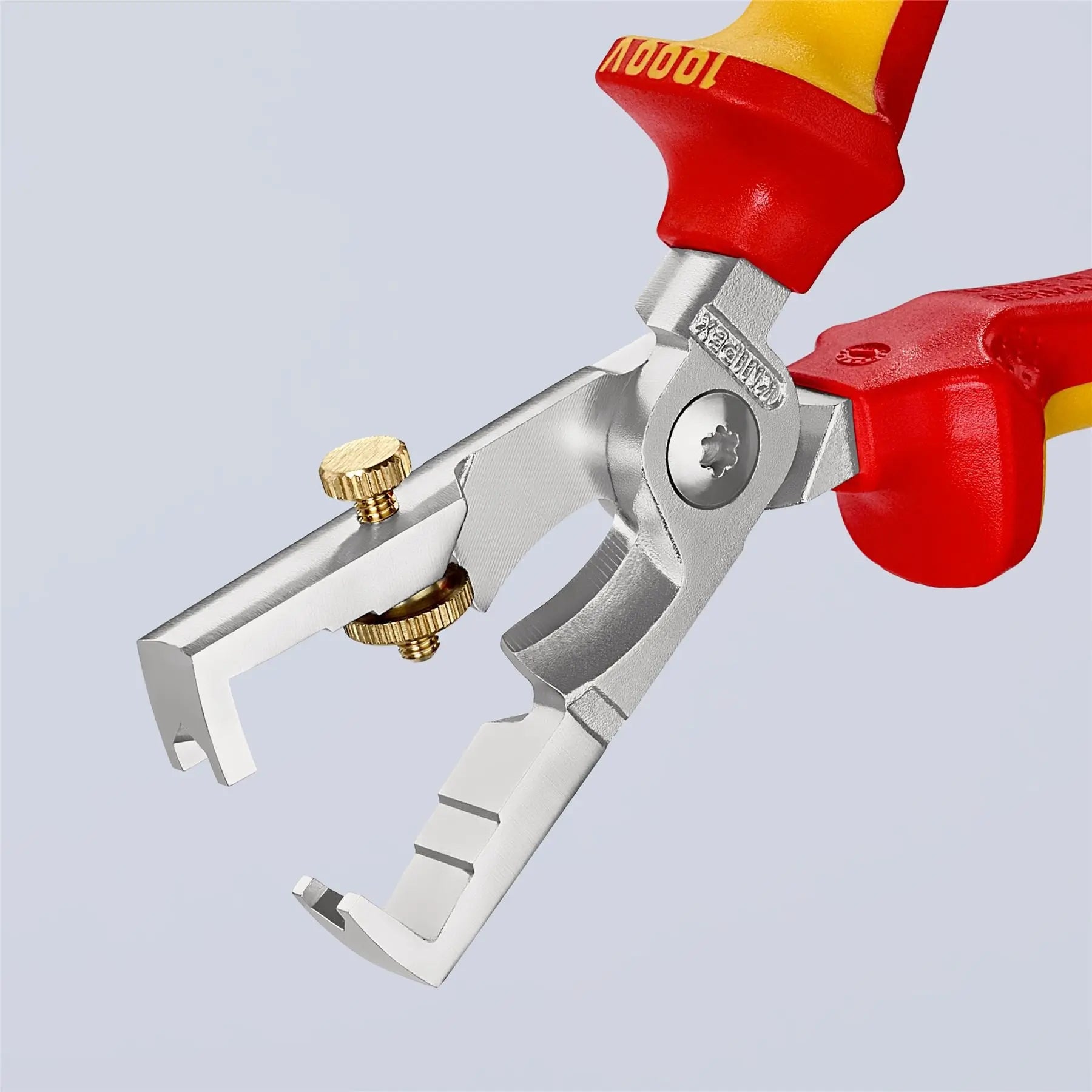

Wire stripper with cable shears – two essential electrical installations tools in one pair of pliers. Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing. Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC. Universal adjustment of the stripping blades by means of a knurled screw. Slim dimensions for easy access. Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section. Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm).

  • Cutting capacity copper cable, multiple-stranded: 50 mm²
  • Cutting capacity copper cable, multiple-stranded: Ø 15 mm
  • Stripping capacities in square millimetres: 10.0 mm²
  • Stripping capacities (diameter): Ø 5.0 mm
  • AWG: 8
  • VDE tested: yes


  • Technical Information:
    • cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC
    • Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm)

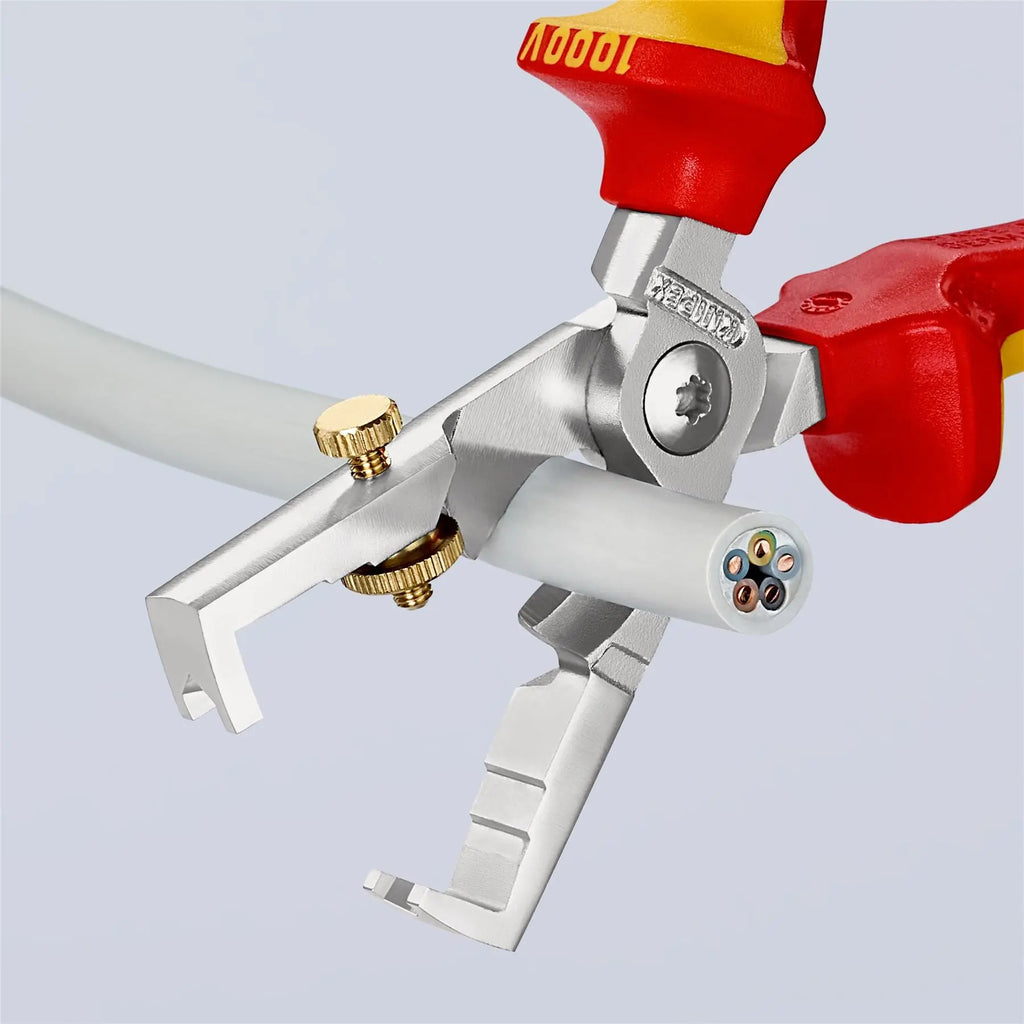

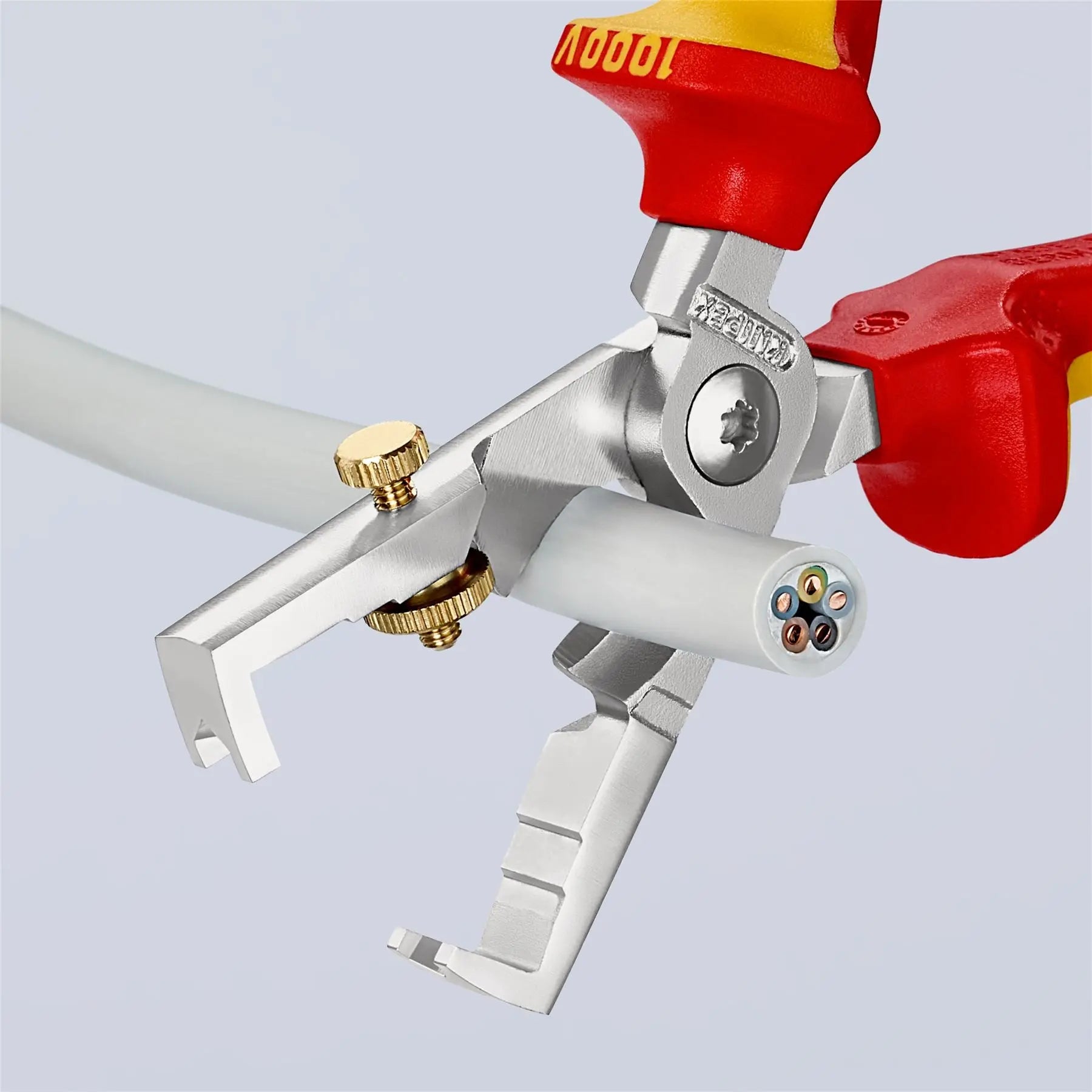

    • Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing up to Ø 15 mm (5 x 2,5 mm²)
    • Slim dimensions for easy access

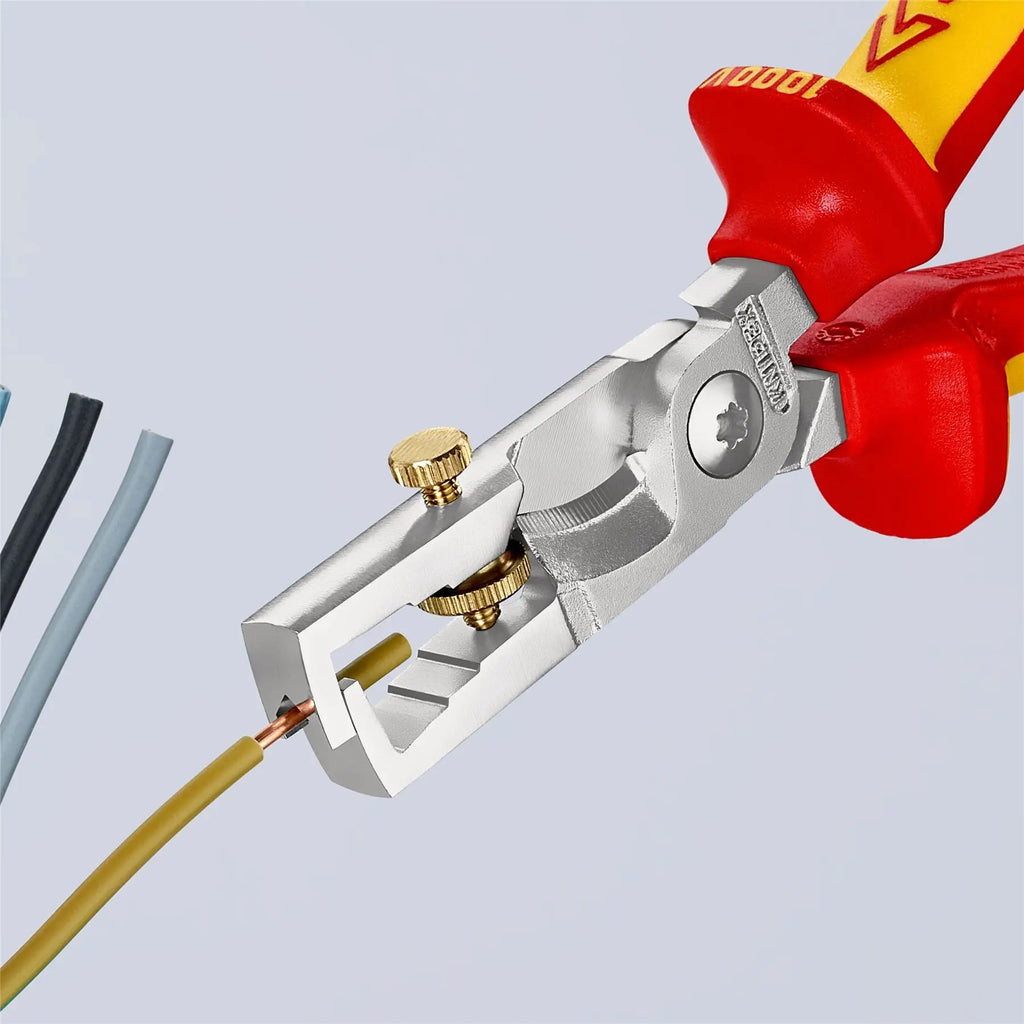

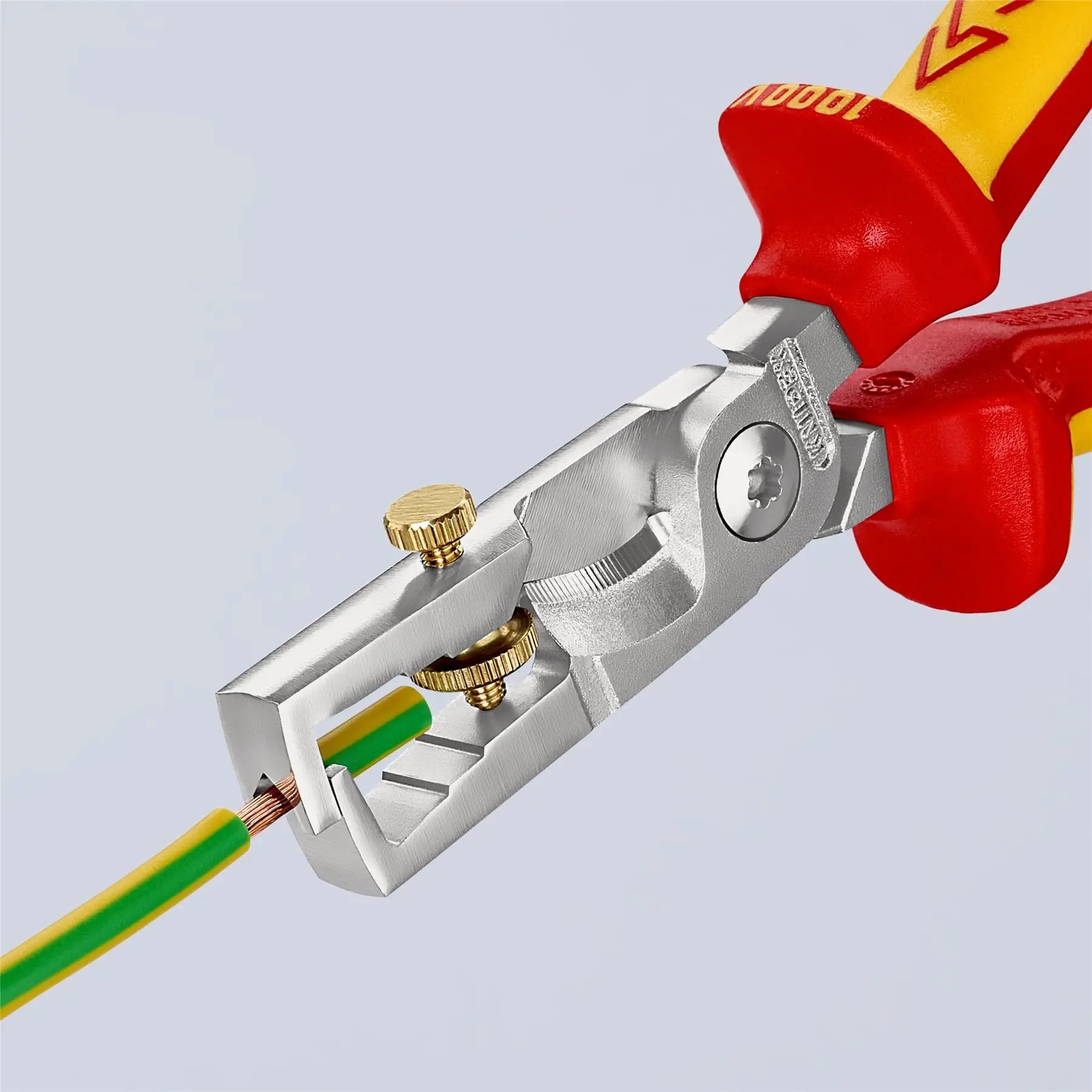

    • Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section
    • Universal adjustment of the stripping blades by means of a knurled screw
