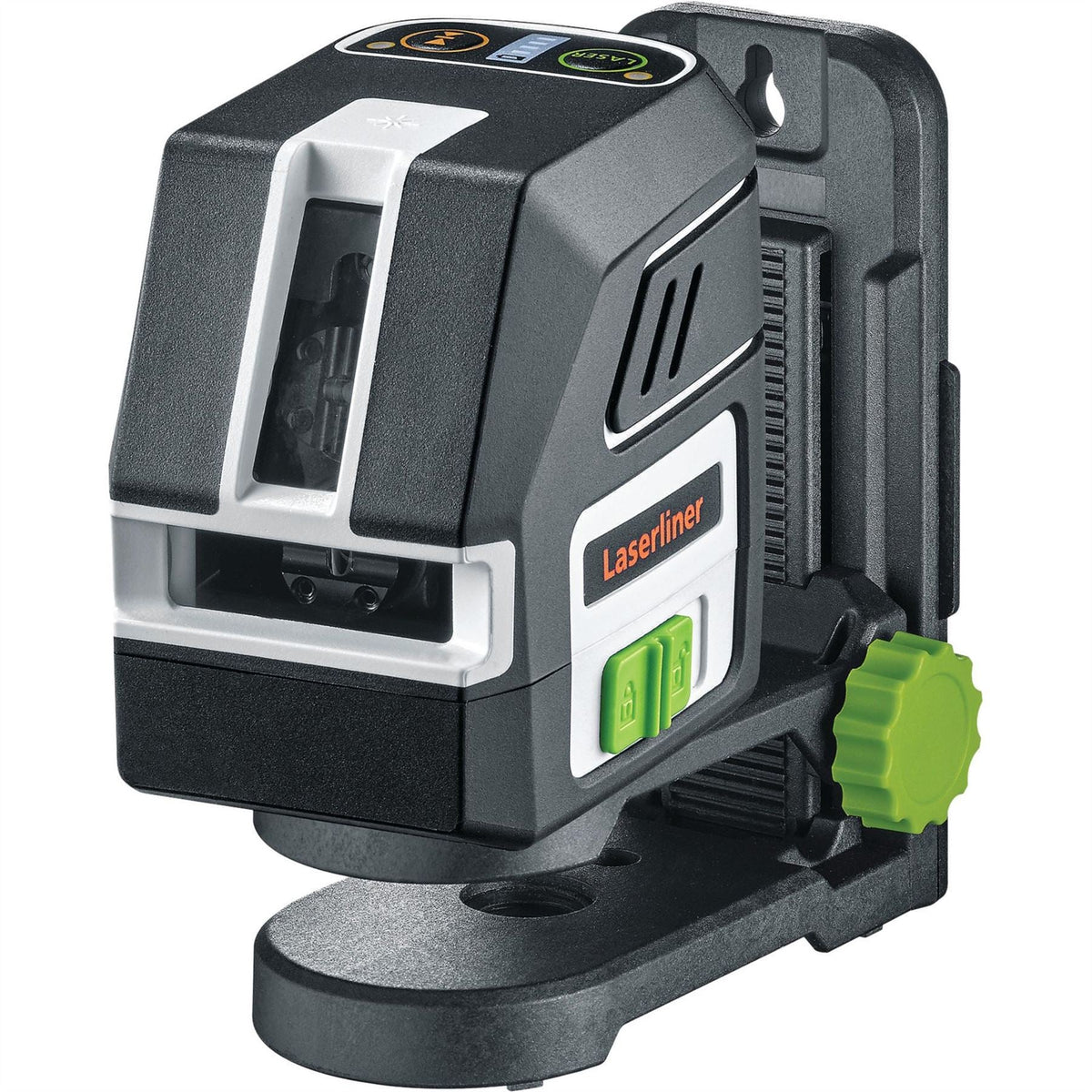

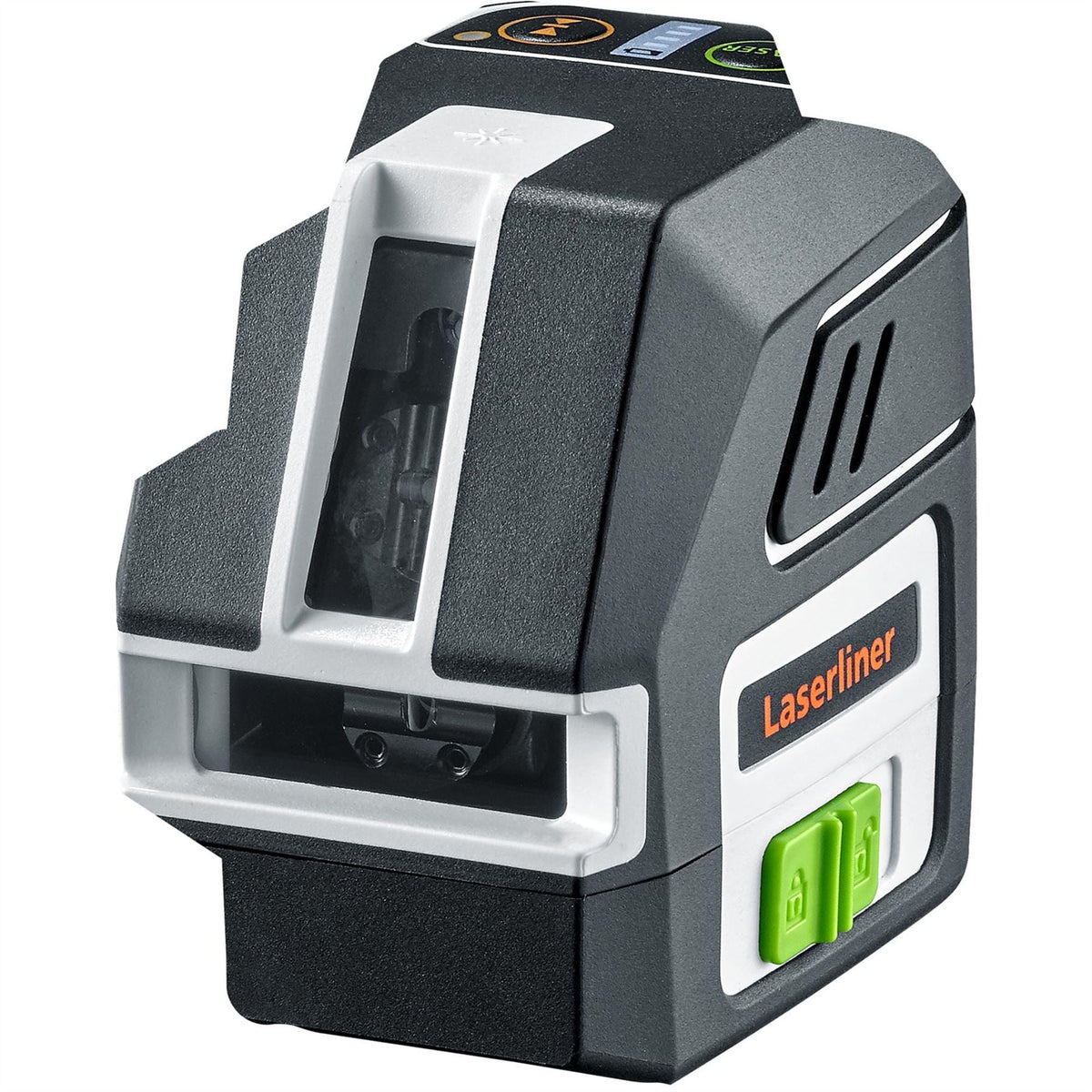

Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser 150cm 32162

Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser 150cm 32162

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for setting creating gradients. A versatile range of accessories means this laser is the solution for any precision alignment job. The compact tripod has a wide adjustment range due to the multi-section telescopic legs and a crank (30 cm stroke). The PocketWallHolder, a multi-functional, height-adjustable magnetic bracket, is suitable for attaching to walls, metal items, and tripods with a 1/4” or 5/8” thread. Supplied with battery pack.

Features:

• Accurate horizontal and vertical alignment of objects
• Good visibility through green laser technology
• Easy alignment of slopes with manual tilt function

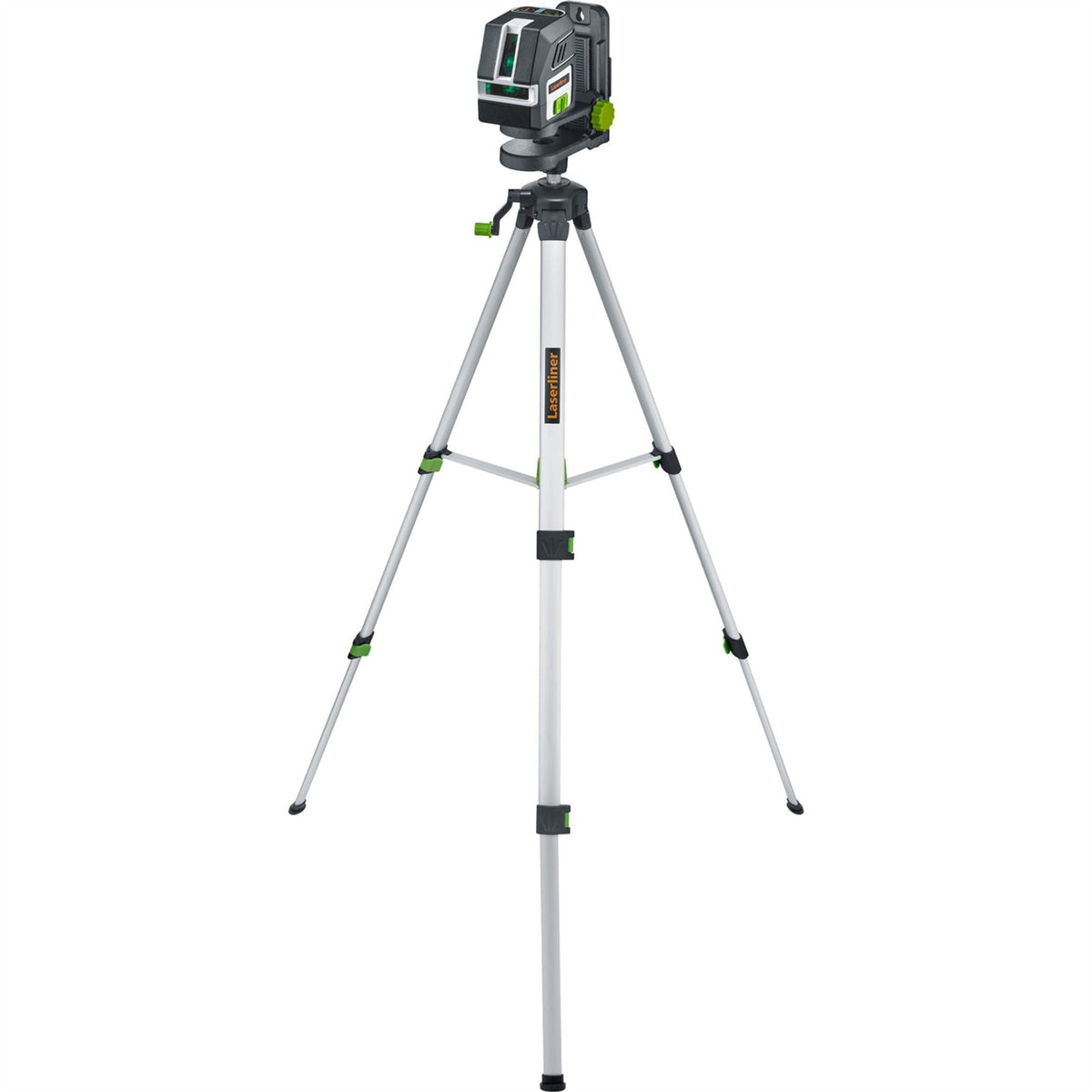

• Light and robust compact tripod 150cm
• Crank height adjustment and telescopic tripod legs
• Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
• Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
• Laser enhancement glasses for optimum visibility of laser lines with the human eye
• Time-saving automatic alignment
• Supplied with battery pack

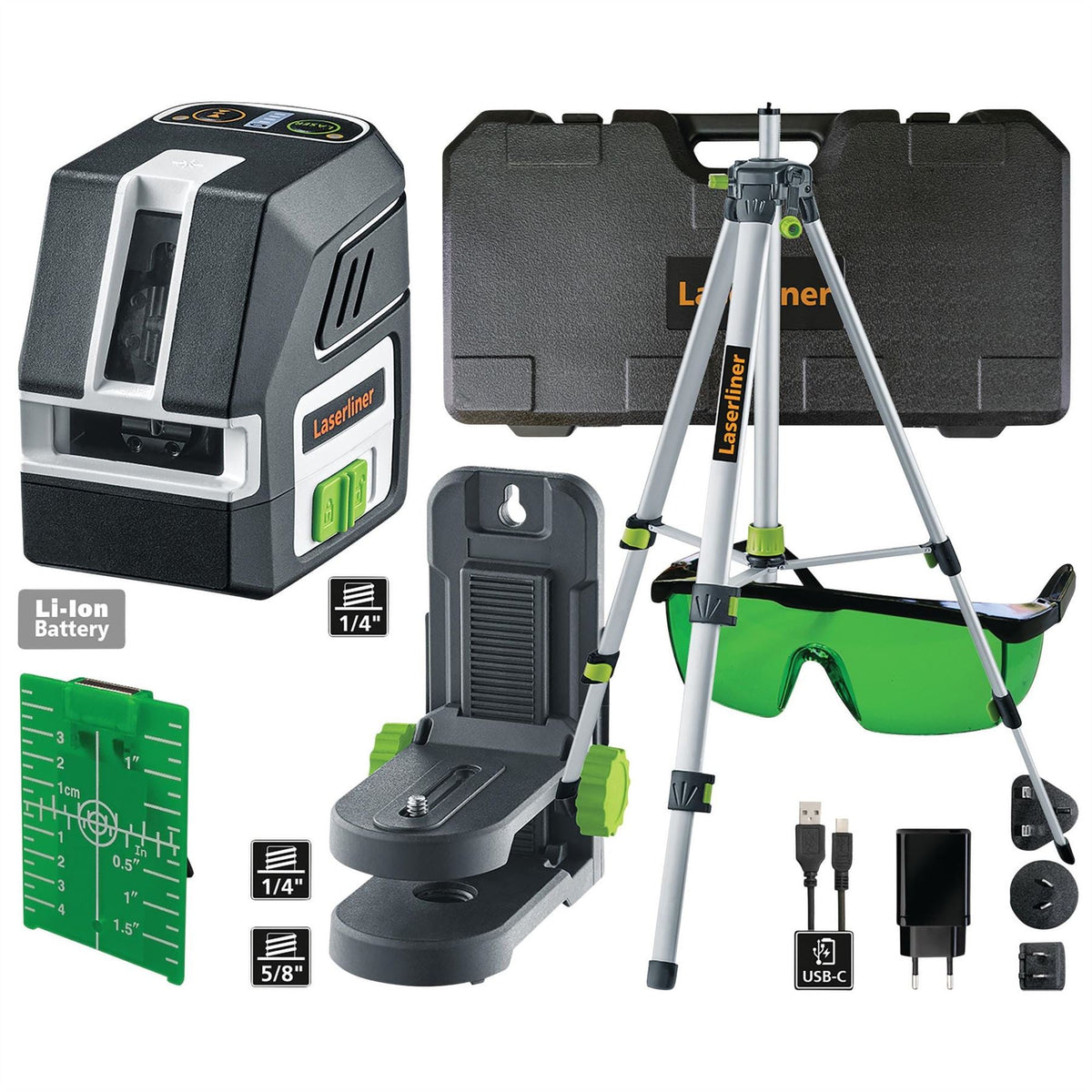

Product Contents:

• 1 x Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm
• 1 x Compact tripod 150 cm
• 1 x PocketWallHolder
• 1 x Magnetic target plate green
• 1 x Laser enhancement glasses
• 1 x Li-ion battery pack
• 1 x Network/charging device incl. international adapter
• 1 x USB-C-cable
• 1 x Carrying case

Brand: Laserliner
Stock No: 32162
Part No: 036.713A
Warranty: 4 years

Specification:

• Hand receiver mode: Yes
• Weight: 334g (incl. Battery Pack)
• Dimensions (W x H x D): 91 mm x 82 mm x 60 mm
• Operating Conditions: 0°C … 50°C
• Battery and mains operation: Yes
• Horizontal/vertical levelling: Yes
• Manual slope function: Yes
• Power Supply: Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh, Power adaptor 5V / DC / 2A
• Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
• Operating Time: approx. 15 hours
• Accuracy: ±0.3 mm/m
• Laser Wavelength: 515nm
• Visibility (Typical)*: 55 m
• Levelling: Automatic
• Self-Levelling Range: ± 3.5° (horizontal)

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
