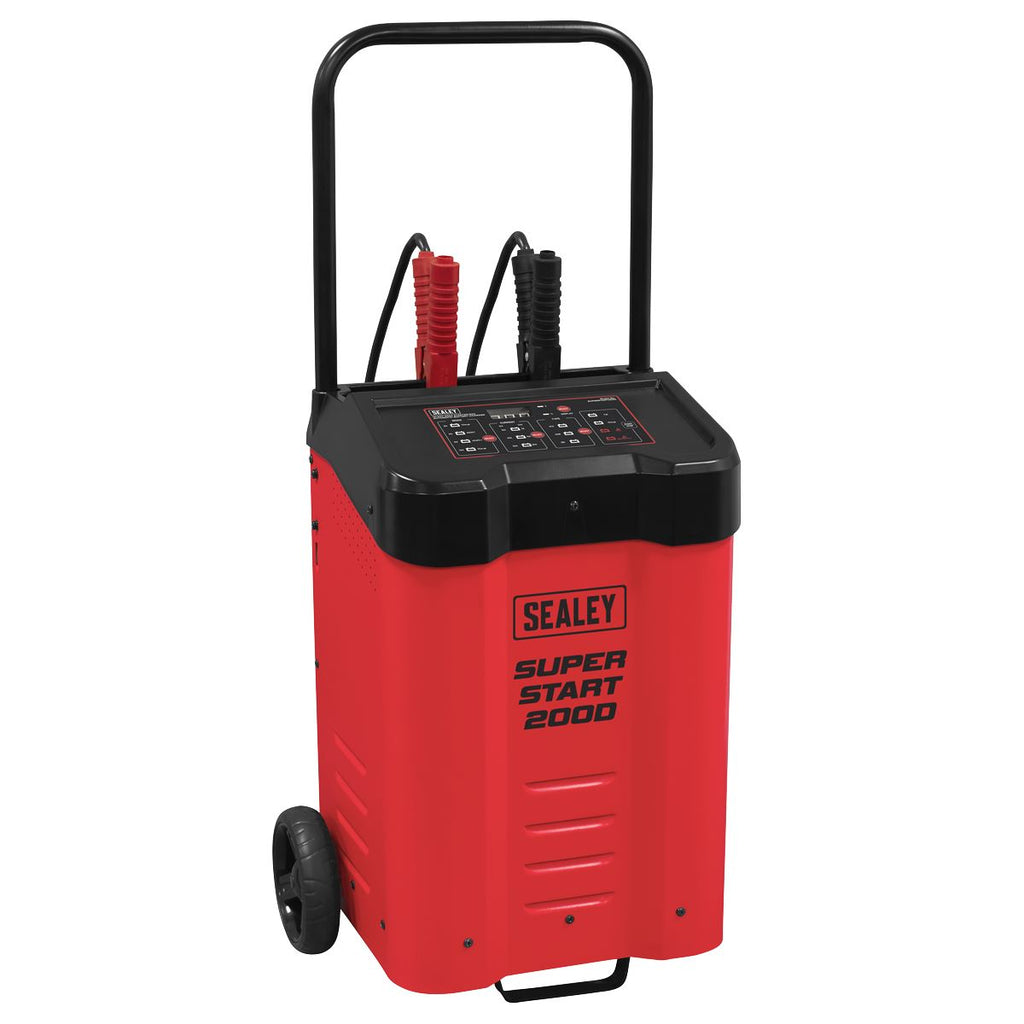

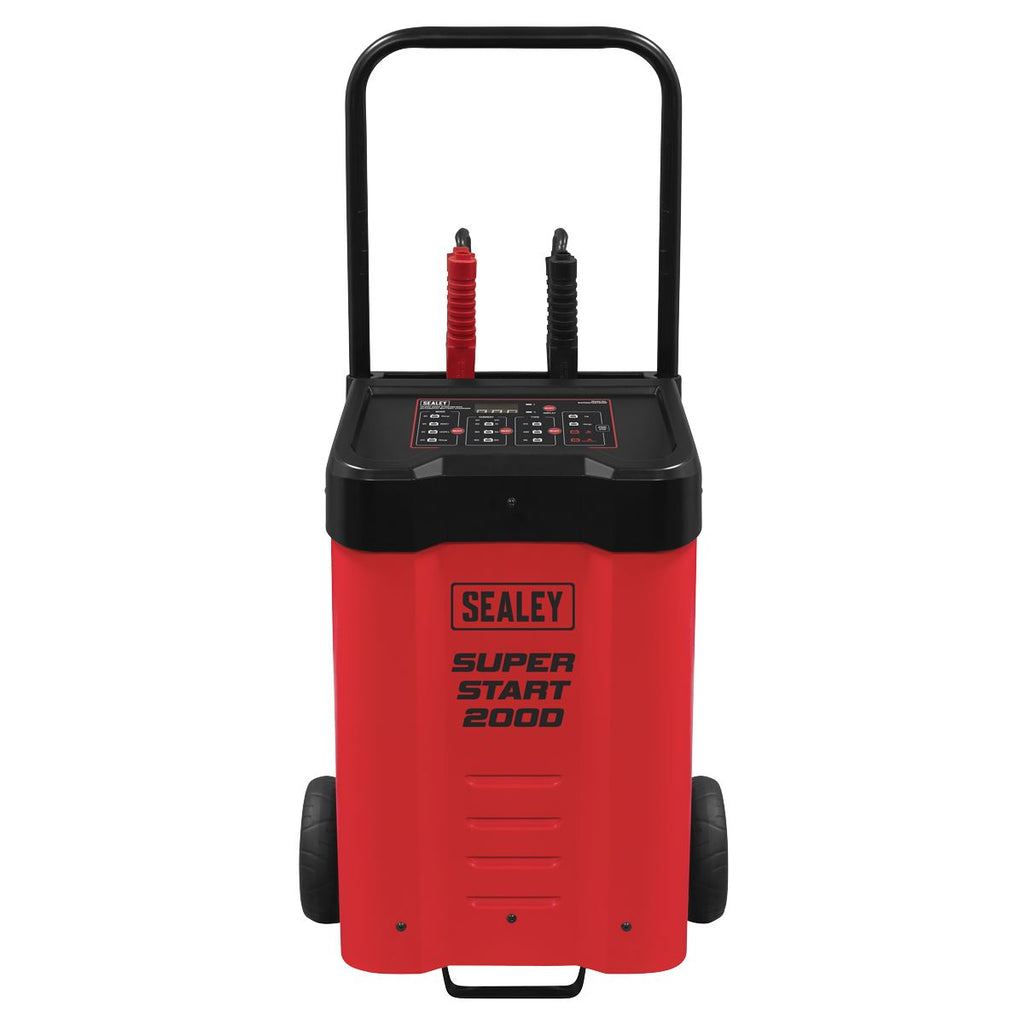

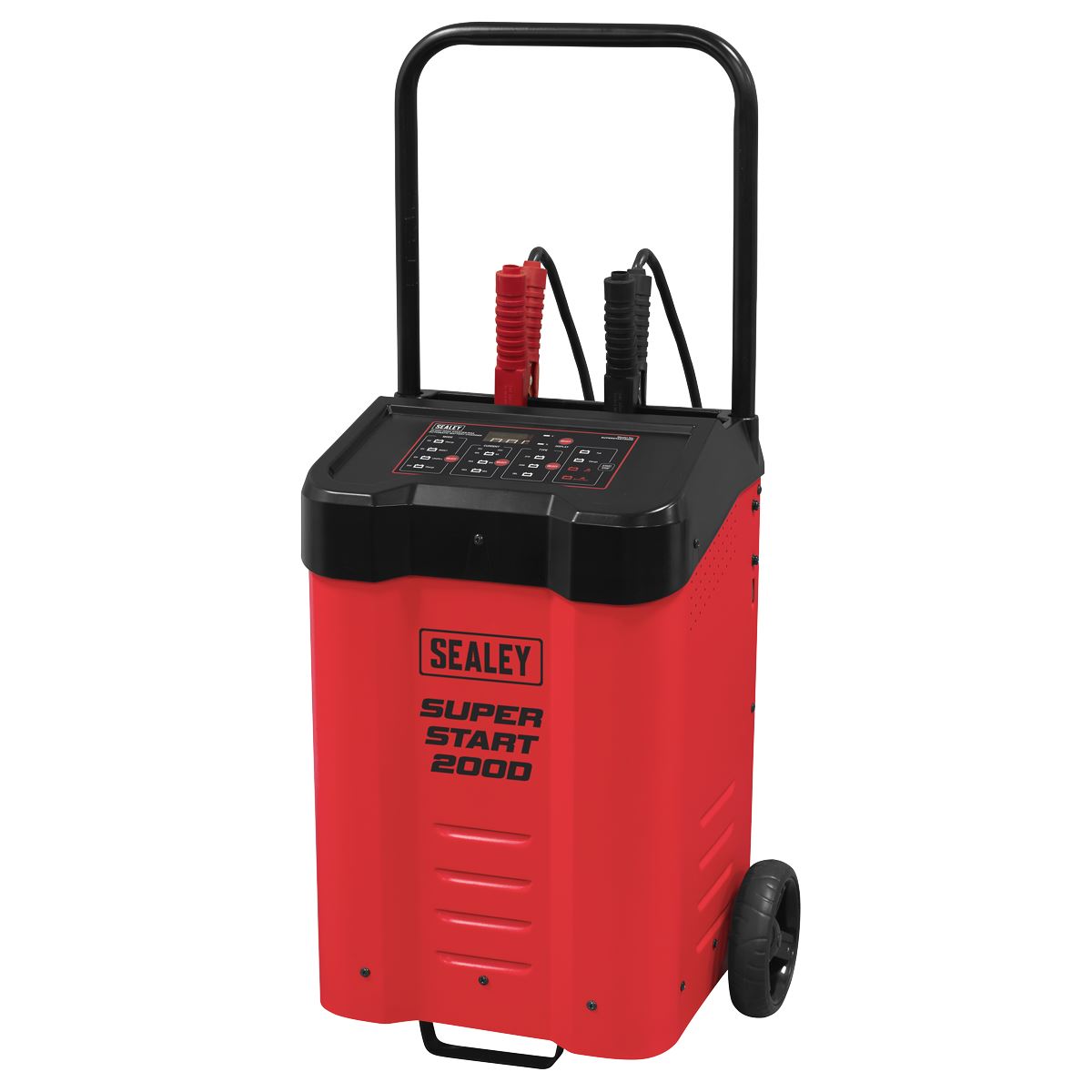

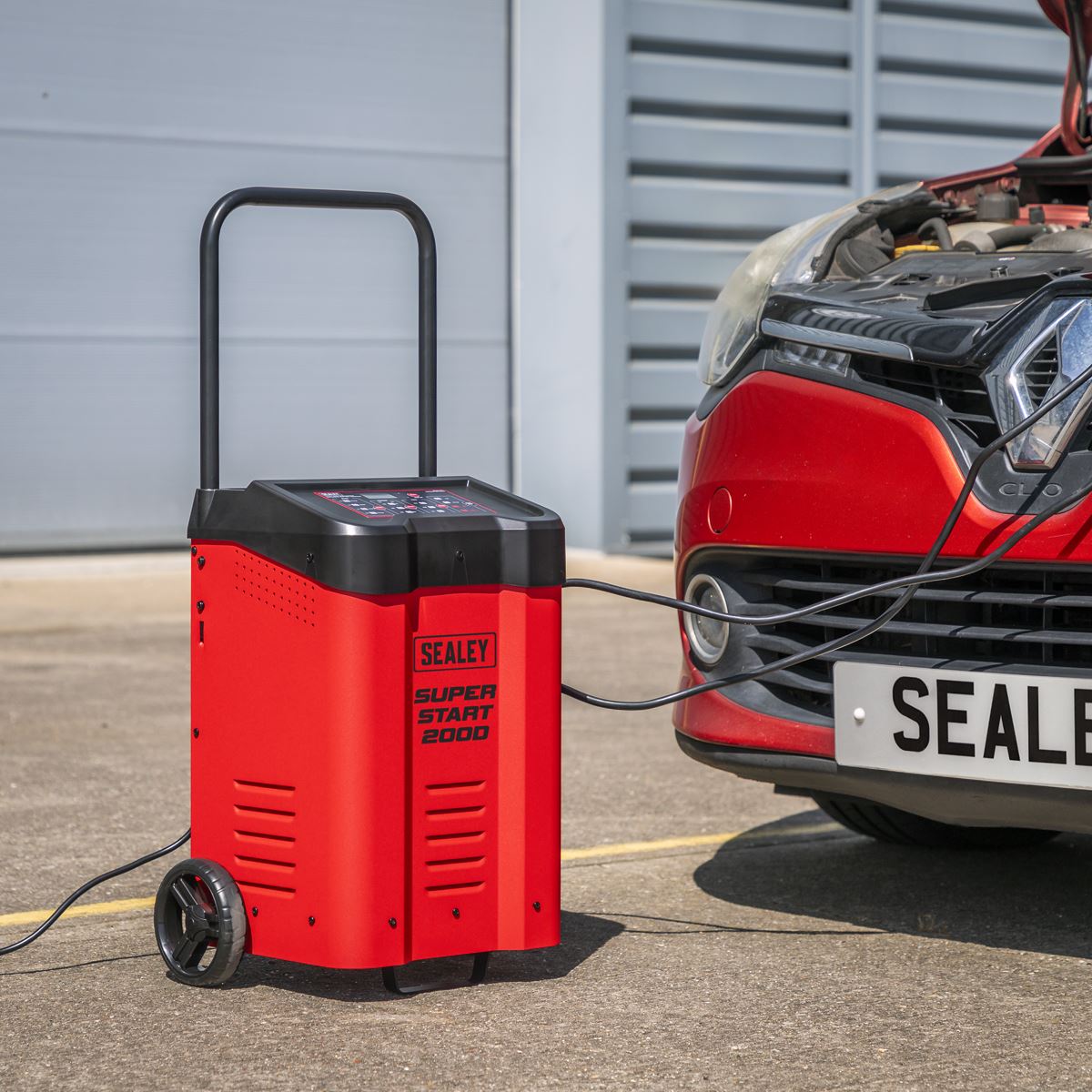

Sealey 12/24V Automatic Battery Charger 60A & 200A Starter

Sealey 12/24V Automatic Battery Charger 60A & 200A Starter

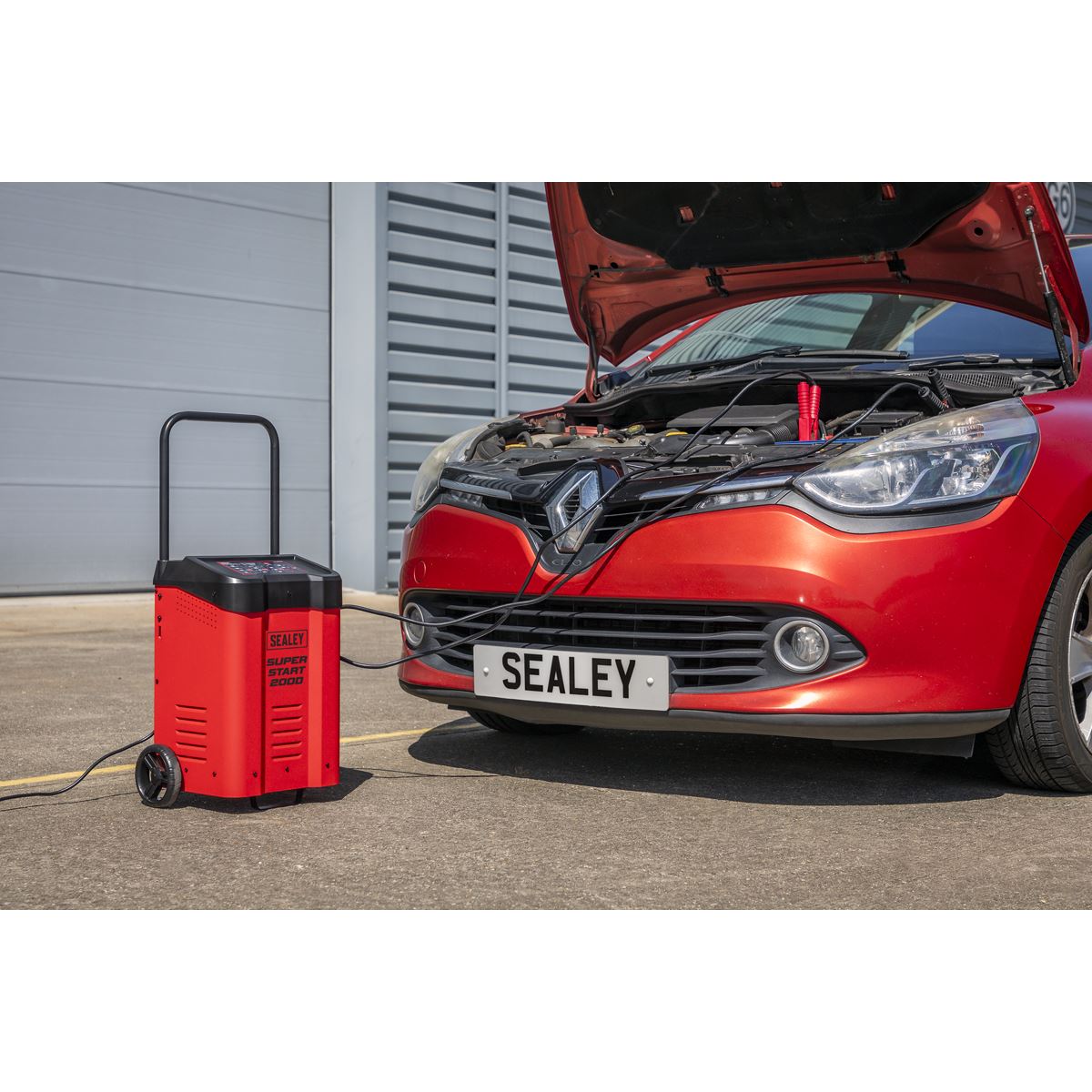

AUTOMATIC BATTERY CHARGER AND STARTER - designed for charging, and boosting a variety of AGM (stop/start), GEL, lead acid and Lithium batteries up to 600Ah.

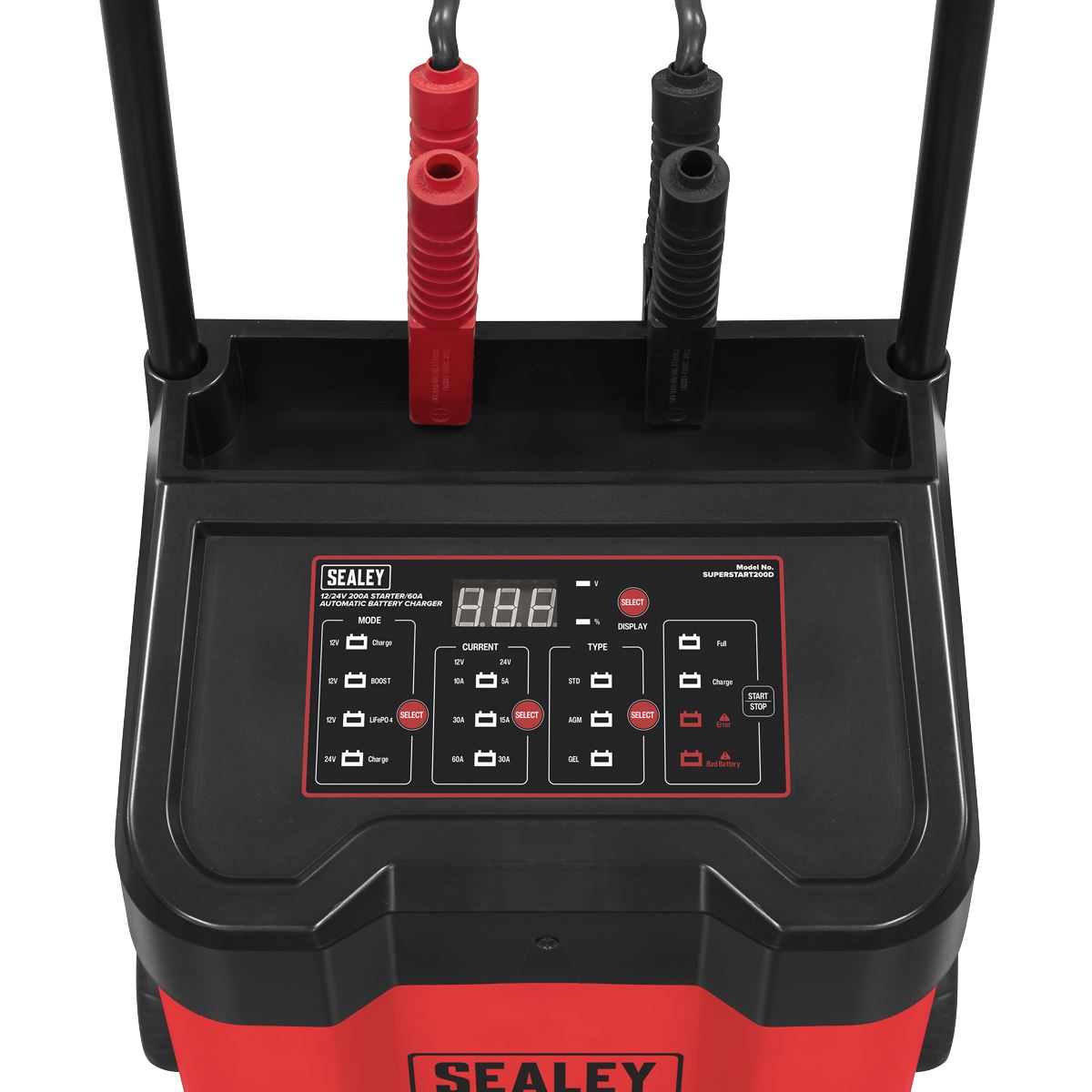

INTUITIVE - digital display and 200A peak engine start function, makes this unit ideal for every workshop.

SAFETY FEATURES - overcharge, short circuit, and reverse polarity protection.

DEDICATED CHARGING PROGRAMMES - for AGM, GEL, conventional Lead Acid and Lithium batteries with fully automated charging algorithms.

MULTIPLE CHARGING PROGRAMMES – Three charging rates for both 12V and 24V systems.

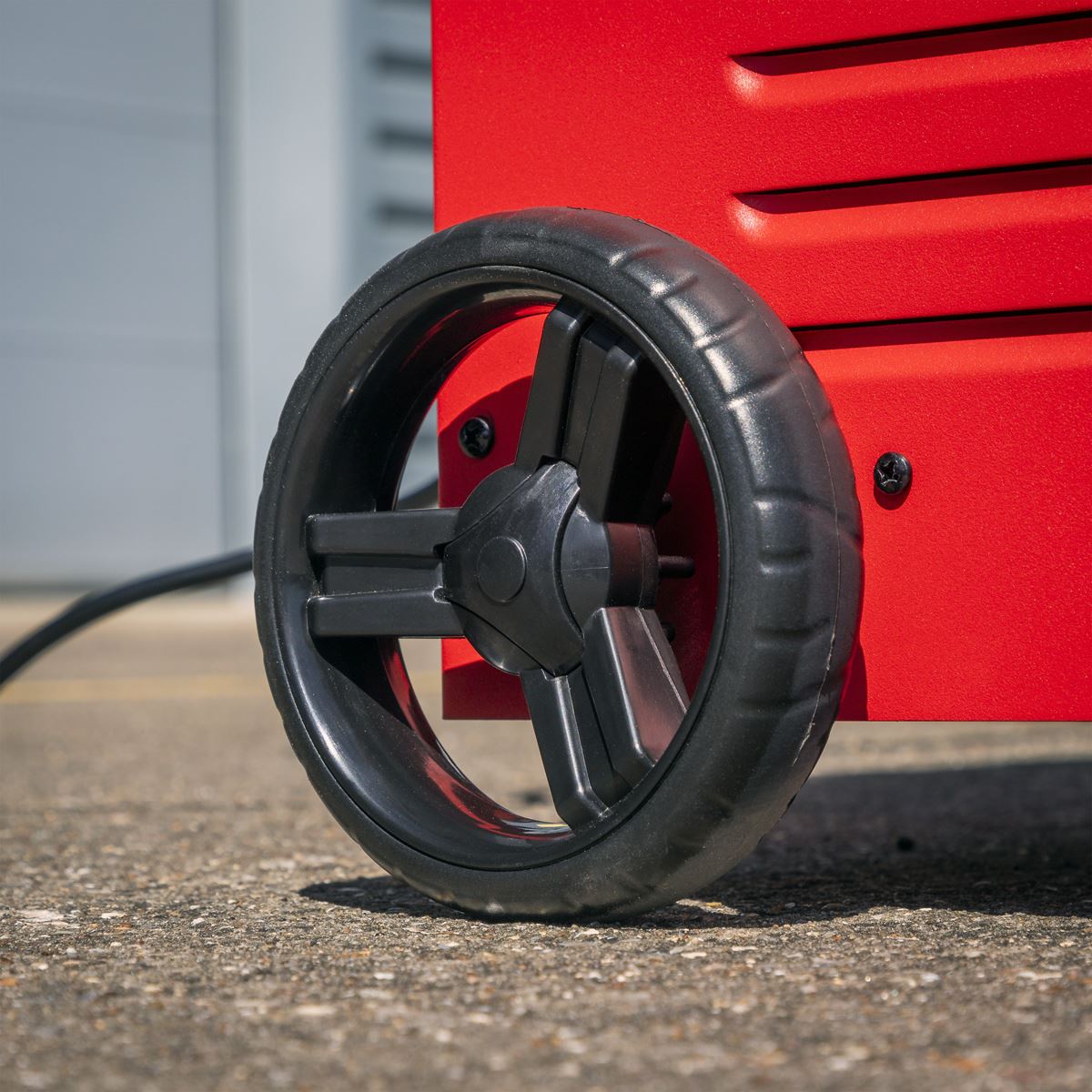

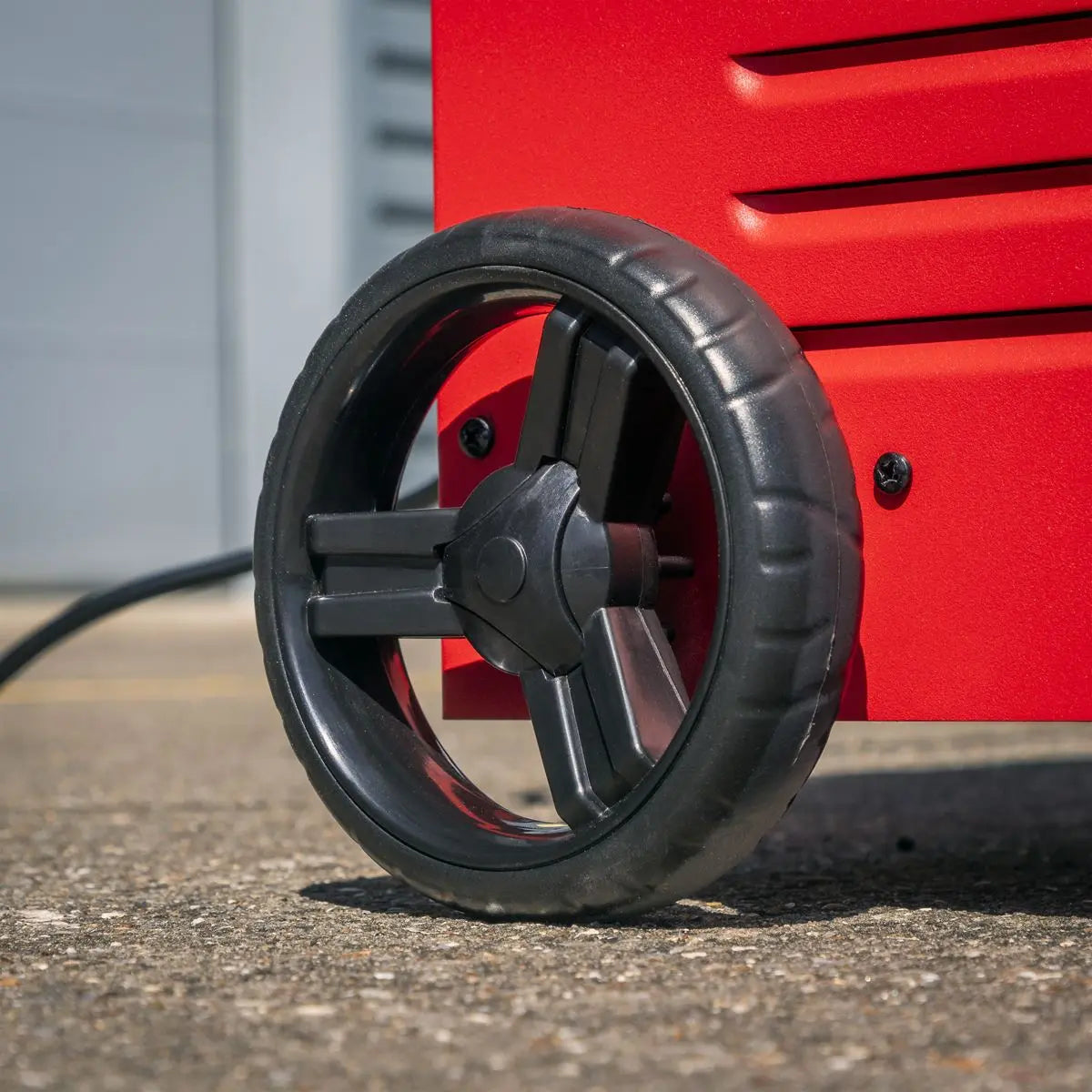

PORTABLE DESIGN – Portable design with handle means you can easily manoeuvre the unit around the workshop.

Specification:

• Model No SUPERSTART200D
• Brand: Sealey

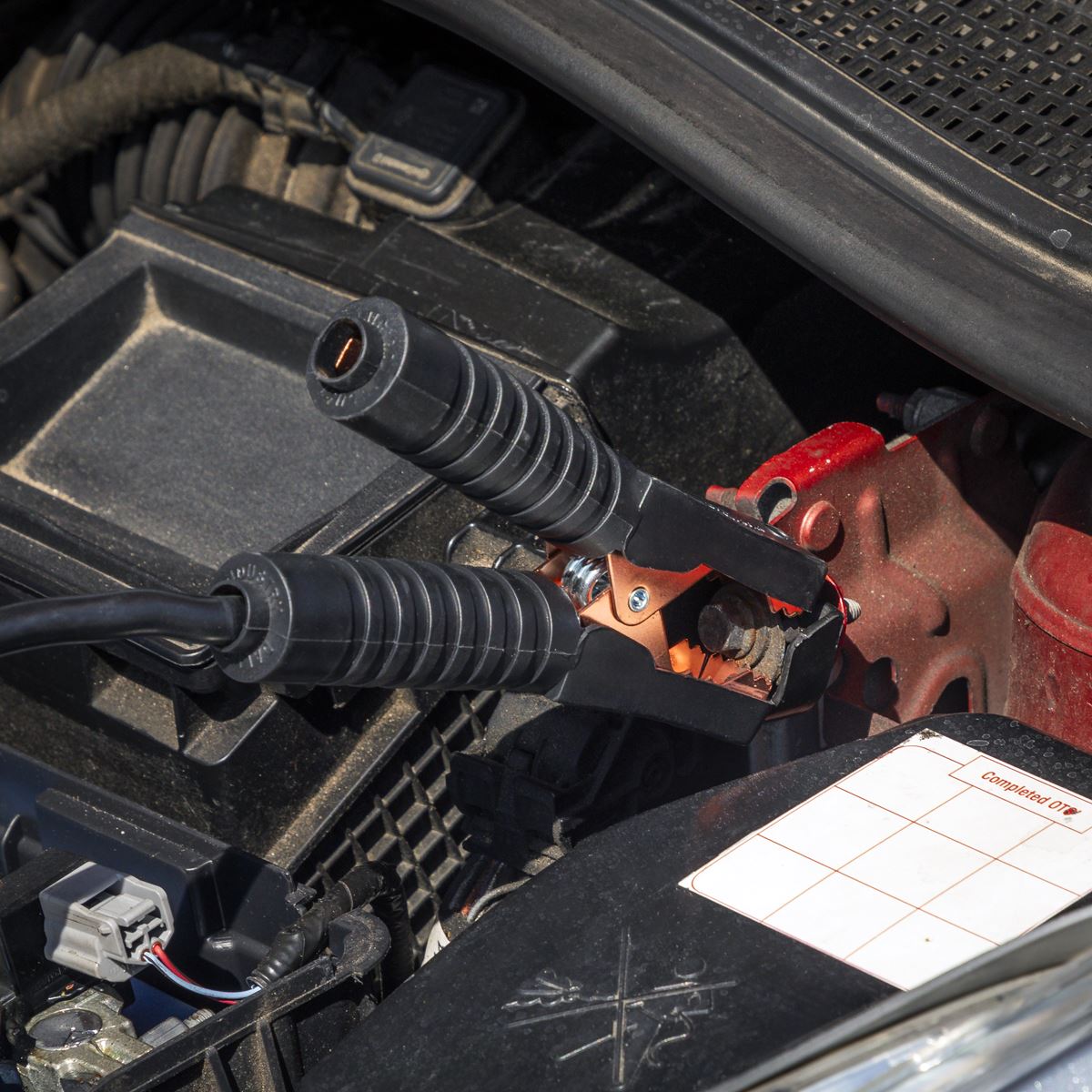

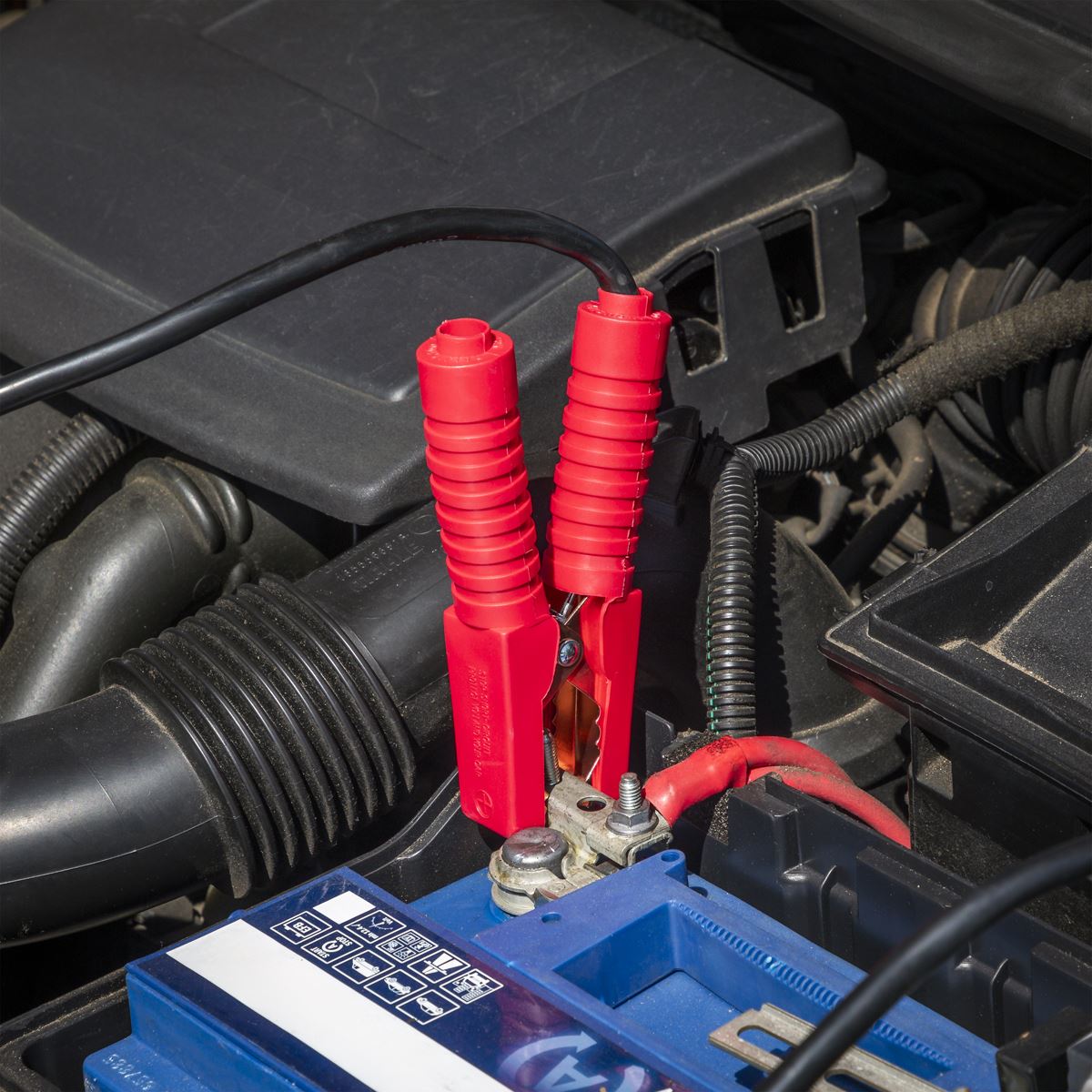

• Cable & Clamp Length: 2m
• Nett Weight: 16kg
• Output: 12/24V
• Zero Voltage Charging: No
• Battery Support/DC Supply Mode: No
• Supply Current: 13A
• Plug Type: 3-Pin
• Power Supply Cable Length: 1.9m
• Cable & Clamp Length: 2m
• Charger Type: Traditional (T) or Intelligent (HF): HF
• Battery Range: 10Ah - 600Ah
• Max. Size Battery (AH) Full Charge in 12hrs from Discharged: 600Ah
• Output Charge Peak: 60A 12V, 30A 24V
({IF["Output Charge Rates: 12V - 60A, 30A, 10A 24V - 30A, 15A, 5A 12V 10A LiFePo4"!=""]})
• Output Charge Rates: 12V - 60A, 30A, 10A 24V - 30A, 15A, 5A 12V 10A LiFePo4
({ENDIF})
• Start Peak: 200A (12V only) (5s on, 180 off)
• Battery Type: GEL, AGM, STD, LITHIUM (12V ONLY), LEISURE
• Working Temp: (-10°C - 40°C)
• Housing Protection: IP20
• Max Charging Volts 12V (24V) Lead Acid Batteries: AGM, 14.7V (29.4V), GEL, 14.1V (28.2V), STD, 14.4V (28.8V)
• Max Charging Volts 12V LifeP04: 14.5V
• Nett Weight: 16kg

Product Guarantee: 1 Year
Catalogue Page: Page

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
