Description

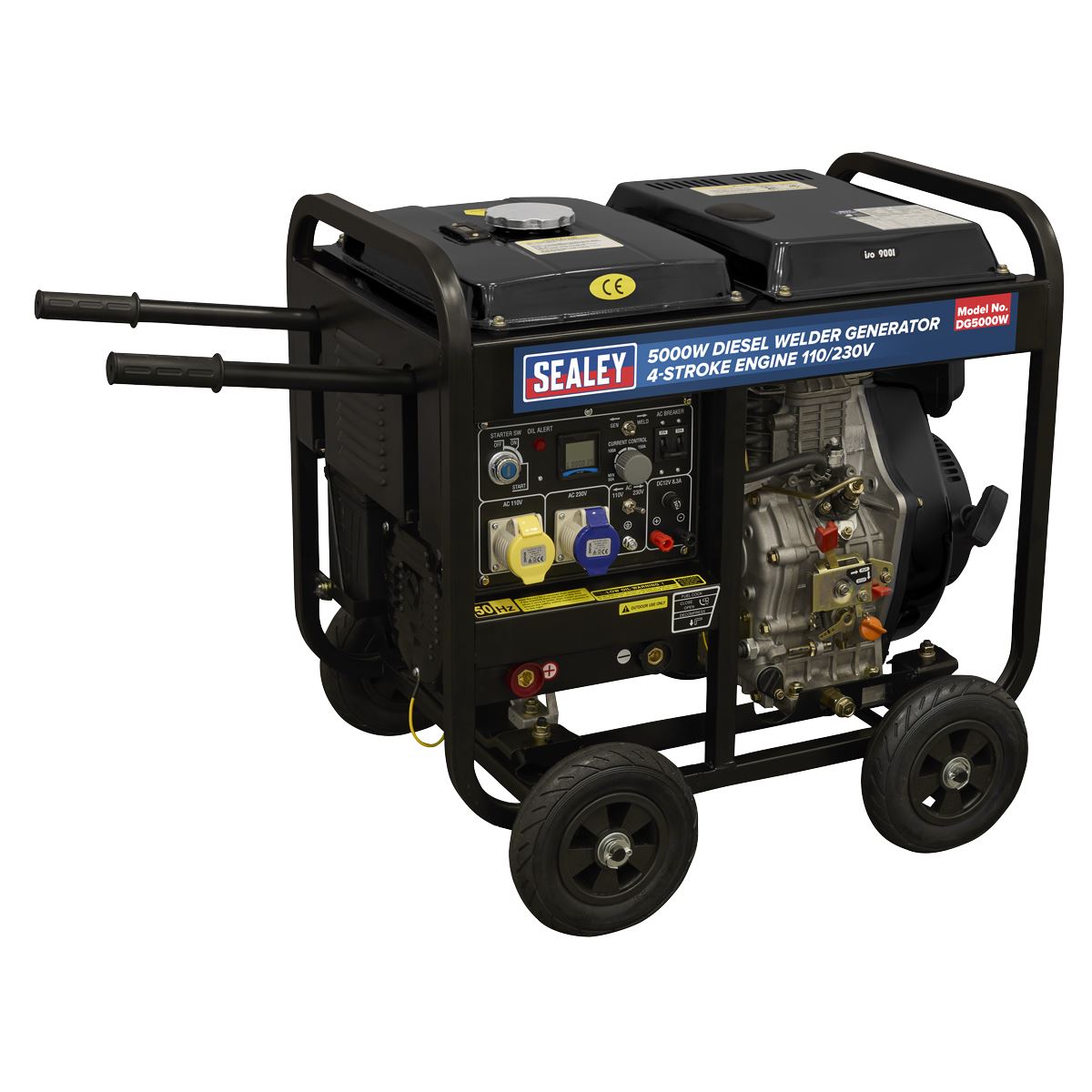

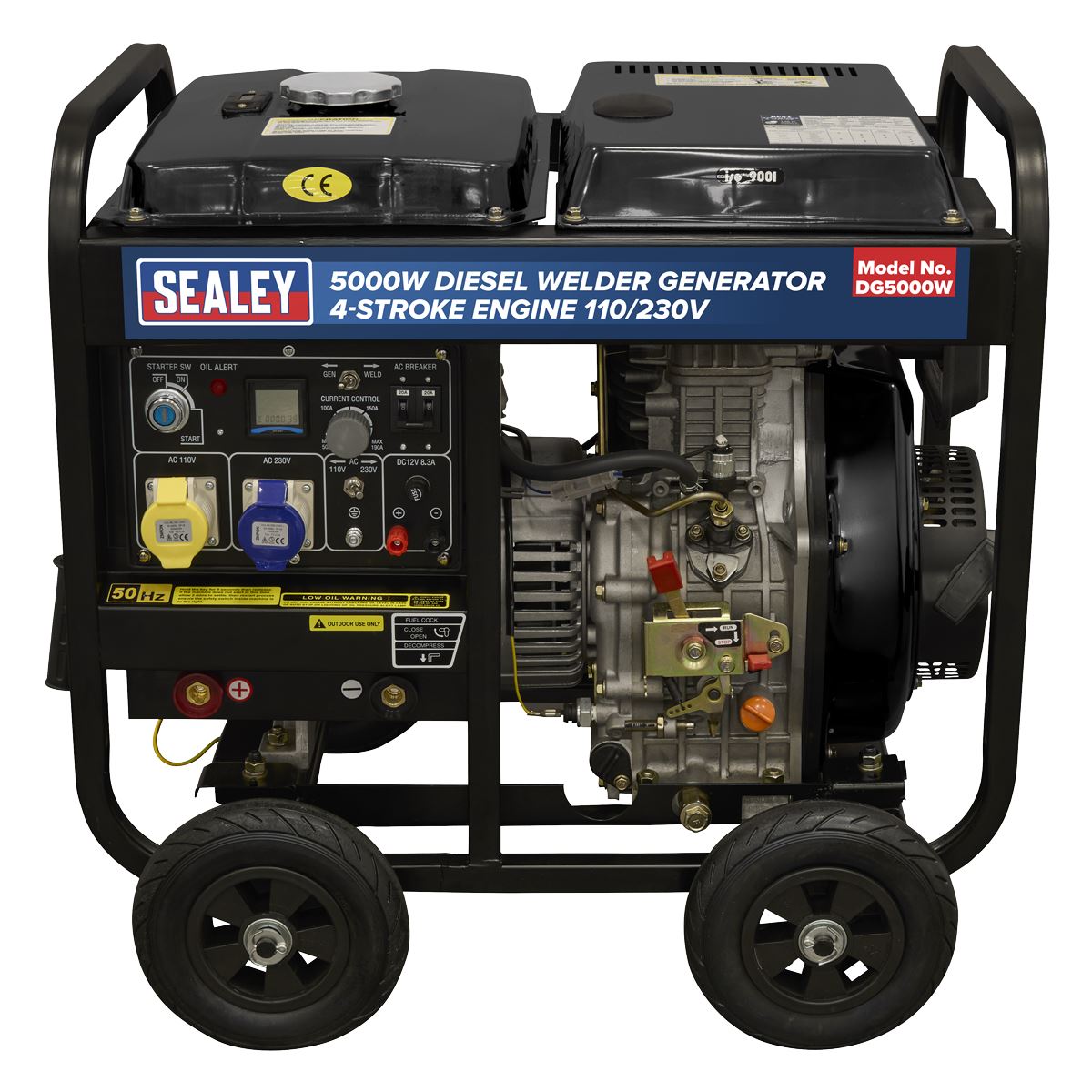

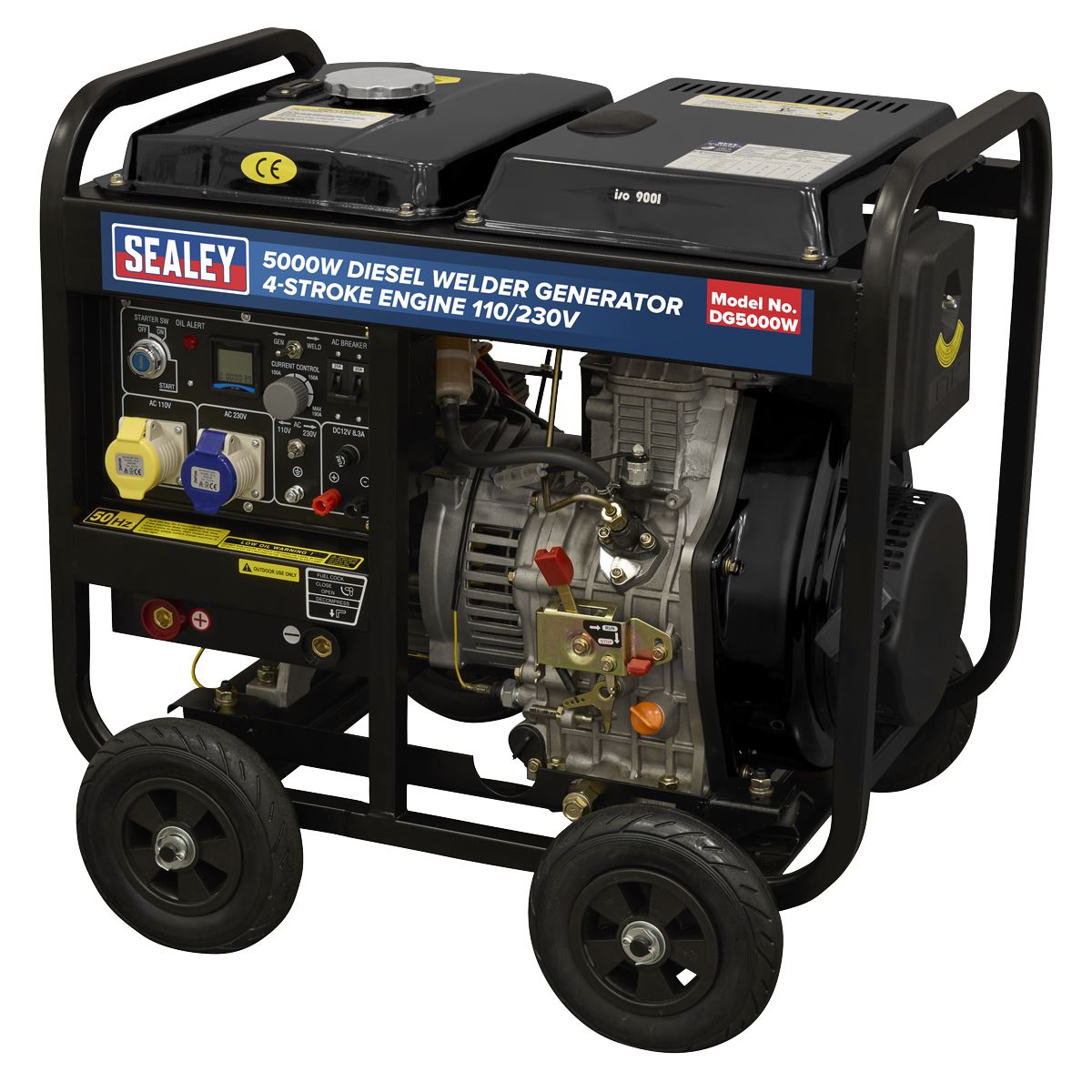

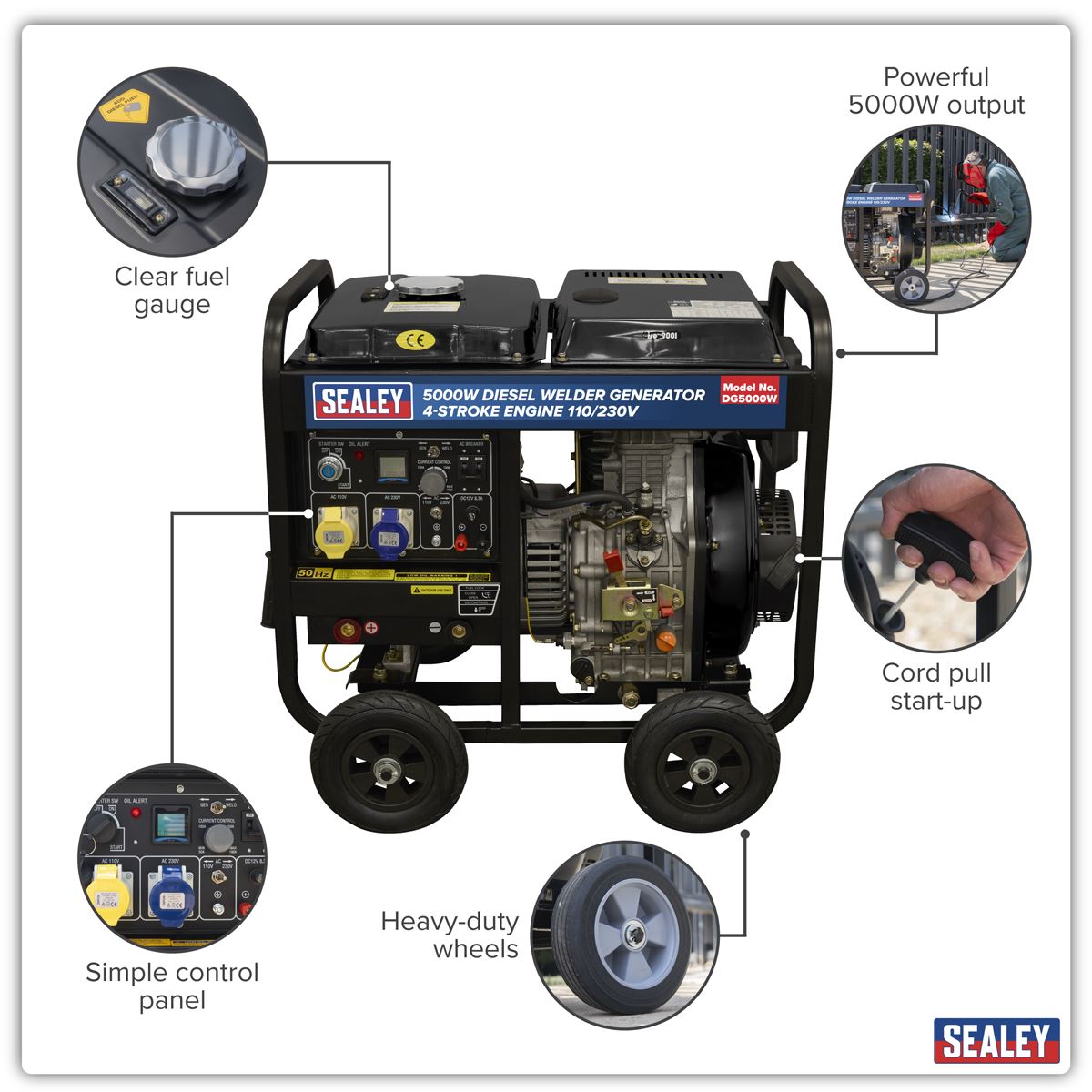

Sealey 5000W Diesel Welder Generator 4-Stroke Engine 110/230V

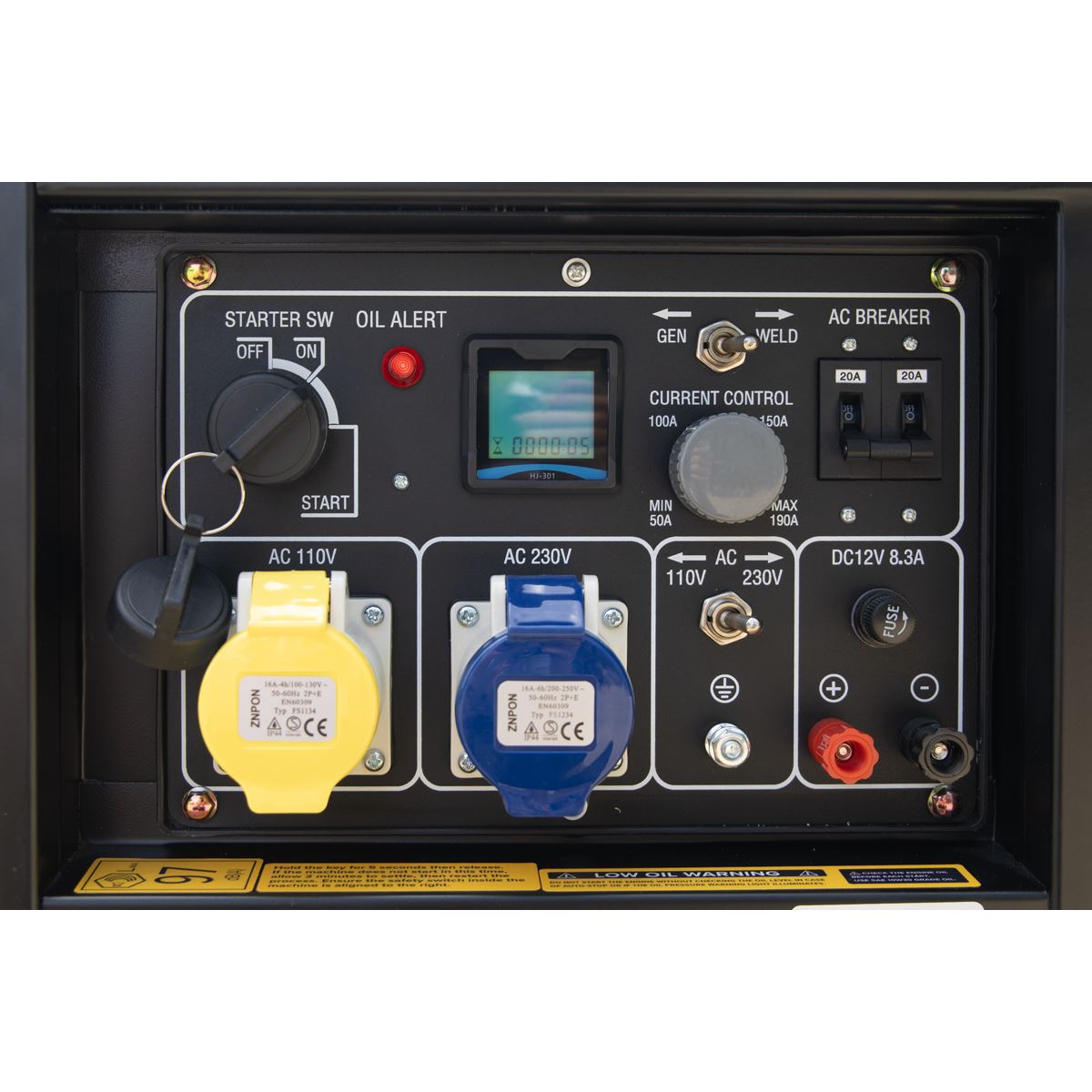

DUAL VOLTAGE OUTPUT – Supplies both 110V and 230V AC for flexible power options on-site.

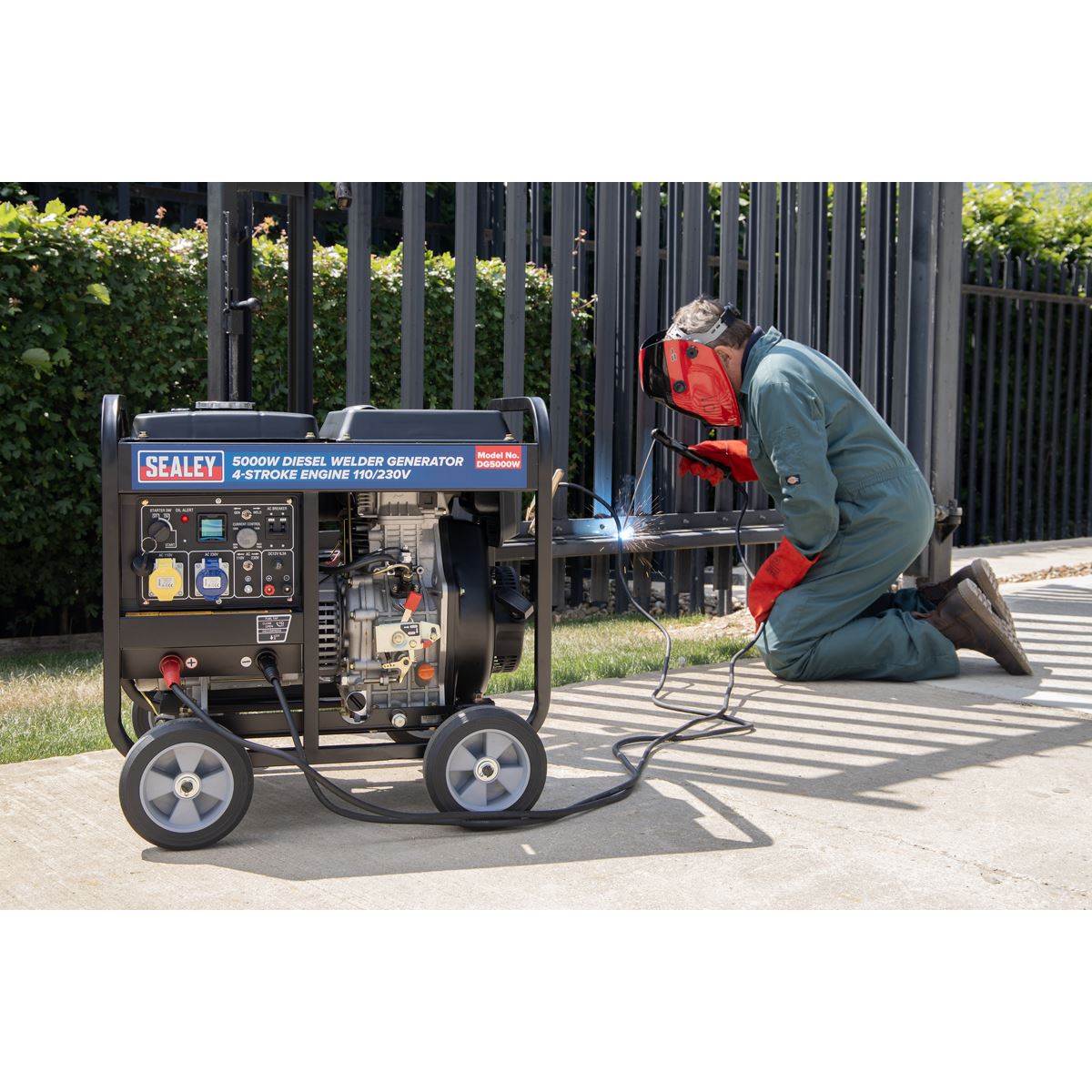

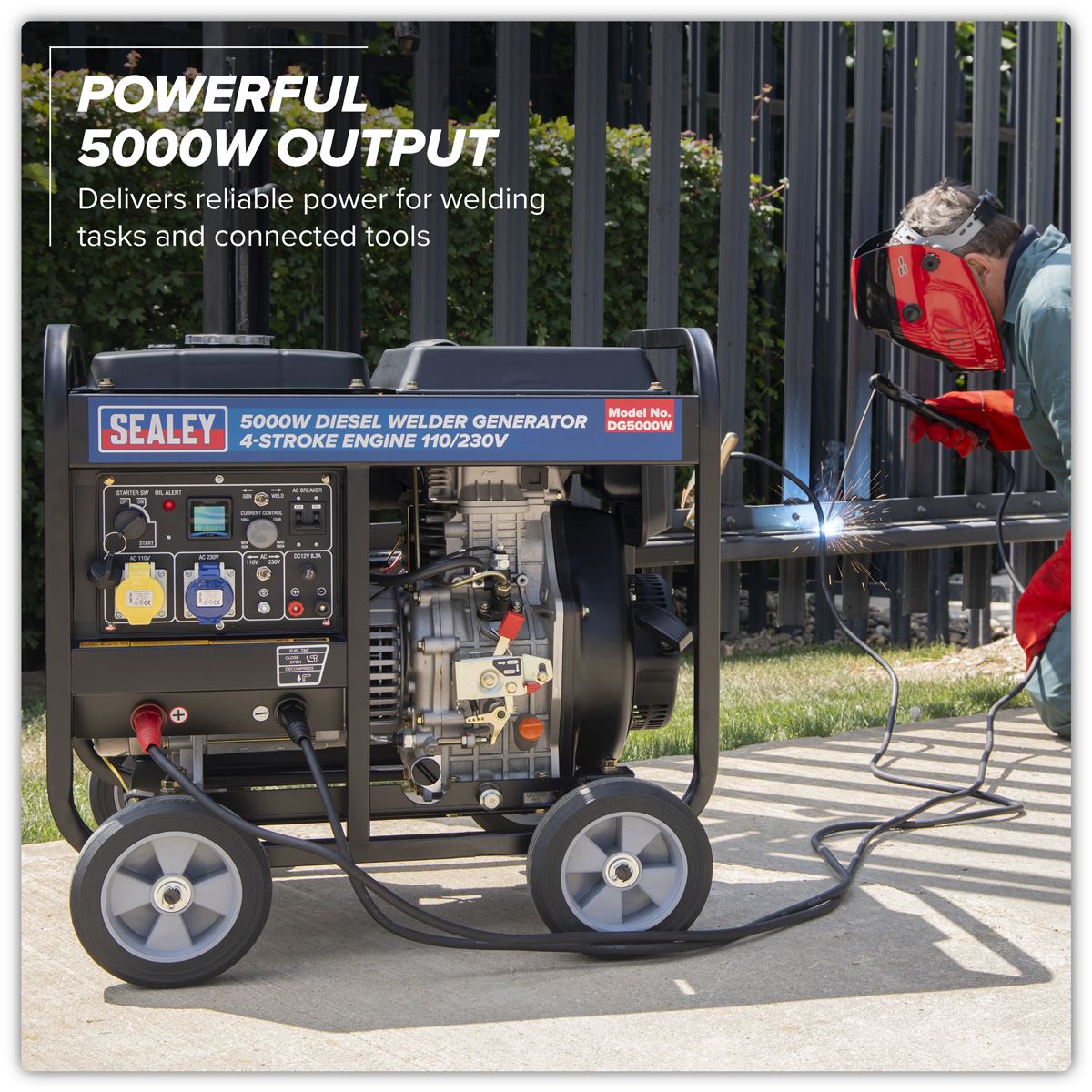

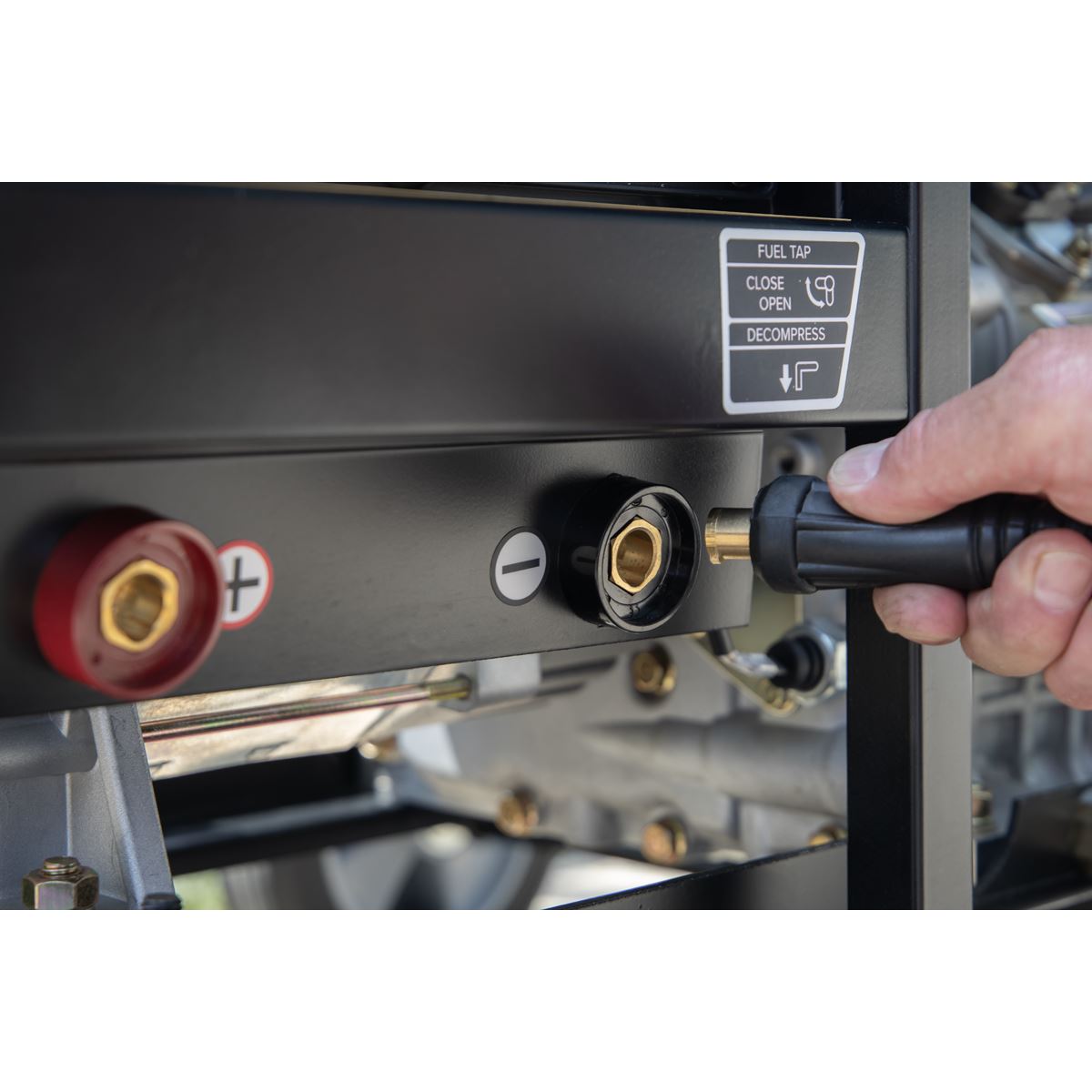

WELDER FUNCTION – Built-in electric welding capability with adjustable current ranges from 80–180A.
DIESEL ENGINE POWER – Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5kW.

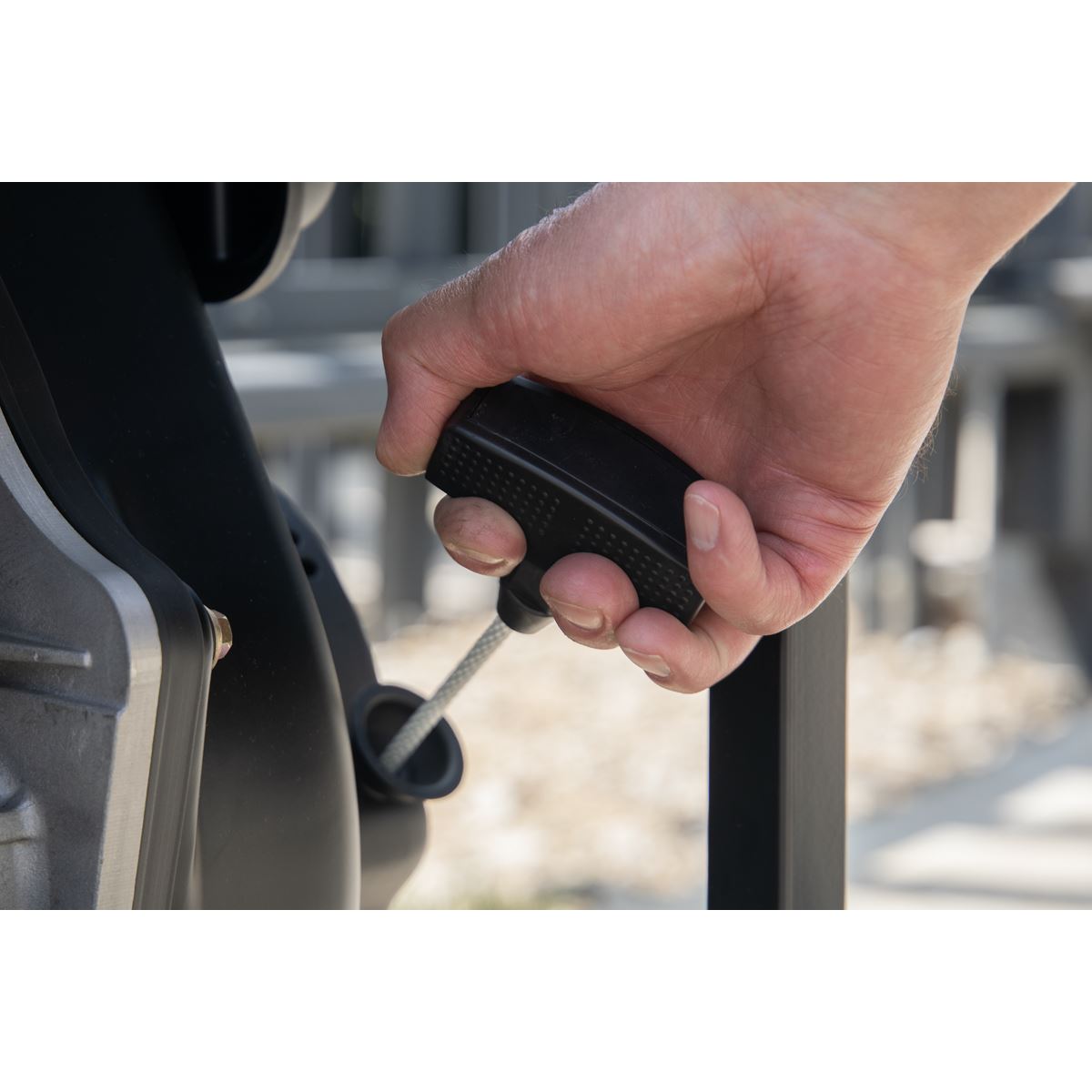

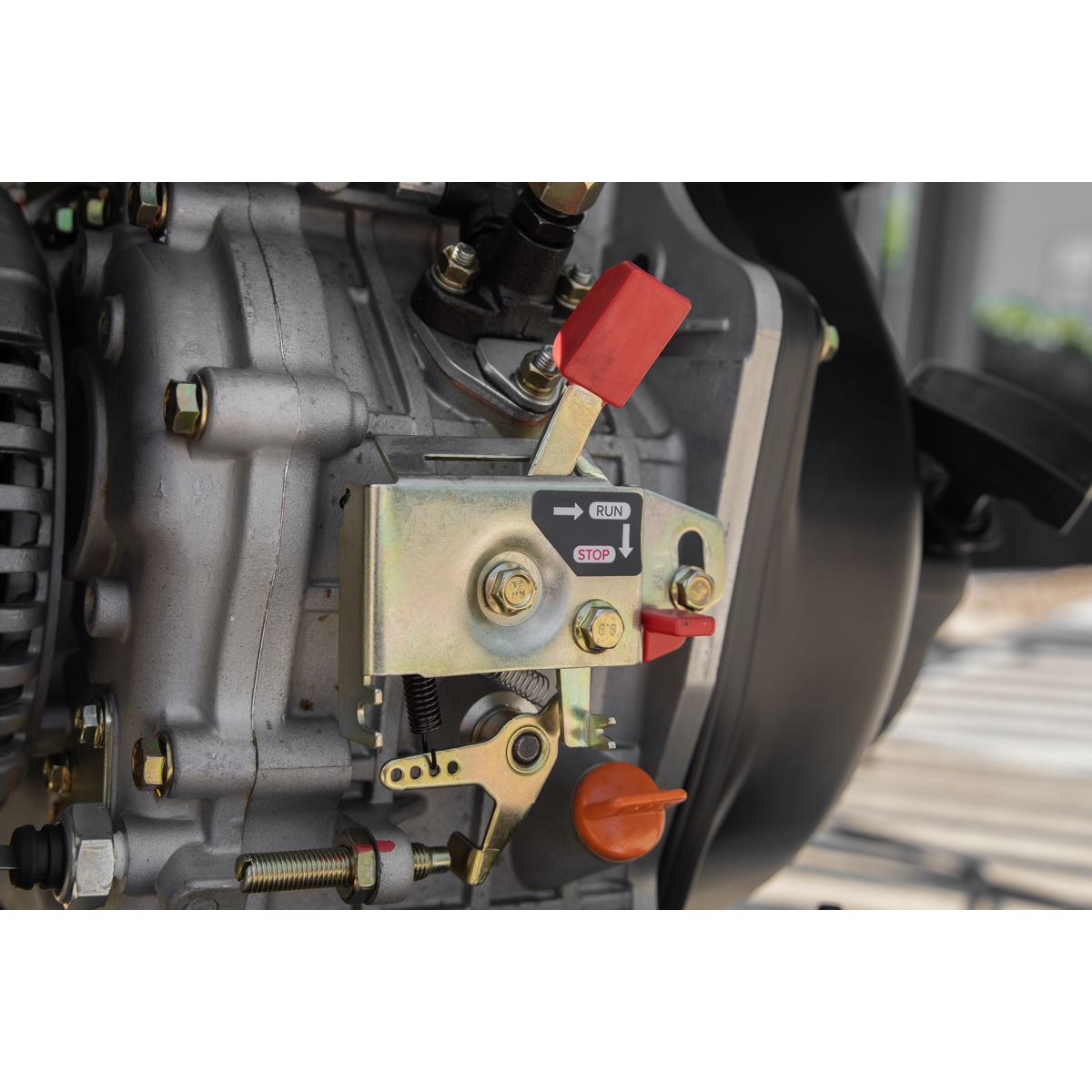

RECOIL & KEY START – Manual recoil start, and Key Start Function.

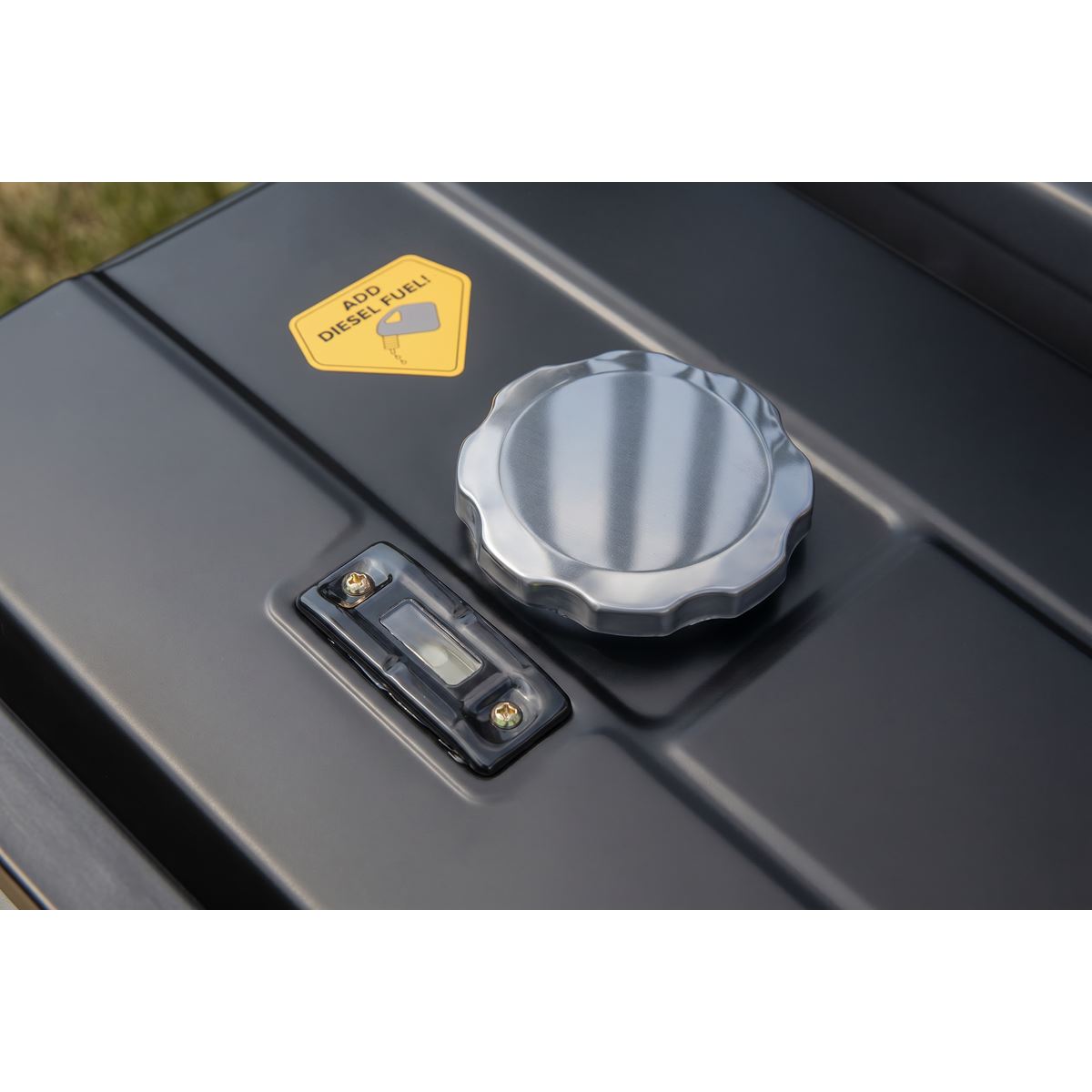

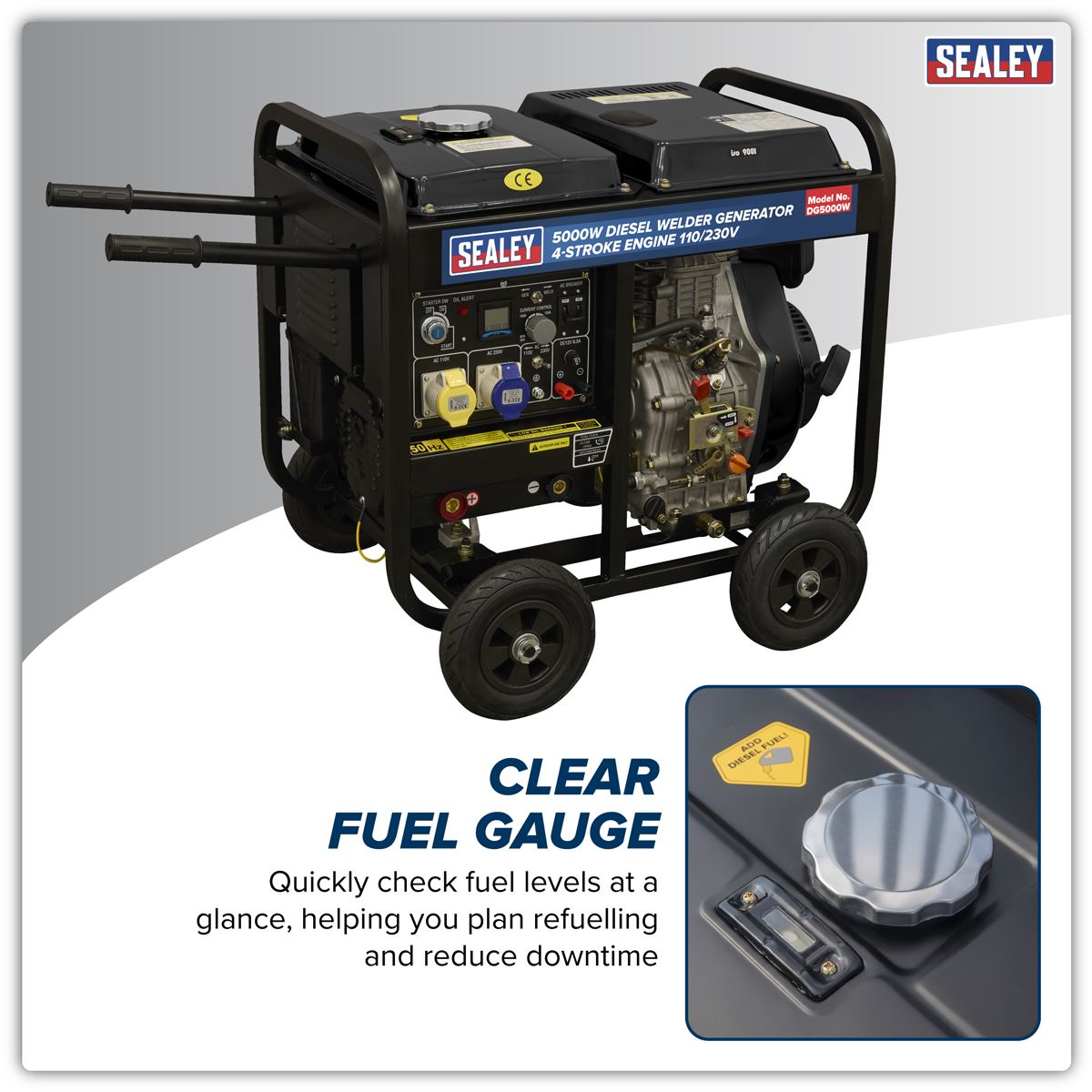

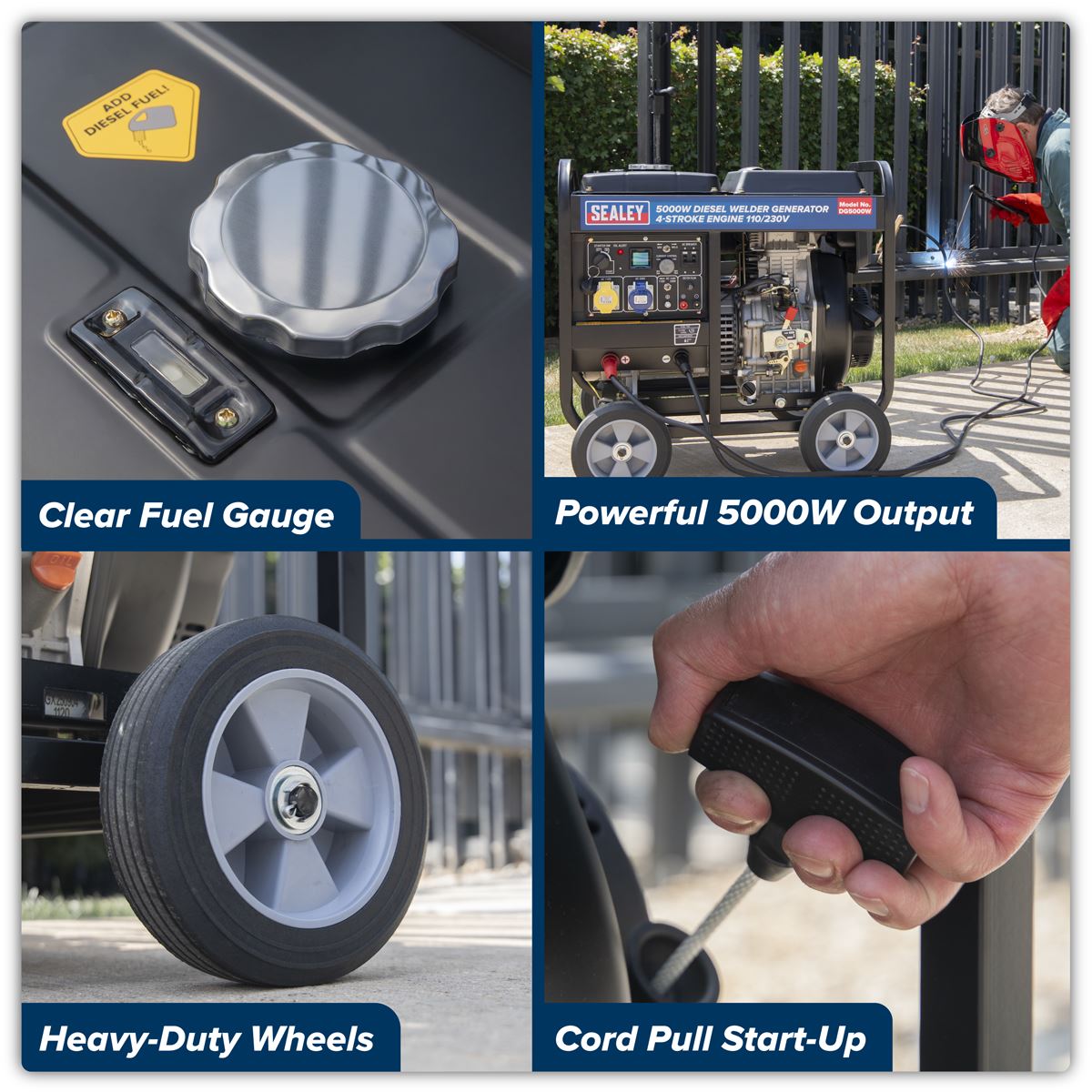

LARGE FUEL TANK – 15L capacity allows extended operation without frequent refuelling.
WELDING CAPACITY – Rated for 80–180A welding current and suitable for electrodes from Ø2.5-4mm.

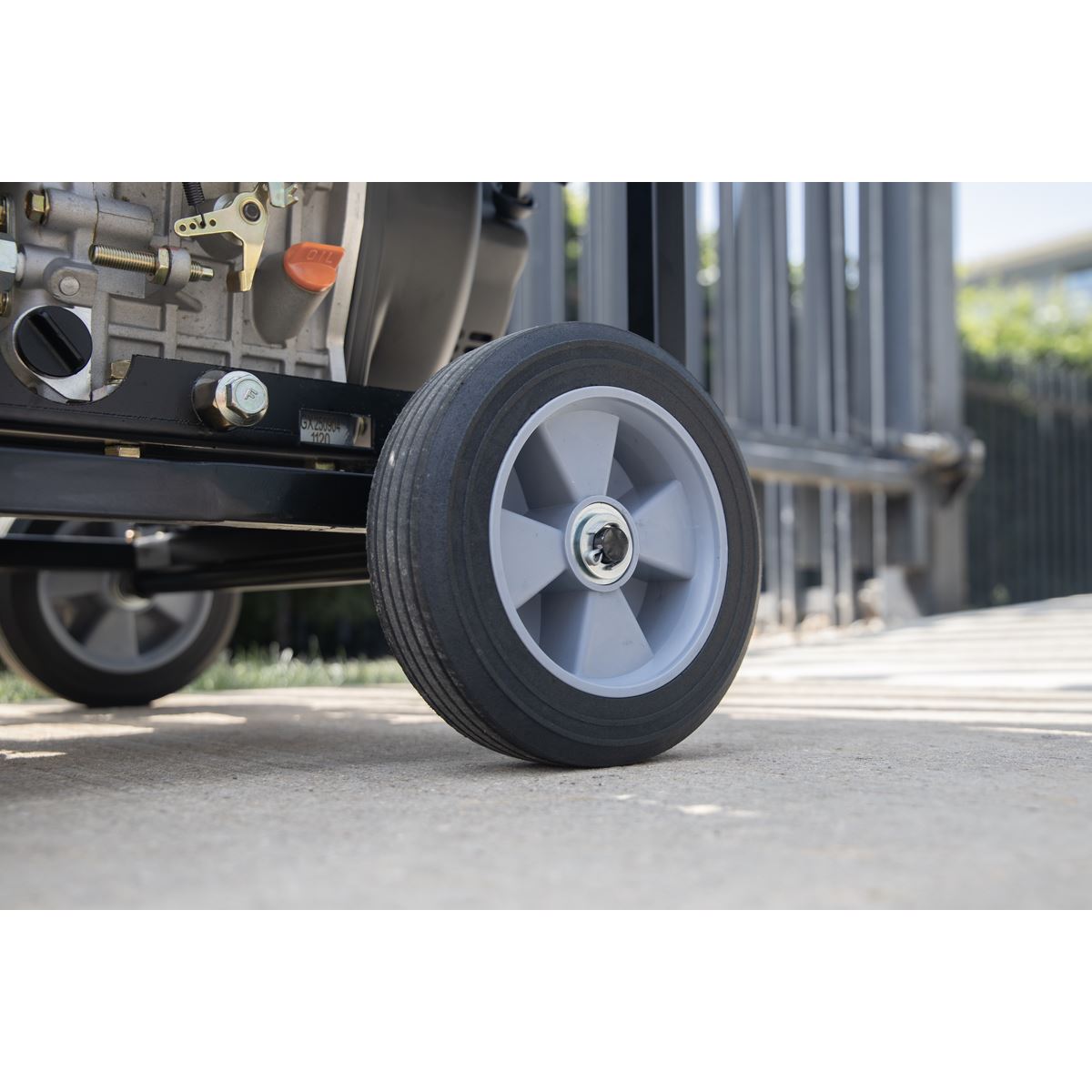

COMPACT & PORTABLE – Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
IDEAL FOR REMOTE WORK – Perfect for construction, agricultural, and industrial applications.

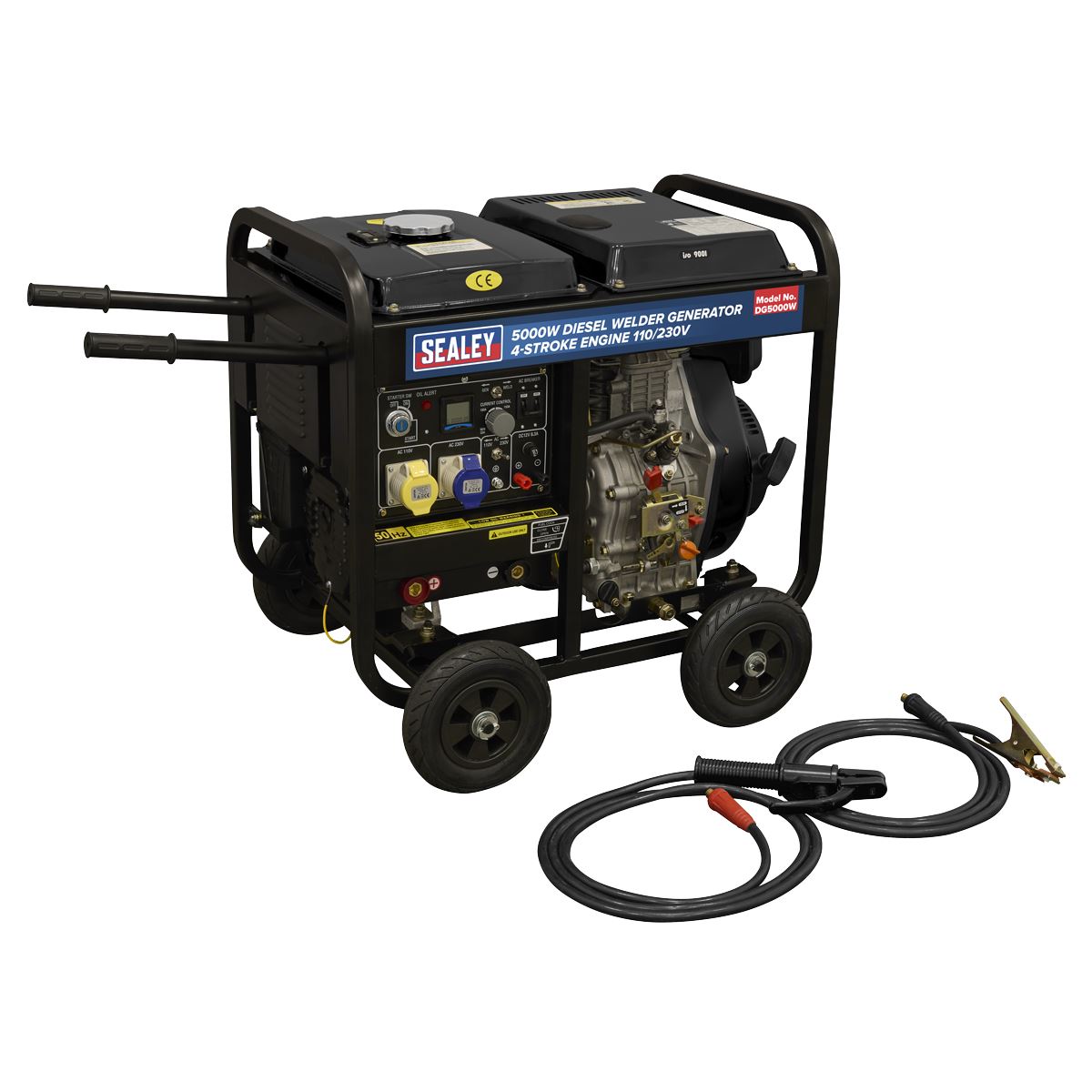

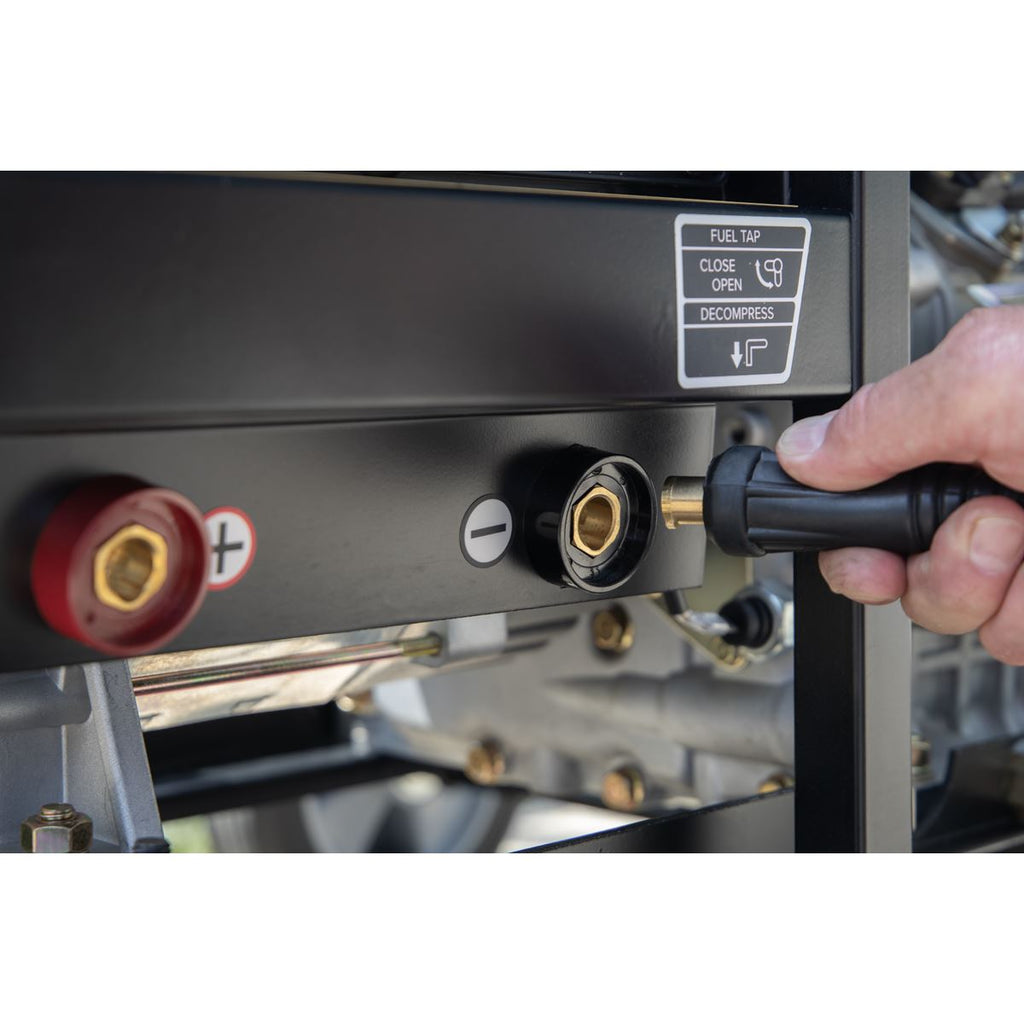

SUPPLIED WITH – Two keys, 2.8m electrode holder and 2.8m earth clamp.
HEAVY ITEM - This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

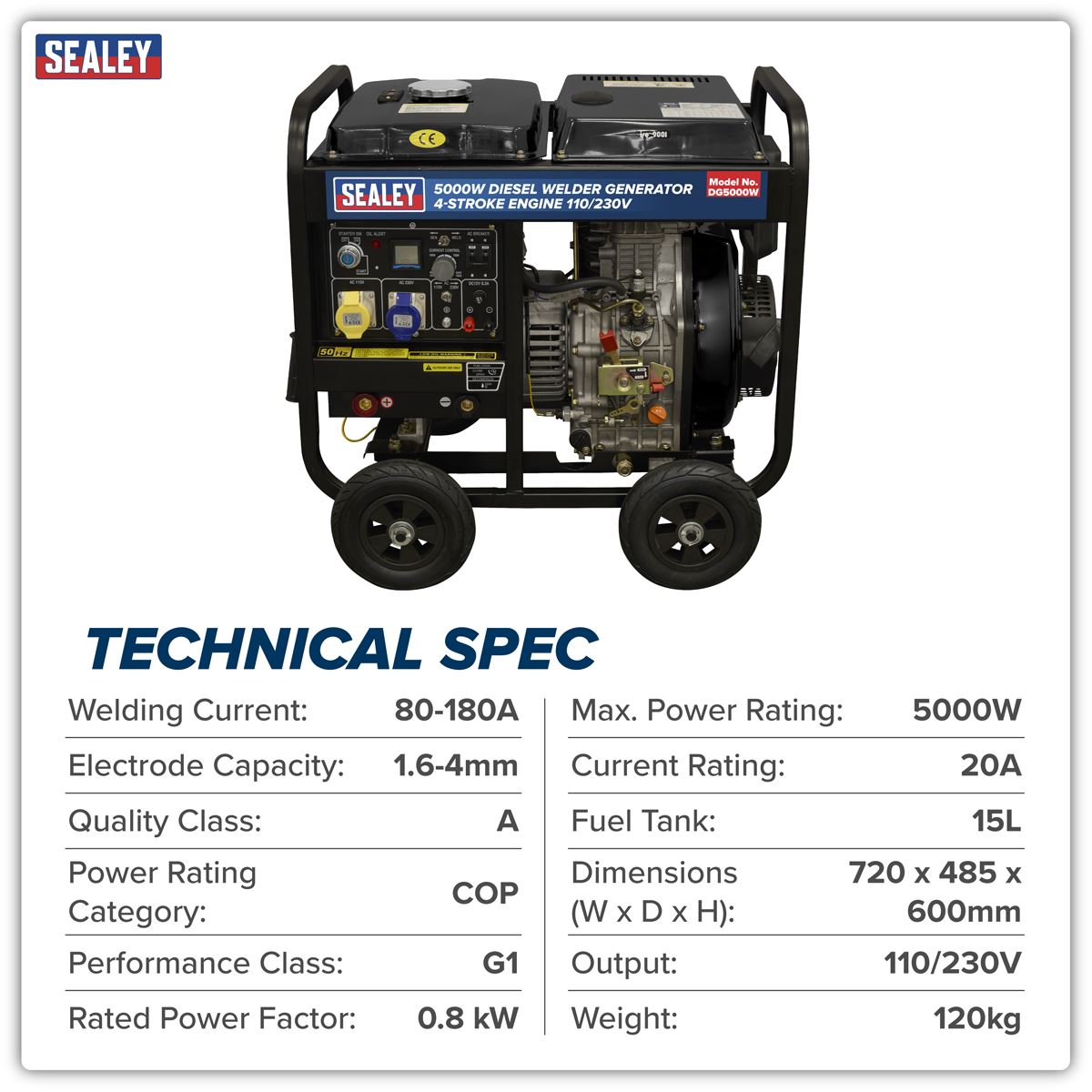

Specification:
- Model No DG5000W
- Brand: Sealey
- Continuous Power Rating: 4600W
- Current Rating: 20A
- Dimensions (W x D x H): 720 x 485 x 600mm
- Fuel Tank: 15L
- Fuel: Diesel
- IP Rating: IP23
- Maximum Power Rating: 5000W
- Maximum Running Time: 12hrs
- Motor Power: 5.7kw/3600rpm
- Motor Type: 4-Stoke Diesel
- Nett Weight: 120kg
- Noise Rating: 97dB(A)
- Oil Capacity: 1.65L
- Output: 110/230V
- Plug Type: N/A
- Welding Current: 80-180A
- Electrode Capacity: 1.6-4mm
- Quality Class A
- Power Rating Category COP
- Performance Class G1
- Rated Power Factor (COS ∮) 0.8 kW
