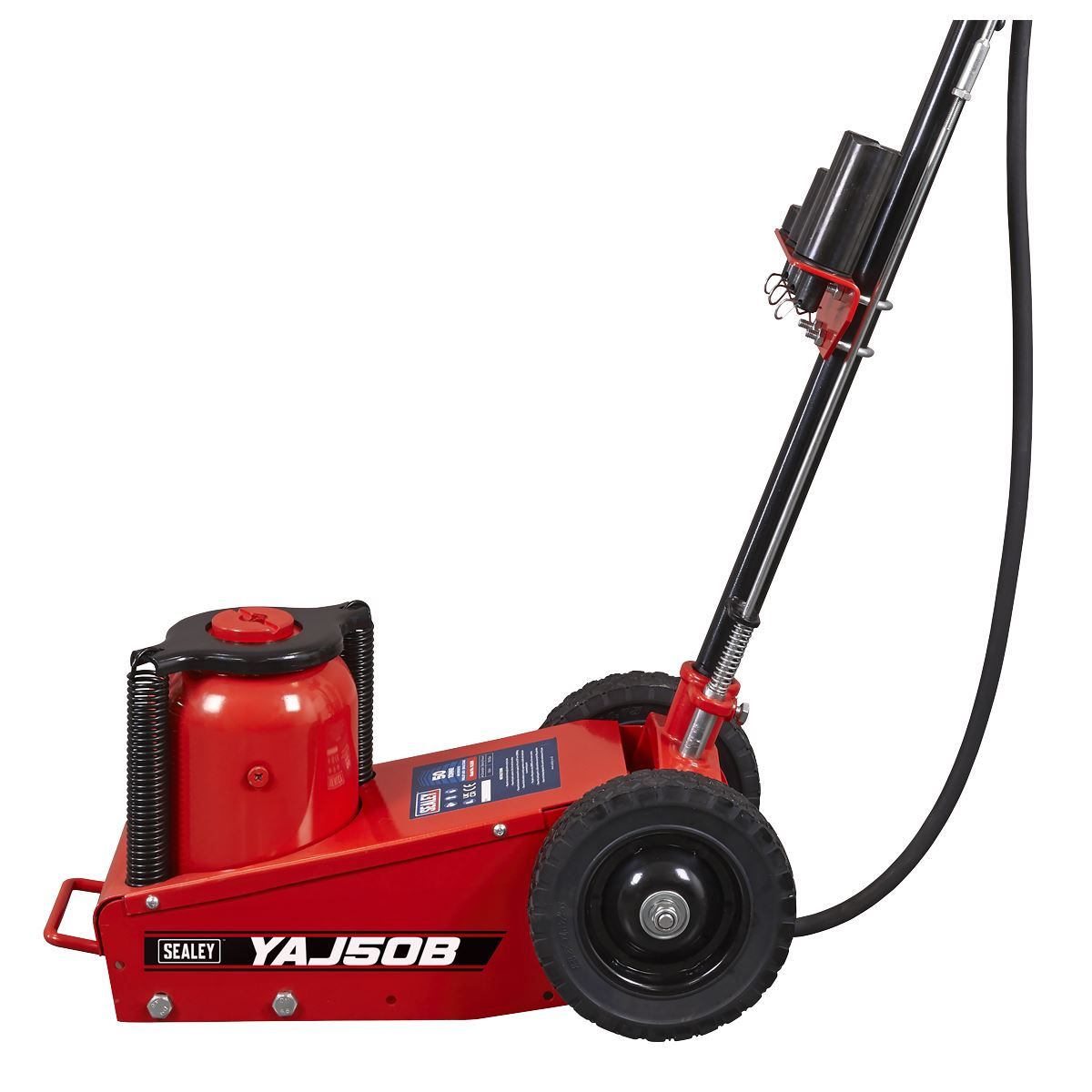

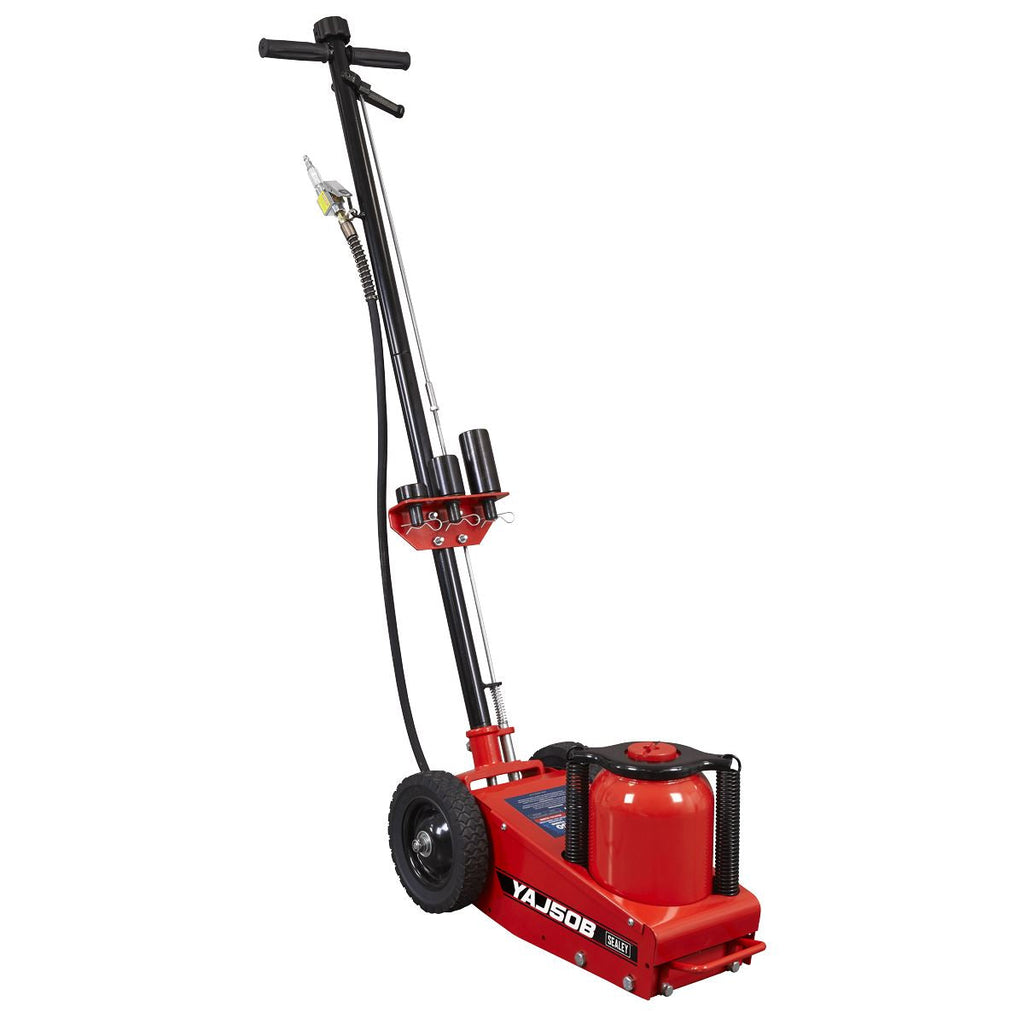

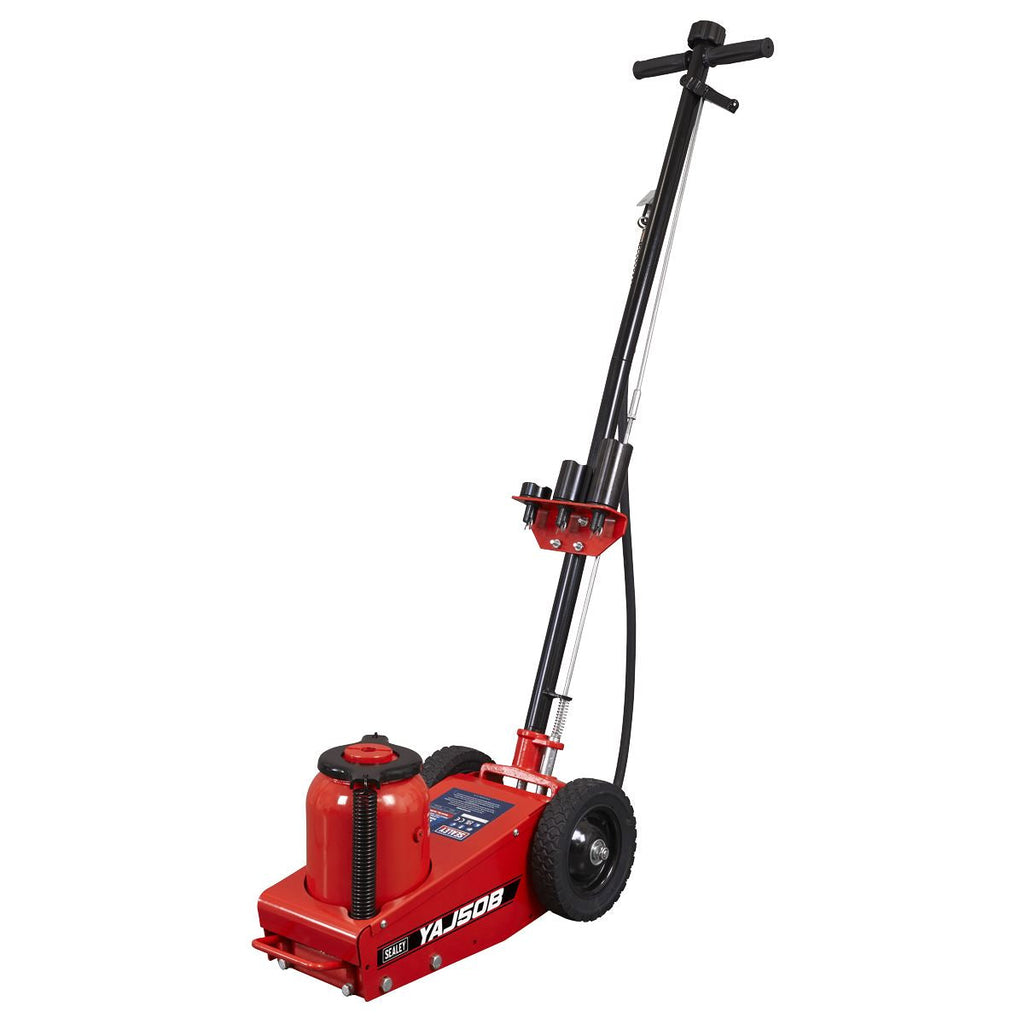

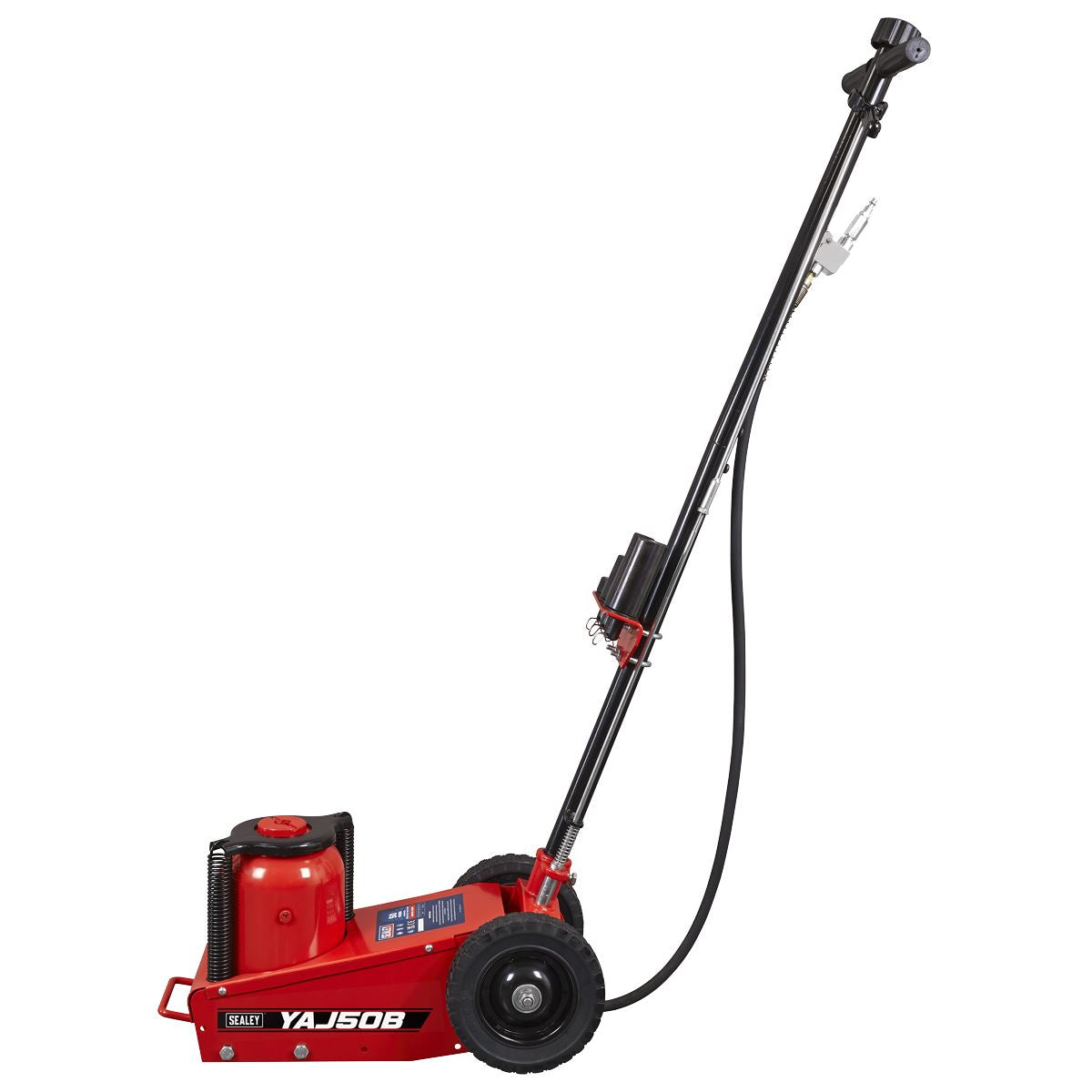

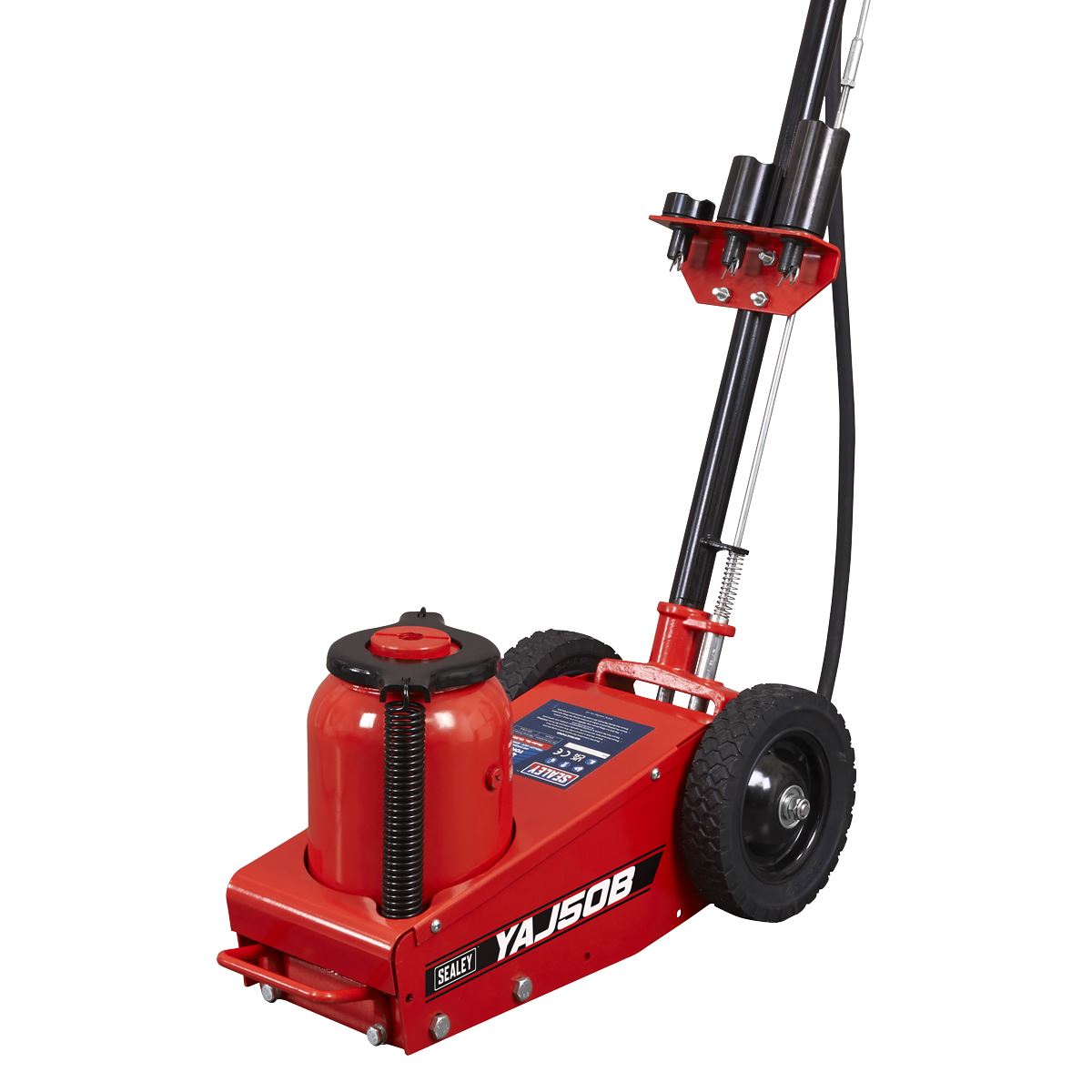

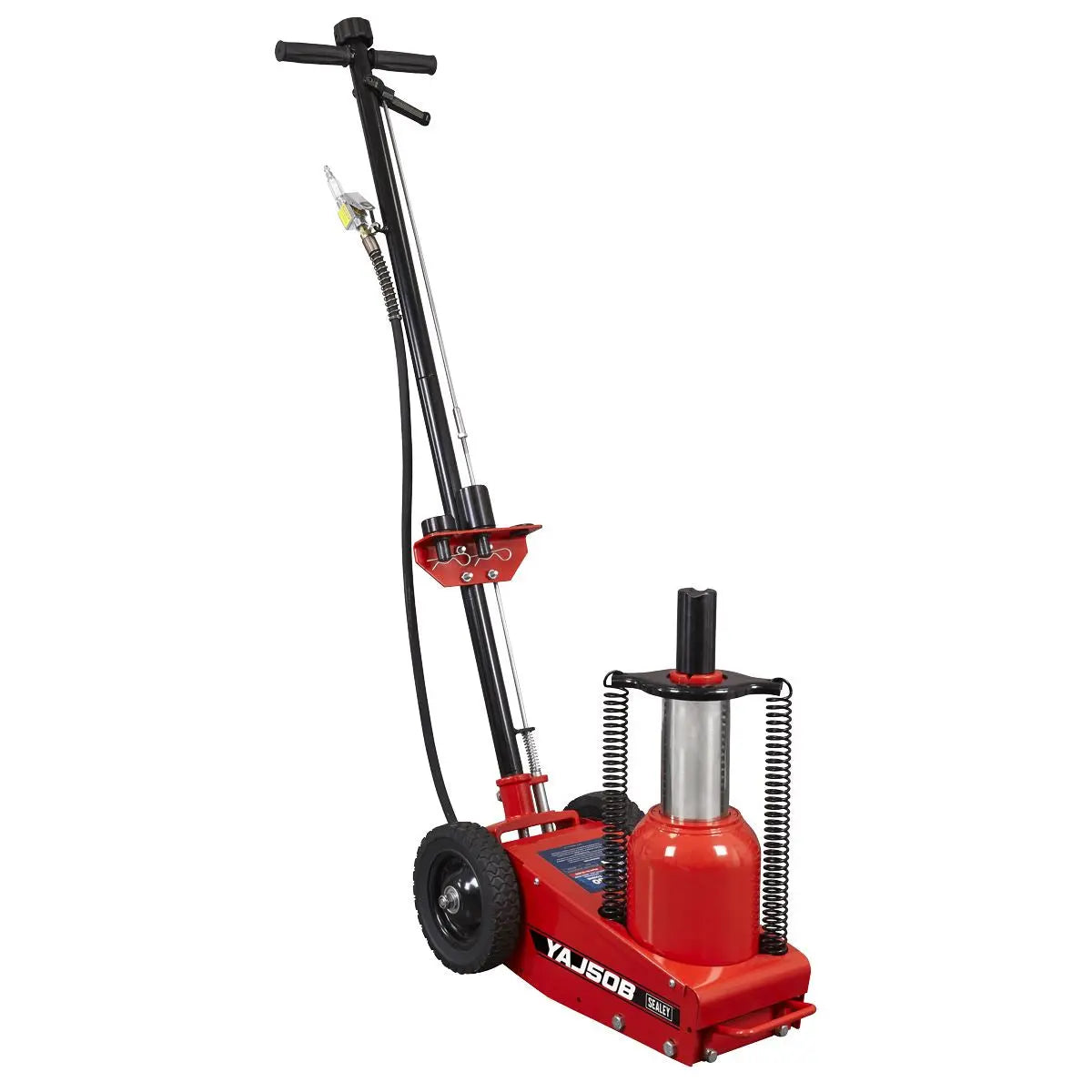

Sealey Air Operated Single Stage Trolley Jack 50 Tonne

Sealey Air Operated Single Stage Trolley Jack 50 Tonne

HEAVY-DUTY HYDRAULICS - Powerful and reliable, ideal for workshop or roadside use.

AIR OPERATED - Takes the effort out of lifting heavy plant, tractors and commercial vehicles.

SAFETY LOCK - Dead man’s control and sectional pump handle for manual operation, when air is unavailable.

JACKING POINT EXTENSIONS - Supplied with 20/60/90mm extensions to close the gap between the saddle of the jack and the jacking point.

LOWERING SYSTEM - Automatic dual spring controlled.

OVERLOAD SAFETY VALVE - Safety valve fitted to prevent damage to the unit.

Specification:

• Model No YAJ50B
• Air Consumption: 9.5cfm
• Brand: Sealey
• Capacity: 50 Tonne
• Extensions: 20/60/90mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 555mm
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 595mm
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): 625mm
• Minimum Saddle Height: 288mm
• Nett Weight: 57kg
• Piston Stroke: 155mm
• Screw Extension: 121mm
• Working Pressure: 109-123psi

Product Guarantee: 1 Year
Catalogue Page: Page

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
