Sealey ATV/Quad Recovery Winch 2040kg (4500lb) Line Pull 12V

Save 23%
SKU: ATV2040

Price:
Sale price£288.00 Regular price£371.94

VAT included

Stock:
In stock
24 Apr. Estimated arrival
21 Apr. Order placed
22-23 Apr. Order dispatches
24 Apr. Delivered!

Description

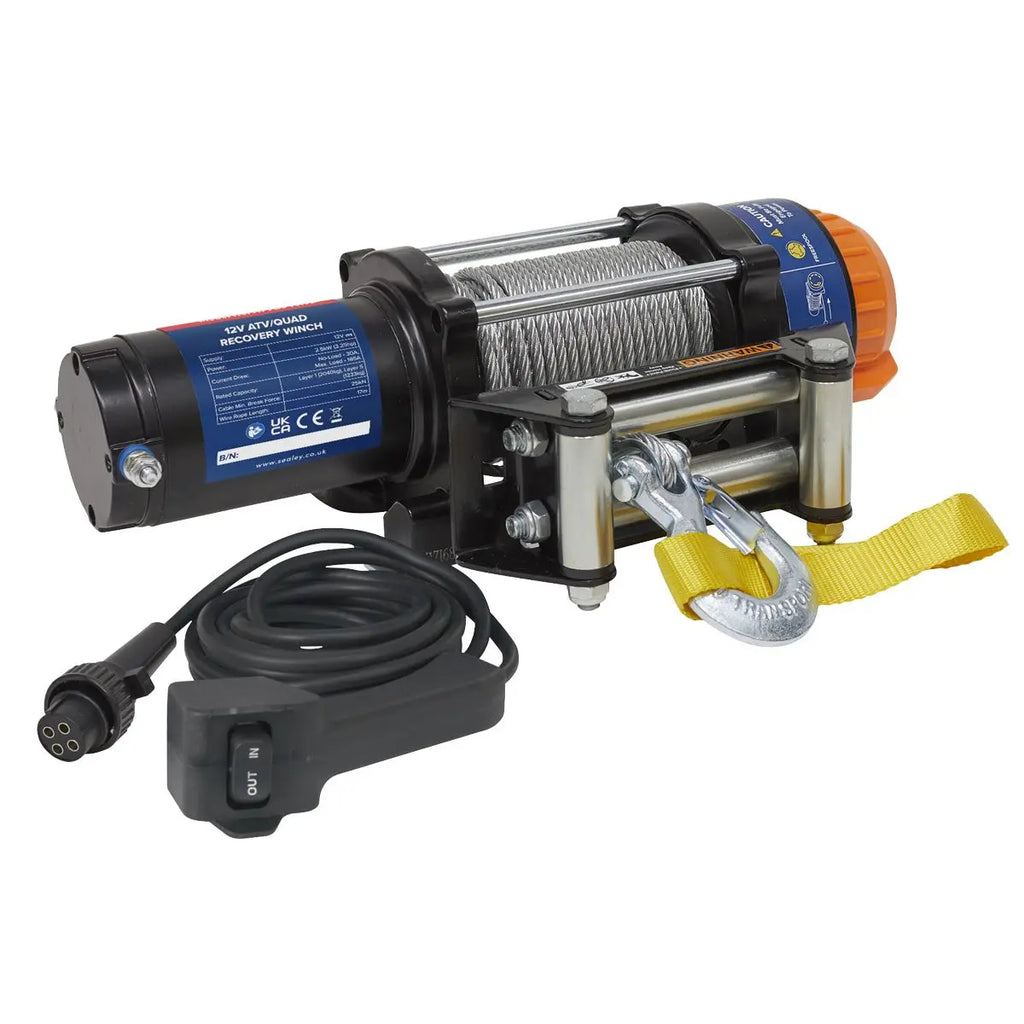

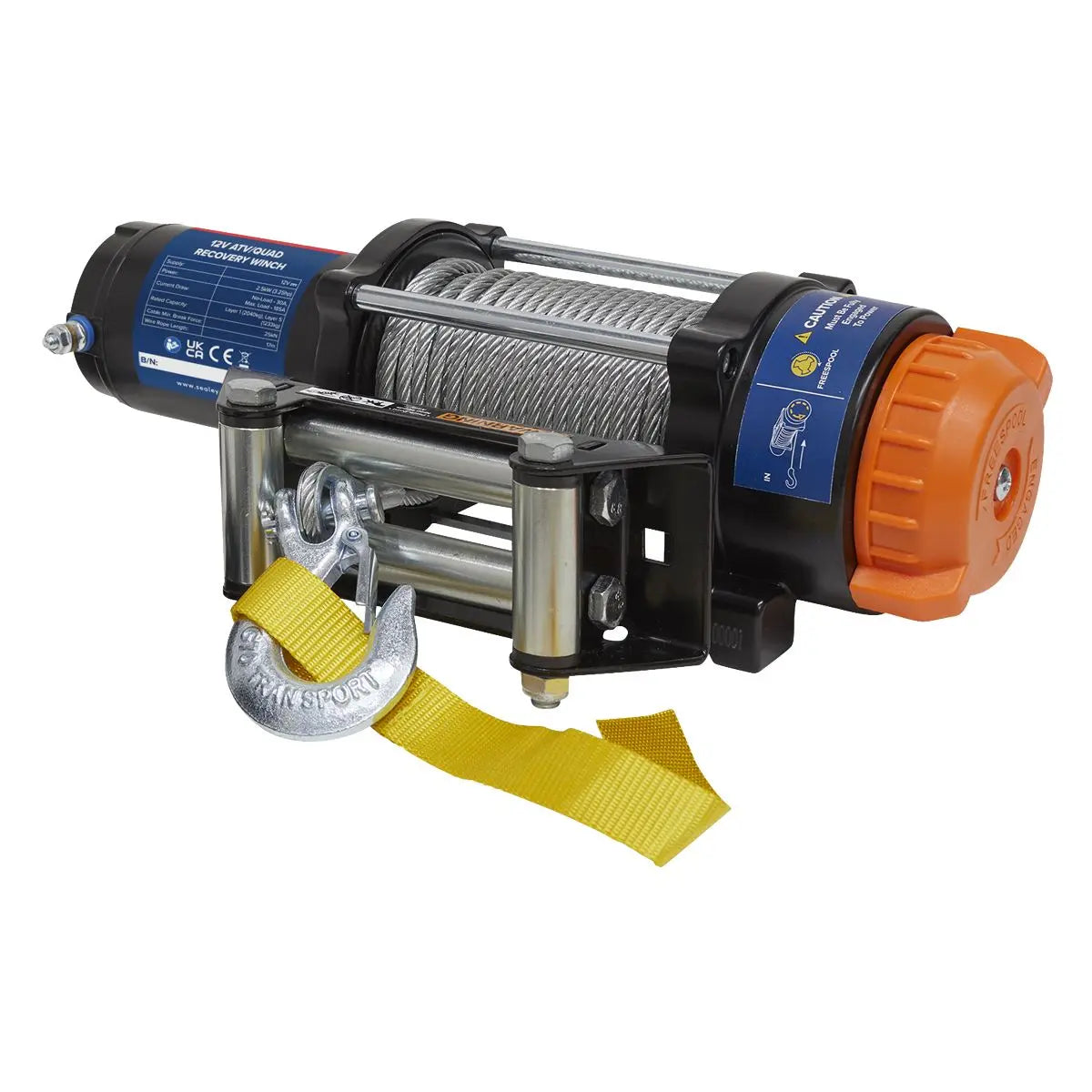

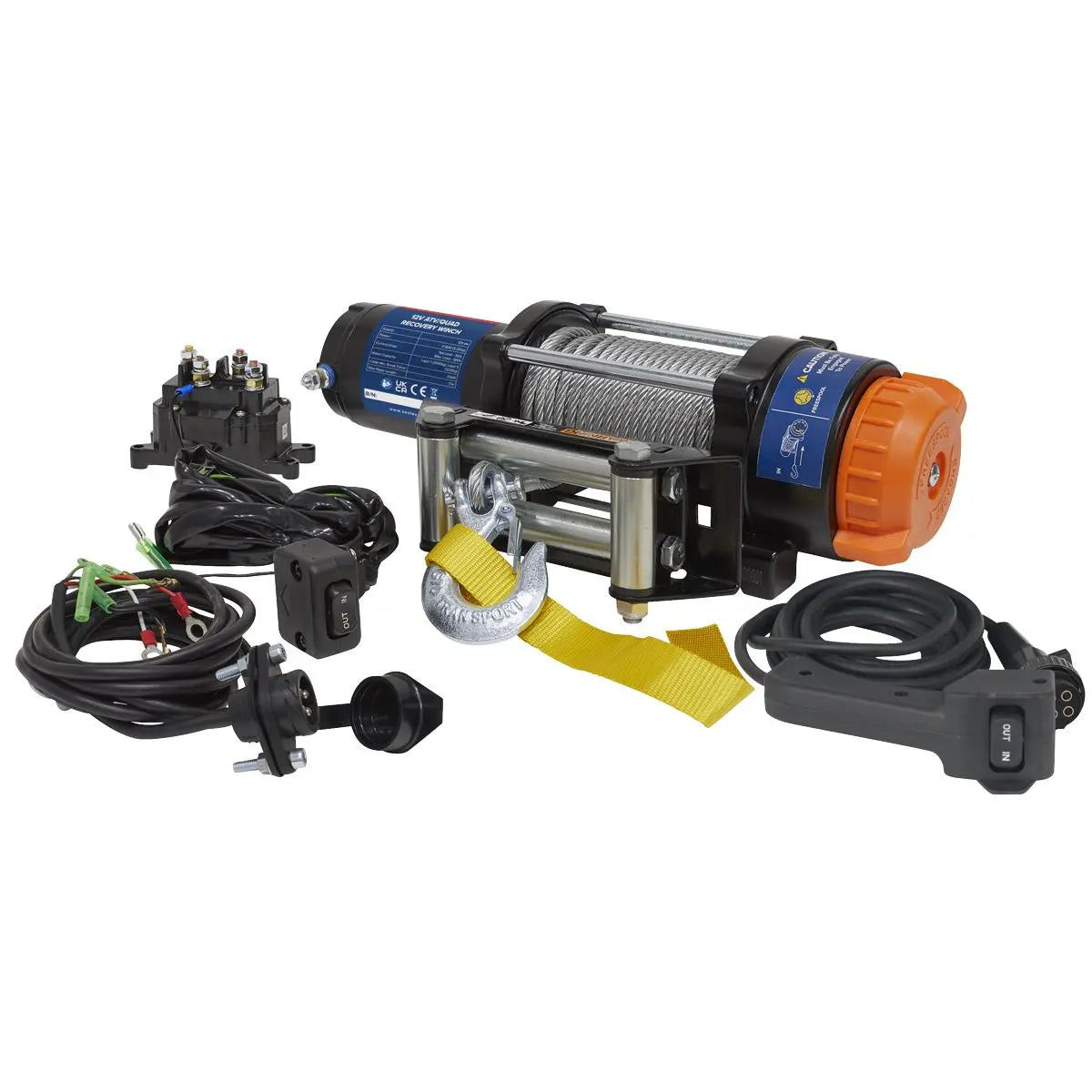

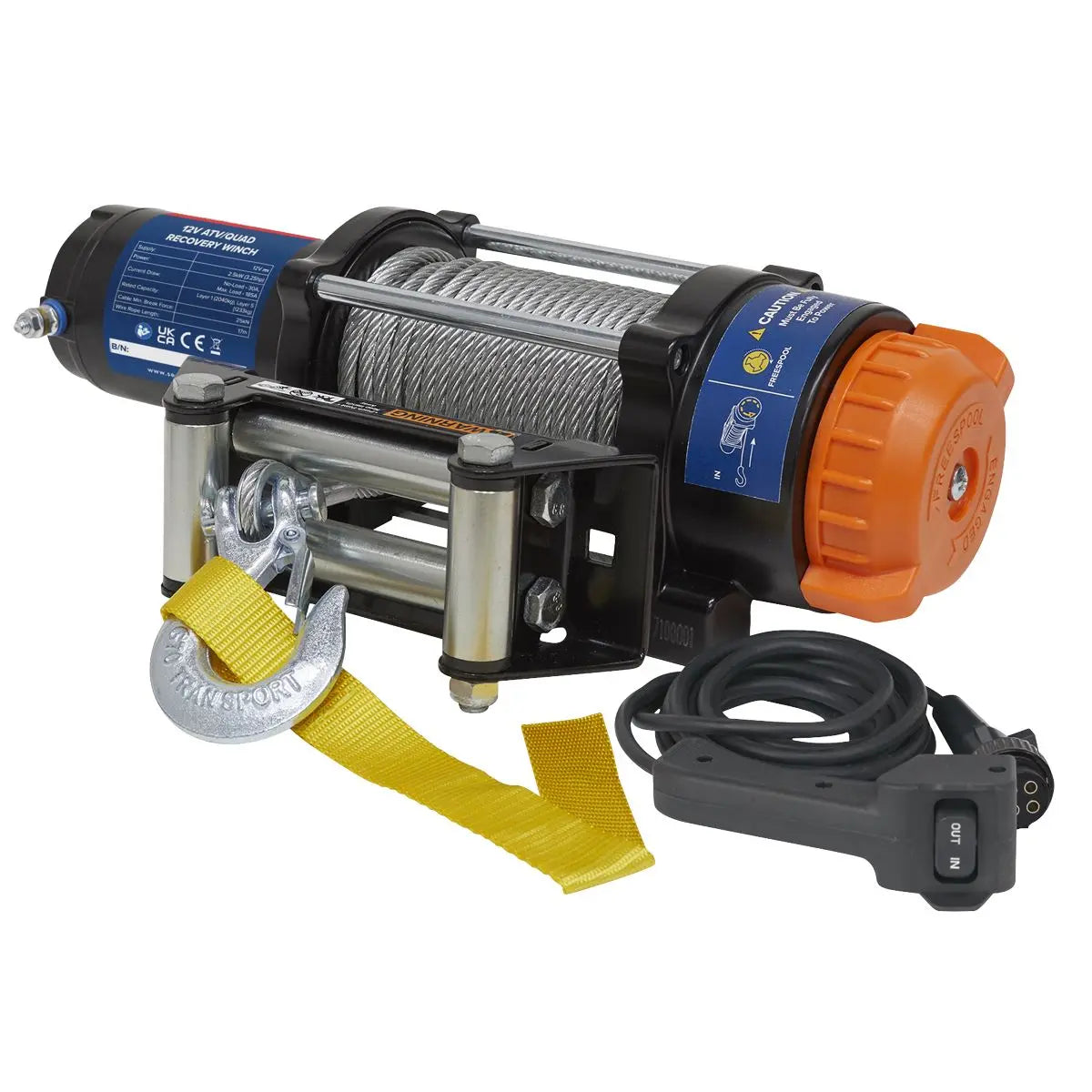

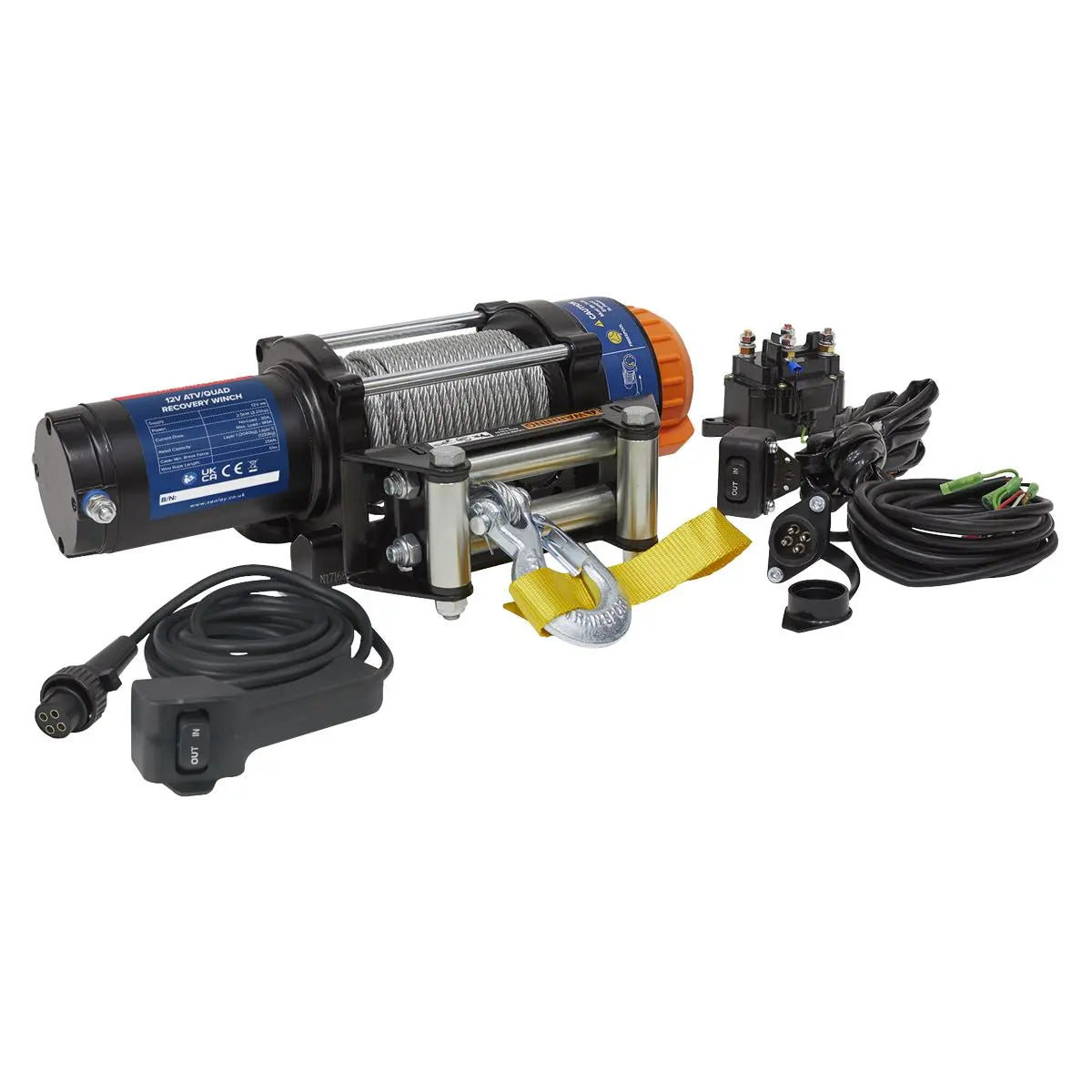

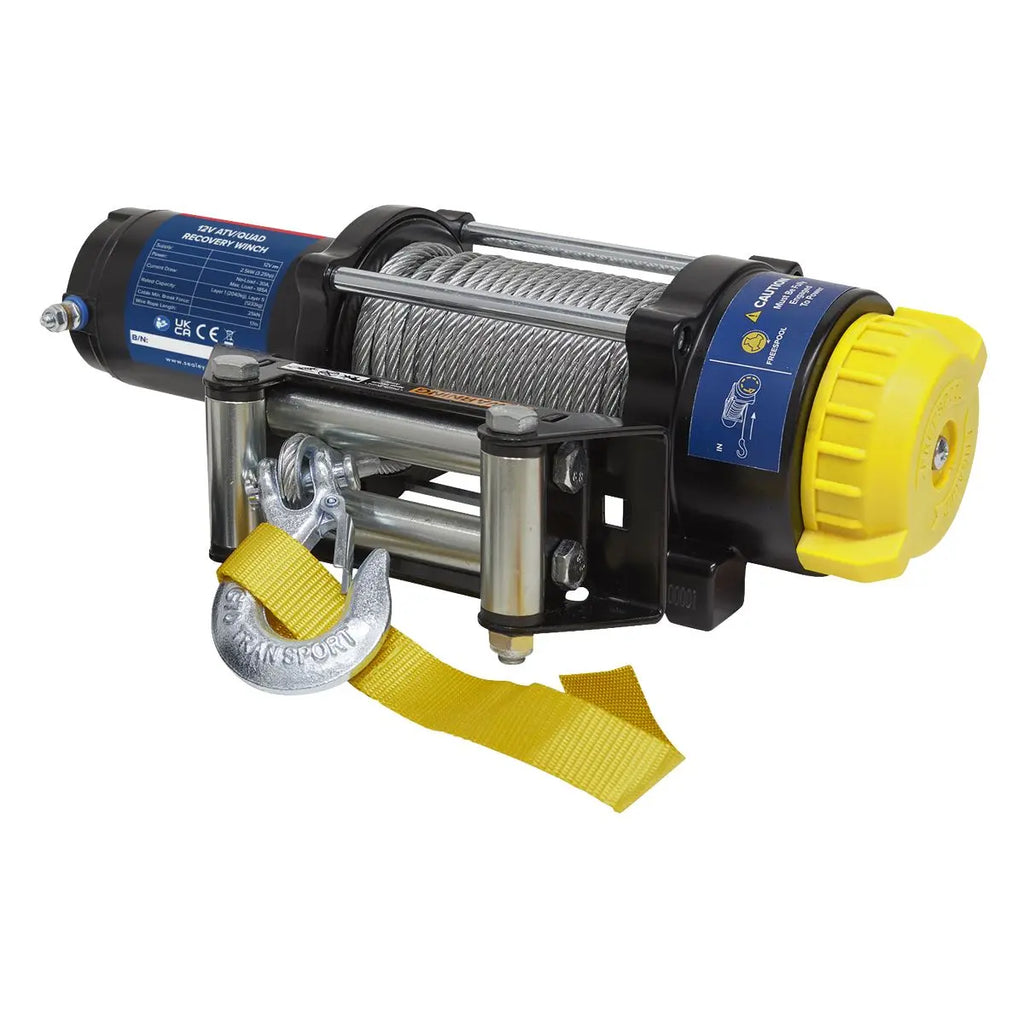

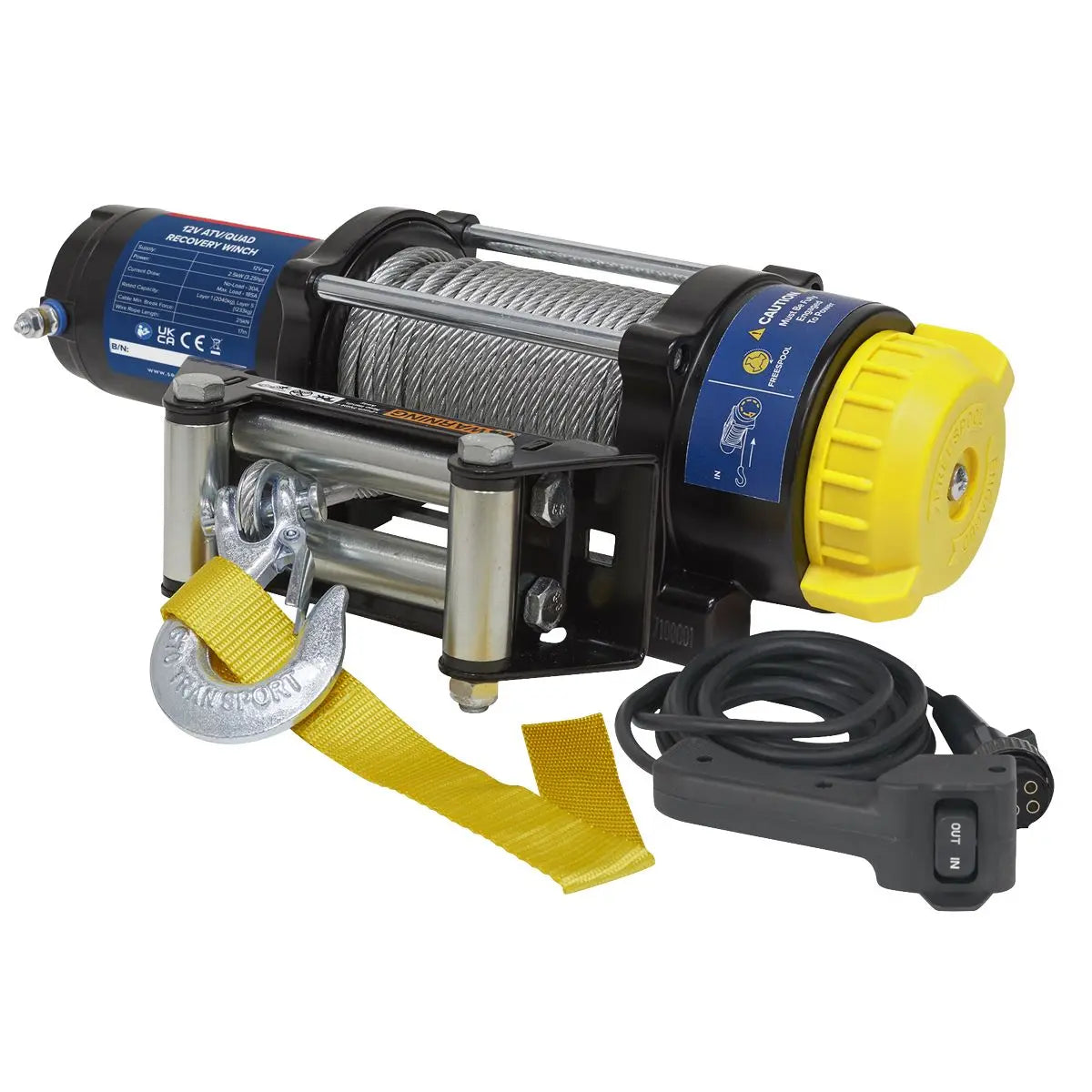

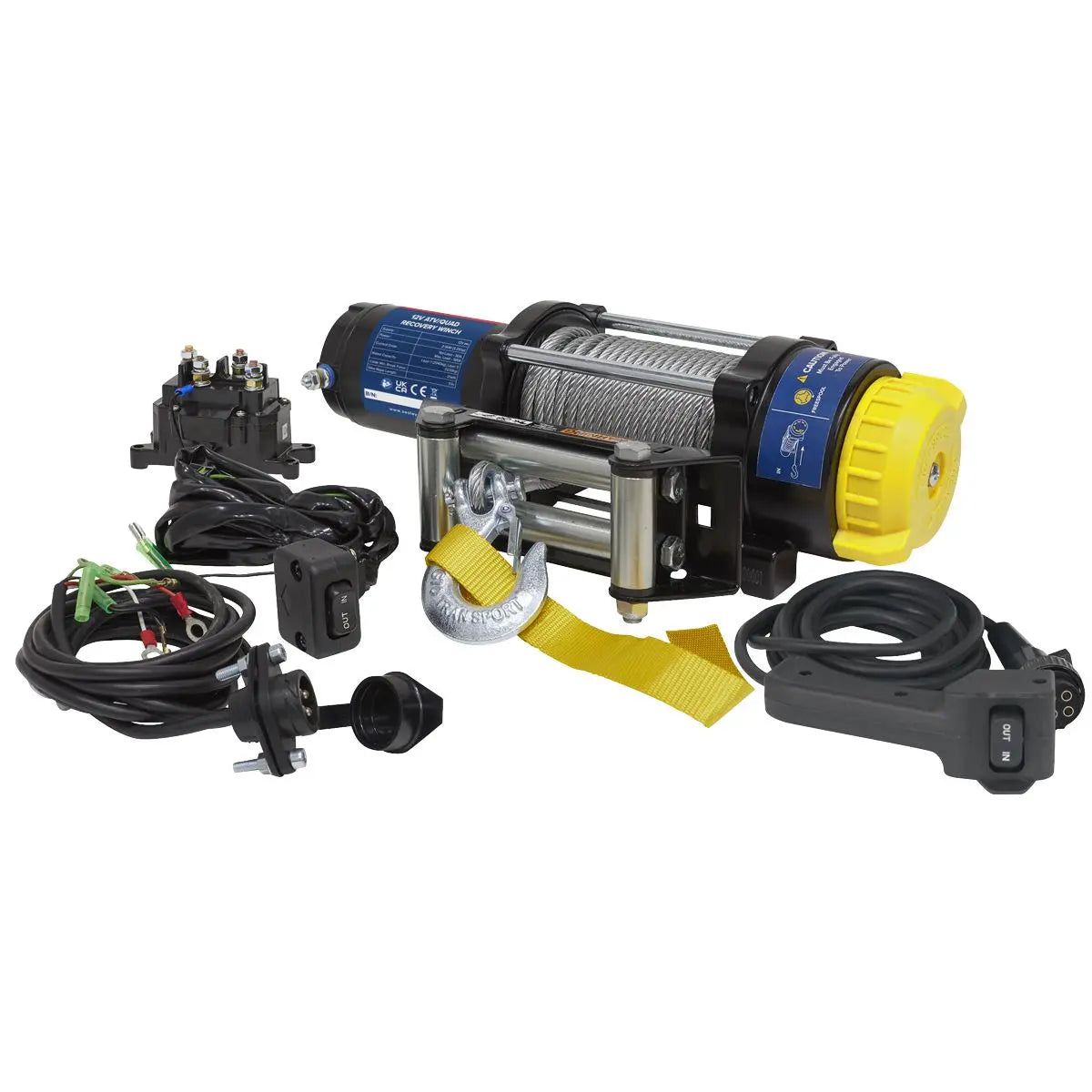

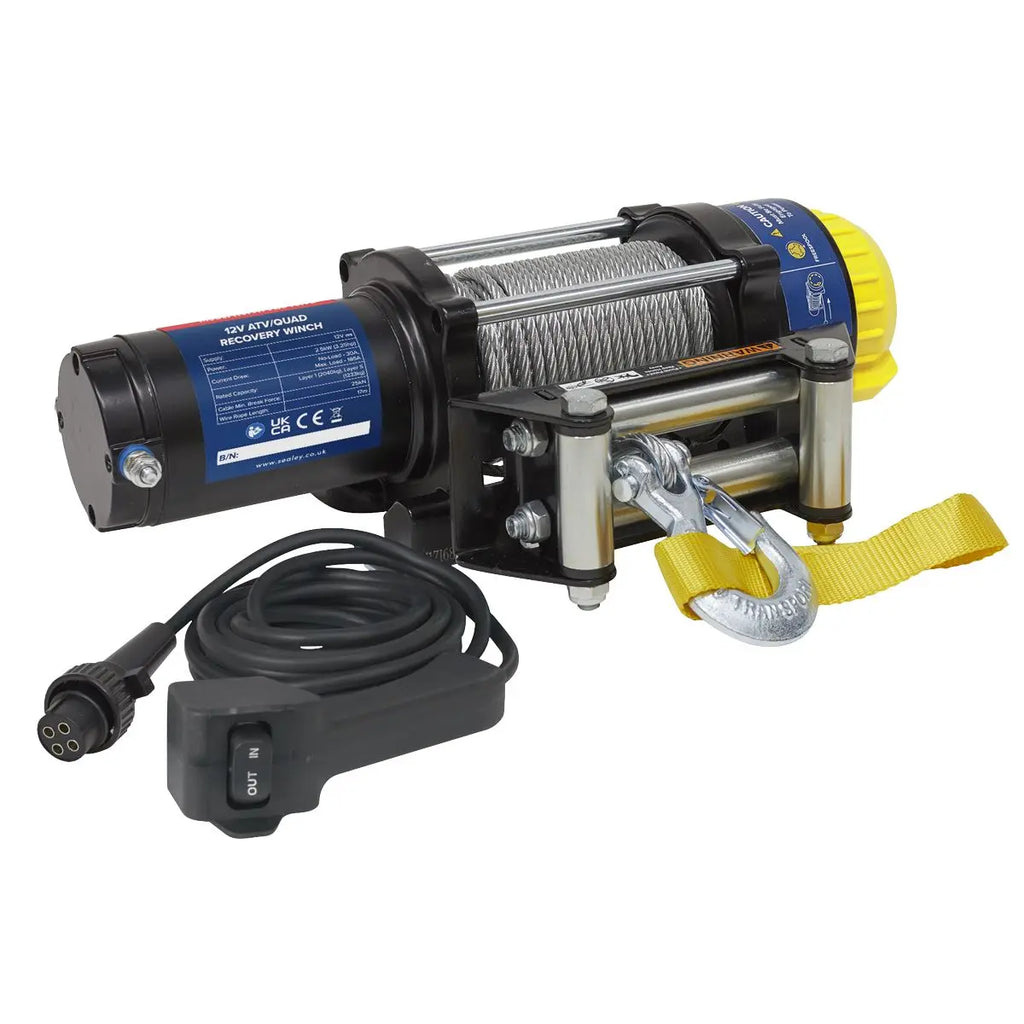

Sealey ATV/Quad Recovery Winch 2040kg (4500lb) Line Pull 12V

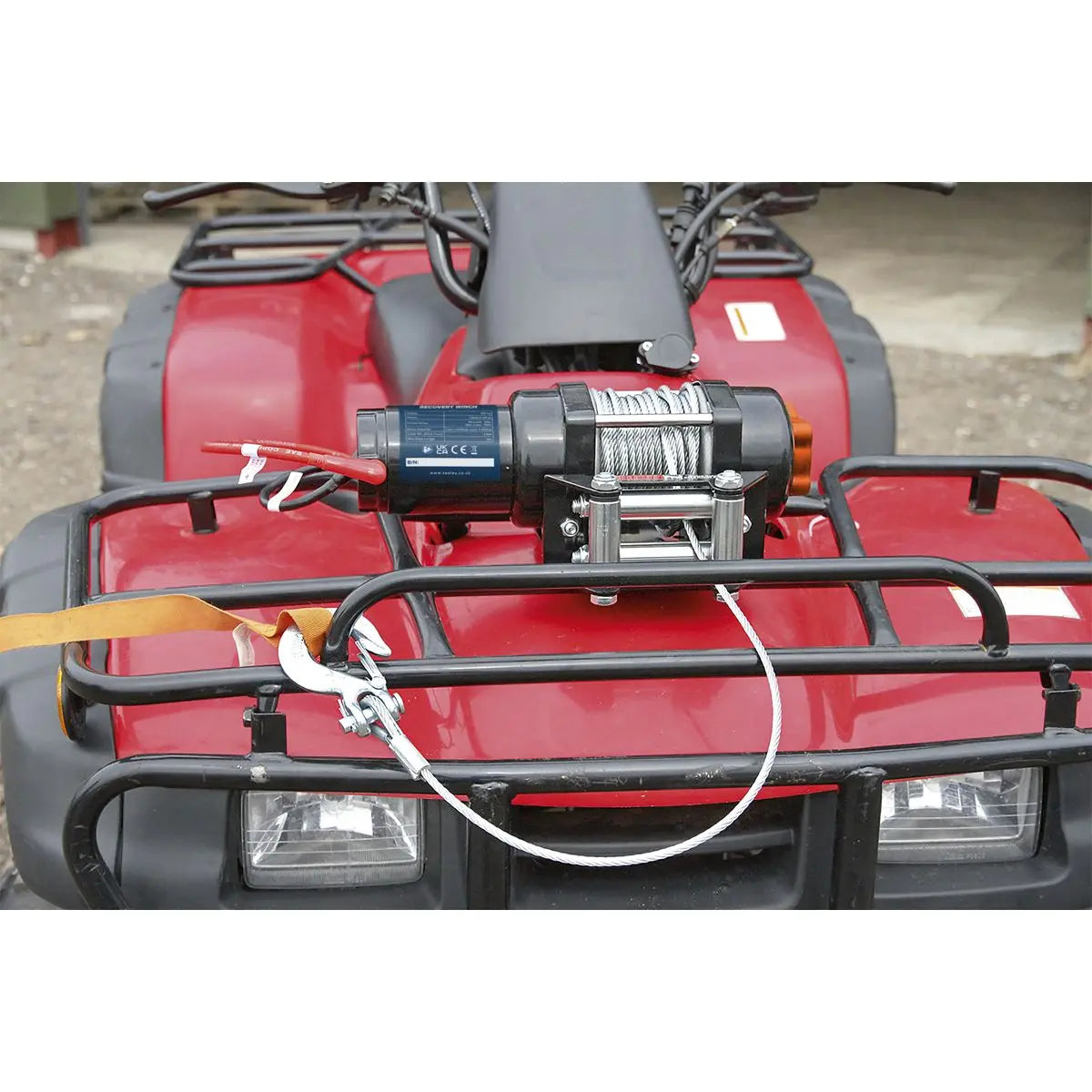

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.

High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power.

All-metal chassis for long-life and low maintenance.

Motor can easily be rotated 90° to meet various wiring and mounting requirements.

Patented unique automatic spring brake, reliable in full load operation.

High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.

Cable Length: 17m.

Line Pull*: 2040kg(4500lb).

IP67 rated.

Gear Ratio: 180:1. *Performance quoted at first layer of cable on drum.

Specification:

  • Model No ATV2040
  • Brand: Sealey
  • Consumable Parts: ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040
  • Current Draw: No-Load - 30A, Maximum Load - 185A
  • Gear Ratio: 180:1
  • Line Pull*: 2040kg(4500lb)
  • Line Speed*: No Load - 4.5m/min, Maximum Load - 1.3m/min
  • Motor Power: 2.5kW(3.25hp)
  • Nett Weight: 13.9kg
  • Note: *Performance quoted at first layer of cable on drum
  • Rated Capacity: Layer 1: 2043kg, Layer 4: 1234kg
  • Supply: 12V
  • Wire Rope Diameter: 5.4mm
  • Wire Rope Length: 17m
Product Guarantee: 1 Year
Catalogue Page: Page 1364
