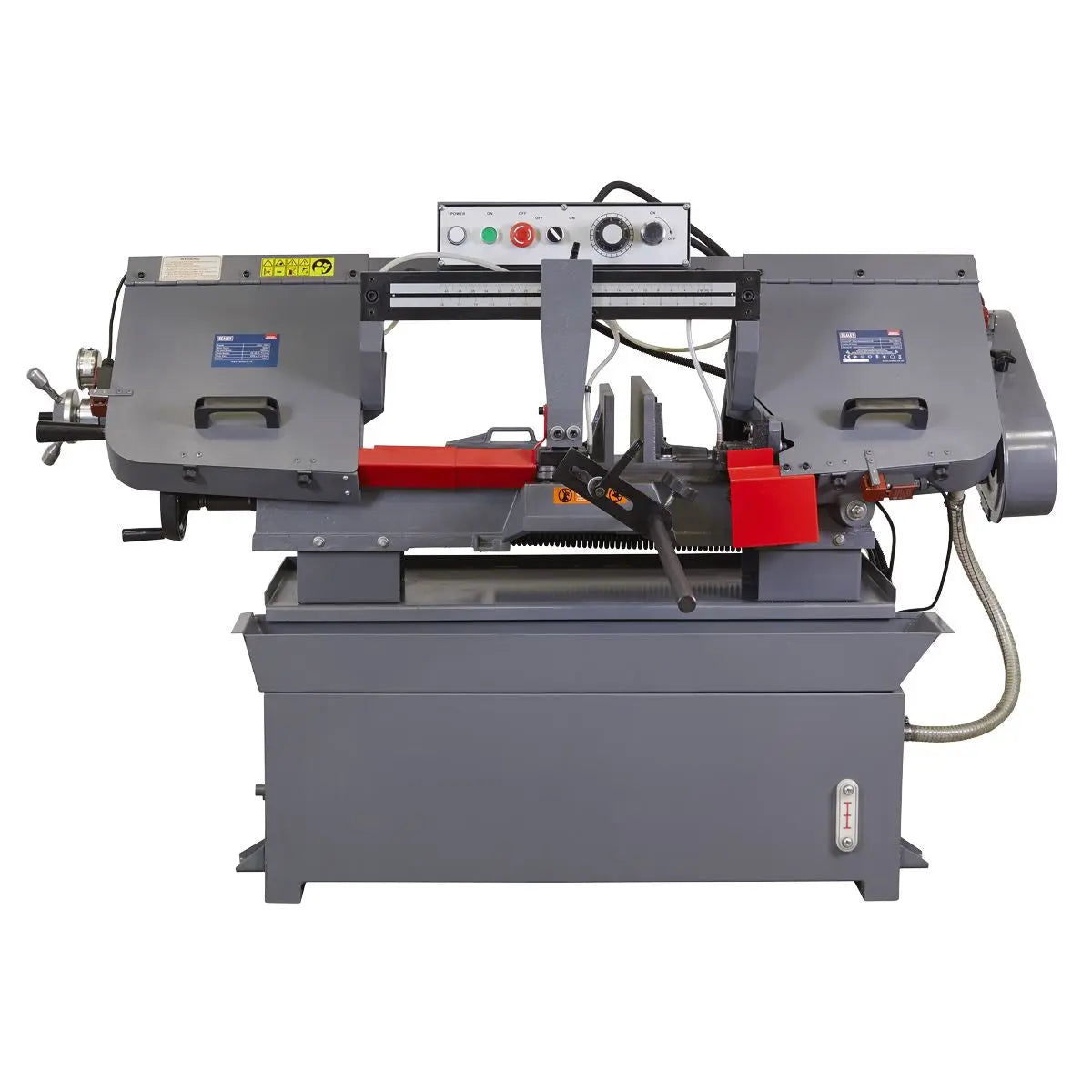

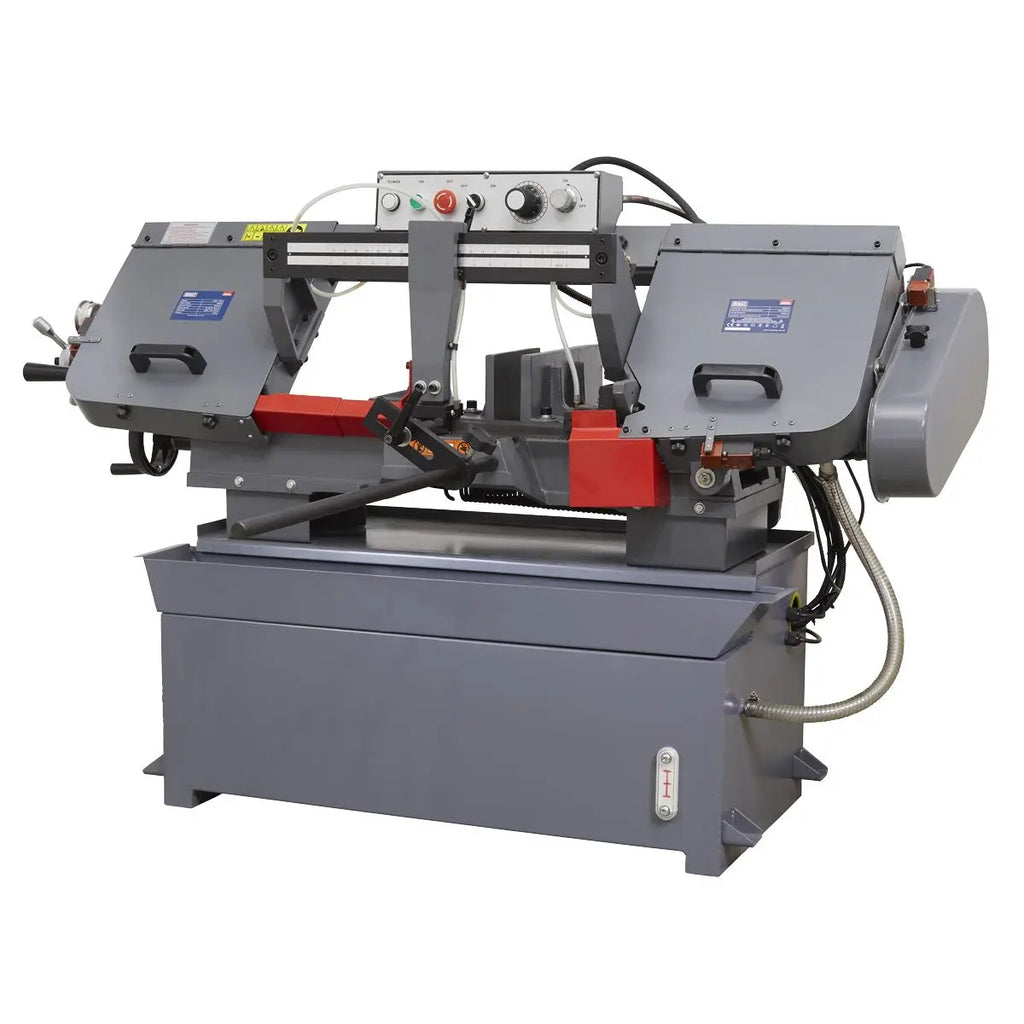

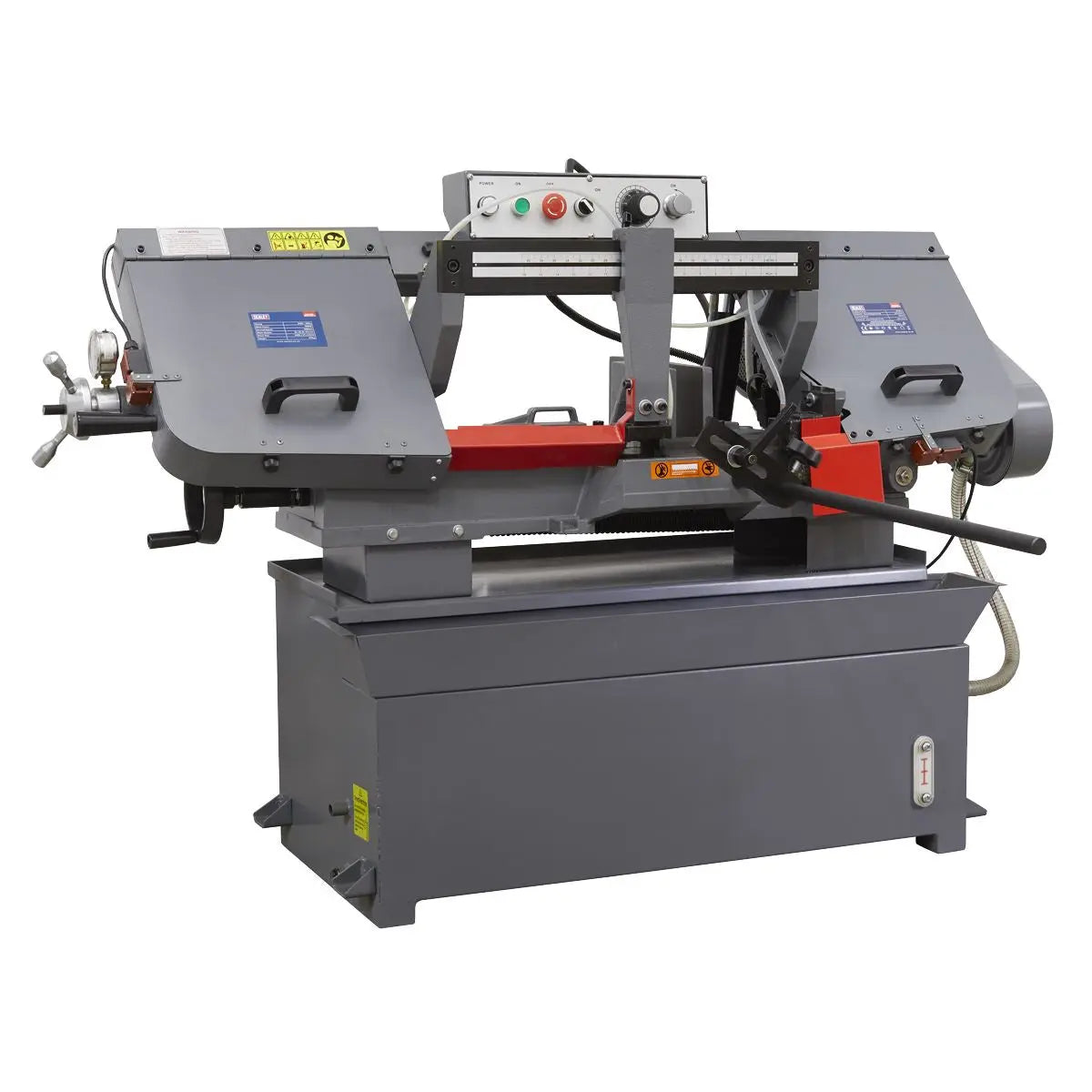

Sealey Bandsaw 400mm Horizontal Hydraulic Arm

Sealey Bandsaw 400mm Horizontal Hydraulic Arm

Manufactured to comply with Safety of Machinery (Safety) Directives 1992 (and amendments) and fully CE approved.

Saw arm is fitted with hydraulic damping to prevent the arm being dropped onto the workpiece and to ensure smooth cutting performance.

Coolant fluid system.

24V system for coolant pump and motor controls gives added safety to operator.

Heavy-duty single phase electric motor with over-current sensor to cut power in the event of blade jam.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SM353CE
• Brand: Sealey
• Nett Weight: 279kg
• Capacity 90° - Round: Ø228mm
• Capacity 90° - Square/Rectangular (H x W): 228 x 355mm
• Capacity 45° - Round: Ø152mm
• Capacity 45° - Square/Rectangular (H x W): 228 x 152mm
• Blade Size: 3035 x 27 x 0.9mm
• Blade Speeds: 21, 33, 42 ,59m/min
• No Load Speed: 1400rpm
• Motor Power: 1500W
• Supply: 230V
• Weight: 279kg
• Weight: 285kg

Product Guarantee: 1 Year
Catalogue Page: Page 1208

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
