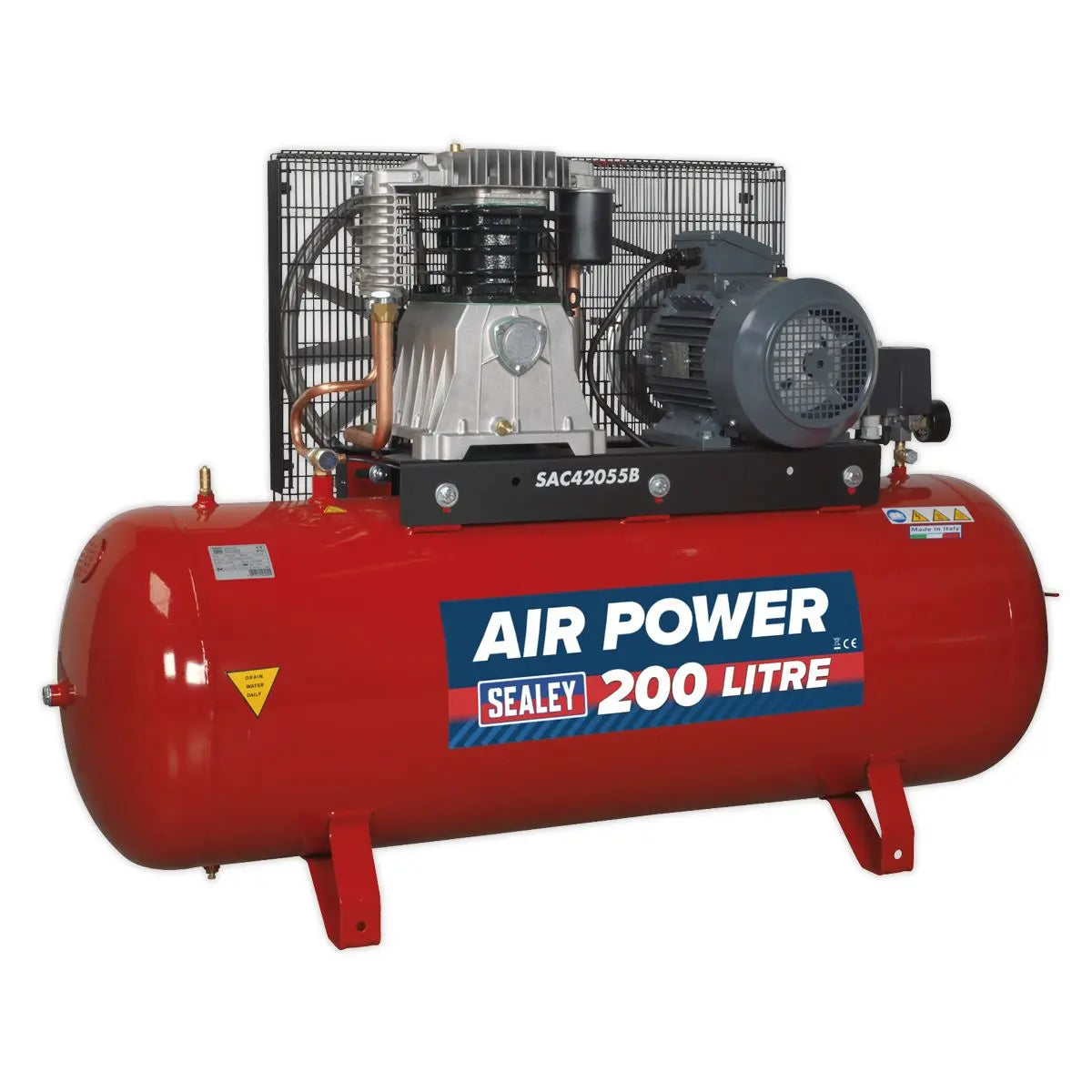

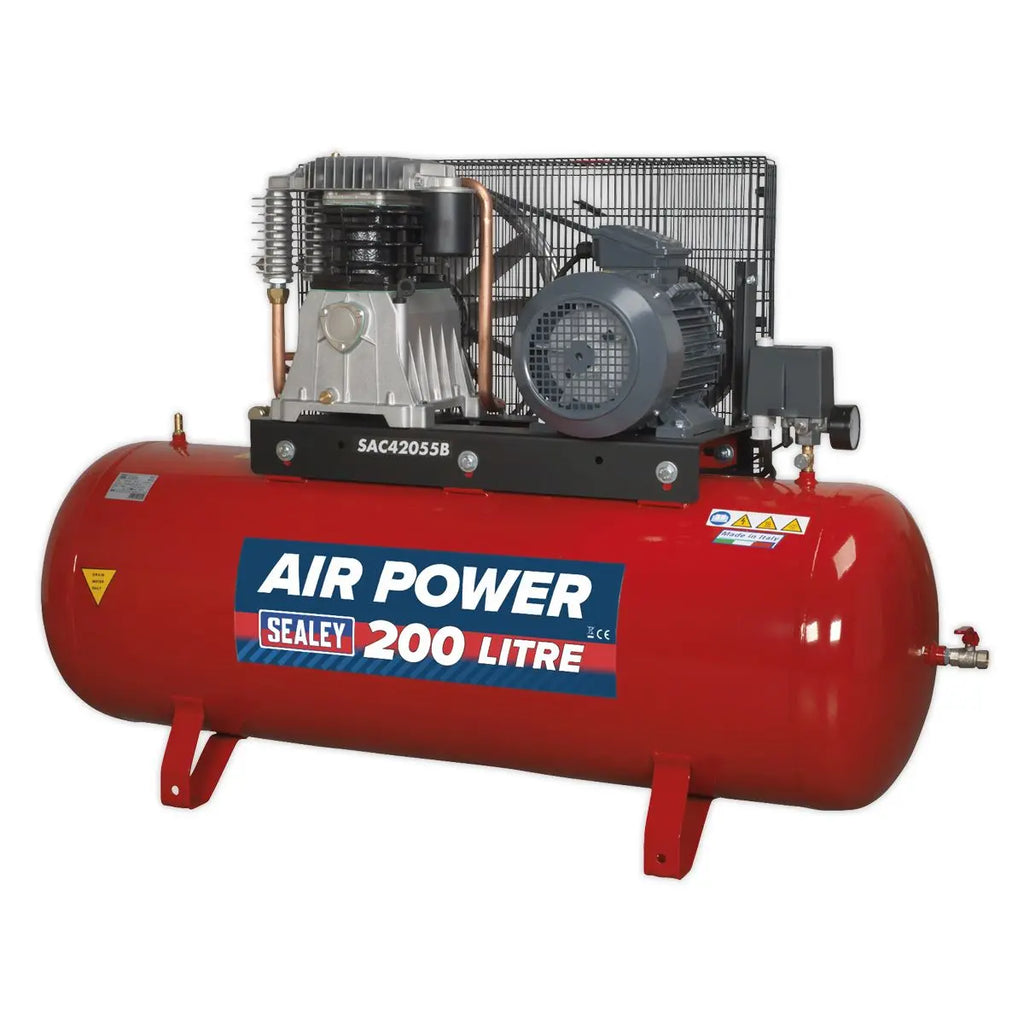

Sealey Air Compressor 200L Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders

Sealey Air Compressor 200L Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders

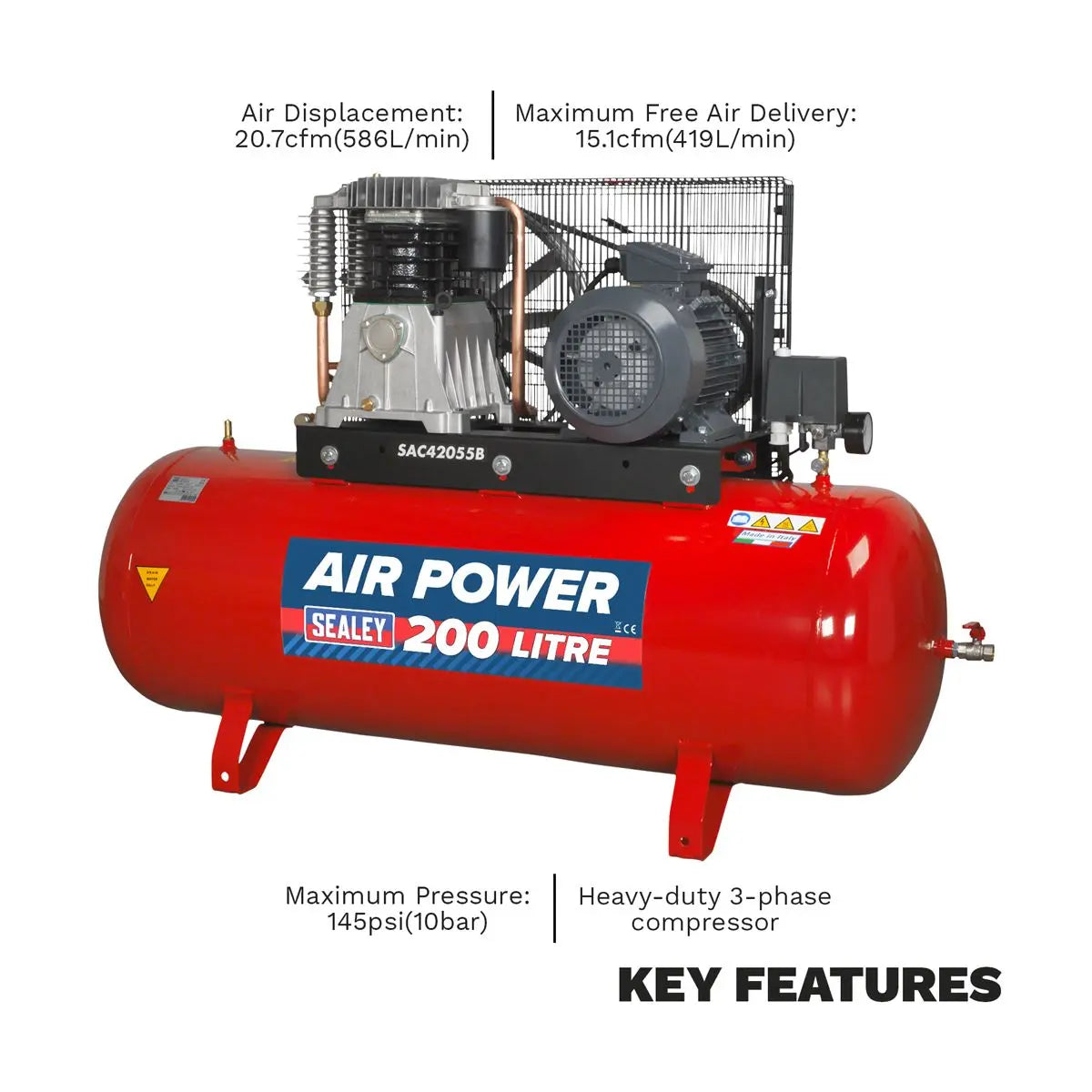

Air Displacement: 20.7cfm(586L/min).

Maximum Free Air Delivery: 15.1cfm(419L/min).

Maximum Pressure: 145psi(10bar).

Heavy-duty 3-phase compressors suitable for the professional workshop.

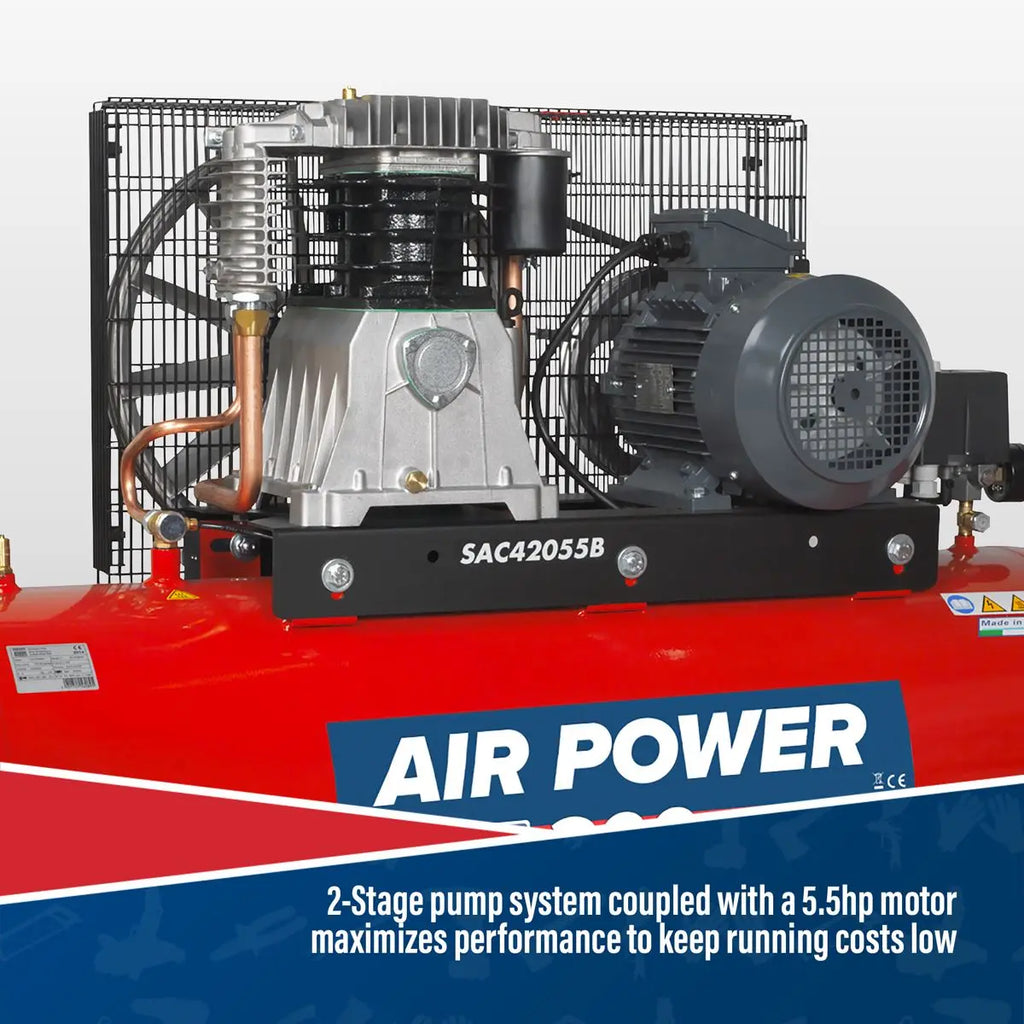

2-Stage pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage single phase model.

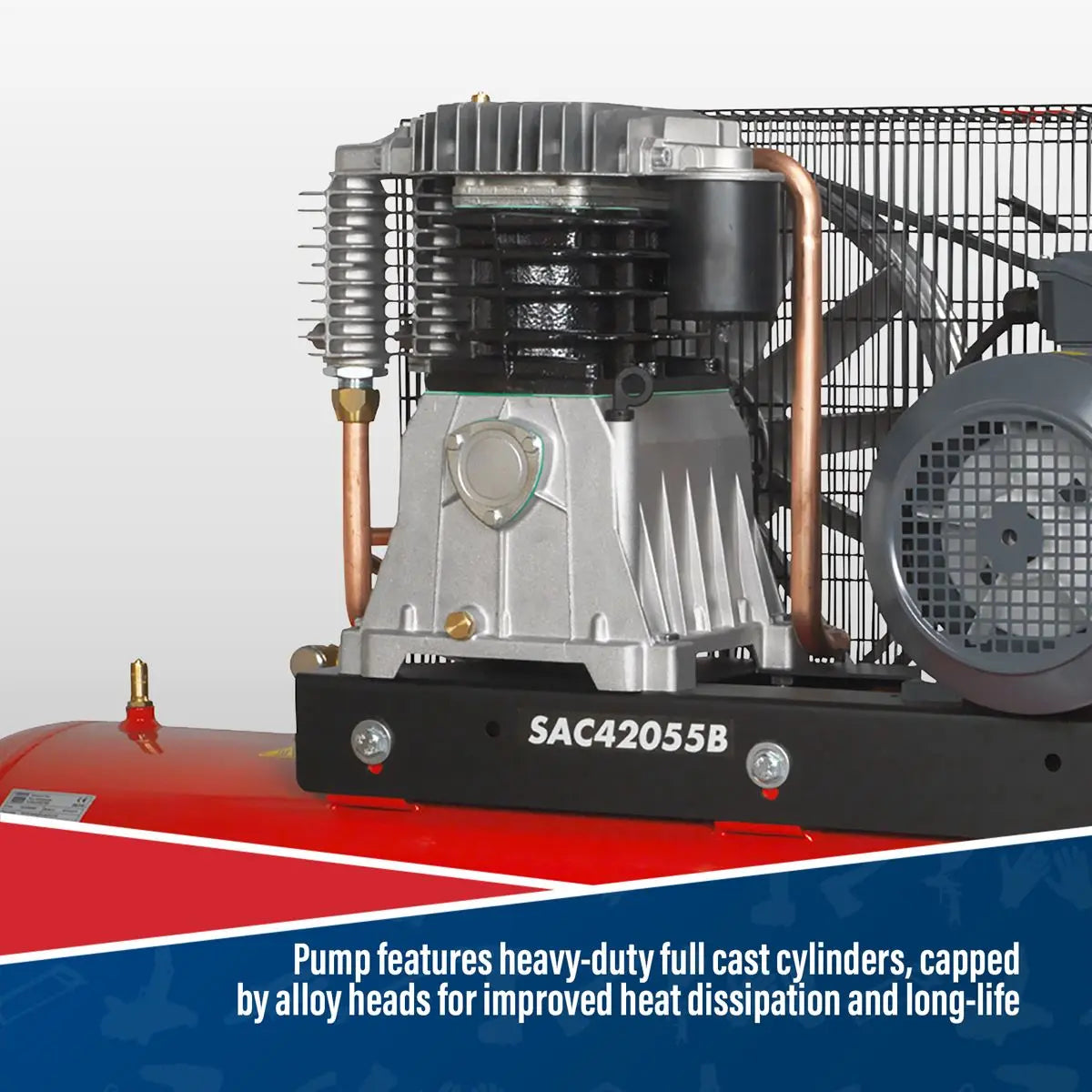

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

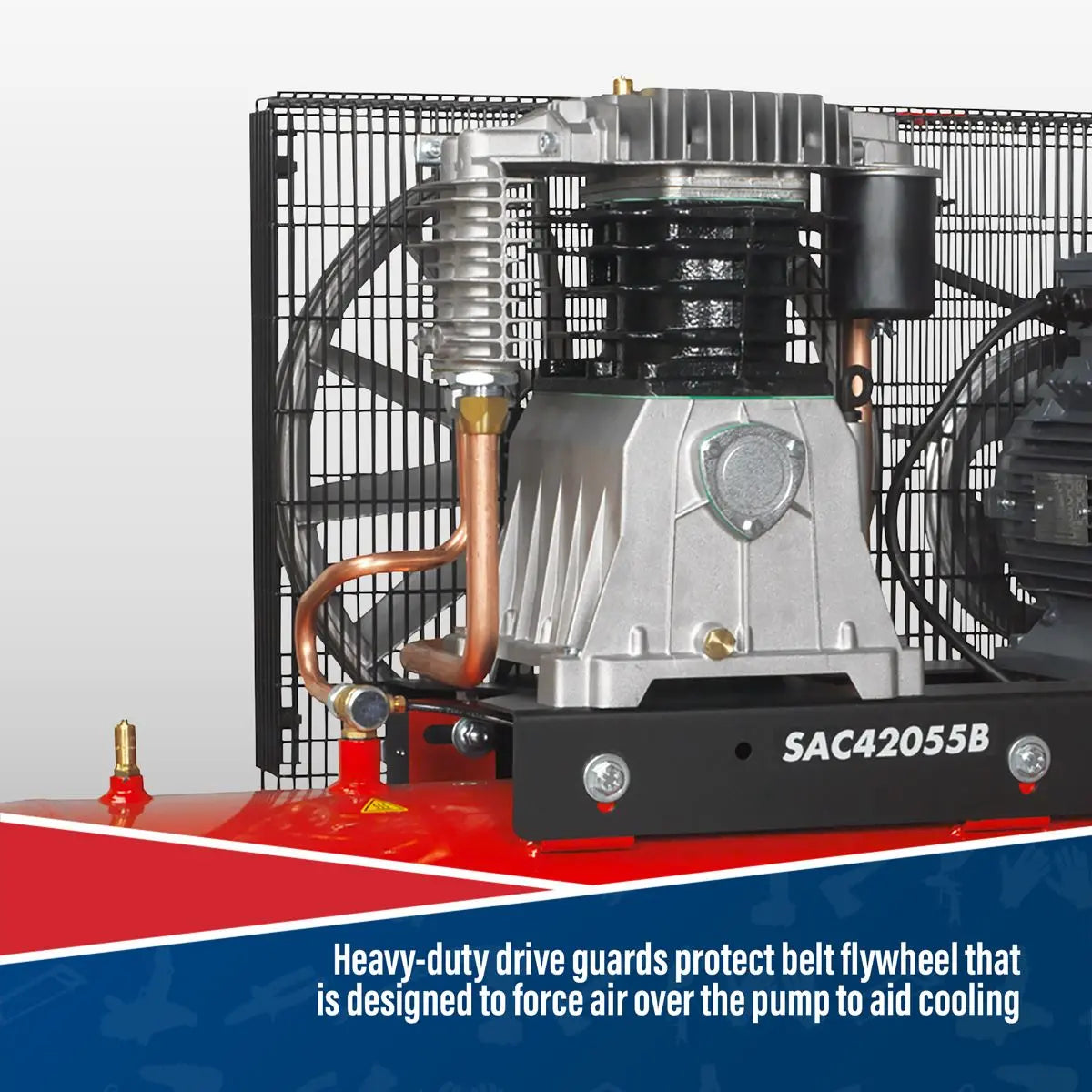

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Supplied with full CE certification, test certificates and operating/maintenance manual.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SAC42055B
• Air Displacement cfm(L/min): 20.7(586)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 15.1(419)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 32A
• Motor Output: 5.5hp
• Nett Weight: 135kg
• Oil Capacity: 1.2L
• Outlet: 1/2"BSP Female Tap
• Phase: 3ph
• Receiver Capacity: 200L
• Size (W x D x H): 1440 x 440 x 965mm
• Speed: 1490rpm
• Supply: 415V/32A

Product Guarantee: 1 Year
Catalogue Page: Page 781

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
