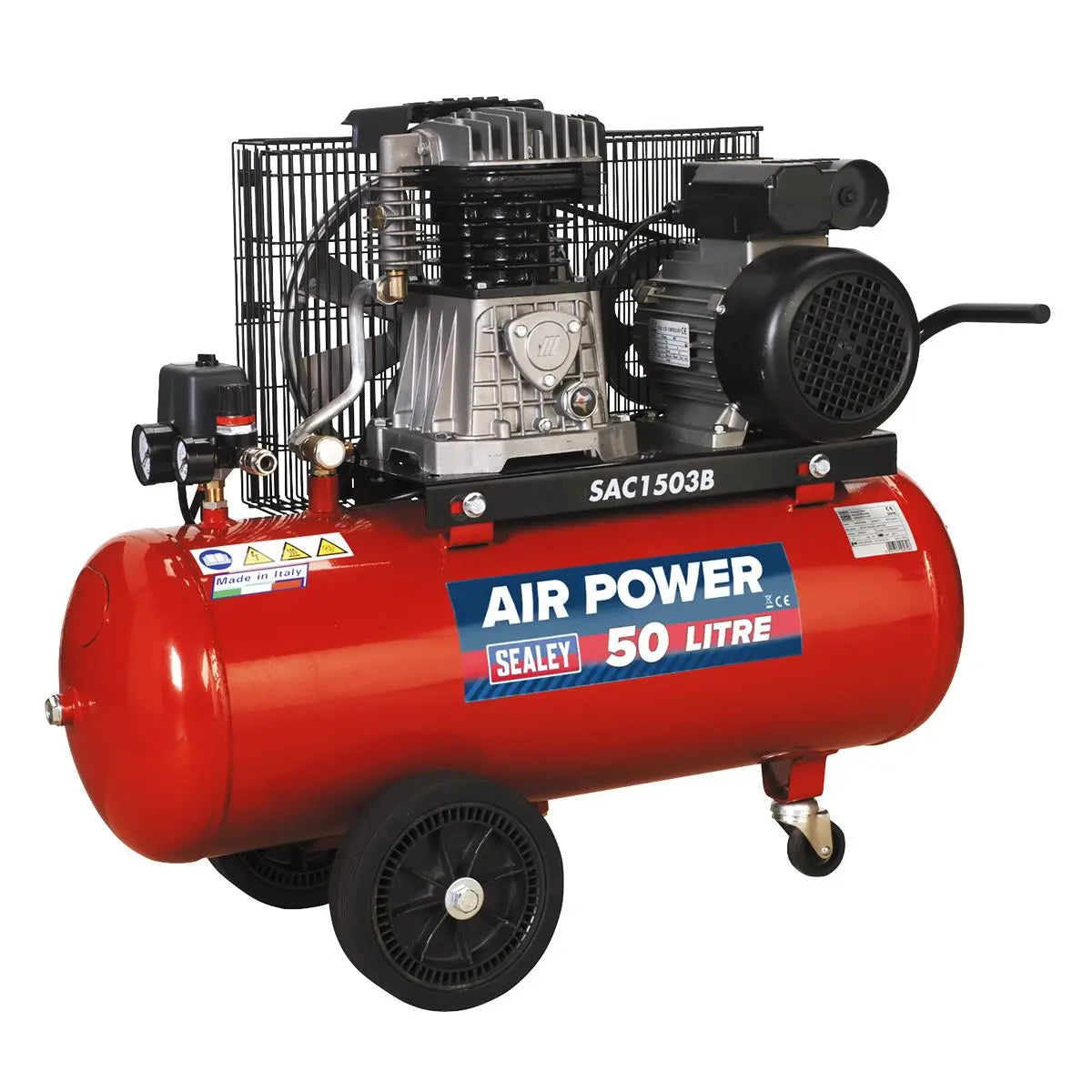

Sealey Air Compressor 50L Belt Drive 3hp with Cast Cylinders & Wheels

Sealey Air Compressor 50L Belt Drive 3hp with Cast Cylinders & Wheels

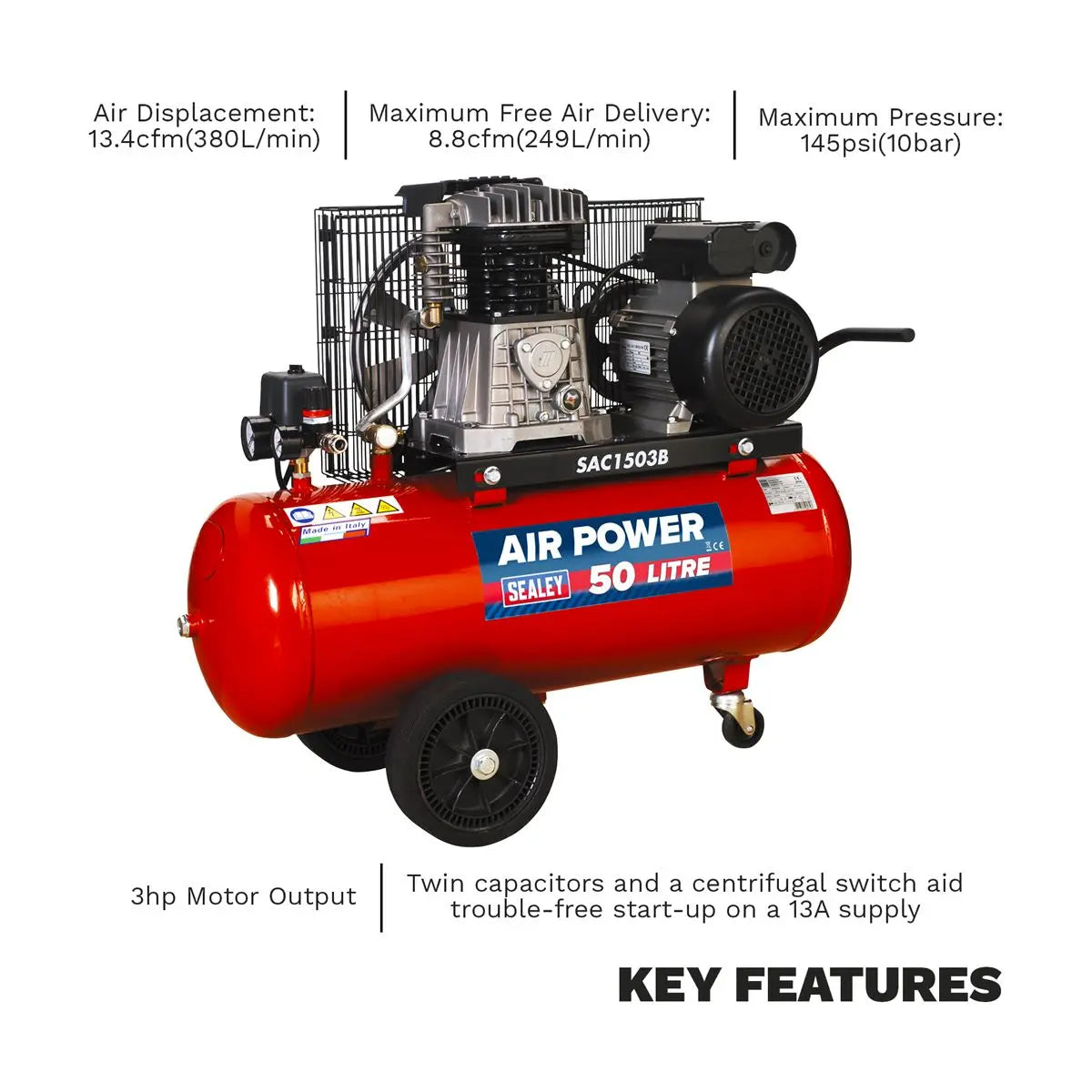

Air Displacement: 13.4cfm(380L/min).

Maximum Free Air Delivery: 8.8cfm(249L/min).

Maximum Pressure: 145psi(10bar).

Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.

Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.

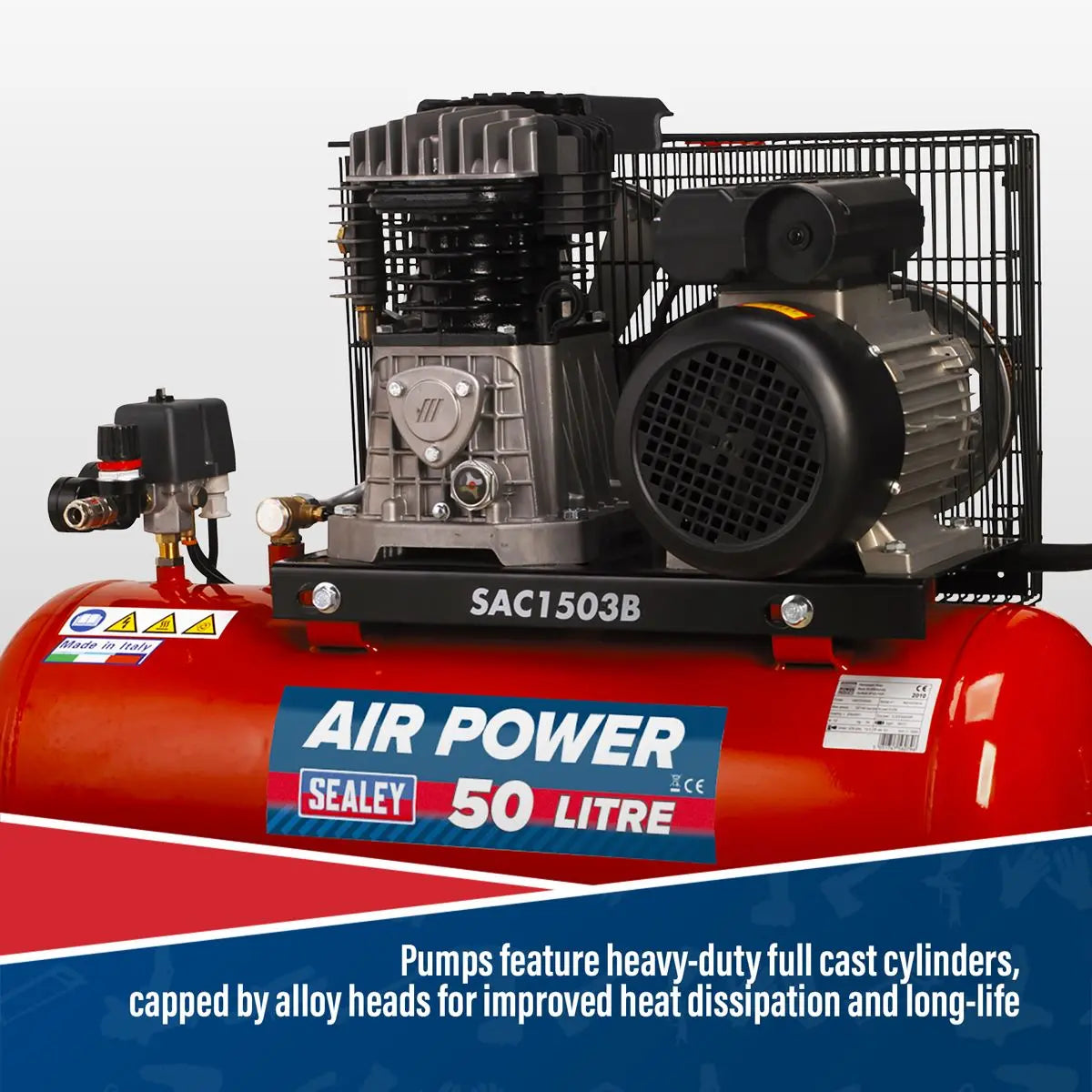

Pumps feature a heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

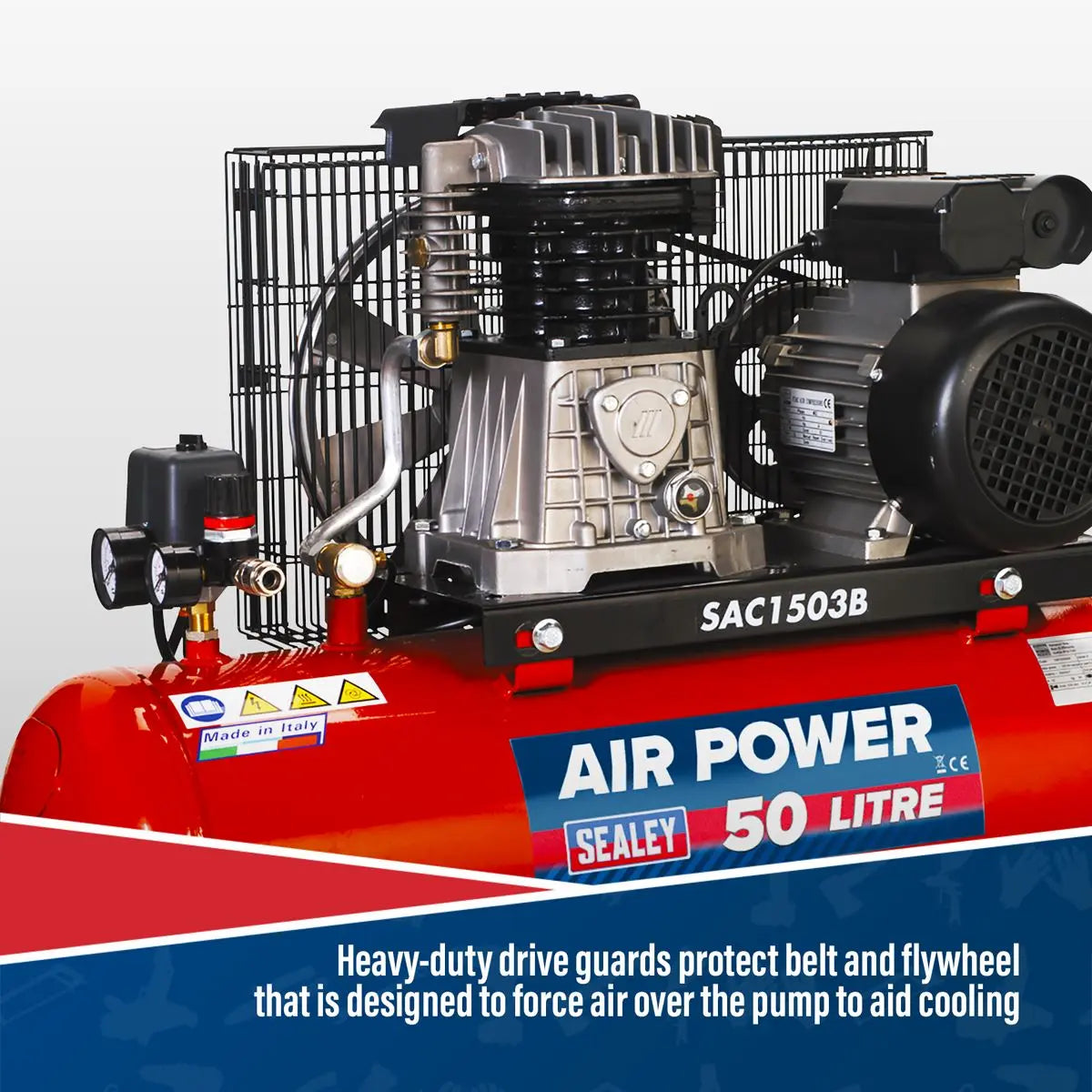

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Supplied with full CE certification, test certificates and operating/maintenance manual.

Specification:

• Model No SAC1503B
• Air Displacement cfm(L/min): 13.4(380)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 8.8(249)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 13A
• Motor Output: 3hp
• Nett Weight: 50kg
• Oil Capacity: 0.45L
• Outlet: Quick Release Coupling
• Phase: 1ph
• Receiver Capacity: 50L
• Size (W x D x H): 1020 x 390 x 740mm
• Speed: 1630rpm
• Supply: 230V/13A

Product Guarantee: 1 Year
Catalogue Page: Page 776

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
