Sealey Diesel Engine Timing Tool Kit - for Ford, PSA - Belt Drive

Sealey Diesel Engine Timing Tool Kit - for Ford, PSA - Belt Drive

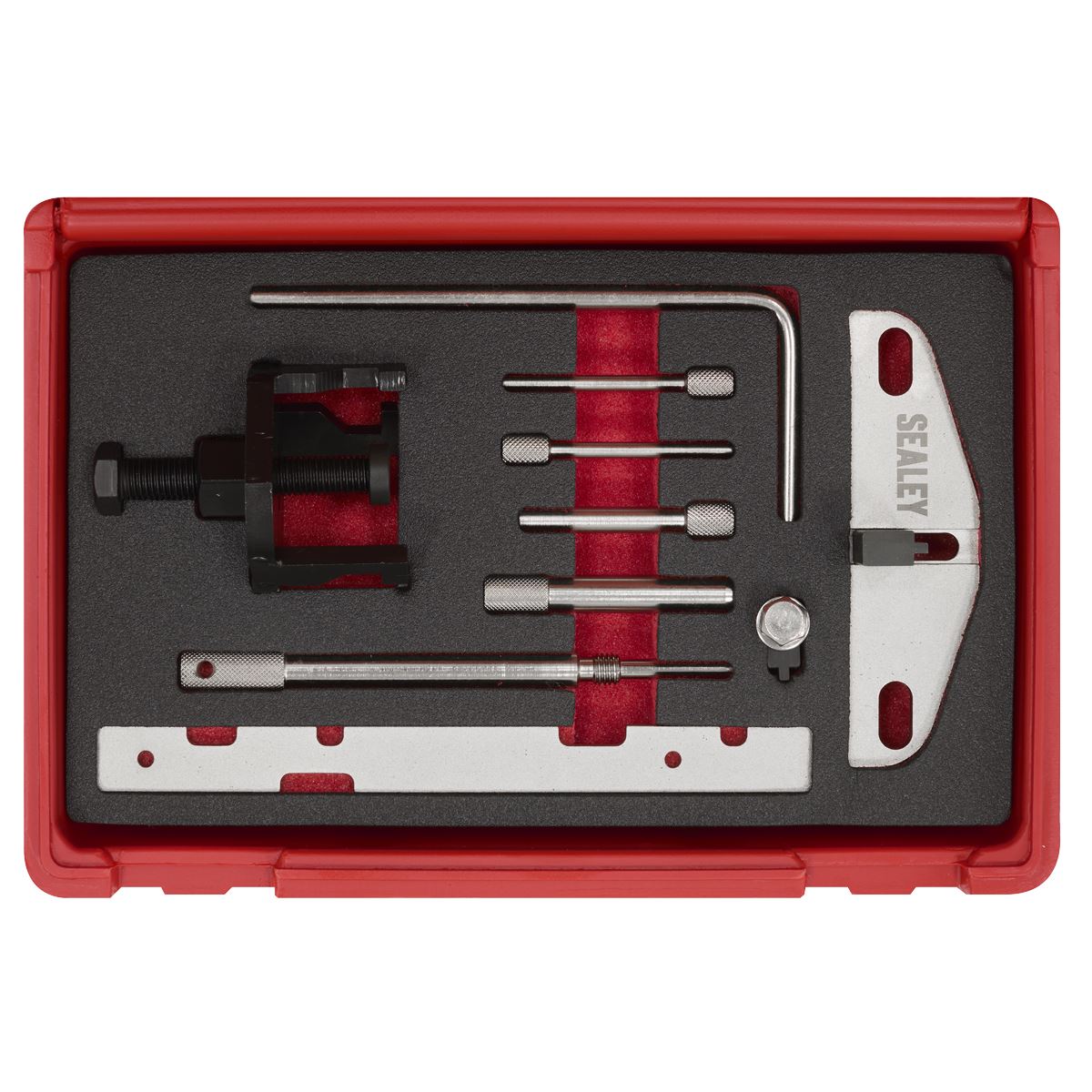

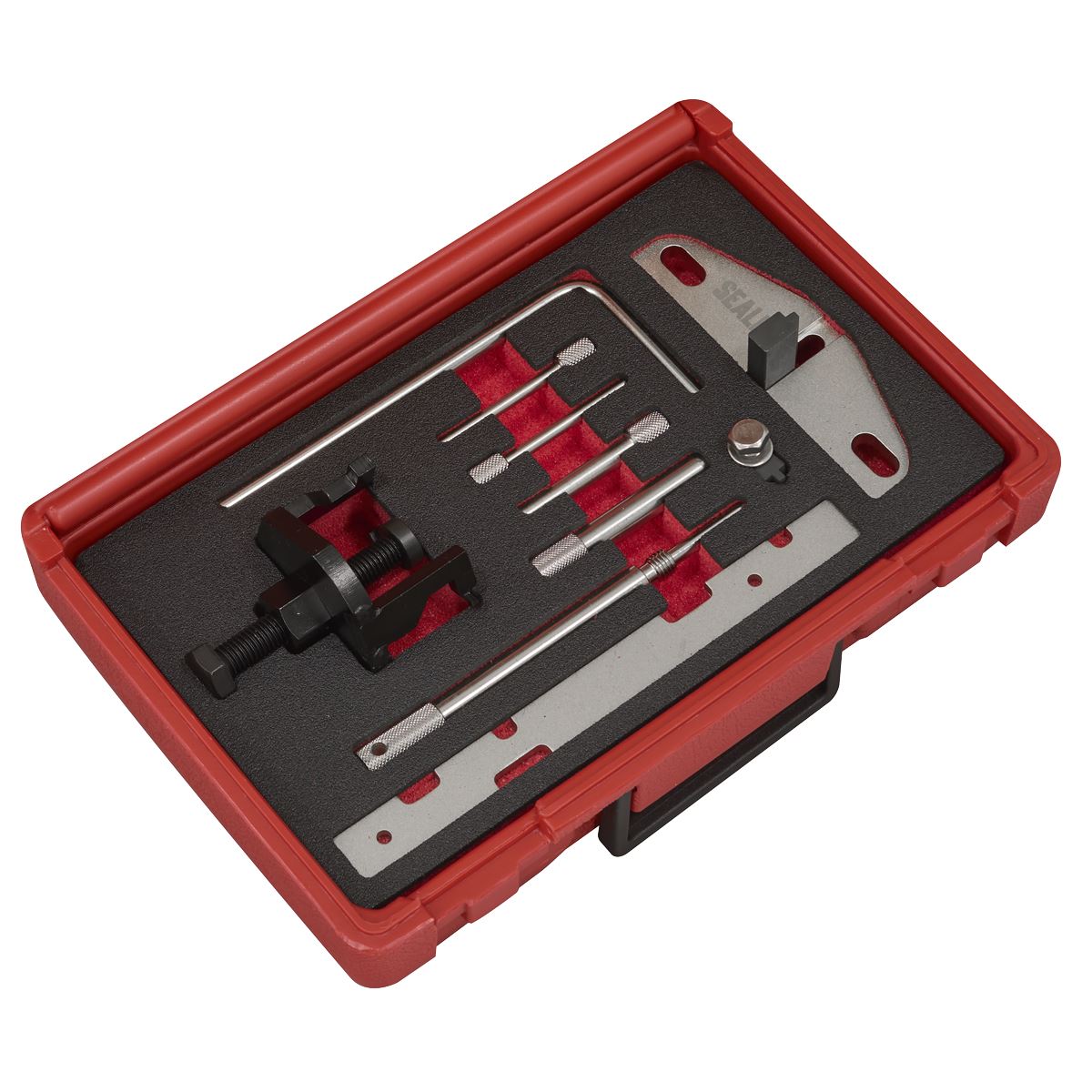

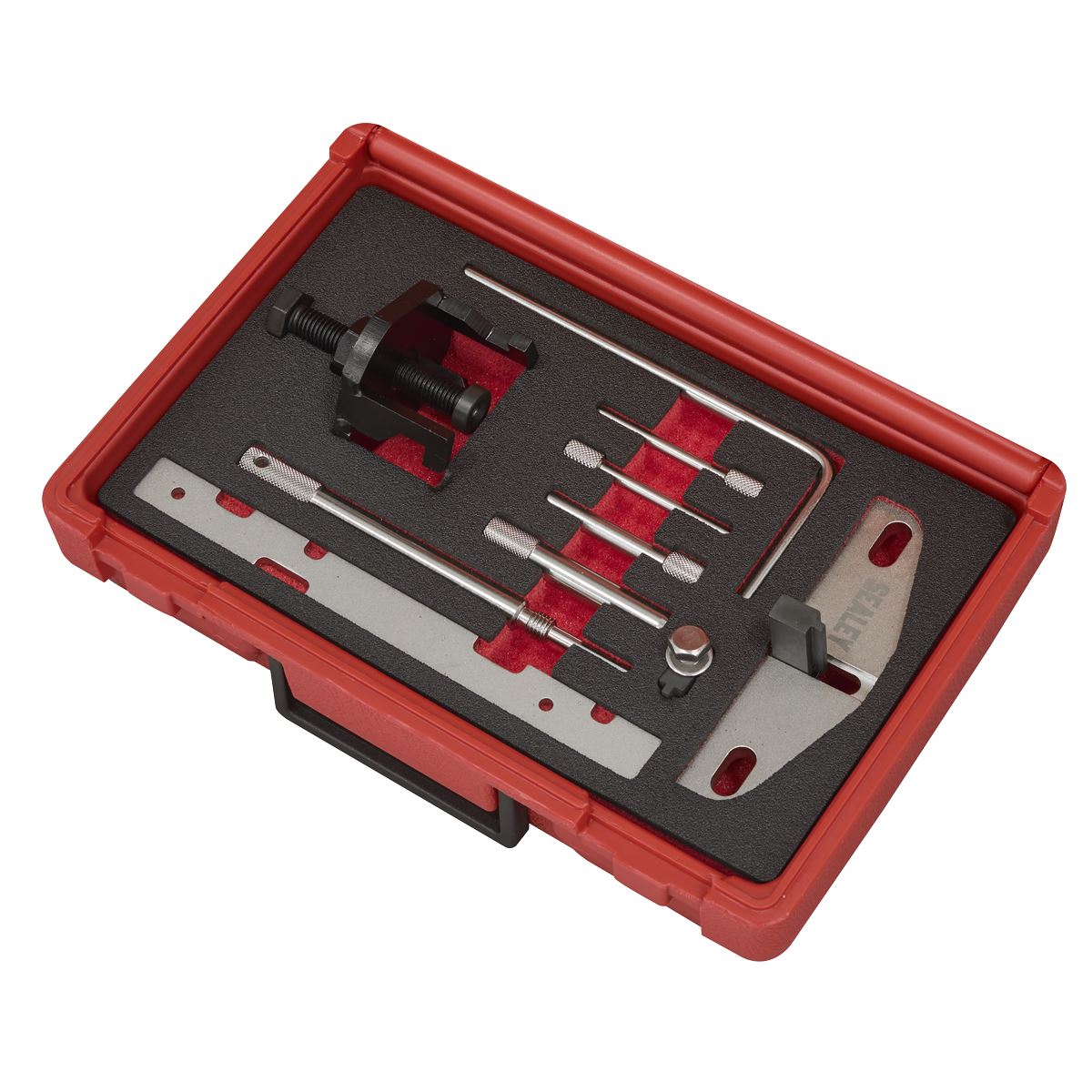

Comprehensive kit covers Ford, Mazda and PSA 1.4, 1.5, 1.6, 1.8, 2.0 TDCi/HDi belt drive diesel engines.

Includes camshaft, crankshaft and high pressure pump locking tools plus camshaft sprocket removal tool.

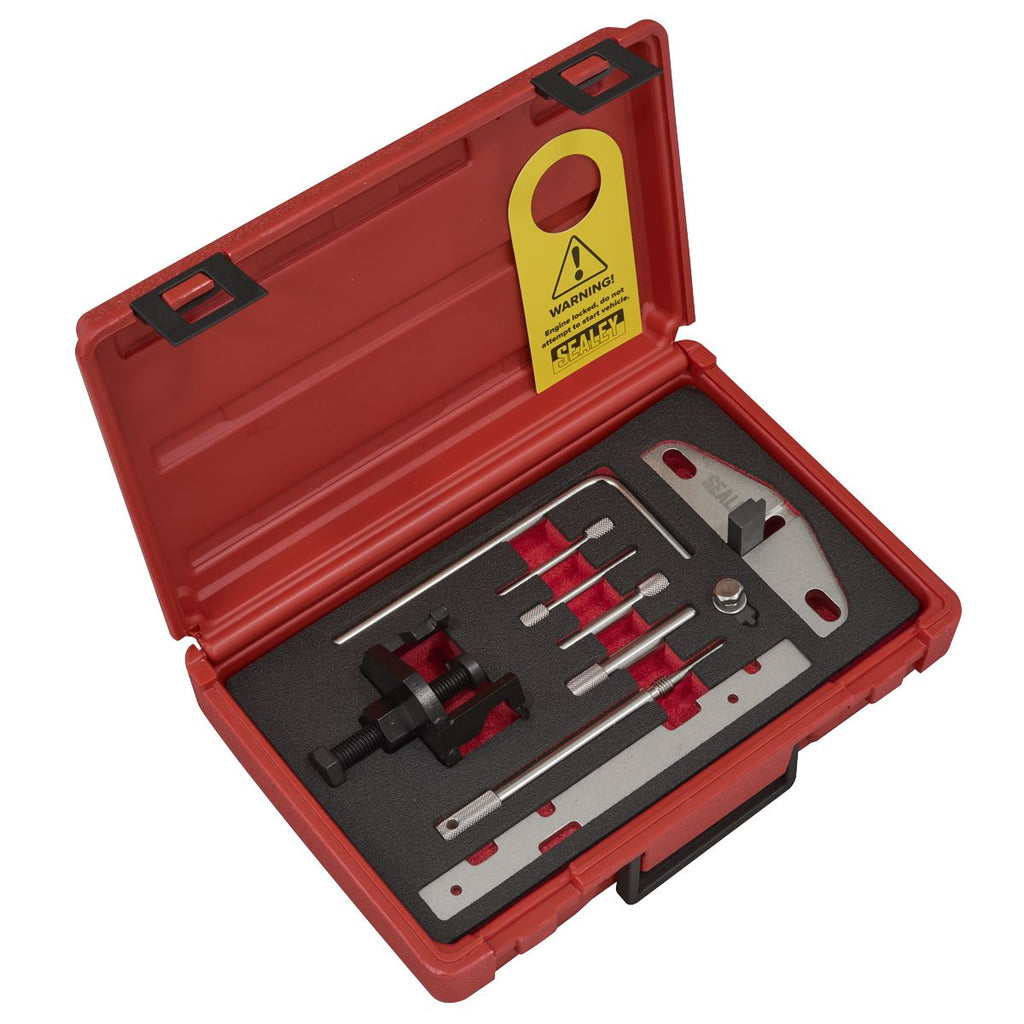

Kit includes warning tag.

Specification:

• Model No VSE5941
• Application(s):
• Citroen: C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-15), C3 Pluriel (04-10), C3 Picasso (09-12), C4 (04-11), C4 II(11-15), C4 Picasso (06-12), C4 Grand Picasso (10-12), DS3 (09-12), DS4 (11-12), DS5 (12-15), C5 II (04-08), C5 III (04-12), Xsara II (02-04), Xsara Picasso (04-10)
• Ford: B-Max (15-18), Courier (00-02), C-Max (03-10), Ecosport (15-18), Fiesta (02-20), Focus (98-11), Fusion (02-11), Galaxy (06-10), Kuga (06-10), Mondeo (07-10), S-Max (06-10), Tourneo Connect (02-13), Transit Connect (02-13)
• Mazda: 2 (02-15), 3 (09-14)
• Peugeot: Bipper (08-10), Dispatch/Jumpy III (07-12), Expert III (07-12), Nemo (08-10), Partner I/II (05-11), Partner III (08-16), 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (09-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (11-15), 307 (01-08), 308 (07-15), 308CC (09-15), 407 (05-11), 508 (04-15), 2008 (13-15), 3008 (09-15), 4008 (12-15), 5008 (09-15) Traveller (16-20)
• Brand: Sealey
• 1.4 TDCi: DV4TD(8HT), DV4TD(8HX), DV4TD(8HZ), DV4TD(8HW), DV4TED4(8HX), DVTED4(8HV), DV4TED4(8HY), DV4C(8HP), DV4C(8HR), DV4TED(8HS), F6JA, F6JB, F6JC
• 1.6TDCi: DV6TED4(9HZ), DV6ATED4(9HX), DV6TED4(9HY), DV6DTED(9HP), DV6C(9HR), DV6CATED(9HX), DV6C(9HL), DV6TED(9HP), DV6ATED(9HY), DVTED4(9HV), DV6TED4(9HX), DV6C(9HD), DV6C(BHX), DV6C(BHZ), DV6(9HR), DV6BTED4(9HW), DV6DTED(9HJ), DV6ETED(9HN), DV6TED4BU(9HS), DV6BTED4(9HT), DV6BUTED4(9HT), DV6TED4B(9HV), DV6UTED4(9HX), DV6TED(9HD), DV6UTED4(9HU), DV6D(9HP), DV6TED4(9HV), DV6C (9HD), DV6TED4(9HW), DV6AT(9HX), DV6ATED(9HX), DV6CTED(9HC), DV6AUTED4(9HX), DV6TED4B, DV6DTED(9HF), HHJA, HHJB, G8DA, G8DB, HHDA, HHDB, MZ-CD, Y6
• 1.8TDCi: BHPA, C9DA/B, FFBA, G6DA, G6DB, G6DC, HCPA, HCBP, KKDA, P7PA, P9PA, R2PA, R3PA, RWPA
• 1.8D: C9DC, RTN, RTQ
• 1.8TDi C9DA/B, C9DC
({IF["2.0 TDCi/HDi AZWA, G6DA, G6DB, G6DC, RHE(DW10CTED4), QXWA, QXWB"!=""]})
• 2.0 TDCi/HDi AZWA, G6DA, G6DB, G6DC, RHE(DW10CTED4), QXWA, QXWB
({ENDIF})
• Nett Weight: 1.85kg
• OEM Tools:
• Ford: 303-393, 303-393/01, 303-376B, 303-651, 303-193, 303-1059, 303-732, 303-734, 303-735
• Mazda: 303-732, 303-734, 303-735
• PSA: 0194-A, 0194-C, 0194B

Product Guarantee: 1 Year
Catalogue Page: Page 388
