Sealey Digital Automotive Analyser 11-Function

SKU: TA102

Price:
Sale price£65.00

VAT included (UK Customers Only)

Stock:
In stock

Description

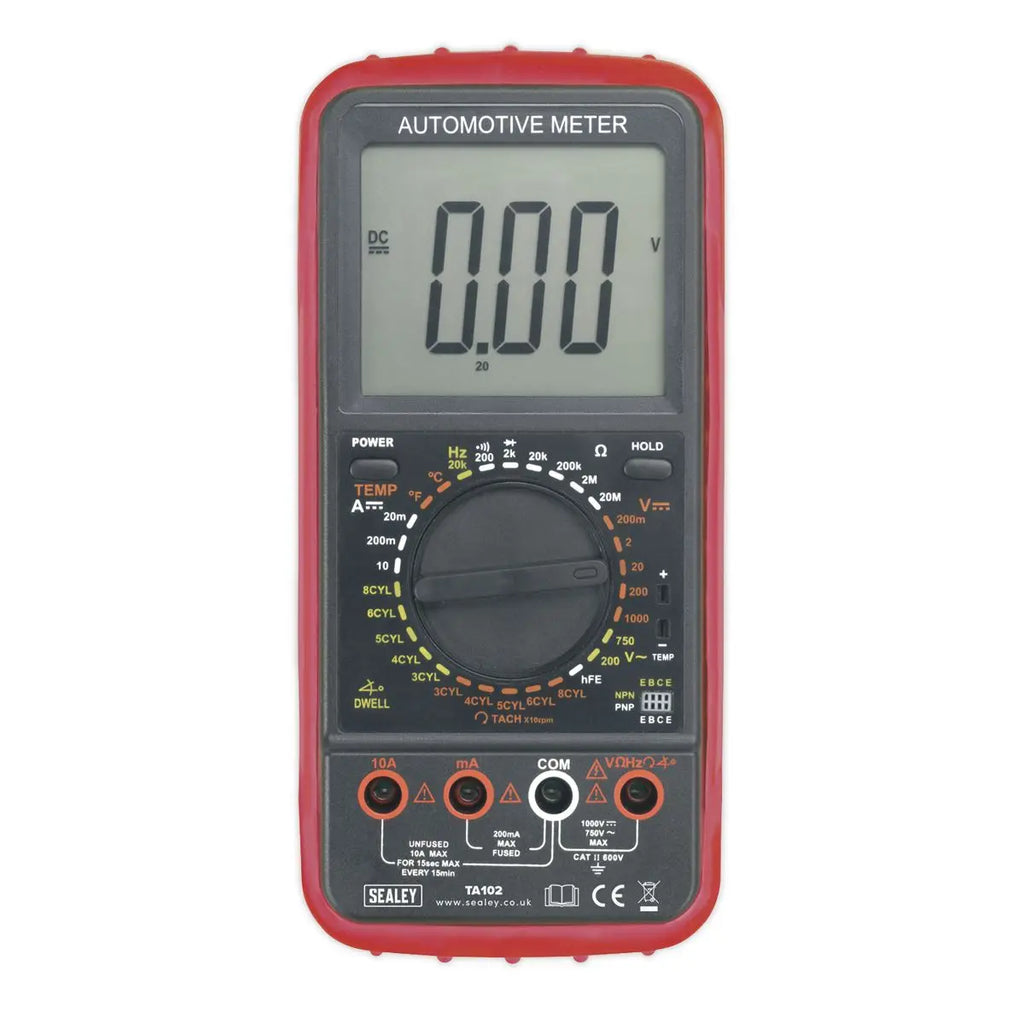

Sealey Digital Automotive Analyser 11-Function

Durable case and integral stand suitable for the toughest workshop conditions.

Large, high-contrast LCD display with 34mm high digital read-out.

Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions.

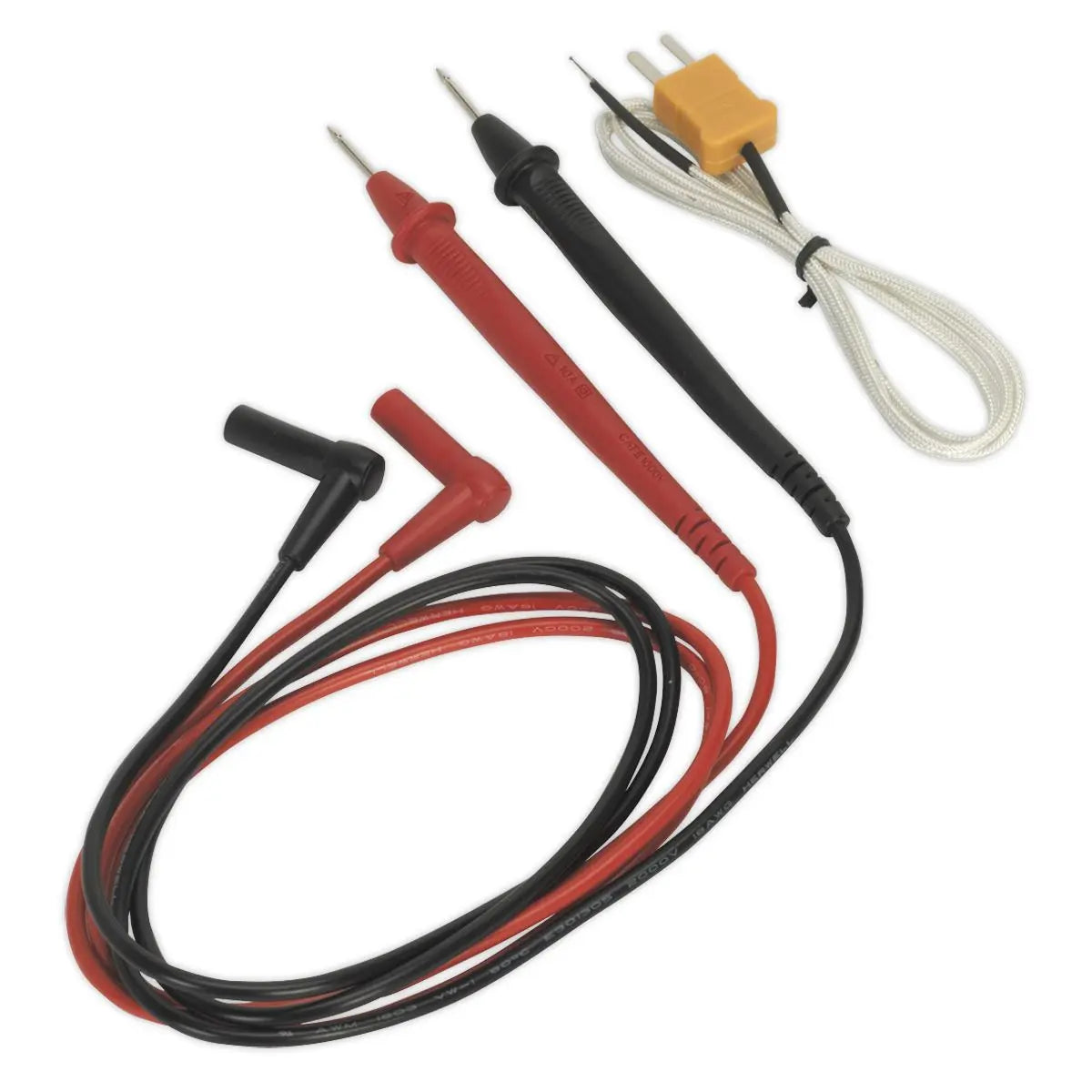

Supplied with capped test probes and K-type thermocouple.

Specification:

  • Model No TA102
  • Brand: Sealey
  • Nett Weight: 495g
  • Tach (rpm): 3/4/5/6/8Cyl 180-10000 (x10)rpm
  • Dwell: 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
  • AC Voltage: 200-750V
  • DC Voltage: 200mV, 2V, 20V, 200V, 1000V
  • AC Current: No
  • DC Current: 20mA, 200mA, 10A
  • Capacitance: No
  • Frequency: 20kHz
  • Duty Cycle: No
  • Pulse Width: No
  • Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
  • Continuity: <30Ω
  • Temperature: -20 to +750°C/-4 to +1382°F
  • IR Temperature: No
  • Diode Check: Yes (Typical Test Current 1mA)
  • Transistor Test (hFE): Vce=3V, Ib=10µA
  • Back Light: No
  • Bar Graph Display: No
  • Display Hold: Yes
  • Auto-Ranging: No
  • Inductive Coupler: No
  • PC Interface: No
  • Digits Height: 34mm
  • Auto Power Off: Yes
  • Low Battery Indicator: Yes
  • Batteries (supplied): 9V (PP3)
  • Hi-Impact Case: Yes
  • Size (L x W x D): 200 x 97 x 48mm
  • Weight: 495g
Product Guarantee: 1 Year
Catalogue Page: Page 464
