Sealey Digital Automotive Analyser 12-Function

Save 4%
SKU: TA101

Price:
Sale price£81.00 Regular price£83.94

VAT included

Stock:
In stock (20 units), ready to be shipped

Description

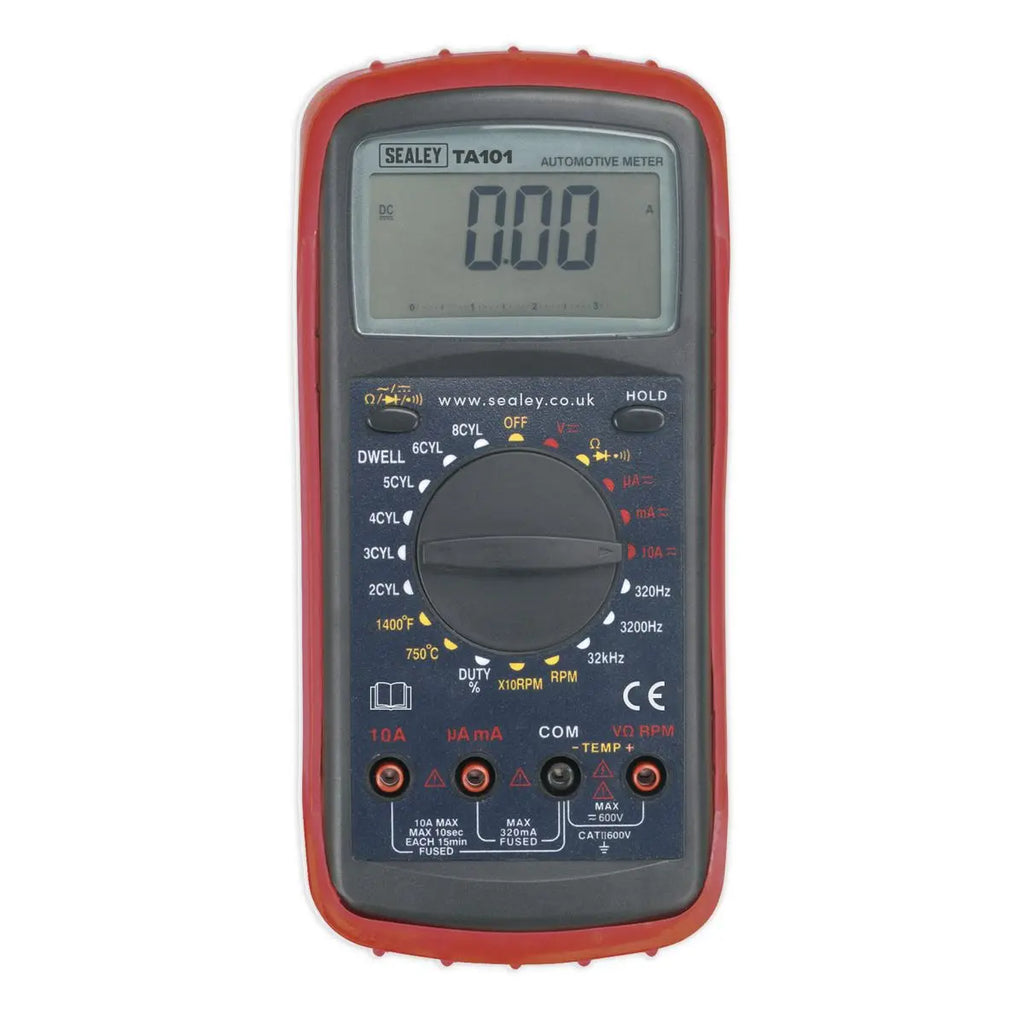

Sealey Digital Automotive Analyser 12-Function

Durable case and integral stand suitable for the toughest workshop conditions.

Large, high-contrast LCD display with 18mm high digital read-out and analogue bar graph.

Includes auto-ranging, data-hold, auto-polarity, auto-power-off and low battery display functions.

Bar graph simplifies lambda sensor testing.

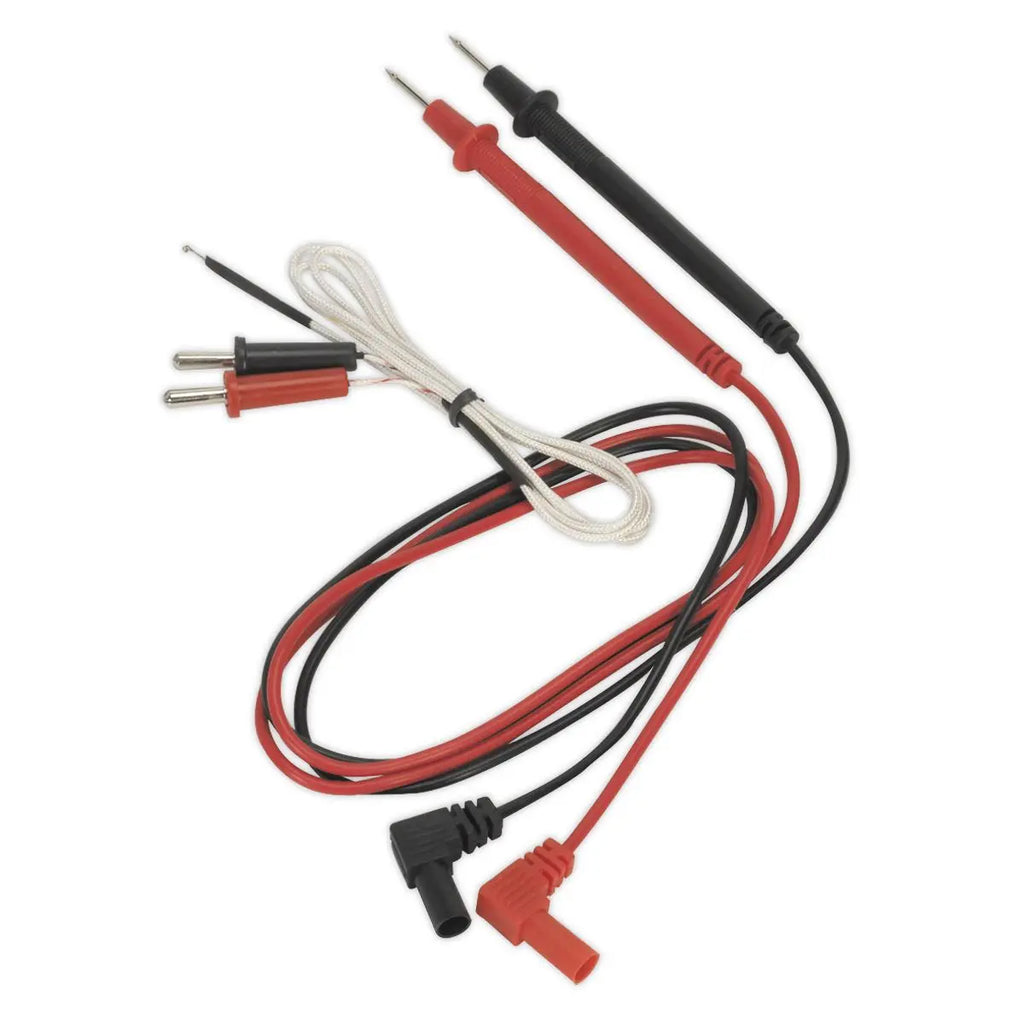

Supplied with capped test probes and K-type thermocouple.

Specification:

  • Model No TA101
  • Brand: Sealey
  • Nett Weight: 400g
  • Tach (rpm): 0-3260 (x1)rpm, 0-3260 (x10)rpm
  • Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
  • AC Voltage: 326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
  • DC Voltage: 326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
  • AC Current: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
  • DC Current: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
  • Capacitance: No
  • Frequency: 320Hz, 3200Hz, 32kHz (Manual Range)
  • Duty Cycle: 0.1-99.9%
  • Pulse Width: No
  • Resistance: 326Ω, 3.26kΩ, 32.6kΩ, 326kΩ, 3.26MΩ, 32.6MΩ (Auto-Ranging)
  • Continuity: <50Ω
  • Temperature: -20 to +750°C/-4 to +1400°F
  • IR Temperature: No
  • Diode Check: Yes (Typical Test Current 1mA)
  • Transistor Test: No
  • Back Light: No
  • Bar Graph Display: Yes
  • Display Hold: Yes
  • Auto-Ranging: Yes
  • Inductive Coupler: No
  • PC Interface: No
  • Digits Height: 18mm
  • Auto-Power-Off: Yes
  • Low Battery Indicator: Yes
  • Batteries (supplied): 9V (PP3)
  • Hi-Impact Case: Yes
  • Size (L x W x D): 200 x 93 x 50mm
  • Weight: 400g
Product Guarantee: 1 Year
Catalogue Page: Page 464
