Sealey Digital Automotive Analyser 13-Function with Inductive Coupler

Save 13%
SKU: TA201

Price:
Sale price£94.00 Regular price£107.94

VAT included (UK Customers Only)

Stock:
In stock (20 units), ready to be shipped

Description

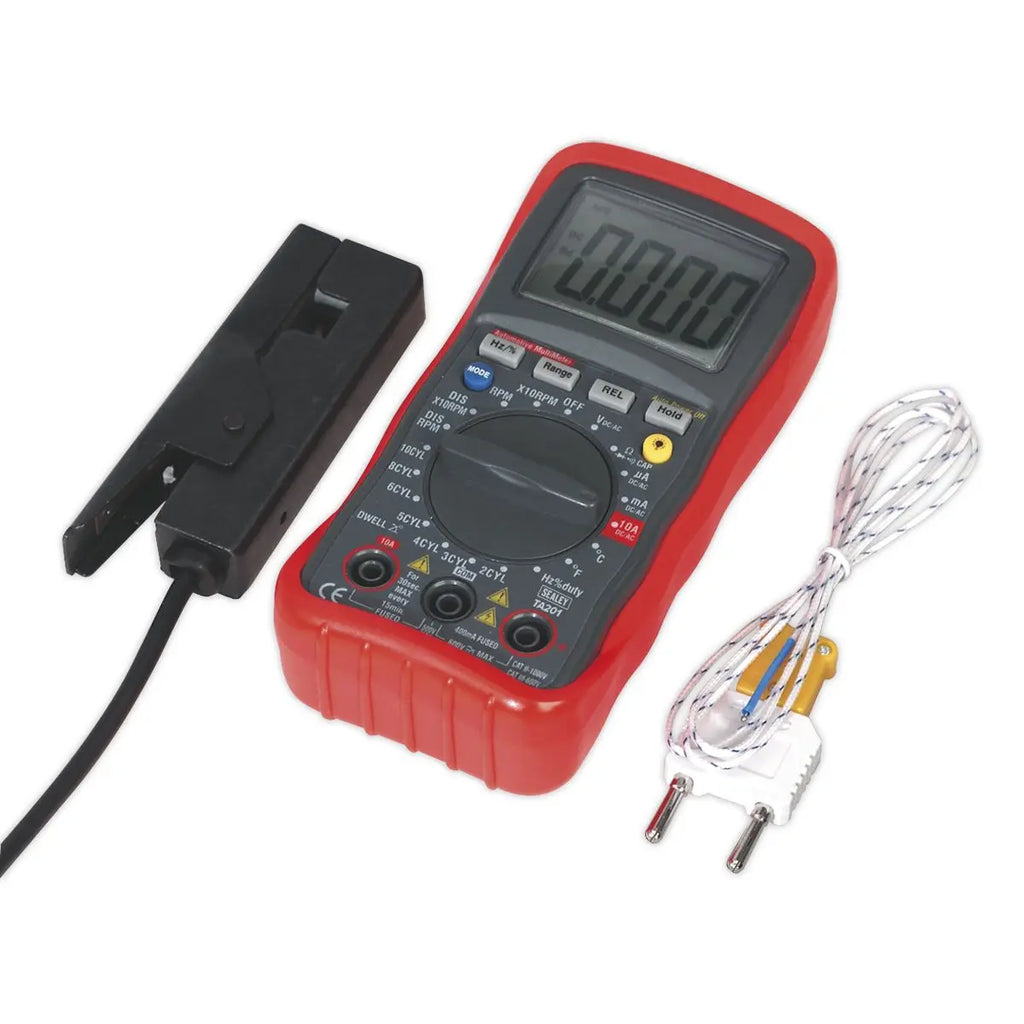

Sealey Digital Automotive Analyser 13-Function with Inductive Coupler

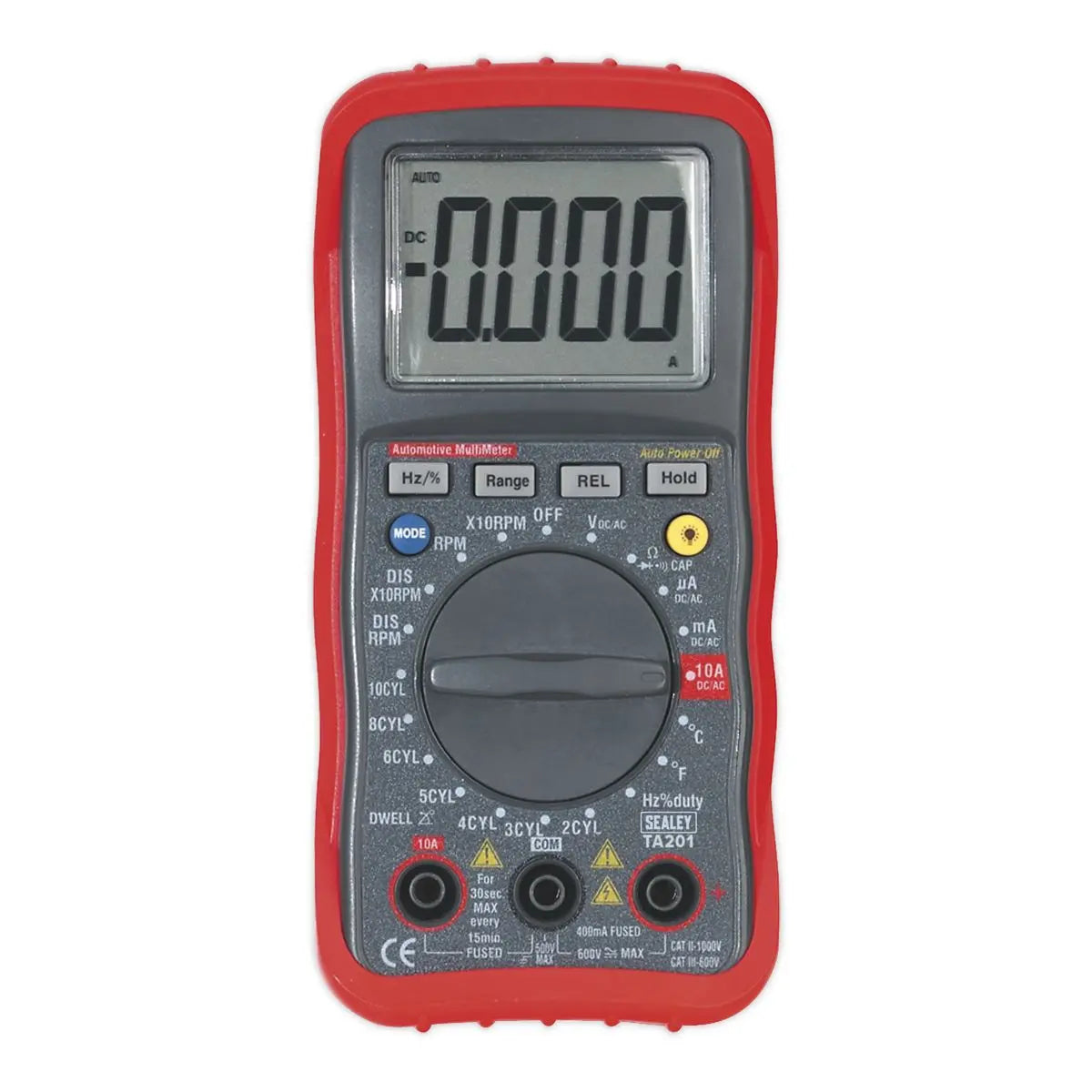

Compact size meter with 4-digit 22mm, high-contrast LCD display and back light.

Features auto-ranging, data-hold and auto-power-off functions.

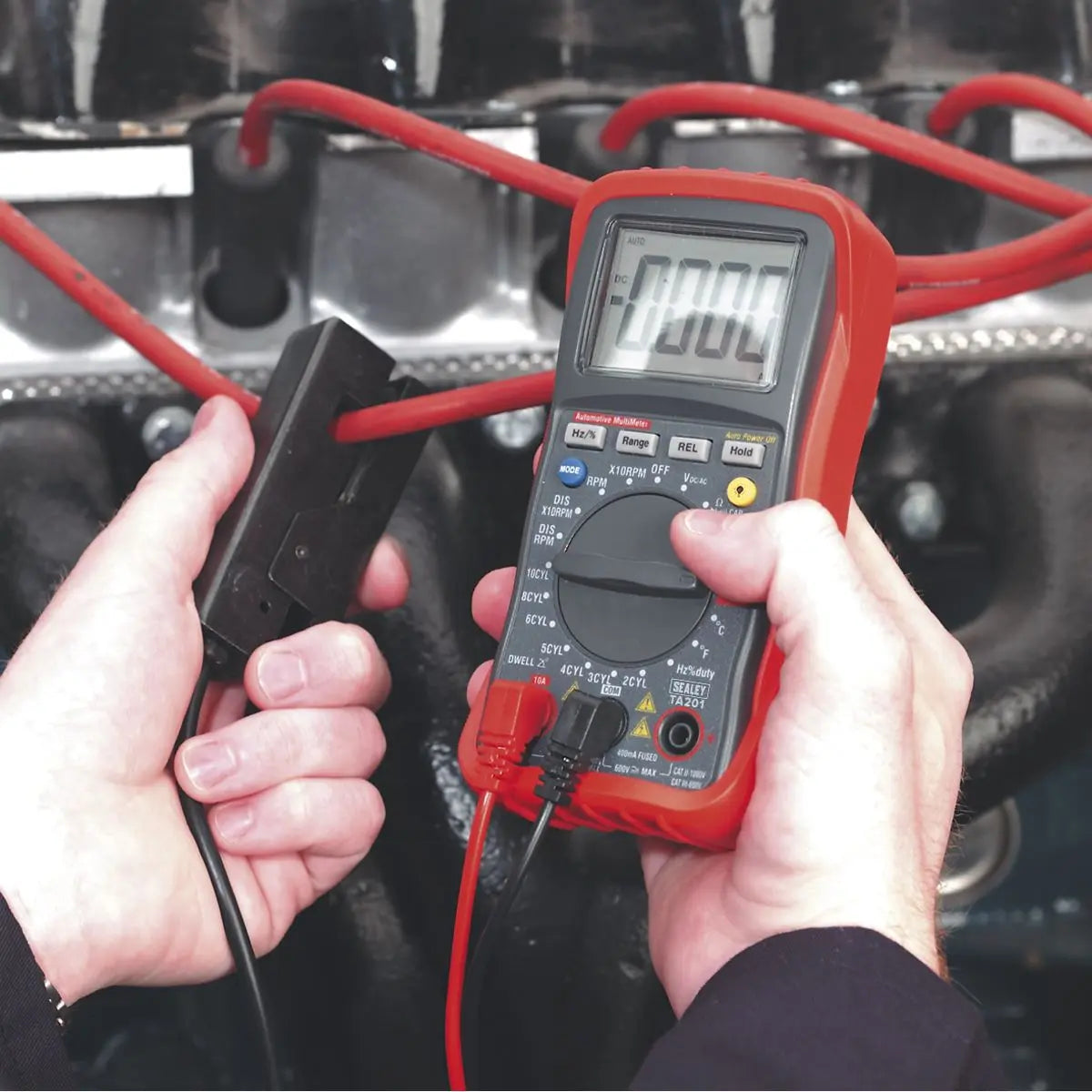

Includes inductive coupler for fast reading of engine rpm.

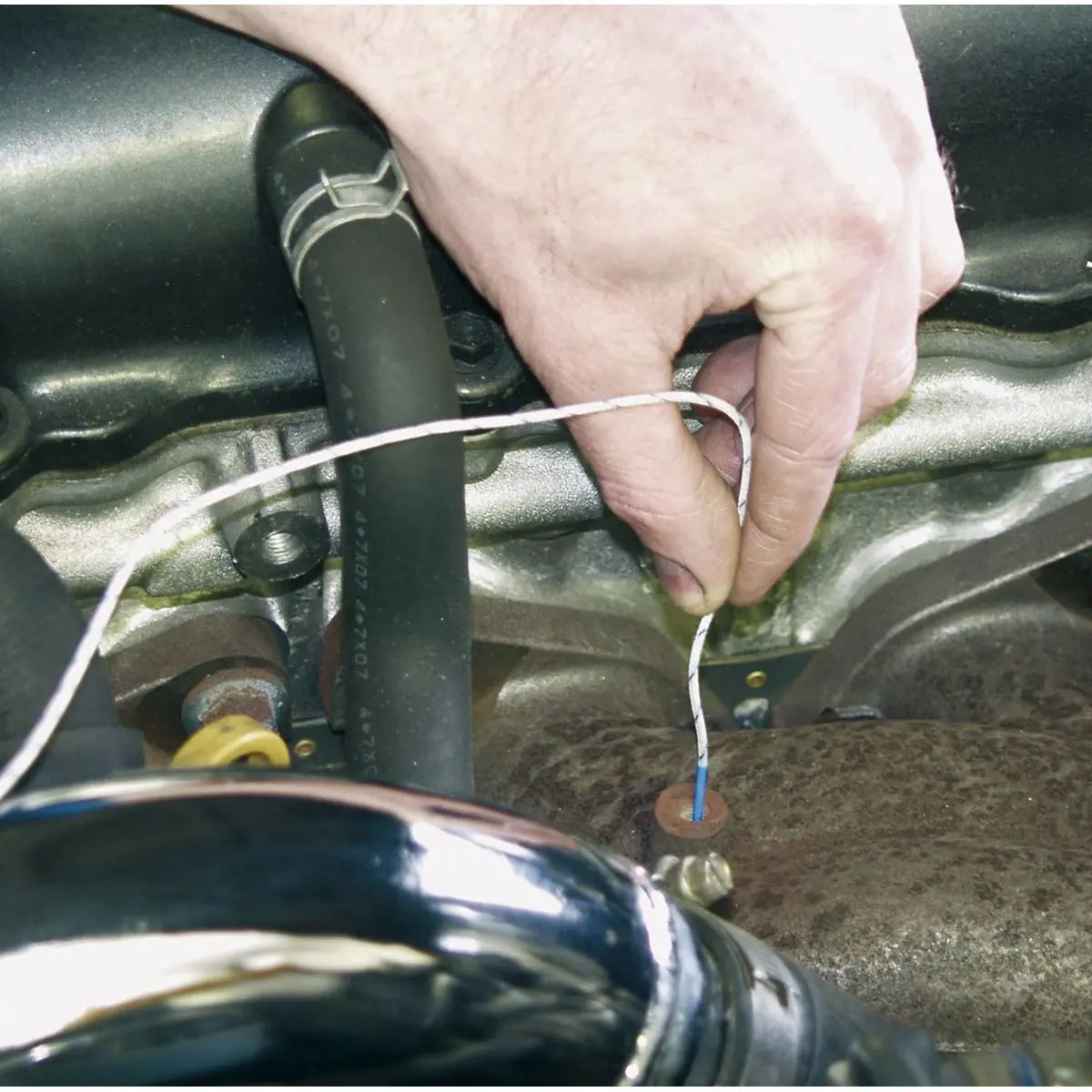

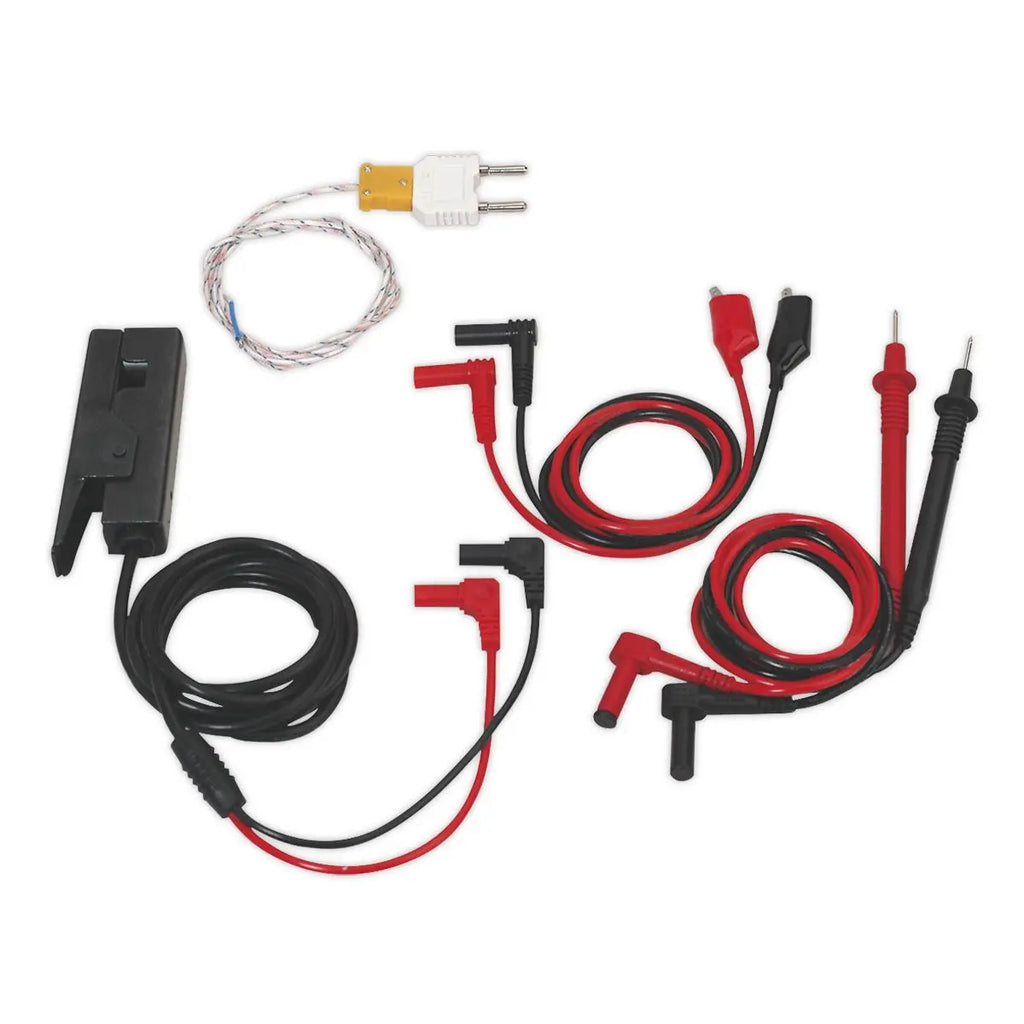

Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.

Specification:

  • Model No TA201
  • Brand: Sealey
  • Nett Weight: 330g
  • Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
  • Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°
  • AC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV)
  • DC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto-Ranging)
  • AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
  • DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
  • Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
  • Frequency: 4V Range 5Hz-10kHz, 40 & 400V Ranges 5Hz-200kHz, 600V Range 50Hz-1kHz, 400mA Range 5Hz-5kHz, 10A Range 5Hz-1kHz
  • Duty Cycle: 0.1-99.9%
  • Pulse Width: No
  • Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
  • Continuity: <150Ω
  • Temperature: -20 to +760°C/-4 to +1400°F
  • IR Temperature: No
  • Diode Check: Yes (Typical Test Current 0.3mA)
  • Transistor Test: No
  • Back Light: Yes
  • Bar Graph Display: No
  • Display Hold: Yes
  • Auto-Ranging: Yes
  • Inductive Coupler: Yes
  • PC Interface: No
  • Digits Height: 22mm
  • Auto Power Off: Yes
  • Low Battery Indicator: Yes
  • Batteries (supplied): 9V (PP3)
  • Hi-Impact Case: Yes
  • Size (L x W x D): 146 x 66.2 x 41.5mm
  • Weight: 330g
Product Guarantee: 1 Year
Catalogue Page: Page 464
