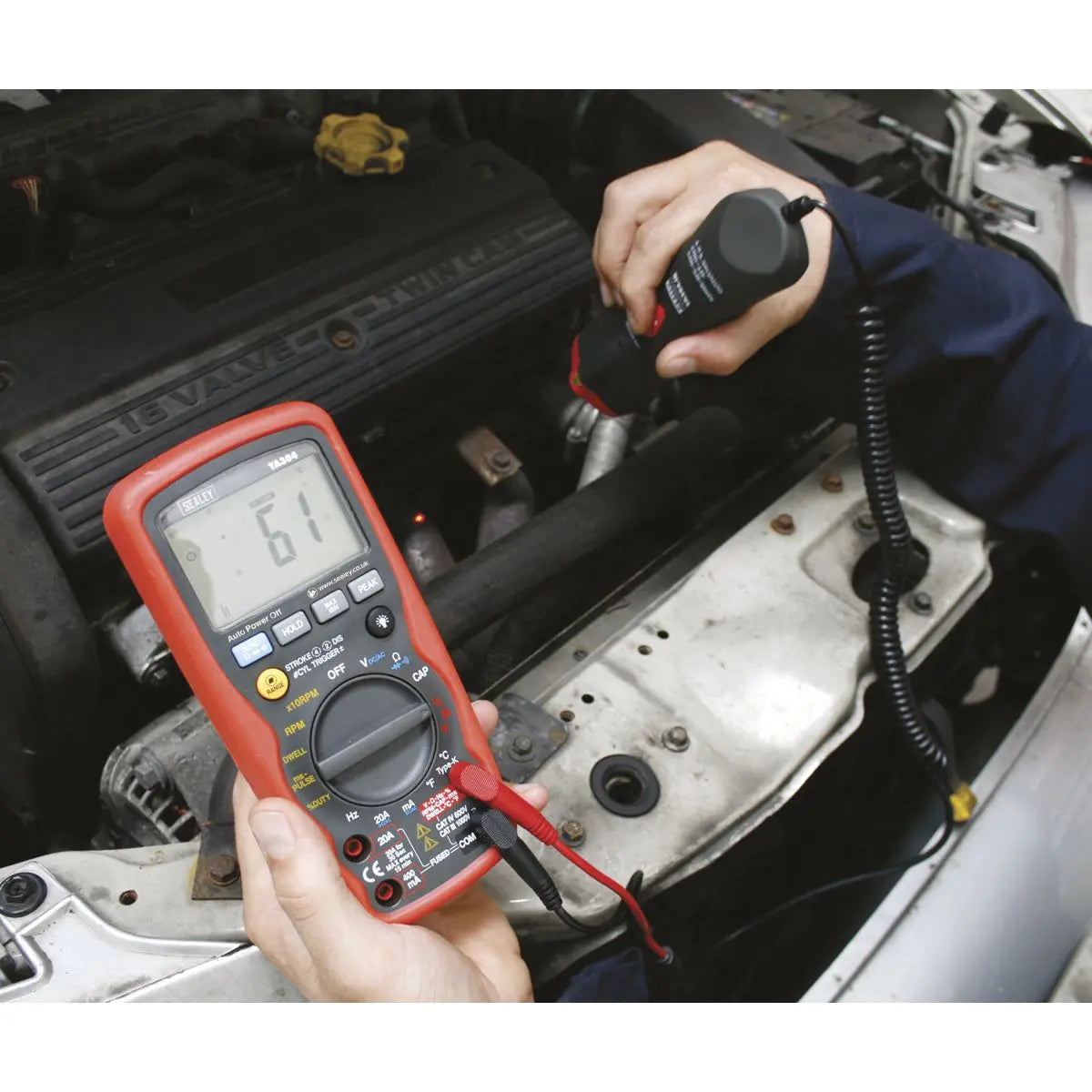

Sealey Digital Automotive Analyser 15-Function with Inductive Coupler/Infrared Temperature Probe

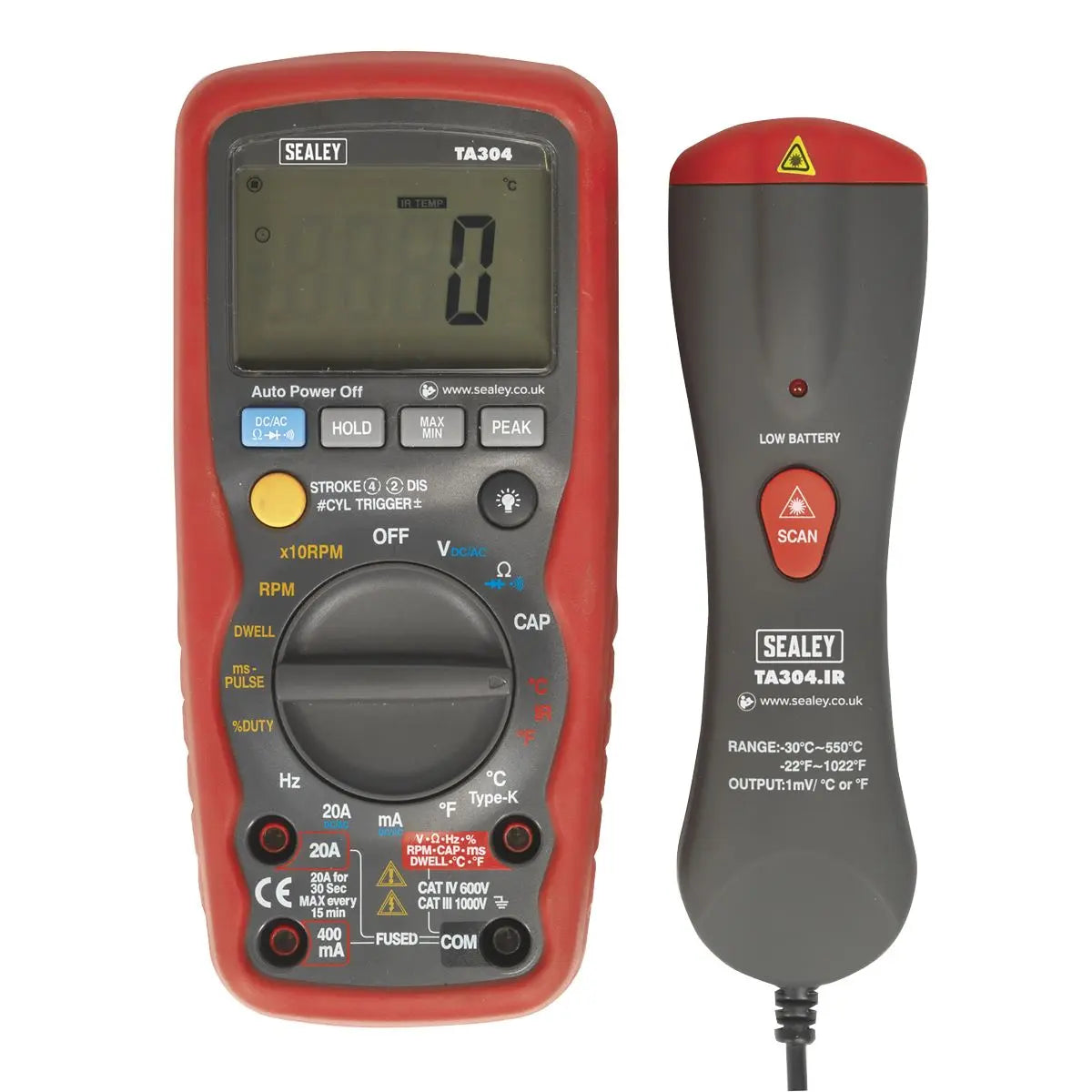

15-Function, auto-ranging automotive diagnostic multimeter with infrared thermometer attachment.

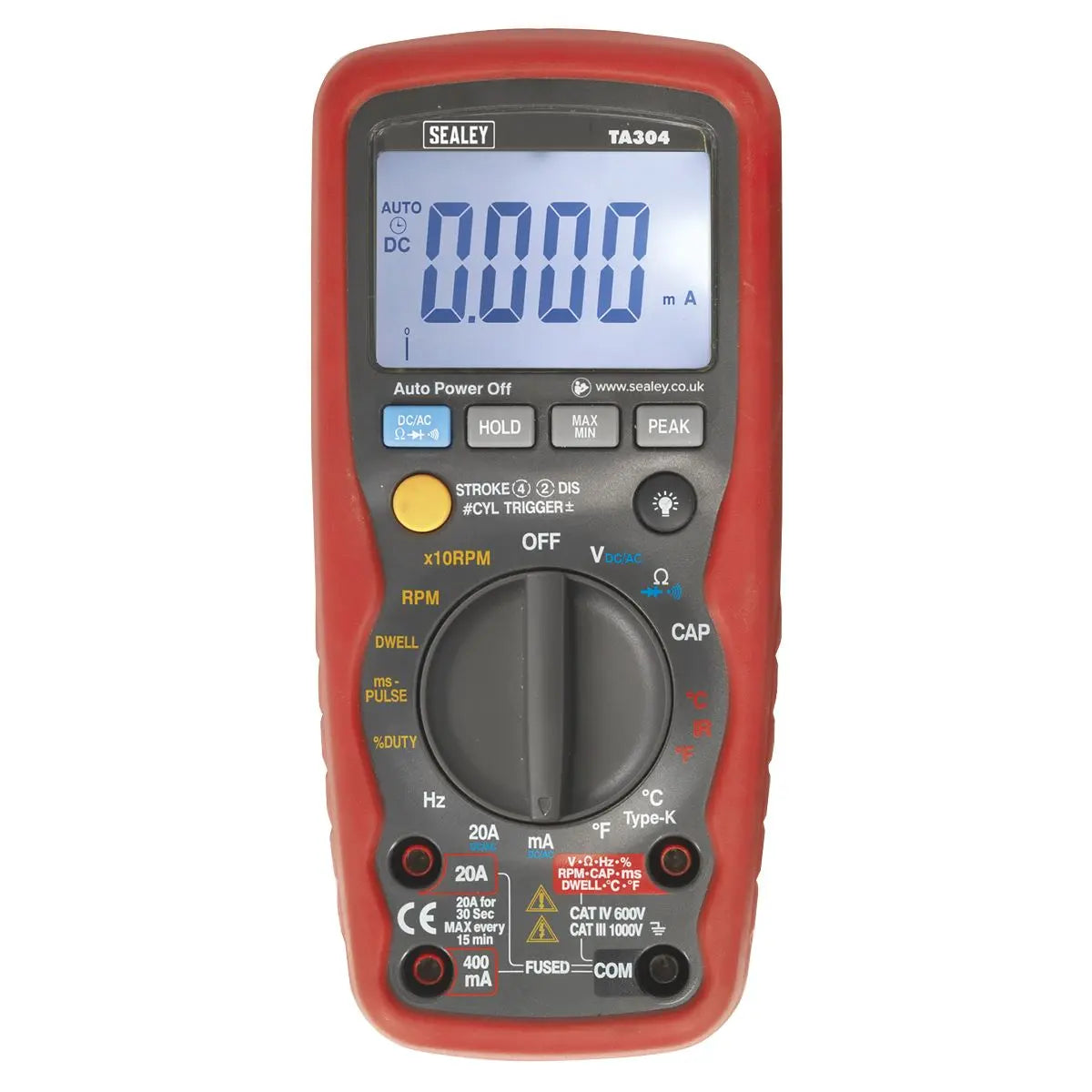

Combination digital/bar graph display gives accurate indication of component outputs.
Large, easy-to-read high contrast display with bright, white back light.
Workshop-tough, durable case with integral stand and auto power shut-off.
High-speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems. Features auto-ranging, and data-hold functions with overload protection on all ranges.
Includes relative functions including min./max. and peak hold.

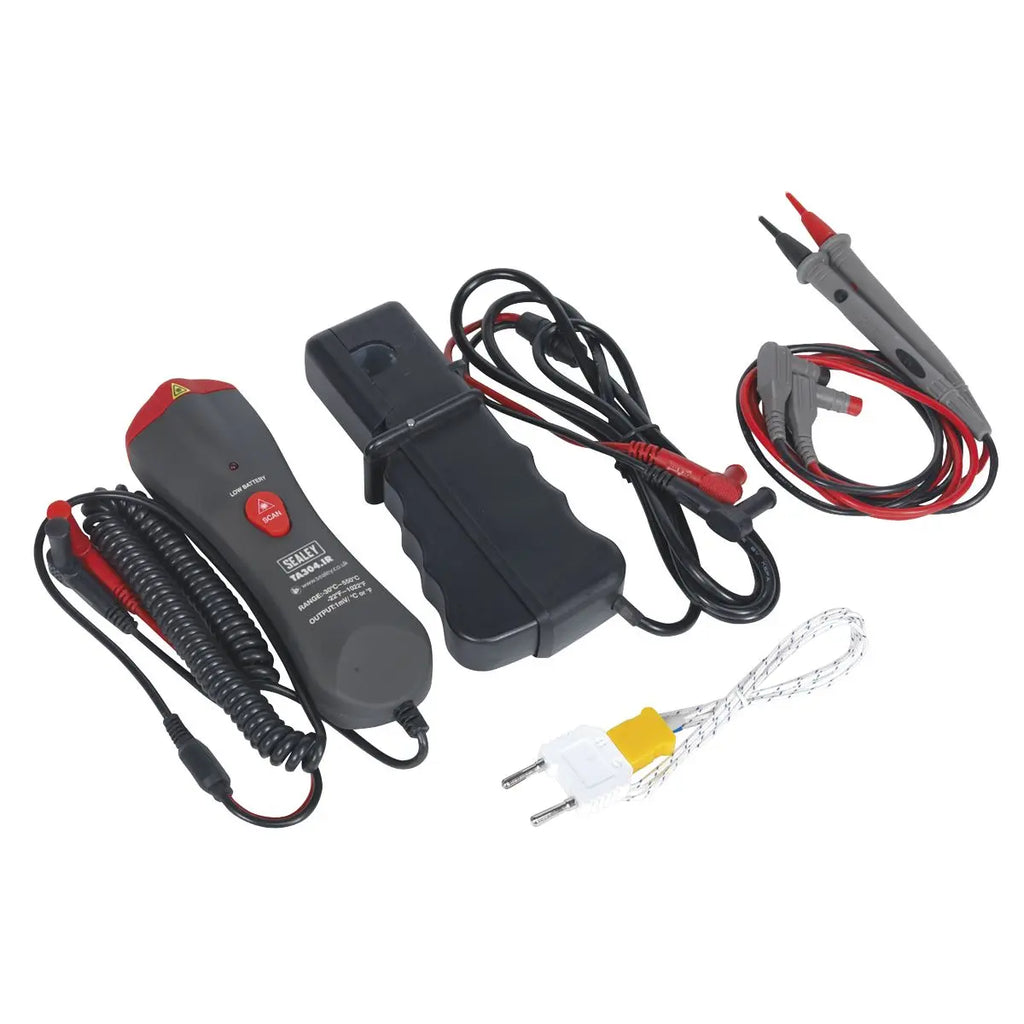

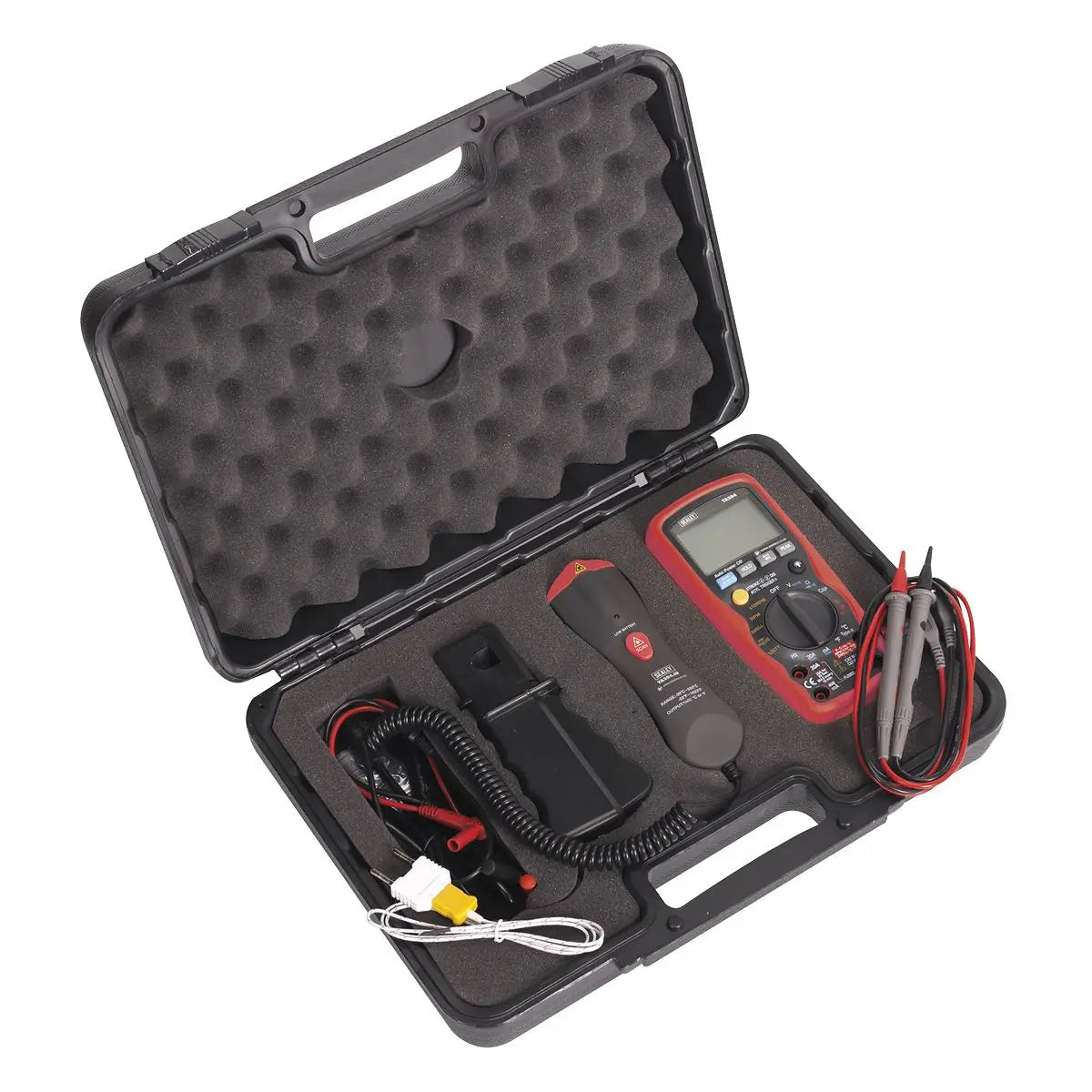

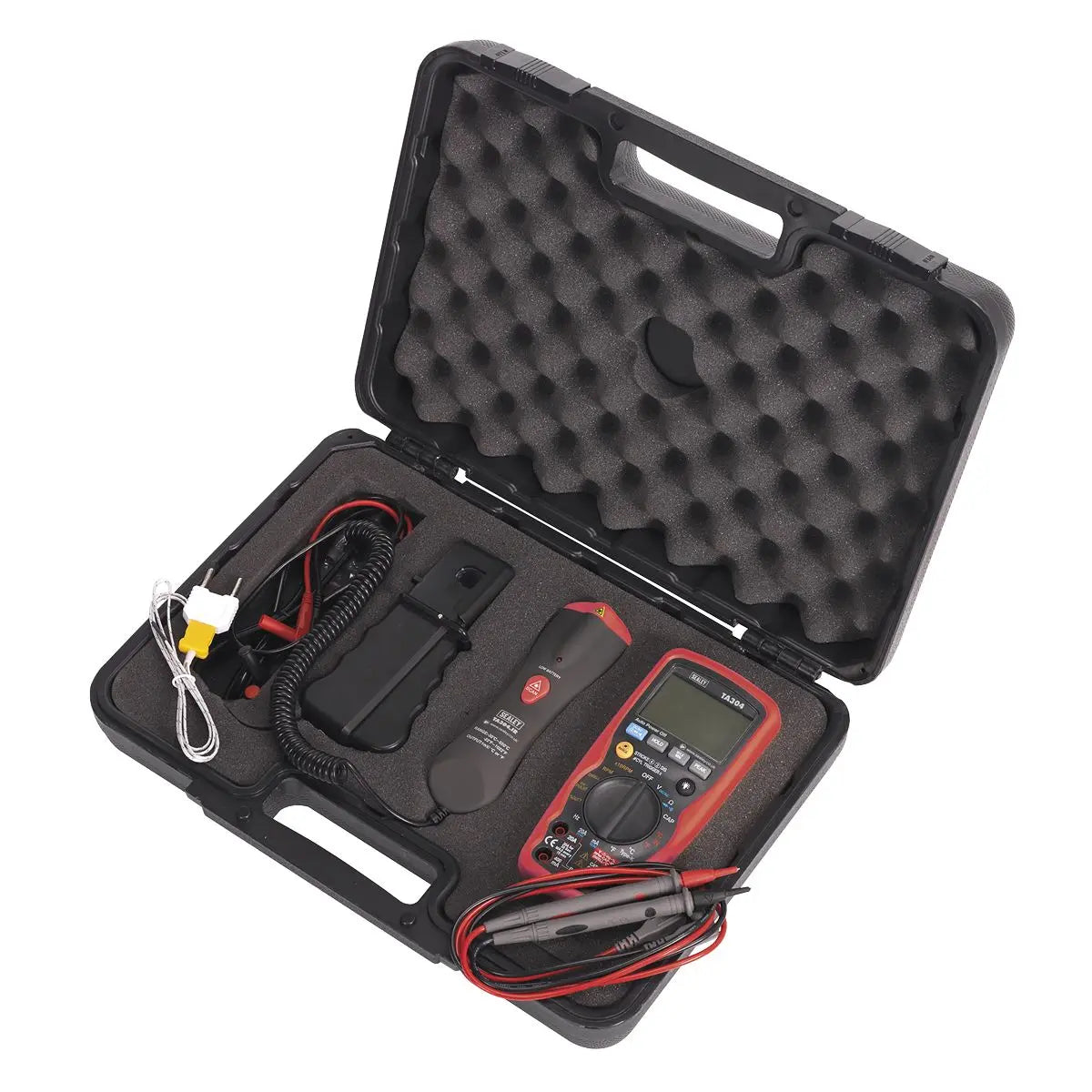

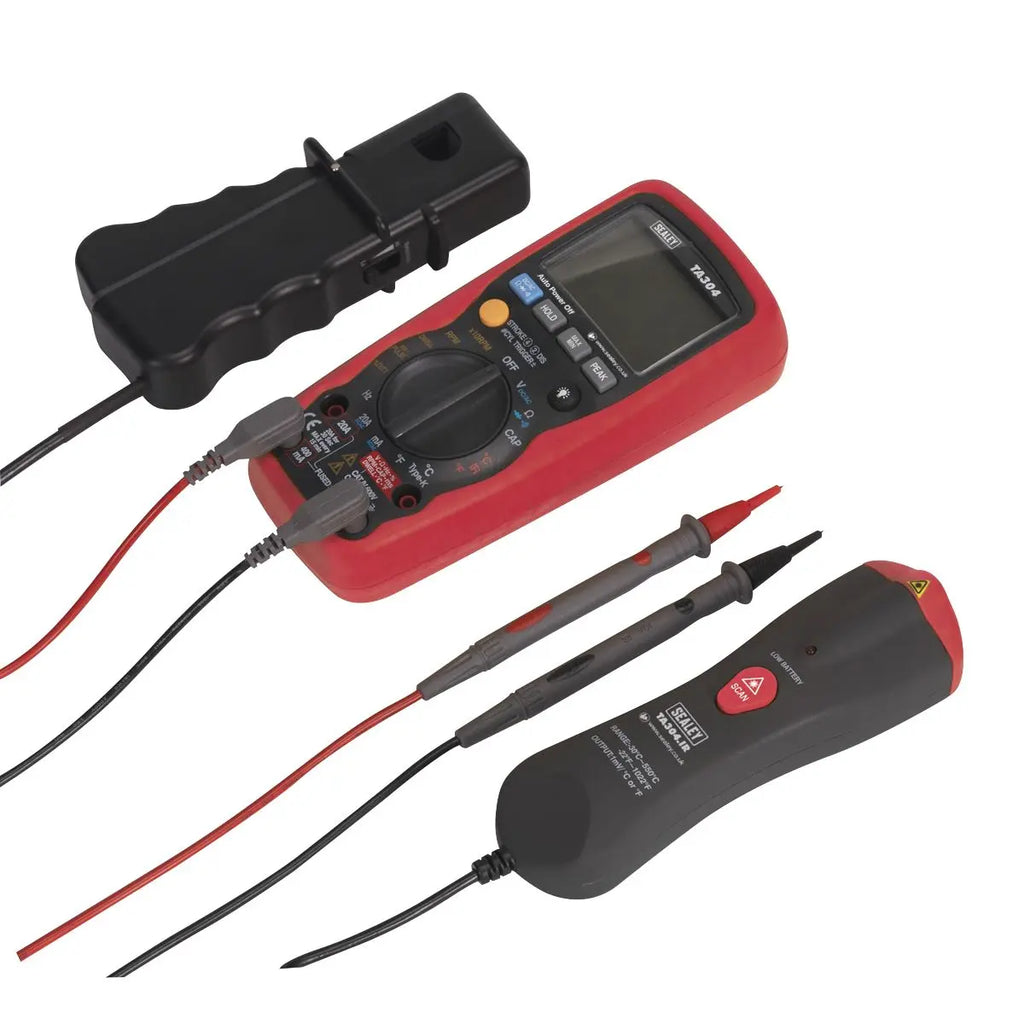

Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.
- Model No TA304
- Brand: Sealey
- Nett Weight: 360g
- Tach (rpm): 2-10Cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
- Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
- AC Voltage: 400mV, 4V, 40V, 400V, 700V (Auto-Ranging)
- DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
- AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging)
- DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging)
- Capacitance: 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto-Ranging)
- Frequency: 0.001Hz-9.99MHz (Auto-Ranging)
- Duty Cycle: 0.1-99.9%
- Pulse Width: 0.1-10ms
- Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
- Continuity: <30Ω Continuity Buzzer 2kHz
- Temperature: -20 to +760°C, -4 to +1400°F
- IR Temperature: -20 to +280°C, -4 to +536°F
- Diode Check: Yes
- Transistor Test: No
- Back Light: Yes
- Bar Graph Display: Yes
- Display Hold: Yes
- Auto-Ranging: Yes
- Inductive Coupler: Yes
- PC Interface: No
- Digits Height: 20mm
- Auto Power Off: Yes
- Low Battery Indicator: Yes
- Batteries (supplied): 9V (PP3)
- Hi-Impact Case: Yes
- Size (L x W x D): 182 x 82 x 55mm
Catalogue Page: Page 465
