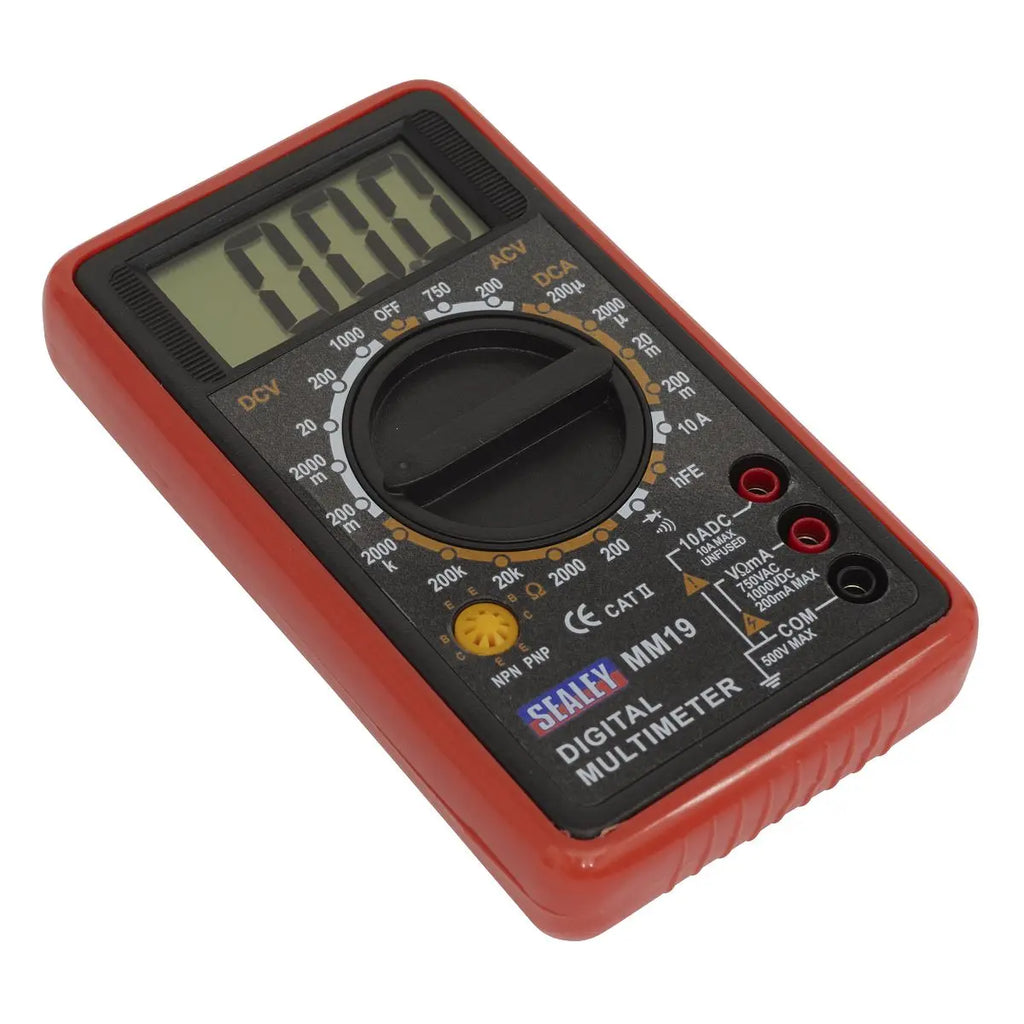

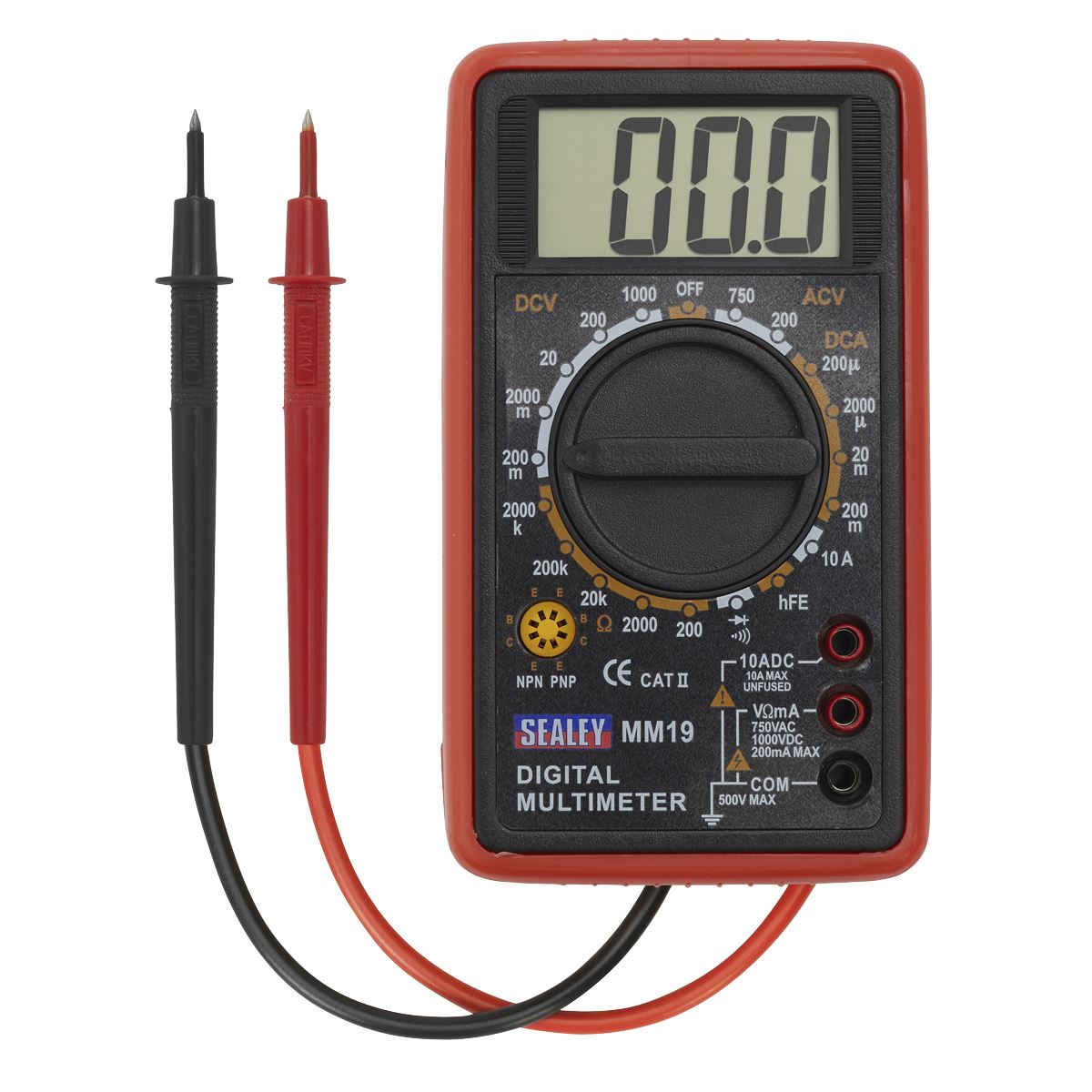

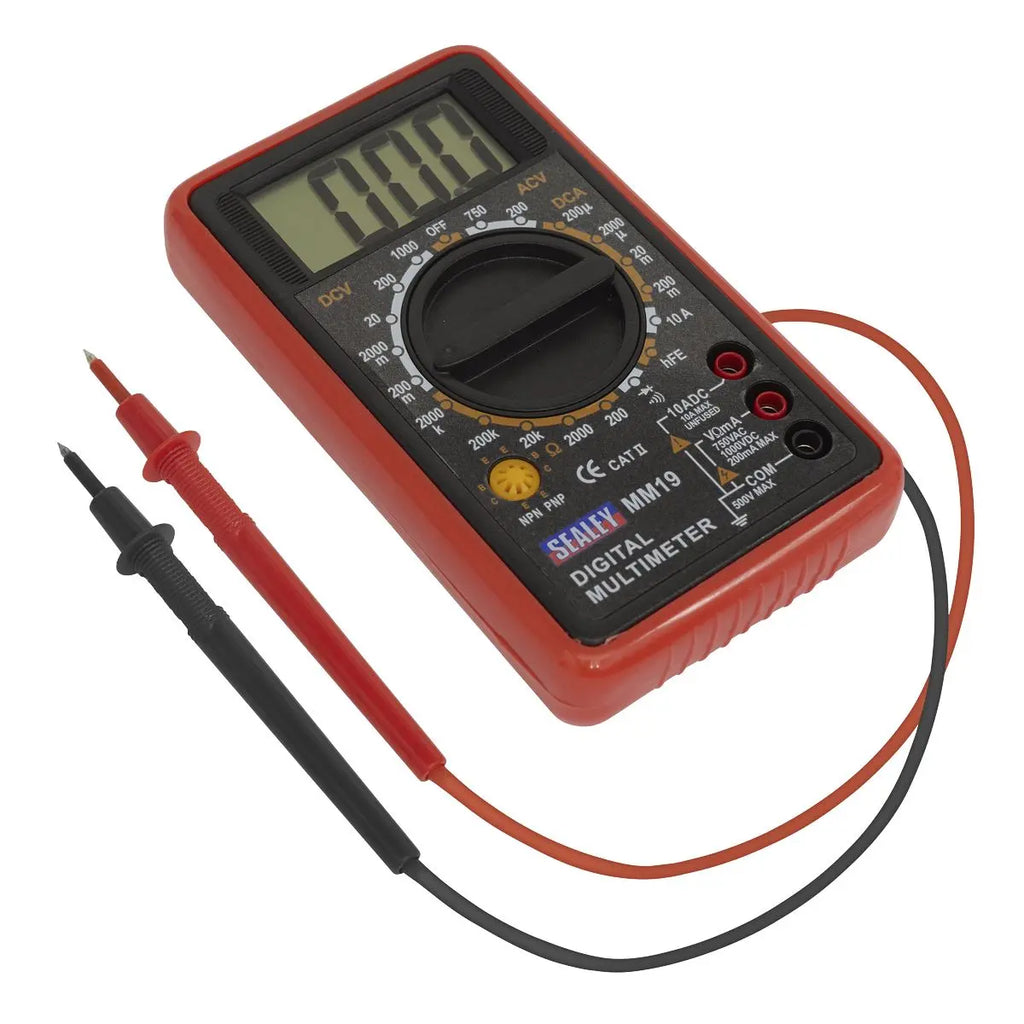

Sealey Digital Multimeter 7-Function

Sealey Digital Multimeter 7-Function

High quality general-purpose multimeter with a large (46 x 25mm), clear and easy-to-read LCD display.

Supplied with test leads.

Measures: - DC Current - Resistance - Audible Continuity - Diode/Transistor Verification Mode.

Specification:

• Model No MM19
• Brand: Sealey
• Nett Weight: 240g
• AC Voltage (Accuracy): 200V, 750V (±2%)
• DC Voltage (Accuracy): 200mV, 2000mV, 20V, 200V (±1.5%), 1000V (±1.8%)
• AC Current (Accuracy): No
• DC Current (Accuracy): 200µA, 2000µA, 20mA (±2%), 200mA (±2.2%), 10A (±2%)
• Resistance (Accuracy): 200Ω, 2000Ω, 20kΩ, 200kΩ (±1.8%), 2000kΩ (±2%)
• Capacitance (Accuracy): No
• Temperature (Accuracy): No
• Frequency (Accuracy): No
• Duty Cycle: No
• Continuity Audible: Yes
• Diode Test: Yes (Forward Voltage Drop)
• Transistor Test: Yes (hFE @ 10µA & 3Vce)
• Hi-Impact Rubber Case: Yes
• Digits x Height: 3.5 x 22mm
• Low Battery Indicator: No
• Battery (Supplied): 1 x 9V
• Information: -
• Size (L x W x D): 130 x 70 x 14mm
• Weight: 240g
• Conformity: IEC 1010

Product Guarantee: 1 Year
Catalogue Page: Page 452

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
