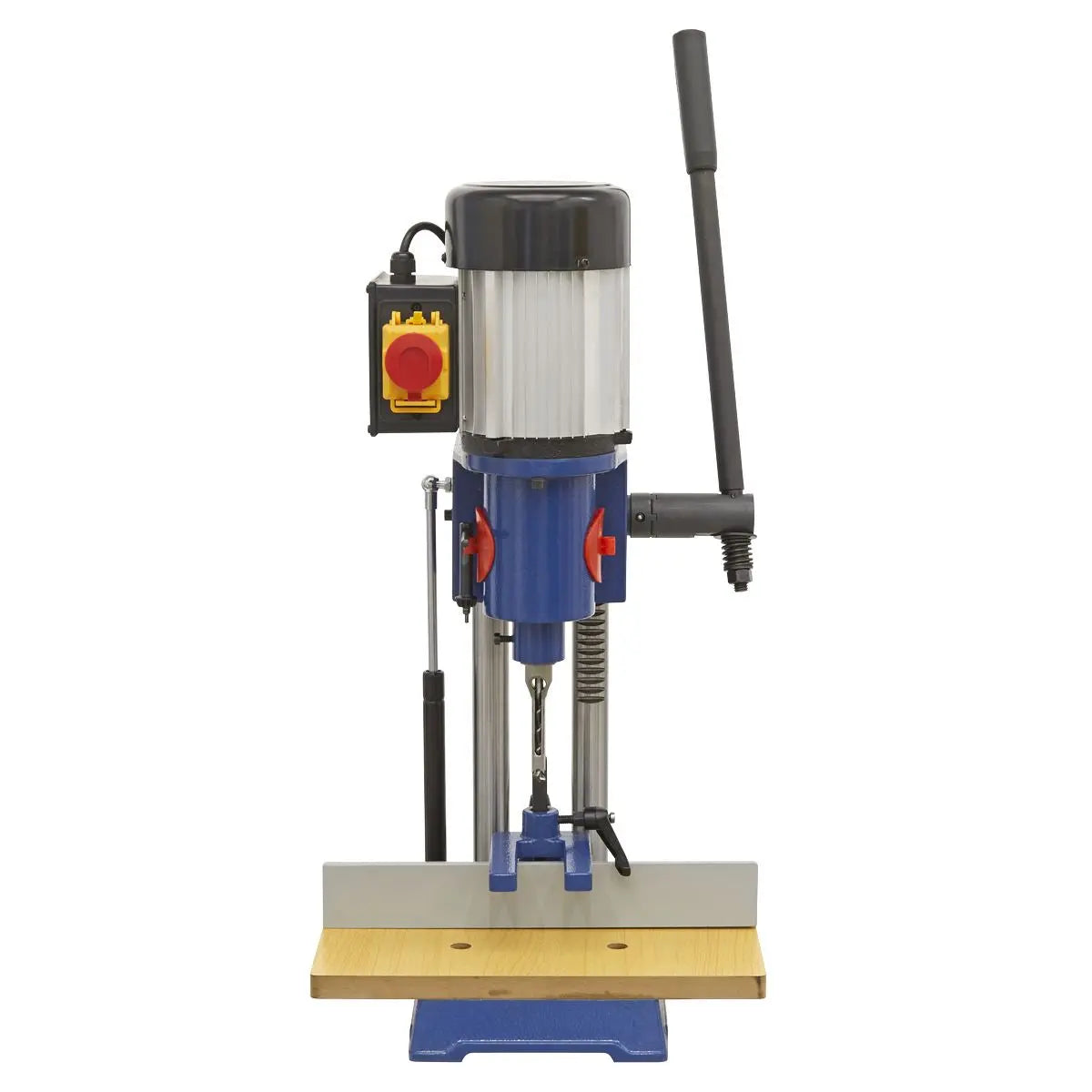

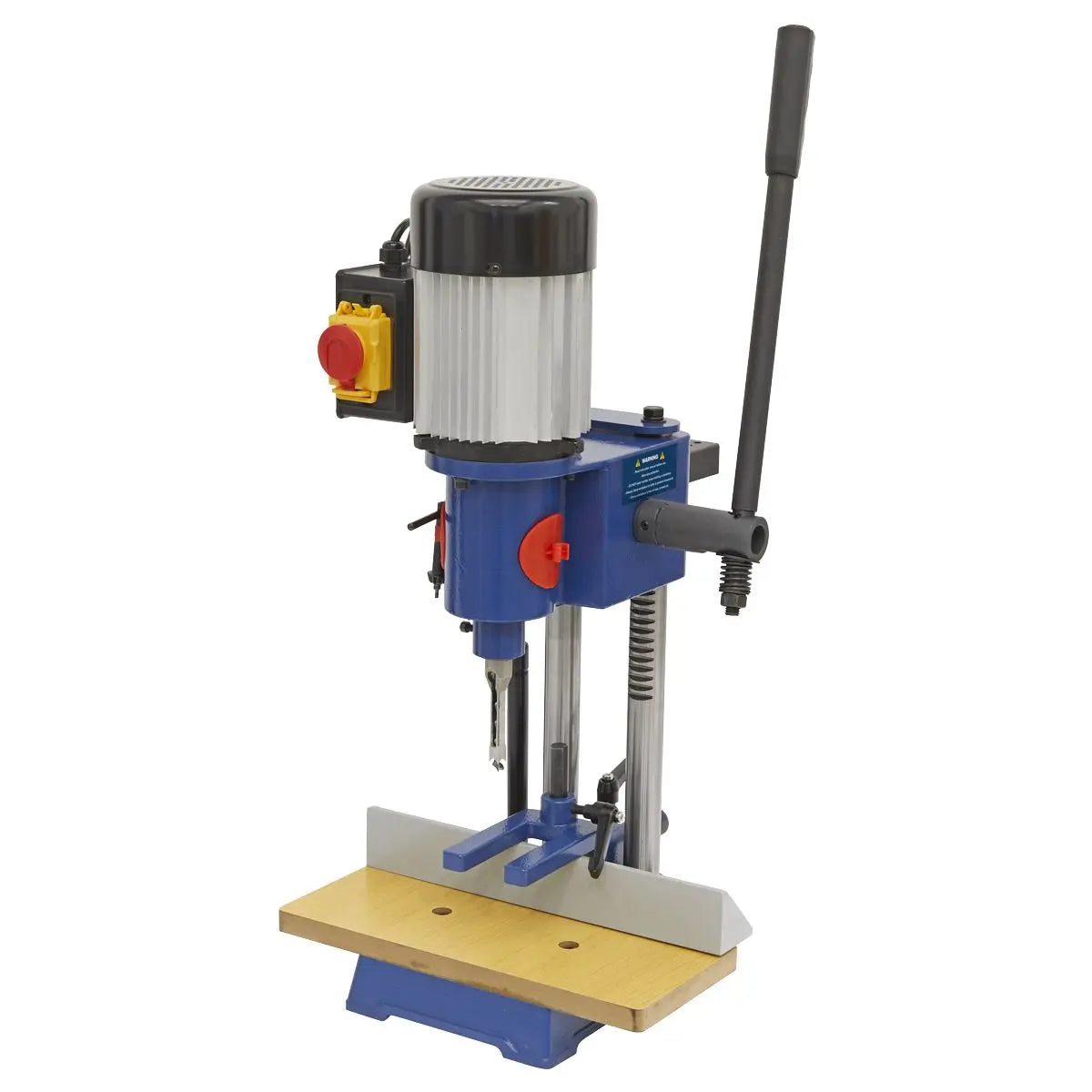

Sealey Hollow Chisel Mortiser 1/2" 230V
Bench mounting mortising machine suitable for cutting mortises for joints, locks and dead-bolts.
Twin uprights with hydraulic damper carry head assembly and have adjustable depth stop for repetitive work.
Integral 13mm drill chuck is easily accessible from both sides of the head.
Powered by heavy-duty induction motor with no-volt release switch to prevent accidental restart after power failure or jam.
Supplied with 3/8" mortising chisel.
Includes table and workpiece clamp assembly.
Specification:
- Model No SM94
- Brand: Sealey
- Chisel Capacity: 6 - 12mm
- Chuck Capacity: 13mm
- Dimensions (W x D x H): 340 x 355 x 640mm
- Motor Power: 370W
- Nett Weight: 27kg
- Spindle Speed: 1400rpm
- Spindle Travel: 132mm
- Supply: 230V (AC symbol) 50Hz
- Table Size: 340 x 150mm
- Throat Depth: 76mm
