Description

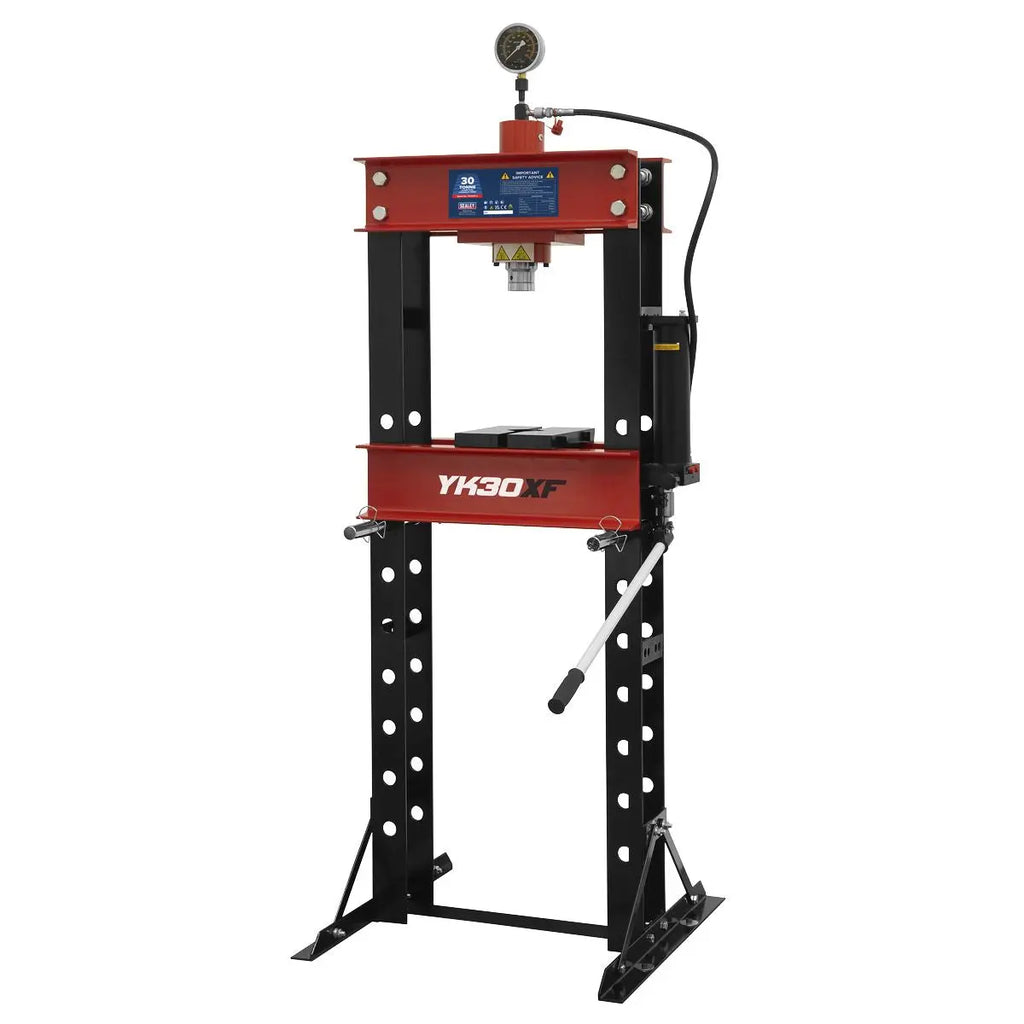

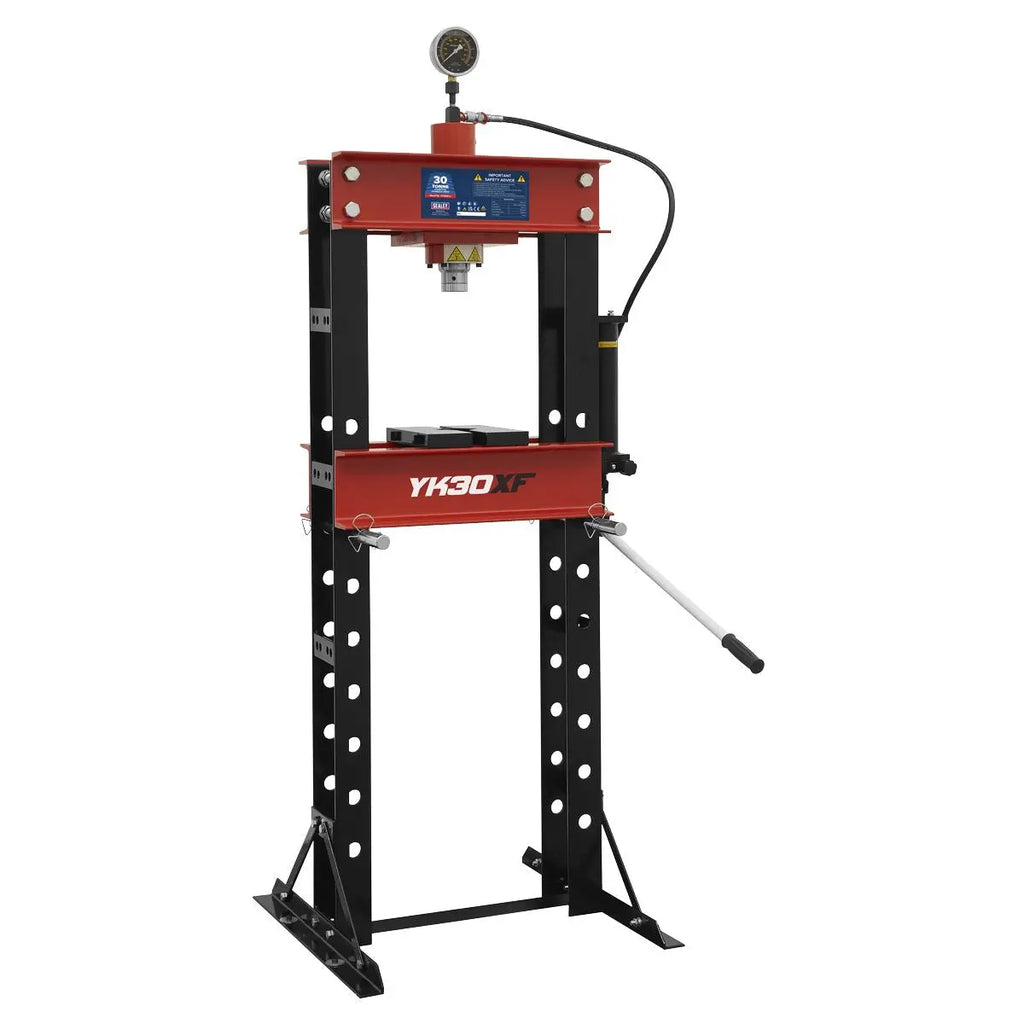

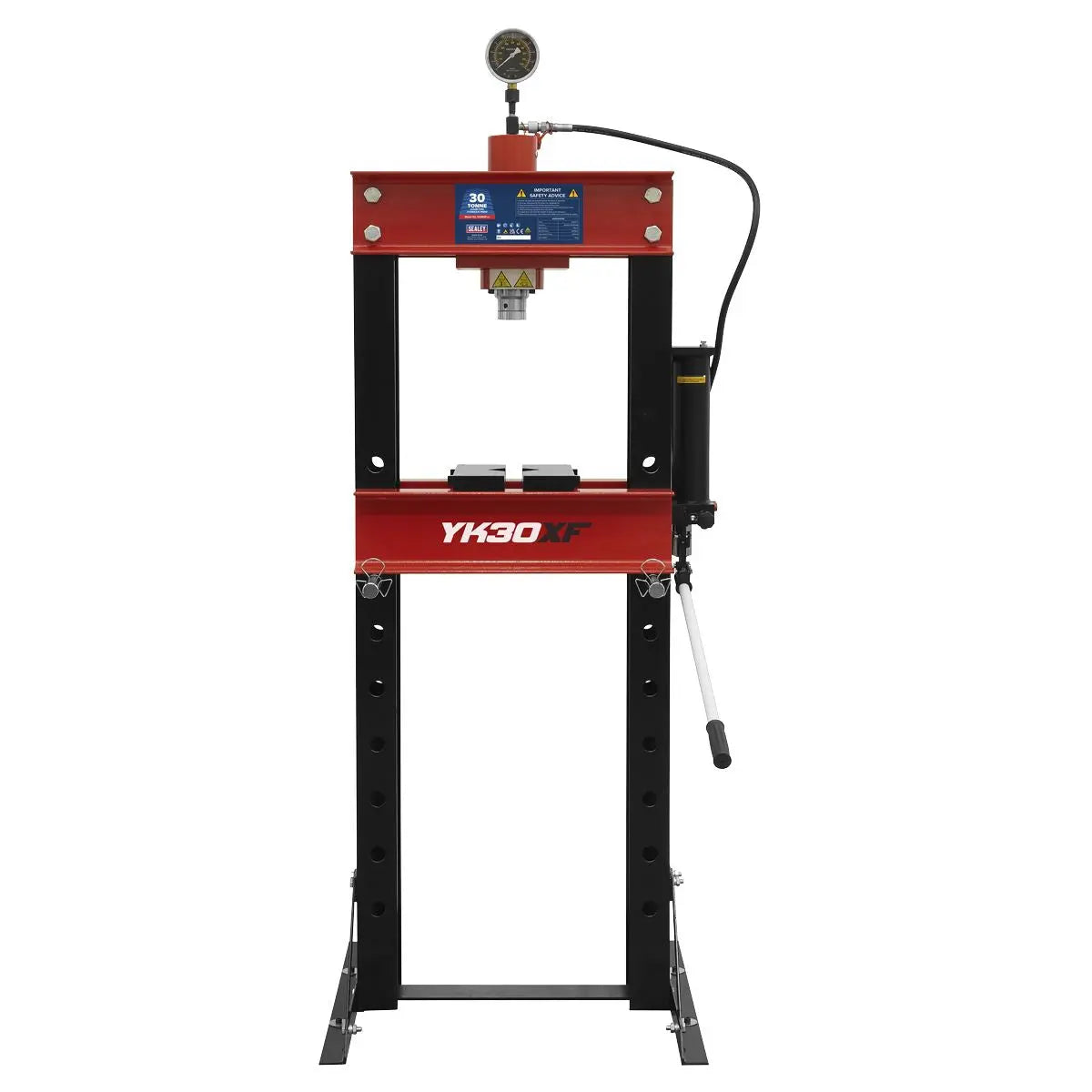

Sealey Hydraulic Floor Type Press 30 Tonne
Steel frame construction with side mounted hydraulic pump unit.
Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
Includes flat pressing plate/V-blocks.
Fitted with ram pressure gauge.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No YK30XF
- Bench or Floor Mounting: Floor
- Brand: Sealey
- Capacity: 30 Tonne
- Gauge Included: Yes
- Lateral Ram Travel: 200mm

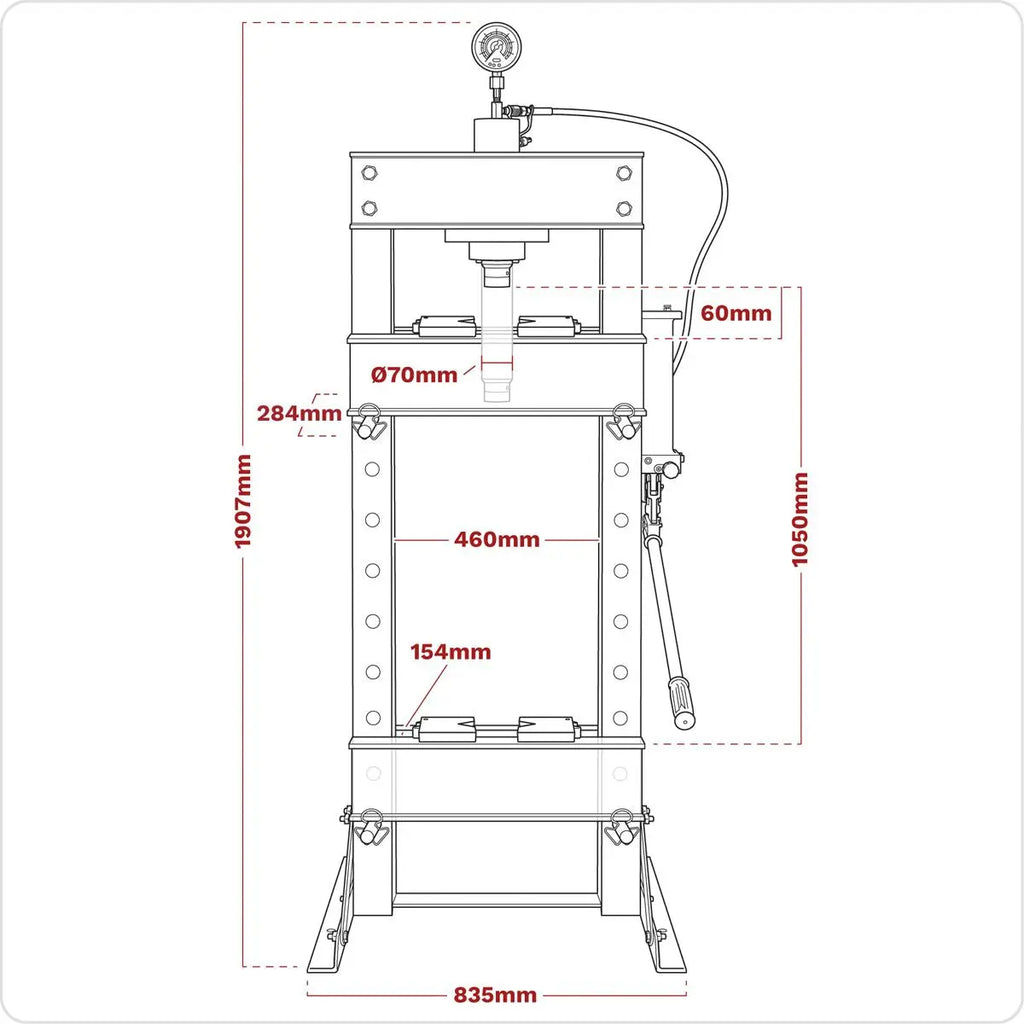

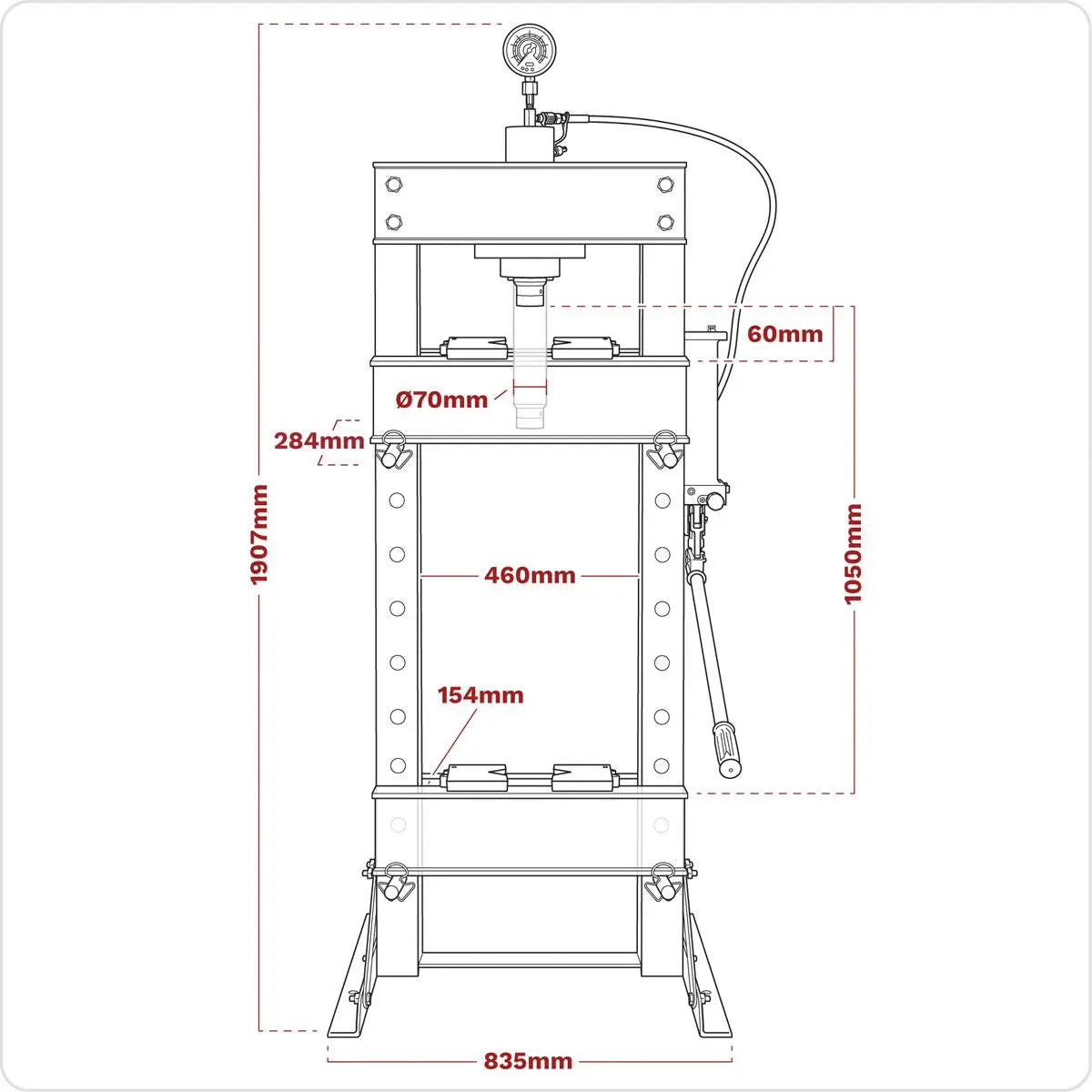

- Maximum Height - Ram to Table: 1050mm
- Minimum Height - Ram to Table: 60mm
- Nett Weight: 141.5kg
- Optional Accessories: YKPP8 - Press Pin Set
- Overall Height: 1907mm
- Overall Width: 835mm
- Ram Diameter: Ø70mm
- Ram Stroke: 150mm
- Table Aperture: 154mm
- Type: Hydraulic
- Working Table Depth: 284mm
- Working Table Width: 460mm
Catalogue Page: Page 327
