Sealey Premier Inverter Welder MIG, TIG & MMA 200A with LCD Screen

Sealey Premier Inverter Welder MIG, TIG & MMA 200A with LCD Screen

3-in-1 WELDER - Uses state-of-the-art inverter technology to achieve MIG/TIG/MMA (Arc).

INVERTER TECHNOLOGY - Offers many advantages over traditional transformer type welders, giving greater duty cycles and more power factor efficiency.

FAN COOLED - DC power supply for MIG and TIG, suitable to weld steel, stainless steel, copper, nickel, titanium, and their alloys.

ALSO SUITABLE FOR ARC WELDING - A variety of rods including rutile, basic and stainless from Ø1.6 to Ø4mm.

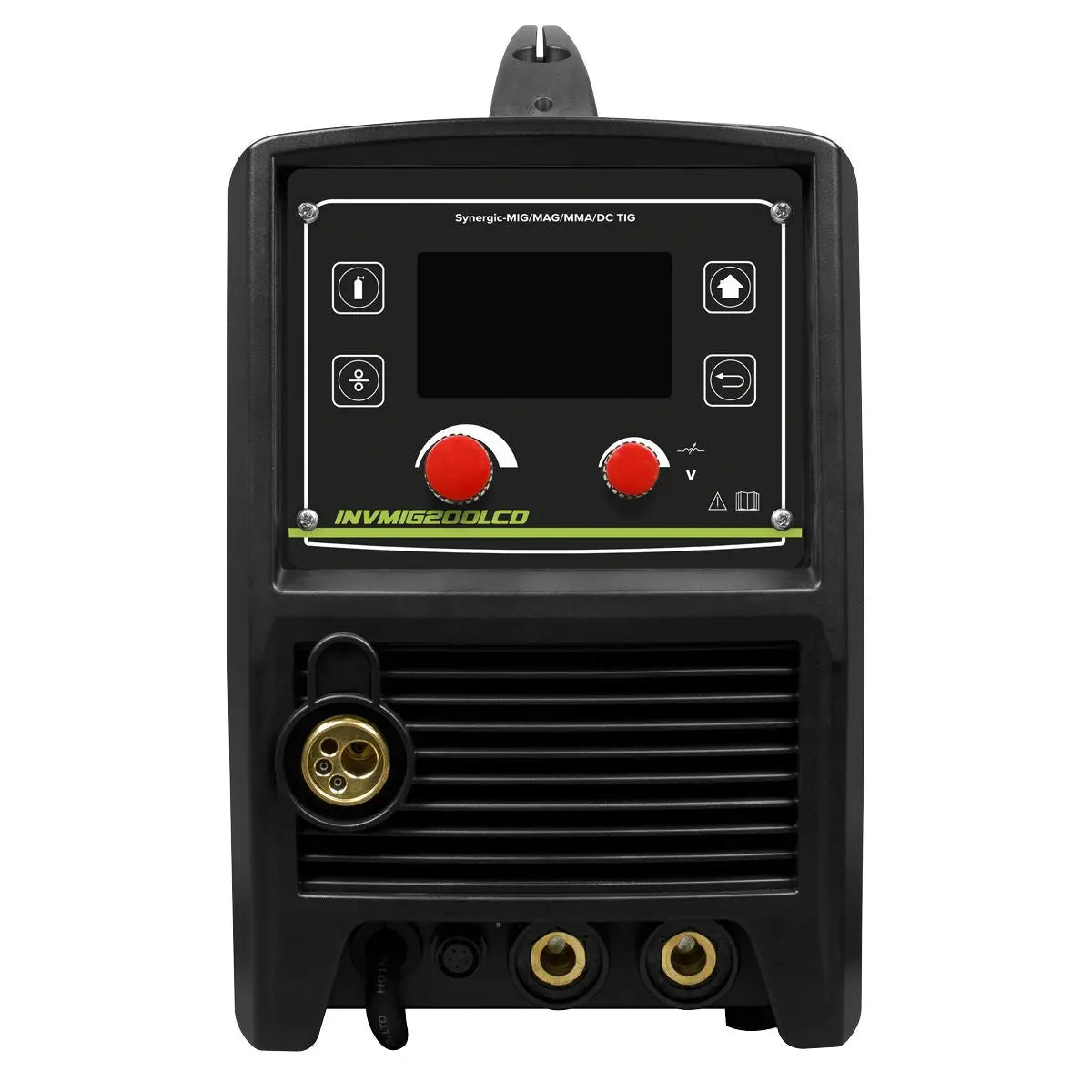

FULLY FUNCTIONAL - LCD front panel with easy to follow set-up.

UP TO FOUR SET UPS - Can be saved on the machine for fast loading.

SWITCHABLE - Between MIG, TIG* or MMA* welding modes (*optional torches required).

3 YEAR GUARANTEE*.

Specification:

• Model No INVMIG200LCD
• Brand: Sealey Premier
• Nett Weight: 15kg (power source only)
• Duty Cycle:
• MIG: 20% @ 200A, 100% @ 89A
• TIG: 20% @ 180A, 100% @ 80A
• MMA (Arc) 20% @ 180A, 100% @ 80A

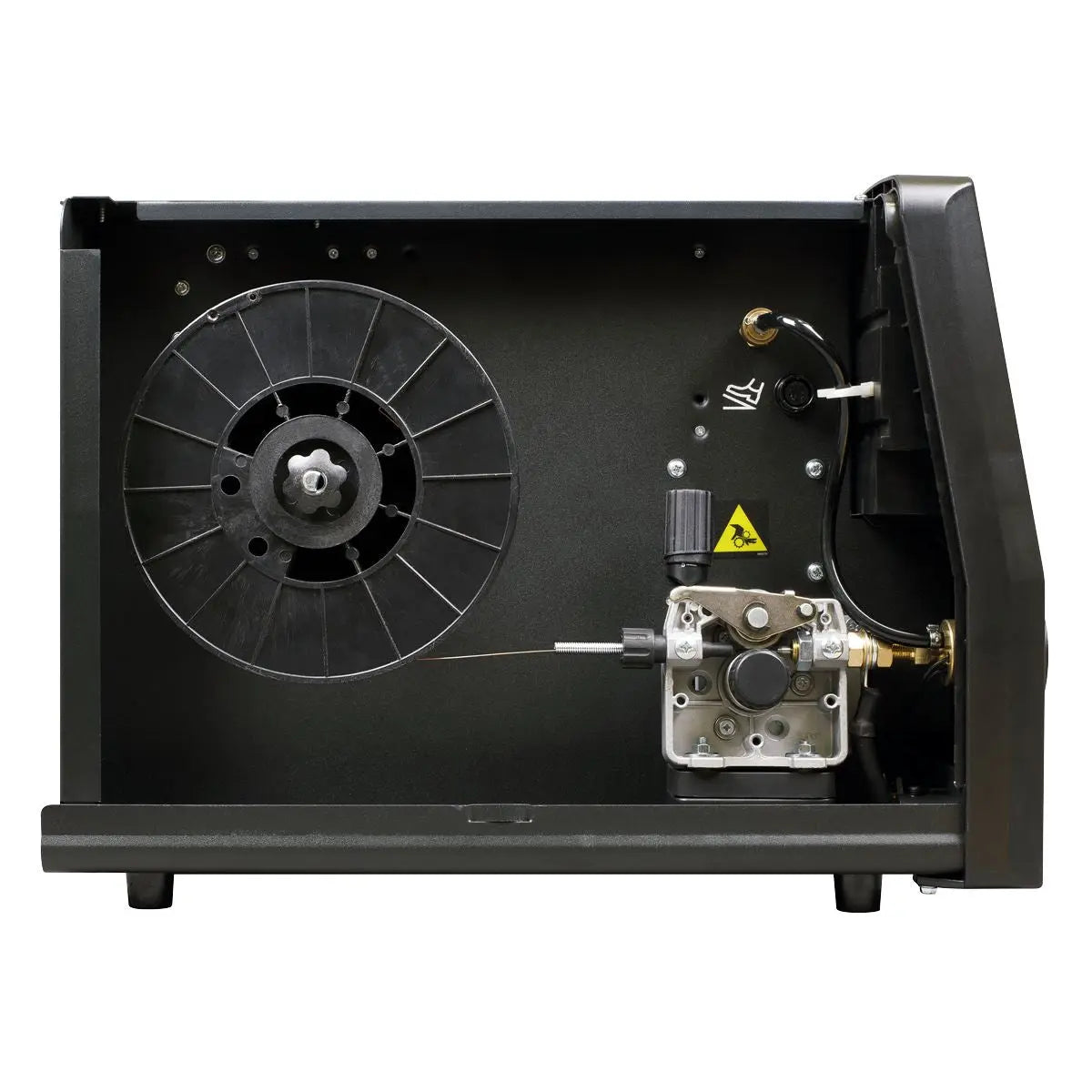

• Wire Capacity: 5kg
• Electrode Capacity: 1.6 - 4mm
• Absorbed Power: 8.6kW
• Supply: 230V **
• Insulation: IP21S
• Protection: F
• IP Rating:
• Weight: 17kg
• MIG Torch: Euro Non-Live BINZEL® MB15*
• MMA Accessory Kit (Optional) MMA01
• TIG Accessory Kit (Optional) TIG10S
({IF["Note: * included as standard ** To acheive maximum power a 32A supply may be required."!=""]})
• Note: * included as standard ** To acheive maximum power a 32A supply may be required.
({ENDIF})

Product Guarantee: 3 Years
Catalogue Page: Page 749

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
