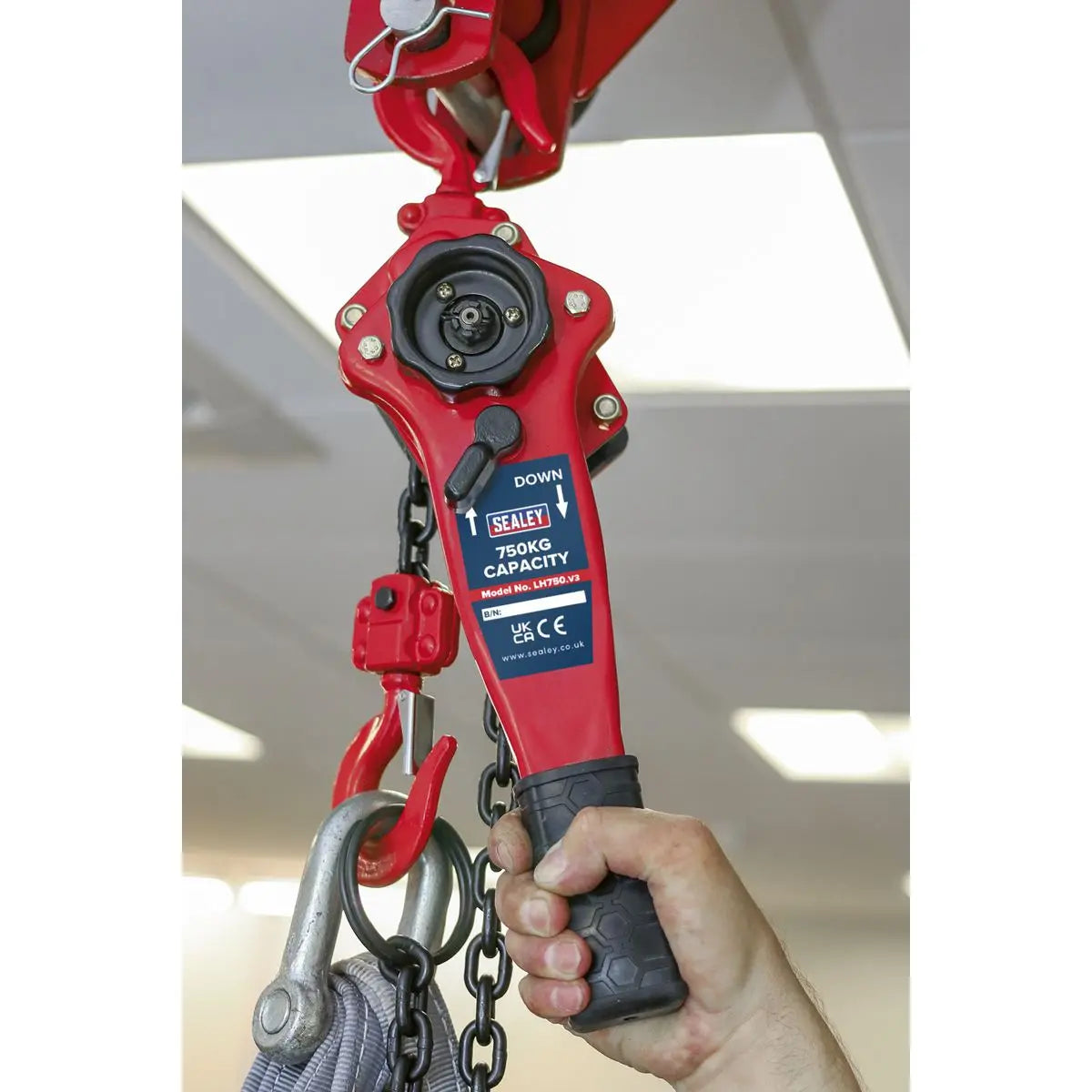

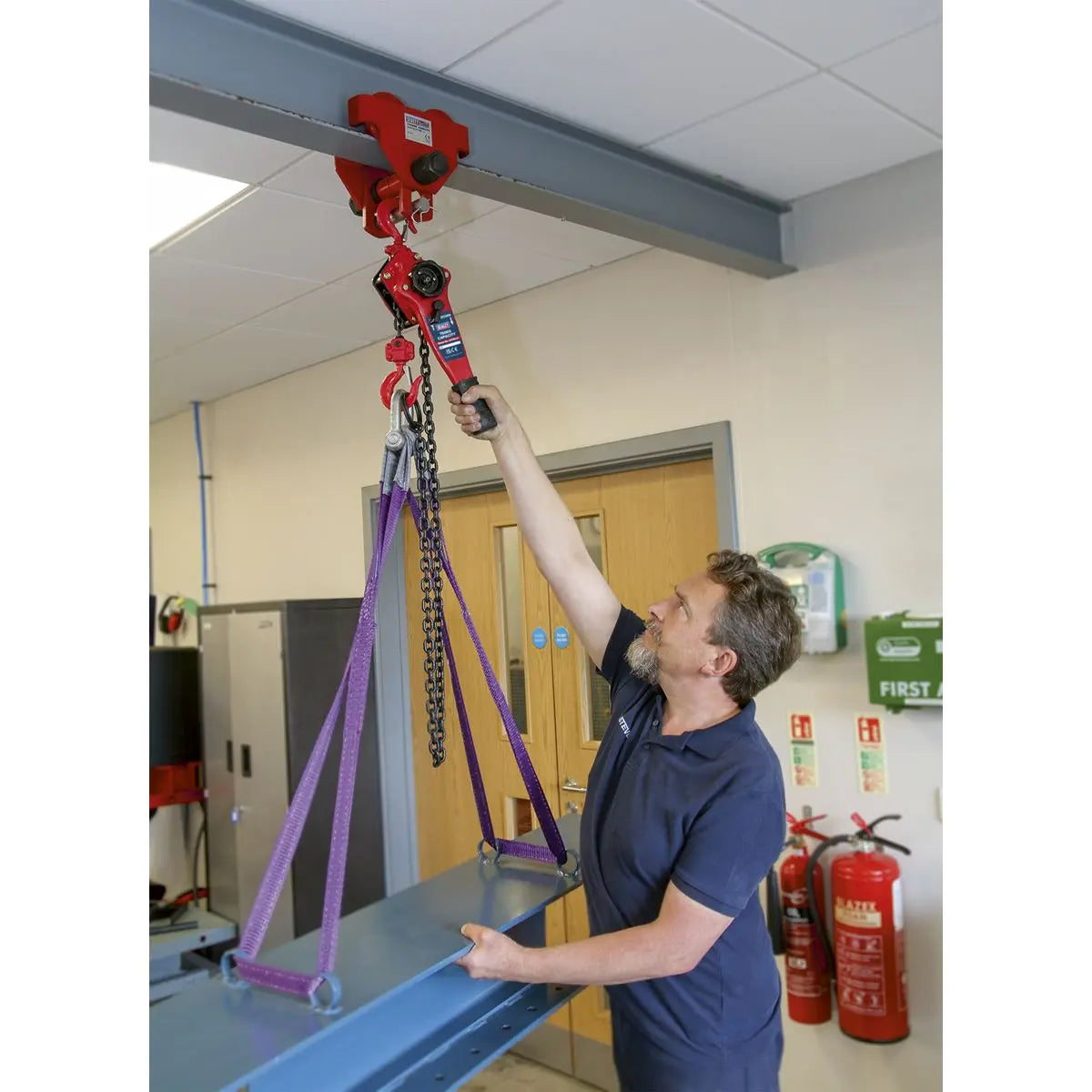

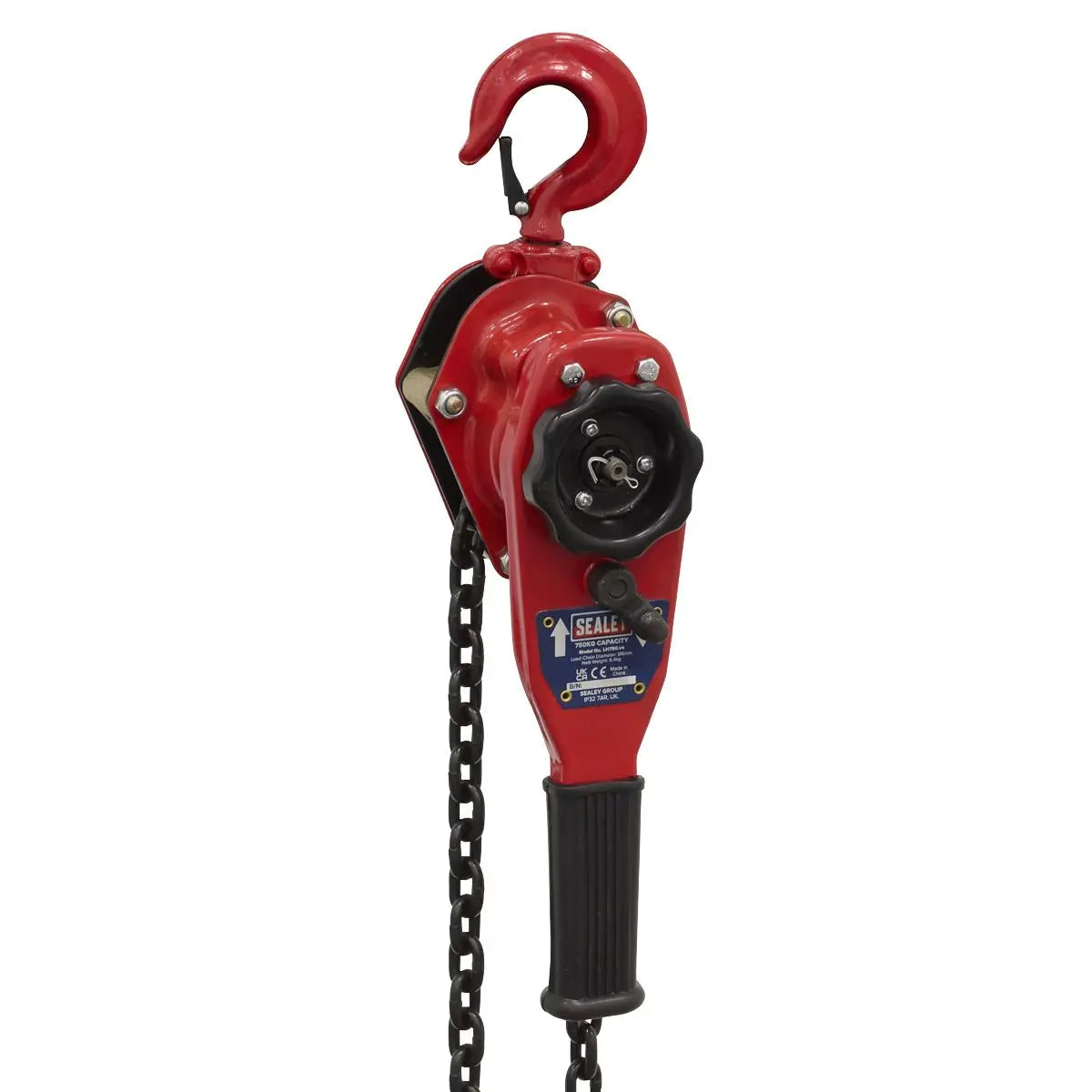

Sealey Steel Lever Hoist 750kg

Sealey Steel Lever Hoist 750kg

Rugged construction features drop-forged and heat treated pinion gear with totally enclosed mechanisms.

Equipped with heavy-duty brake and high quality alloy steel chain for durable and safe operation.

Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm.

Specification:

• Model No LH750
• Brand: Sealey
• Capacity: 750kg
• Chain Falls: 1
• Chain Length: 1.5m
• Head Room: 275mm
• Hook Aperture: 25mm
• Lever Length: 280mm
• Load Chain Diameter: Ø6mm
• Maximum Hook Capacity Ø: 37mm
• Nett Weight: 7kg
• Operating Clearance: 99mm
• Pull on Lever to Lift Full Load: 14kgf
• Size (W x D): 136 x 148mm
• Test Load: 1125kg

Product Guarantee: 1 Year
Catalogue Page: Page 325

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
