Description

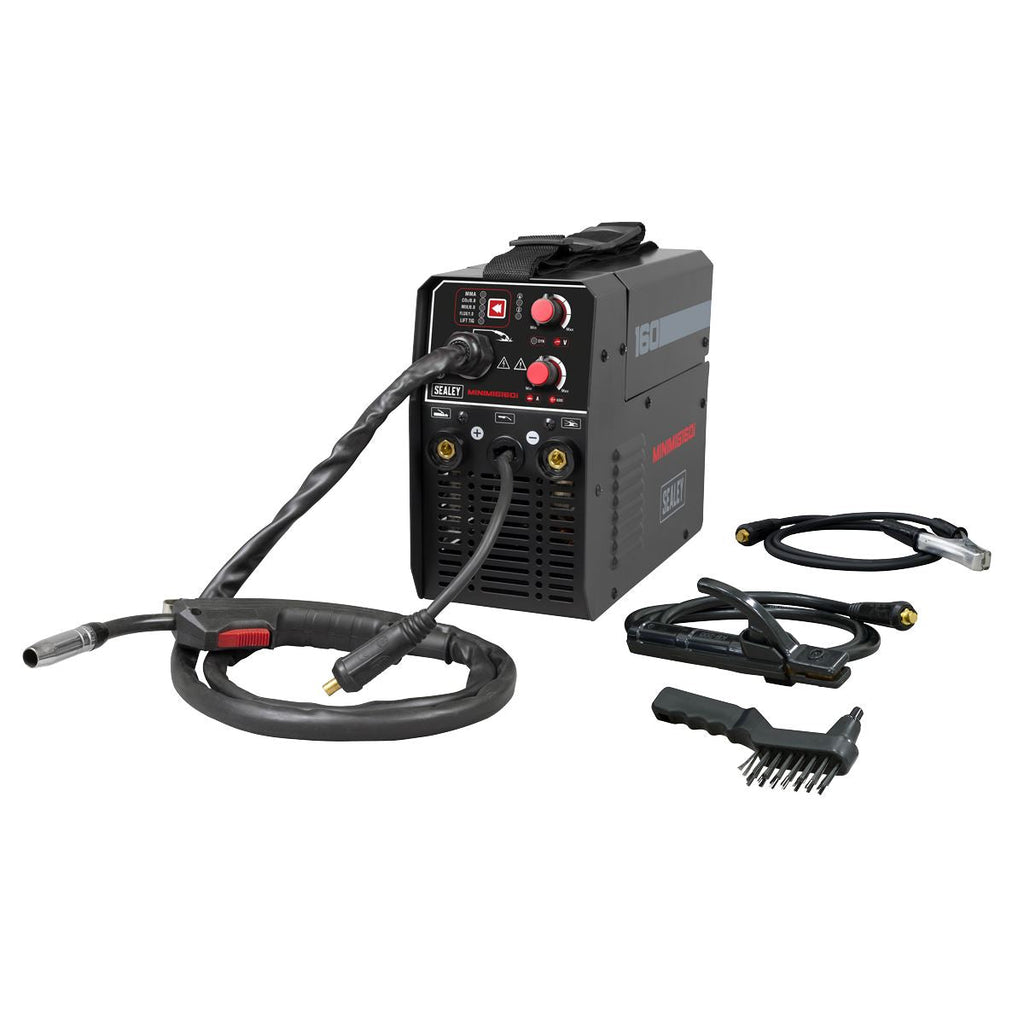

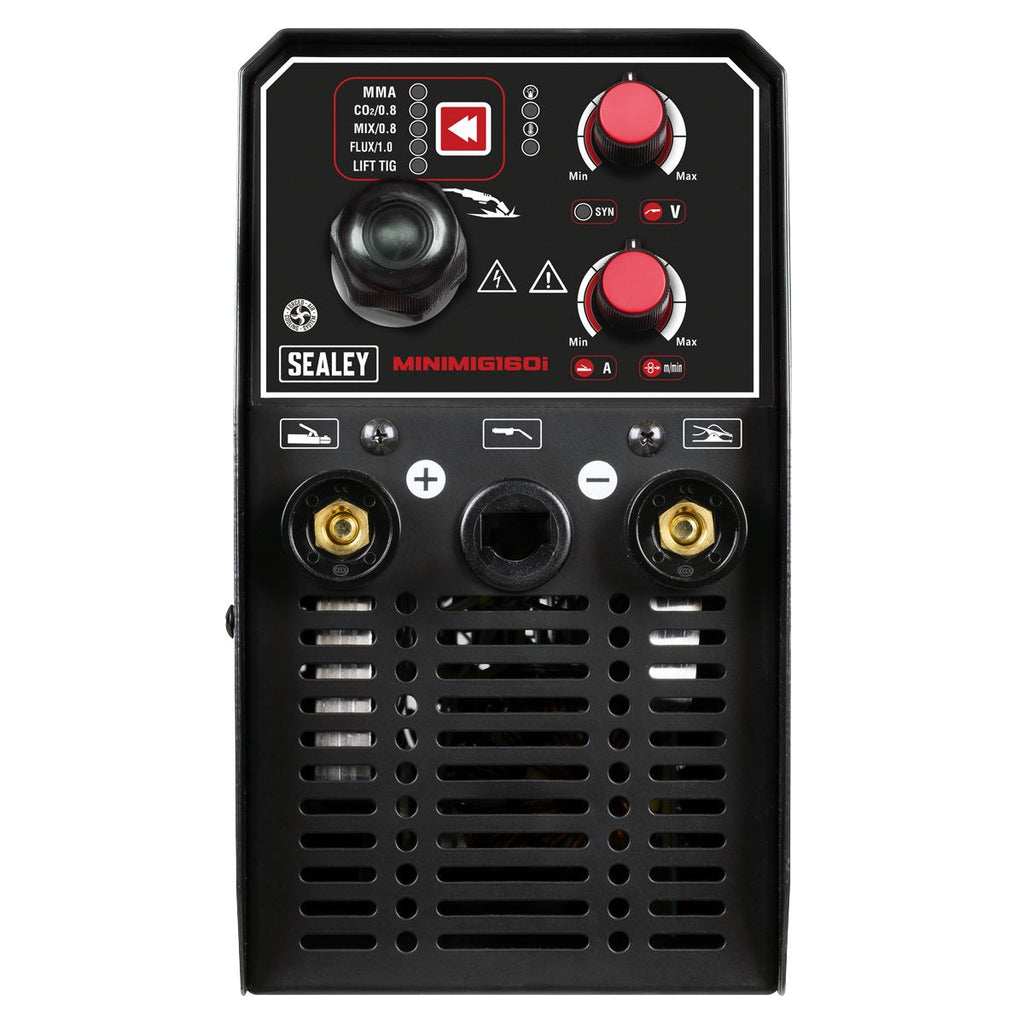

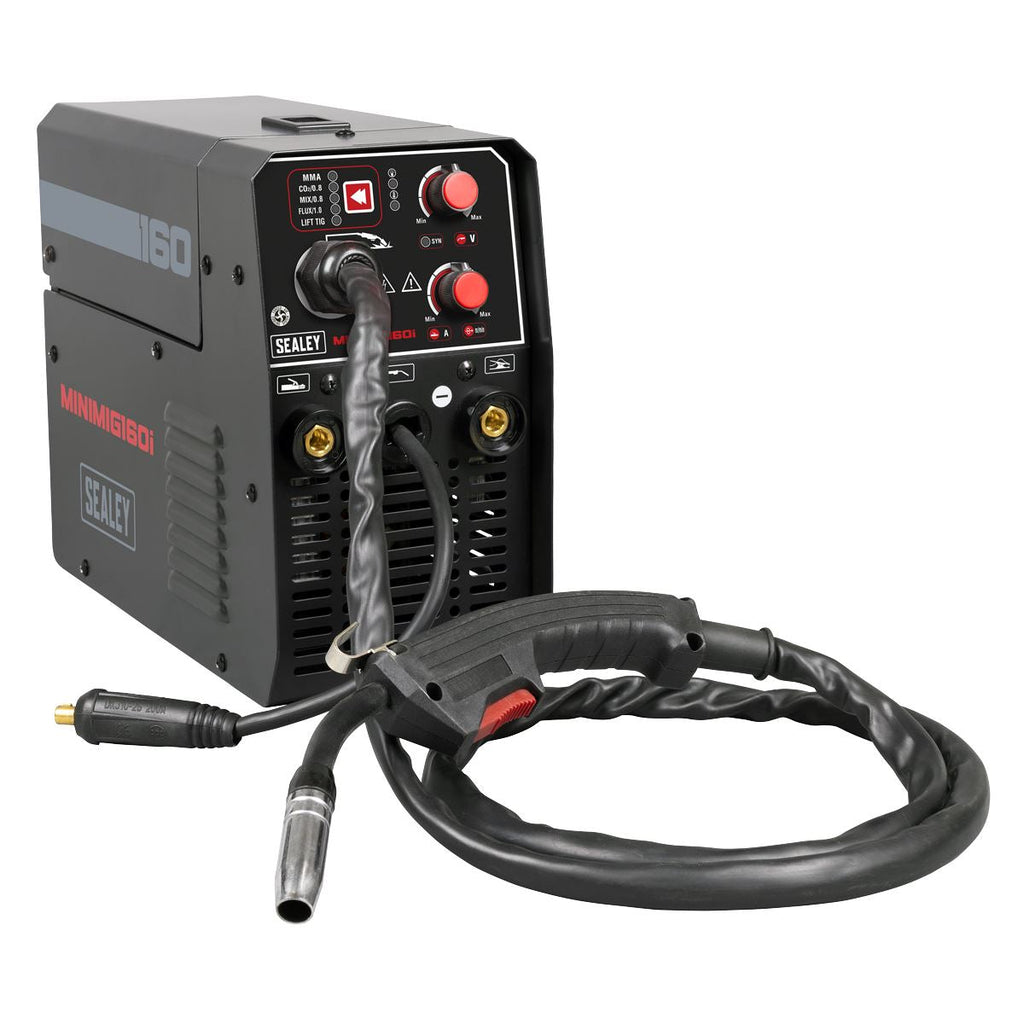

Sealey MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V
IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A.
3-IN-1 FUNCTION - Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
HIGHLY PORTABLE - Ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand.
FEATURING - Hot start, anti-stick, forced air cooling and thermal cut out protection.
WELDING CAPABILITY - Unit can MIG weld using 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4.0mm electrode.

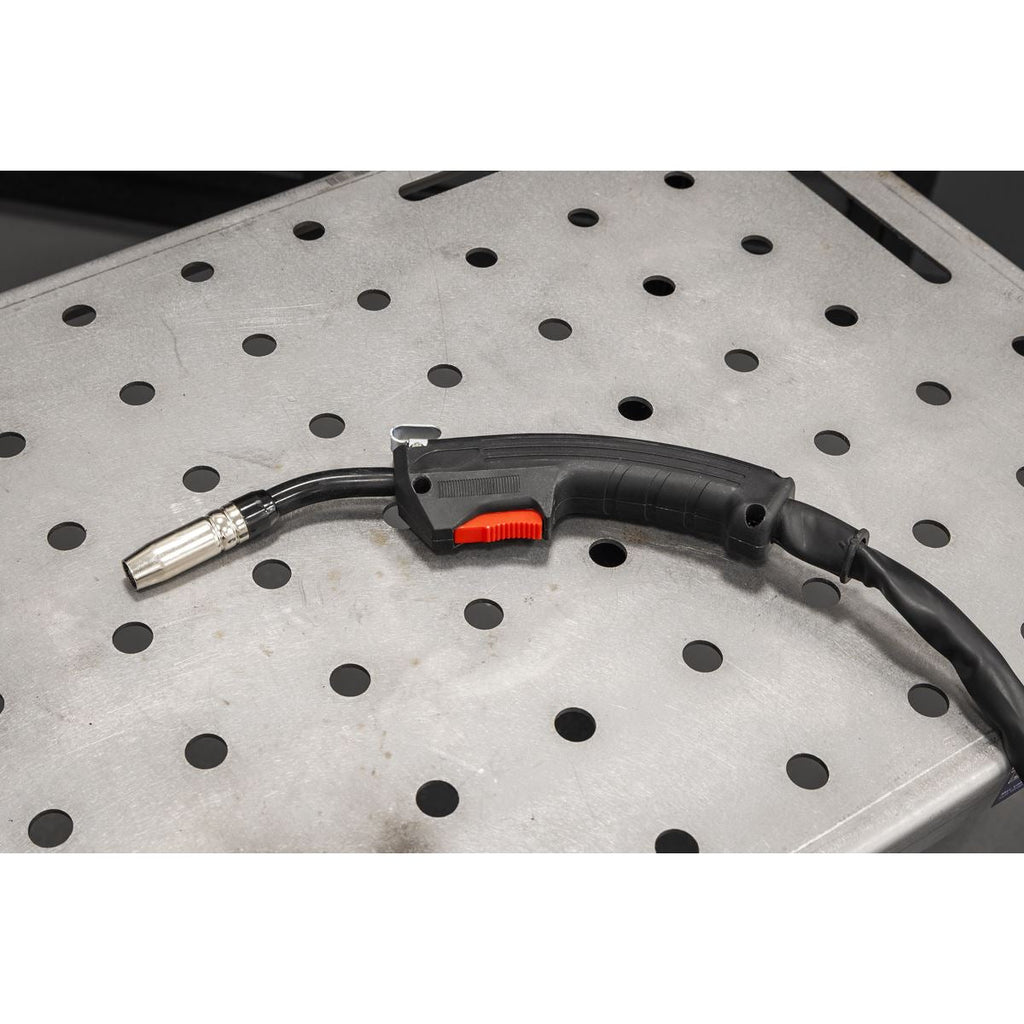

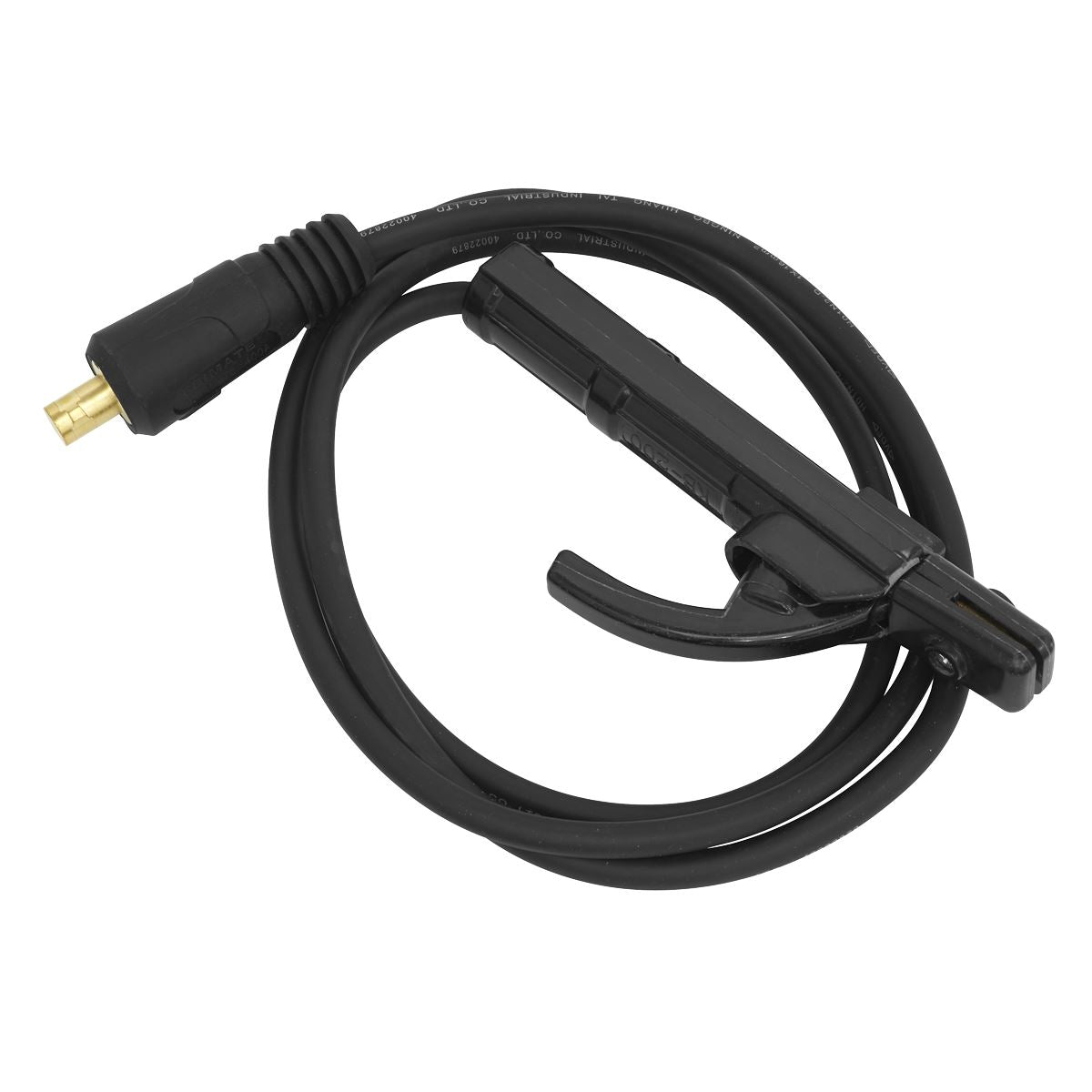

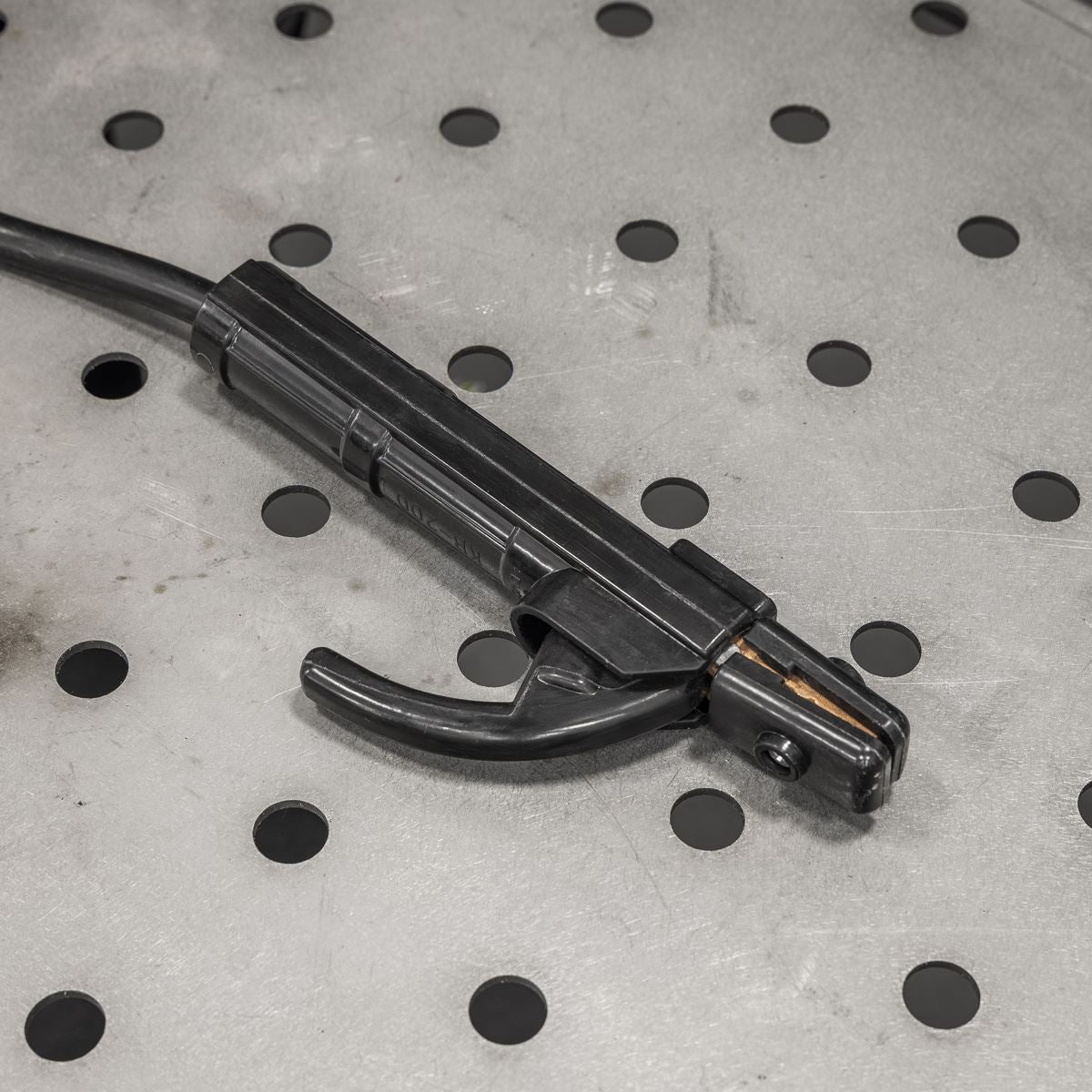

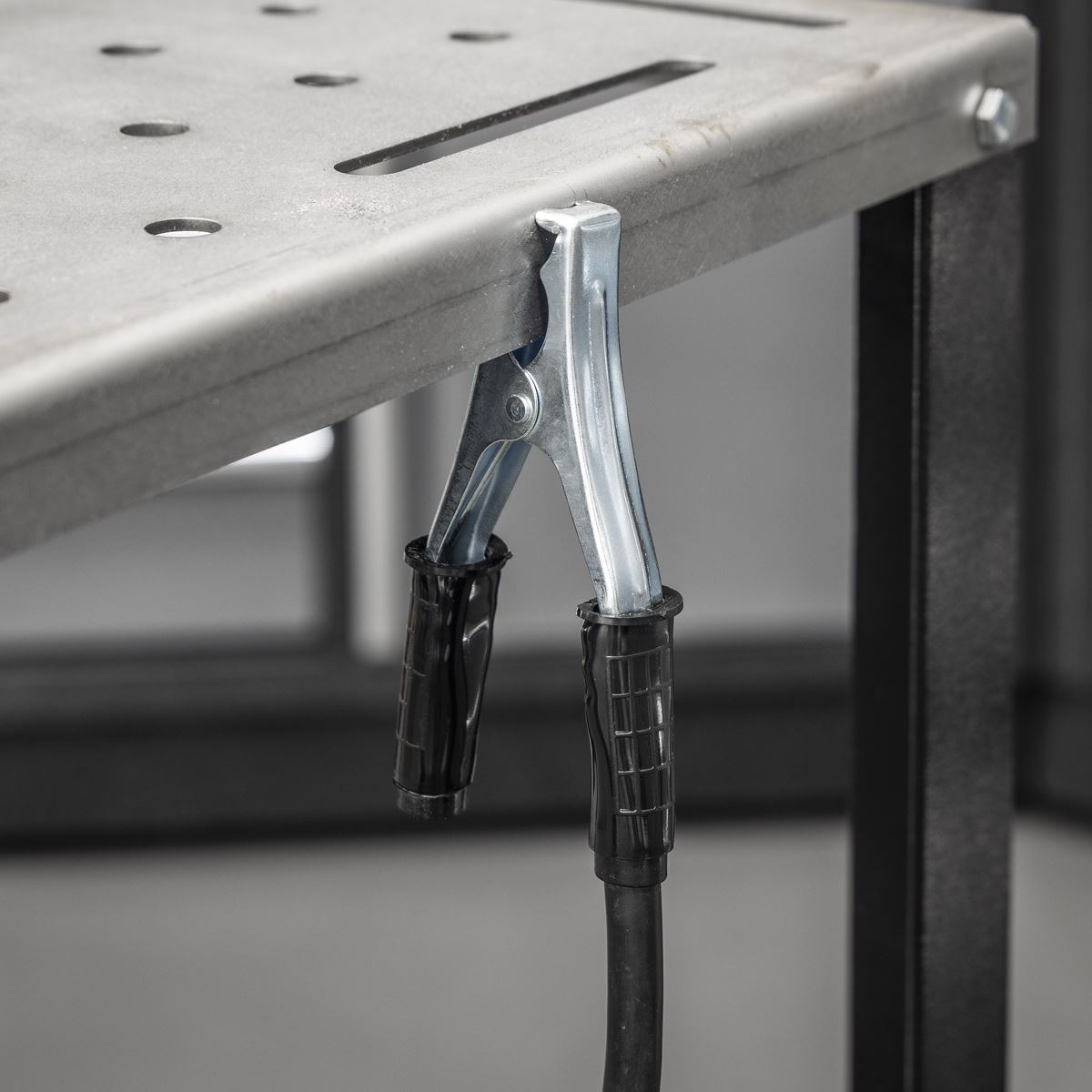

SUPPLIED WITH - Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
DUTY CYCLE – MIG - 60% @ 160A, TIG - 60% @ 160A, MMA/ARC - 60% @ 160A.
Specification:
- Model No MINIMIG160i
- Brand: Sealey
- Nett Weight: 6.9kg
- Welding Current: 10-160A
- Duty Cycle MIG: 60% @ 160A, 100% @ 124A
- Duty Cycle MMA/ARC: 60% @ 160A, 100% @ 124A
- Duty Cycle TIG: 60% @ 160A, 100% @ 124A
- Wire Capacity: 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire
- Electrode Capacity: 1.6-4mm
- Absorbed Power: 4.4kW
- Supply: 230V 16A*
- Insulation Class: H
- IP Rating: IP21S
- Note * To achieve maximum power a 16A supply may be required.
