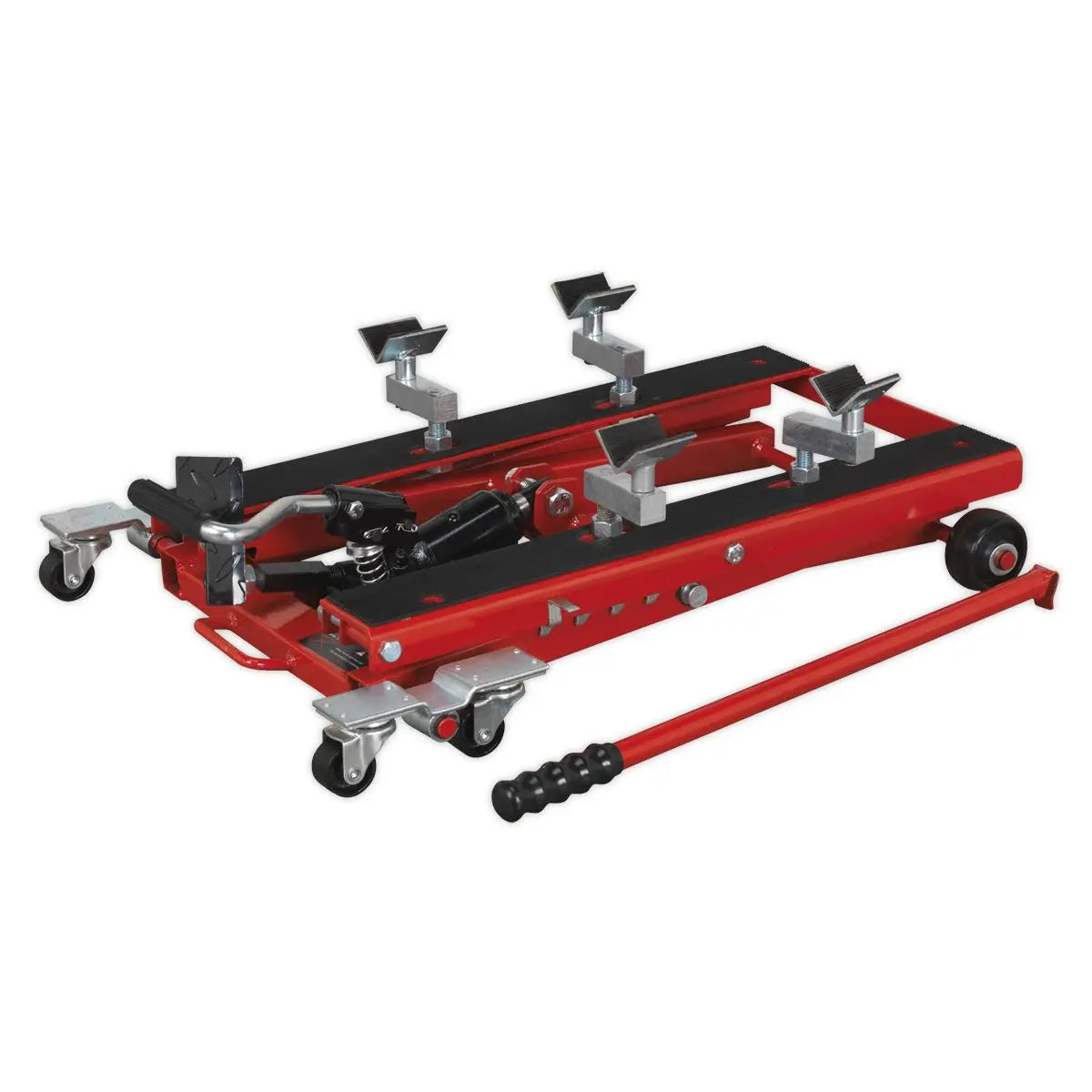

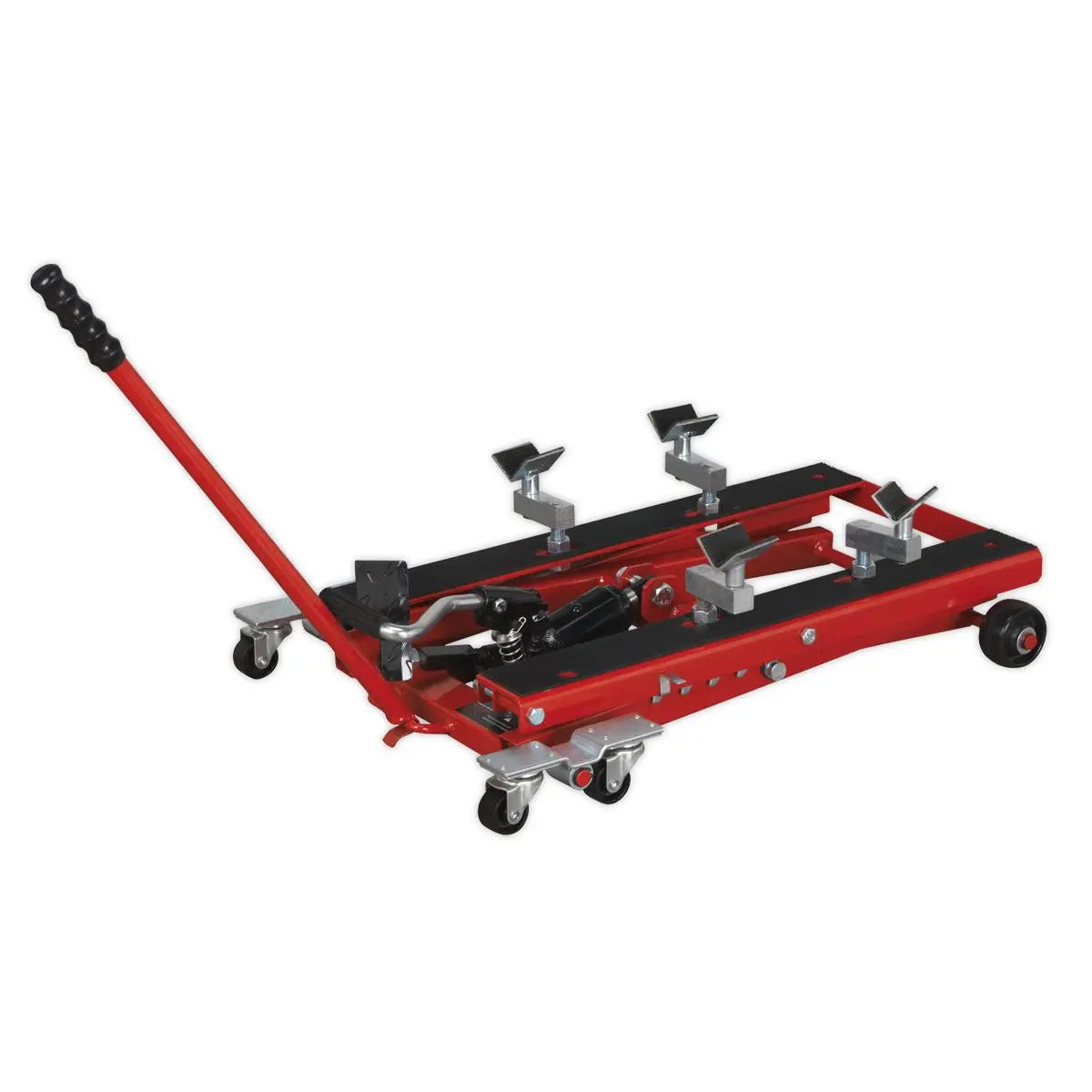

Sealey Motorcycle & Quad Scissor Lift 500kg Capacity Hydraulic

Sealey Hydraulic Motorcycle & Quad Scissor Lift 500kg Capacity

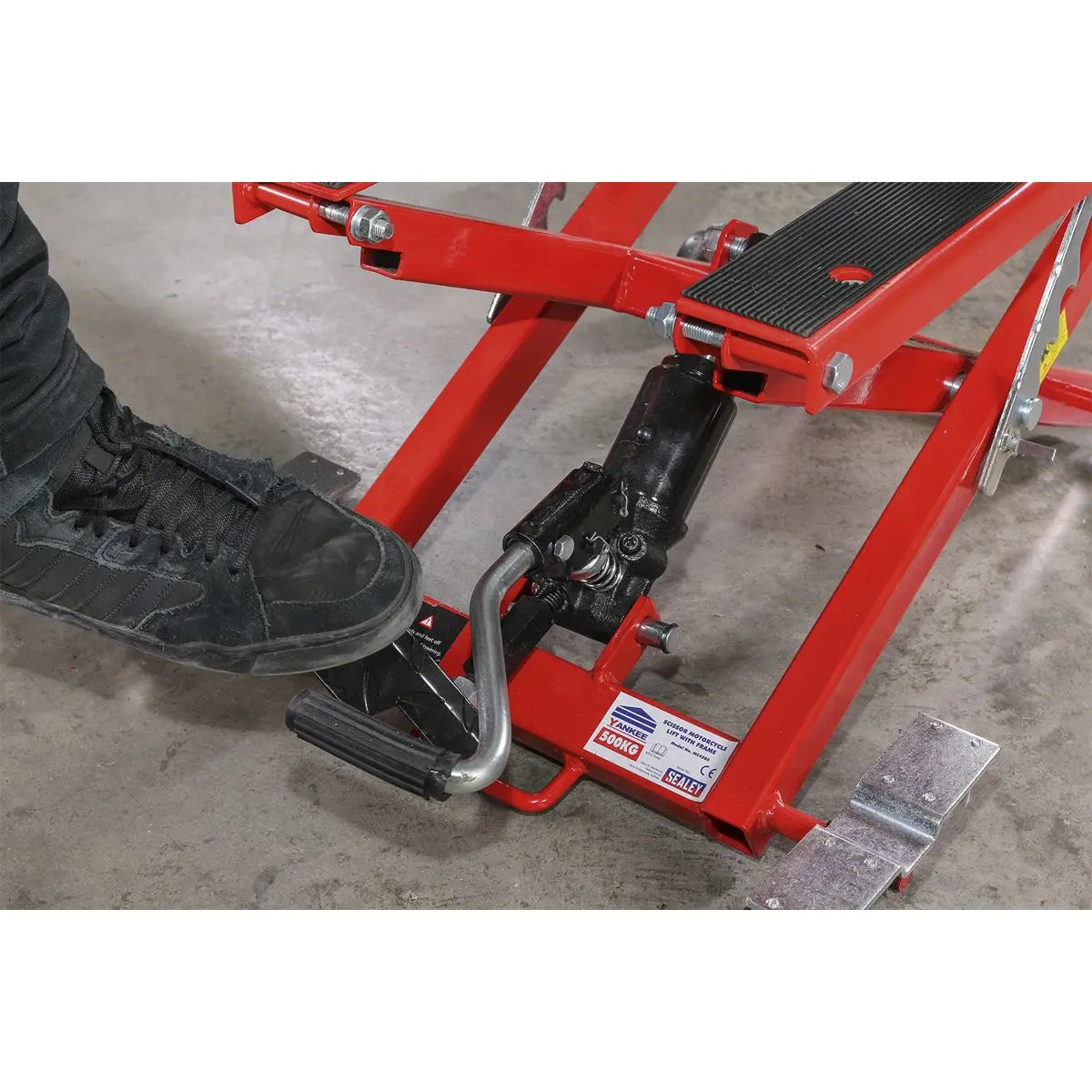

Steel construction scissor with bottle jack style power unit.

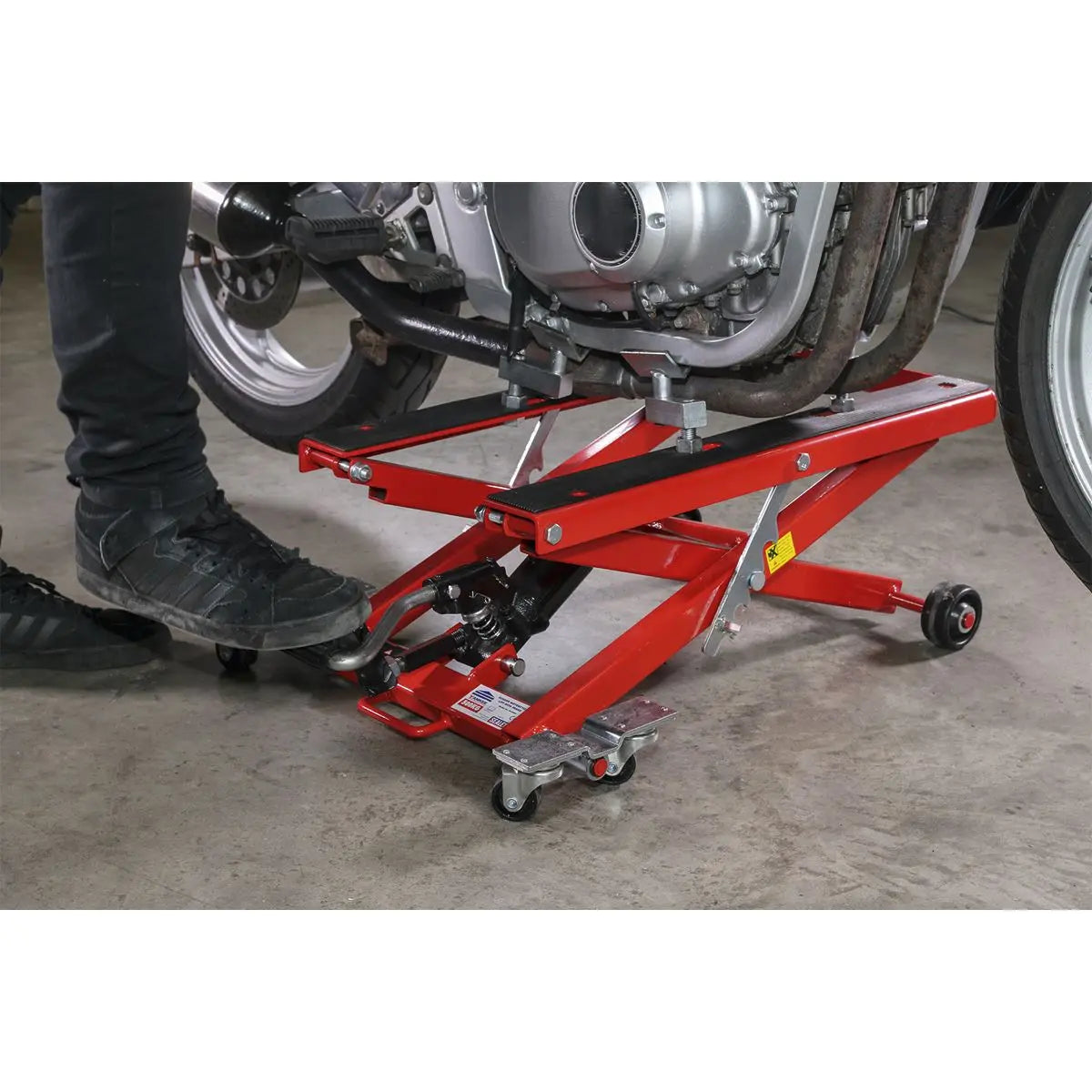

With this lift it is possible to remove both wheels, front forks, steering assembly, rear swing arm and suspension units, as well as the engine.

Benefits from being portable so can be used anywhere with a hard level floor, making this suitable for mobile motorcycle mechanics.

Ideal for use with the Sealey range of wheel chocks to assist supporting the motorcycle, whilst adjusting the frame supports and securing to the lift.

Min./Max. Lift Height (without Frame Supports): 110-400mm.

Min./Max. Lift Height (with Frame Supports): 210-508mm.

Maximum Frame Dimensions (W x D): 680 x 360mm.

Specification:

• Model No MC4500
• Brand: Sealey
• Nett Weight: 27.12kg
• Capacity: 500kg
• Min./Max. Lift Height (without Frame Supports): 110-400mm
• Min./Max. Lift Height (with Frame Supports): 200-508mm
• Maximum Frame Dimensions (W x D): 680 x 360mm

Product Guarantee: 1 Year
Catalogue Page: Page 340

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
