Description

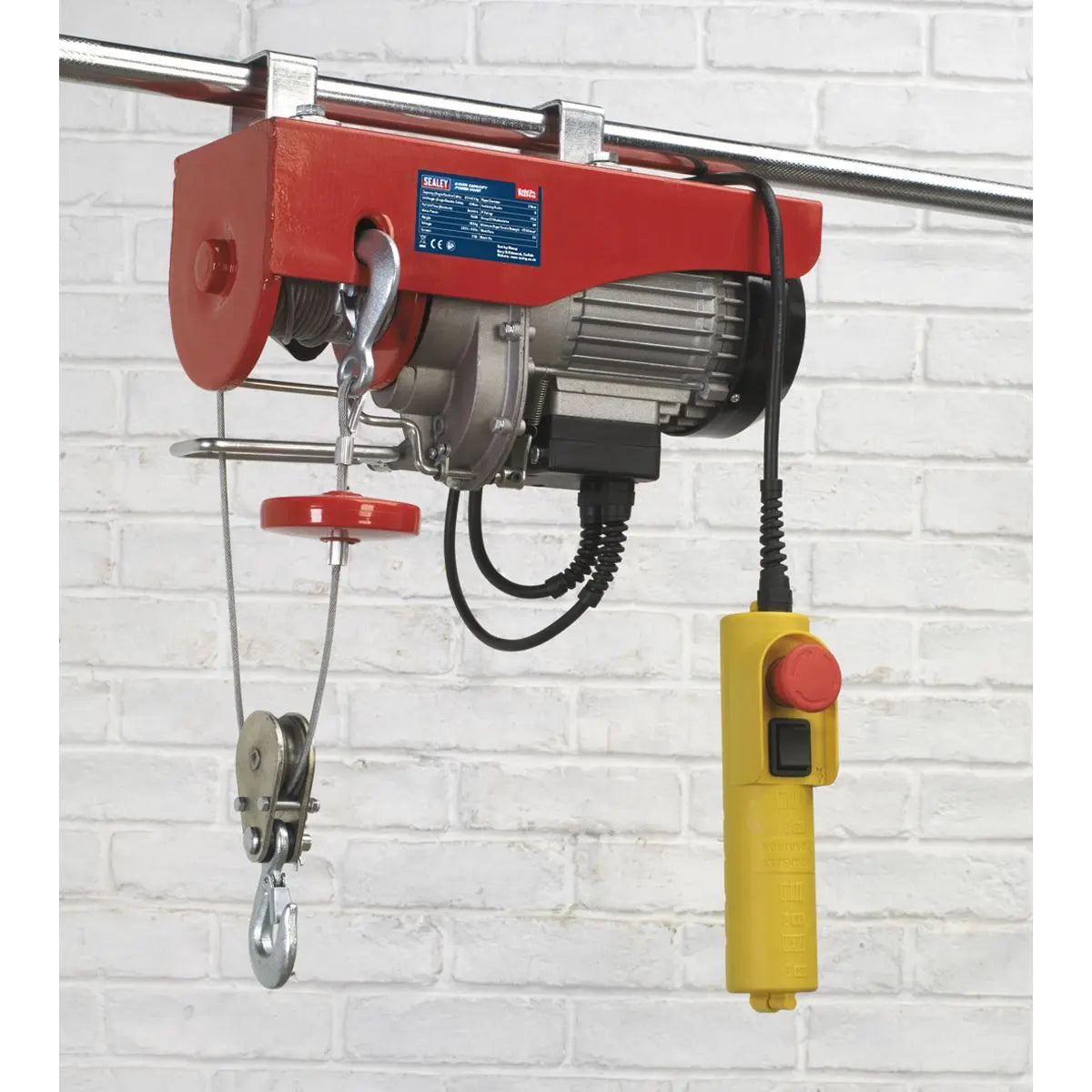

Sealey Power Hoist 230V/1ph 400kg Capacity
Approved to EU and UK Lifting Gear Regulations.
This hoist is intended for use where a suitable support facility exists.
Support brackets are included with the equipment.
The support bar is not included.
Specification:
- Model No PH400
- Brand: Sealey
- Capacity (Double Cable): 400kg
- Capacity (Single Cable): 200kg
- Current: 3.3A
- Group of Mechanisms: M1
- Insulating Grade: B
- IP Rating: IP54
- Lift Height (Double Cable): 6m
- Lift Height (Single Cable): 12m
- Lift Speed (Maximum): 8m/min
- Minimum Rope Tensile Strength: 1770N/mm²
- Motor Power: 750W
- Nett Weight: 16.0kg
- Rope Diameter: 3.8mm
- Work Rate: S3
Catalogue Page: Page 323
