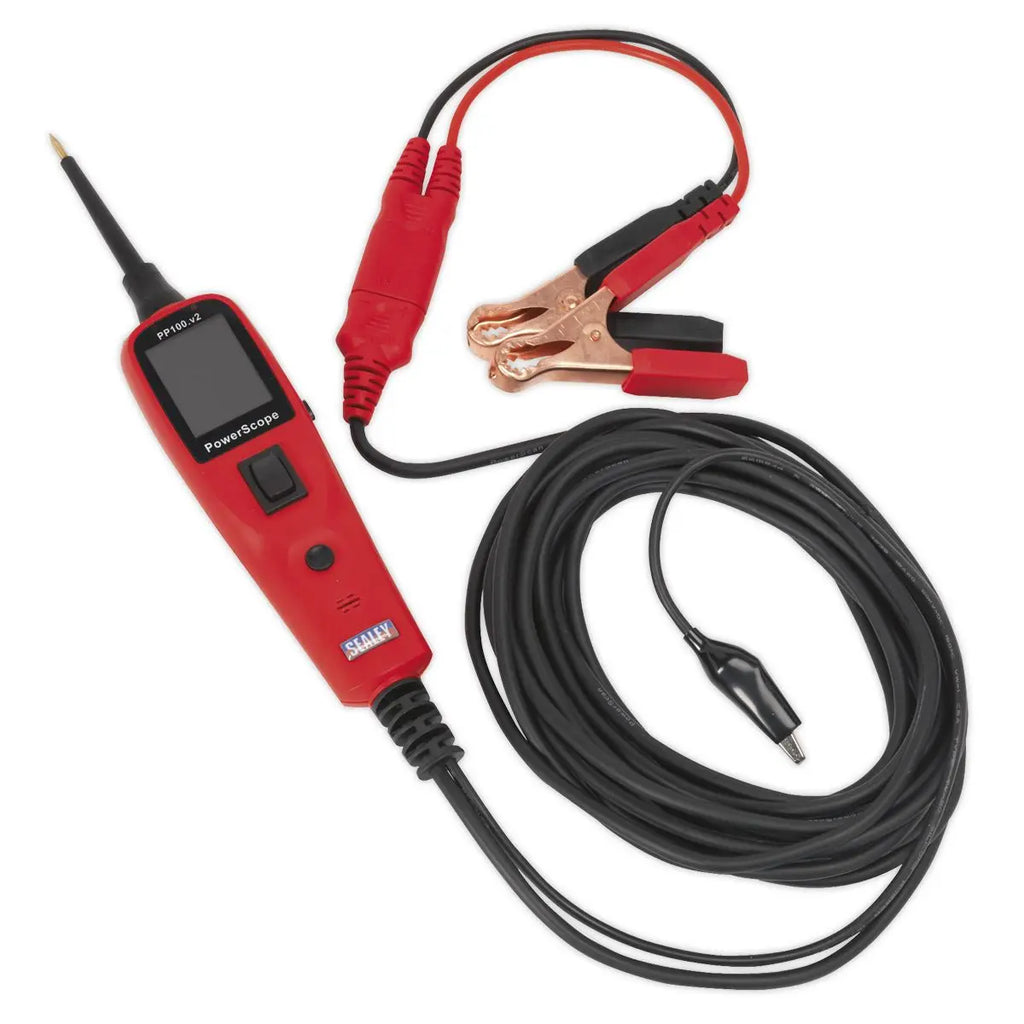

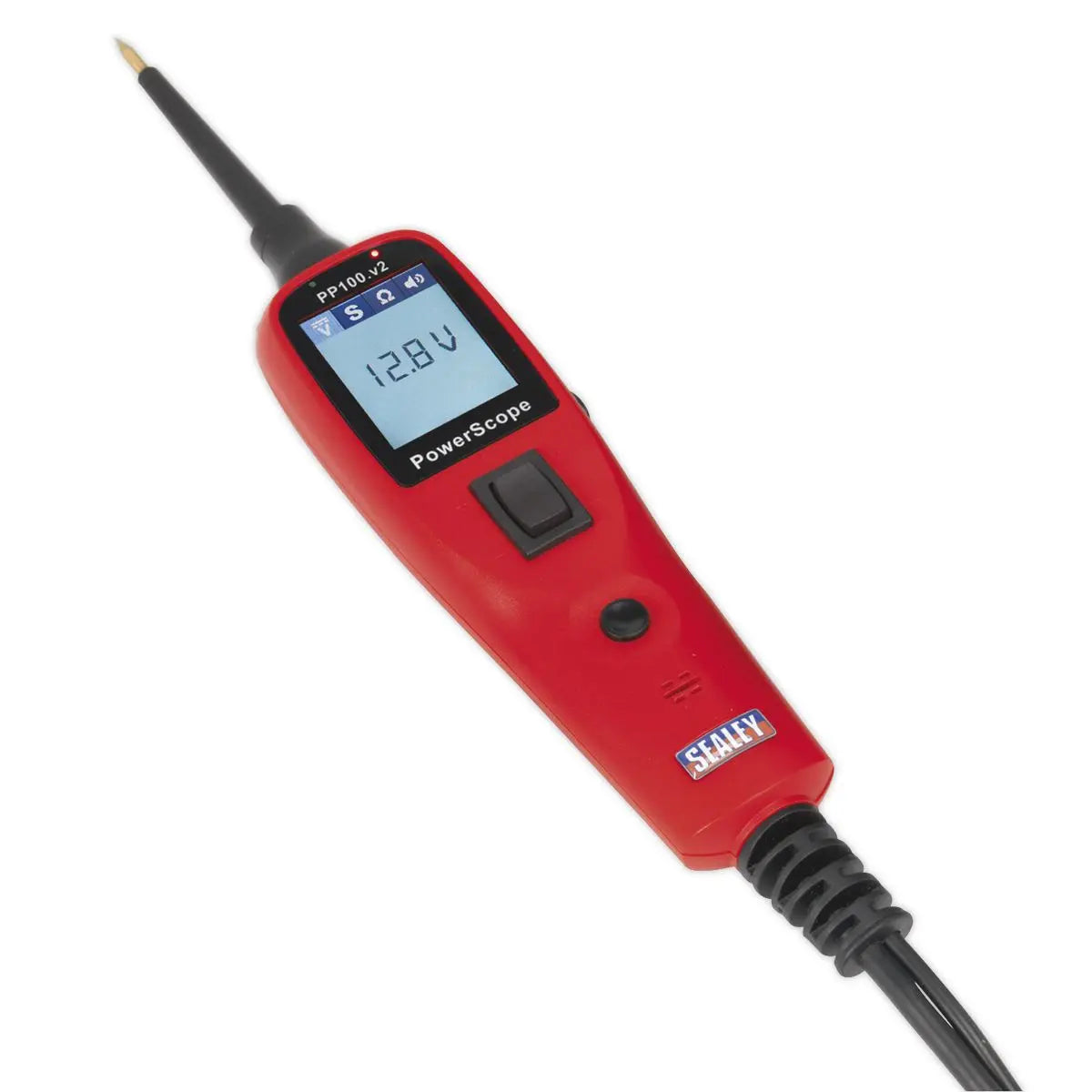

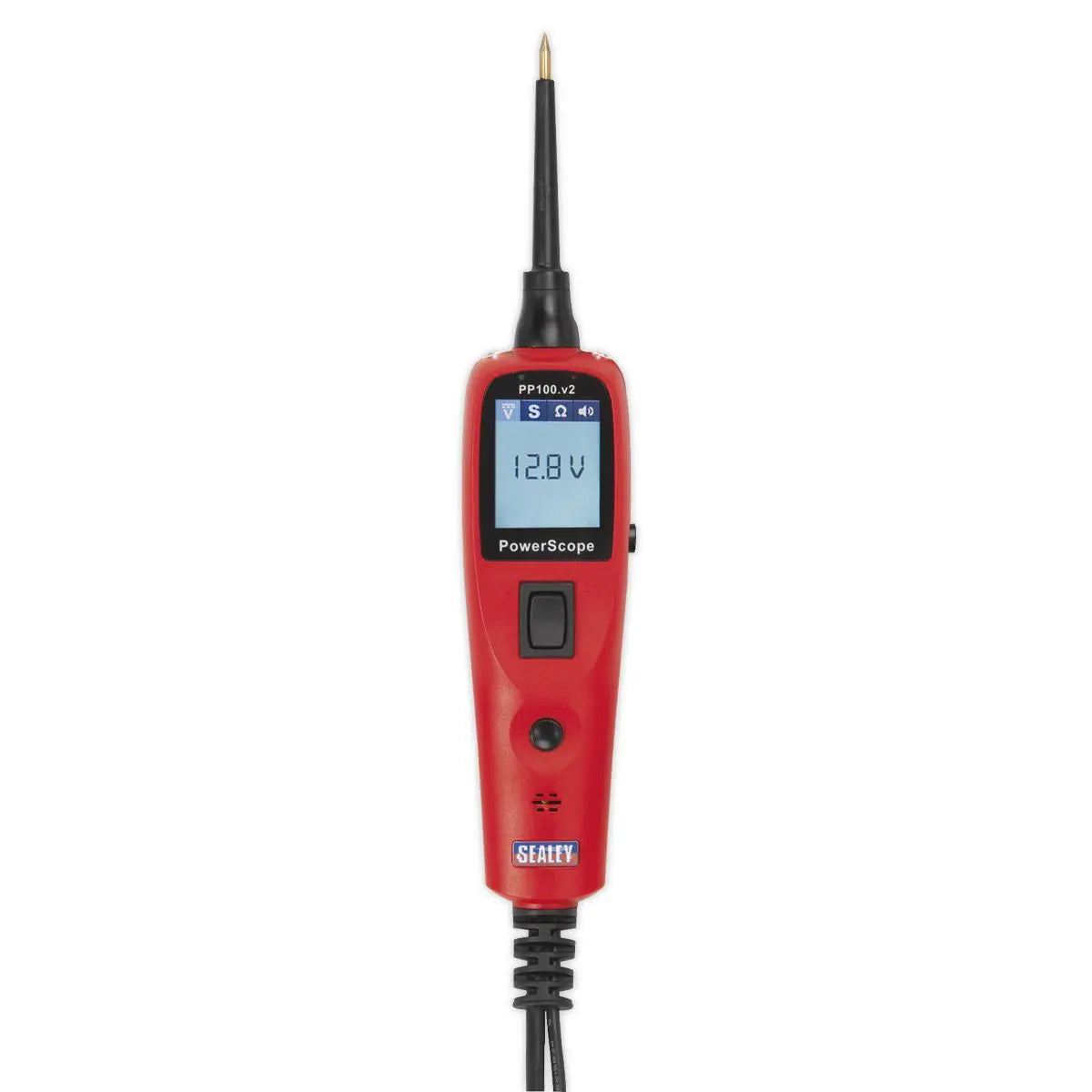

Sealey Power Scope Automotive Probe 0-30V
One of the most advanced automotive probes on the market, with a huge range of functions for effective automotive diagnostics, making short circuits and bad earths easy to find.

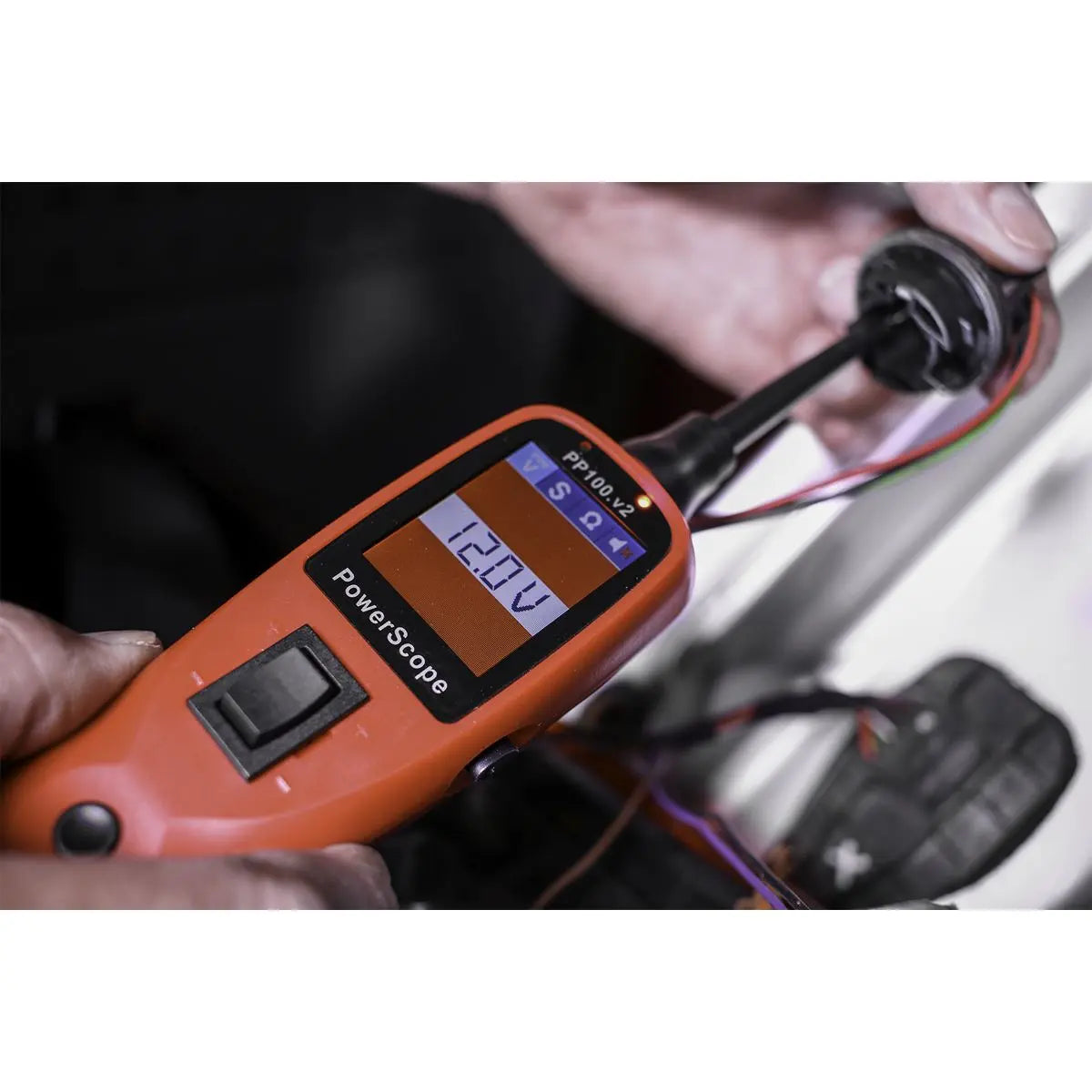

Features a scope function to visually test component signals, with the added benefit of maximum/minimum volts, frequency and duty cycle displayed.
Allows components to be activated in situ or prior to installation.

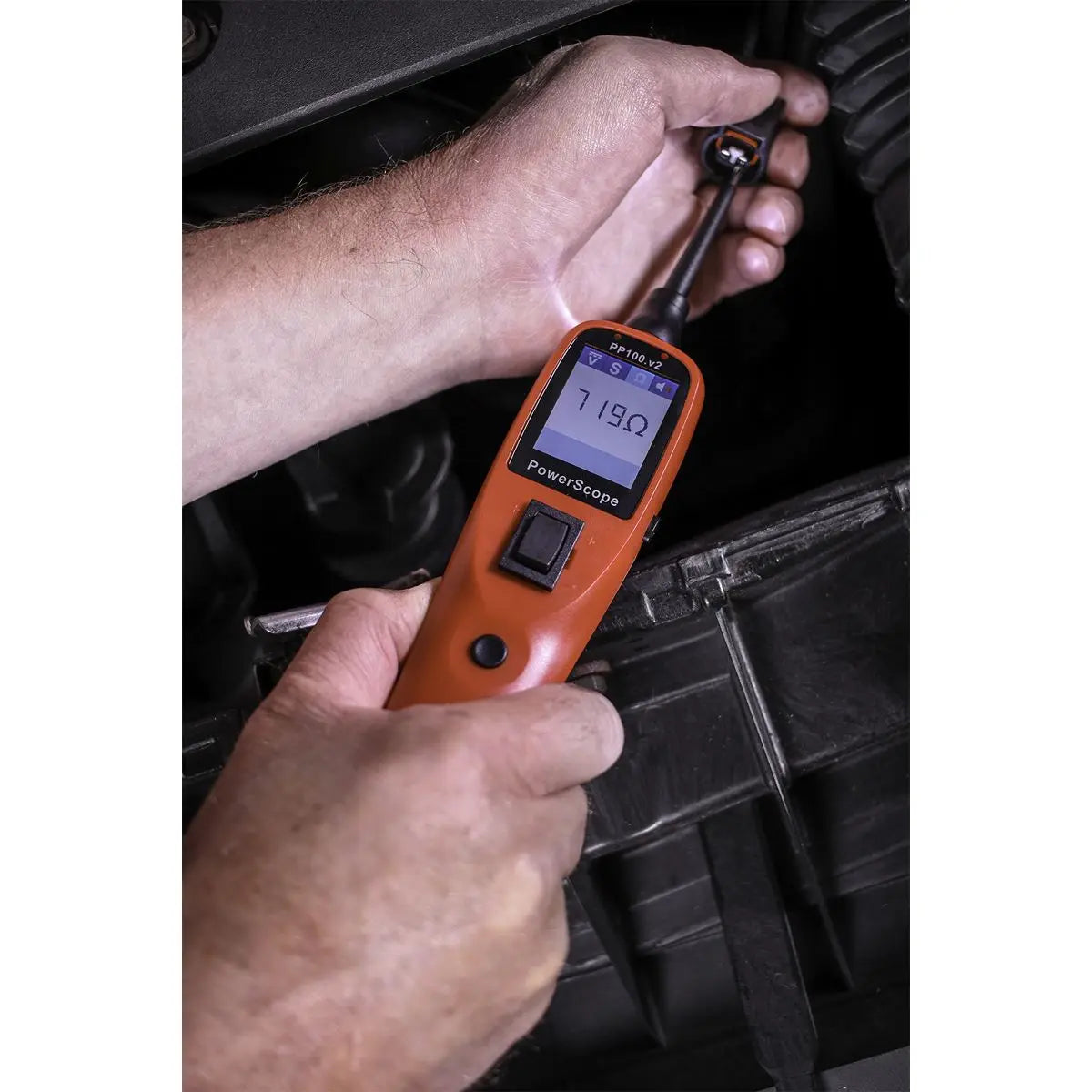

The fly lead allows continuity and polarity testing with a high-contrast colour LCD display giving a 7mm high read-out.
Features an audible continuity and positive/negative voltage indicator.

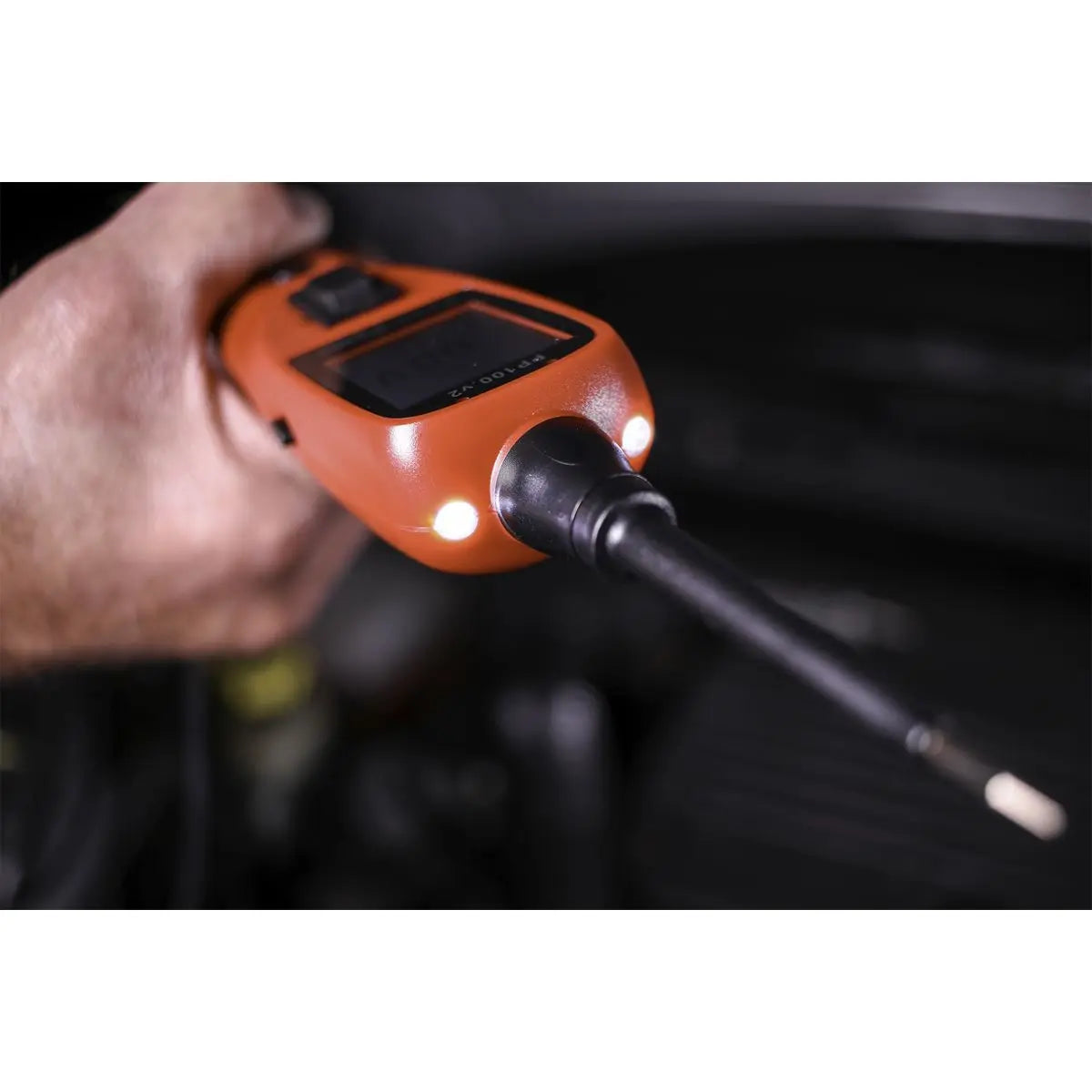

Two integral work lights.
6m Lead connects to the battery supply and reaches to all areas of the vehicle.
Includes a vehicle accessory socket adaptor and 6m extension cable.

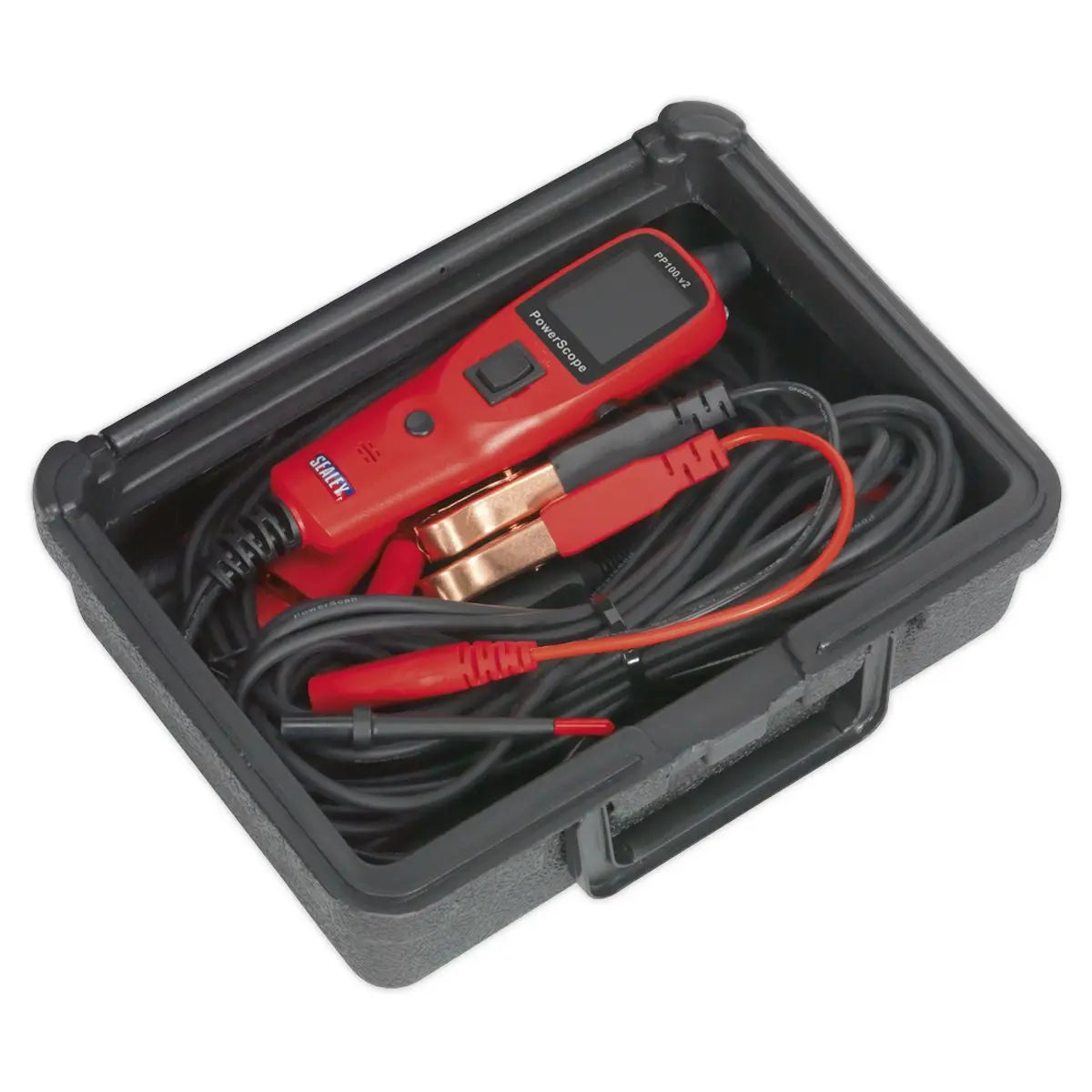

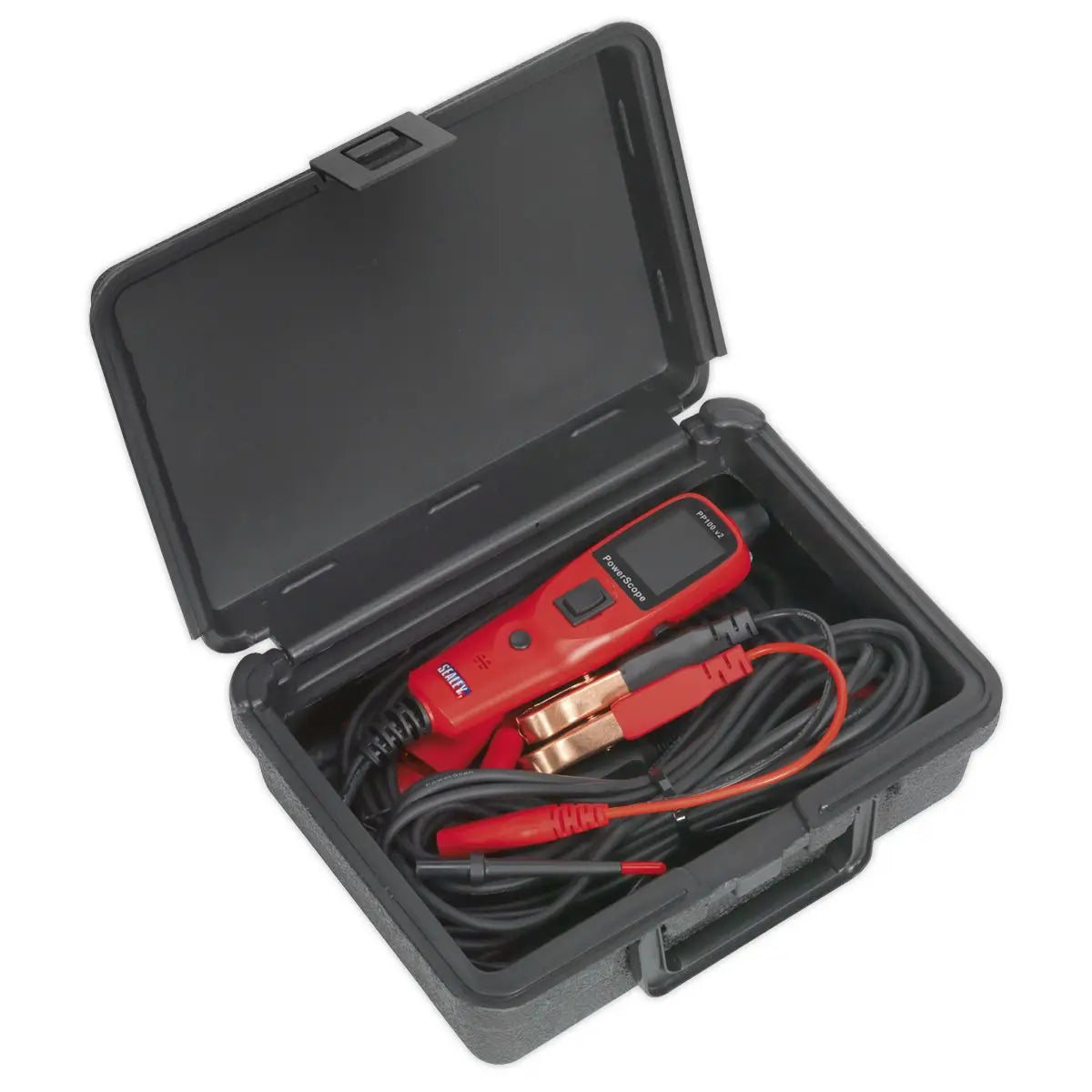

Supplied in storage case.
Specification:
- Model No PP100
- Back Light: Yes
- Brand: Sealey
- Circuit Breaker Reset: Yes
- Continuity Audible: <50O
- DC Voltage: 0-30V
- Duty Cycle: 1-99%
- Frequency: 0-10kHz
- Nett Weight: 1.29kg
- Resistance: 50O-199KO
- Scope Function: Yes
Catalogue Page: Page 459
