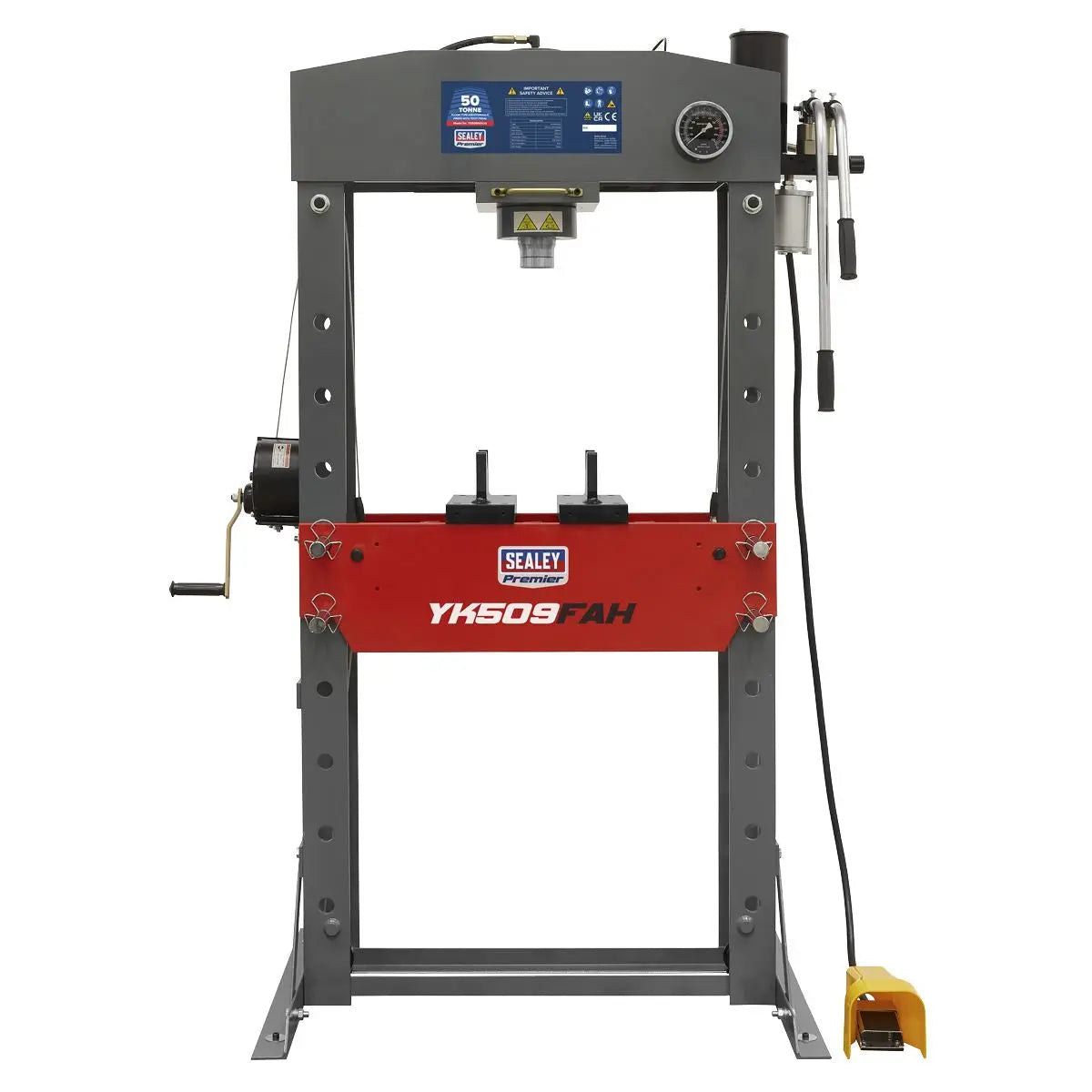

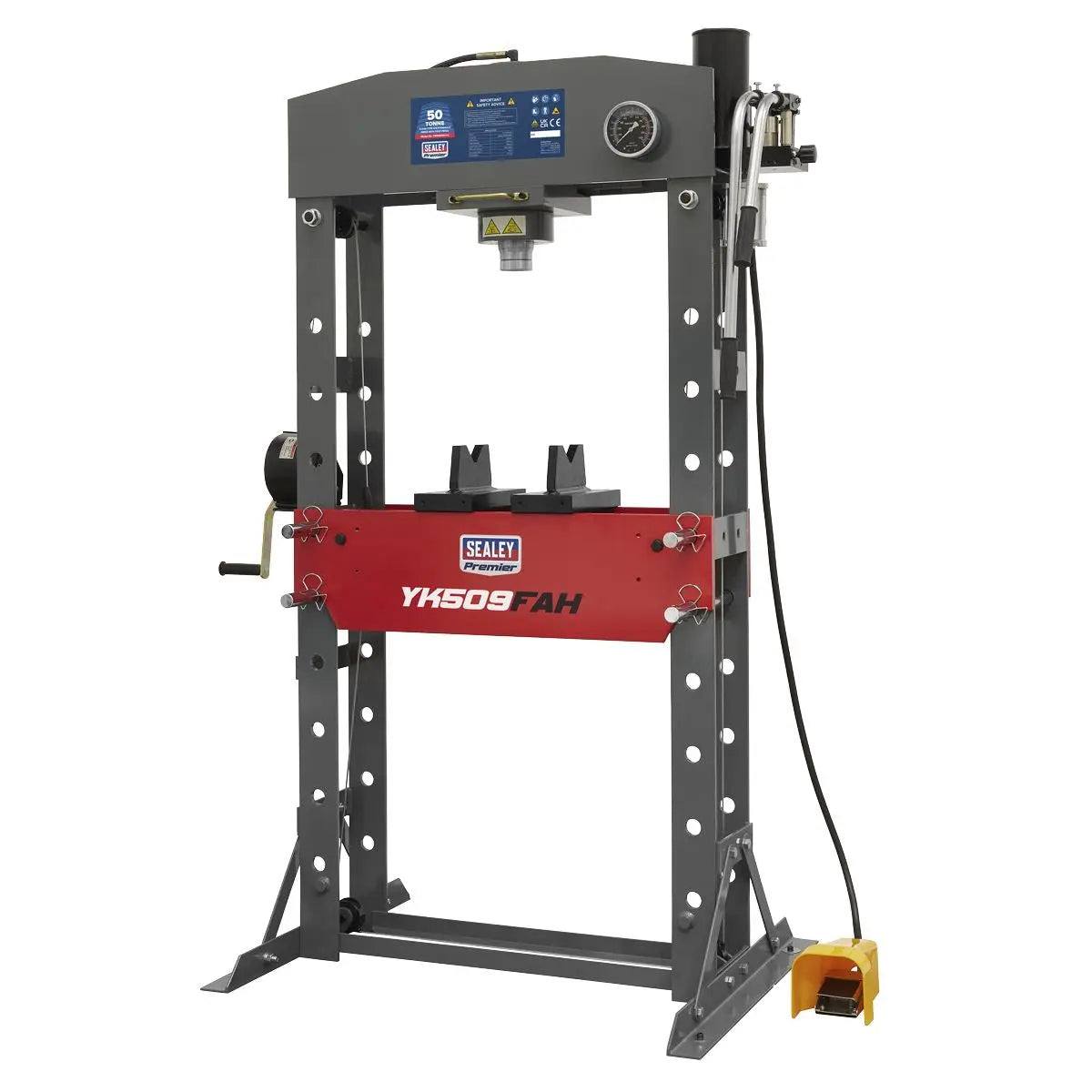

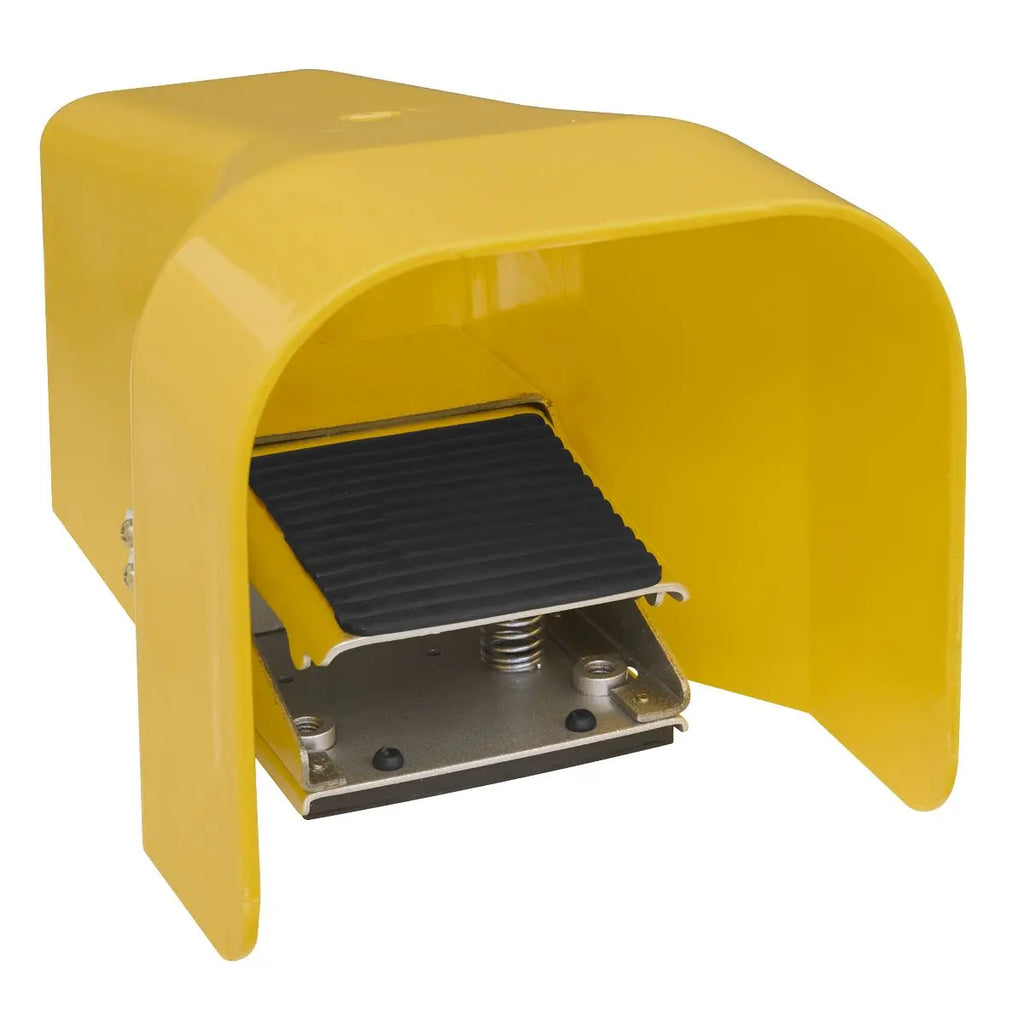

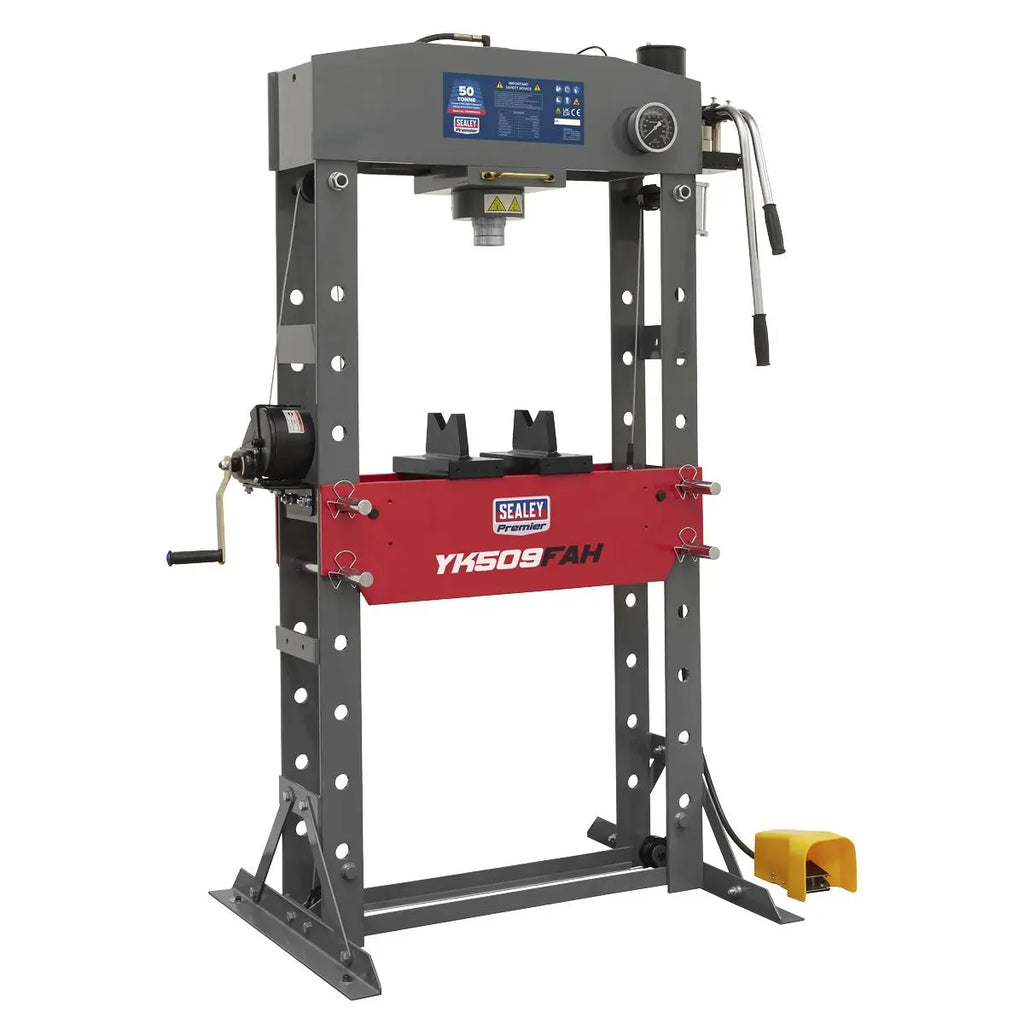

Sealey Premier Premier Air/Hydraulic Floor Type Press with Foot Pedal 50 Tonne

Sealey Premier Premier Air/Hydraulic Floor Type Press with Foot Pedal 50 Tonne

Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.

2-Speed manual operation.

Sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.

Fitted with ram pressure gauge.

Supplied with table winch and flat pressing plate/V-blocks.

5 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No YK509FAH
• Air Consumption: 7cfm
• Bench or Floor Mounting: Floor
• Brand: Sealey Premier
• Capacity: 50 Tonne
• Gauge Included: Yes

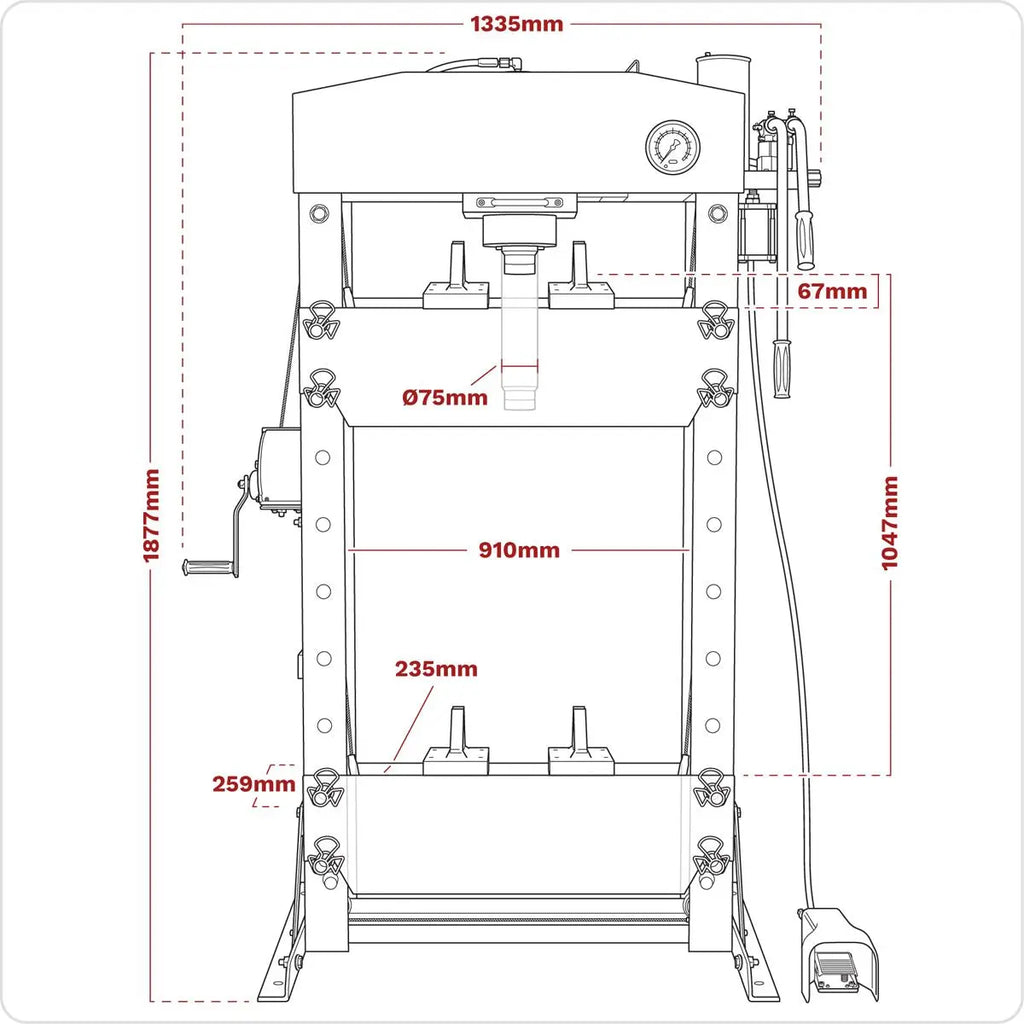

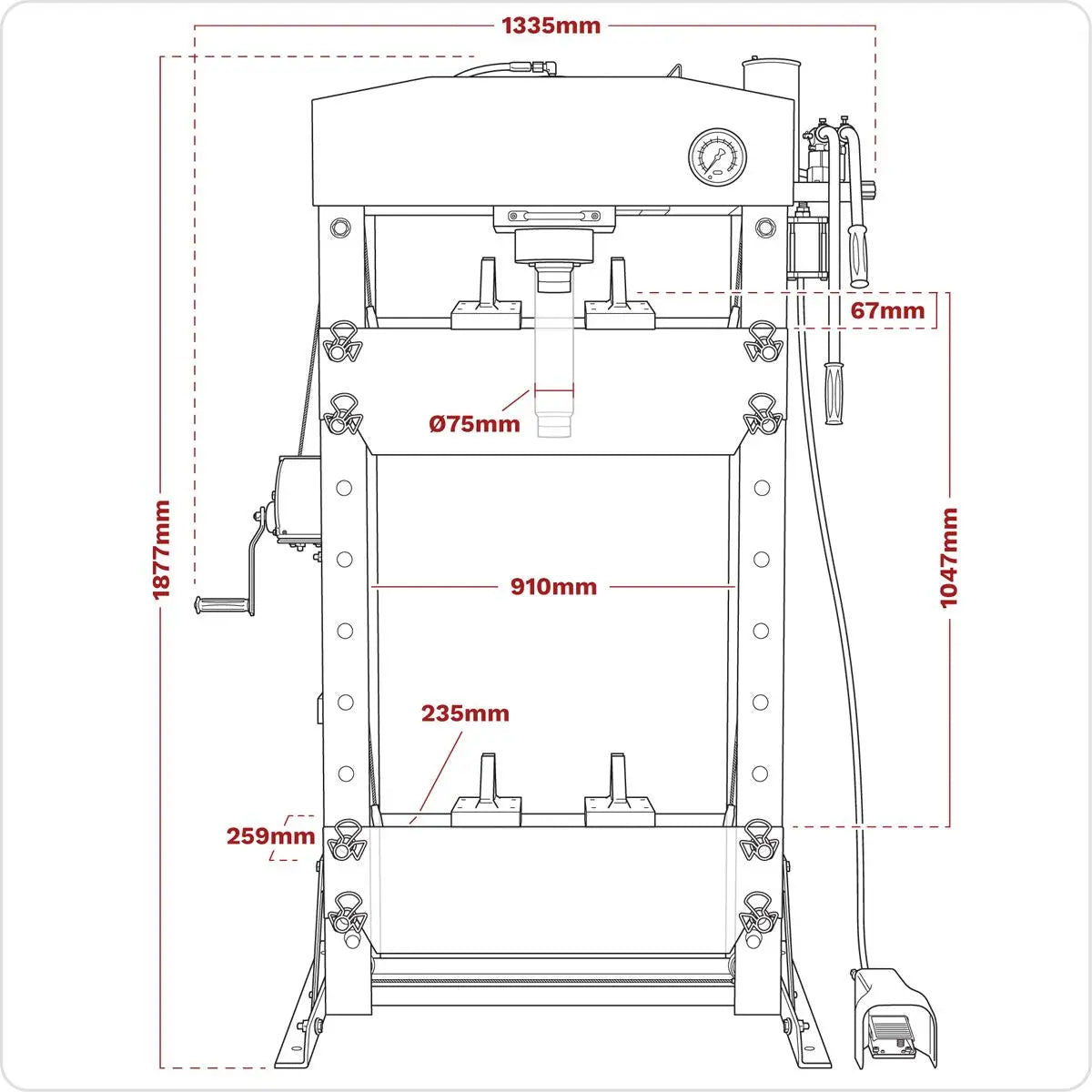

• Lateral Ram Travel: 245mm
• Maximum Height - Ram to Table: 1047mm
• Minimum Height - Ram to Table: 67mm
• Nett Weight: 302.5kg
• Optional Accessories: YKSG50 - Safety Guard, YKPP8 - Press Pin Set
• Overall Height: 1877mm
• Overall Width: 1335mm
• Ram Diameter: Ø75mm
• Ram Stroke: 200mm
• Table Aperture: 235mm
• Type: Air/Hydraulic
• Working Table Depth: 259mm
• Working Table Width: 910mm
• Working Table Width: 910mm

Product Guarantee: 5 Years
Catalogue Page: Page 329

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
