Description

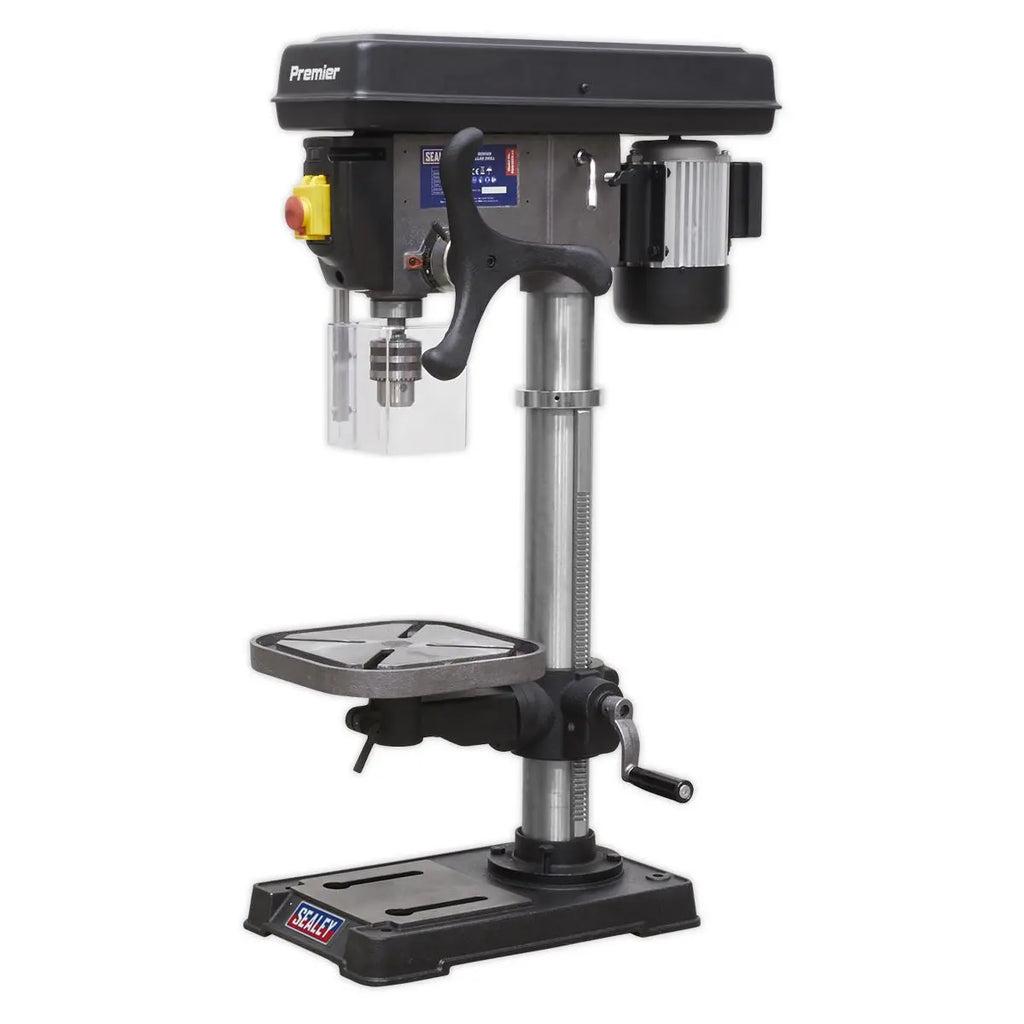

Sealey Premier Pillar Drill Bench 16-Speed 370W 230V
One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop.
Features heavy-duty aluminium-bodied motor for long and reliable performance.
No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
Supplied with an electrically inter-locked chuck guard.
Large sized square table fitted with precision rack and pinion height adjustment.
16mm(5/8") Capacity chuck, MT2.
Height: 1050mm.
Spindle Centre to Column: 190mm.
Motor Power: 370W.
Column Diameter: Ø80mm.
Spindle Travel: 80mm.
Weight: 55kg.
3 Year guarantee*.
Specification:
- Model No PDM155B
- Base Size: 495 x 290mm
- Brand: Sealey Premier
- Collar Diameter: Ø60mm
- Column Diameter: Ø80mm
- Drilling Capacity (Chuck Size): 16mm
- Integral Work Light: Yes
- Maximum Distance Spindle to Base: 660mm
- Maximum Distance Spindle to Table: 475mm
- Motor Power (Start): 370W(600W)
- Nett Weight: 55kg
- Number of Speeds: 16
- Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
- Overall Height: 1050mm
- Speed Range: 190-3000rpm
- Spindle Centre to Column: 190mm
- Spindle Nose Taper: MT2
- Spindle Travel: 80mm
- Supply: 230V
- Swing: 380mm
- Working Base Surface Size: 205 x 200mm
- Working Table Surface Size: 290 x 290mm
Catalogue Page: Page 1192
Downloadable Files:
