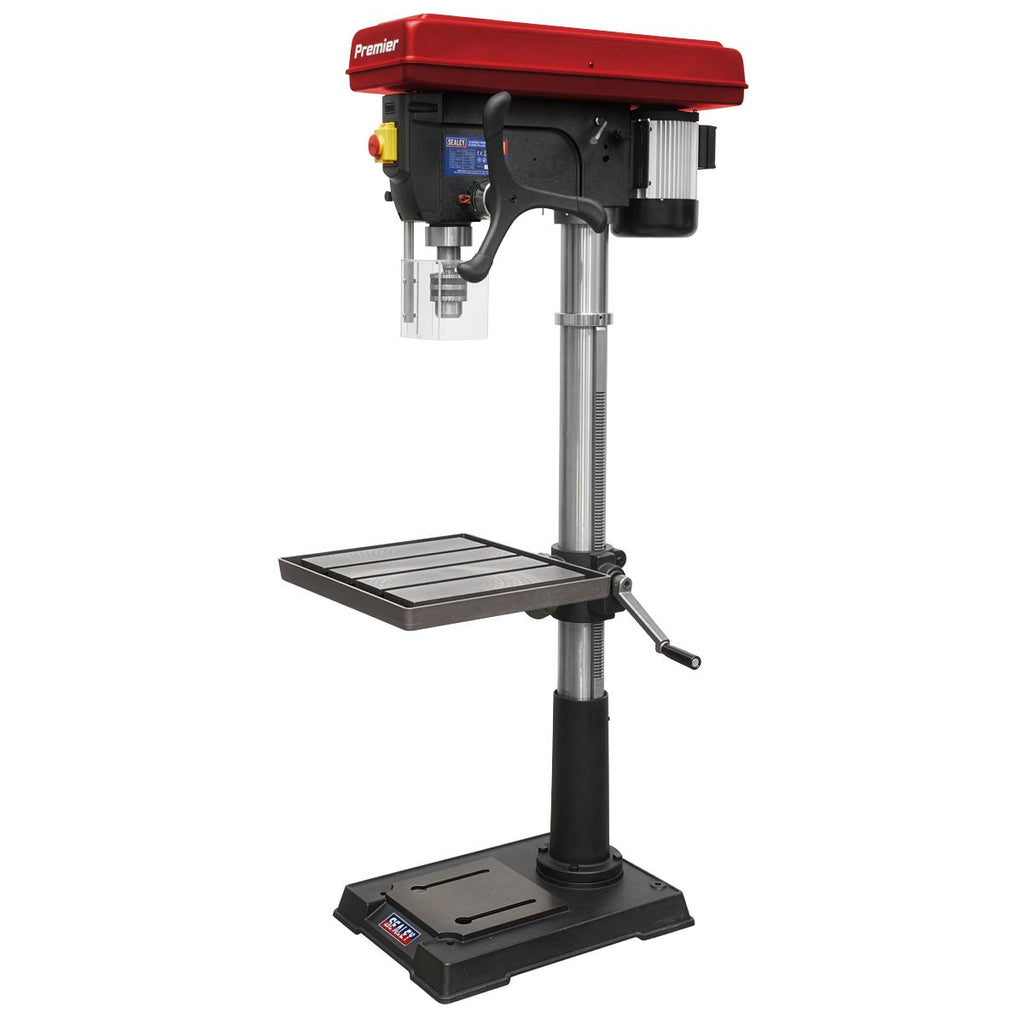

Sealey Premier Floor Standing Pillar Drill 12-Speed 1100W/230V

Sealey Premier Floor Standing Pillar Drill 12-Speed 1100W/230V

DURABLE - Features heavy-duty aluminium-bodied motor for long and reliable performance.

SPEED CONTROL - All models offer multiple speed drives and drive belt cover is protected by a microswitch to prevent drill operating when cover is open.

SCOPE - Spindle Centre to Column: 260mm.

CONTROL - Large sized square table fitted with precision rack and pinion height adjustment.

CHUCK CAPACITY - 20mm (3/4"), MT4.

EDUCATIONAL USES - Safety devices fitted include a no-voltage release switch to prevent inadvertent start-up, allowing insurance company approval for use in educational establishments.

(NB -) Integral worklight (60W E27 bulb not included).

3 YEAR GUARANTEE*.

Specification:

• Model No PDM260F
• Base Size: 575 x 455mm
• Brand: Sealey Premier
• Collar Diameter: Ø85mm
• Column Diameter: Ø92mm
• Drilling Capacity (Chuck Size): 20mm
• Integral Work Light: Yes
• Maximum Distance Spindle to Base: 1160mm
• Maximum Distance Spindle to Table: 680mm
• Motor Power (Start): 1100W(1500W)
• Nett Weight: 110kg
• Number of Speeds: 12
• Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 1710mm
• Speed Range: 120-3480rpm
• Spindle Centre to Column: 260mm
• Spindle Nose Taper: MT4
• Spindle Travel: 120mm
• Supply: 230V
• Swing: 520mm
• Working Base Surface Size: 410 x 330mm
• Working Table Surface Size: 425 x 475mm

Product Guarantee: 3 Years
Catalogue Page: Page 908

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
