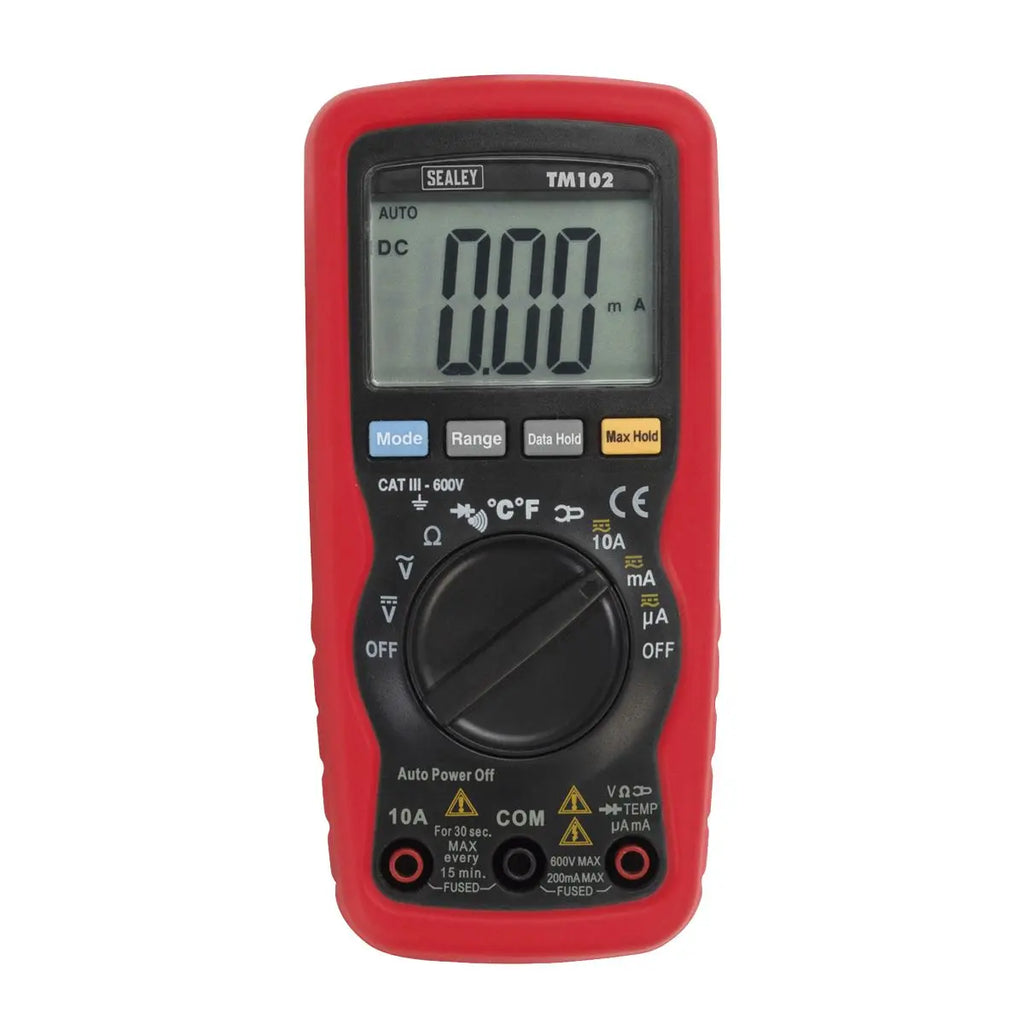

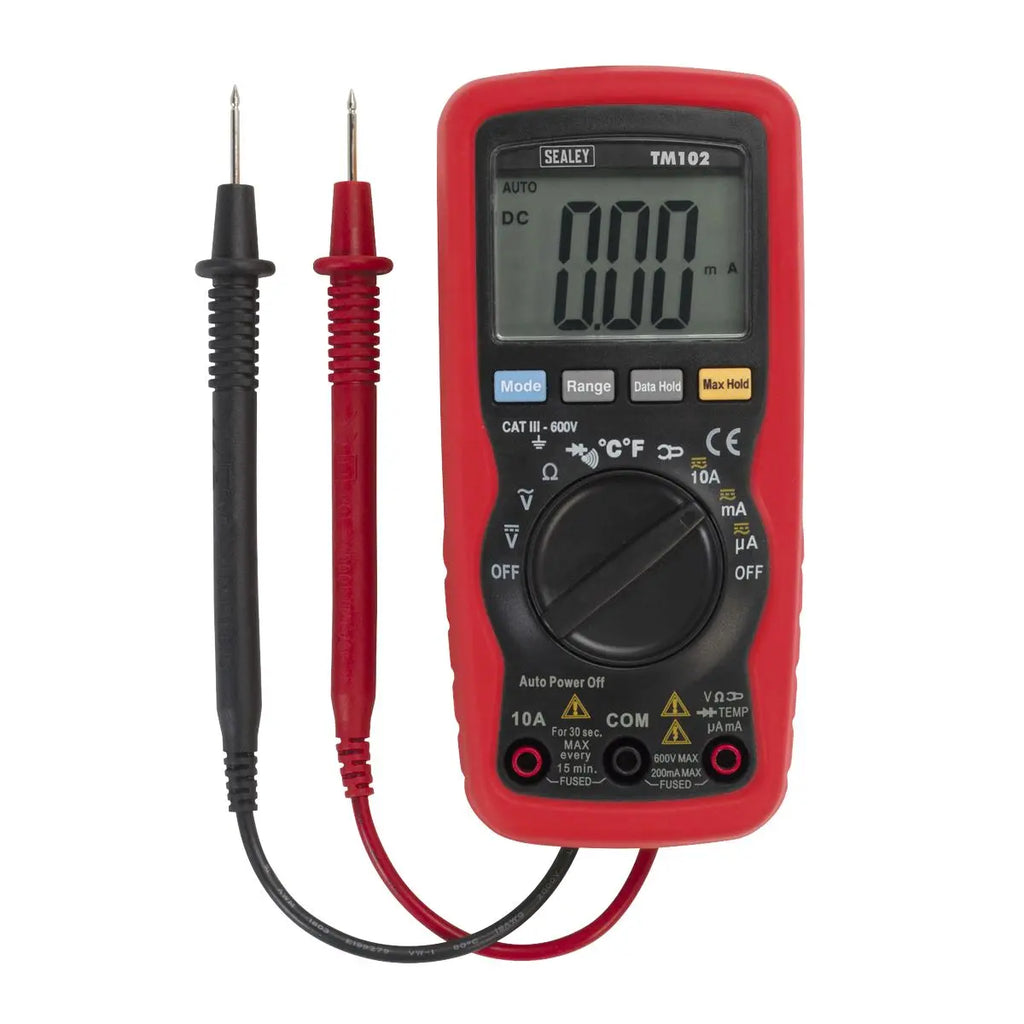

Sealey Professional Auto-Ranging Digital Multimeter - 8-Function

Sealey Professional Auto-Ranging Digital Multimeter - 8-Function

High precision auto-ranging multimeter.

Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.

Features temperature measurement capability, max./data hold and auto-power-off function.

Double moulded housing with soft grip case and large display for ease of use.

Practical probe and lead storage and integral upright stand for use on the workbench.

Supplied in zipped pouch with carry strap.

Specification:

• Model No TM102
• Brand: Sealey
• Nett Weight: 255g
• AC Voltage (Accuracy): 200mV (±1.5%), 2V (±1.2%), 20V, 200V (±1.5%), 600V (±2%)
• DC Voltage (Accuracy): 0-200mV (±0.5%), 2V, 20V, 200V (±1.2%), 600V (±1.5%)
• AC Current (Accuracy): 200µA (±1.5%), 2000µA, 20mA, 200mA (±1.8%), 10A (±3%)
• DC Current (Accuracy): 200µa (±1%), 2000µa, 20mA, 200mA (±1.5%), 10A (±2.5%)
• Resistance (Accuracy): 0-200Ω (±1.2%), 2kΩ (±1%), 20kΩ, 200kΩ, 2MΩ (±1.2%), 20MΩ (±2%)
• Capacitance (Accuracy): No
• Temperature (Accuracy): -50ºC to 1000ºC (±3%), -58 to 1832ºF (±3%)
• Frequency (Accuracy): No
• Duty Cycle: No
• Continuity Audible: Yes
• Diode Test: Yes
• Transistor Test: No
• Hi-Impact Rubber Case: Yes
• Digits x Height: 1.96 x 24.5mm
• Low Battery Indicator: Yes
• Battery (Supplied): 1 x 9V
• Information: Data-Hold, Auto-Power-Off
• Size (L x W x D): 150 x 70 x 48mm
• Weight: 255g
• Conformity: EN 61010-1

Product Guarantee: 1 Year
Catalogue Page: Page 453

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
