Description

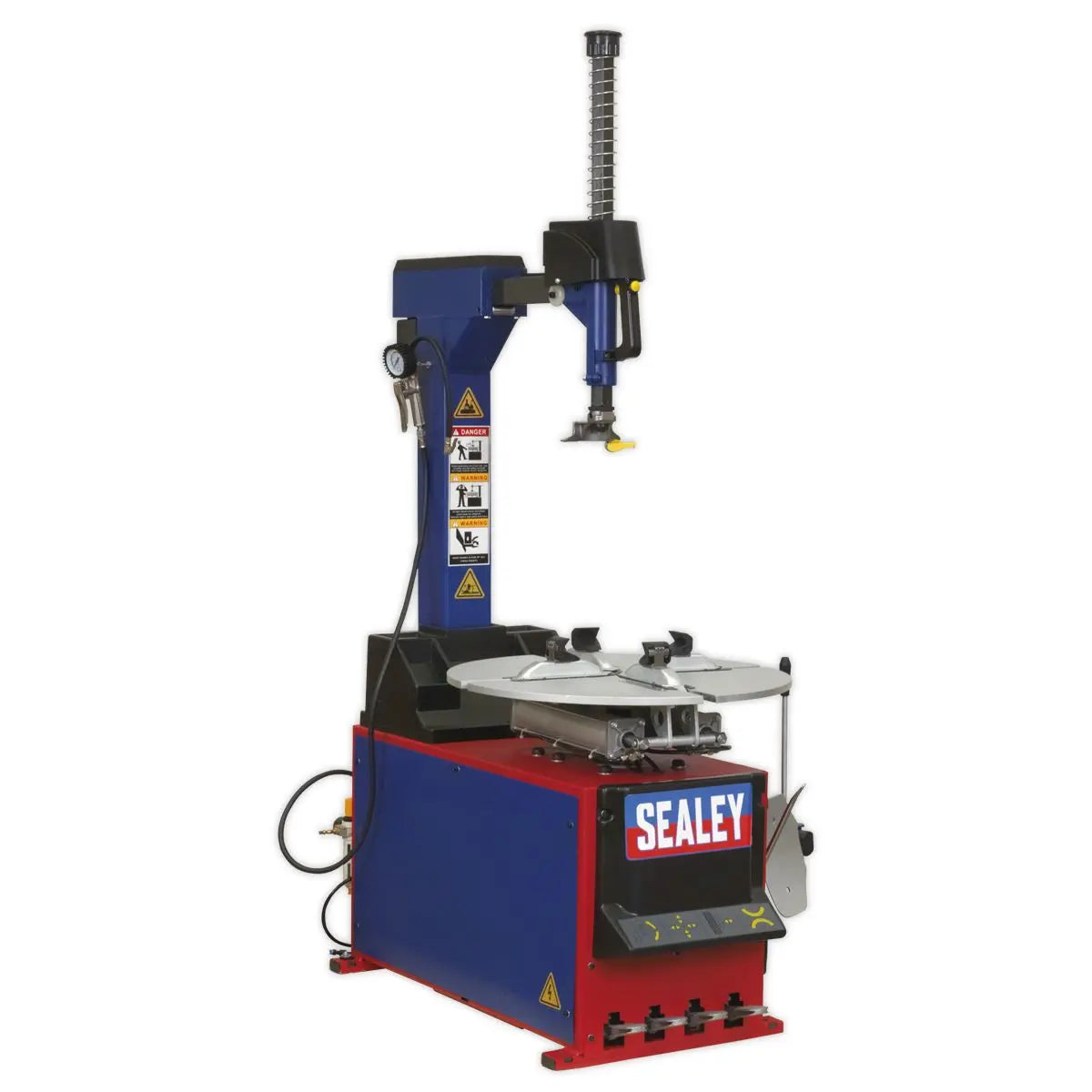

Sealey Automatic Tyre Changer
SUITABLE FOR MOST CARS AND LIGHT COMMERCIAL VEHICLES – Automatic tyre changer capable of changing 11” to 23” wheel rims.
INTEGRATED TYRE INFLATOR – 1/4”BSP inlet size integrated also supplied with 485mm tyre lever, tyre soap tub, air regulator and lubricator.

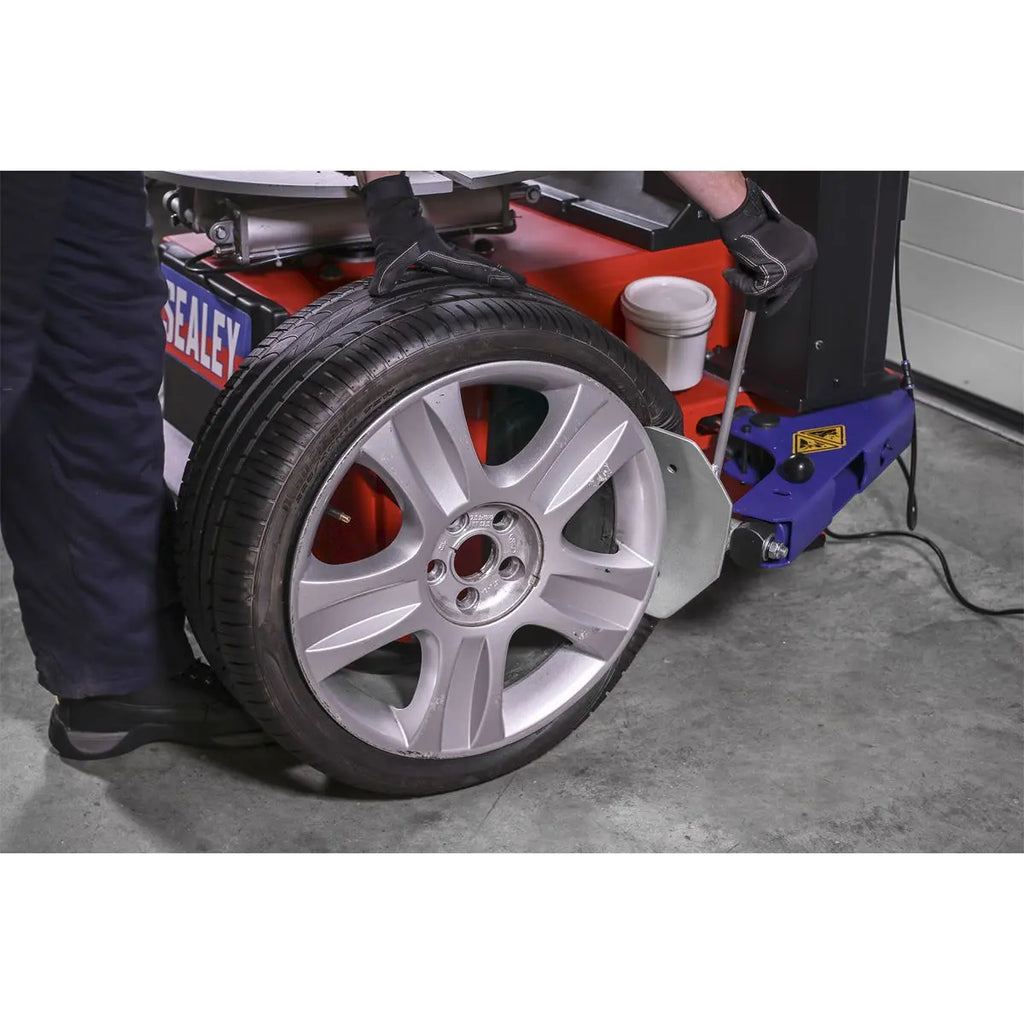

PROTECTS ALLOY WHEELS – added feature of plastic protectors fitted to the clamping jaws and mounting head preventing damage to alloy wheels.

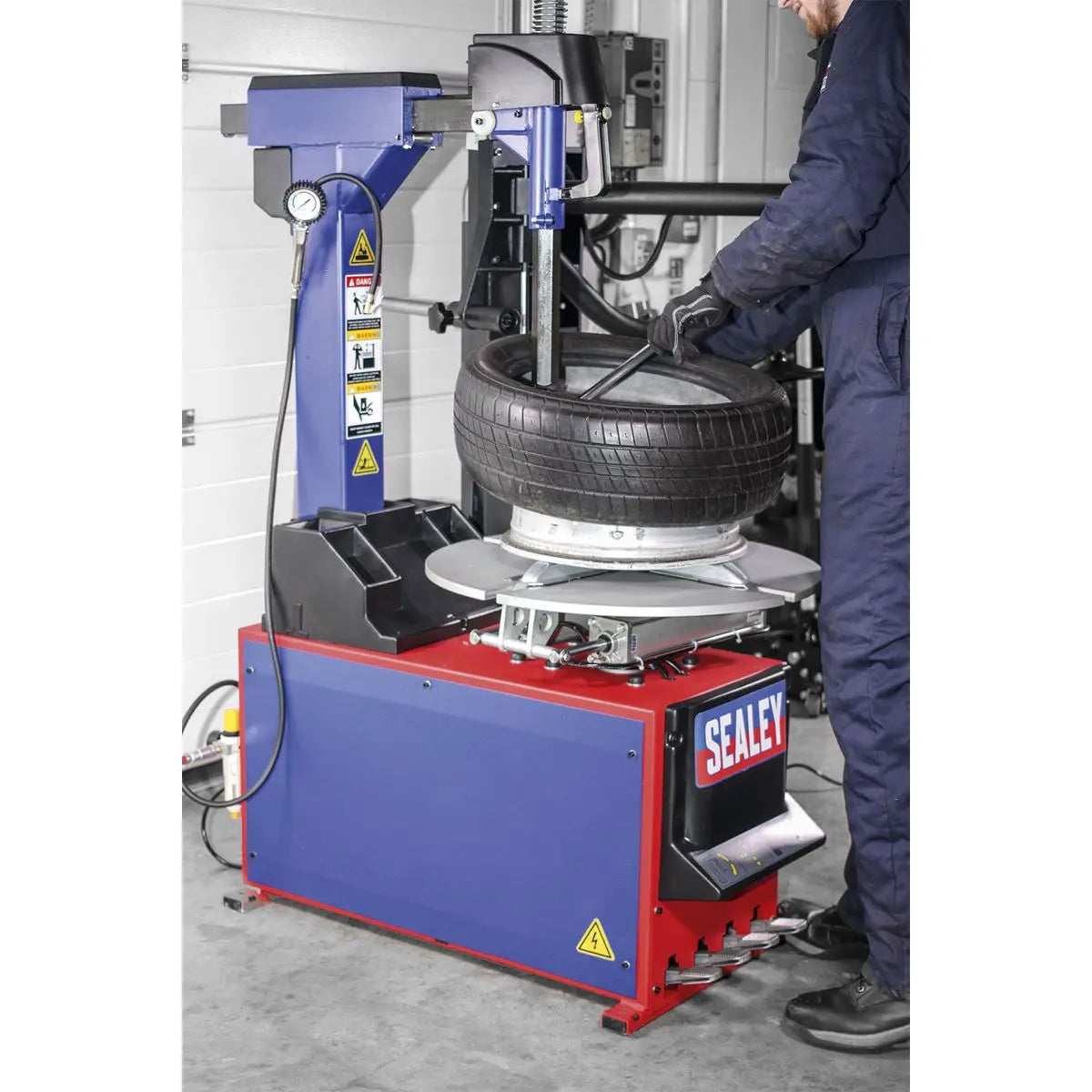

AIR OPERATED – Air operated rear tilting column and head lock.
OPTIONAL ACCESSORY – Sealey Model No. TC10A assist arm is required for use with low profile and run flat tyres. See Sealey Website for demonstration video.
HEAVY ITEM – This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No TC10
- Brand: Sealey
- Nett Weight: 246kg ({IF["Wheel Diameter Minimum/Maximum: Internal Clamping: Ø13-23 External Clamping Ø11-20"!=""]})
- Wheel Diameter Minimum/Maximum: Internal Clamping: Ø13"-23" External Clamping Ø11"-20" ({ENDIF})
- Wheel Depth Minimum/Maximum: 3"-13"
- Turntable Diameter: Ø20"(508mm)
- Bead Breaking Force: 2500kg
- Tyre Inflator: 0-10bar(0-145psi)
- Voltage/Phase: 230V - 1ph
- Motor: 1.1kW
- Operating Pressure: 8-10bar(115-145psi)
- Inlet Size: 1/4"BSP
- Dimensions (W x D x H): 1900 ×1350 × 2050mm
- Weight: 246kg
- Optional Accessories: TC10A - Assist Arm
Catalogue Page: Page 501
