Description

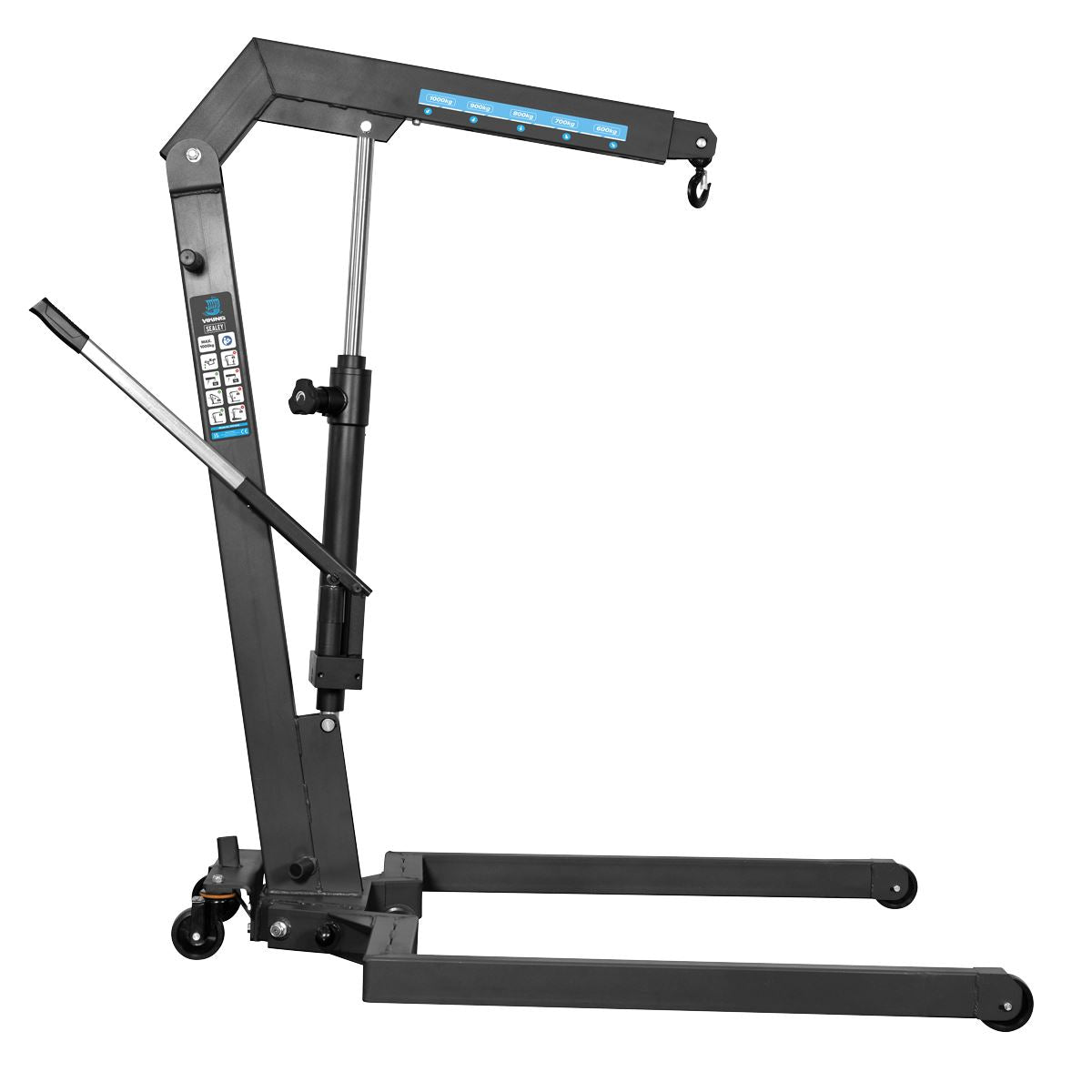

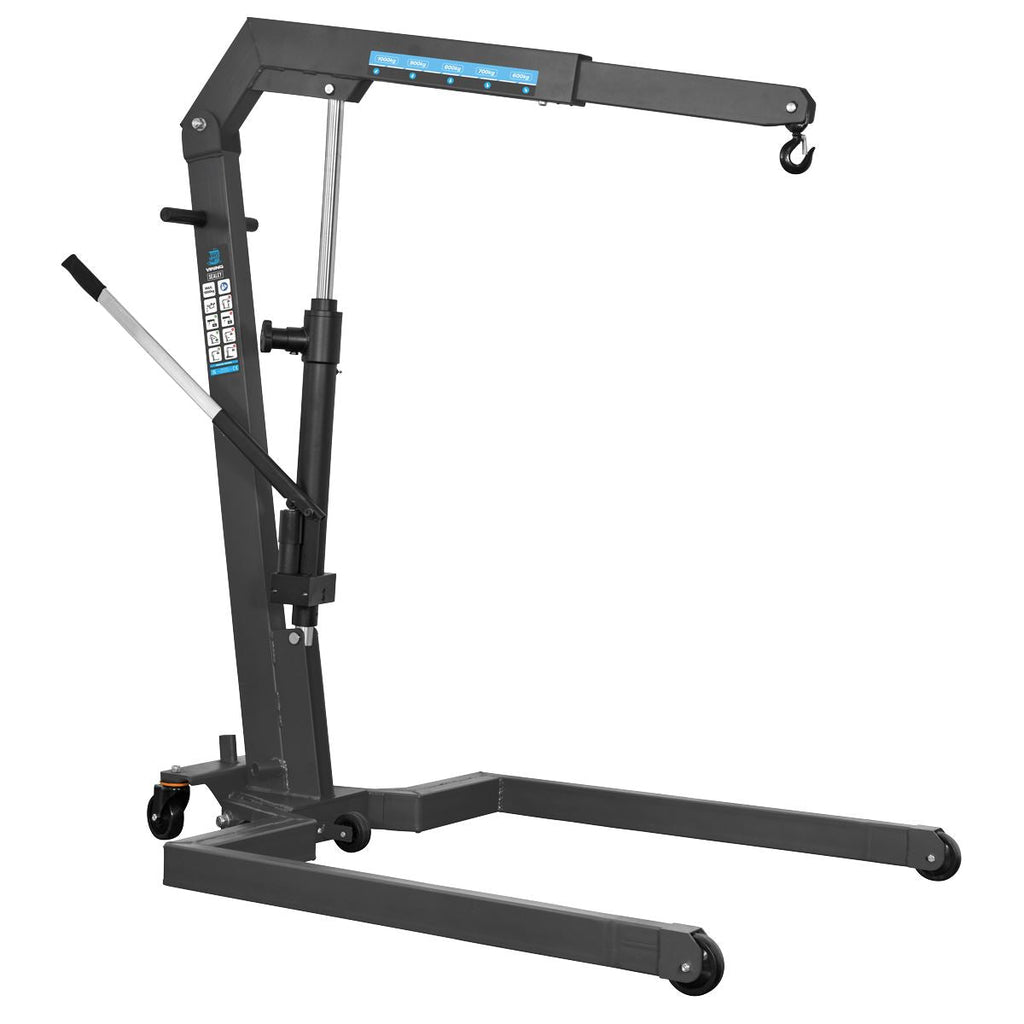

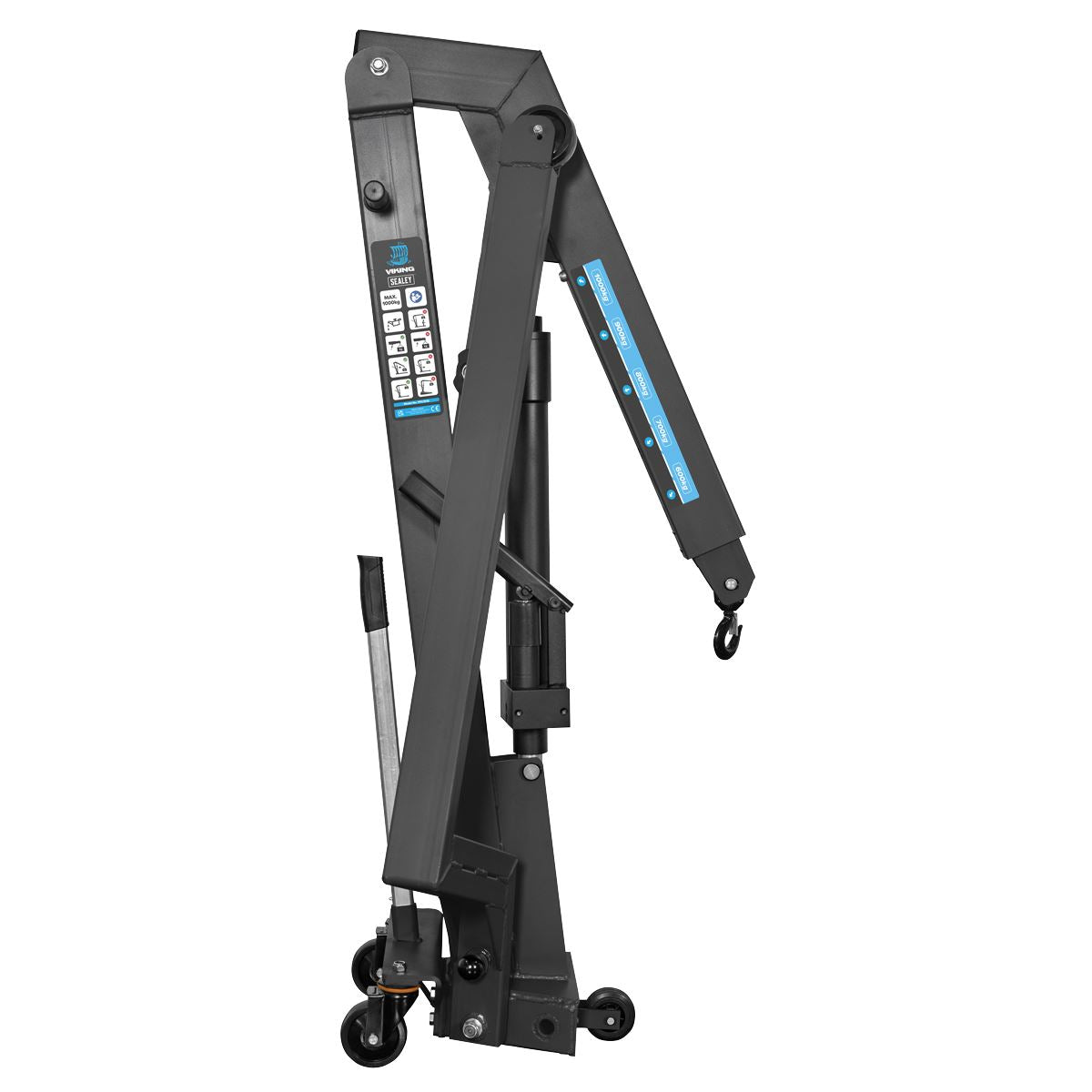

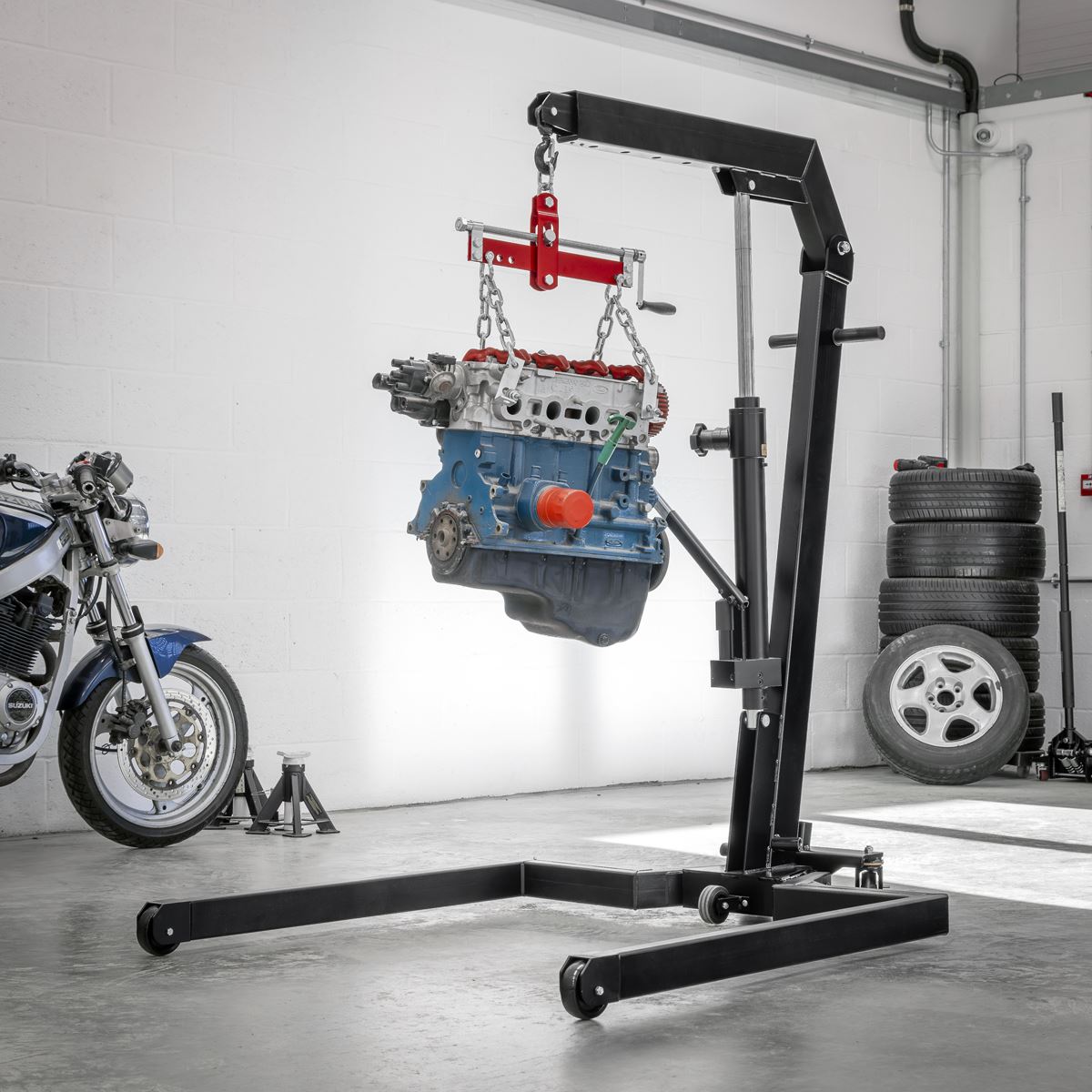

Sealey Viking Industrial Engine Crane 1 Tonne

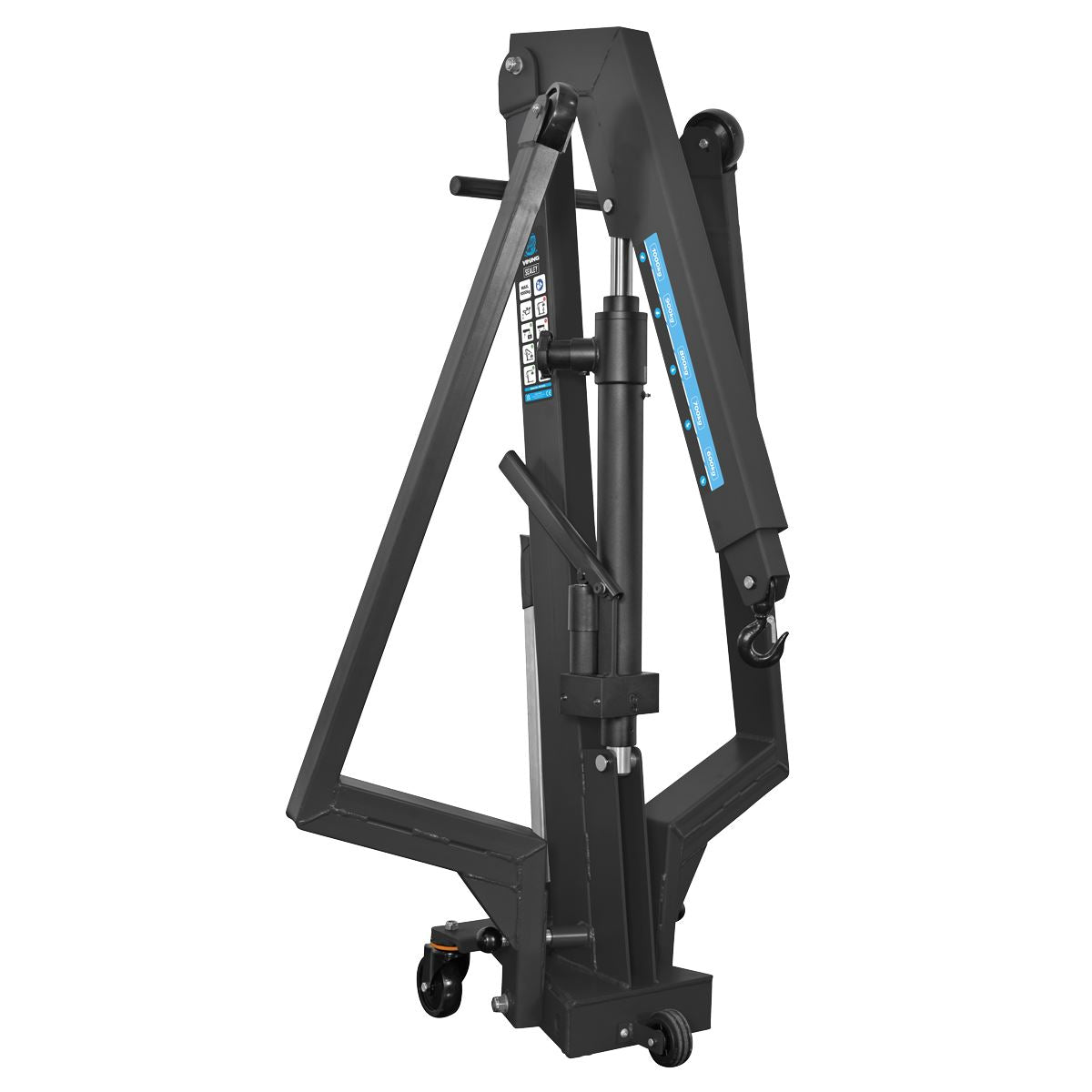

FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.
SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.

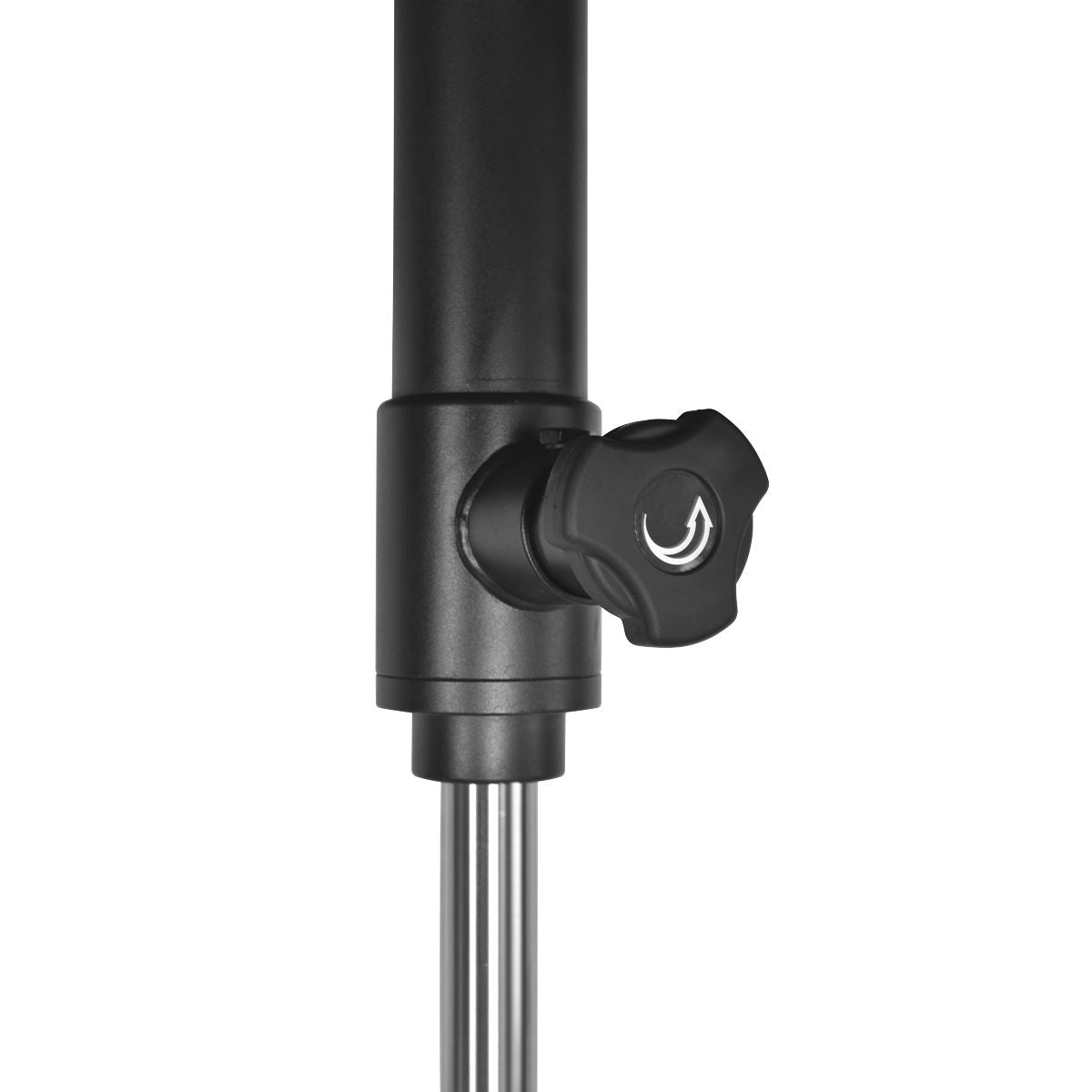

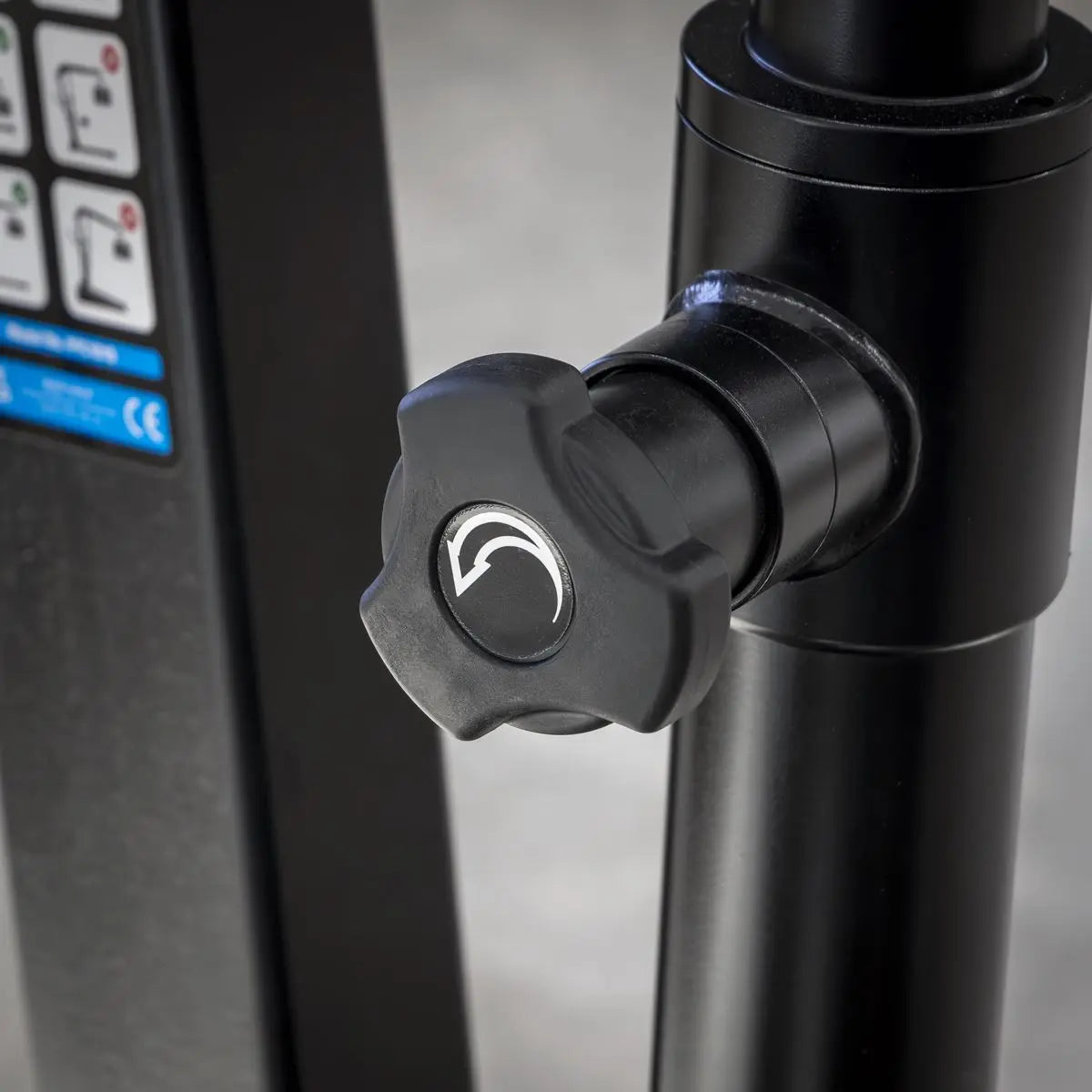

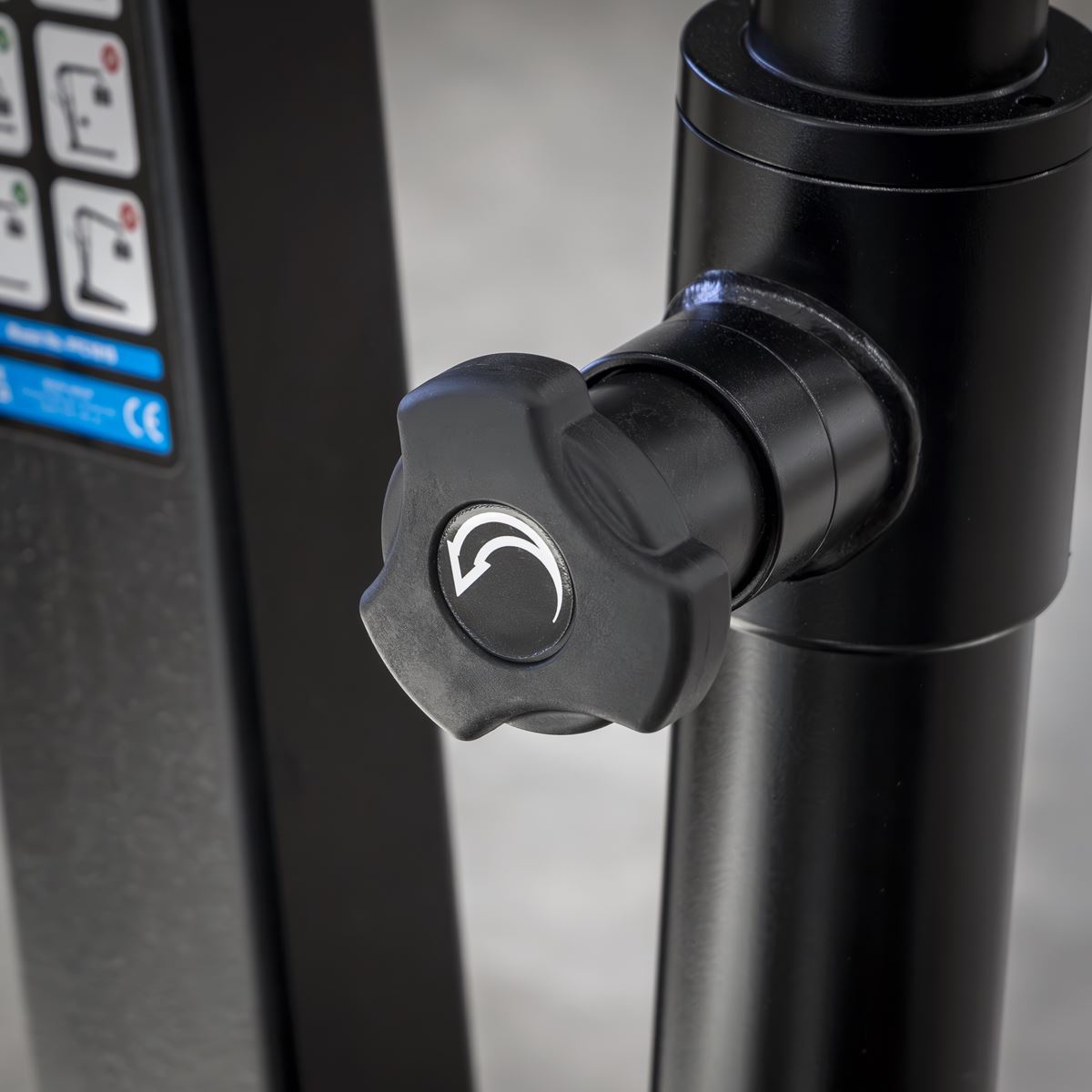

CONTROLLABLE RELEASE - Manually controlled descent speed.

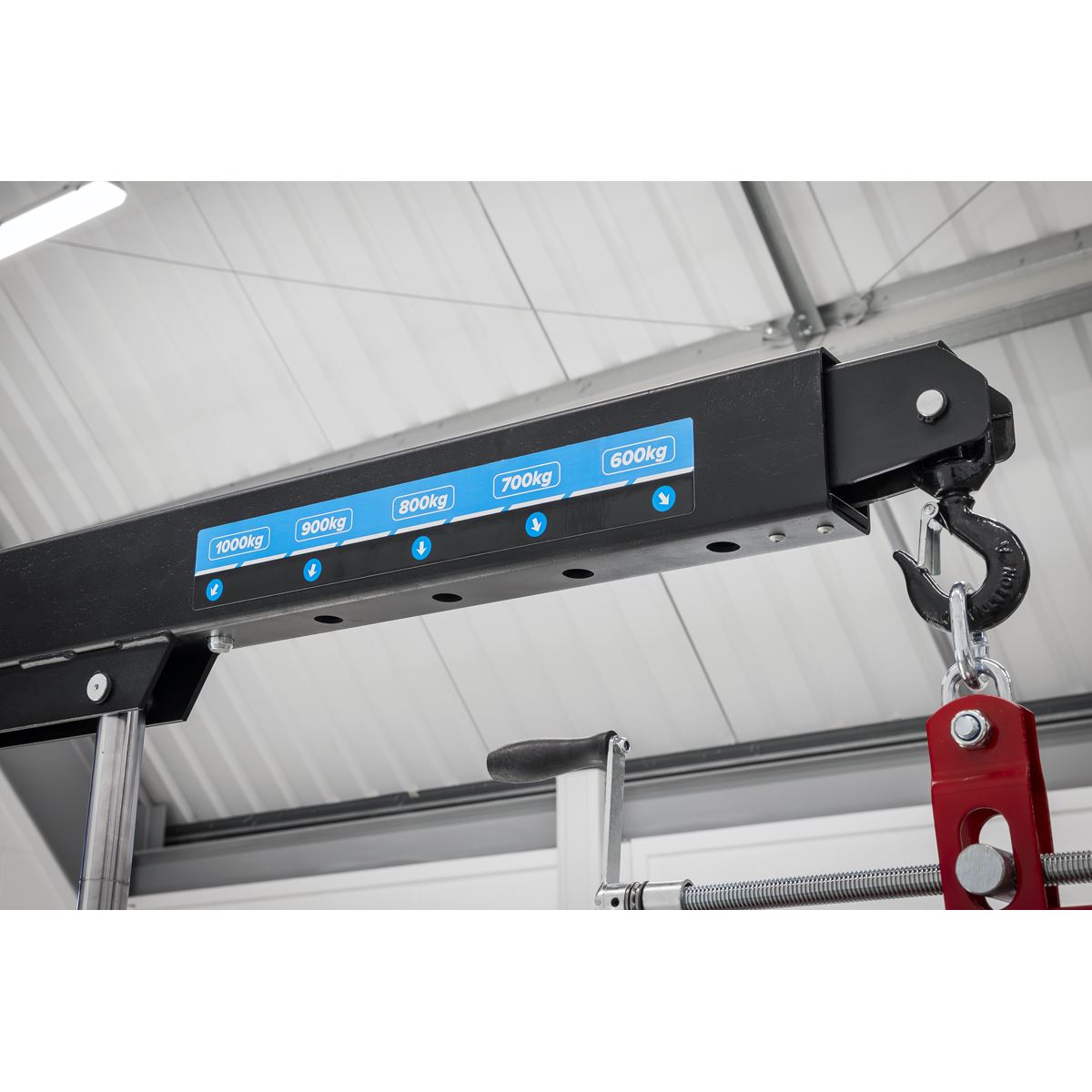

FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.

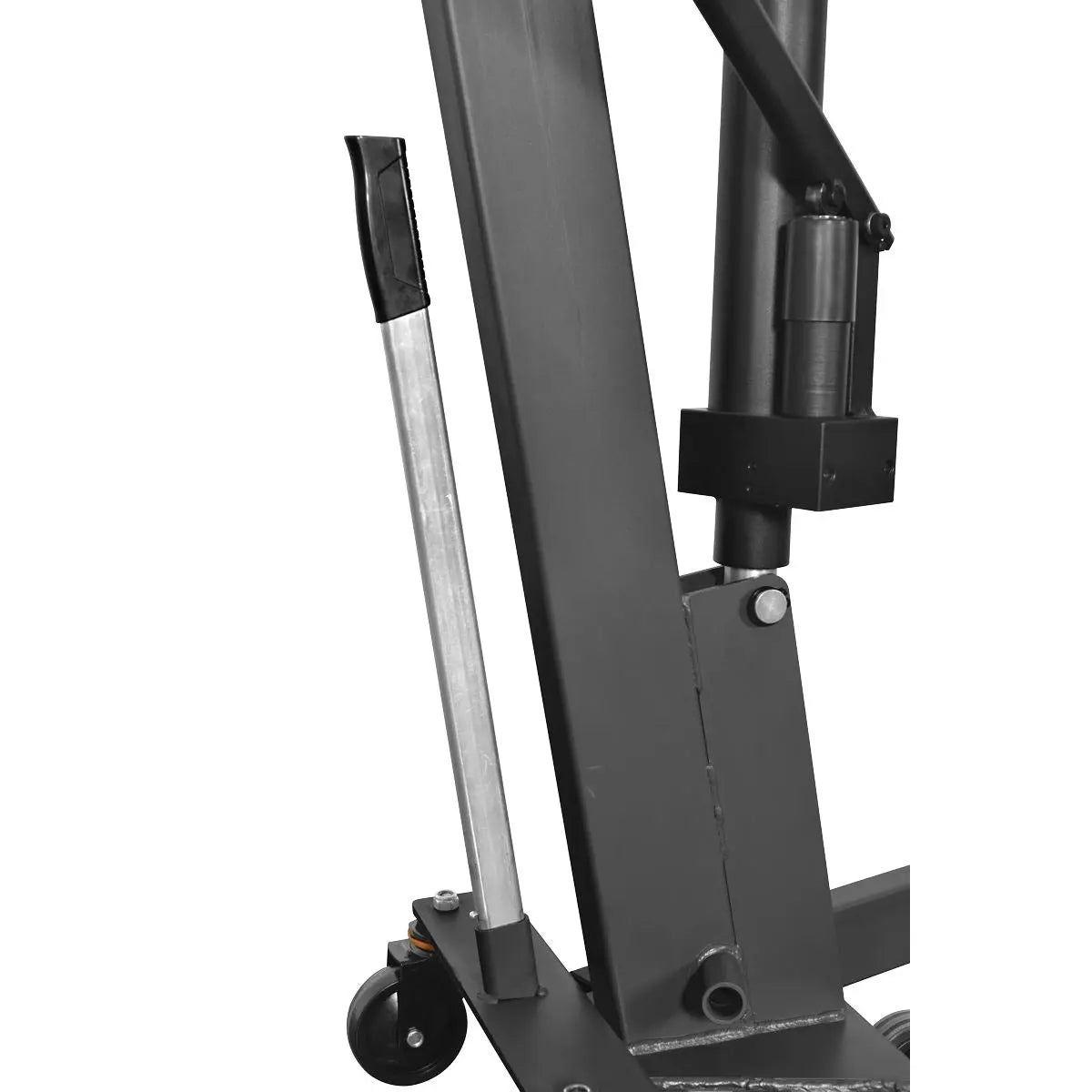

TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200° aiding use where space is limited.

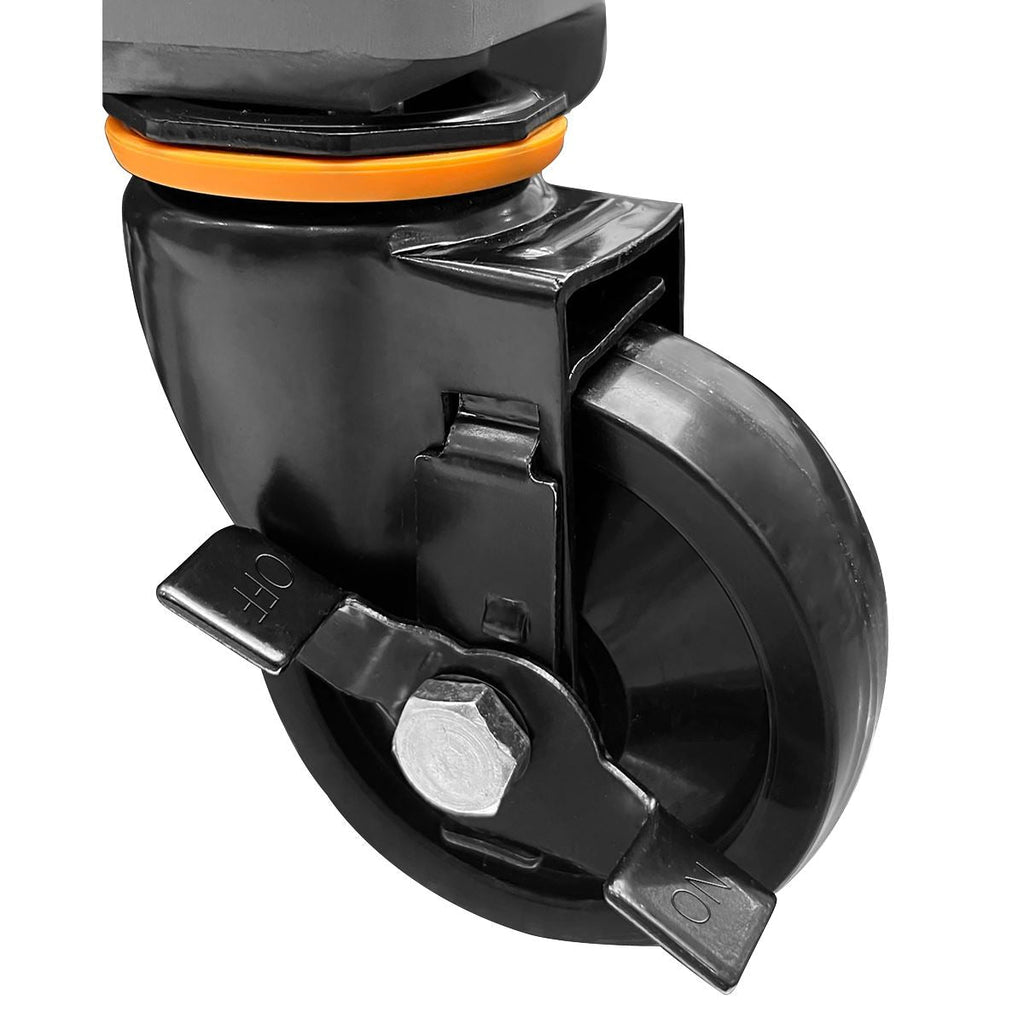

NON FLOOR MARKING WHEELS - Strong nylon and fibreglass wheels front and rear. Rear castor wheels come with brakes. An additional wheel for ease of movement when folded, all are non floor marking.
3 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No PFC101S
- Brand: Viking
- Height Jib Down: n/a
- Height Legs Folded: 1550mm
- Height of Frame: 105mm
- Length Legs Extended: n/a
- Length of Jib Position 1: 960mm
- Length of Jib Position 2: 1053mm
- Length of Jib Position 3: 1152mm
- Length of Jib Position 4: 1250mm
- Length of Jib Position 5: 1350mm
- Length: 1600mm
- Lifting Capacity in Position 1: 1000kg
- Lifting Capacity in Position 2: 900kg
- Lifting Capacity in Position 3: 800kg
- Lifting Capacity in Position 4: 700kg
- Lifting Capacity in Position 5: 600kg
- Max. Lift Ht at Jib Position 1: 2080mm
- Max. Lift Ht at Jib Position 2: 2140mm
- Max. Lift Ht at Jib Position 3: 2190mm
- Max. Lift Ht at Jib Position 4: 2250mm
- Max. Lift Ht at Jib Position 5: 2300mm
- Nett Weight: 96kg
- Note: n/a
- Rear Width: 390mm
- Width Front Frame: 1129mm
- Width Inside Front Frame: 1025mm
