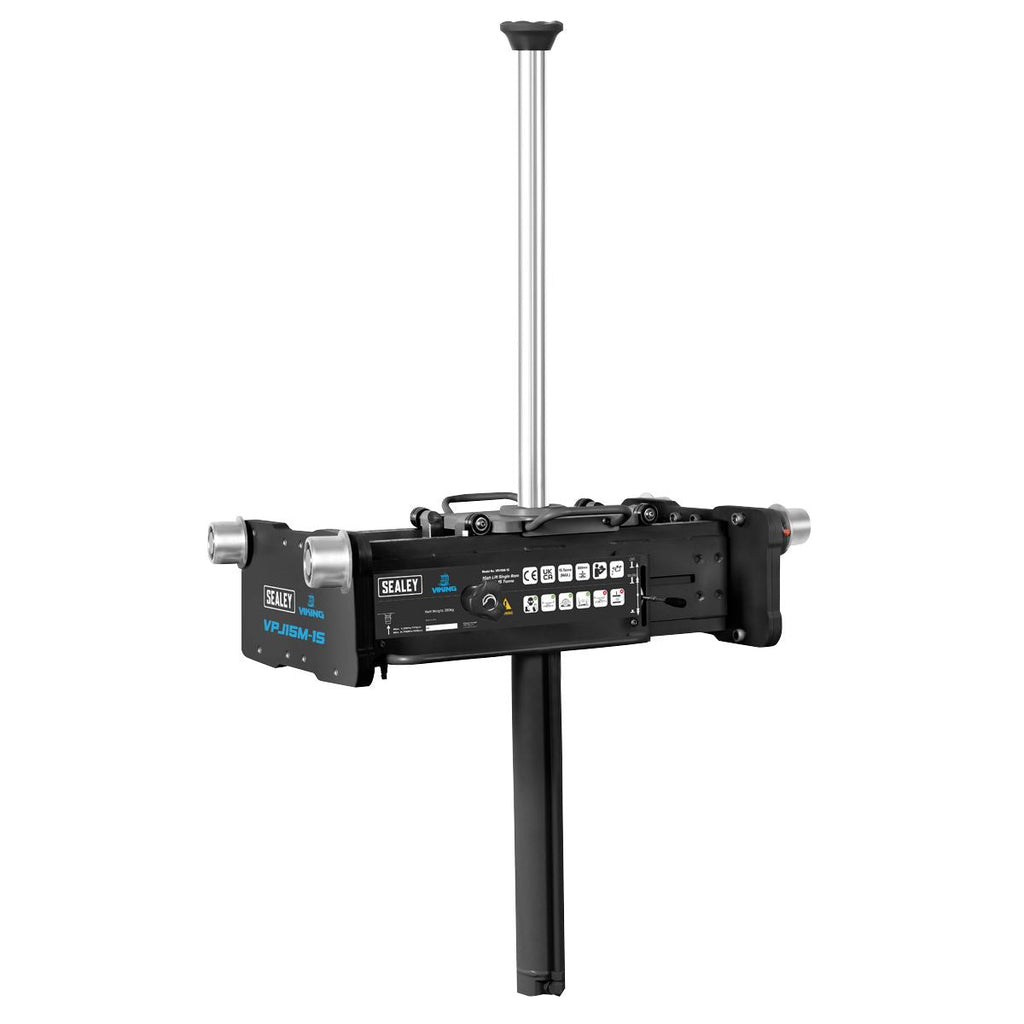

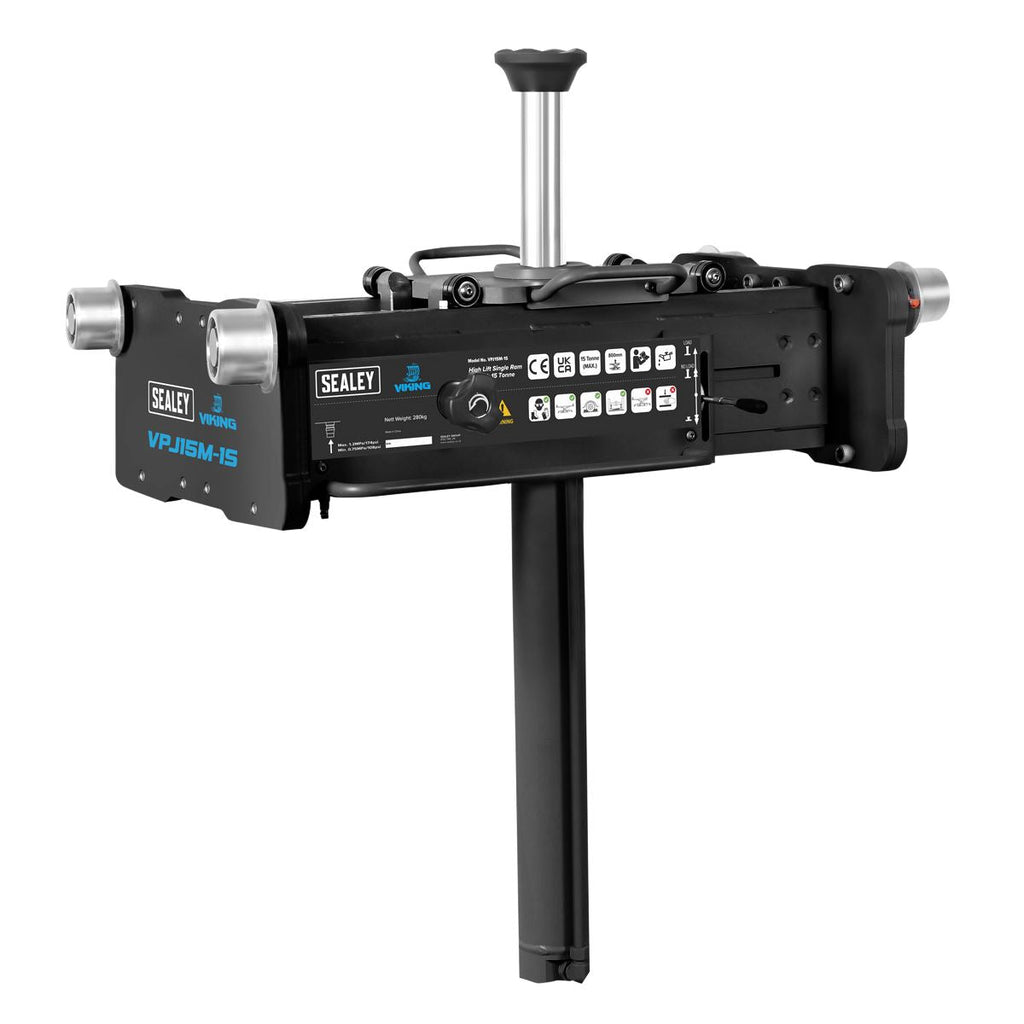

Sealey Viking Pit Jack 15 Tonne Single Ram High Lift
EASY GLIDE - Fitted with leaf spring support bearings for easy glide transversing the ram.
HIGH LIFT - Full 800mm lifting stroke for high axled vehicles.
PNEUMATIC CONTROL - Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles.
QUICK LIFT - Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift.
SAFE DESCENT - Fitted with deadman controls and a limited descent control valve.
ADJUSTABLE FIT - Manufactured to suit pit widths between 920 - 1220mm
CONVENIENCE - Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.
3 YEAR GUARANTEE*.
Specification:
- Model No VPJ15M-1S
- Beam Lift: 800mm
- Brand: Viking
- Capacity: 15 Tonne
- Load Arm Reach: N/A
- Nett Weight: 280kg
- Optional Accessories: VPJ15MCBA - Single Ram Cross Beam Adaptor, VJP15M2CBA - Single Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ15SS - Integrated Safety Stand.
- Support Arm Reach: N/A
Catalogue Page: Page 877
