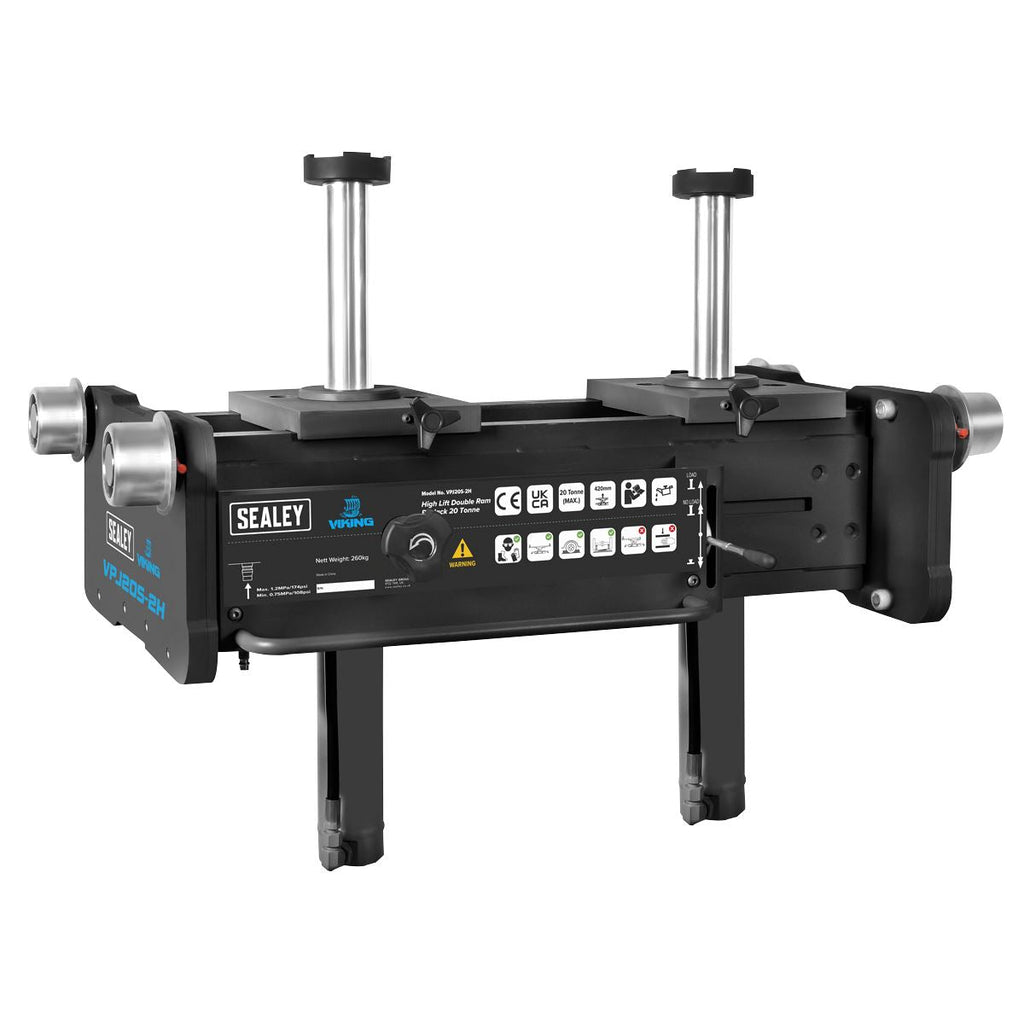

Sealey Viking Pit Jack 20 Tonne High Lift Double Ram

Sealey Viking Pit Jack 20 Tonne High Lift Double Ram

EASY GLIDE - Fitted with leaf spring support bearings for easy glide transversing the ram.

HIGH LIFT - Full 420mm lifting stroke for high axled vehicles.

INDEPENDENT RAM LIFT - Shut off valves allow twin or single ram lifts.

PNEUMATIC CONTROL - Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles.

QUICK LIFT - Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift.

SAFE DESCENT - Fitted with deadman controls and a limited descent control valve.

ADJUSTABLE FIT - Manufactured to suit pit widths between 680-960mm.

CONVENIENCE - Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.

3 YEAR GUARANTEE*.

Specification:

• Model No VPJ20S-2H
• Beam Lift: 420mm
• Brand: Viking
• Capacity: 20 Tonne
• Load Arm Reach: N/A
• Nett Weight: 260kg
• Optional Accessories: VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2HSS - Integrated Safety Stand.
• Support Arm Reach: N/A

Product Guarantee: 3 Years
Catalogue Page: Page 877

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
