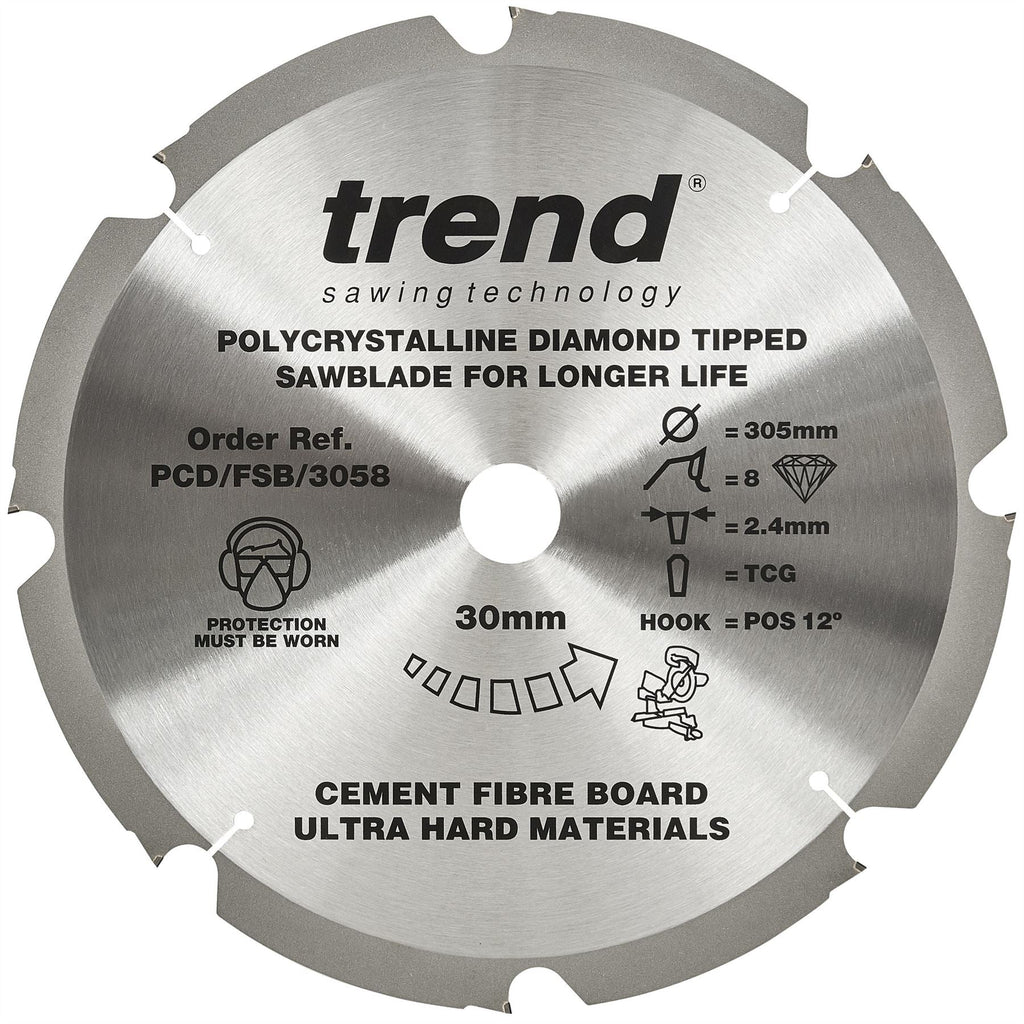

Trend Fibreboard Sawblade Pcd 305mm X 8T X 30mm PCD/FSB/3058

Trend Fibreboard Sawblade Pcd 305mm X 8T X 30mm PCD/FSB/3058

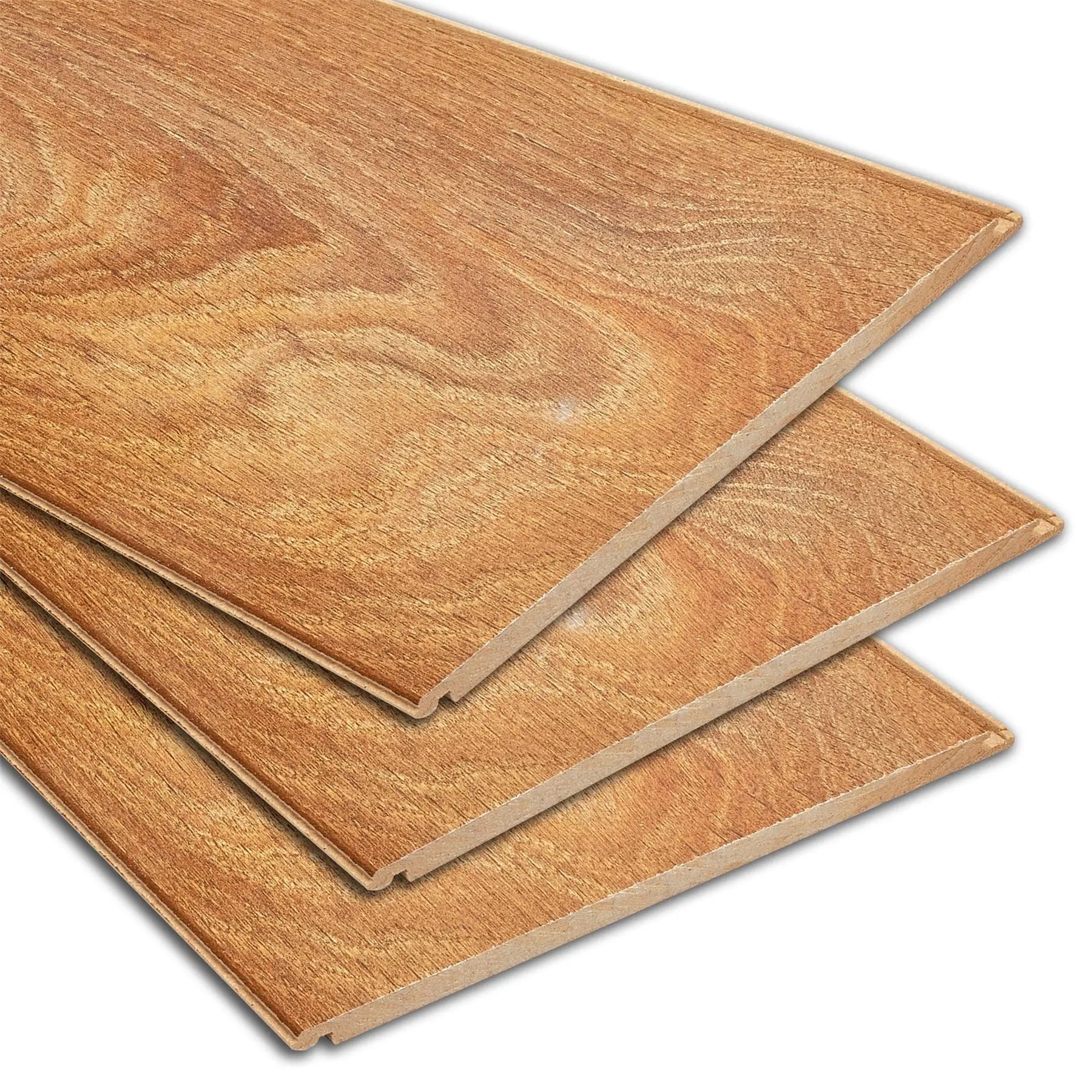

PCD sawblade for use on cement fibre board and tool-wearing material eg laminate, solid wood and ultra hard materials.

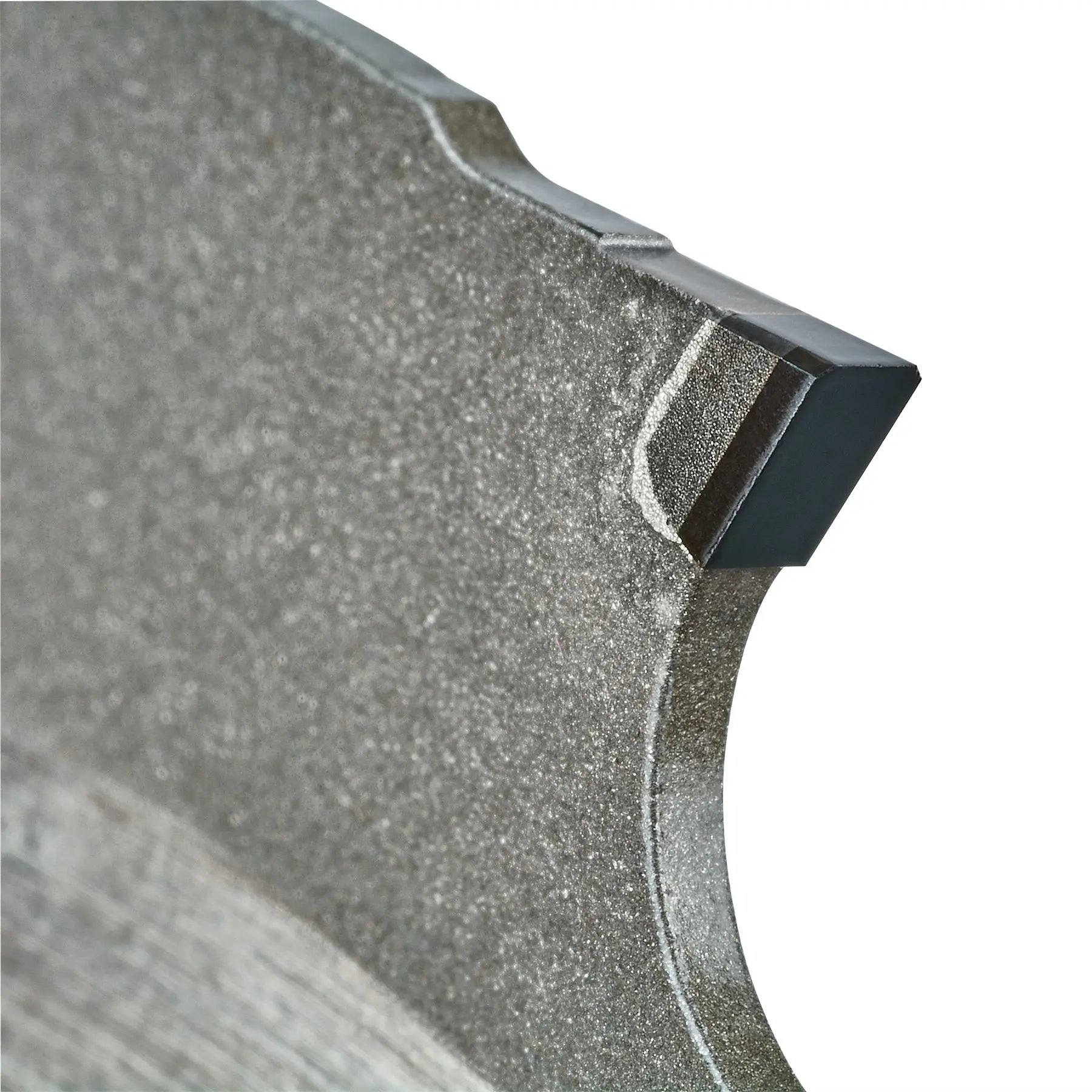

Precision EDM ground high-quality industrial polycrystalline diamond cutting tips.

Flat tooth with chamfer (Triple Chip Grind) tips for cleaner cut.

Laser cut hardened body.

Longer life, faster cleaner cuts with less dust.

Up to 60 times longer life when compared to TCT blades.

Ideal for Hardie-Board cladding, Aqua board, Minerit, Eternit and MDF.

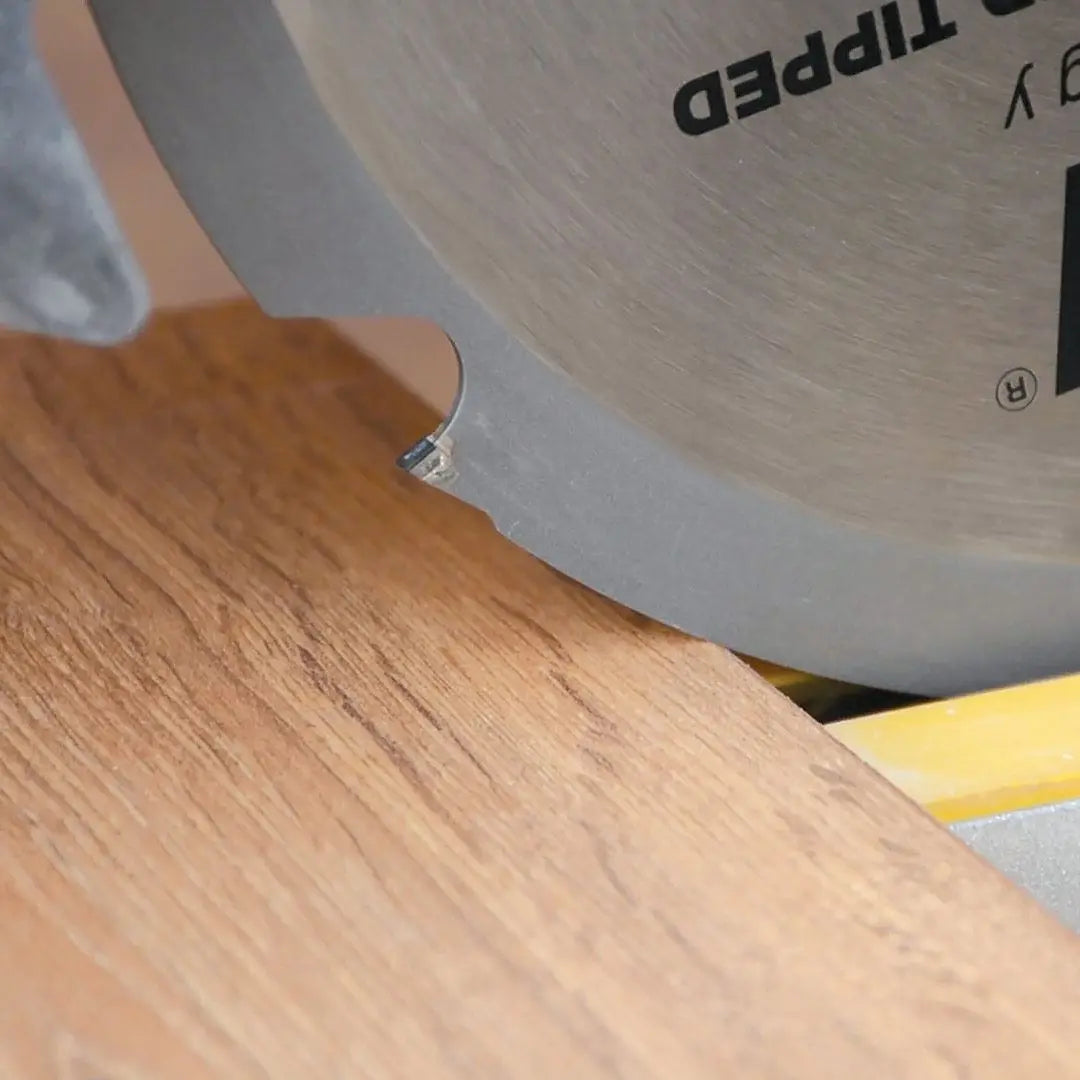

Portable, bench and mitre saw use.

Specification:

• D1=12 inches
• D1=305 mm
• Bore=30 mm
• Kerf=2.4 mm
• Plate thick=1.8 mm
• No. of Teeth=8
• Tooth form=TCG

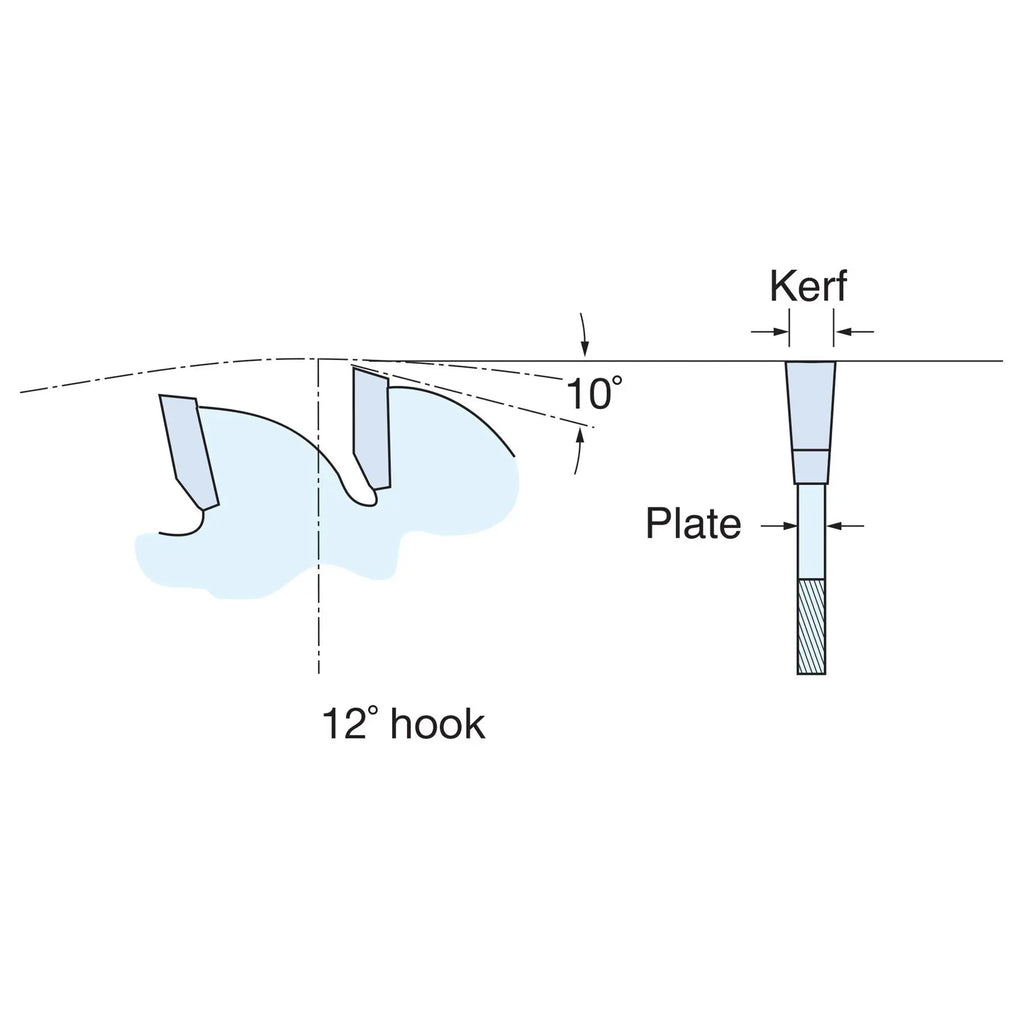

• Hook=12 degrees
• Quick Selector No.=C30.1
• Max rpm=4500
• It is recommended that the blade should not project more than 1mm out of bottom of substrate.
